Driver or Passenger Seat Inner Adjuster Rear Finish Cover Replacement. Cadillac CTS 2009

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2009 🢒 CTS 🢒 Seats 🢒 Seat Hardware, Trim, and Upholstery 🢒 Driver or Passenger Seat Inner Adjuster Rear Finish Cover Replacement

Driver or Passenger Seat Inner Adjuster Rear Finish Cover Replacement W2E

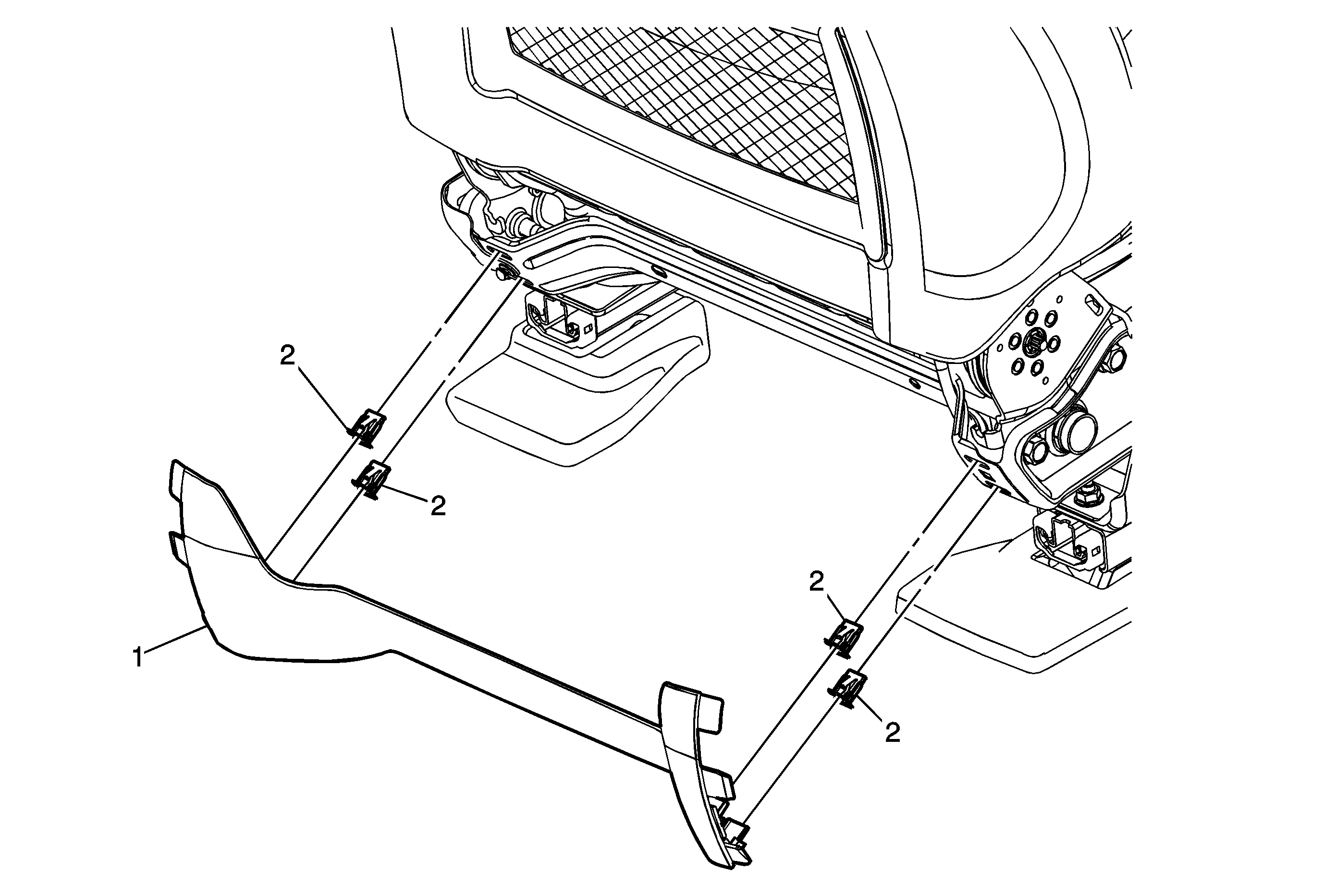

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket. Remove the front seat outer adjuster front finish cover. Refer to Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement. Remove the front seat adjuster switch bezel. Refer to Driver or Passenger Seat Adjuster Switch Bezel Replacement. Remove the front seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement.
1	Front Seat Inner Adjuster Rear Finish Cover Procedure Pull the cover rearward to disengage the retainer clips.
2	Front Seat Inner Adjuster Rear Finish Cover Retainers (Qty 4)

Callout

Component Name

Front Seat Inner Adjuster Rear Finish Cover

Pull the cover rearward to disengage the retainer clips.

Front Seat Inner Adjuster Rear Finish Cover Retainers (Qty 4)

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket.
1	Front Seat Outer Adjuster Front Finish Cover Refer to Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement.
2	Front Seat Adjuster Switch Bezel Refer to Driver or Passenger Seat Adjuster Switch Bezel Replacement.
3	Front Seat Inner Recliner Finish Cover Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement.
4	Front Seat Inner Adjuster Rear Finish Cover Procedure Pull the cover rearward to disengage the retainer clips.
