Driver Seat Bracket Replacement - Left Side. Cadillac CTS 2009

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2009 🢒 CTS 🢒 Seats 🢒 Seat Hardware, Trim, and Upholstery 🢒 Driver Seat Bracket Replacement - Left Side

Driver Seat Bracket Replacement - Left Side CTS-V

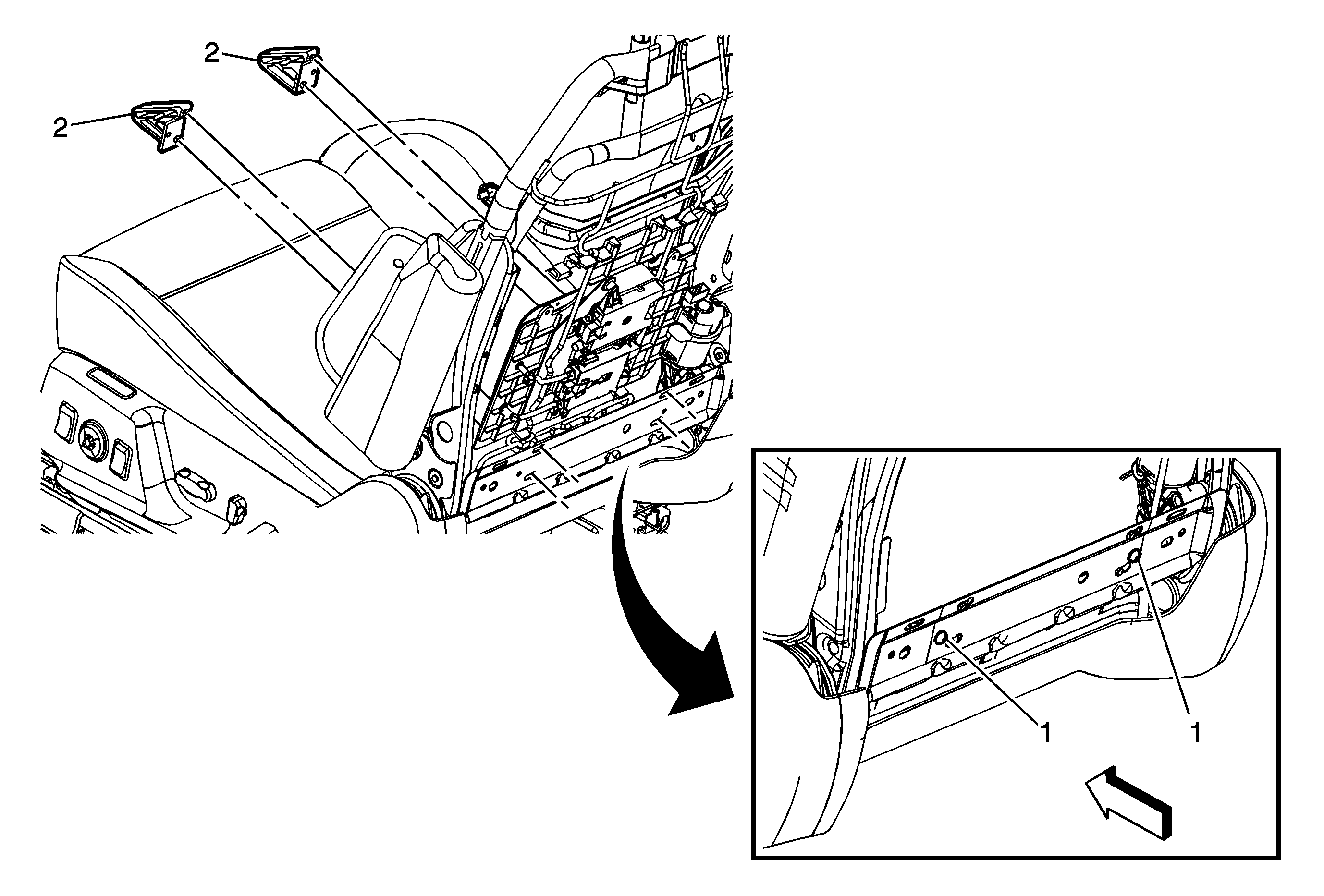

Callout	Component Name
Preliminary Procedure Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement.
1	Driver Seat Bracket Rivet (Qty: 2) Warning: Use the proper eye protection when drilling to prevent metal chips from causing physical injury. Procedure Drill out both guide rivets before removing.
2	Driver Seat Bracket Procedure The lumbar wires have to be inserted into the guides and then the guides slid into the lower crossmember. Release tension on the wires after the bracket guides locator tabs have been placed in the lower crossmember. Then the guides re-riveted at the bottom of the lower crossmember.

Callout

Component Name

Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement.

Driver Seat Bracket Rivet (Qty: 2)

Warning: Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

Drill out both guide rivets before removing.

Driver Seat Bracket

The lumbar wires have to be inserted into the guides and then the guides slid into the lower crossmember.
Release tension on the wires after the bracket guides locator tabs have been placed in the lower crossmember.
Then the guides re-riveted at the bottom of the lower crossmember.
