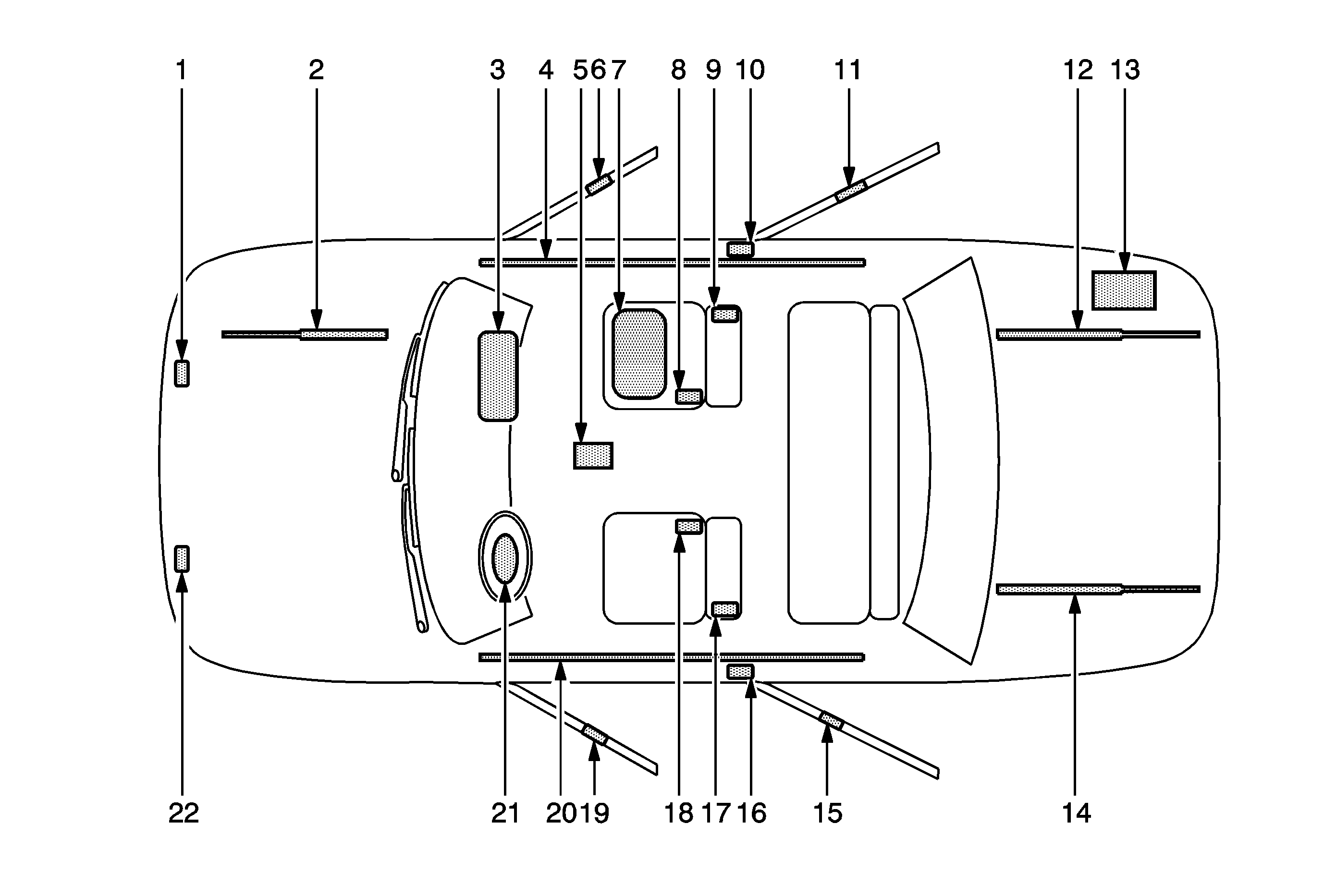

| (1) | Front End Sensor, Right-Located on the front of the vehicle in the engine compartment |
| (2) | Front Hood Assist Rod-A gas shock located under the front hood on the passenger side |
| (3) | I/P Air Bag-Located at the top right under the instrument panel |
| (4) | Right Roof Rail Air Bag-Located under the headliner, extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| (5) | Sensing and Diagnostic Module (SDM)-Located underneath the vehicle carpet under the center console |
| (6) | Side Impact Sensor (SIS), RF-Located inside front passenger door |
| (7) | Passenger Presence System-Located under the front passenger seat trim cover |
| (8) | Seat Position Sensor, Passenger-Located under seat, mounted to cross beam, inboard side |
| (9) | Side Impact Air Bag, RF-Located on the seat back of passenger seat |
| (10) | Seat Belt Retractor Pretensioner-Located on the outboard side of the front passenger seat |
| (11) | Side Impact Sensor (SIS), RR-Located inside rear passenger door |
| (12) | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side |
| (13) | Vehicle Battery-Located inside rear compartment on the passenger side behind the trim |
| (14) | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side |
| (15) | Side Impact Sensor (SIS), LR-Located inside rear passenger door |
| (16) | Seat Belt Retractor Pretensioner-Located on the outboard side of the driver seat |
| (17) | Side Impact Air Bag, LF-Located on the seat back of driver seat |
| (18) | Seat Position Sensor, Driver-Located under seat, mounted to cross beam, inboard side, if equipped |
| (19) | Side Impact Sensor (SIS), LF-Located inside driver door |
| (20) | Left Roof Rail Air Bag-Located under the headliner, extending from the driver front windshield pillar to the driver rear windshield pillar |
| (21) | Steering Wheel Air Bag-Located on the steering wheel |
| (22) | Front End Sensor, Left-Located on the front of the vehicle in the engine compartment |
