Body Side Window Reveal Molding Replacement. Cadillac CTS 2010

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2010 🢒 CTS 🢒 Body Hardware and Trim 🢒 Exterior Trim 🢒 Body Side Window Reveal Molding Replacement

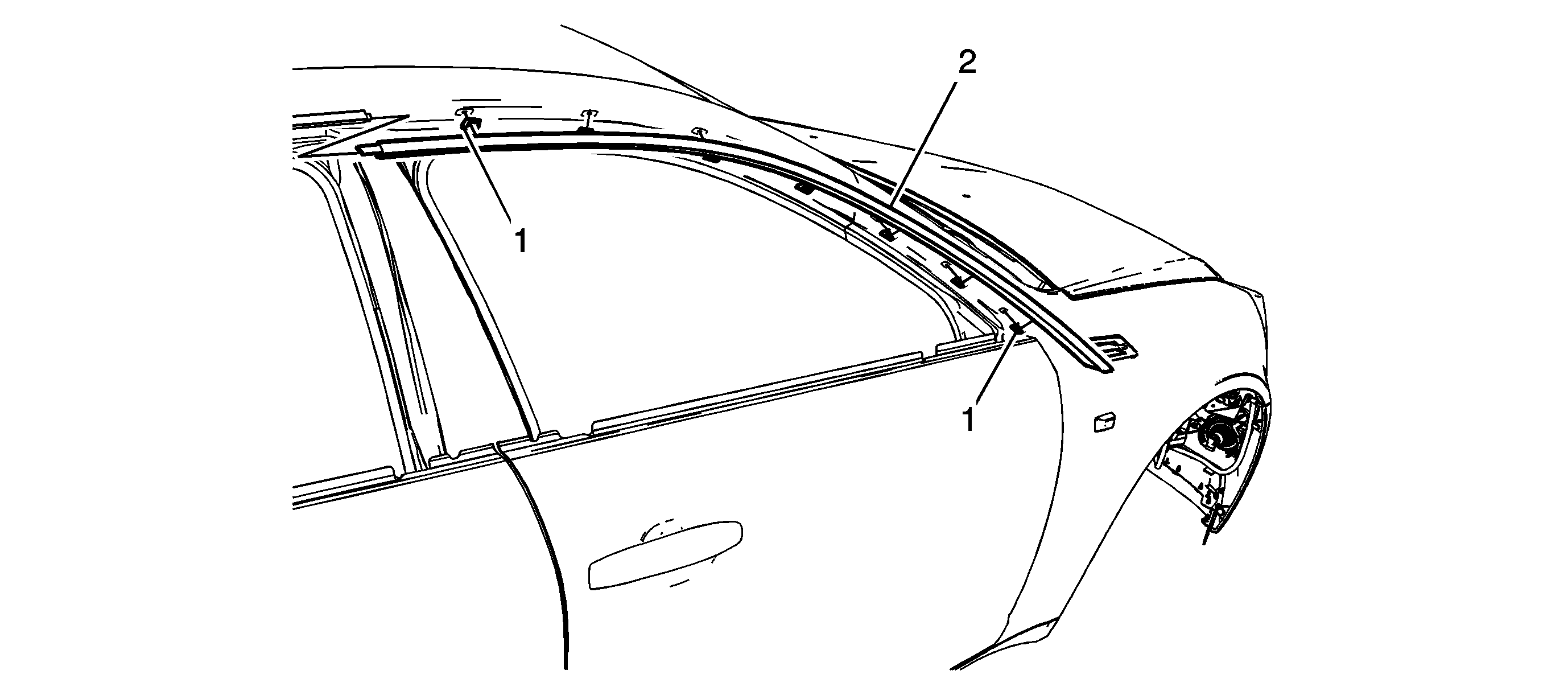

Callout	Component Name
Preliminary Procedure Open the front door on the side the front body side window reveal molding will be serviced.
1	Front Body Side Window Reveal Molding Retainer (Qty: 7) Procedure Grasp the molding at the forward edge and use a suitable retainer tool under each retainer in order to release the molding from the windshield pillar. At the rear edge of the front body side reveal molding, release the front molding tab from the center pillar molding assembly. Pull the molding assembly forward in order to release.
2	Front Body Side Window Reveal Molding

Callout

Component Name

Open the front door on the side the front body side window reveal molding will be serviced.

Front Body Side Window Reveal Molding Retainer (Qty: 7)

Grasp the molding at the forward edge and use a suitable retainer tool under each retainer in order to release the molding from the windshield pillar.
At the rear edge of the front body side reveal molding, release the front molding tab from the center pillar molding assembly.
Pull the molding assembly forward in order to release.

Front Body Side Window Reveal Molding
