Engine Controls Schematics. Cadillac Catera 1998

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1998 🢒 Catera 🢒 Engine 🢒 Engine Controls - 3.0L 🢒 Engine Controls Schematics

Figure 1:	Cell 20 -- Power, Ground, MIL and DLC Engine Controls Components Serial Data Communications Cell 20: Ignition System Power Distribution Schematics Power Distribution Schematics Theft Deterrent System Schematics Data Link Connector Schematics
Figure 2:	Cell 20: Ignition System Engine Controls Components Electronic Ignition (EI) System Description Cell 20: Fuel Controls Cell 20 - Power, Ground, MIL and DLC Power Distribution Schematics
Figure 3:	Cell 20: Fuel Controls Engine Controls Components Fuel Supply Component Description Cell 20: Fuel Injectors Cell 20: Ignition System Power Distribution Schematics Instrument Cluster: Analog Schematics Ground Distribution Schematics
Figure 4:	Cell 20: Fuel Injectors Engine Controls Components Fuel Metering System Description Cell 20: Engine Data Sensors - TP, ECT, IAT and Fuel Tank Cell 20: Fuel Controls
Figure 5:	Cell 20: Engine Data Sensors - TP, ECT, IAT and Fuel Tank Engine Controls Components Information Sensors Cell 20: Heated Oxygen Sensors Cell 20: Fuel Injectors
Figure 6:	Cell 20: Heated Oxygen Sensors Engine Controls Components Fuel Supply Component Description Cell 20: EVAP, Air Injection and Intake Resonance Controls Cell 20: Engine Data Sensors - TP, ECT, IAT and Fuel Tank
Figure 7:	Cell 20: EVAP, Air Injection and Intake Resonance Controls Engine Controls Components Evaporative Emission Control System Operation Description Cell 20: Knock Sensors Banks 1 & 2 and IAC, MAF Sensors Cell 20: Heated Oxygen Sensors
Figure 8:	Cell 20: Knock Sensors Banks 1 & 2 and IAC,MAF Sensors Engine Controls Components Information Sensors Cell 20: A/C Controls Cell 20: EVAP, Air Injection and Intake Resonance Controls Ground Distribution Schematics

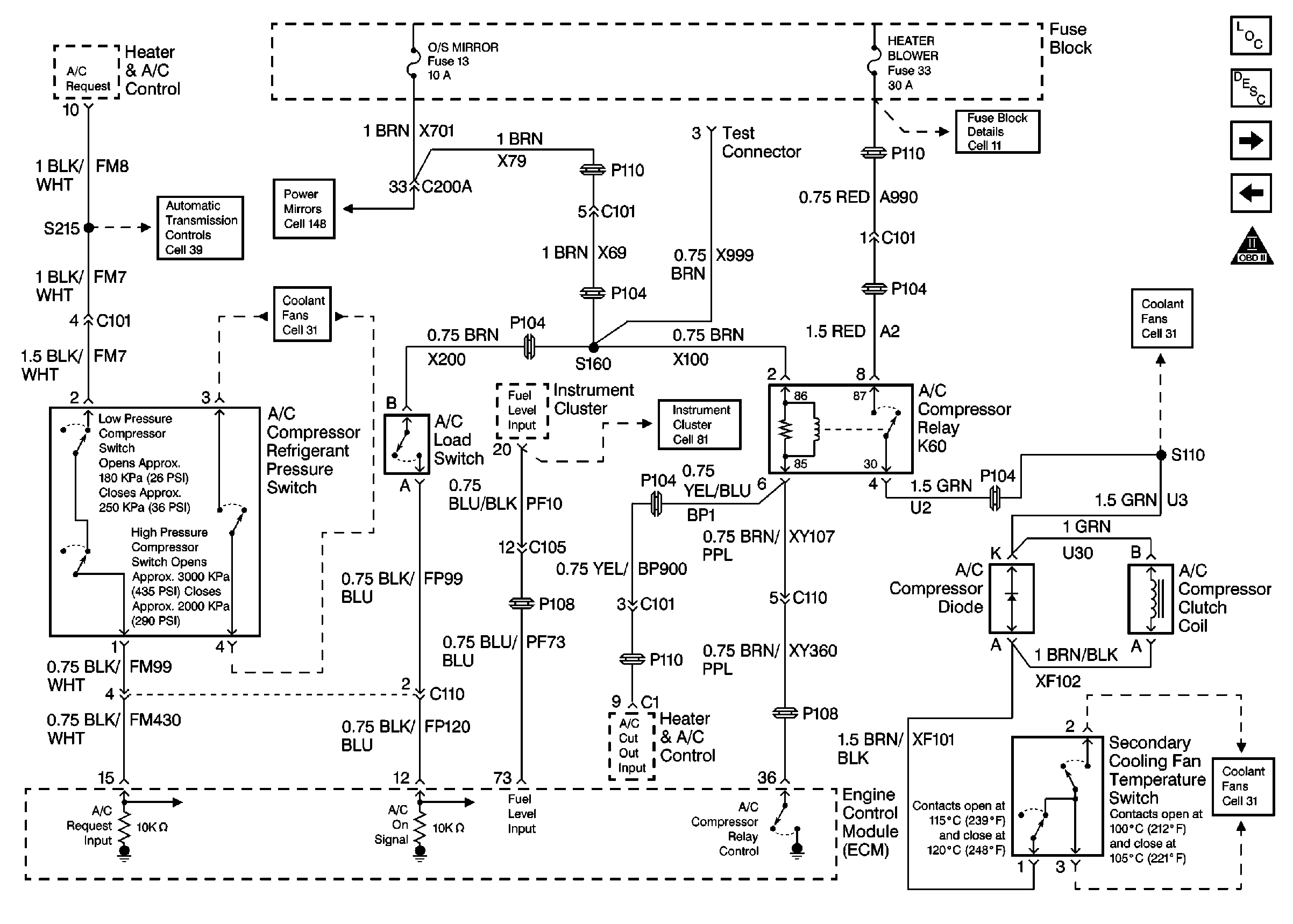

Figure 9:	Cell 20: A/C Controls Engine Controls Components Air Conditioning (A/C) Clutch Circuit Description Transmission Control Module Cell 20: Knock Sensors Banks 1 & 2 and IAC, MAF Sensors Automatic Transmission Controls Schematics Outside Rearview Mirror Schematics Cooling Fan Schematics Instrument Cluster: Analog Schematics Fuse Block Schematics Schematics Cooling Fan Schematics Cooling Fan Schematics

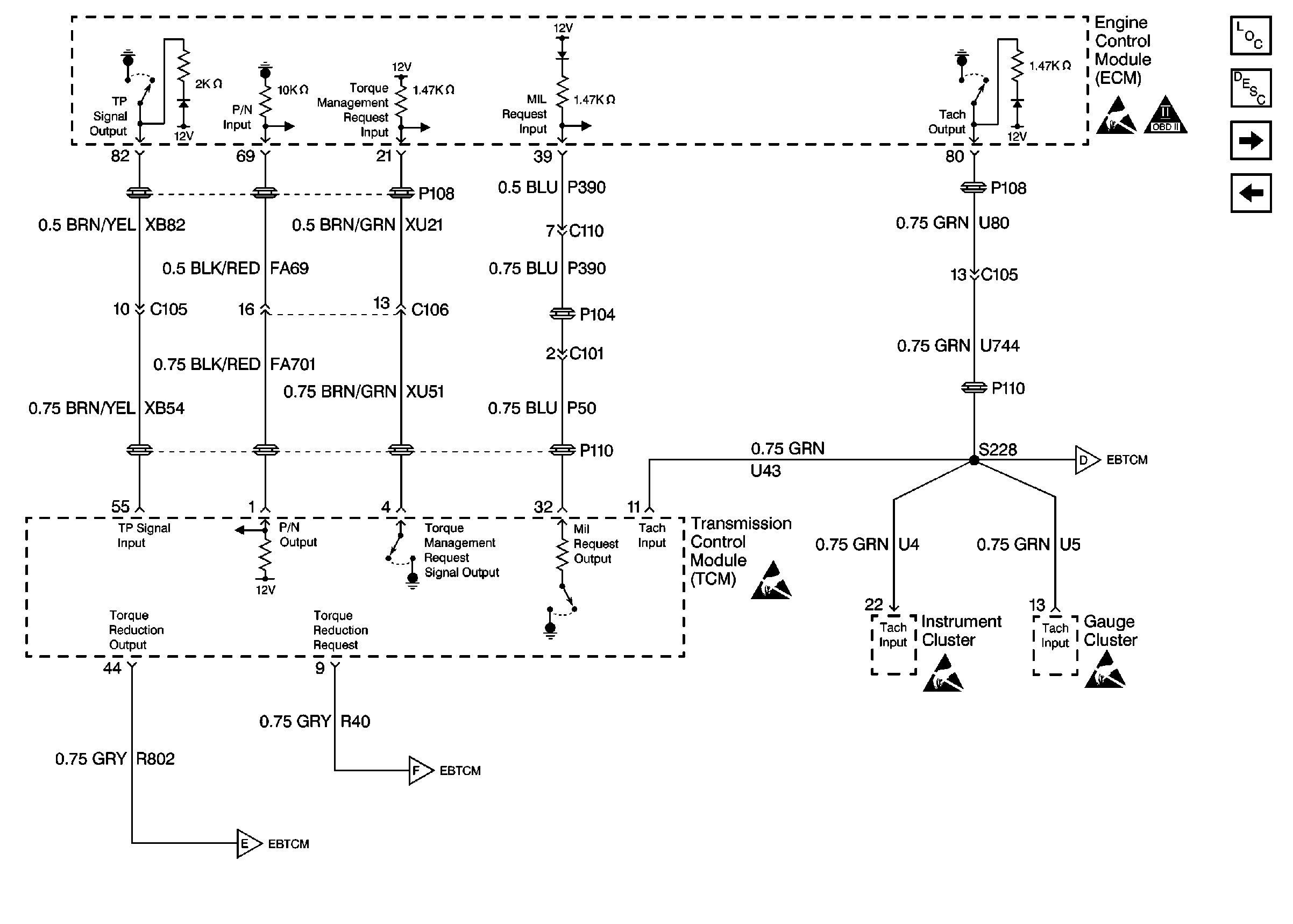

Figure 10:	Transmission Control Module Engine Controls Components Electronic Component Description Cell 20: EBTCM and Theft Deterrent Module Cell 20: A/C Controls
Figure 11:	Cell 20: EBTCM and Theft Deterrent Module Engine Controls Components ABS/TCS System Operation Transmission Control Module
