Makes 🢒 Cadillac 🢒 2000 🢒 Catera 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Tail Lamp Bulb Replacement

Removal Procedure
  1. Open the rear compartment.

    2. Object Number: 724084 Size: SH
  2. Remove the access cover if replacing the right bulb, or spare tire cover if replacing the left bulb.

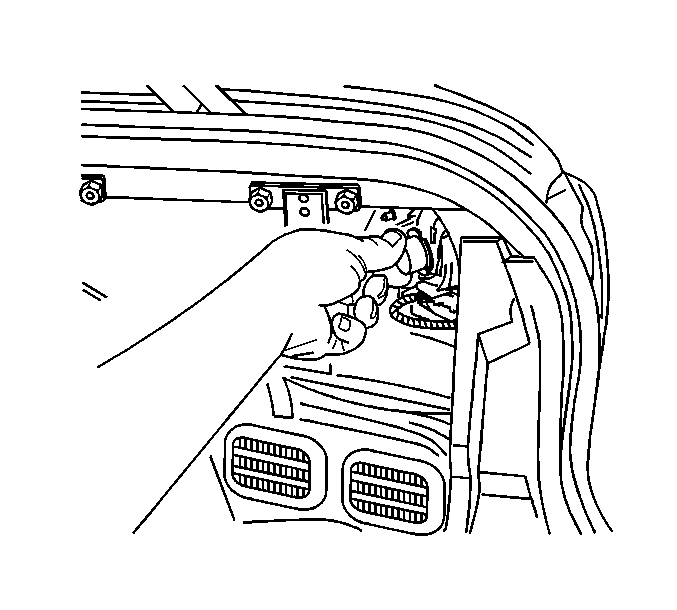

    3. Object Number: 724091 Size: SH
  3. Remove the tail lamp socket from the tail lamp, turning counterclockwise.

    4. Object Number: 724093 Size: SH
  4. Remove the bulb from socket.

Installation Procedure

    Object Number: 724093 Size: SH
  1. Install the bulb to the socket.

    2. Object Number: 724091 Size: SH
  2. Install the tail lamp socket to the tail lamp, turning clockwise.

    3. Object Number: 724084 Size: SH
  3. Install the access cover if replacing the right bulb, or spare tire cover if replacing the left bulb.
  4. Close the rear compartment.
