Caution: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.

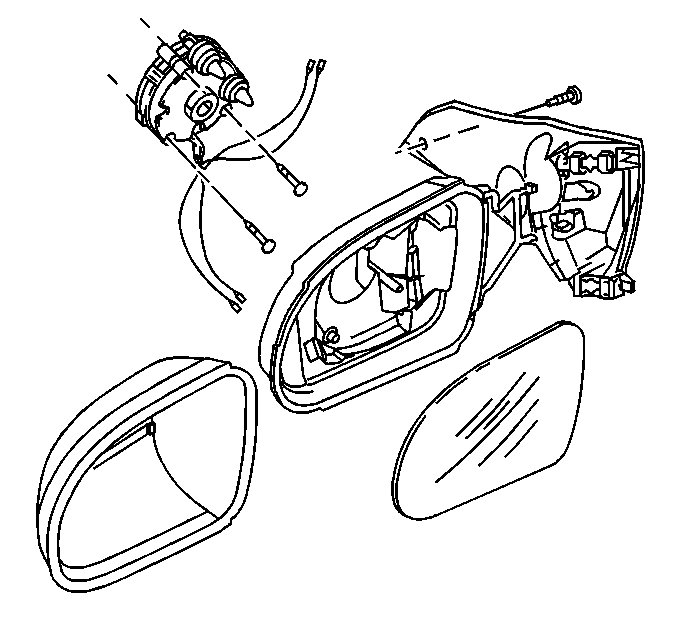

1. Remove the outside rearview mirror lens:

•	Tilt the lens inward while pulling out.

•	Disengage the adjuster arms from the motor.

2. Disconnect the mirror electrical connectors.

1. Connect the mirror electrical connectors.
2. Install the mirror lens:

•	Engage the adjuster arms to the motor).

•	Align the mirror lens inboard while pulling the adjuster arms into place.
