Makes 🢒 Cadillac 🢒 2000 🢒 Catera 🢒 Body and Accessories 🢒 Doors 🢒 Rear Side Door Inside Handle Rod Replacement

Removal Procedure
  1. Remove door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .

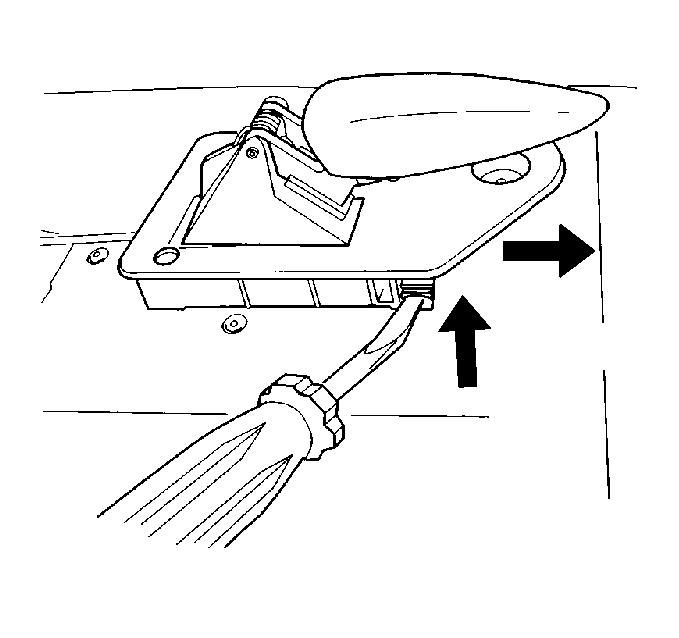

    3. Object Number: 243409 Size: SH
  3. Remove the remote control handle:
    4. 3.1. Slide the handle forward.
    3.2. Pry up on the tab in order to disengage from the inner door.

    Object Number: 243412 Size: SH
  4. Remove the lock rod:
    5. 4.1. Unclip the rod from the guides.
    4.2. Unclip the guide from the lock.
    4.3. Remove the rod.

Installation Procedure

    Object Number: 243412 Size: SH
  1. Install the lock rod:
    2. 1.1. Clip the rod on the lock.
    1.2. Clip the rod on the guides.

    Object Number: 243409 Size: SH
  2. Slide the remote control handle rearward in order to lock into place.
  3. Install the water deflector. Refer to Rear Side Door Water Deflector Replacement .
  4. Install the door trim panel. Refer to Rear Side Door Trim Panel Replacement .
