Removal Procedure
  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
  2. Remove the rear seat back cushion. Refer to Rear Seat Back Replacement .
  3. Remove the rear seat back release latch. Refer to Rear Seat Back Release Latch Replacement .
  4. Remove rear seat back heating element wiring from seat back pad, if equipped.

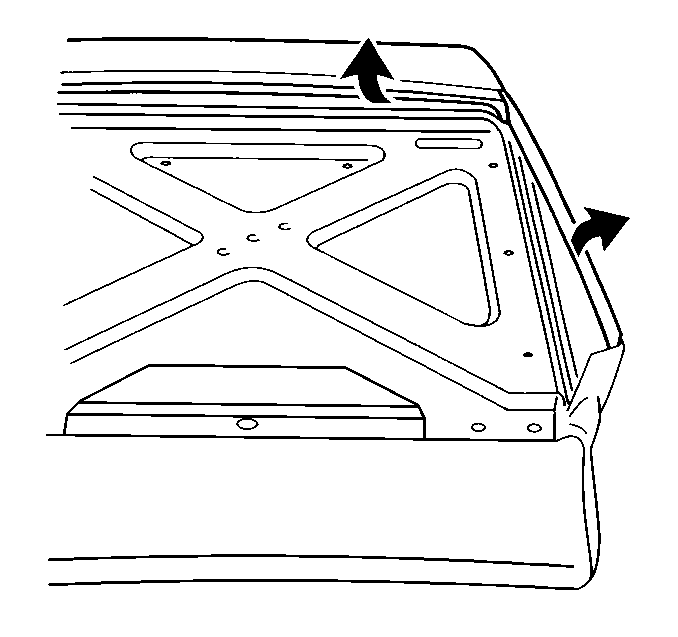

    5. Object Number: 246380 Size: SH
  5. Remove the rear seat back cushion cover.
    6. 5.1. The rear seat back cushion cover unhooks from around the frame.
    5.2. Remove the retainer rings from the center of rear seat back cushion cover.

Installation Procedure
  1. Install rear seat back heating element wiring to seat back pad, if equipped.

    2. Object Number: 246380 Size: SH
  2. Install the rear seat back cushion cover.
    3. 2.1. Install retaining rings to the center of the rear seat back cushion cover.
    2.2. Install rear seat back cushion cover around the frame.
  3. Install the rear seat back release latch. Refer to Rear Seat Back Release Latch Replacement .
  4. Install the rear seat back cushion. Refer to Rear Seat Back Replacement .
  5. Install the rear seat cushion. Refer to Rear Seat Cushion Replacement .
