Entertainment Component Views. Cadillac Catera 2001

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2001 🢒 Catera 🢒 Body and Accessories 🢒 Entertainment 🢒 Entertainment Component Views

Figure 1:

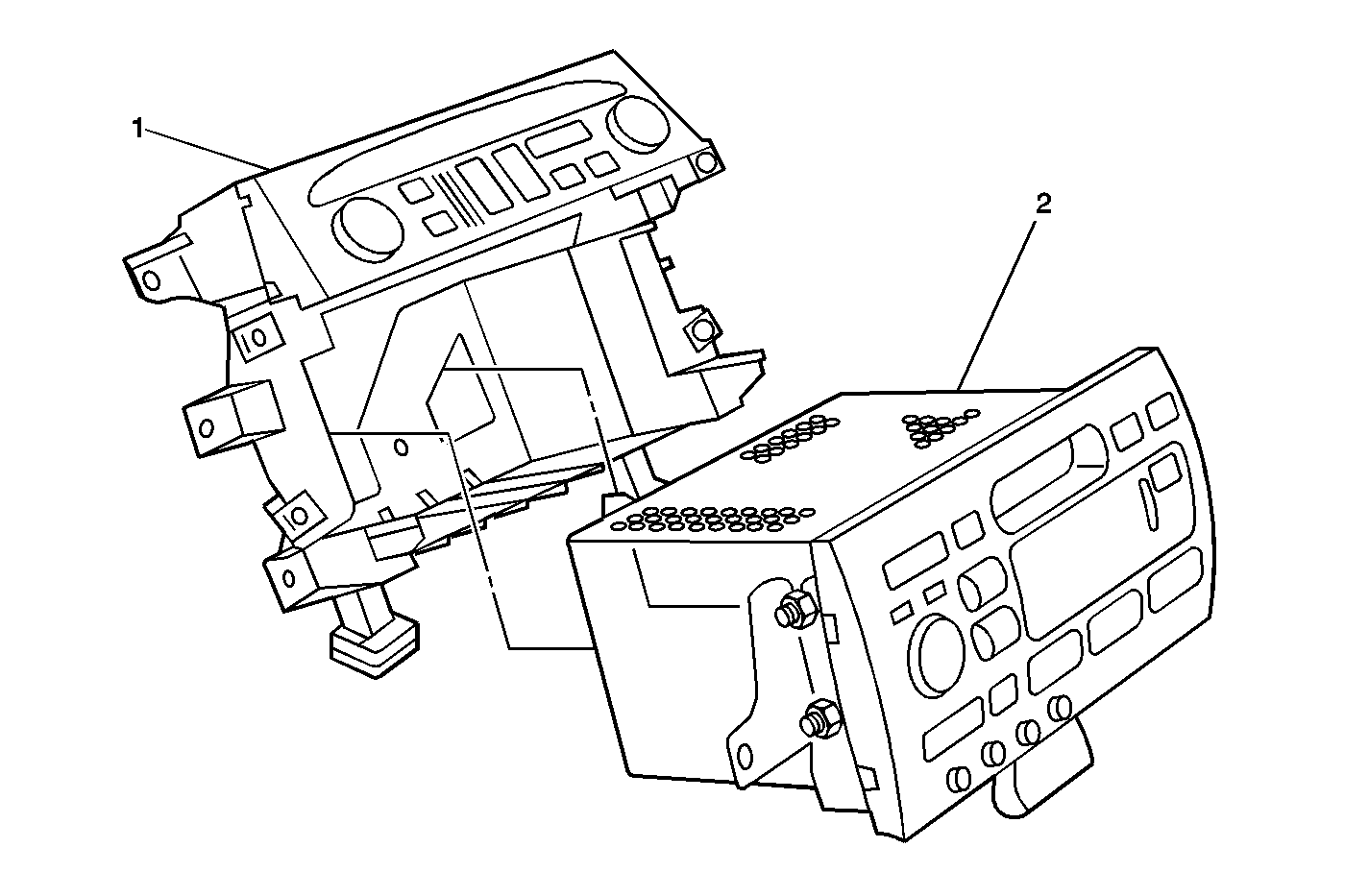

(1)	HVAC Module
(2)	Radio

Figure 2:

Figure 3:

Figure 4:

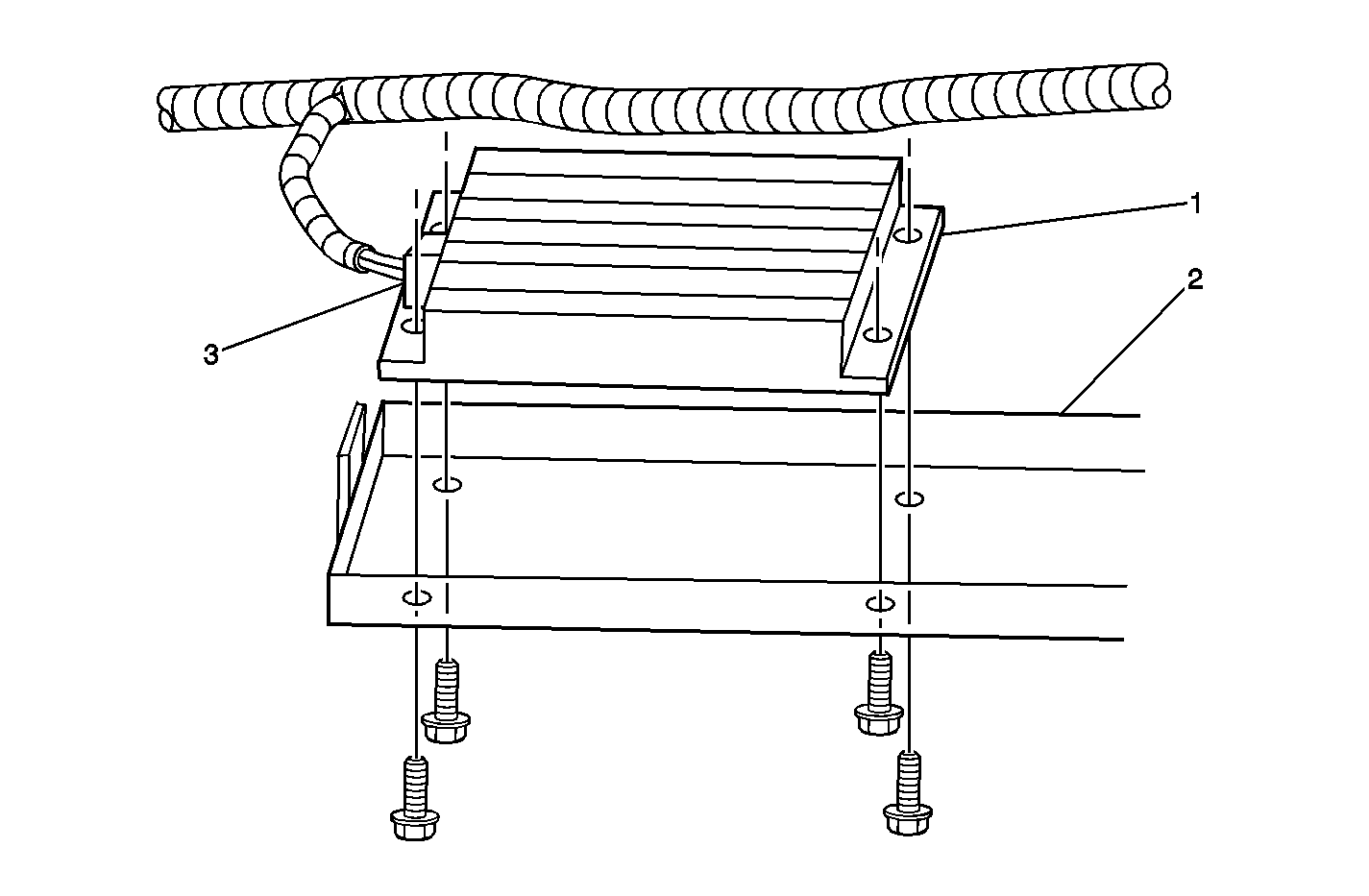

(1)	Radio Speaker Amplifier
(2)	Package Shelf Tray
(3)	Radio Speaker Amplifier Connector

Figure 5:

Figure 6:


(1)	Radio Front Side Door Speaker, LH

Figure 7:

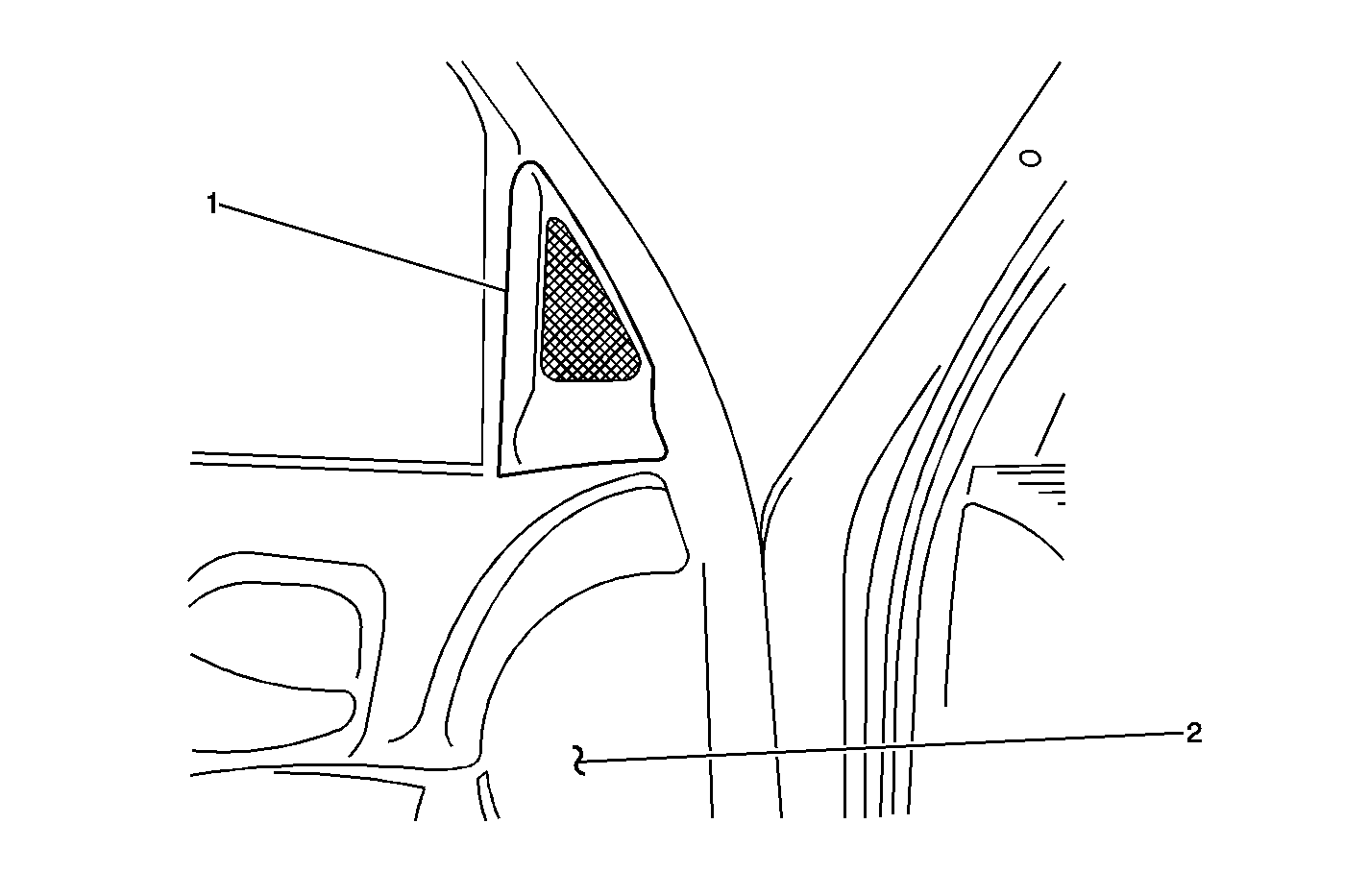

(1)	Radio Front Side Door Speaker, LH (Tweeter)
(2)	Door Panel

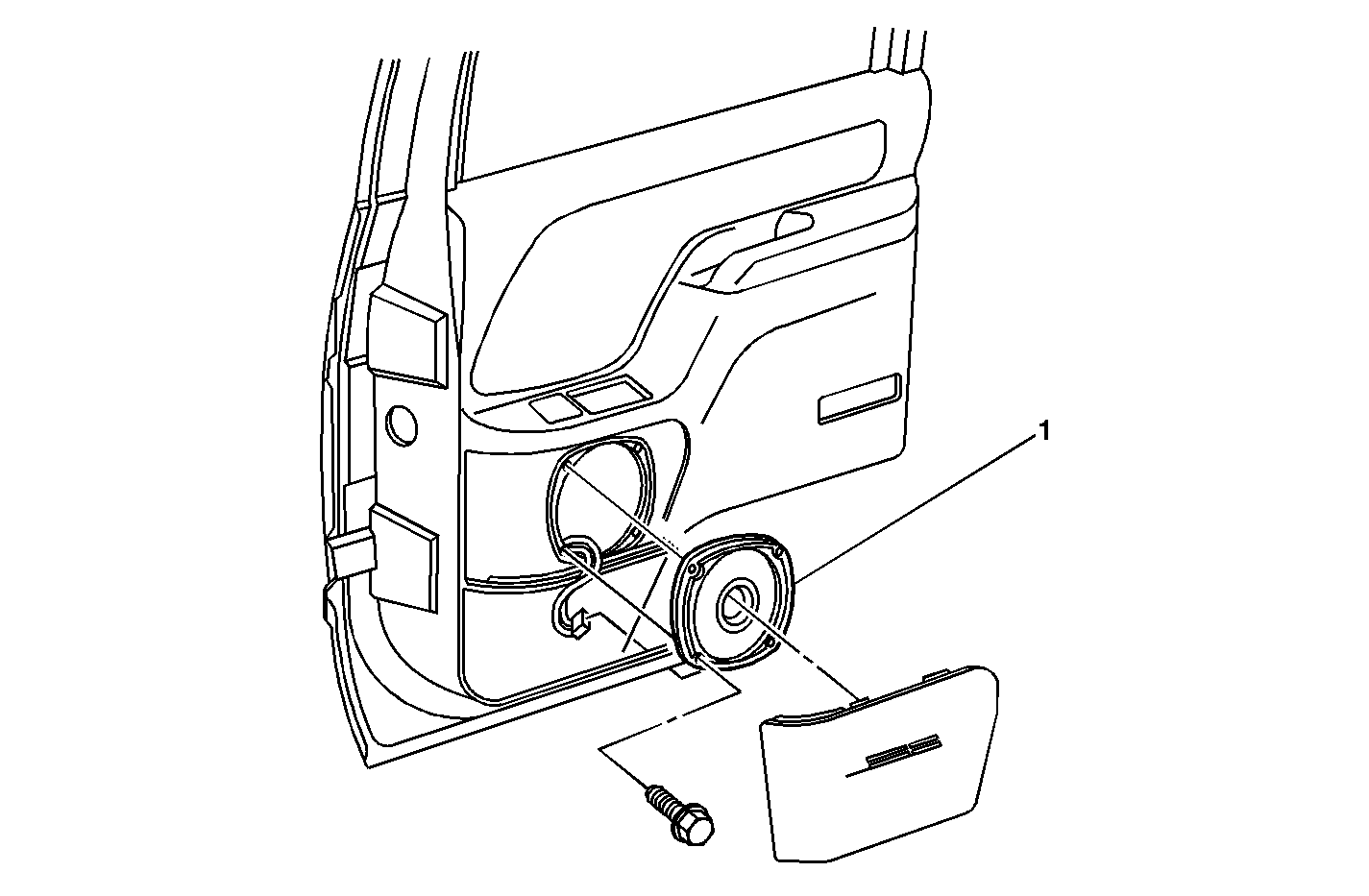

Figure 8:

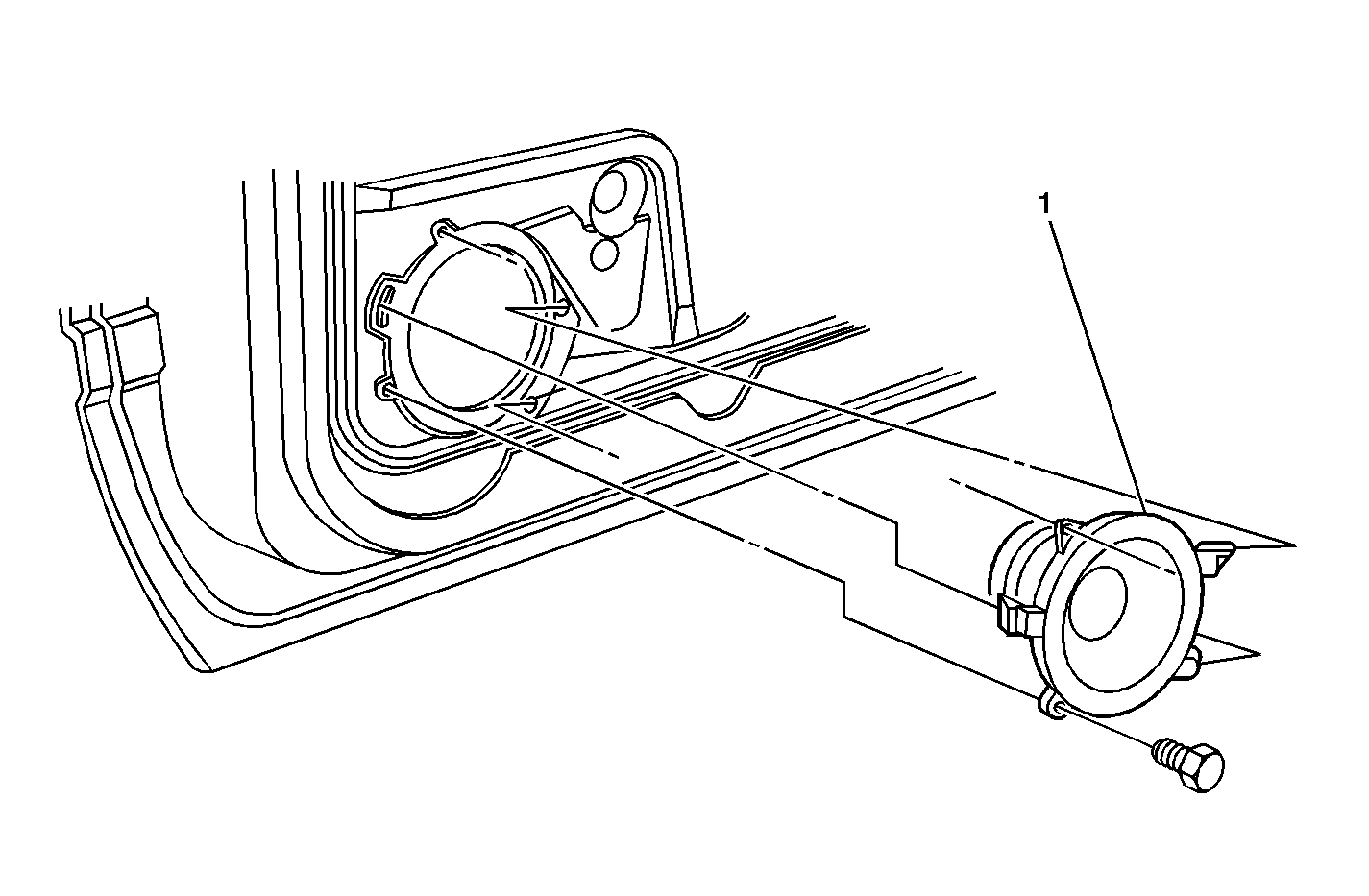

(1)	Radio Rear Side Door Speaker, LH

Figure 9:

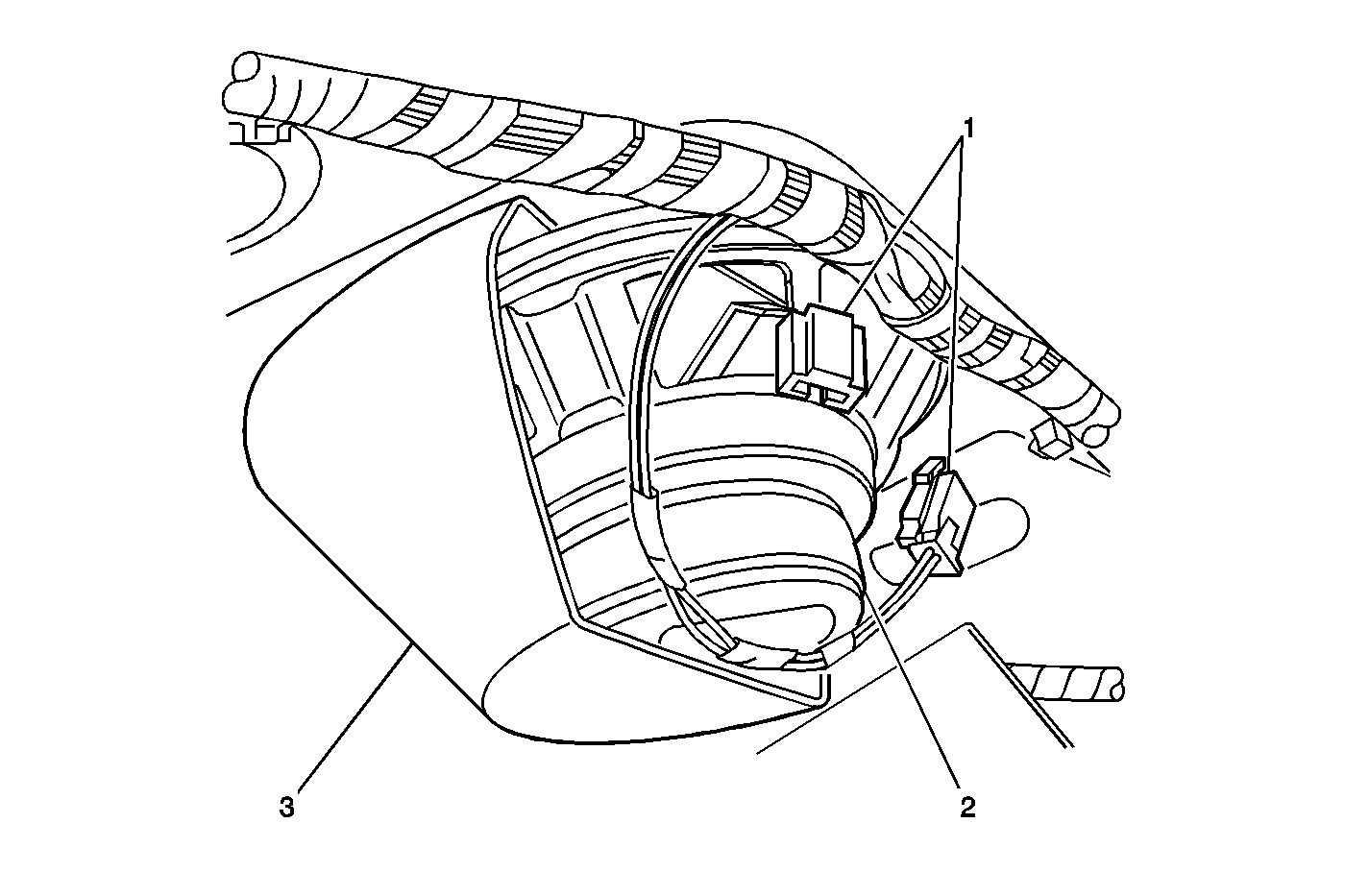

(1)	Speaker Connector
(2)	Radio Rear Shelf Speaker, LH (Subwoofer), RH Similar
(3)	Cover
