Makes 🢒 Cadillac 🢒 2001 🢒 Catera 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Harness Routing Views
Figure 1:

Top of Engine, Under Plenum
Object Number: 657867 Size: LF
(1)Fuel Rail
(2)Sequential Multiport Fuel Injector 1
(3)Sequential Multiport Fuel Injector 3
(4)Sequential Multiport Fuel Injector 5
(5)Fuel Pressure Service Port
(6)C112
(7)Fuel Pressure Regulator -- Atmospheric Vent Port
(8)Fuel Pressure Regulator
(9)Sequential Multiport Fuel Injector 6
(10)Sequential Multiport Fuel Injector 4
(11)Sequential Multiport Fuel Injector 2
Figure 2:

Left Side of Transmission
Object Number: 189260 Size: LF
(1)Engine Control Module (ECM) Harness
(2)Vehicle Speed Sensor (VSS)
(3)Connector to Heated Oxygen Sensor (HO2S) Bank 1, Sensor 2
(4)Connector to Heated Oxygen Sensor (HO2S) Bank 2, Sensor 2
(5)A/T Main Case Connector
(6)A/T Range Switch
(7)A/T Adapter Case
(8)Harness to Heated Oxygen Sensor (HO2S) Bank 1, Sensor 1
(9)Connector to Heated Oxygen Sensor (HO2S) Bank 1, Sensor 1
Figure 3:

Engine Compartment
Object Number: 241222 Size: LF
(1)Windshield Wiper Motor
(2)Brake Fluid Level Switch
(3)C105
(4)C106
(5)C102
(6)G103
Figure 4:

Lower Left A-Pillar and Lower Left Front of Engine
Object Number: 241220 Size: LF
(1)C500
(2)P103
(3)G200
(4)Telephone Antenna Connector
(5)Negative Battery Cable
(6)G100
(7)C200

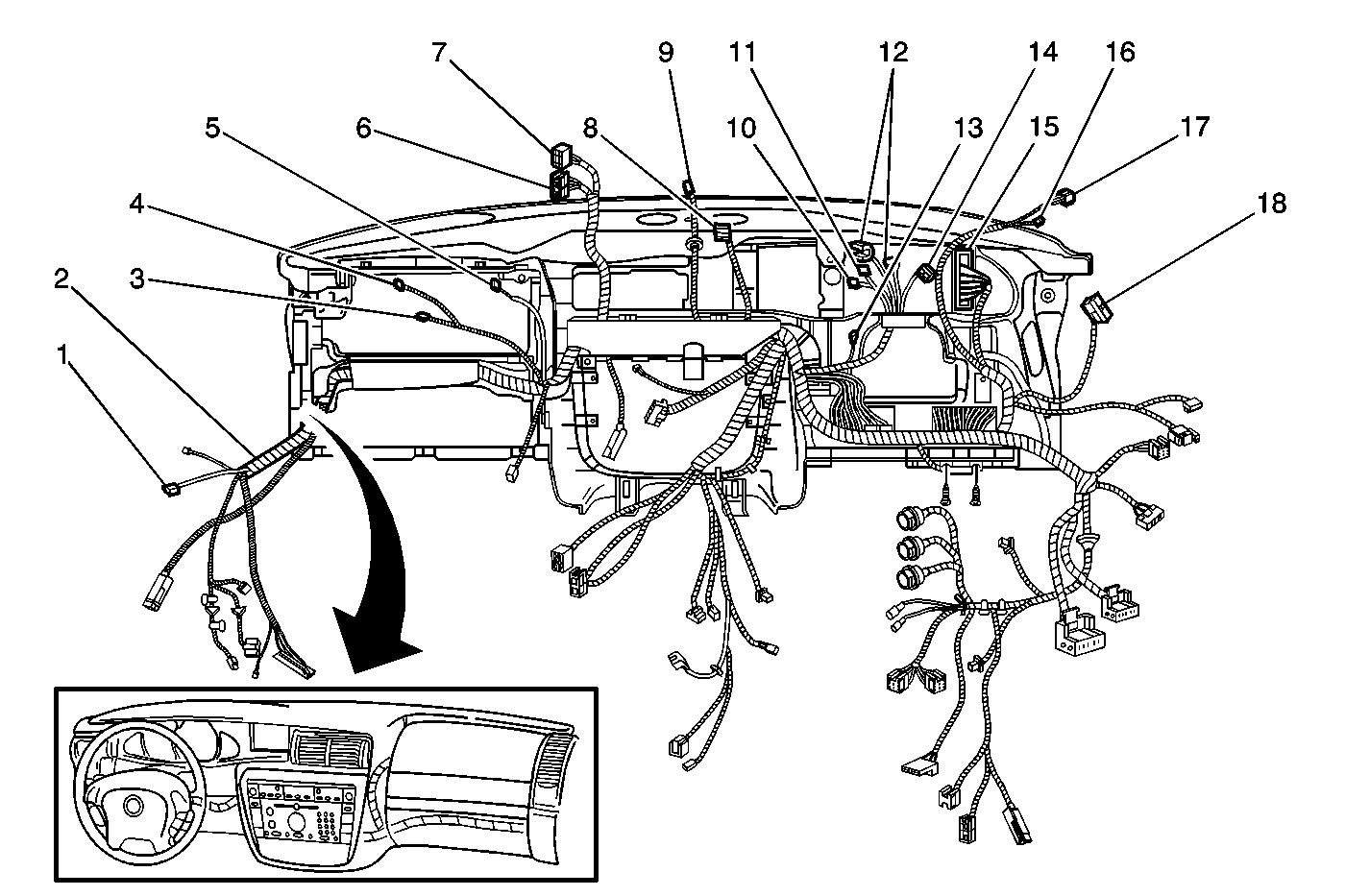

Figure 5:

I/P Harness Routing
Object Number: 704374 Size: MF
(1)Cellular Phone Connector
(2)Wiring Harness Passenger Side
(3)Glove Compartment Lamp Switch Connector
(4)Glove Compartment Lamp
(5)Inflatable Restraint IP Module Connector
(6)Heated Seat Switch -- Front Passenger Connector
(7)Electronic Traction Control Switch -- Connector
(8)Instrument Panel Cluster (IPC) -- Connector
(9)Ambient Light/Sunload Sensor -- Connector
(10)Theft Deterrent Module Connector
(11)Inflatable Restraint Steering Wheel module Coil Connector
(12)Windshield Wiper and Windshield Washer Switch Connector
(13)G201
(14)Ignition Switch -- Connector
(15)Instrument Panel Cluster (IPC) Connector
(16)Cruise Control Switch Connector
(17)Turn Signal Switch Connector
(18)Headlamp Switch Connector
Figure 6:

Right Kickpanel
Object Number: 241588 Size: LF
(1)Central Locking Relay K135
(2)Lower Right A-Pillar
(3)Body Wiring Harness
(4)Wiring Harness
(5)Body Control Module (BCM)
(6)Body Wiring Harness
(7)C210
Figure 7:

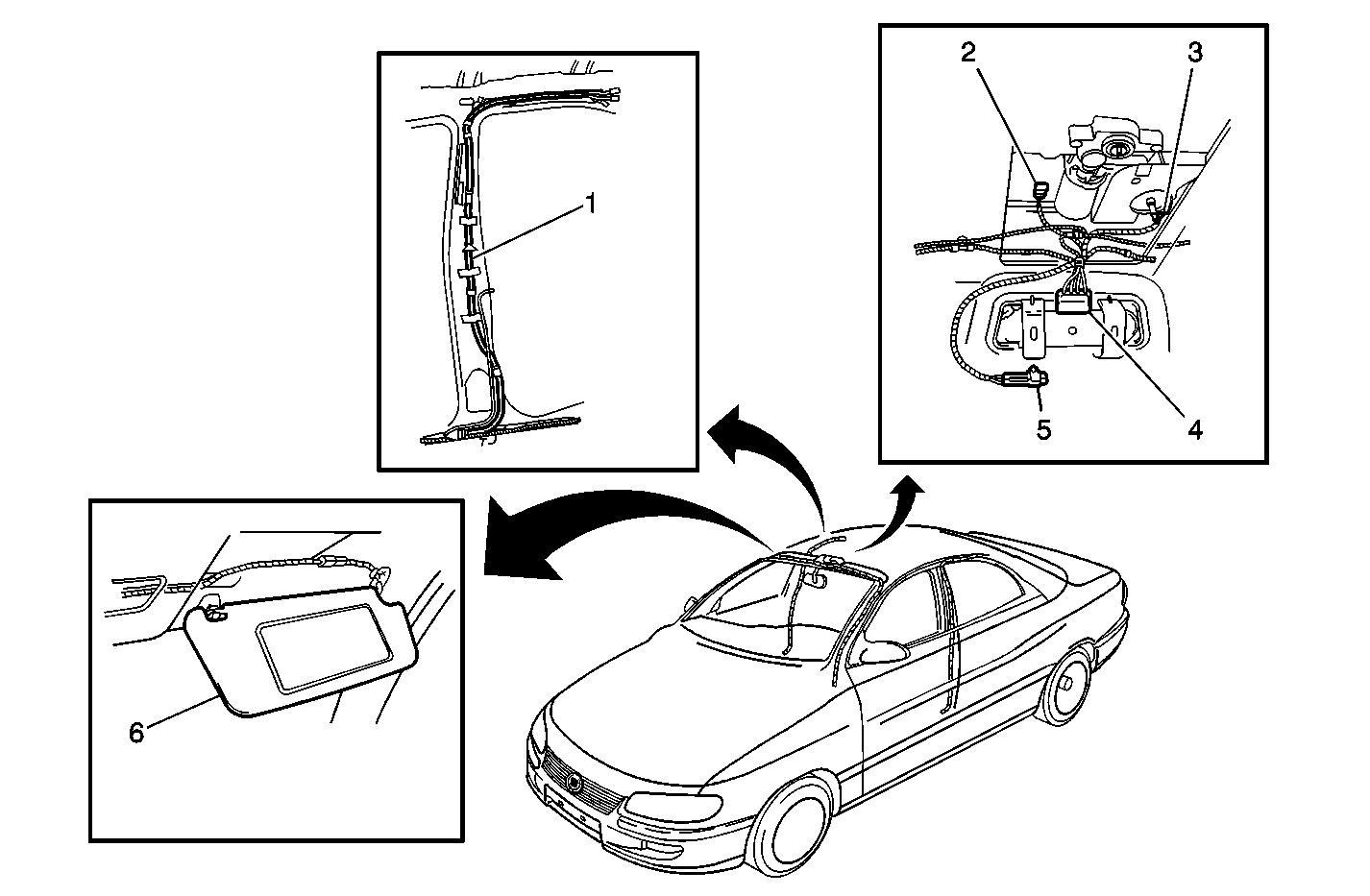

Roof Harness Routing
Object Number: 712177 Size: MF
(1)Roof Harness
(2)Infrared-Receiver Connector
(3)Sunroof Actuator
(4)Dome and Reading Lamps
(5)Microphone, (Cellular Phone)
(6)Sunshade
Figure 8:

Driver Door, Front Passenger Similar
Object Number: 241671 Size: LF
(1)Door Switch -- Driver
(2)Radio Front Side Door Speaker, LH (Tweeter)
(3)Door Switch -- Driver Connector
(4)Outside Rearview Mirror -- Driver Connector
(5)C500, C600 Similar
(6)Radio Front Side Door Speaker, LH
(7)Window Motor -- Driver
(8)Courtesy Lamp -- Driver
(9)Door Lock Actuator -- Driver
Figure 9:

Bottom Of Driver Seat
Object Number: 241643 Size: LF
(1)C315
(2)C315B
(3)C315C
(4)C310 (AG8)
(5)C315D
Figure 10:

Bottom of Passenger Seat
Object Number: 241652 Size: LF
(1)C316D
(2)C316C
(3)C316
Figure 11:

Left Rear Door, Right Rear Similar
Object Number: 241681 Size: LF
(1)Window Motor -- LR
(2)P700, P800 Similar
(3)C303, C304 Similar
(4)Radio Rear Side Door Speaker, LH (Tweeter)
(5)Radio Rear Side Door Speaker, LH
(6)Door Courtesy Lamp -- LR
(7)Door Lock Actuator -- LR
(8)Window Switch -- LR Connector
Figure 12:

Heated Rear Seats Subsystem
Object Number: 241687 Size: LF
(1)Heated Seat Back Cushion Elements, LR and RR
(2)Heated Seat Back Cushion Elements, LR and RR, Connectors
(3)Heated Seat Cushion Elements
(4)C320
(5)Heated Seat Relays, LR and RR
(6)Heated Seat Switches, LR and RR
(7)Body Wiring Harness
(8)Heated Seat Cushion Element Connector
