Ground Distribution Schematics. Cadillac DTS 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 DTS 🢒 Engine 🢒 Engine Electrical 🢒 Ground Distribution Schematics

Figure 1:	G101, G110, G111, G114, G115, G302, G303, G306, G307 G100, G112 Power and Grounding Schematic Icons
Figure 2:	G100, G112 G104 G101, G110, G111, G114, G115, G302, G303, G306, G307
Figure 3:	G104 G300 G100, G112 Power and Grounding Schematic Icons Power and Grounding Schematic Icons
Figure 4:	G300 G301 G104 Power and Grounding Schematic Icons Power and Grounding Schematic Icons Power and Grounding Schematic Icons

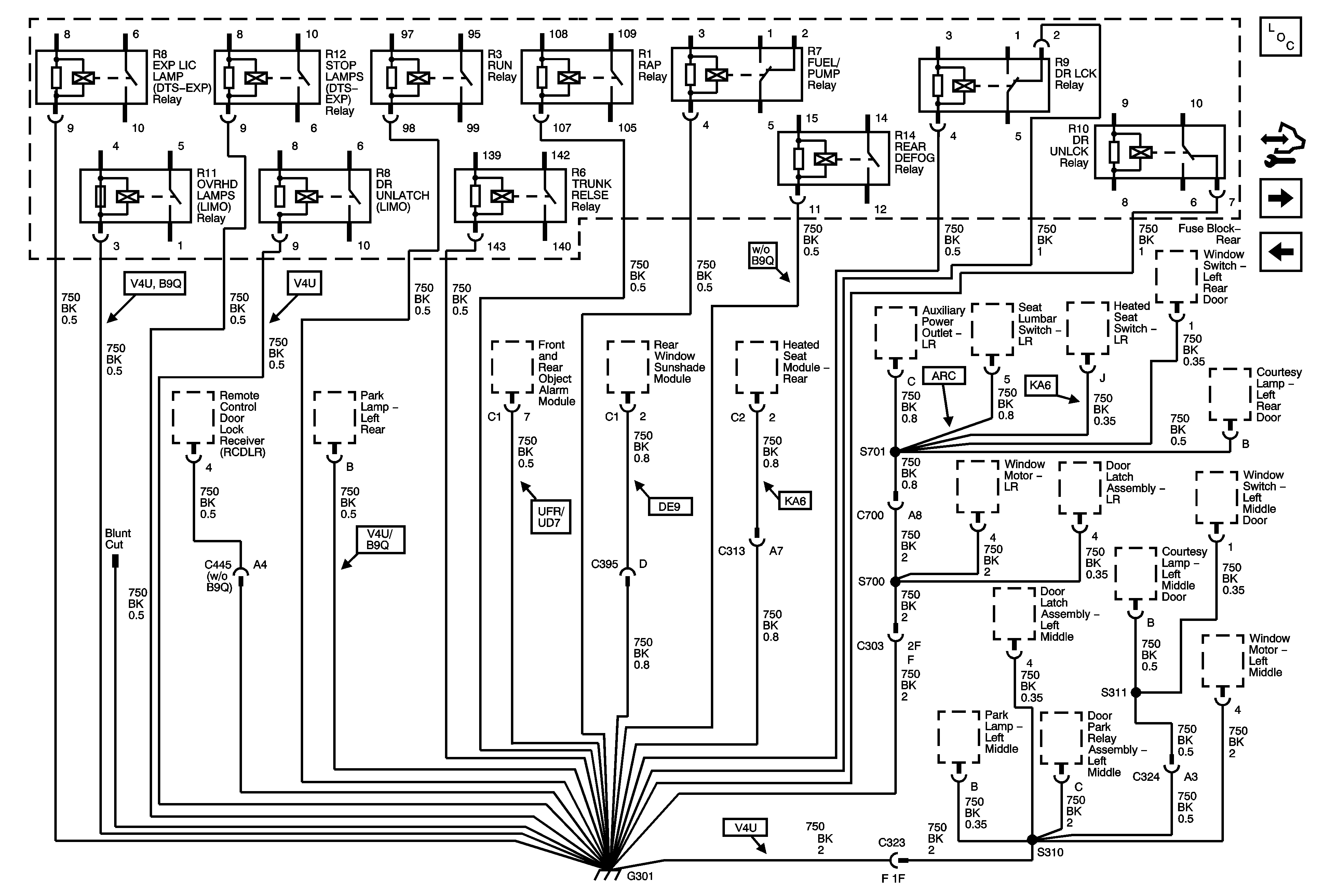

Figure 5:	G301 G304 G300
Figure 6:	G304 G305 G301
Figure 7:	G305 G402 G304
Figure 8:	G402 G403 G305

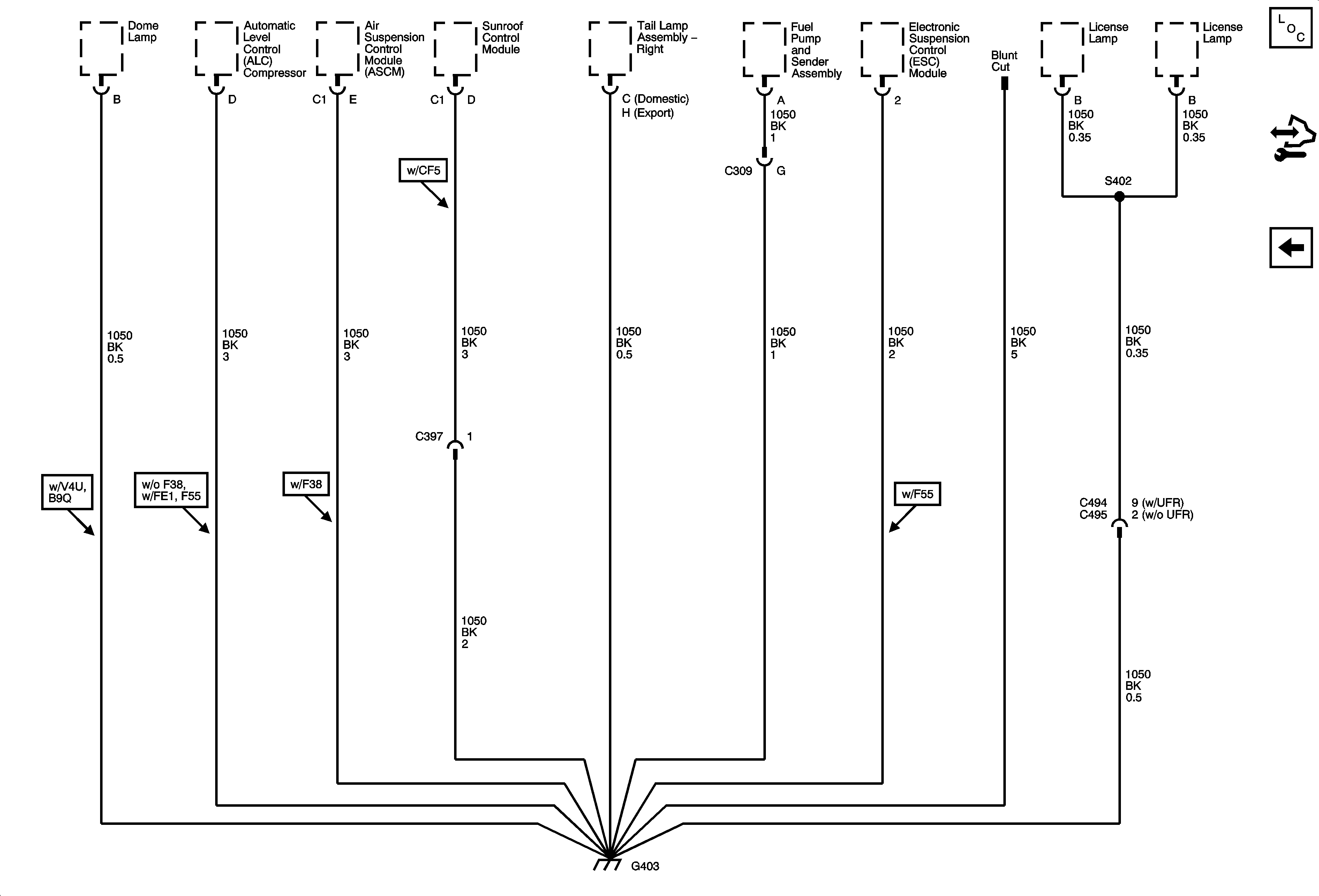

Figure 9:	G403 G402
