Power and Grounding Component Views. Cadillac DTS 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 DTS 🢒 Engine 🢒 Engine Electrical 🢒 Power and Grounding Component Views

Figure 1:

Near the Rear Cylinder Head (LD8/L37)


(1)	Exhaust Gas Recirculation (EGR) Valve
(2)	Valve Cover
(3)	G100
(4)	Engine Coolant Temperature (ECT) Sensor

Figure 2:

Starter and Generator Harness


(1)	Valve Cover
(2)	C161
(3)	Starter
(4)	Generator Terminal
(5)	Generator Inline Fuse (V4U)

Figure 3:

G104


(1)	Upper Radiator Trim
(2)	G104
(3)	Right Front Wheel Panel

Figure 4:

Left Side of Engine (4.6L)


(1)	Engine - 4.6L
(2)	Engine Oil Level Switch (06)
(3)	A/C Compressor
(4)	Generator
(5)	G110

Figure 5:

G112, G114, and G115 (LD8/L37)


(1)	Exhaust Manifold
(2)	G114
(3)	G112
(4)	G115

Figure 6:

Left Side of Engine Compartment


(1)	G101
(2)	Front Fascia
(3)	Inflatable Restraint Front End Sensor - Left
(4)	Inflatable Restraint Front End Sensor - Right
(5)	Lower Front Tie Bar

Figure 7:

Engine Harness - Rear (L37/LD8)


(1)	Engine Control Module (ECM) C3
(2)	C111
(3)	S110
(4)	C138
(5)	S102
(6)	Intake Manifold
(7)	C161
(8)	C140
(9)	S116
(10)	S115
(11)	G100
(12)	G112
(13)	G115
(14)	G114
(15)	S113
(16)	S114
(17)	Electronic Brake Control Module (EBCM) Connector
(18)	C175
(19)	Engine Control Module (ECM) C2
(20)	Engine Control Module (ECM) C1

Figure 8:

Steering Column Components


(1)	Turn Signal/Multifunction Switch
(2)	Traction Control Switch (AV8)
(3)	Column Shifter Shift Lock Control Solenoid (AV8)
(4)	Ignition Key Alarm Switch
(5)	Theft Deterrent Module (TDM)
(6)	Ignition Switch
(7)	Inflatable Restraint Steering Wheel Module Coil
(8)	Steering Angle Sensor (JL4)
(9)	Telescoping Actuator (N37)
(10)	Tilt Actuator (N37)
(11)	Tilt/Telescope Switch (N37)

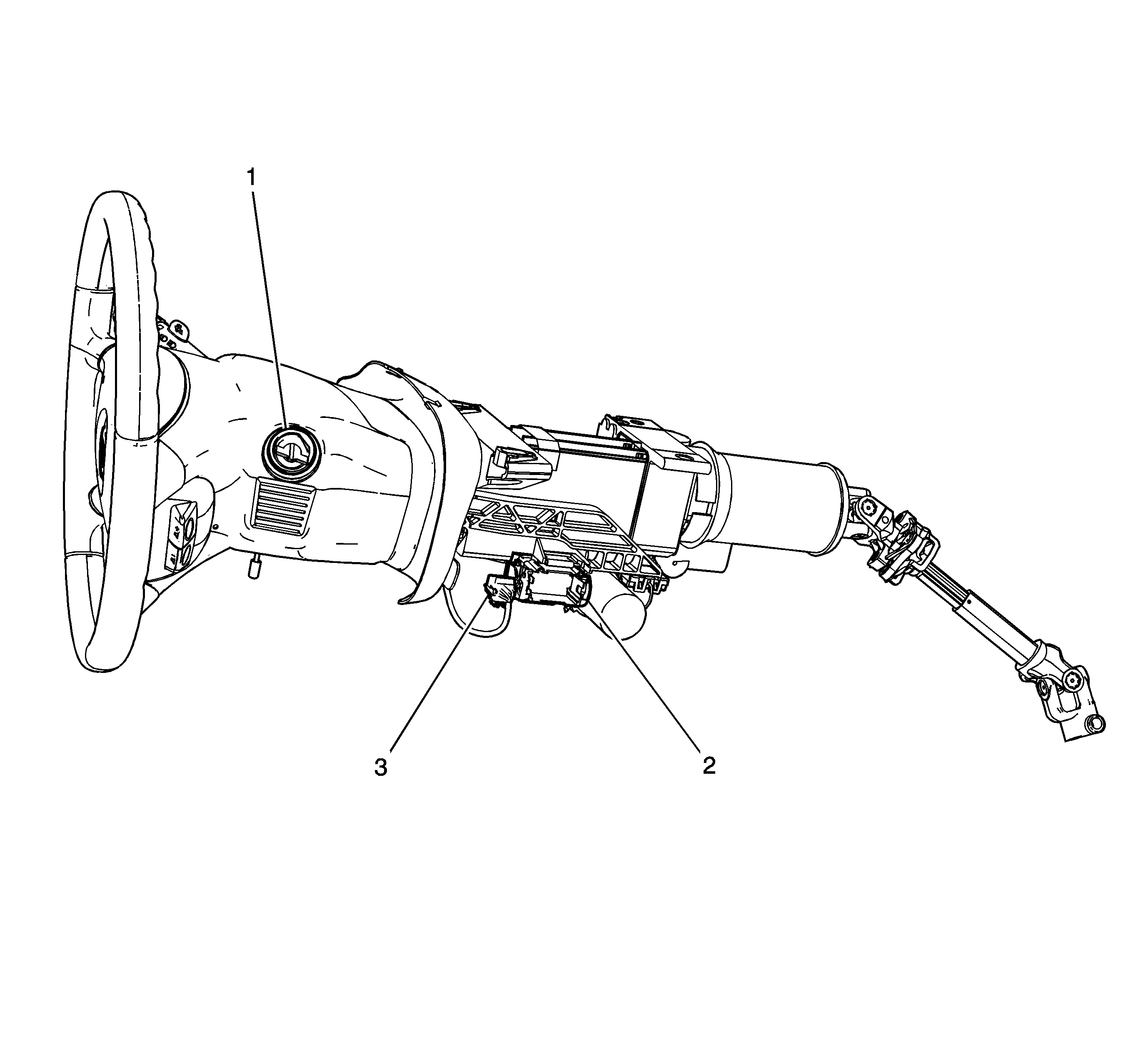

Figure 9:

Steering Column Inlines


(1)	Ignition Switch
(2)	C205
(3)	C207

Figure 10:

Passenger - Left Rear Area


(1)	G306
(2)	Inflatable Restraint Roof Rail Module - Left
(3)	C321 Body Harness to Headliner Harness
(4)	Traffic Information Receiver (Japan)
(5)	C445 Body Harness to Rear Shelf Harness
(6)	C313 Body Harness to LR Seat Harness
(7)	Splice Pack SP300
(8)	G301
(9)	Fuse Block - Rear
(10)	Audio Amplifier

Figure 11:

Under Passenger Seat - Right Rear


(1)	Body Harness
(2)	G303
(3)	Battery Current Sensor
(4)	C337 Negative Battery Cable to the Body Harness
(5)	Rear Seat Back Cushion
(6)	Battery Positive Cable
(7)	Fuse Block - Rear
(8)	Battery
(9)	Negative Battery Cable

Figure 12:

Battery Cable Harness


(1)	Fuse Block - Underhood
(2)	Floor Panel
(3)	Battery
(4)	G303
(5)	Fuse Block - Rear Terminal Connector

Figure 13:

Body Harness - Passenger Compartment


(1)	C206
(2)	C200
(3)	S377
(4)	S376
(5)	S375
(6)	C301
(7)	C325
(8)	C326
(9)	S329
(10)	S395
(11)	C314
(12)	S343
(13)	C302
(14)	G304
(15)	G302
(16)	S370
(17)	C341(AV8)
(18)	S336 (06)
(19)	S301
(20)	C303
(21)	S350
(22)	G305
(23)	G300
(24)	C315
(25)	S378
(26)	S379
(27)	C300
(28)	C202
(29)	C205
(30)	C201
(31)	C316
(32)	C340 (AQ9)

Figure 14:

Above Quarter Panel - Right Rear


(1)	G307
(2)	Rear Seat Back Body Panel

Figure 15:

Driver Seat Area Components (Body Harness)


(1)	C315 Body Harness to Driver Seat Harness
(2)	G300
(3)	Inflatable Restraint Side Impact Module - Left Connector
(4)	G305
(5)	Yaw and Lateral Acceleration Sensor (JL4)
(6)	Inflatable Restraint Sensing and Diagnostic Module (SDM)
(7)	Inflatable Restraint Side Impact Sensor - Left
(8)	Seat Belt Pretensioner - LF
(9)	B-Pillar
(10)	Inflatable Restraint Roof Rail Module - Left (AY0)

Figure 16:

Quarter Panel - Right Rear


(1)	Electronic Suspension Control (ESC) Module (F55)
(2)	C494 Body Harness to Rear Fascia Harness (UFR)
(3)	G403
(4)	Front and Rear Object Alarm Module (UFR)

Figure 17:

Body Harness - Rear Compartment


(1)	S326
(2)	S325
(3)	C337
(4)	S324
(5)	C397 (CF5)
(6)	C395 (DE9)
(7)	C494 (UFR)
(8)	C309
(9)	Tail Lamp Assembly - Left
(10)	G403
(11)	Tail Lamp Assembly - Right
(12)	G402
(13)	G306
(14)	C321
(15)	S366
(16)	C445
(17)	S365
(18)	S372
(19)	C313
(20)	SP300
(21)	G301
(22)	S374
(23)	Fuse Block - Rear
(24)	S323
(25)	S317
(26)	S380
(27)	S373
(28)	S337
