Door Lock/Indicator Schematics. Cadillac DTS 2007

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 DTS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Door Lock/Indicator Schematics

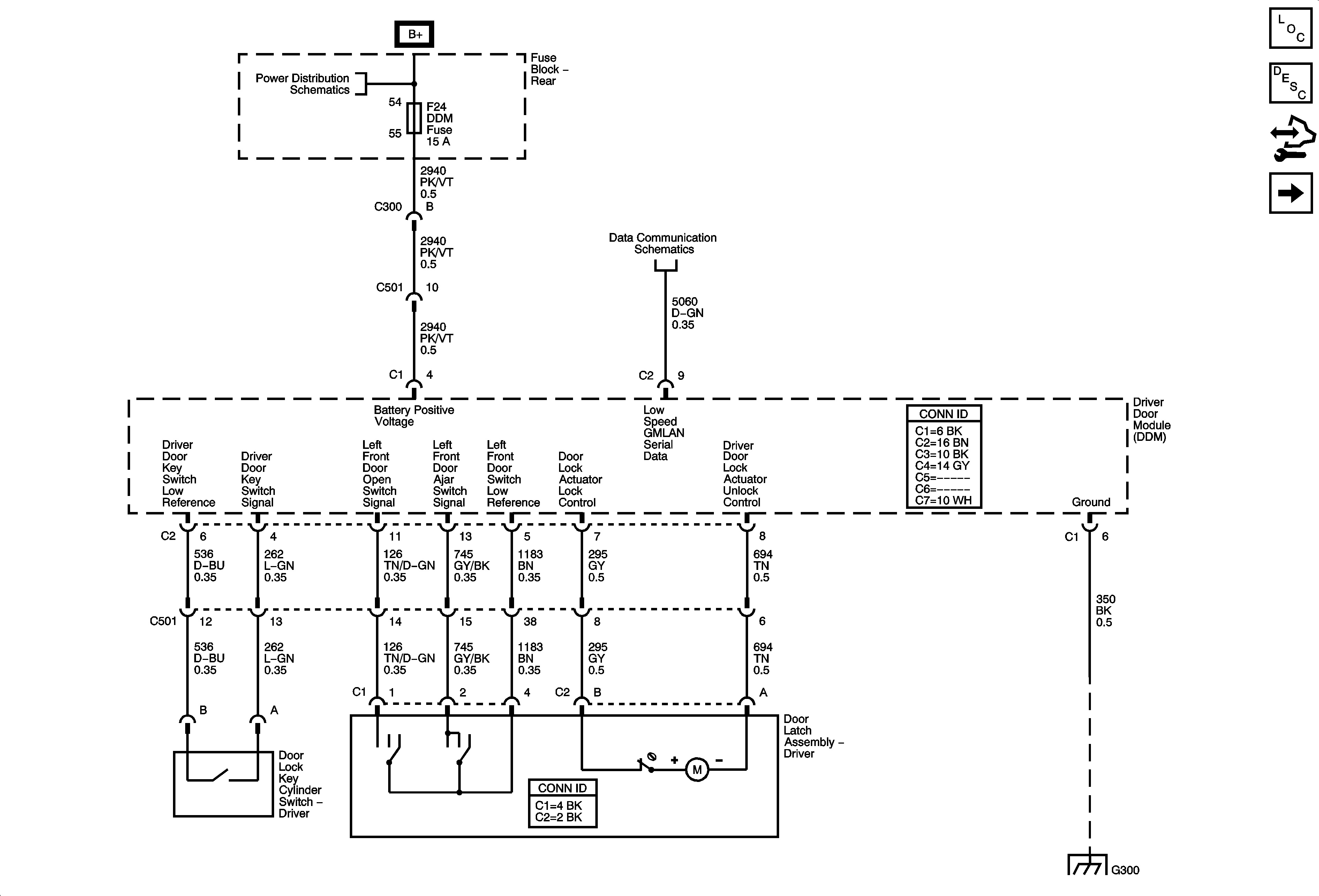

Figure 1:	Driver Door Module Power and Ground Master Electrical Component List Power Door Locks Description and Operation Control Module References Front Passenger Door Module, Power and Ground Rear Fuse Block B+ Power, Ground and Low Speed GMLAN G300

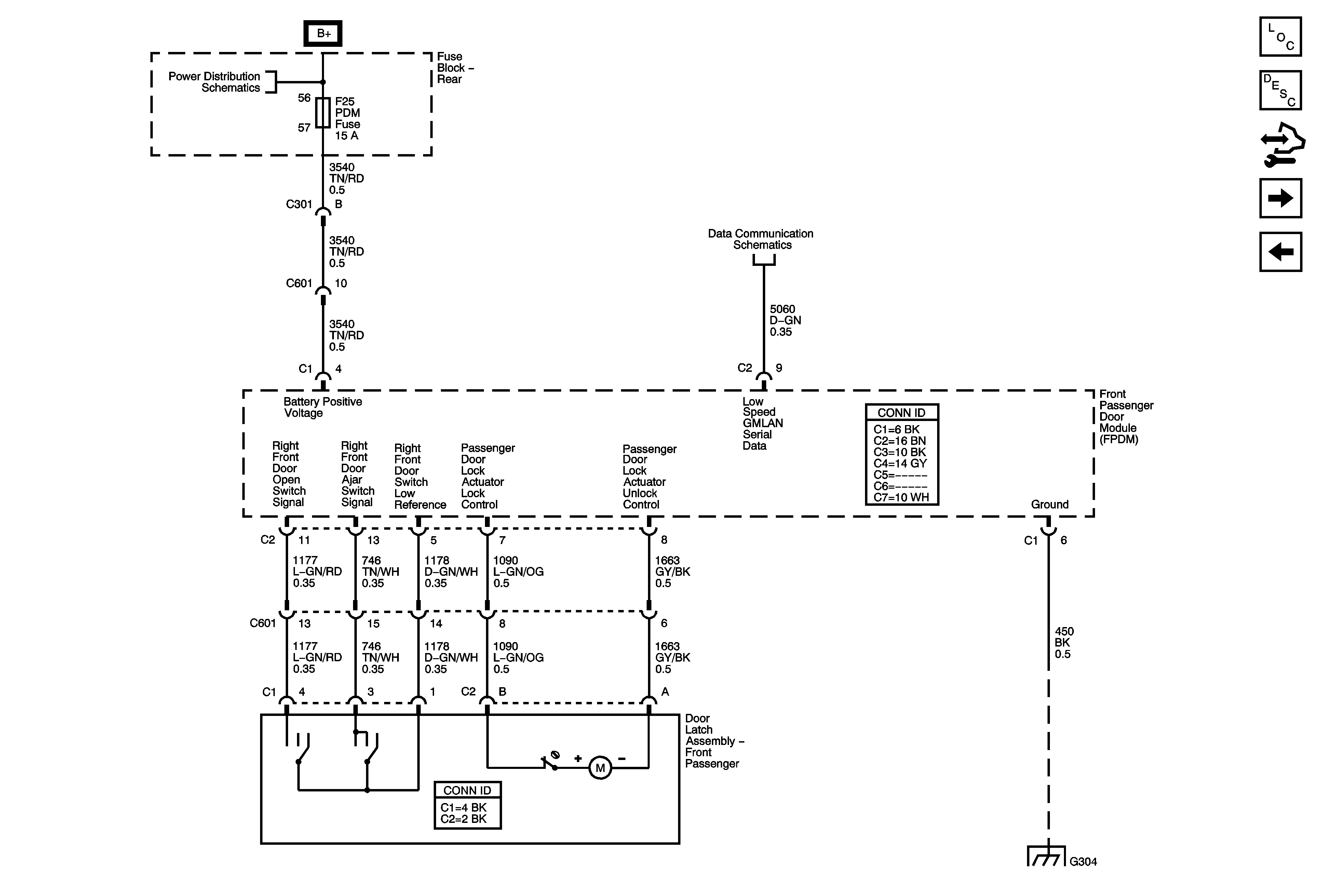

Figure 2:	Front Passenger Door Module Power and Ground Master Electrical Component List Power Door Locks Description and Operation Control Module References Door Lock, Unlock Relays Driver Door Module, Power and Ground Rear Fuse Block B+ Power, Ground and Low Speed GMLAN G304

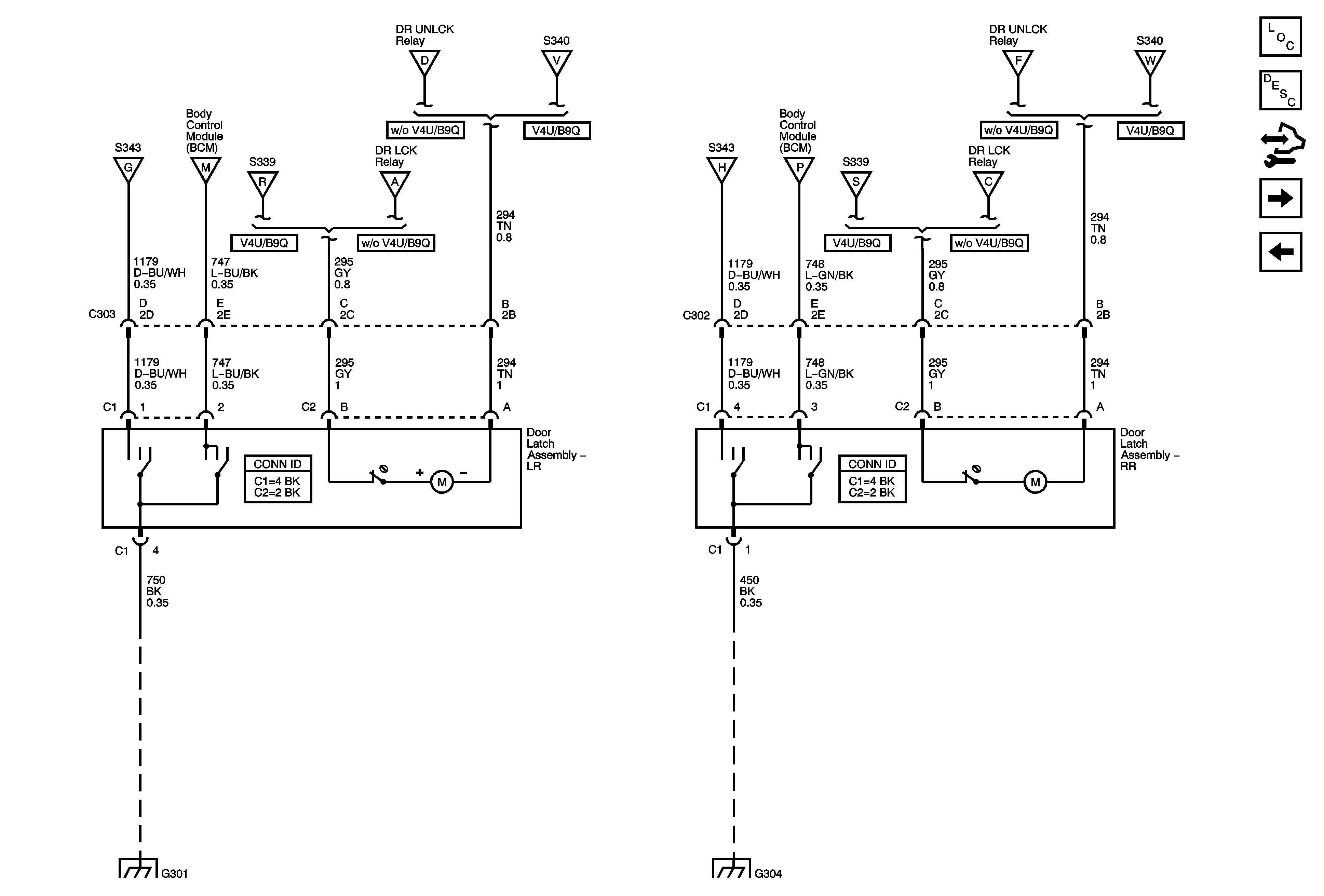

Figure 3:	Door Lock, Unlock Relays Master Electrical Component List Power Door Locks Description and Operation Control Module References Rear Door Latch Assemblies Front Passenger Door Module, Power and Ground Rear Fuse Block B+ Rear Door Latch Assemblies Middle Door Latch Assemblies - V4U Rear Door Latch Assemblies Rear Door Latch Assemblies Middle Door Latch Assemblies - V4U Rear Door Latch Assemblies G301 Rear Door Latch Assemblies Rear Door Latch Assemblies Middle Door Latch Assemblies - V4U Middle Door Latch Assemblies - V4U Middle Door Latch Assemblies - V4U Rear Door Latch Assemblies Middle Door Latch Assemblies - V4U Rear Door Latch Assemblies G301

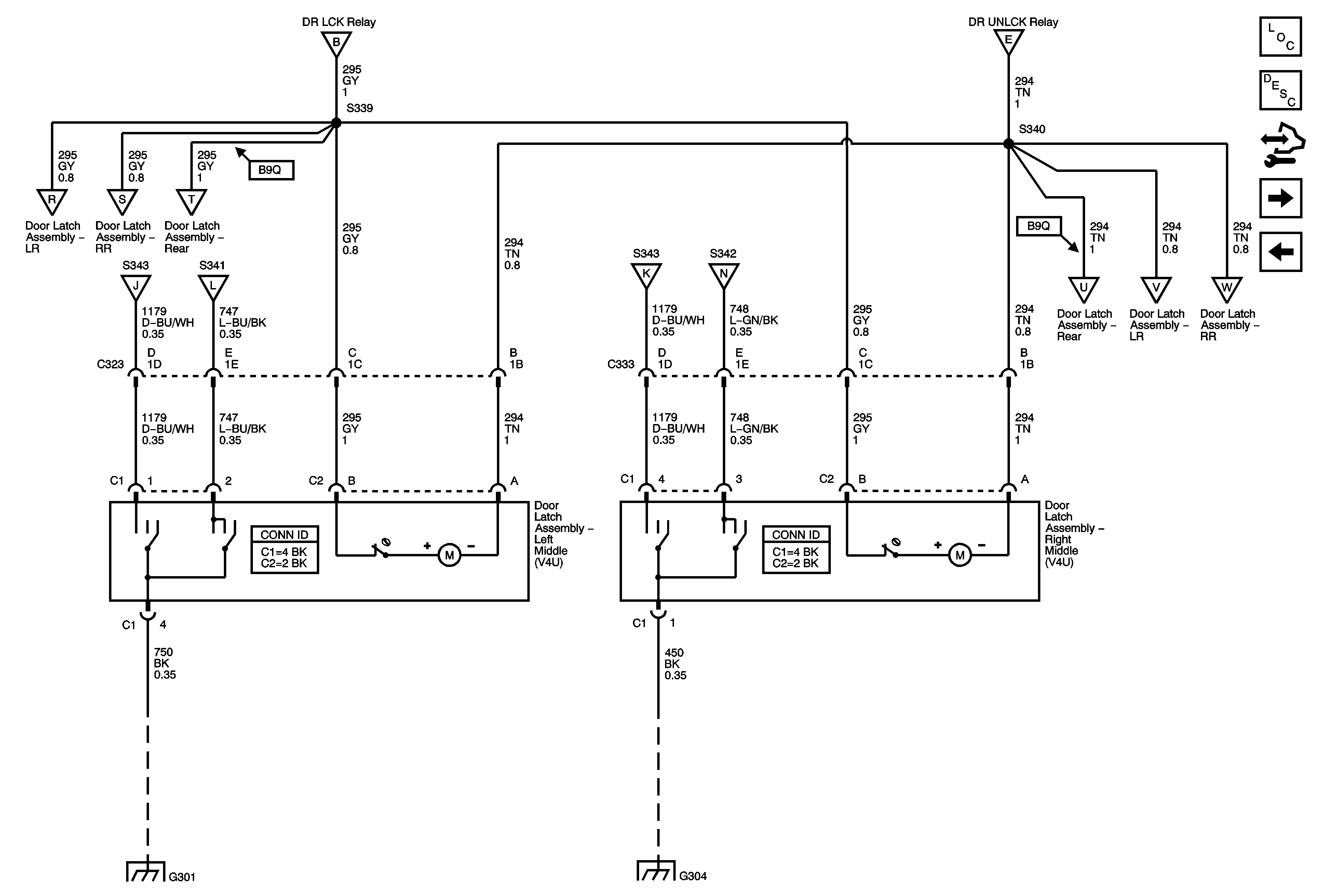

Figure 4:	Rear Door Latch Assemblies Master Electrical Component List Power Door Locks Description and Operation Control Module References Middle Door Latch Assemblies - V4U Door Lock, Unlock Relays Door Lock, Unlock Relays Door Lock, Unlock Relays Middle Door Latch Assemblies - V4U Door Lock, Unlock Relays Door Lock, Unlock Relays Middle Door Latch Assemblies - V4U Door Lock, Unlock Relays Door Lock, Unlock Relays Middle Door Latch Assemblies - V4U Door Lock, Unlock Relays Door Lock, Unlock Relays Middle Door Latch Assemblies - V4U G301 G304

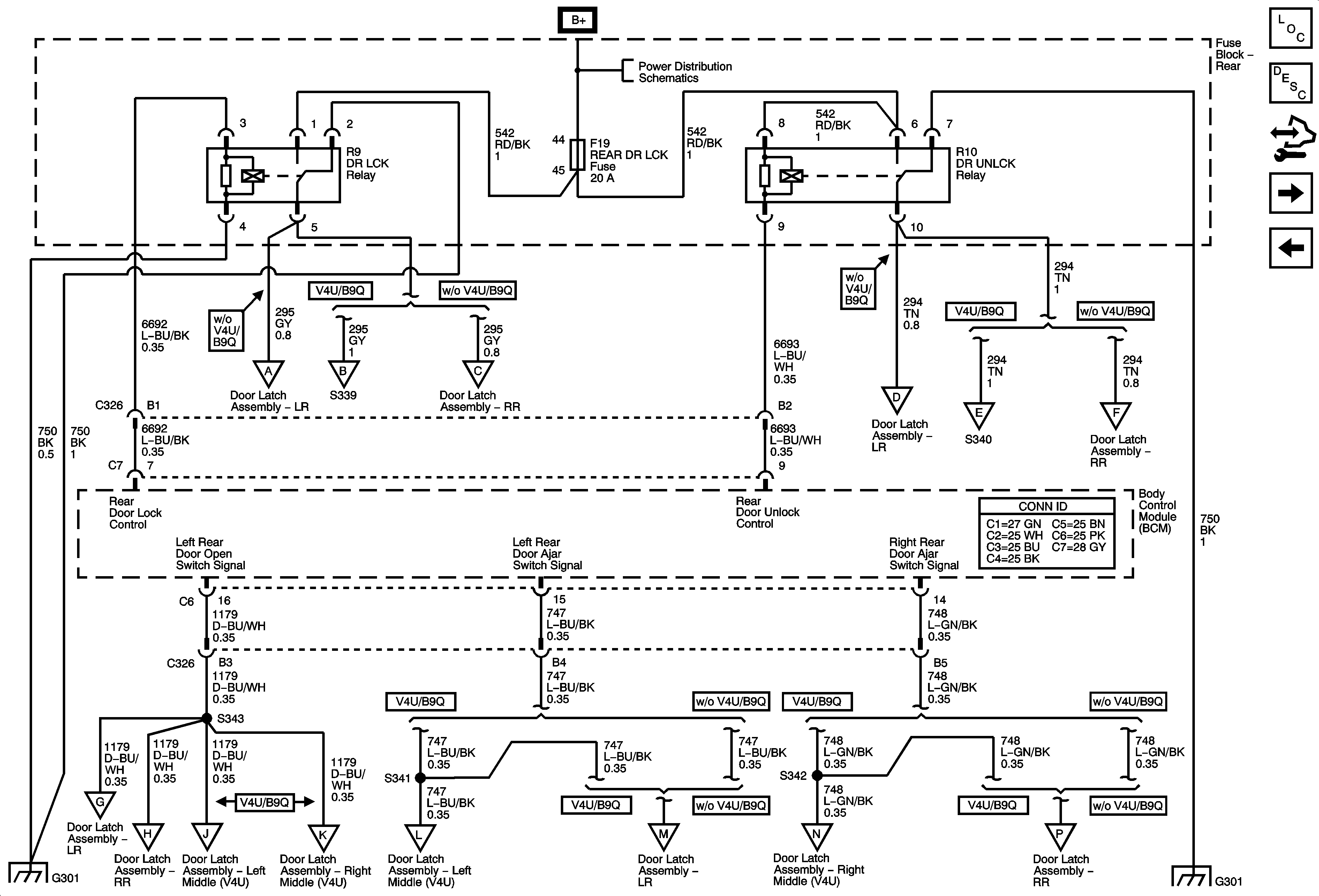

Figure 5:	Middle Door Latch Assemblies - V4U Master Electrical Component List Power Door Locks Description and Operation Control Module References Rear Door Latch Assemblies - B9Q Rear Door Latch Assemblies Rear Door Latch Assemblies Rear Door Latch Assemblies Door Lock, Unlock Relays Rear Door Latch Assemblies - B9Q Door Lock, Unlock Relays Door Lock, Unlock Relays Door Lock, Unlock Relays Door Lock, Unlock Relays Door Lock, Unlock Relays Rear Door Latch Assemblies - B9Q Rear Door Latch Assemblies Rear Door Latch Assemblies G301 G304

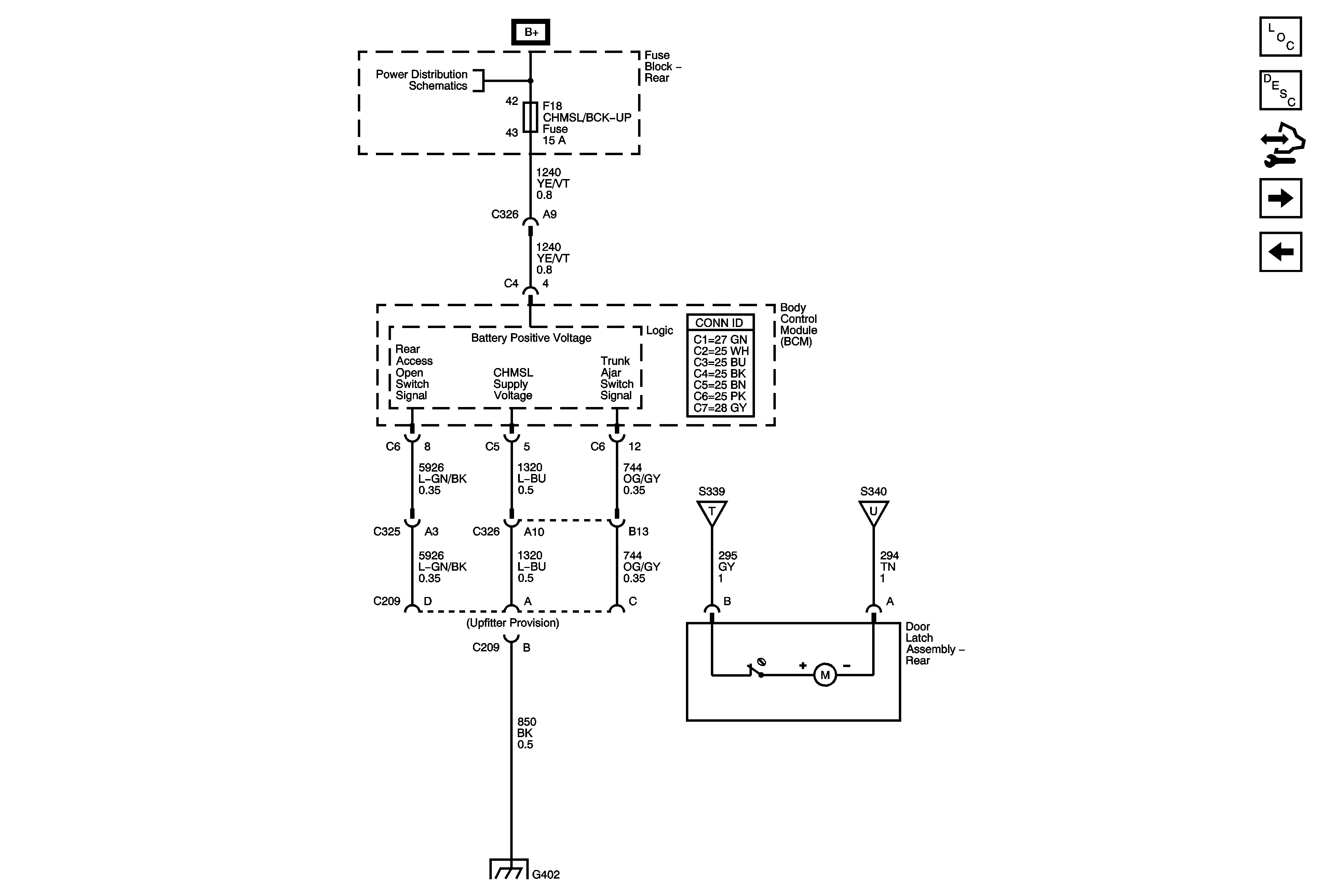

Figure 6:	Rear Door Latch Assembly - B9Q Master Electrical Component List Luggage Compartment Description and Operation Control Module References Door Release Switch - V4U Middle Door Latch Assemblies - V4U Rear Fuse Block B+ Middle Door Latch Assemblies - V4U Middle Door Latch Assemblies - V4U G402

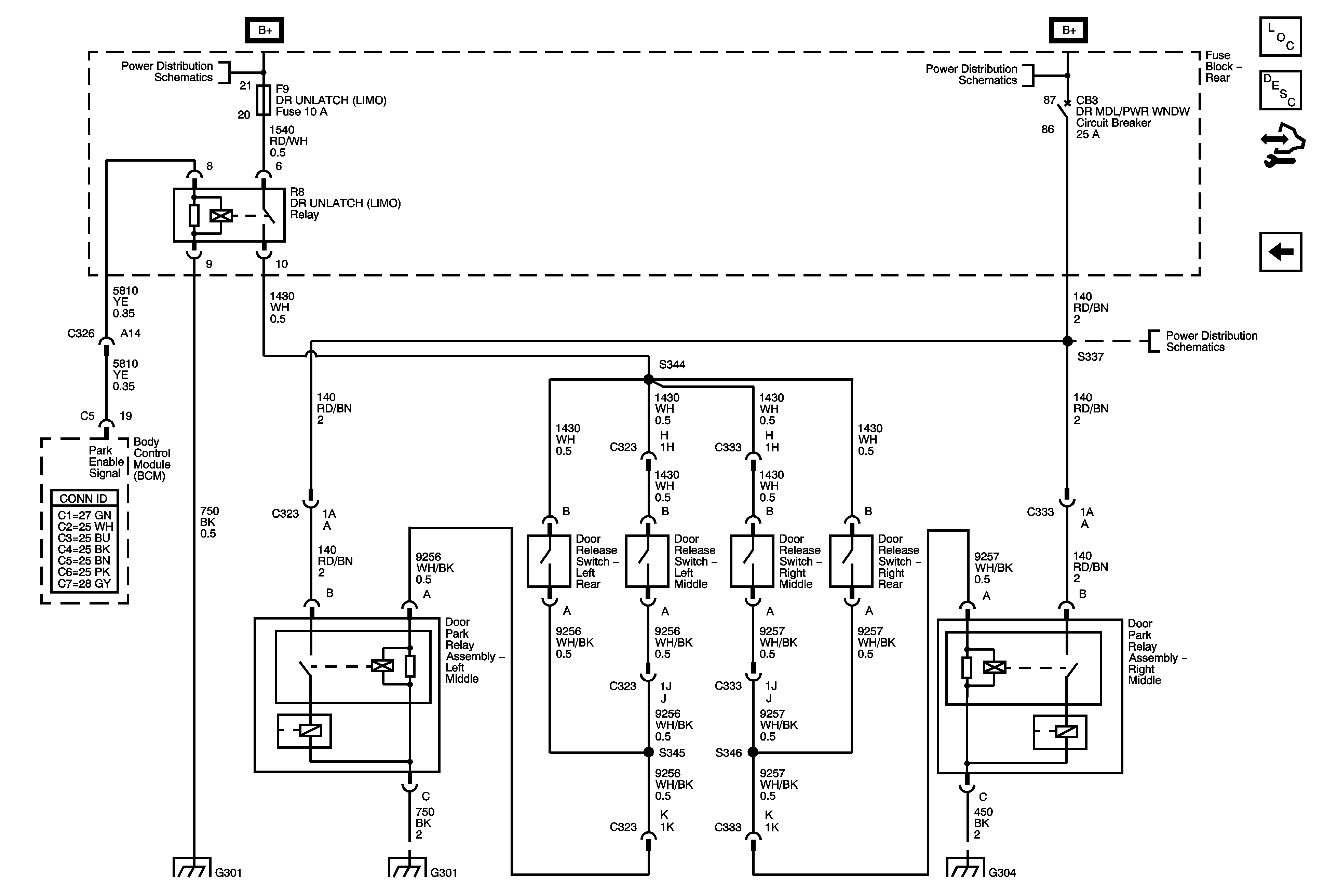

Figure 7:	Door Release Switches - V4U Master Electrical Component List Power Door Locks Description and Operation Control Module References Rear Door Latch Assemblies - B9Q Rear Fuse Block B+ Rear Fuse Block B+ Rear Fuse Block - LT TRN/SIG, RR TRN/SIG, CHMSL/BCK-UP, INT LAMPS, SWTCH DM, HVAC BLWR Fuses, DR MDL/PWR WNDW Circuit Breaker G304 G301 G301
