Heated/Cooled Seat Schematics. Cadillac DTS 2007

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2007 🢒 DTS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Heated/Cooled Seat Schematics

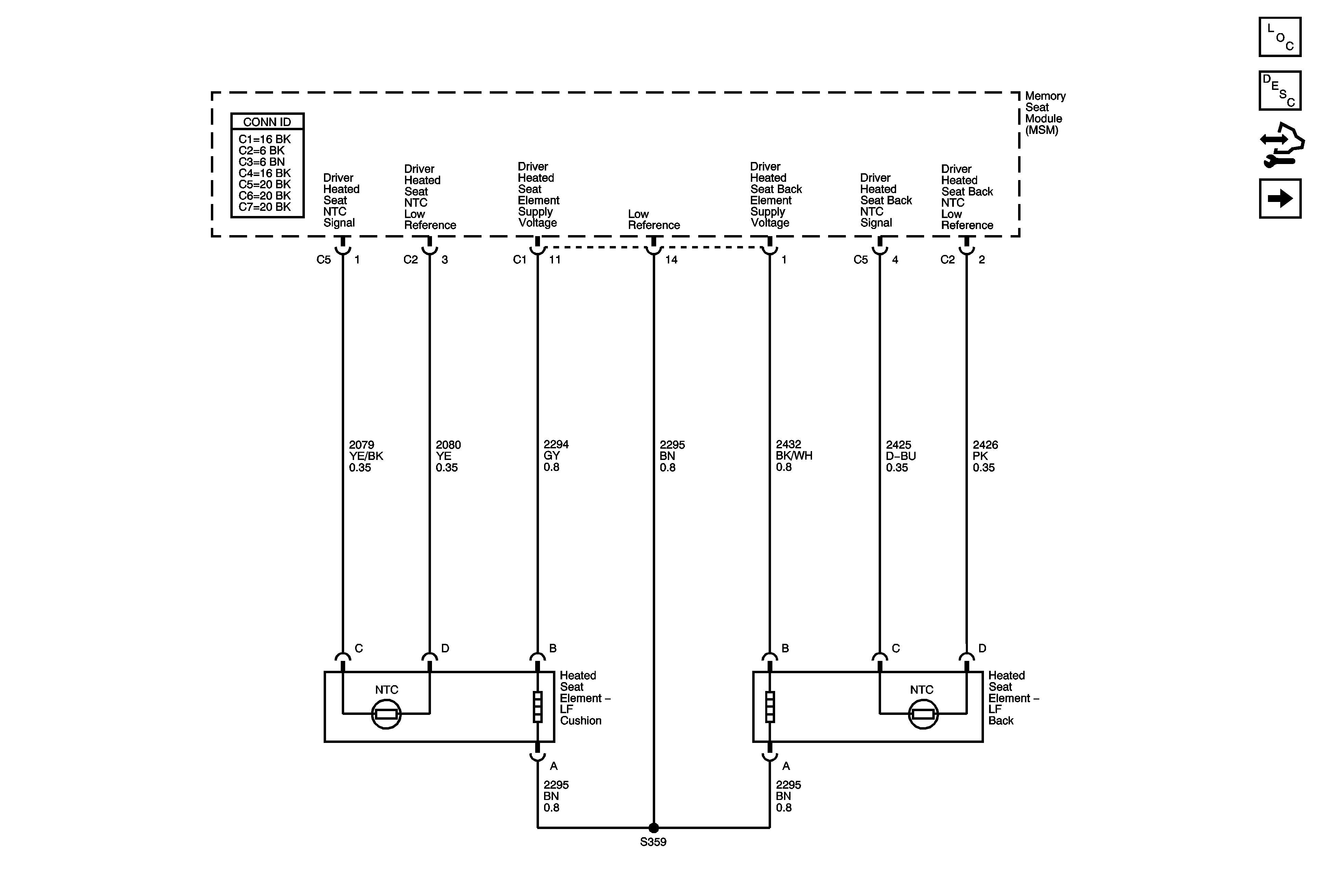

Figure 1:	Driver Heated Seat - KA1 Rear Heated Seats Description and Operation Driver Heated and Cooled Seat KB6

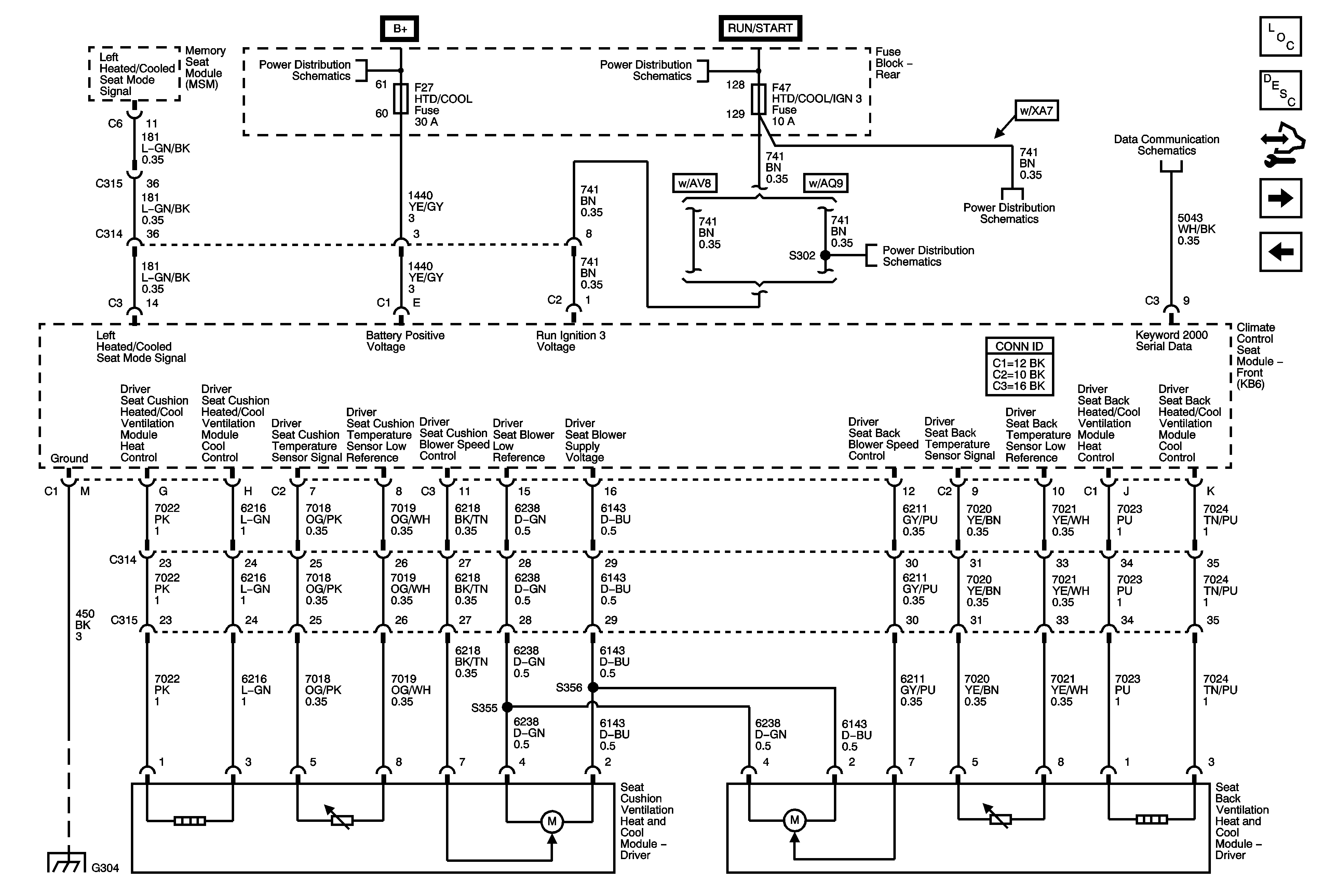

Figure 2:	Driver Heated and Cooled Seat - KB6 Heated/Cooled Seats Description and Operation Driver Heated and Cooled Seat Switch KA1 KB6 Driver Heated Seat KA1 Rear Fuse Block B+ G304

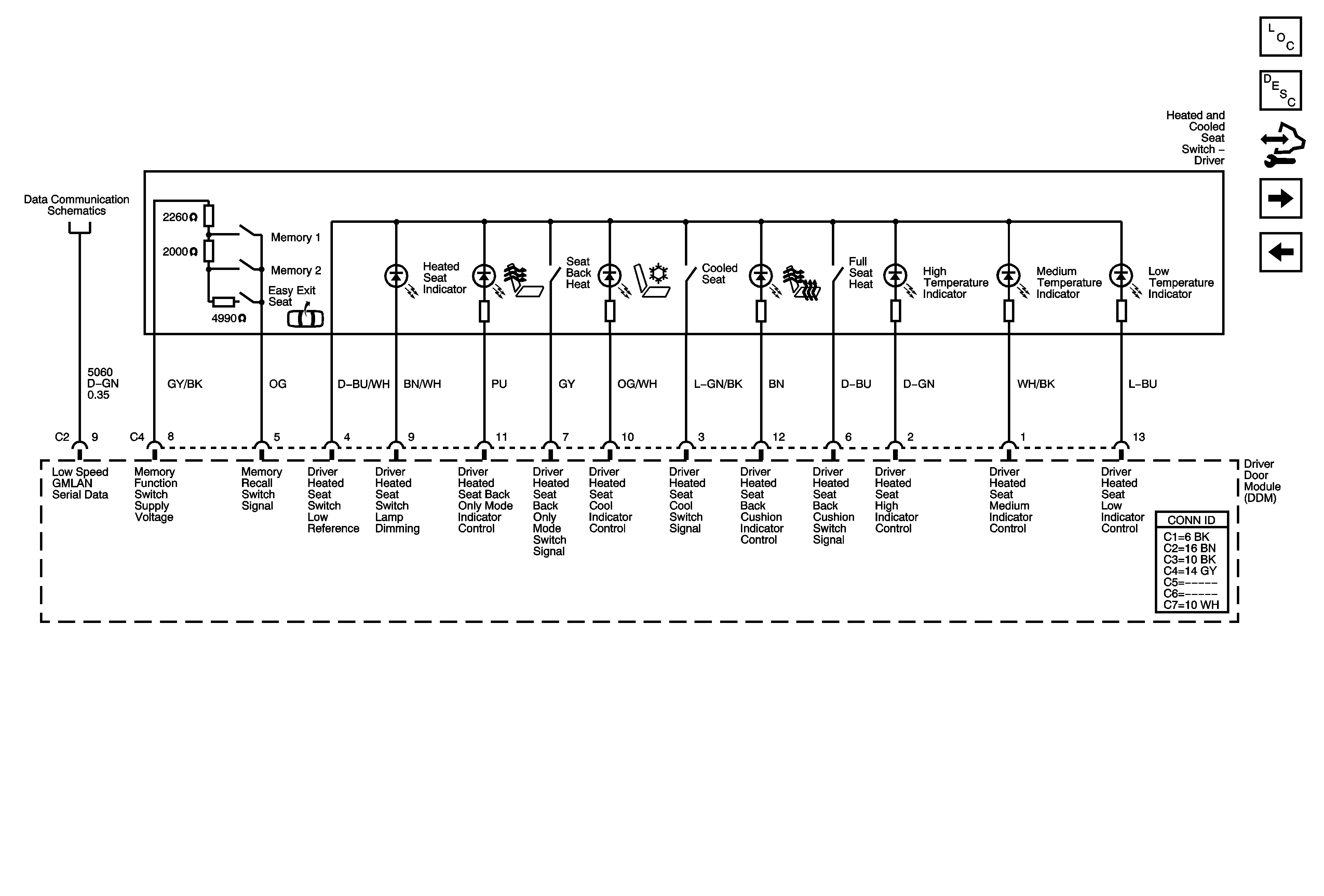

Figure 3:	Driver Heated/Cooled Seat Switch - KA1/KB6 Heated/Cooled Seats Description and Operation Passenger Heated Seat KA1 Driver Heated and Cooled Seat KB6 Power, Ground and Low Speed GMLAN

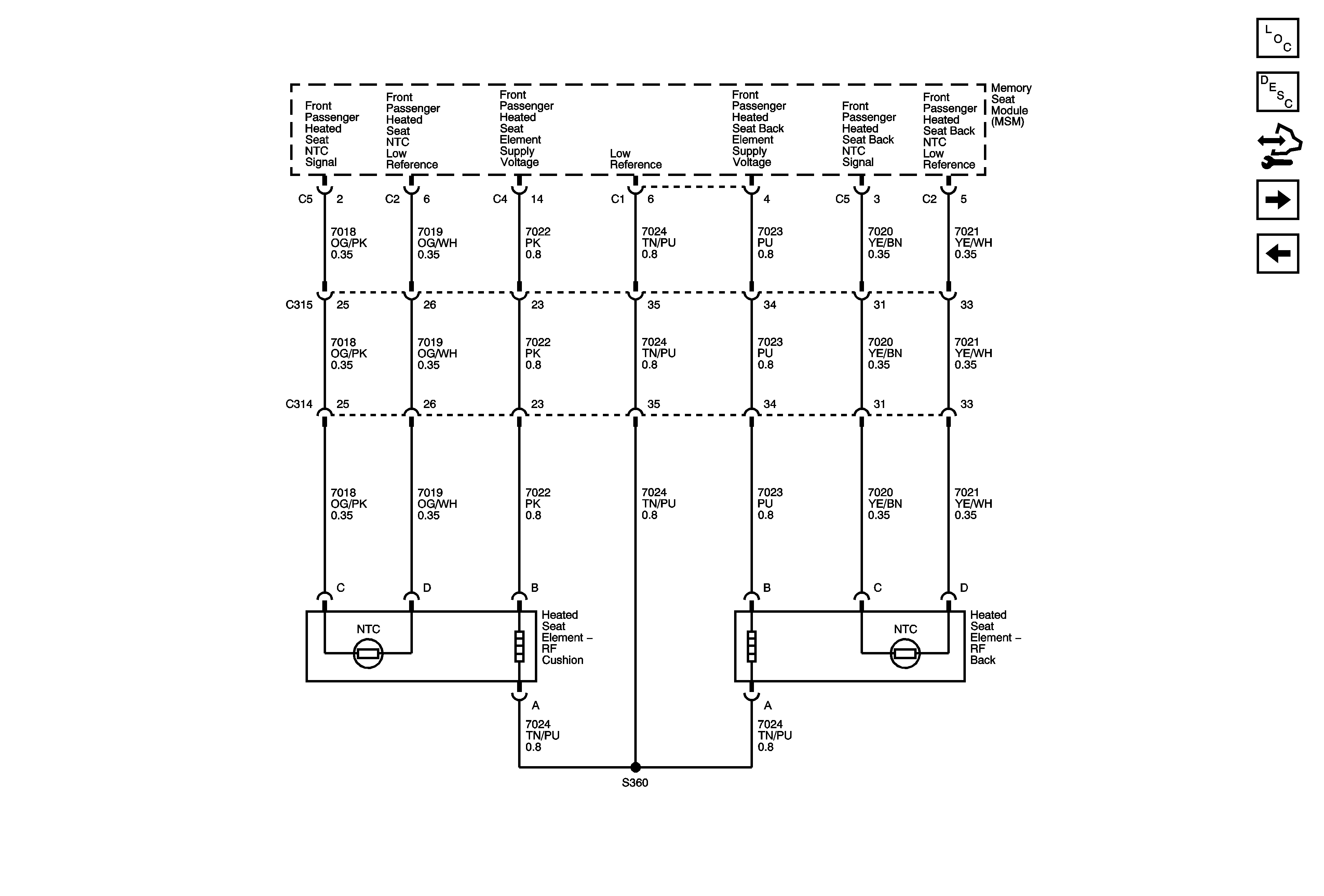

Figure 4:	Passenger Heated Seat - KA1 Rear Heated Seats Description and Operation Passenger Heated and Cooled Seat KB6 Driver Heated and Cooled Seat Switch KA1 KB6

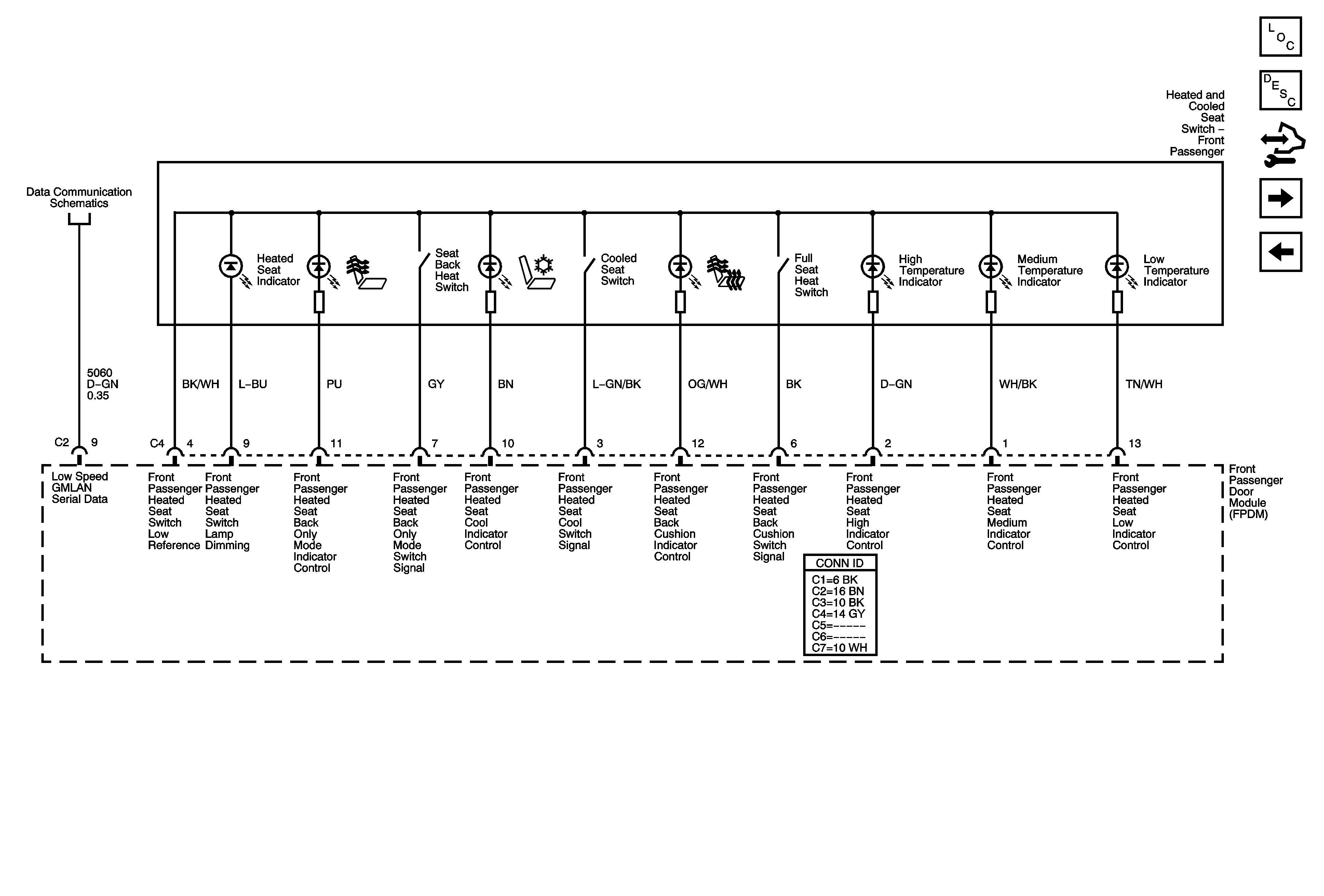

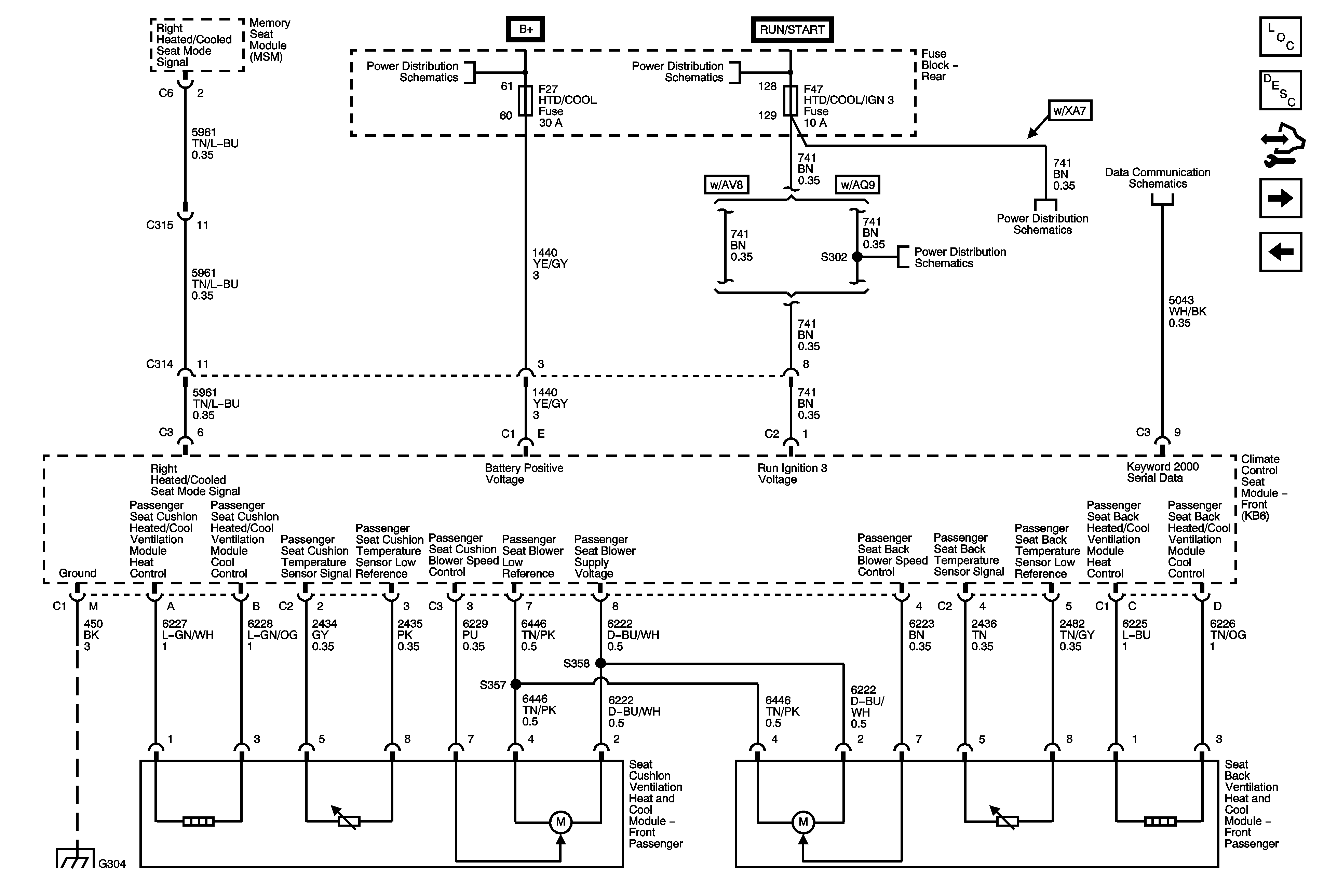

Figure 5:	Passenger Heated and Cooled Seat - KB6 Heated/Cooled Seats Description and Operation Passenger Heated and Cooled Seat Switch KA1 KB6 Passenger Heated Seat KA1 Rear Fuse Block B+ Rear Fuse Block - RUN Relay, REAR HVAC, HTD STR, HTD/COOL/IGN3, BCM LOGIC Fuses Rear Fuse Block - RUN Relay, REAR HVAC, HTD STR, HTD/COOL/IGN3, BCM LOGIC Fuses Power, Ground and Low Speed GMLAN G304
Figure 6:	Passenger Heated/Cooled Seat Switch - KA1/KB6 Heated/Cooled Seats Description and Operation Left Rear Heated Seat Switch w/ KA6 Passenger Heated and Cooled Seat KB6 Power, Ground and Low Speed GMLAN

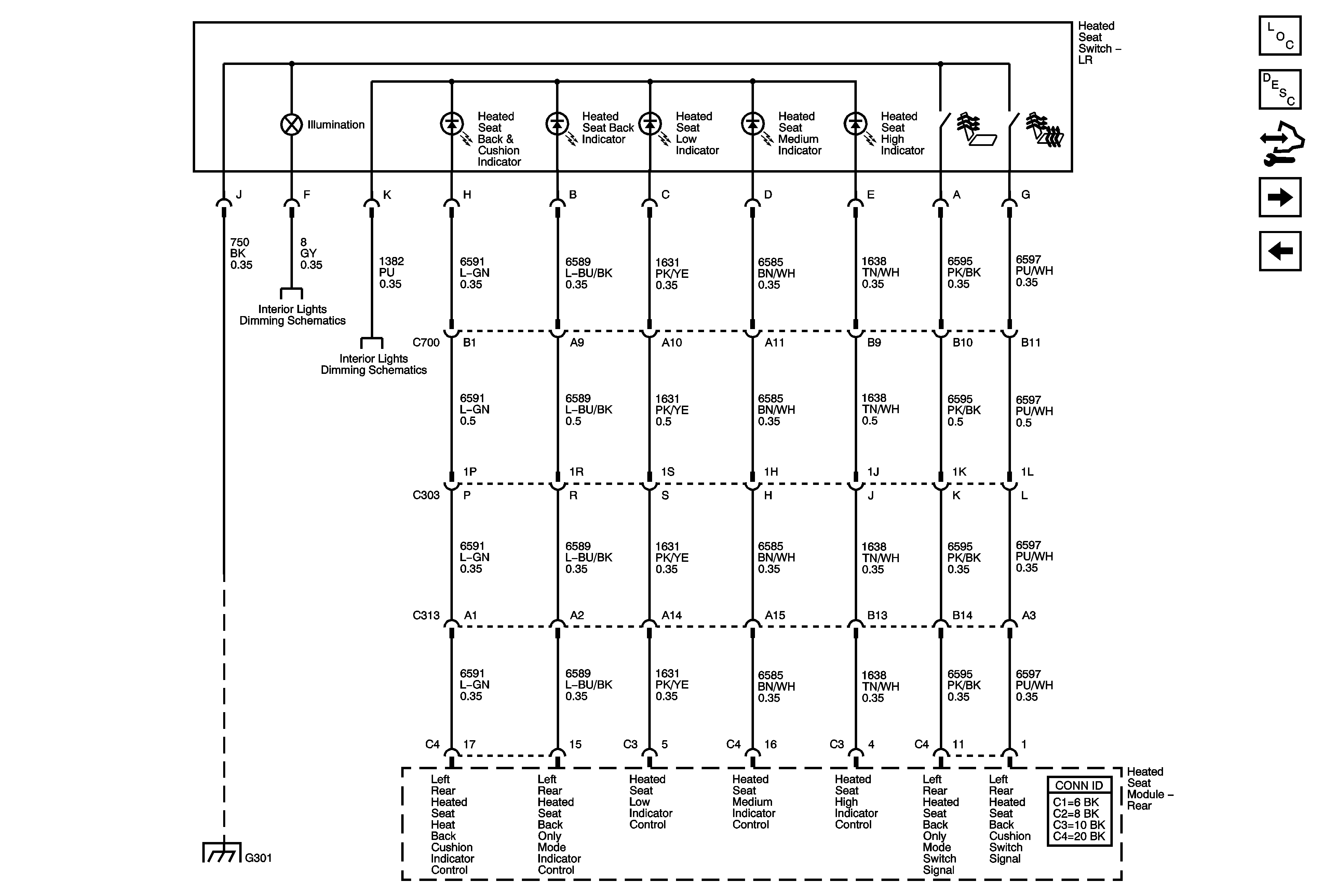

Figure 7:	Left Rear Heated Seat Switch - w/KA6 Rear Heated Seats Description and Operation Right Rear Heated Seat Switch w/ KA6 Passenger Heated and Cooled Seat Switch KA1 KB6 Window, Heated Seat, Seat Lumbar Switches HVAC Control Module, Steering Wheel, Heated Seat KA6, Telltale Assembly Info Center G301

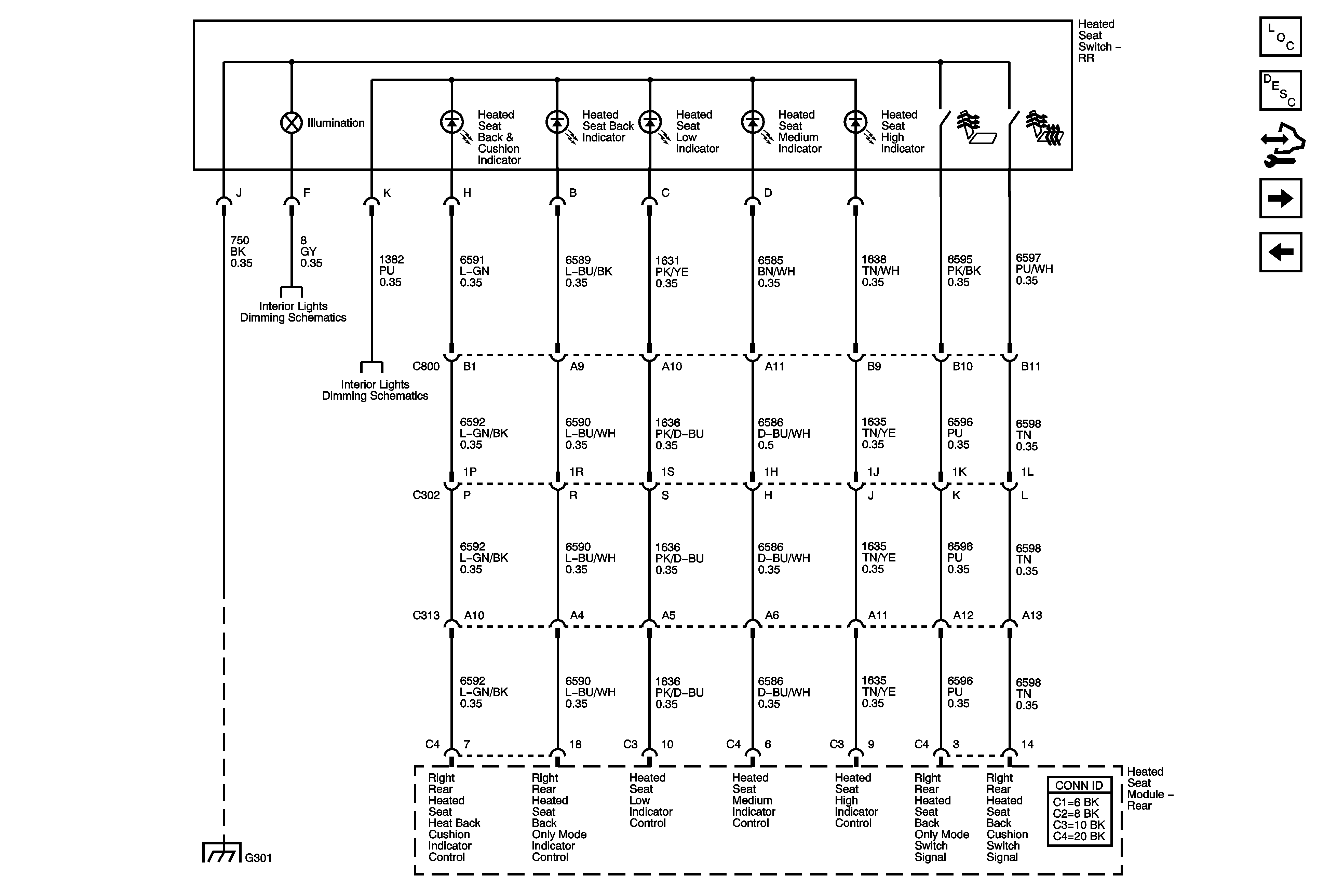

Figure 8:	Right Rear Heated Seat Switch - w/KA6 Rear Heated Seats Description and Operation Rear Heated Seat Elements w/ KA6 Left Rear Heated Seat Switch w/ KA6 Window, Heated Seat, Seat Lumbar Switches HVAC Control Module, Steering Wheel, Heated Seat KA6, Telltale Assembly Info Center G301

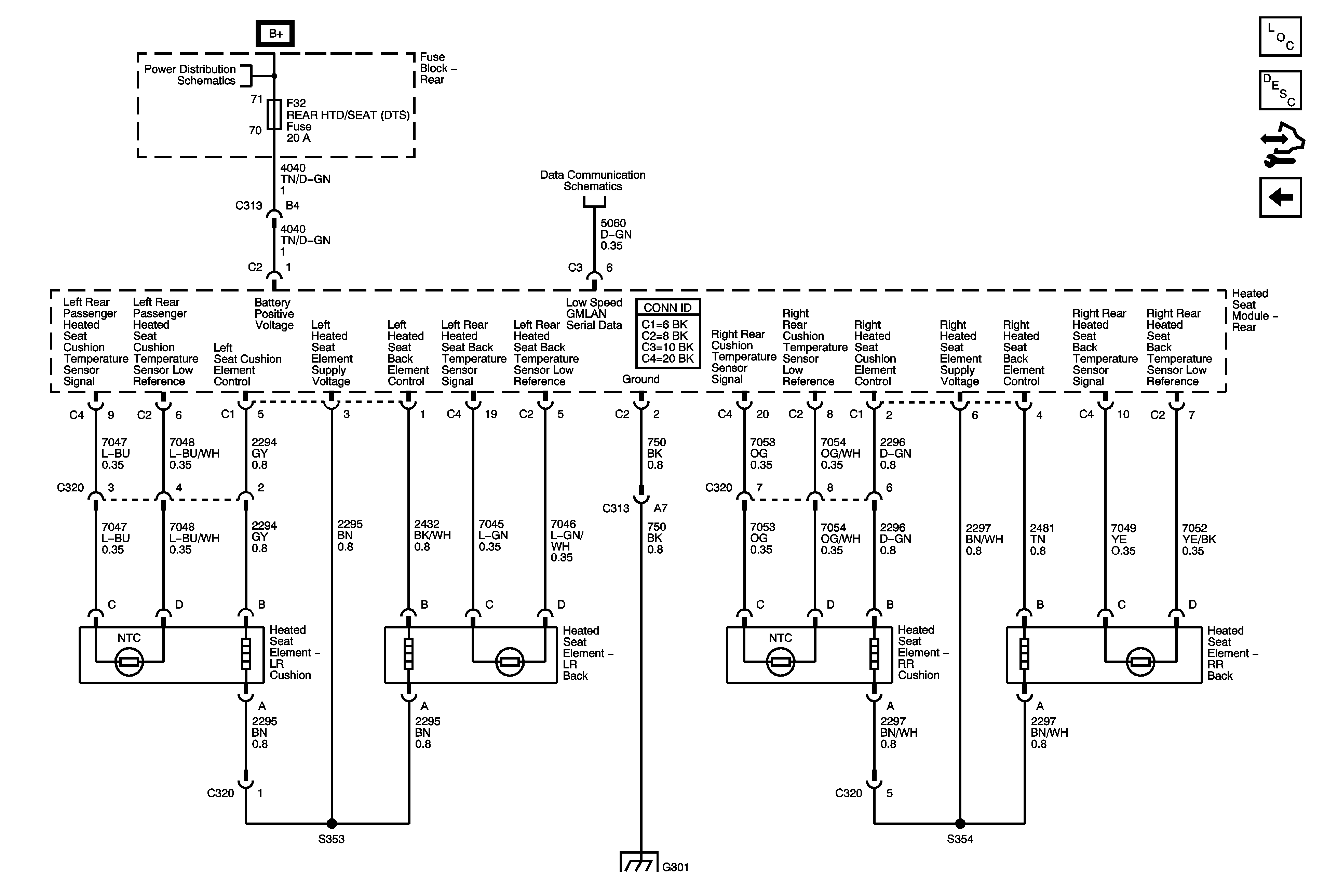

Figure 9:	Heated Seat Elements - w/KA6 Rear Heated Seats Description and Operation Right Rear Heated Seat Switch w/ KA6 Rear Fuse Block B+ Power, Ground and Low Speed GMLAN G301
