Engine Controls Schematics. Cadillac DTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Engine Controls Schematics

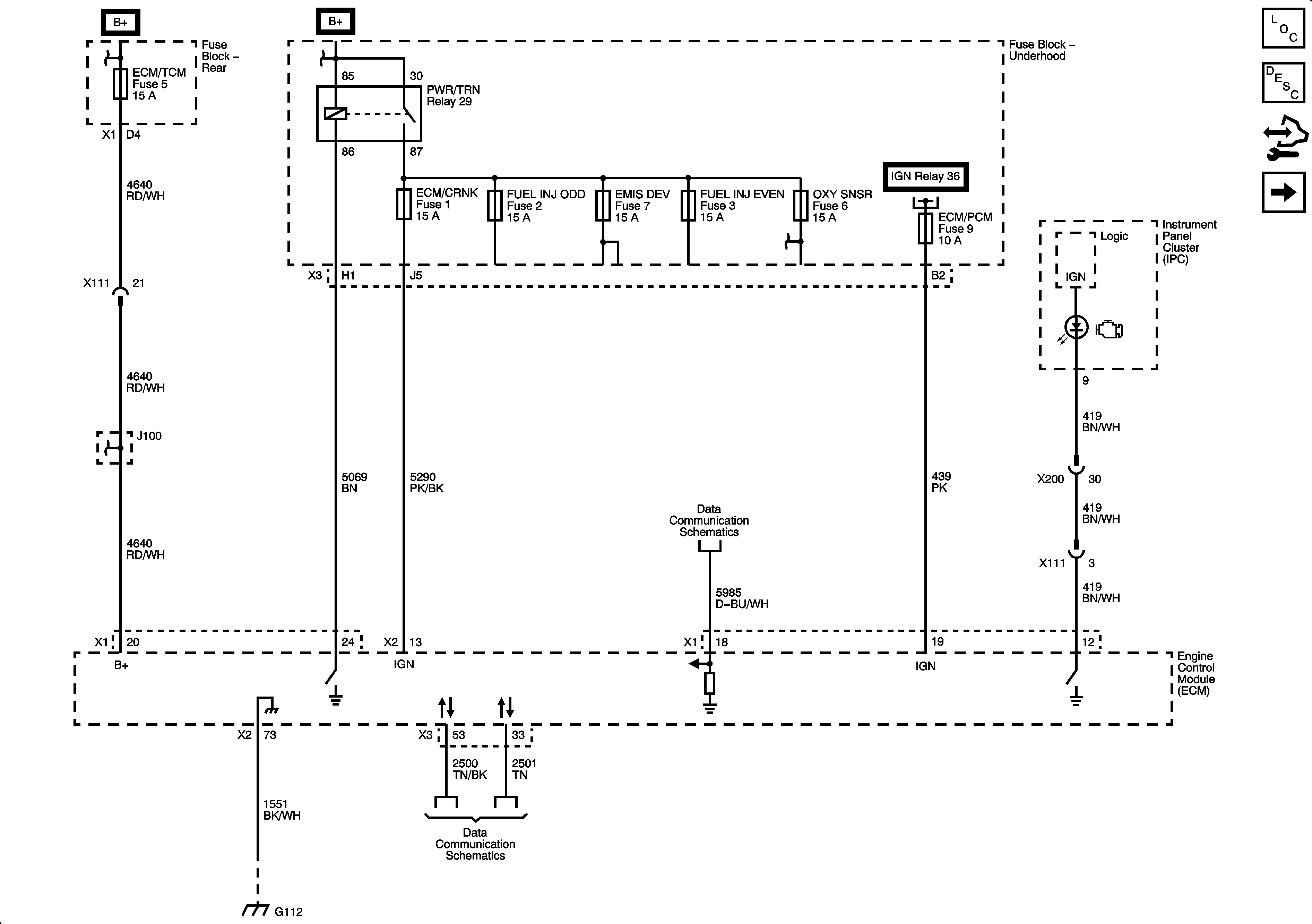

Figure 1:	Power, Ground, MIL and DLC Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors, 5V Reference Bussing

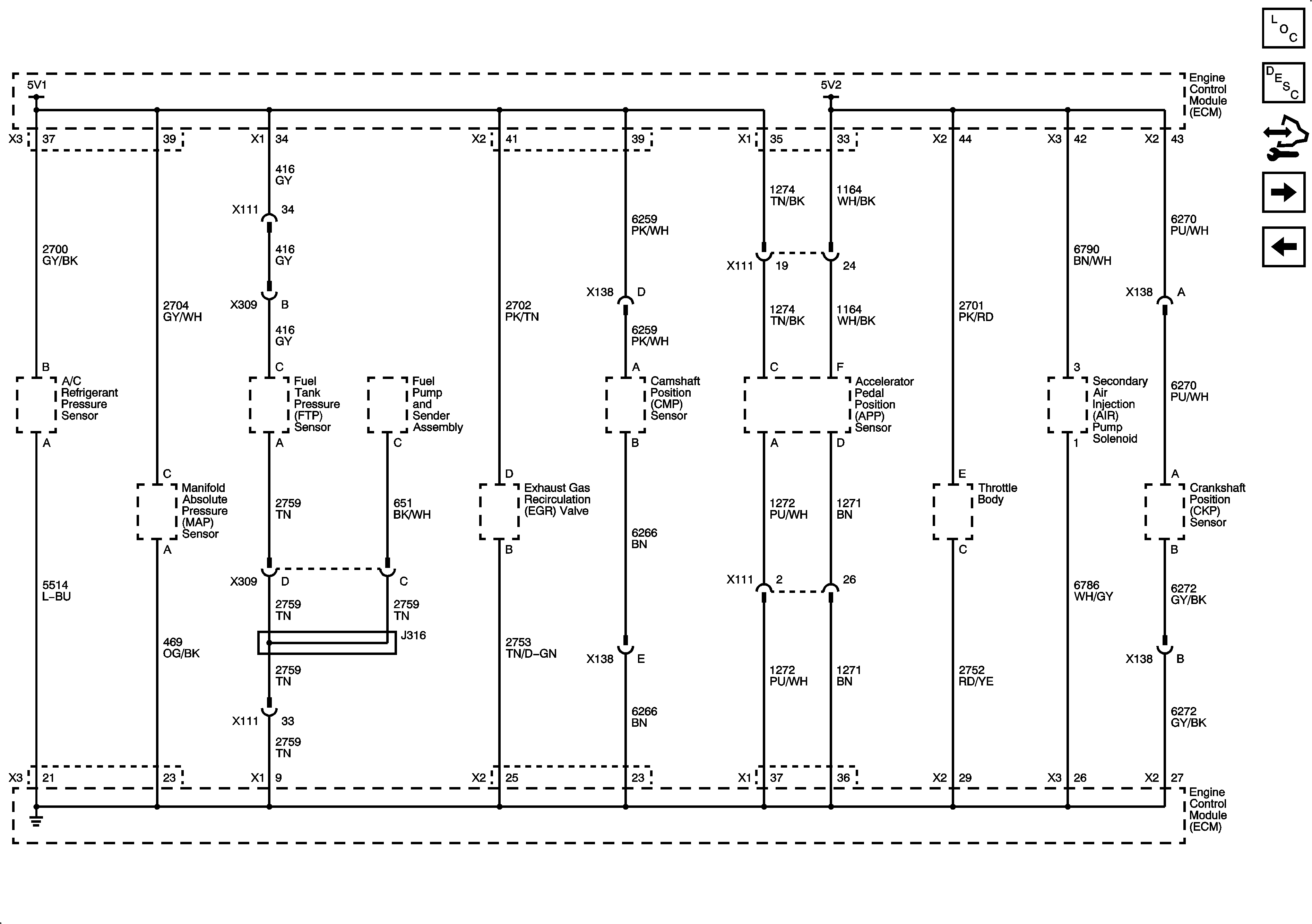

Figure 2:	Engine Data Sensors, 5-Volt Reference Bussing Master Electrical Component List Engine Control Module Description Control Module References Power, Ground, MIL and DLC Engine Data Sensors, Pressure, Temp and MAF/IAT

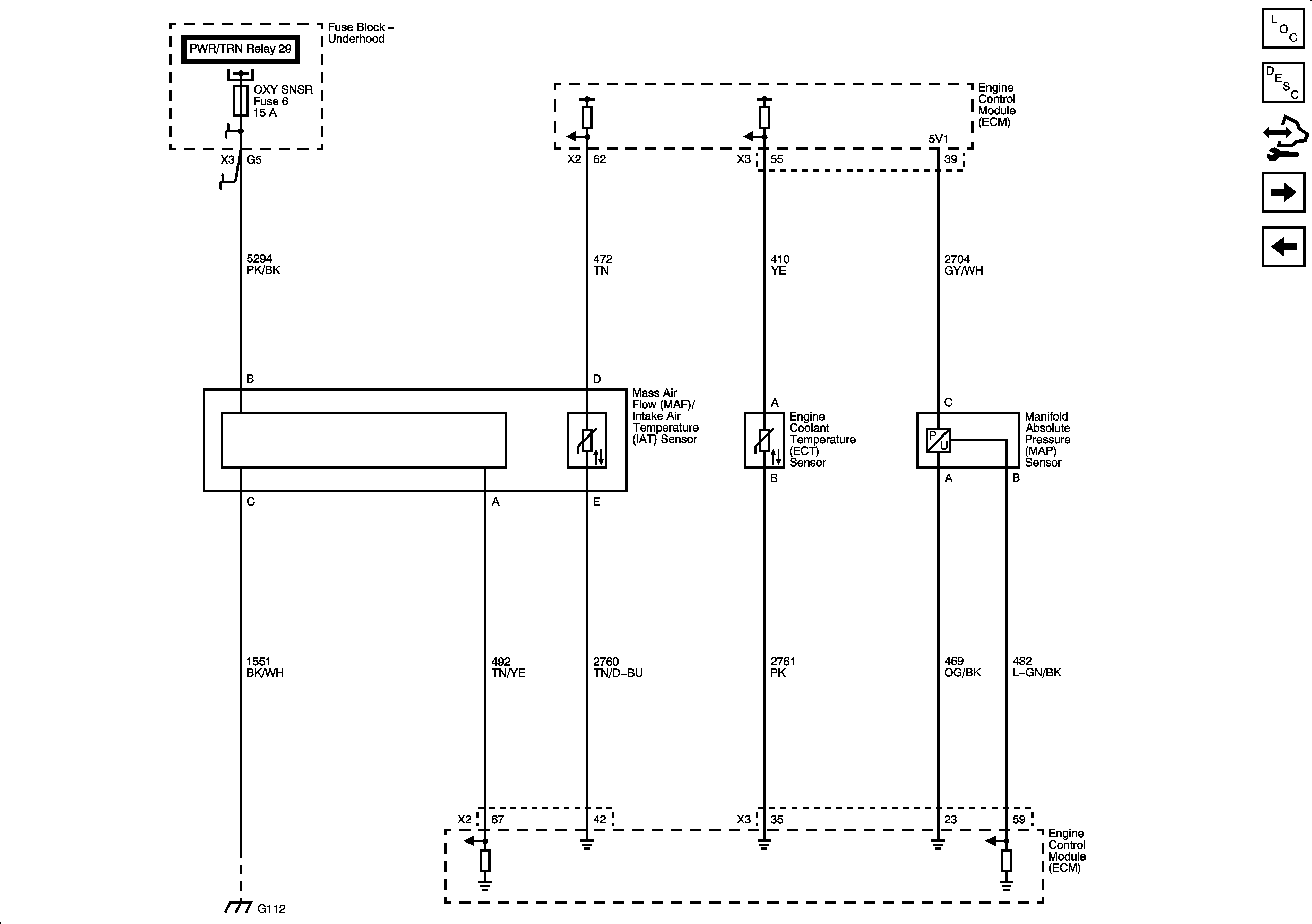

Figure 3:	Engine Data Sensors, Pressure, Temp and MAF/IAT Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors, 5V Reference Bussing Engine Data Sensors, HO2S

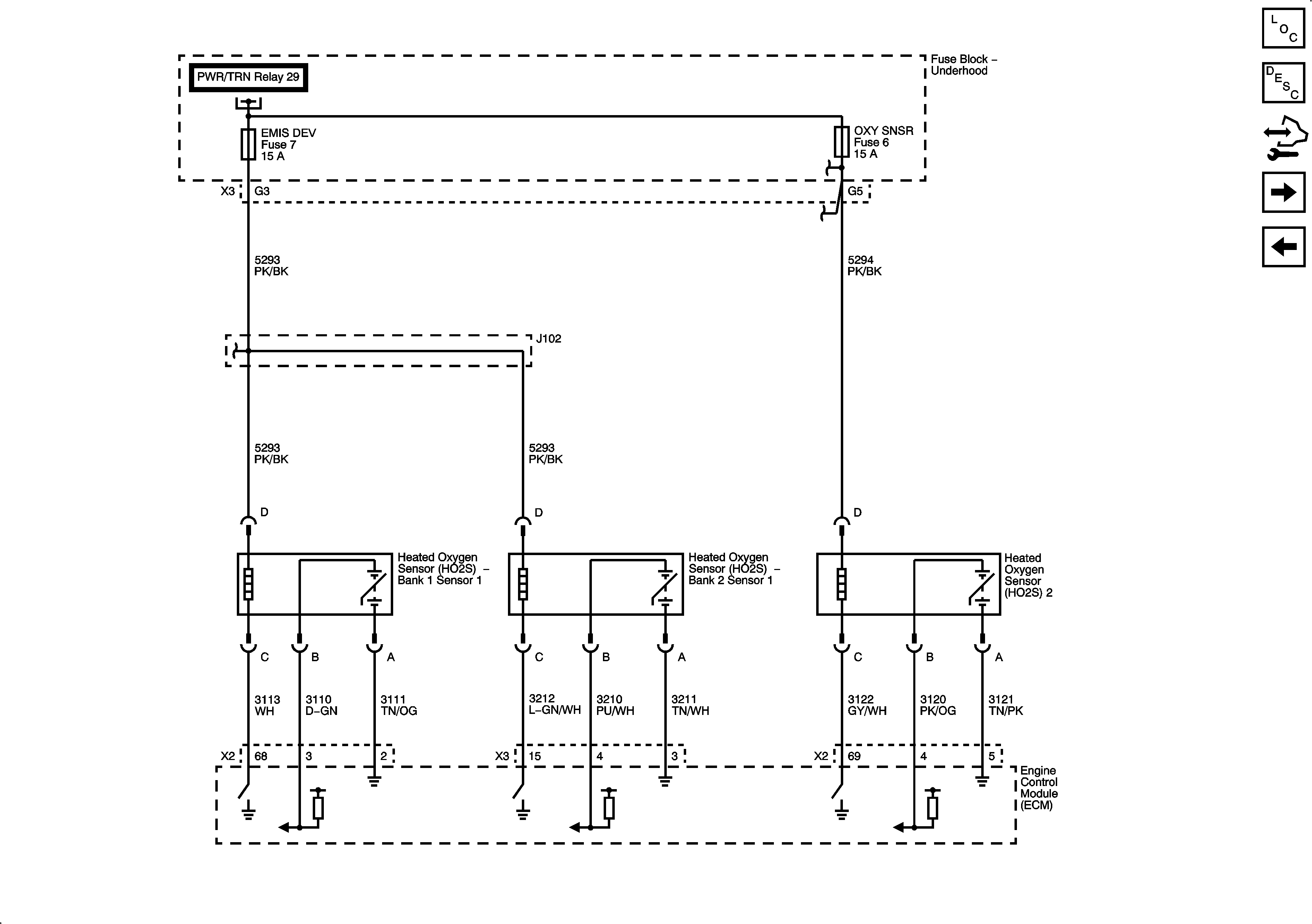

Figure 4:	Engine Data Sensors, HO2S Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors, Pressure, Temp and MAF/IAT Engine Data Sensors, APP and Throttle Body Assembly

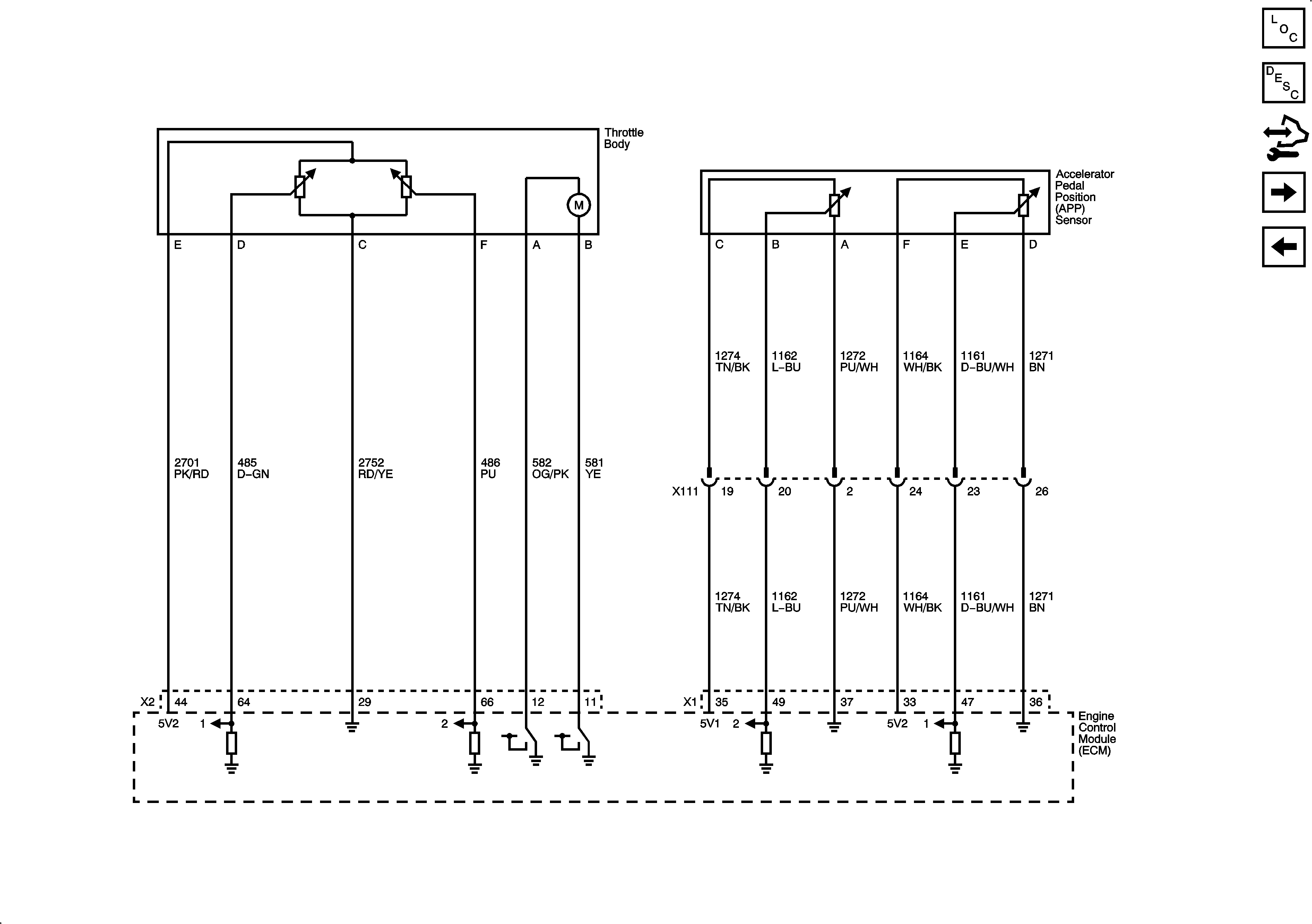

Figure 5:	Engine Data Sensors, APP and Throttle Body Assembly Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors, HO2S Ignition Controls 1 of 2

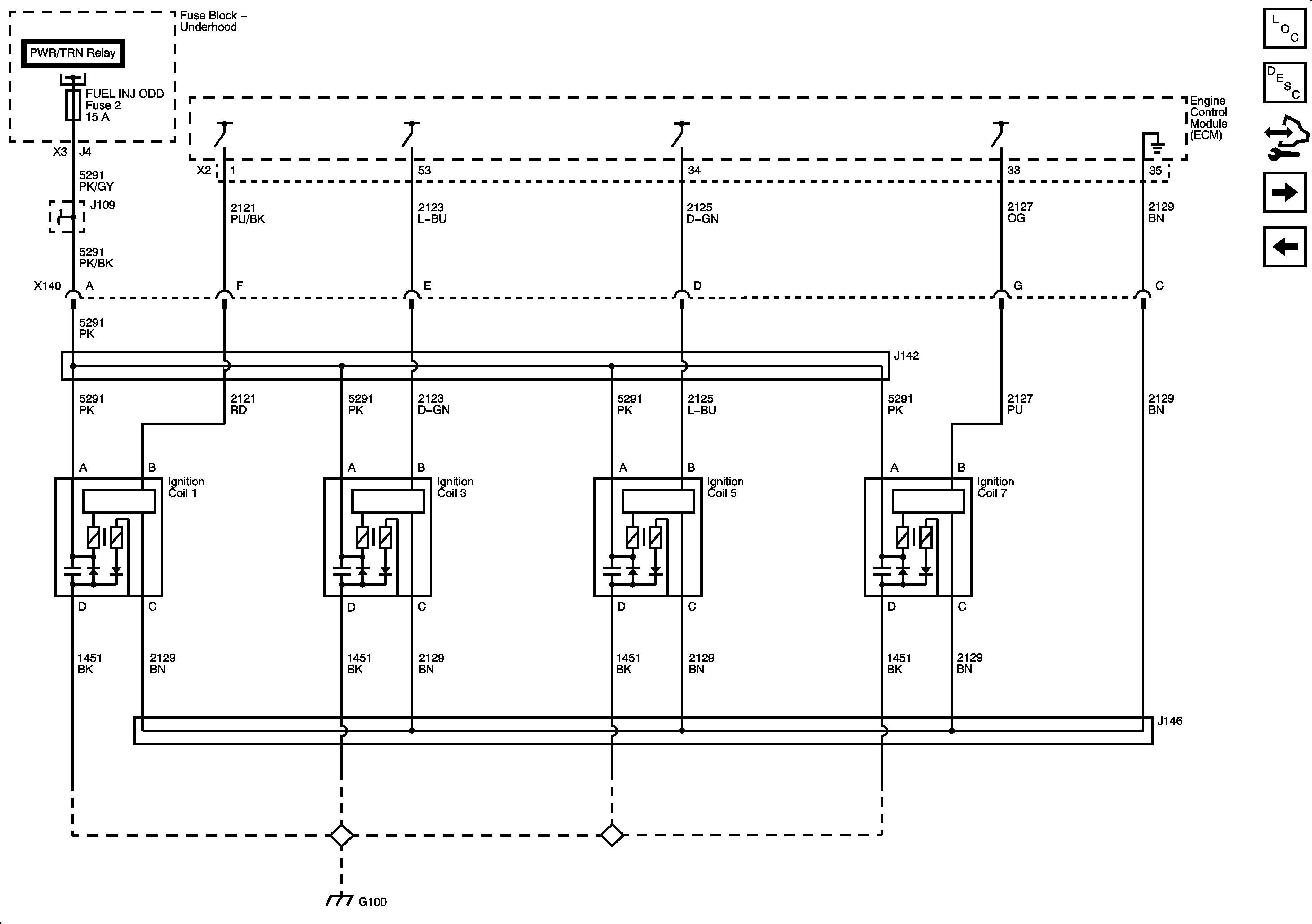

Figure 6:	Ignition Controls 1 of 2 Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Engine Data Sensors, APP and Throttle Body Assembly Ignition Controls 2 of 2

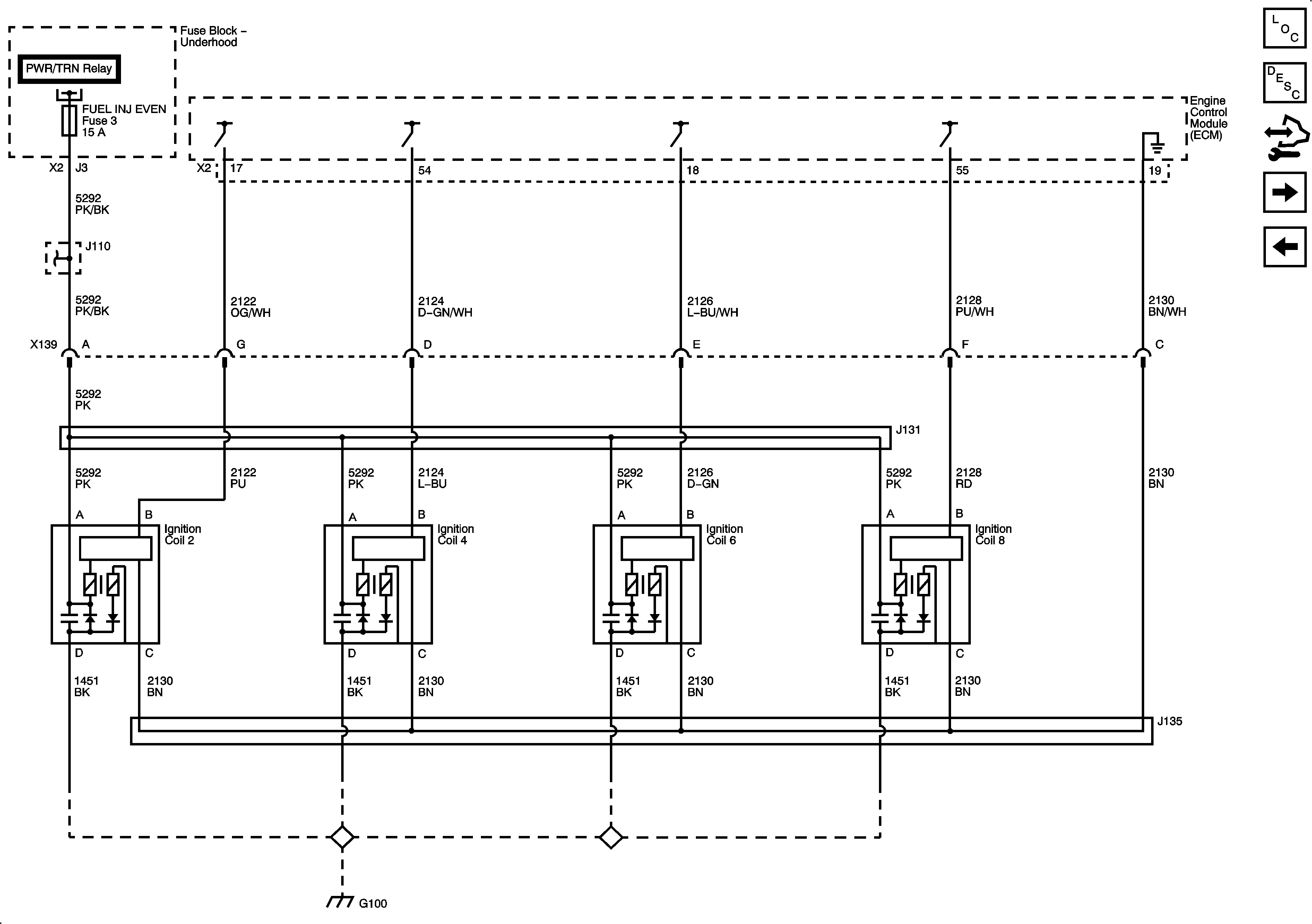

Figure 7:	Ignition Controls 2 of 2 Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Ignition Controls 1 of 2 CKP, CMP, Knock Sensors

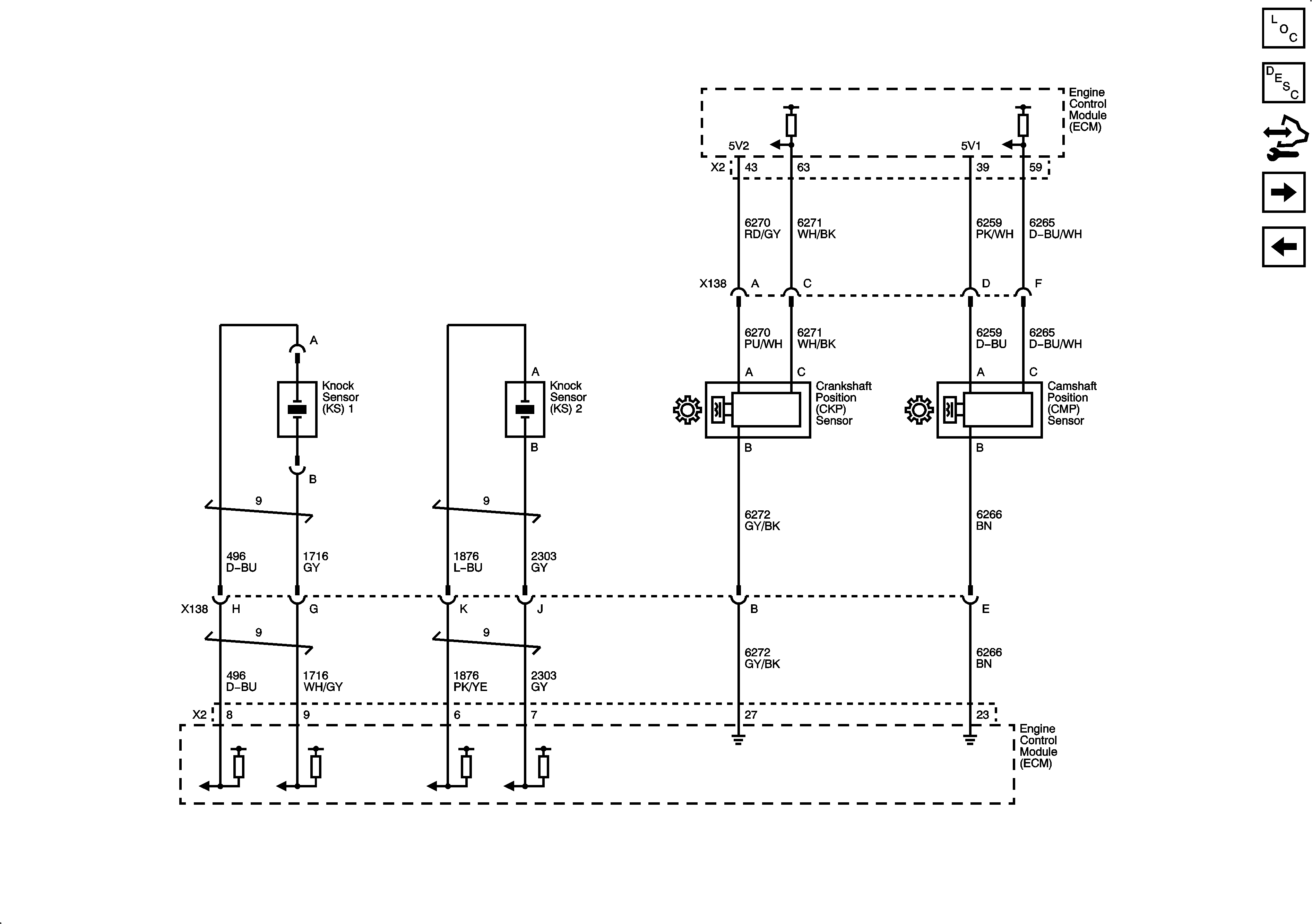

Figure 8:	CKP, CMP, Knock Sensors Master Electrical Component List Engine Control Module Description Control Module References Ignition Controls 2 of 2 Fuel Controls

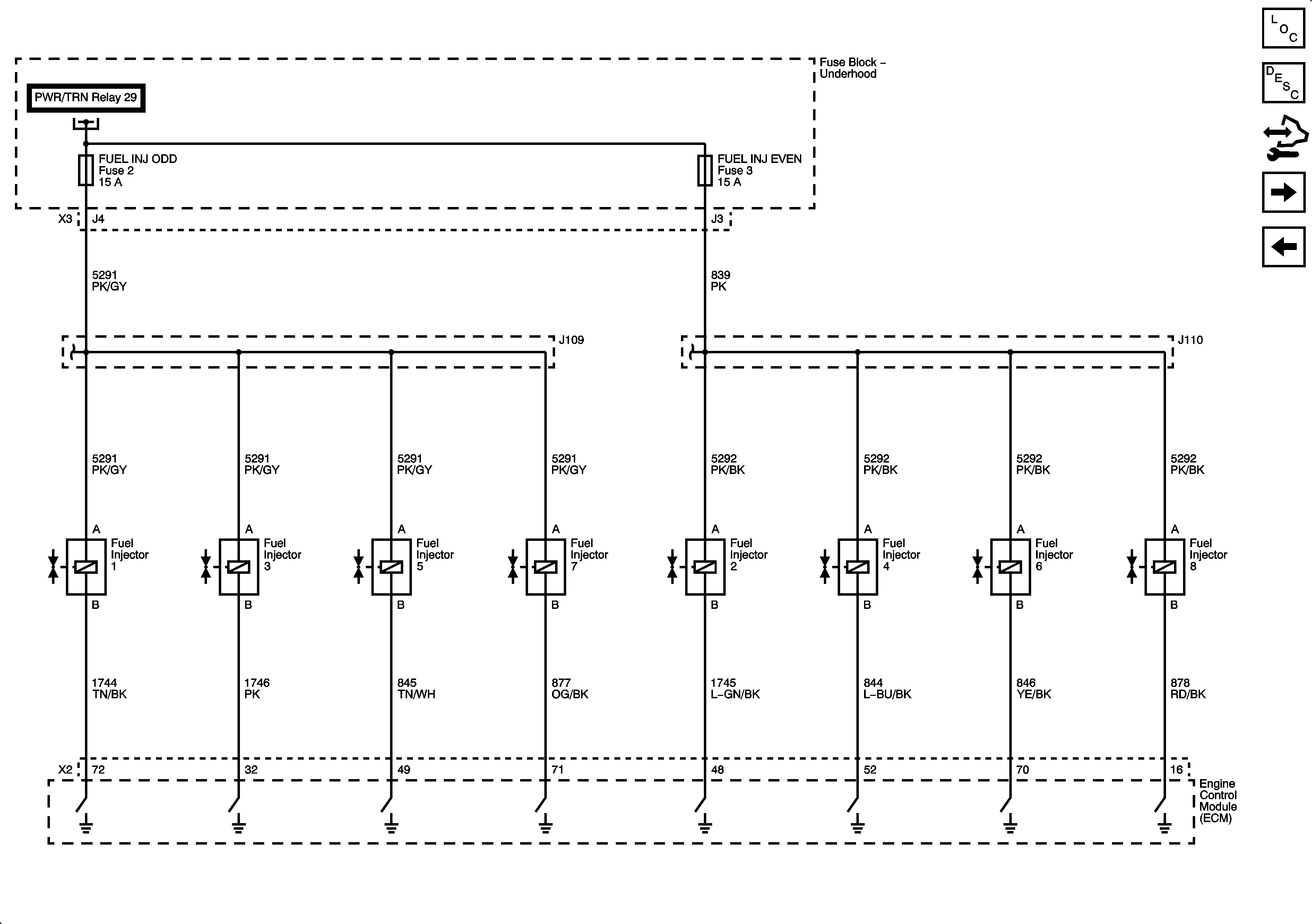

Figure 9:	Fuel Controls Master Electrical Component List Fuel System Description Control Module References CKP, CMP, Knock Sensors EVAP Controls

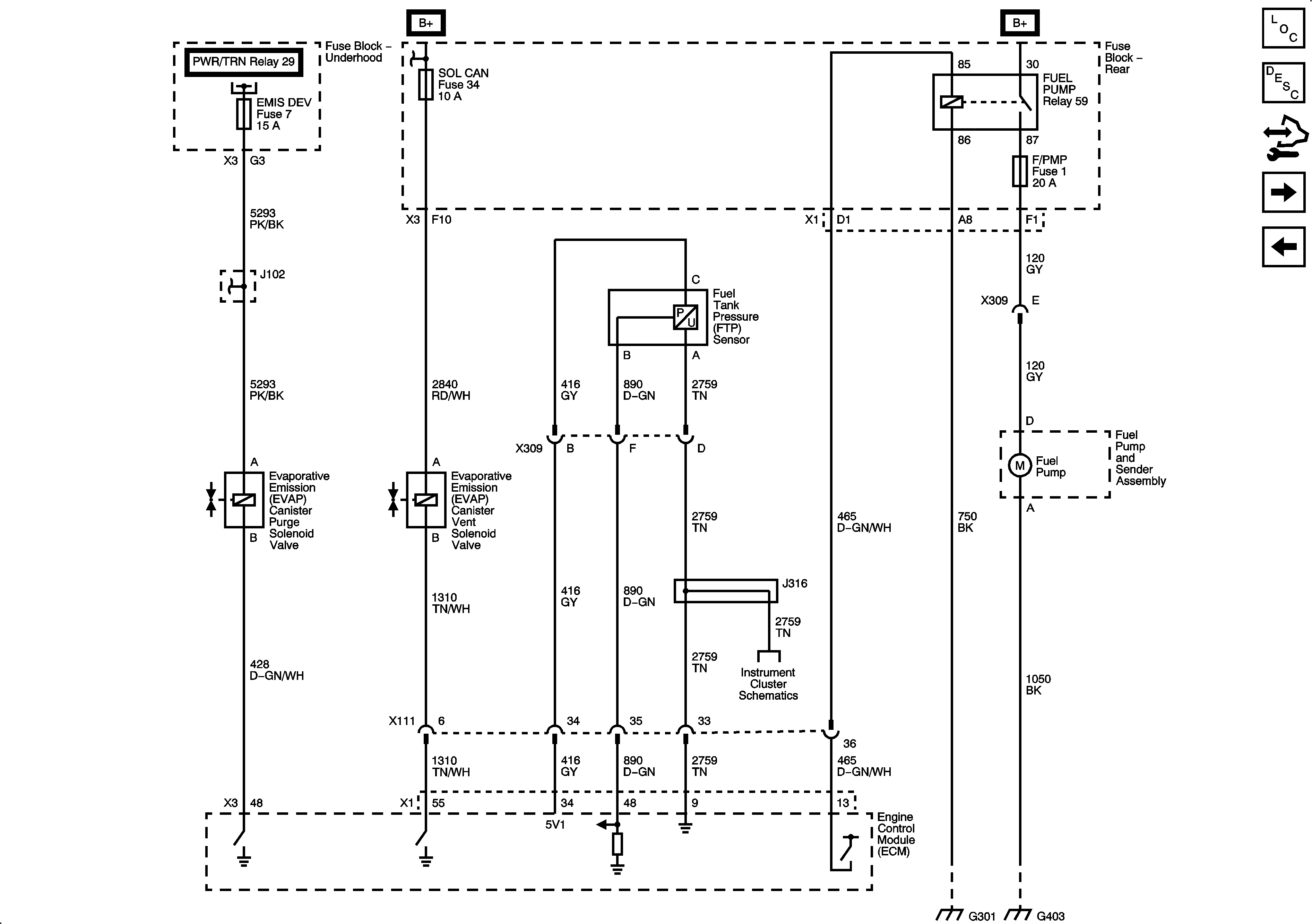

Figure 10:	EVAP Controls Master Electrical Component List Evaporative Emission Control System Description Control Module References Fuel Controls AIR, EGR

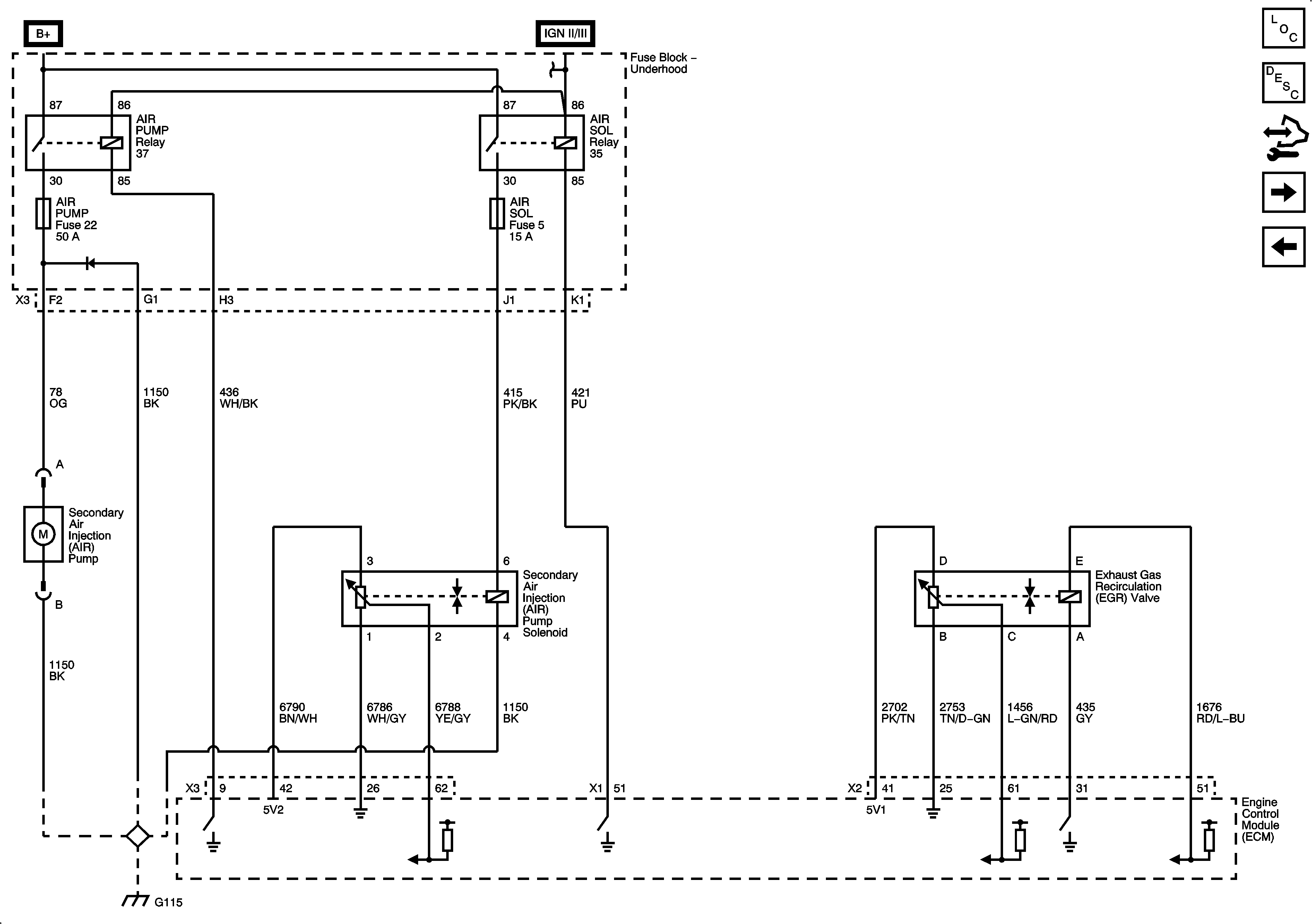

Figure 11:	AIR, EGR Master Electrical Component List Exhaust Gas Recirculation (EGR) System Description Control Module References EVAP Controls Controlled/Monitored Subsystem References

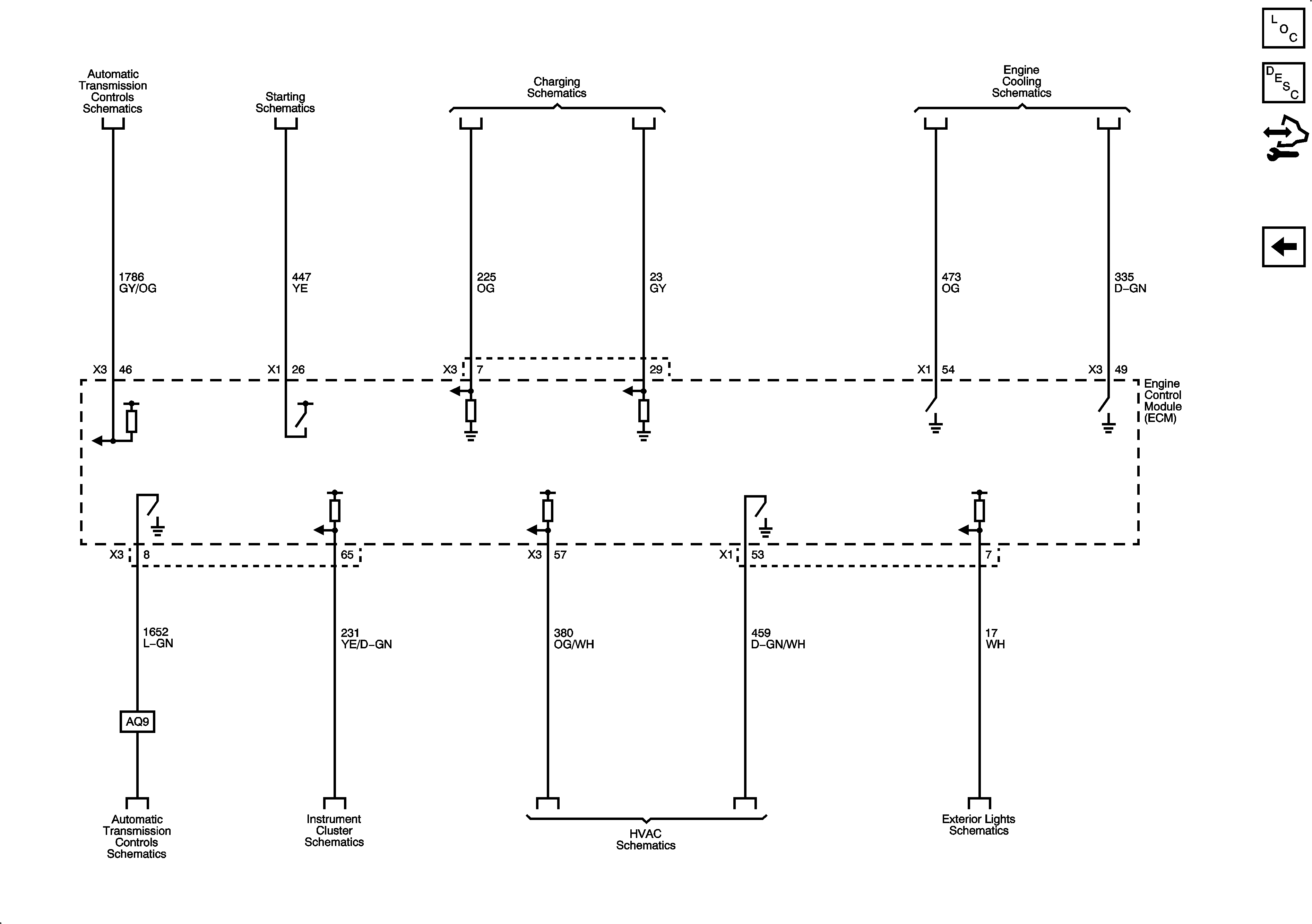

Figure 12:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Module Description Control Module References AIR, EGR
