Interior Lights Schematics. Cadillac DTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Interior Lights Schematics

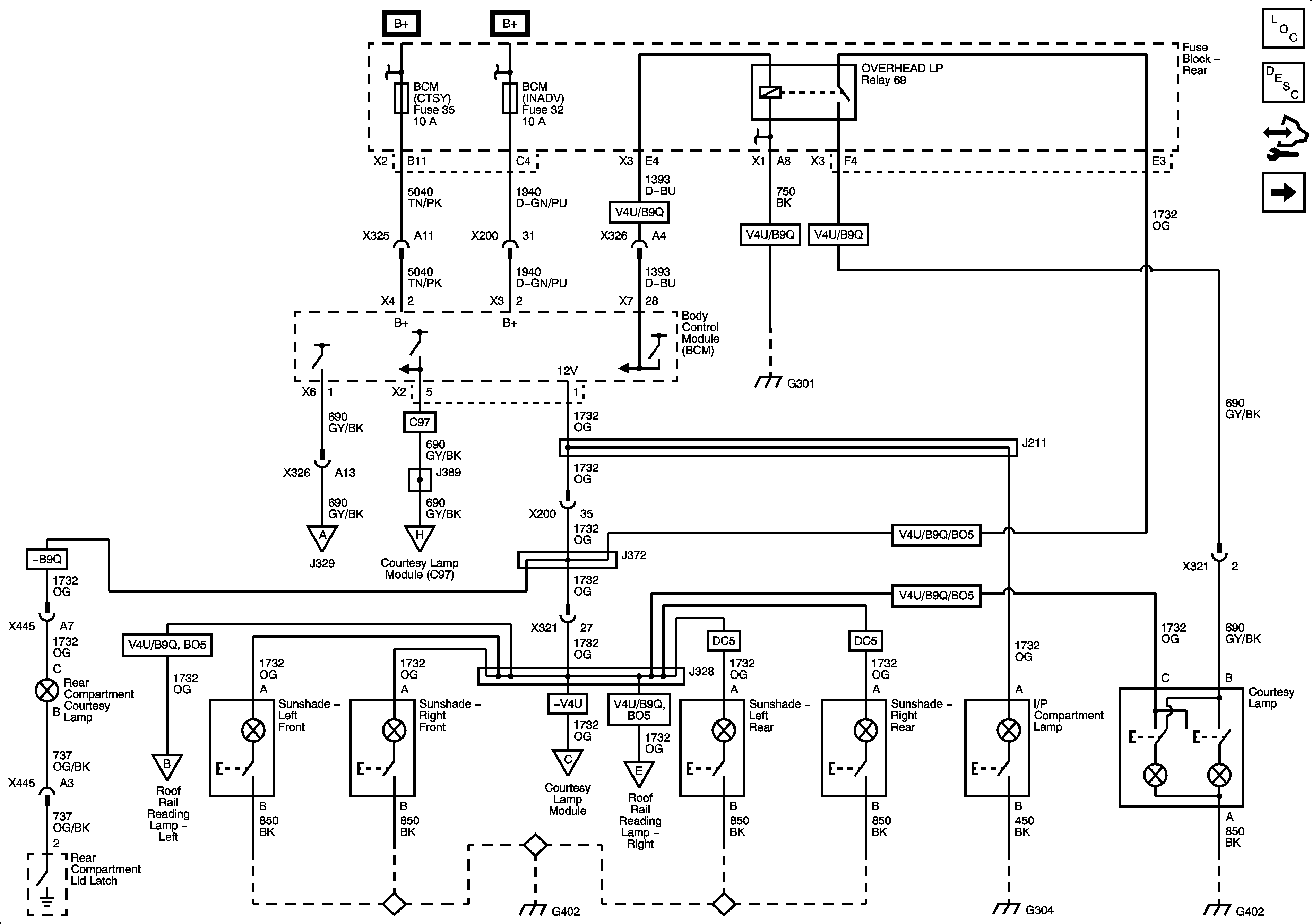

Figure 1:	Vanity Mirror, Rear Compartment Courtesy, I/P Compartment, Overhead Console Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Interior Courtesy Lamps

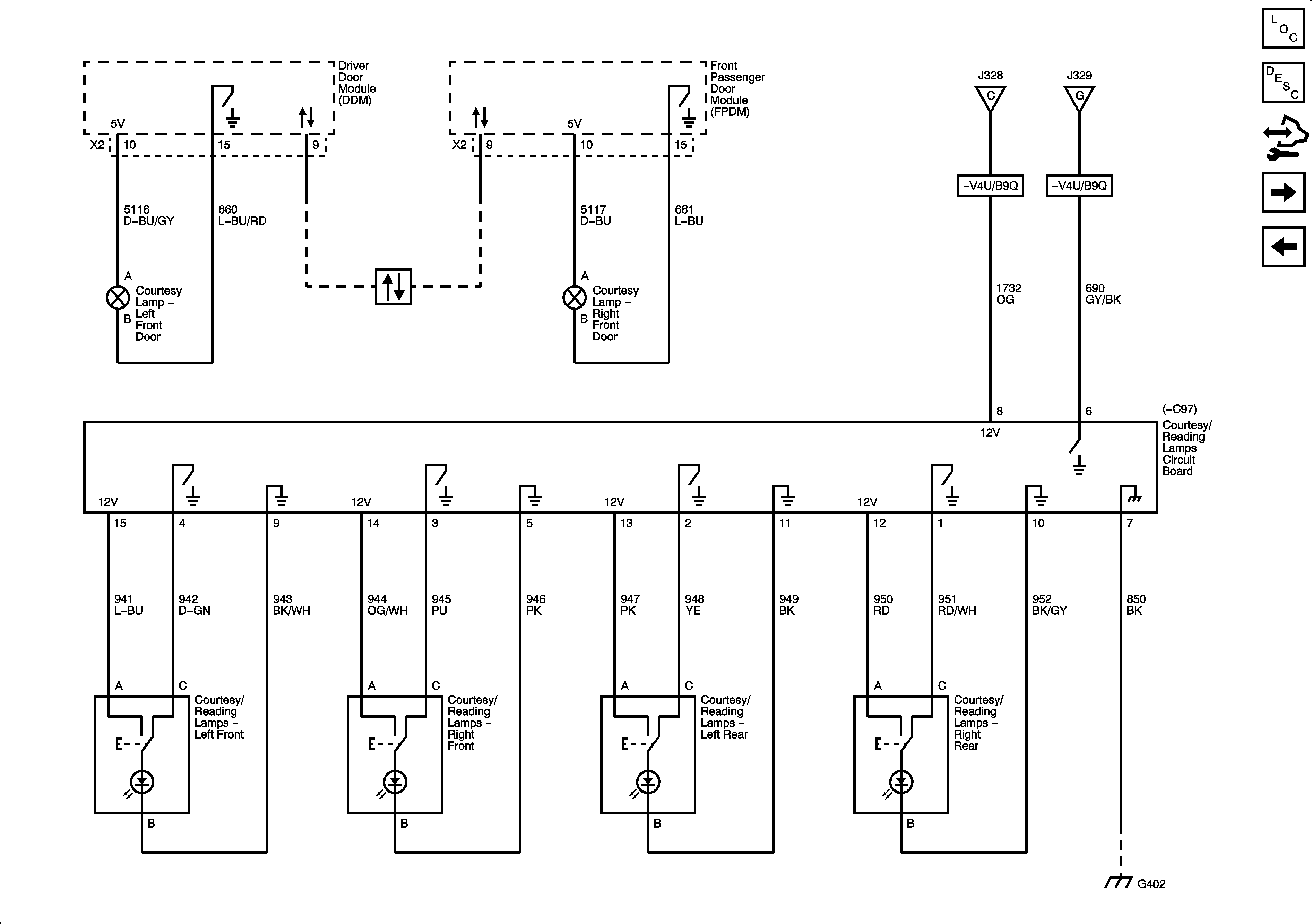

Figure 2:	Interior Courtesy Lamps Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Vanity Mirror, Rear Compartment Courtesy, I/P Compartment, Overhead Console Roof Rail Reading, Dome Lamp Courtesy Lamps - V4U

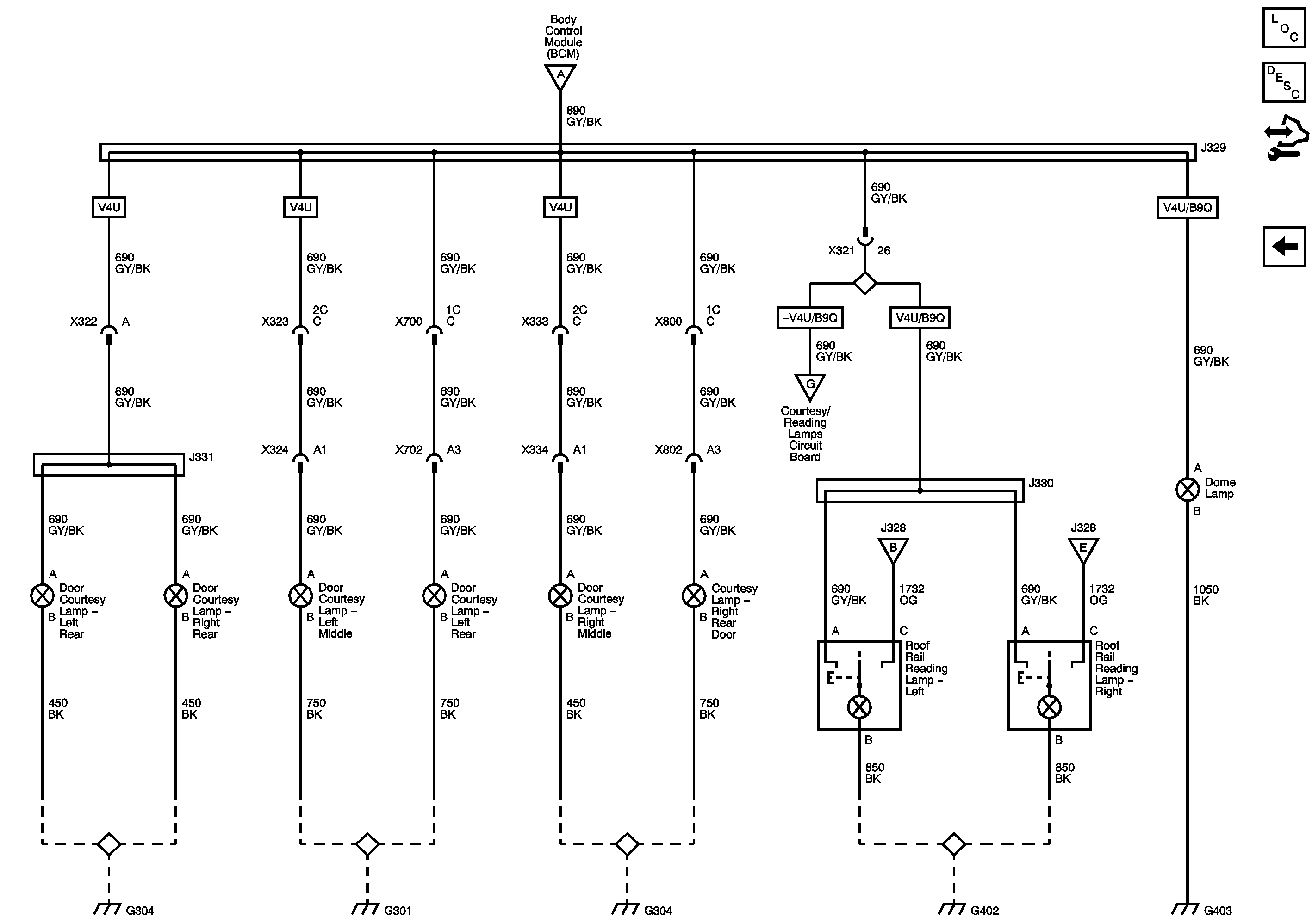

Figure 3:	Roof Rail Reading, Dome Lamp Courtesy Lamps - V4U Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Interior Courtesy Lamps Sill Plate Lighting - C97

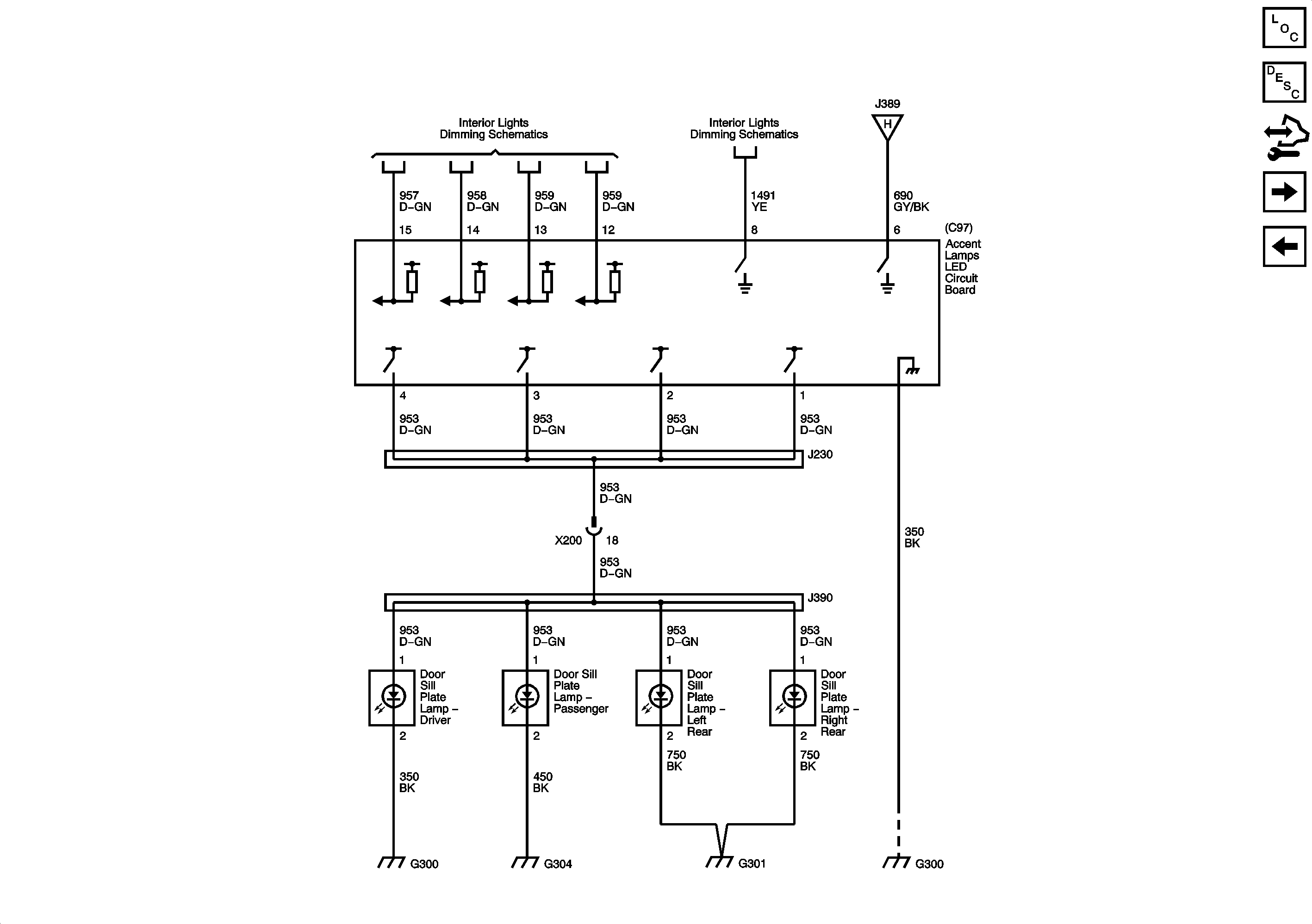

Figure 4:	Sill Plate Lighting - C97 Master Electrical Component List Interior Lighting Systems Description and Operation Control Module References Roof Rail Reading, Dome Lamp Courtesy Lamps - V4U
