Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Body Repair 🢒 Bolted Exterior Body Panels and Closures 🢒 Rear Side Door Upper Hinge and Lower Hinge Replacement

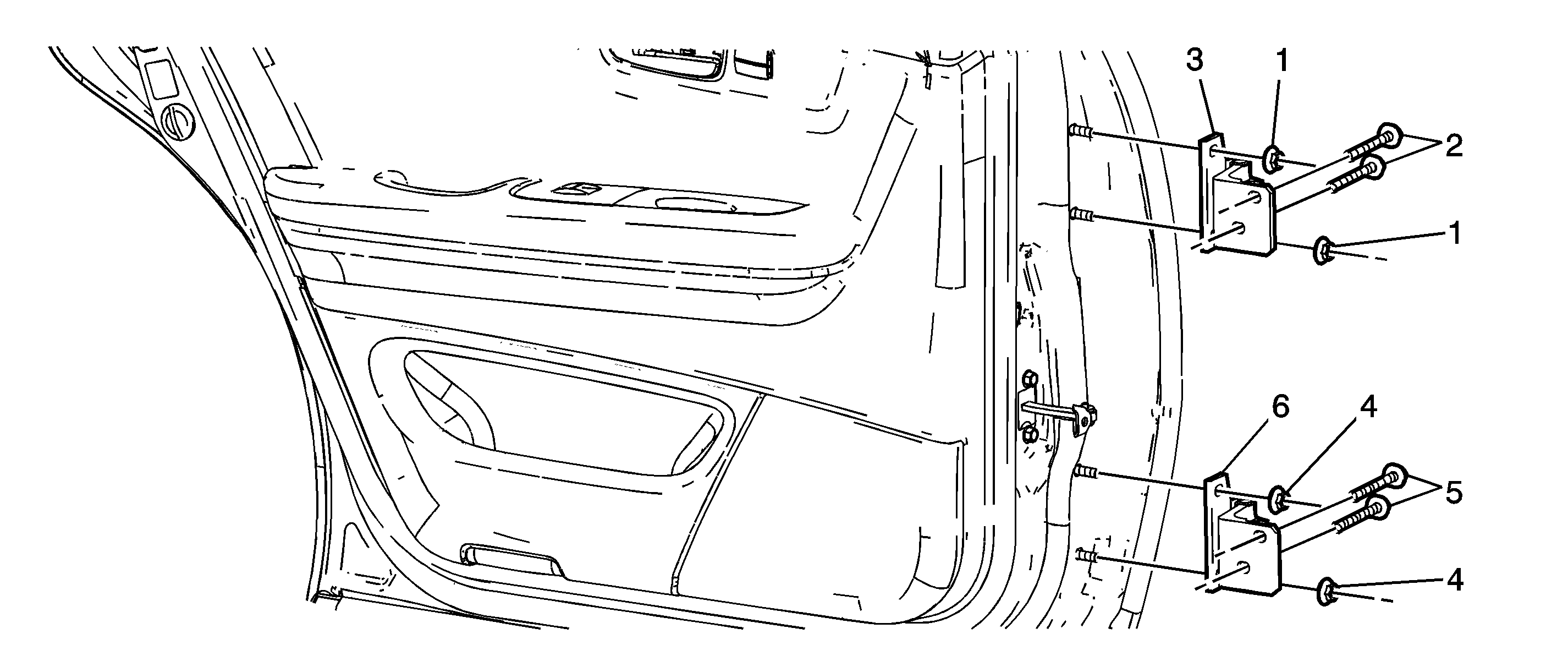

Object Number: 1588705 Size: SF

Callout

Component Name

1

Rear Side Door Upper Hinge to Door Nut (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tip

    • Support the door before removing the hinge nuts.
    • Replace one door hinge at a time.

Tighten
26 N·m (19 lb ft)

2

Rear Side Door Upper Hinge to Body Bolt (Qty: 2)

Tighten
34 N·m (25 lb ft)

3

Rear Side Door Upper Hinge

4

Rear Side Door Lower Hinge to Door Nut (Qty: 2)

Tighten
26 N·m (19 lb ft)

5

Rear Side Door Lower Hinge to Body Bolt (Qty: 2)

Tighten
34 N·m (25 lb ft)

6

Rear Side Door Lower Hinge

Tip
Adjust the door. Refer to Door Adjustment.
