Heated/Cooled Seat Schematics. Cadillac DTS 2008

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Power and Signal Distribution 🢒 Data Communications 🢒 Heated/Cooled Seat Schematics

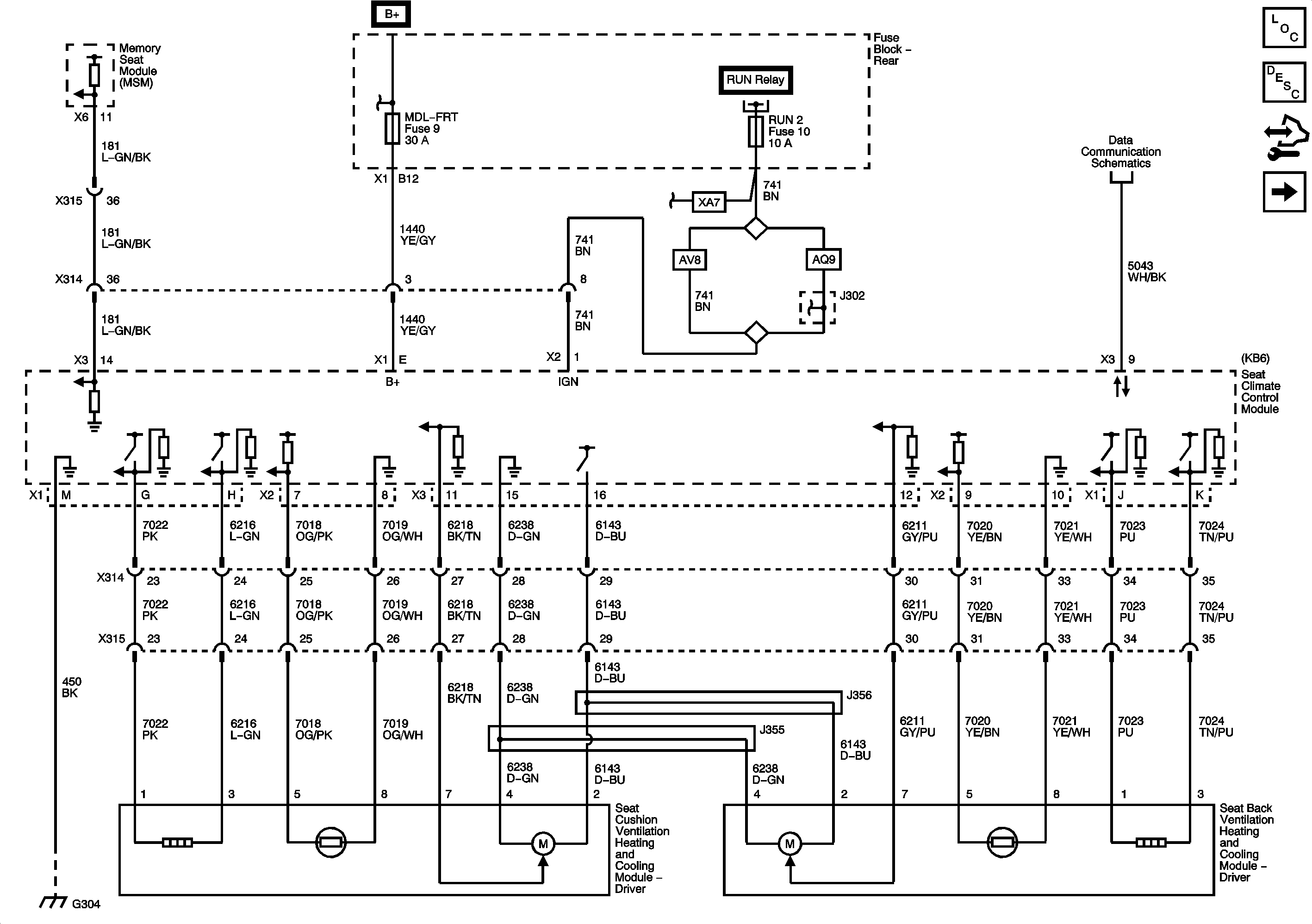

Figure 1:	Driver Heated and Cooled Seat - KB6 Master Electrical Component List Heated/Cooled Seats Description and Operation Control Module References Driver Heated and Cooled Seat Switch KA1 KB6

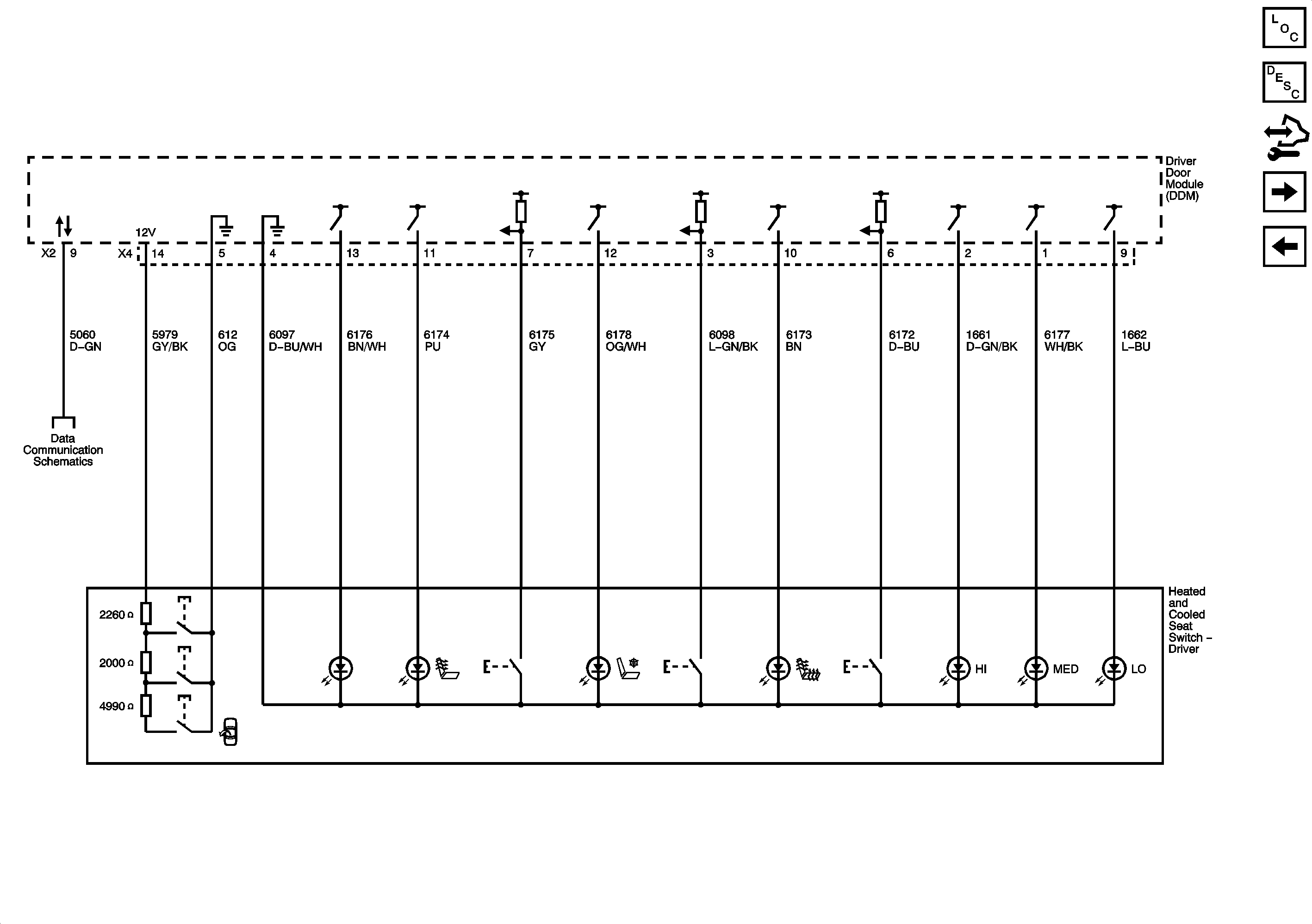

Figure 2:	Driver Heated/Cooled Seat Switch - KB6 Master Electrical Component List Heated/Cooled Seats Description and Operation Control Module References Driver Heated and Cooled Seat KB6 Passenger Heated and Cooled Seat KB6
Figure 3:	Passenger Heated and Cooled Seat - KB6 Master Electrical Component List Heated/Cooled Seats Description and Operation Control Module References Driver Heated and Cooled Seat Switch KA1 KB6 Passenger Heated and Cooled Seat Switch KA1 KB6

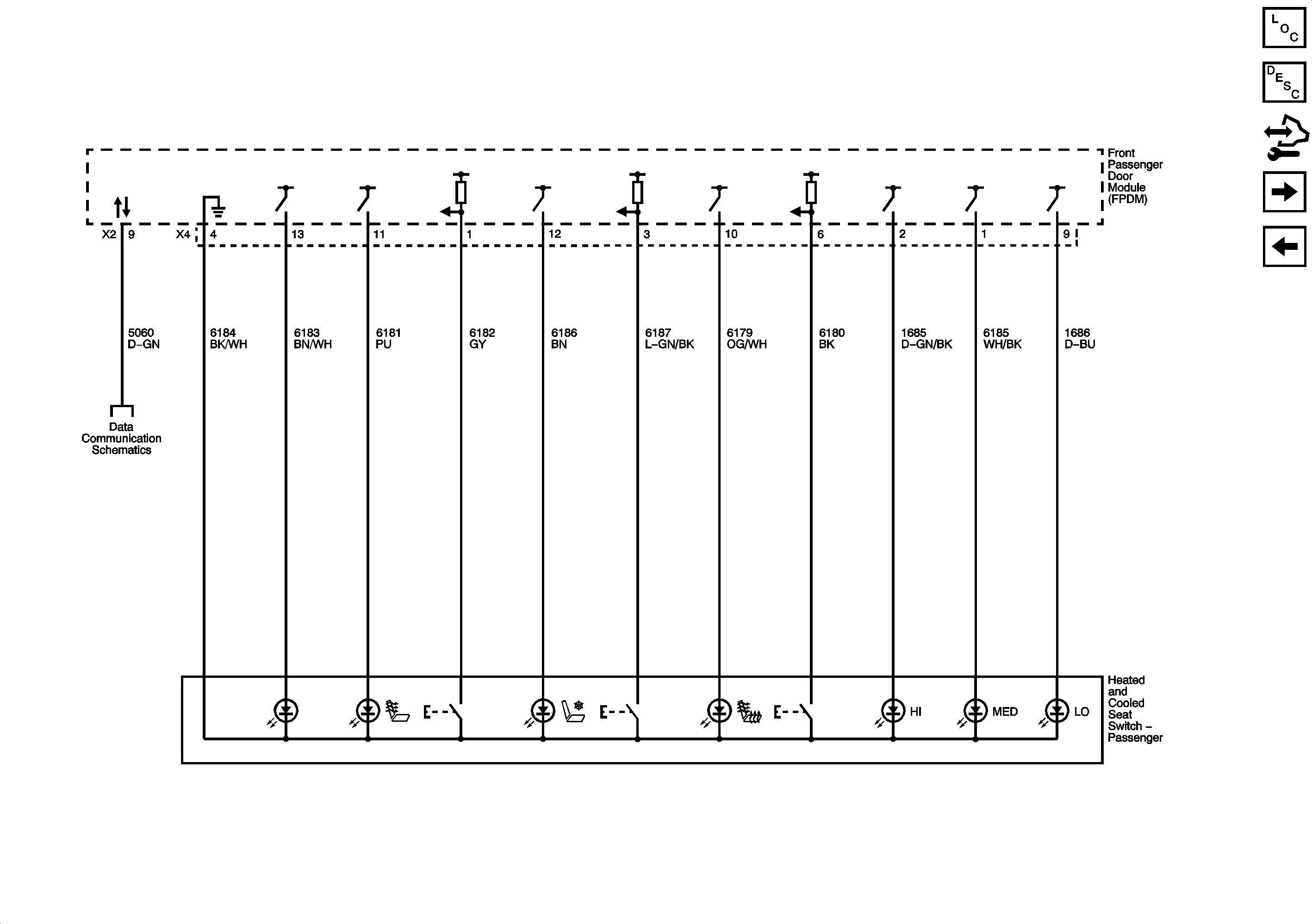

Figure 4:	Passenger Heated/Cooled Seat Switch - KB6 Master Electrical Component List Heated/Cooled Seats Description and Operation Control Module References Passenger Heated and Cooled Seat KB6 Left Rear Heated Seat Switch w/ KA6

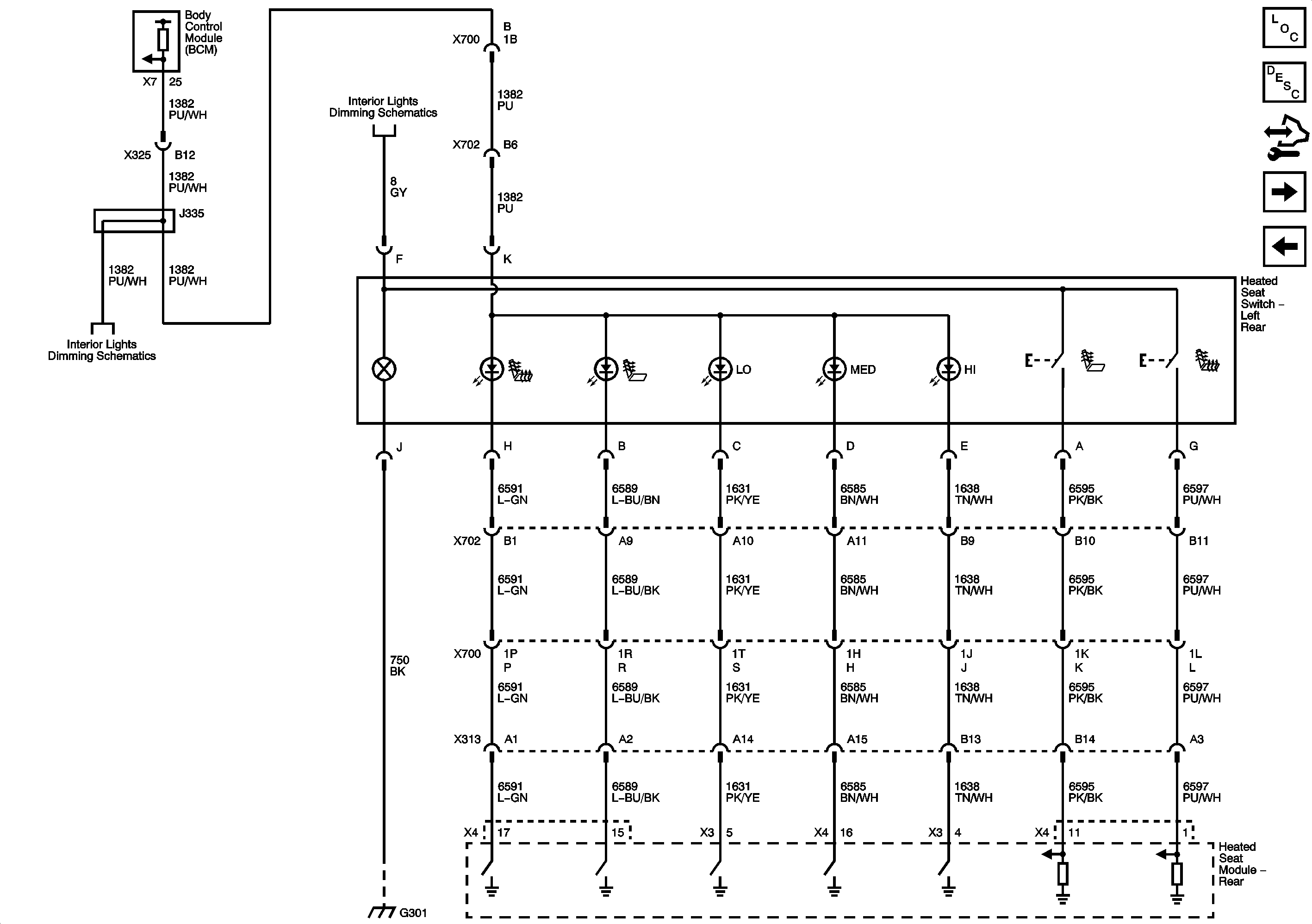

Figure 5:	Left Rear Heated Seat Switch - w/KA6 Master Electrical Component List Rear Heated Seats Description and Operation Control Module References Passenger Heated and Cooled Seat Switch KA1 KB6 Right Rear Heated Seat Switch w/ KA6

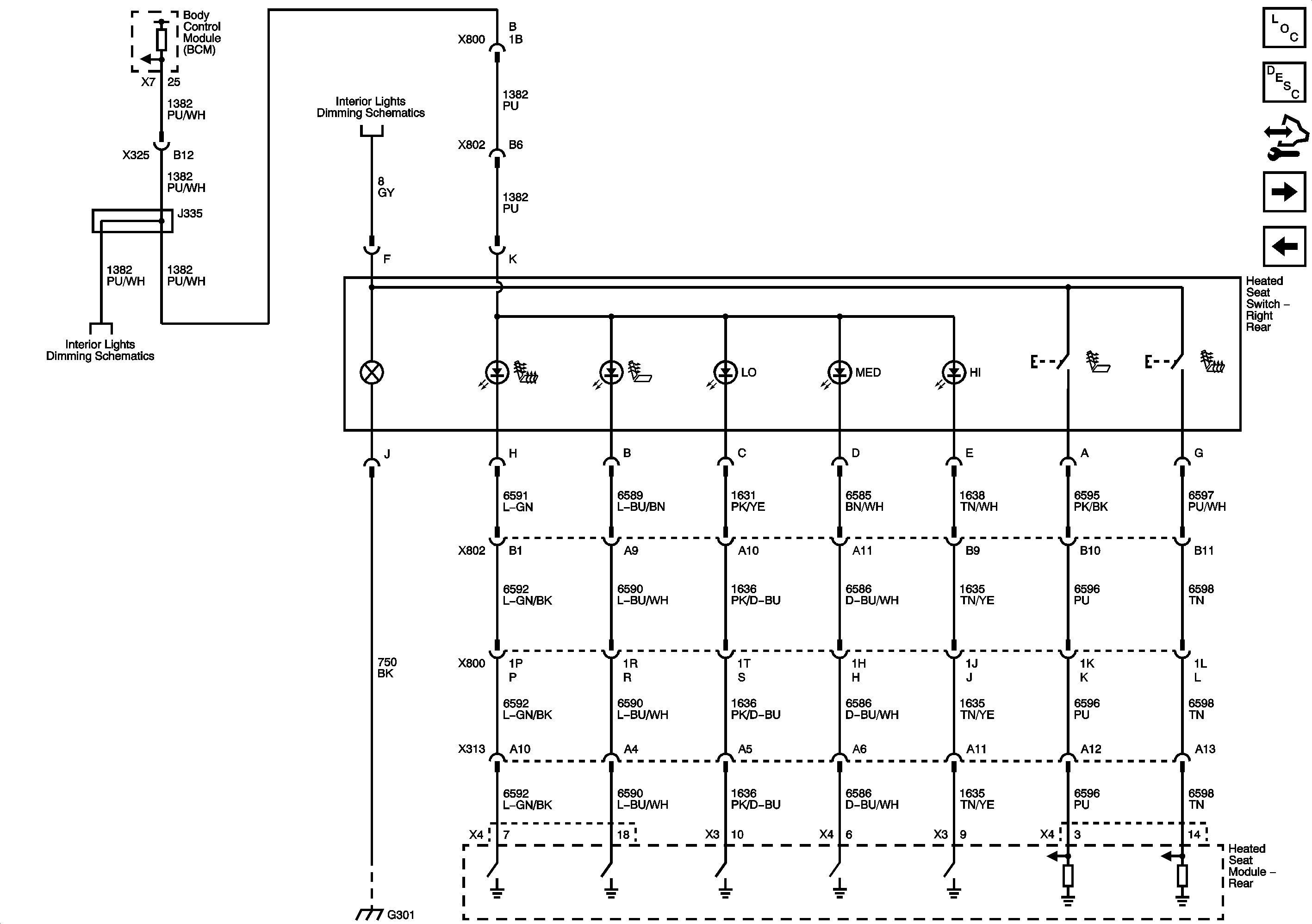

Figure 6:	Right Rear Heated Seat Switch - w/KA6 Master Electrical Component List Rear Heated Seats Description and Operation Control Module References Left Rear Heated Seat Switch w/ KA6 Rear Heated Seat Elements w/ KA6

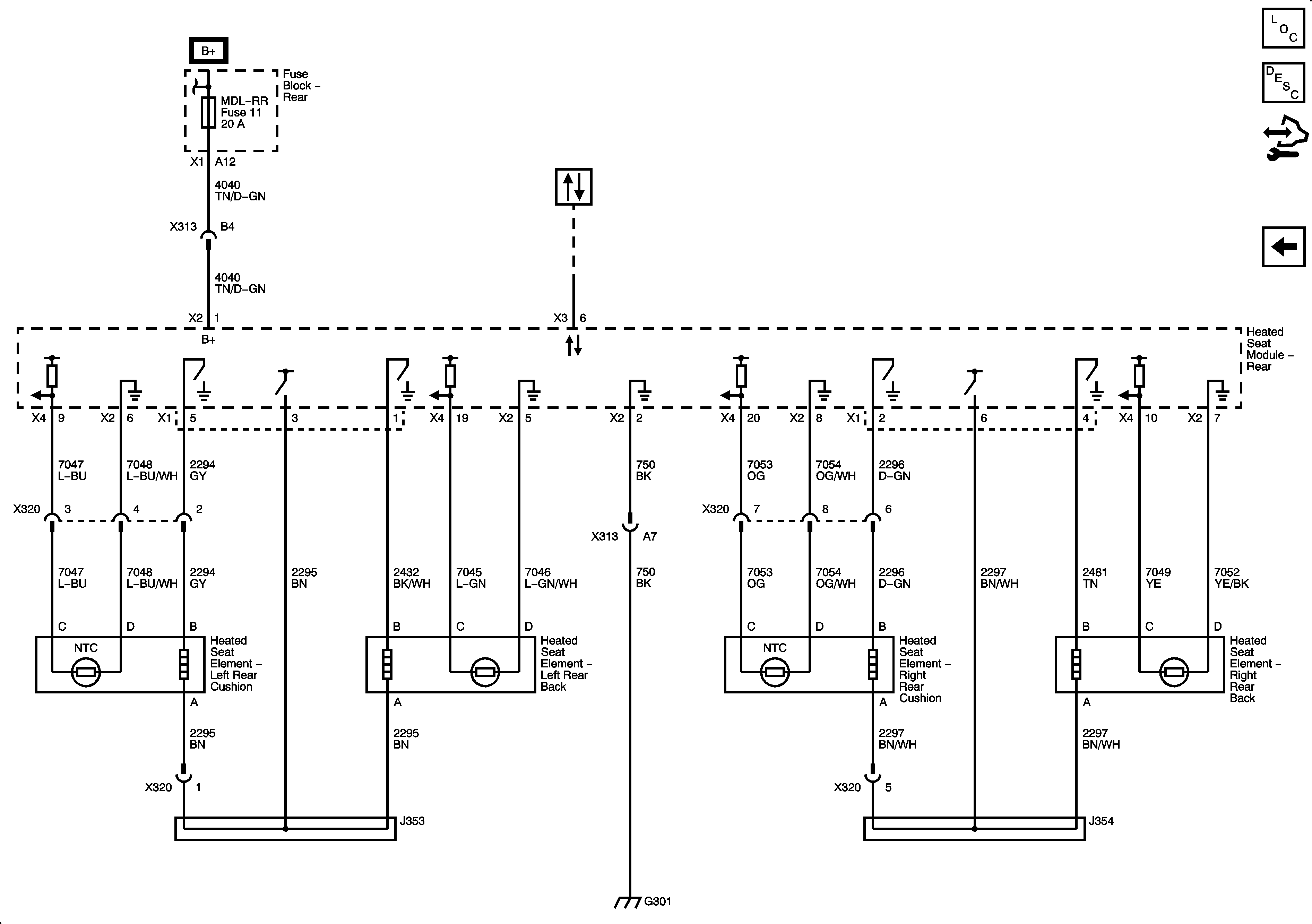

Figure 7:	Rear Heated Seat Elements - w/KA6 Master Electrical Component List Rear Heated Seats Description and Operation Control Module References Right Rear Heated Seat Switch w/ KA6
