Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Front of Vehicle/Engine Compartment Component Views
Figure 1:

Headlamp Assemblies
Object Number: 1860642 Size: LF
(1)Headlamp Ballast-Left (-T72)
(2)X114
(3)X113
(4)Headlamp Ballast-Right (-T72)

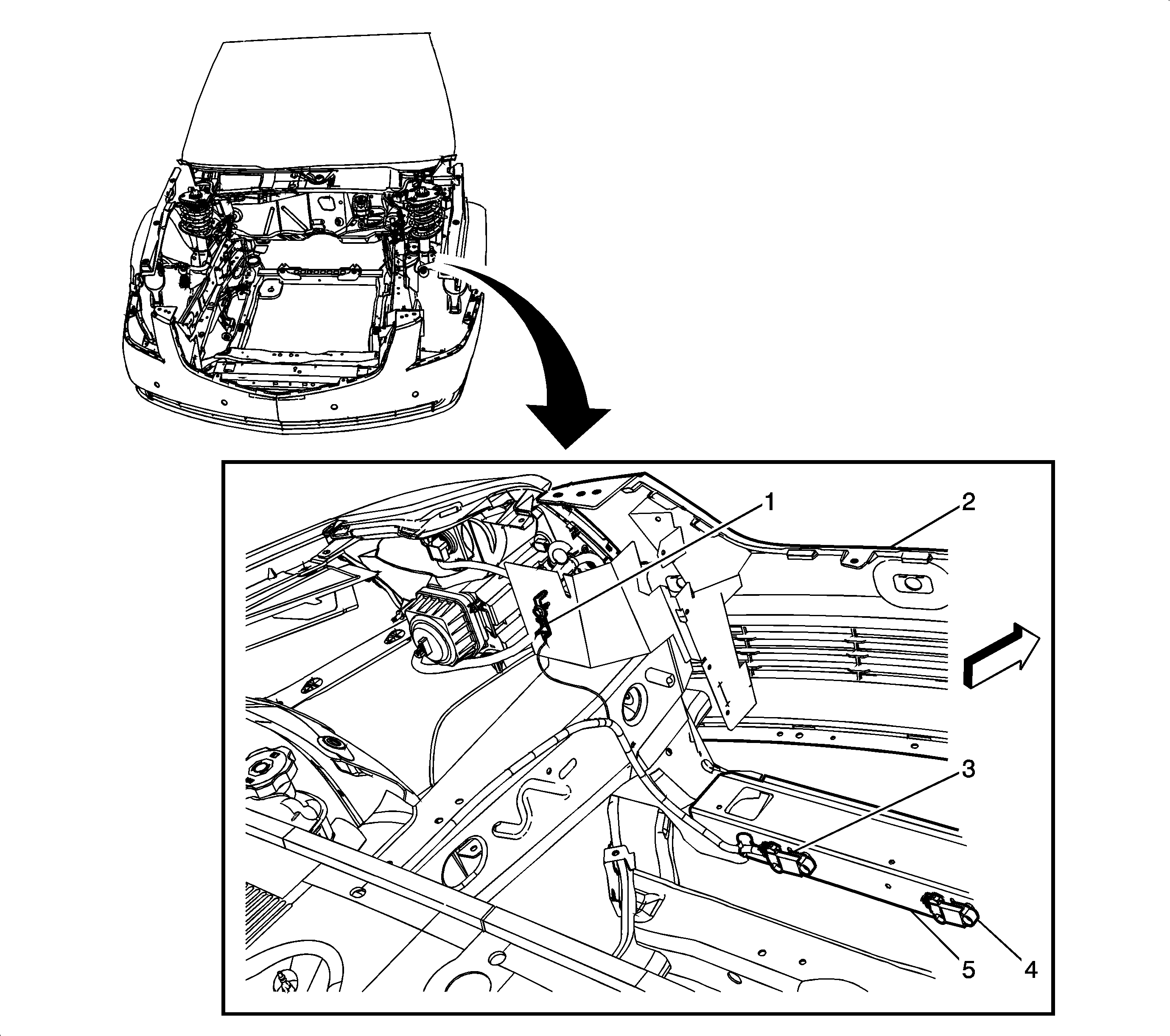

Figure 2:

Left Side of Engine Compartment
Object Number: 1657026 Size: LF
(1)G101
(2)Front Fascia
(3)Inflatable Restraint Front End Sensor - Left
(4)Inflatable Restraint Front End Sensor - Right
(5)Lower Front Tie Bar

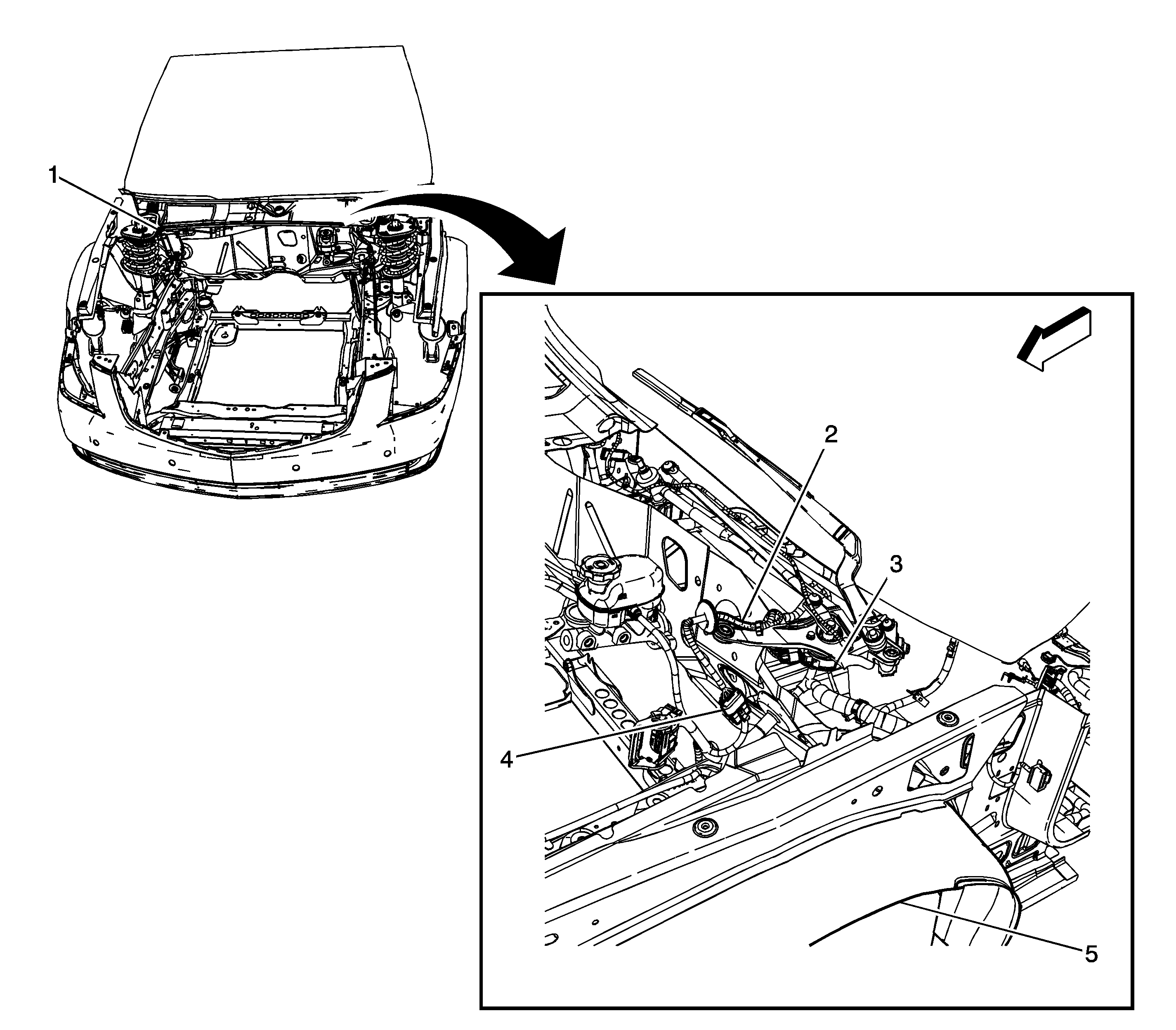

Figure 3:

Rear of Engine Compartment
Object Number: 1657037 Size: LF
(1)Windshield Washer Solvent Heater (XA7)
(2)Windshield Wiper Motor Jumper Harness
(3)Windshield Wiper Motor
(4)X100 Wiper Motor Jumper Harness to Body Harness
(5)Left Front Wheel Well
Figure 4:

Front Engine Compartment
Object Number: 1657042 Size: LF
(1)Brake Fluid Switch
(2)Suspension Position Sensor - Left Front (F55)
(3)Wheel Speed Sensors (WSS) - Left Front
(4)Suspension Damper - Left Front (F55)
(5)Suspension Damper - Right Front (F55)
(6)Wheel Speed Sensors (WSS) - Right Front
(7)Suspension Position Sensor - Right Front (F55)

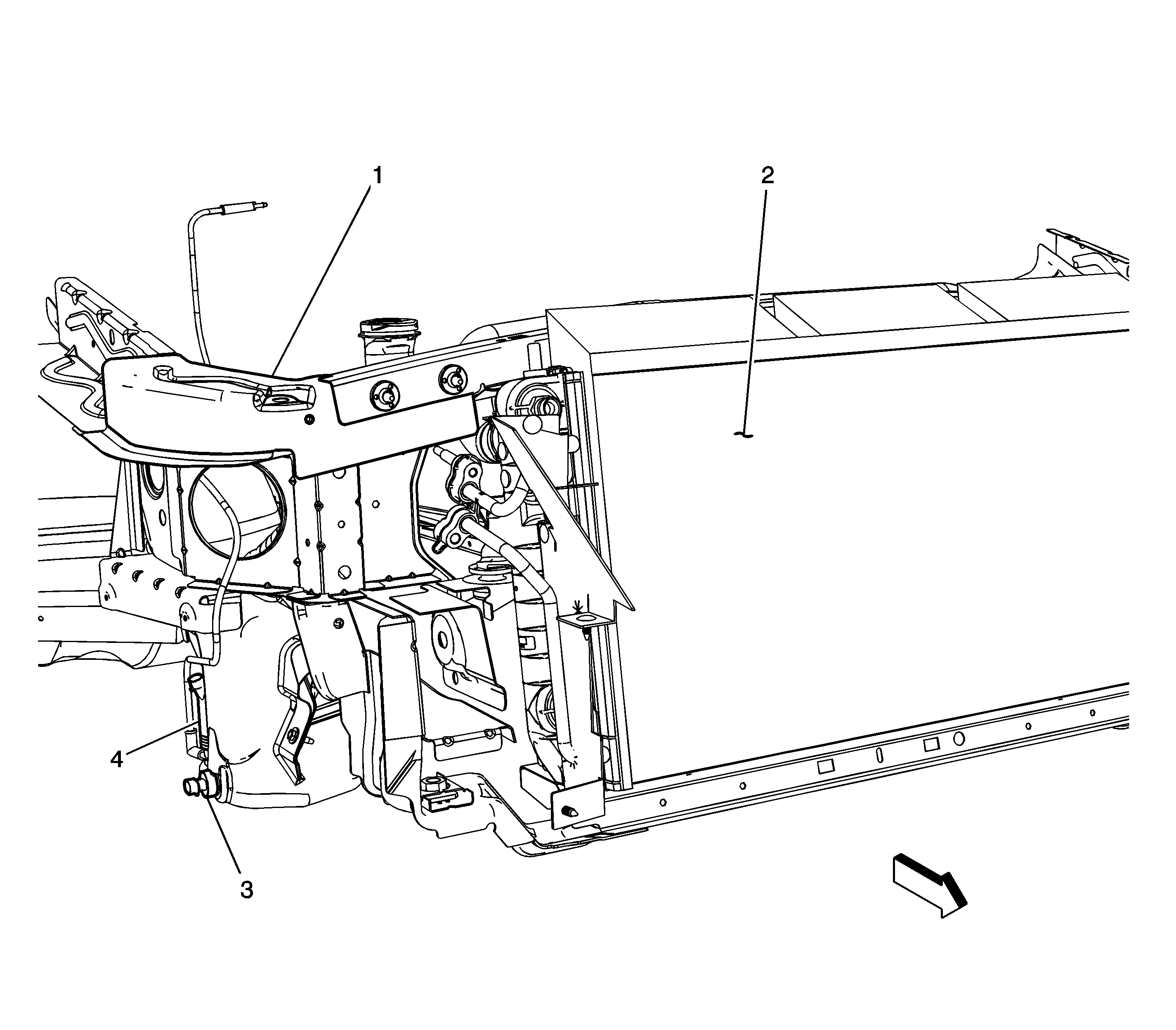

Figure 5:

Washer Reservoir Components
Object Number: 1657294 Size: LF
(1)Radiator Support
(2)Radiator
(3)Windshield Washer Fluid Level Switch
(4)Windshield Washer Fluid Pump

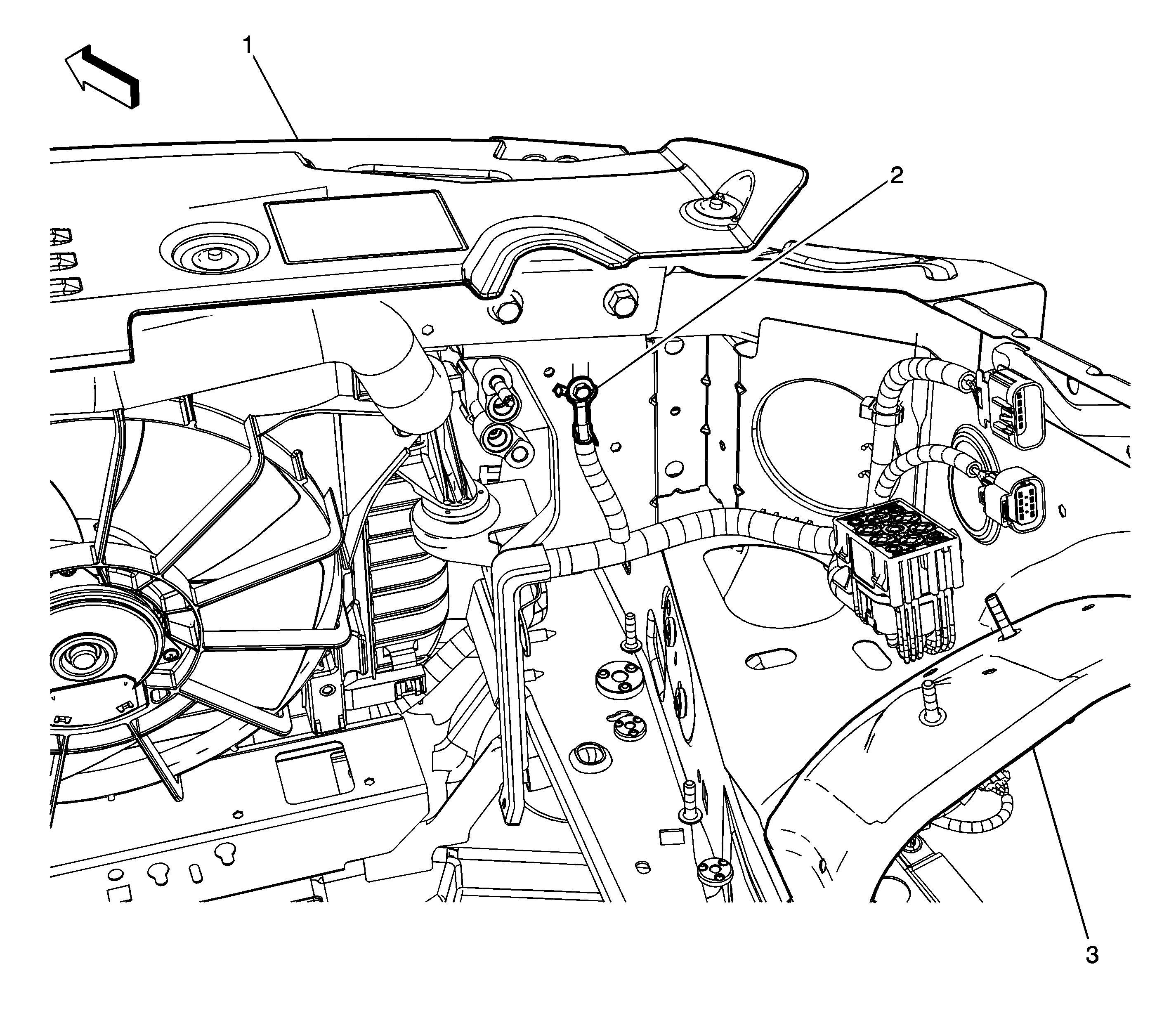

Figure 6:

G104
Object Number: 1657298 Size: LF
(1)Upper Radiator Trim
(2)G104
(3)Right Front Wheel Panel
Figure 7:

Cooling Fans and Exterior A/C Components
Object Number: 1657306 Size: LF
(1)Cooling Fan - Left
(2)Cooling Fan - Right
(3)A/C Compressor Clutch
(4)A/C Refrigerant Pressure Sensor
Figure 8:

Lower Left Front of Engine Compartment
Object Number: 1697767 Size: LF
(1)Lower Air Cleaner Box
(2)Electronic Brake Control Module (EBCM)
Figure 9:

Power Steering Components
Object Number: 1707641 Size: LF
(1)Steering Angle Sensor (JL4)
(2)Electronic Brake Control Module (EBCM)
(3)Variable Effort Steering Actuator (LD8/L37)
(4)Power Steering Rack
(5)Steering Column Assembly
Figure 10:

Engine Compartment - Left Rear (LD8/L37)
Object Number: 1685480 Size: MF
(1)Transmission Control Module (TCM)
(2)Fasteners
(3)Transmission Control Module (TCM) Bracket

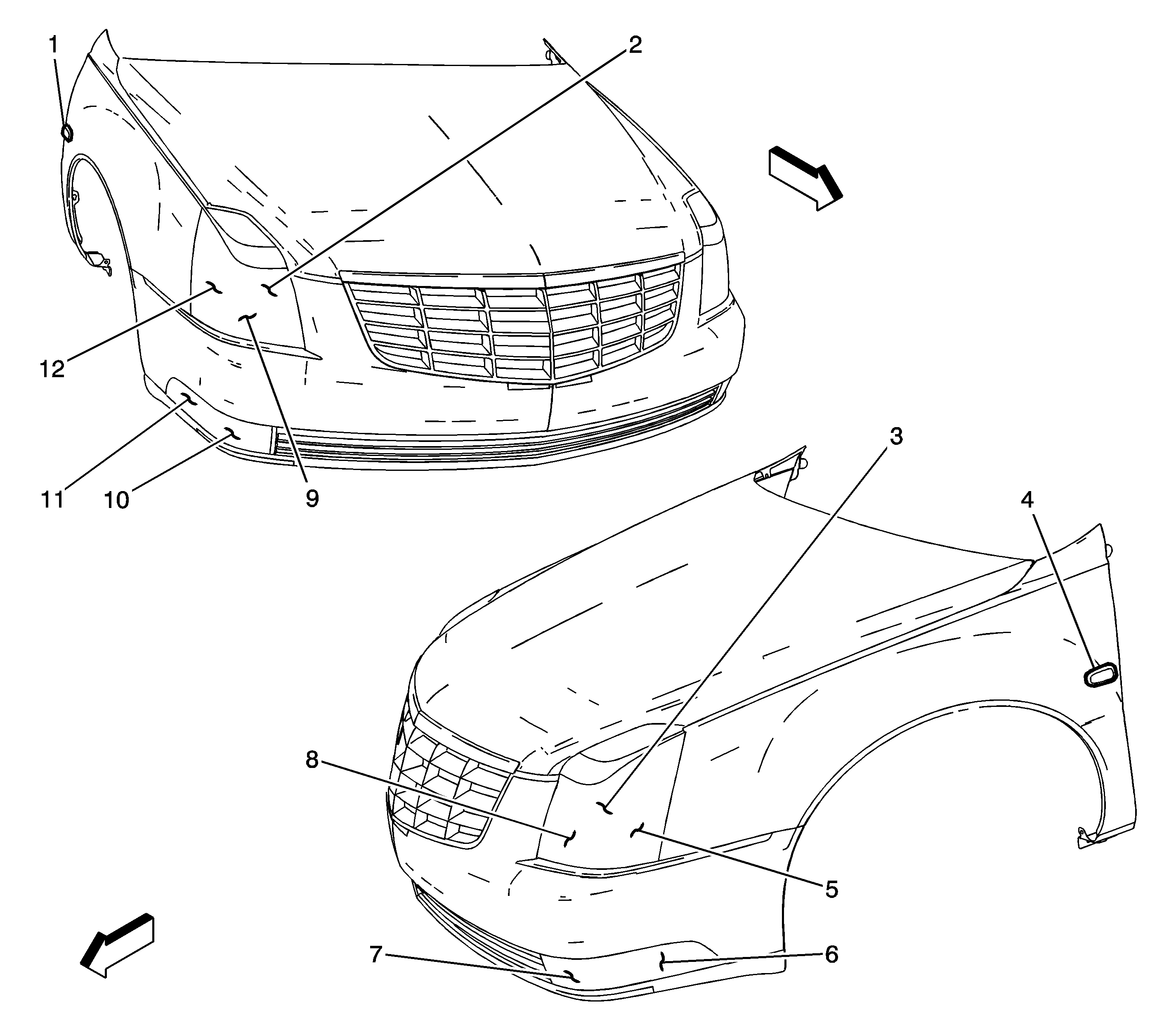

Figure 11:

Front Lights
Object Number: 1657312 Size: LF
(1)Repeater Lamp - Right (EXP)
(2)Turn Signal / DRL Lamp - Right Front
(3)Turn Signal / DRL Lamp - Left Front
(4)Repeater Lamp - Left (EXP)
(5)Marker Lamp - Left Front
(6)Cornering Lamp - Left Front
(7)Fog Lamp - Left Front
(8)Headlamp High / Low - Left Front
(9)Headlamp High / Low - Right Front
(10)Fog Lamp - Right Front
(11)Cornering Lamp - Right Front
(12)Marker Lamp - Right Front

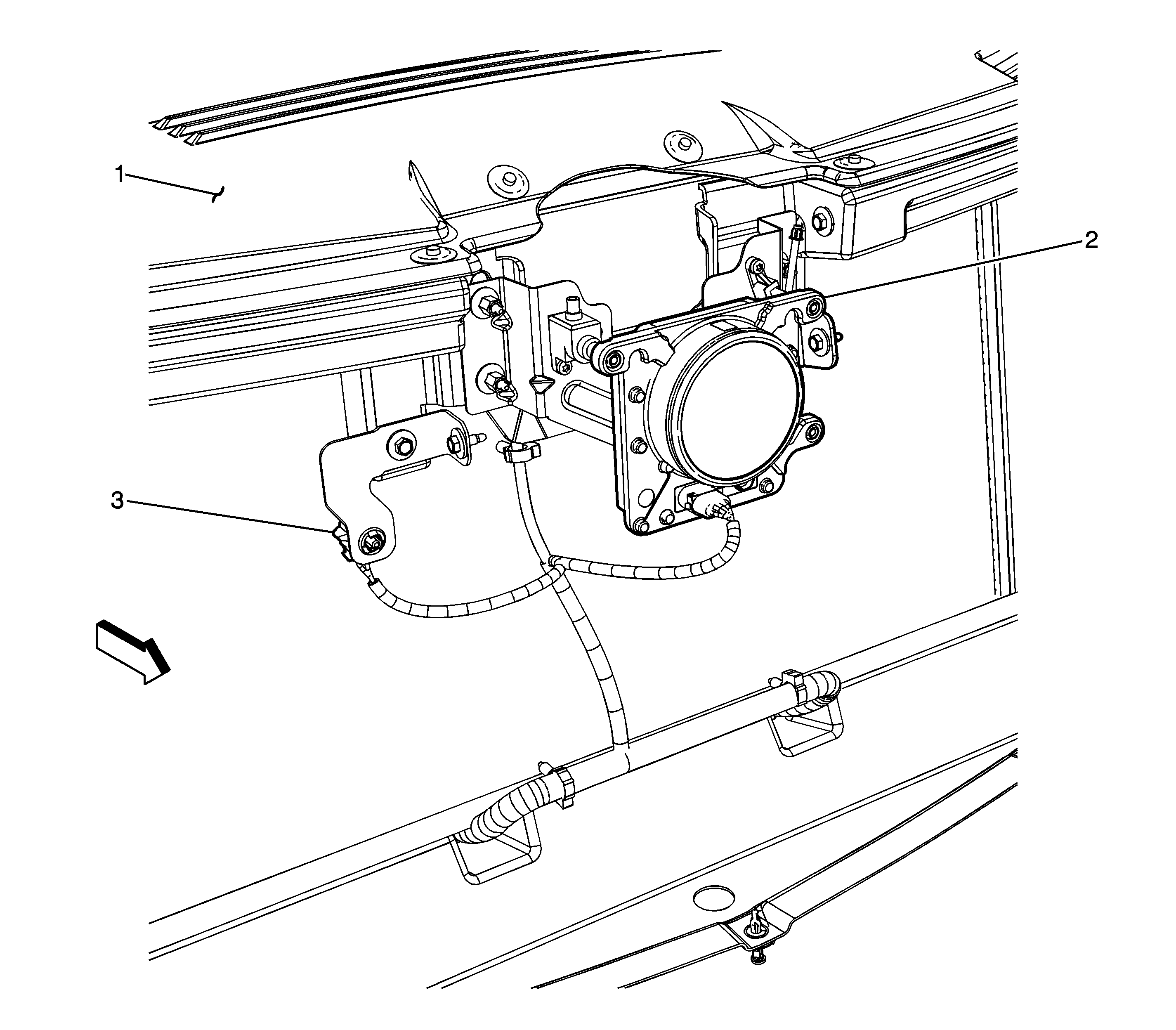

Figure 12:

Front of the Radiator
Object Number: 1657291 Size: LF
(1)Radiator Cover
(2)Distance Sensing Cruise Control Module (K59)
(3)Ambient Air Temperature Sensor
Figure 13:

Left Side of Engine Compartment
Object Number: 1697756 Size: LF
(1)Air Cleaner-Filter
(2)Engine Control Module (ECM)
(3)Windshield
Figure 14:

Front Fascia
Object Number: 1710135 Size: LF
(1)Object Alarm Sensor - Left Front Corner (UFR)
(2)Object Alarm Sensor - Left Front Middle (UFR)
(3)Object Alarm Sensor - Right Front Middle (UFR)
(4)Object Alarm Sensor - Right Front Corner (UFR)

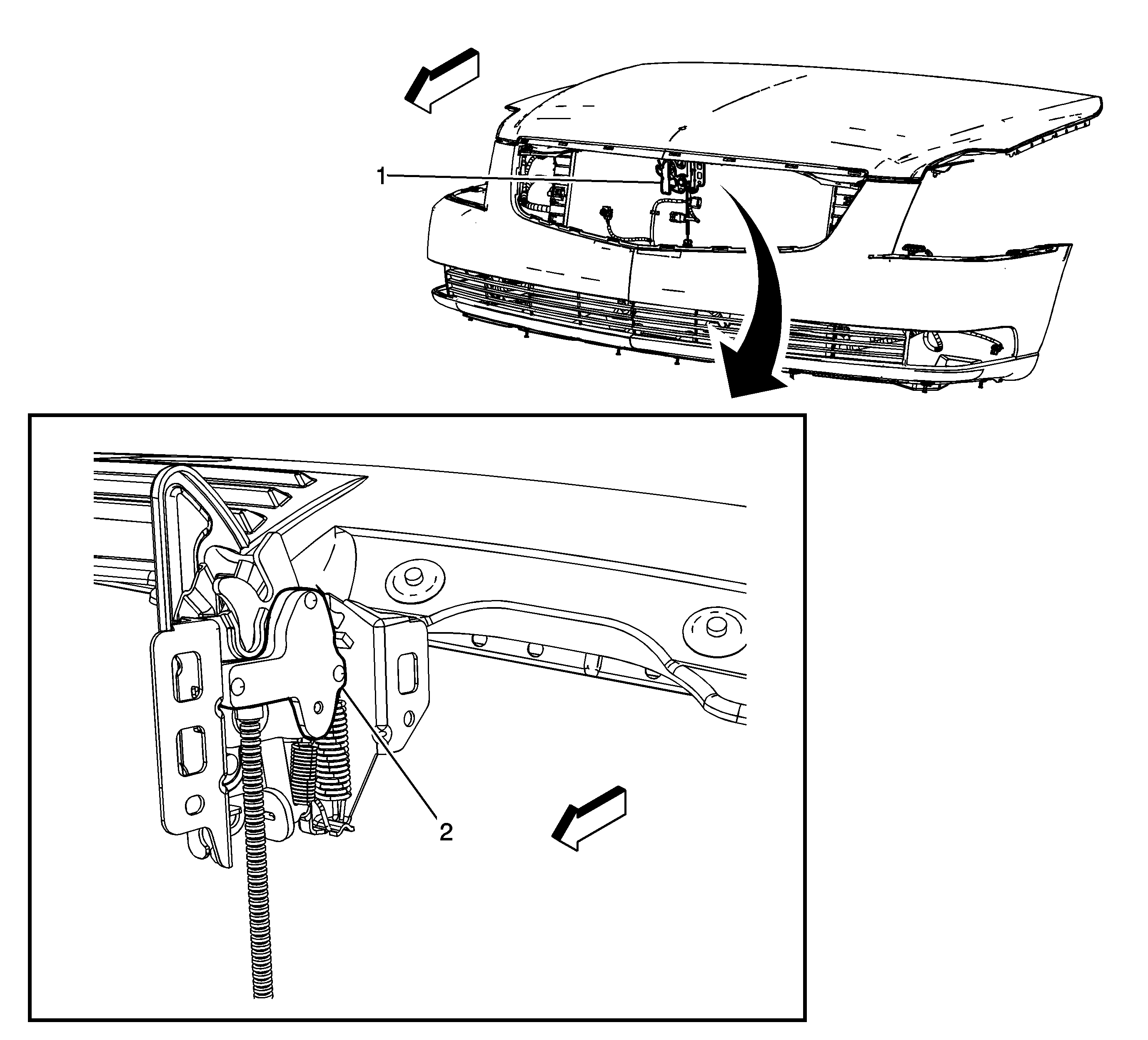

Figure 15:

Below Center of Hood
Object Number: 1860633 Size: LF
(1)Hood Latch Assembly
(2)Hood Ajar Switch
Figure 16:

Headlamp Assemblies
Object Number: 1860642 Size: LF
(1)Headlamp Ballast - Left (-T72)
(2)X114
(3)X113
(4)Headlamp Ballast - Right (-T72)

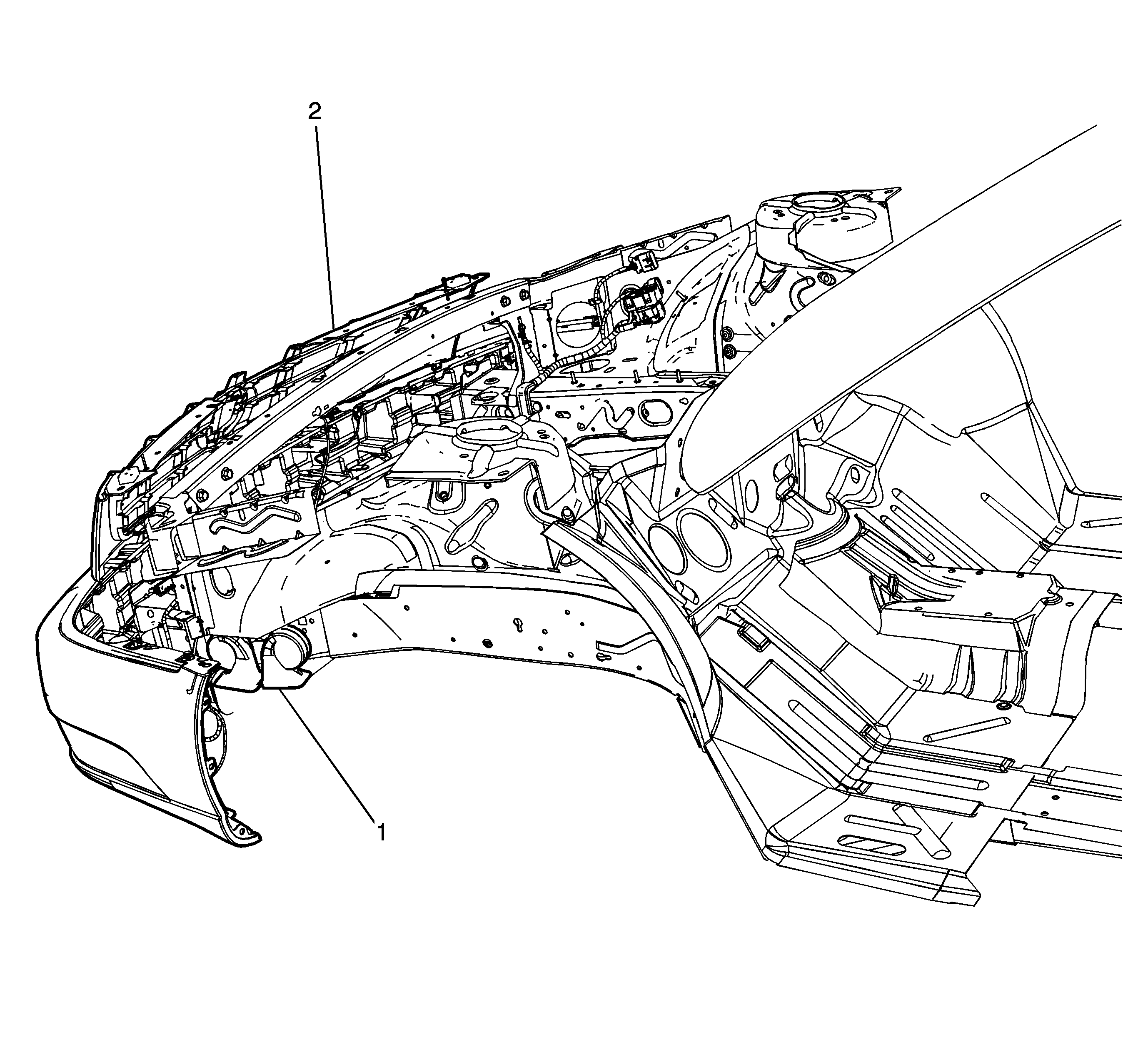

Figure 17:

Behind Left Front Fascia
Object Number: 1860679 Size: LF
(1)Horn Assembly
(2)Front Fascia
