Door Component Views. Cadillac DTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Door Component Views

Figure 1:


(1)	Door Frame
(2)	Outside Rearview Mirror - Driver
(3)	Heated and Cooled Seat Switch - Driver (KB6)
(4)	Memory/Personalization Function Switch (A45)
(5)	Mirror Switch
(6)	Speaker - Left Front Door
(7)	Window Switch - Driver Door
(8)	Window Motor - Driver
(9)	Courtesy Lamp - Left Front Door
(10)	Door Lock Switch Assembly
(11)	Door Latch Assembly - Driver
(12)	Door Lock Key Cylinder Switch - Driver

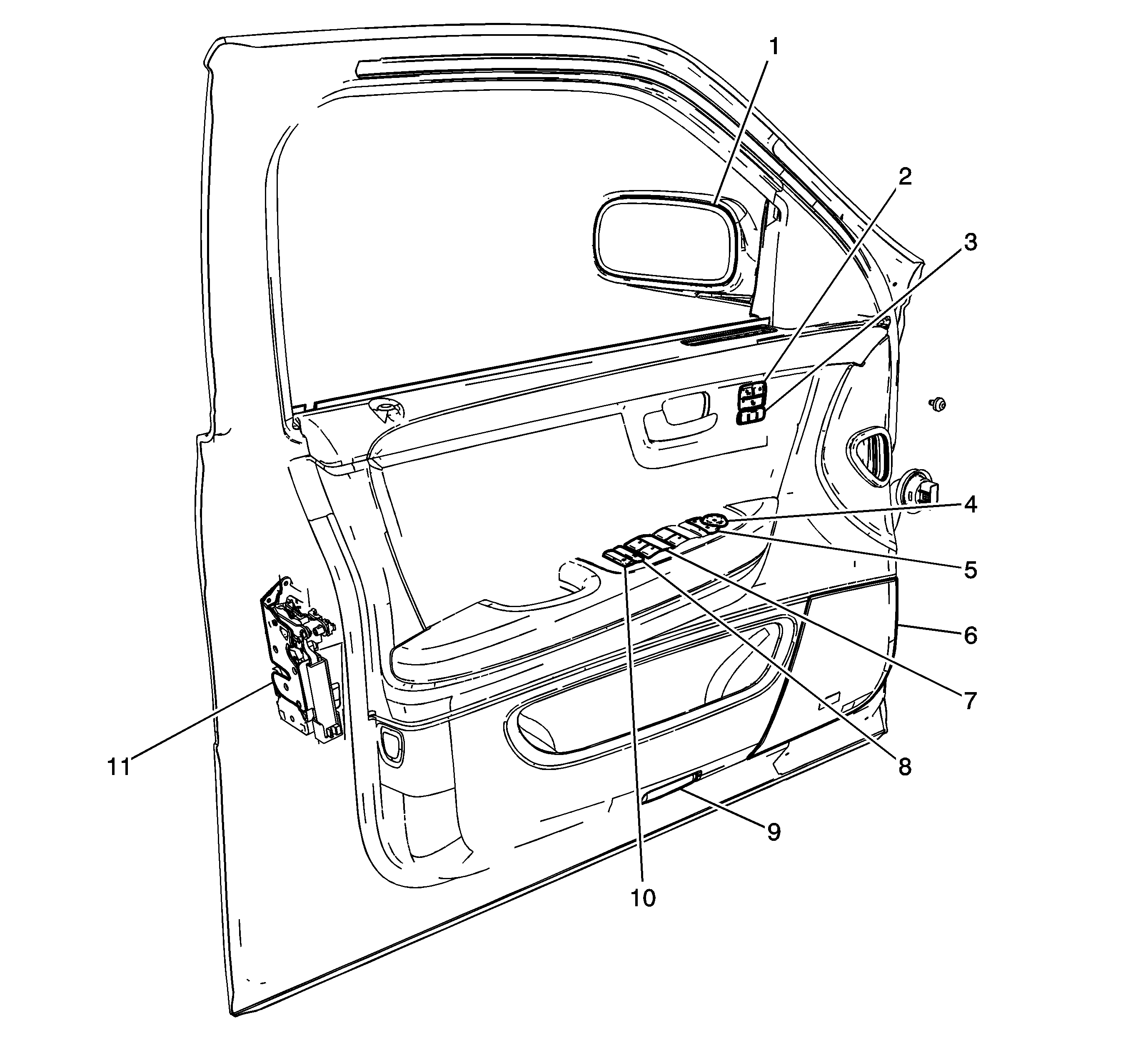

Figure 2:


(1)	Outside Rearview Mirror - Driver
(2)	Heated and Cooled Seat Switch - Driver (KB6)
(3)	Memory/Personalization Switch (A45)
(4)	Outside Rearview Mirror Switch
(5)	Outside Power Folding Mirror Switch (DL3)
(6)	Speaker - Left Front Door
(7)	Power Window Switches
(8)	Window Lock-Out Switch
(9)	Courtesy Lamp - Left Front Door
(10)	Door Lock-Out Switch
(11)	Door Latch Assembly

Figure 3:


(1)	Driver Door
(2)	Driver Door Module (DDM)-Window/Lock Switch

Figure 4:


(1)	Outside Rearview Mirror - Passenger
(2)	Door Frame
(3)	Door Latch Assembly - Front Passenger
(4)	Courtesy Lamp - Right Front Door
(5)	Window Motor - Front Passenger
(6)	Speaker - Right Front Door
(7)	Power Lock Switch - Front Passenger
(8)	Window Switch - Front Passenger
(9)	Heated Cooled Seat Switch (KB6) - Front Passenger

Figure 5:


(1)	Passenger Door
(2)	Passenger Door Module (PDM)-Window/Lock Switch

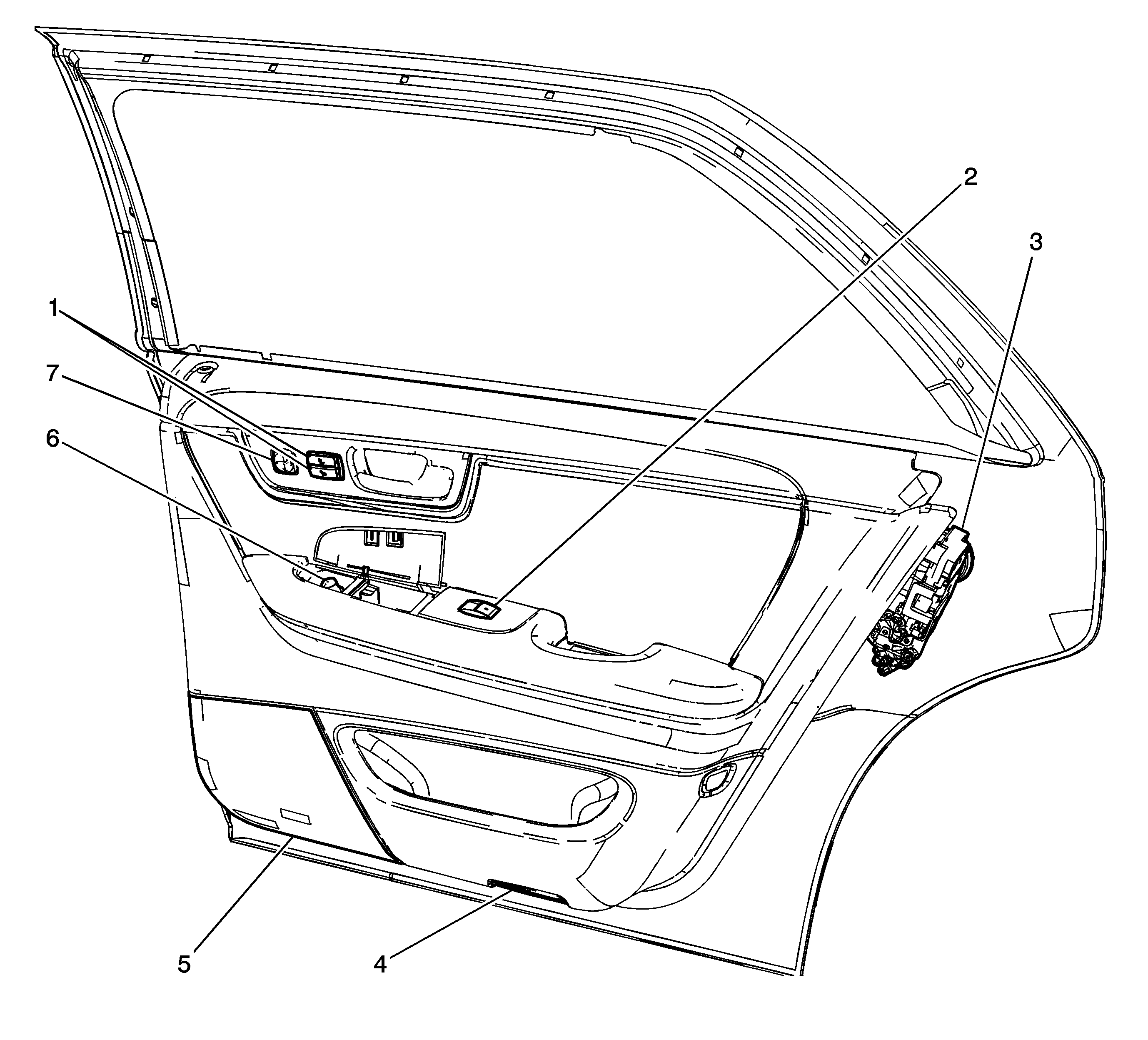

Figure 6:


(1)	Heated Seat Switches
(2)	Seat Lumbar Switch (ARC)
(3)	Auxiliary Power Outlet - Left Rear
(4)	Window Switch - Left Rear
(5)	Speaker - Left Rear Door
(6)	Courtesy Lamp
(7)	Door Latch Assembly

Figure 7:


(1)	Door Frame
(2)	Heated Seat Switch - Left Rear (KB6)
(3)	Seat Lumbar Switch - Left Rear (ARC)
(4)	Window Motor - Left Rear
(5)	Speaker - Left Rear Door
(6)	Courtesy Lamp - Left Rear Door
(7)	Window Switch - Left Rear
(8)	Door Latch Assembly - Left Rear

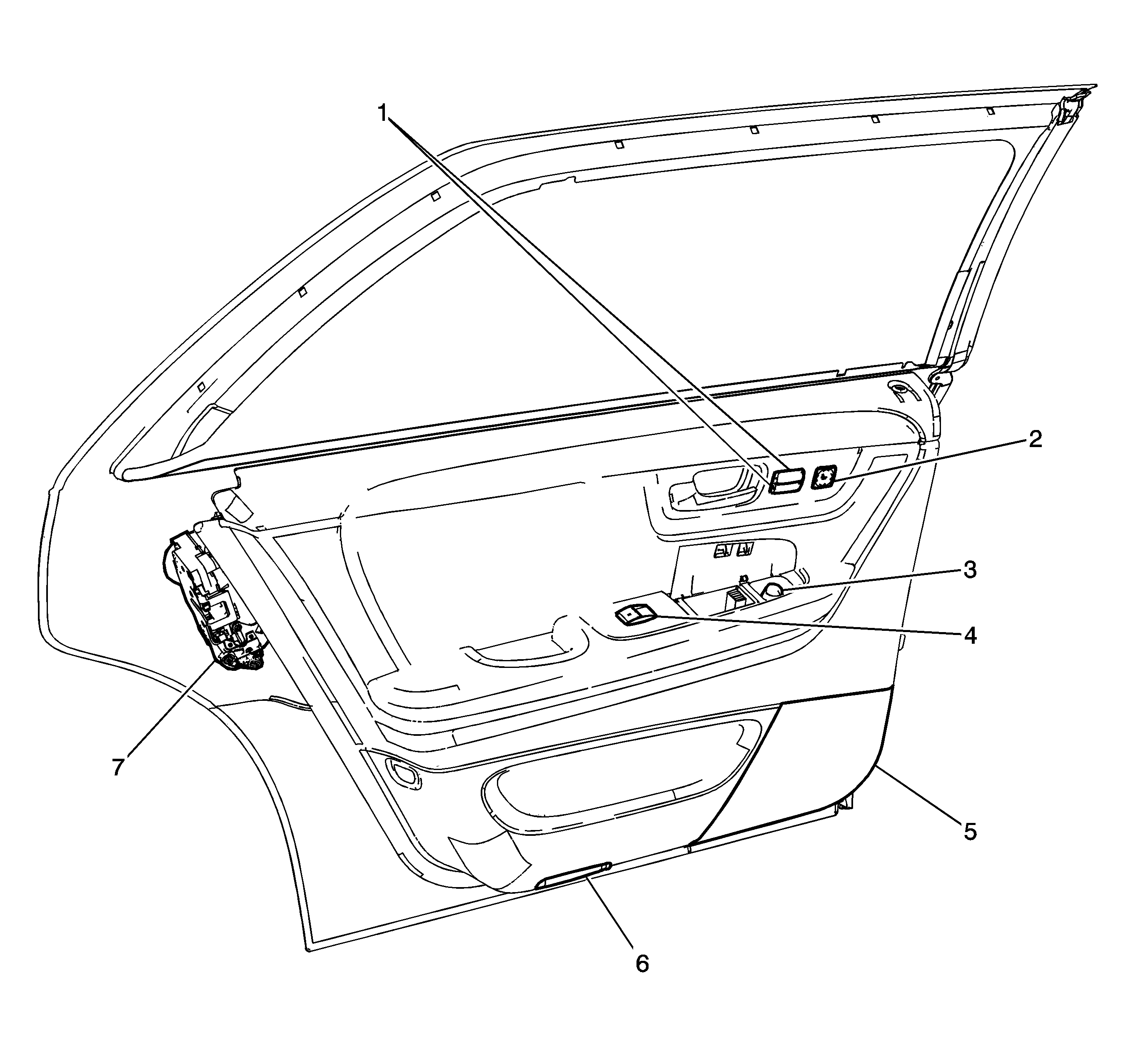

Figure 8:


(1)	Heated Seat Switches
(2)	Window Switch - Right Rear
(3)	Door Latch Assembly
(4)	Courtesy Lamp
(5)	Speaker - Right Rear Door
(6)	Auxiliary Power Outlet - Right Rear
(7)	Seat Lumbar Switch (ARC)

Figure 9:


(1)	Door Frame
(2)	Door Latch Assembly - Right Rear
(3)	Courtesy Lamp - Right Rear Door
(4)	Speaker - Right Rear Door
(5)	Window Motor - Right Rear
(6)	Window Switch - Right Rear
(7)	Seat Lumbar Switch - Right Rear (ARC)
(8)	Heated Seat Switch - Right Rear (KB6)
