Rear Seat Cushion Cover and Pad Replacement. Cadillac DTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Seats 🢒 Seat Hardware, Trim, and Upholstery 🢒 Rear Seat Cushion Cover and Pad Replacement

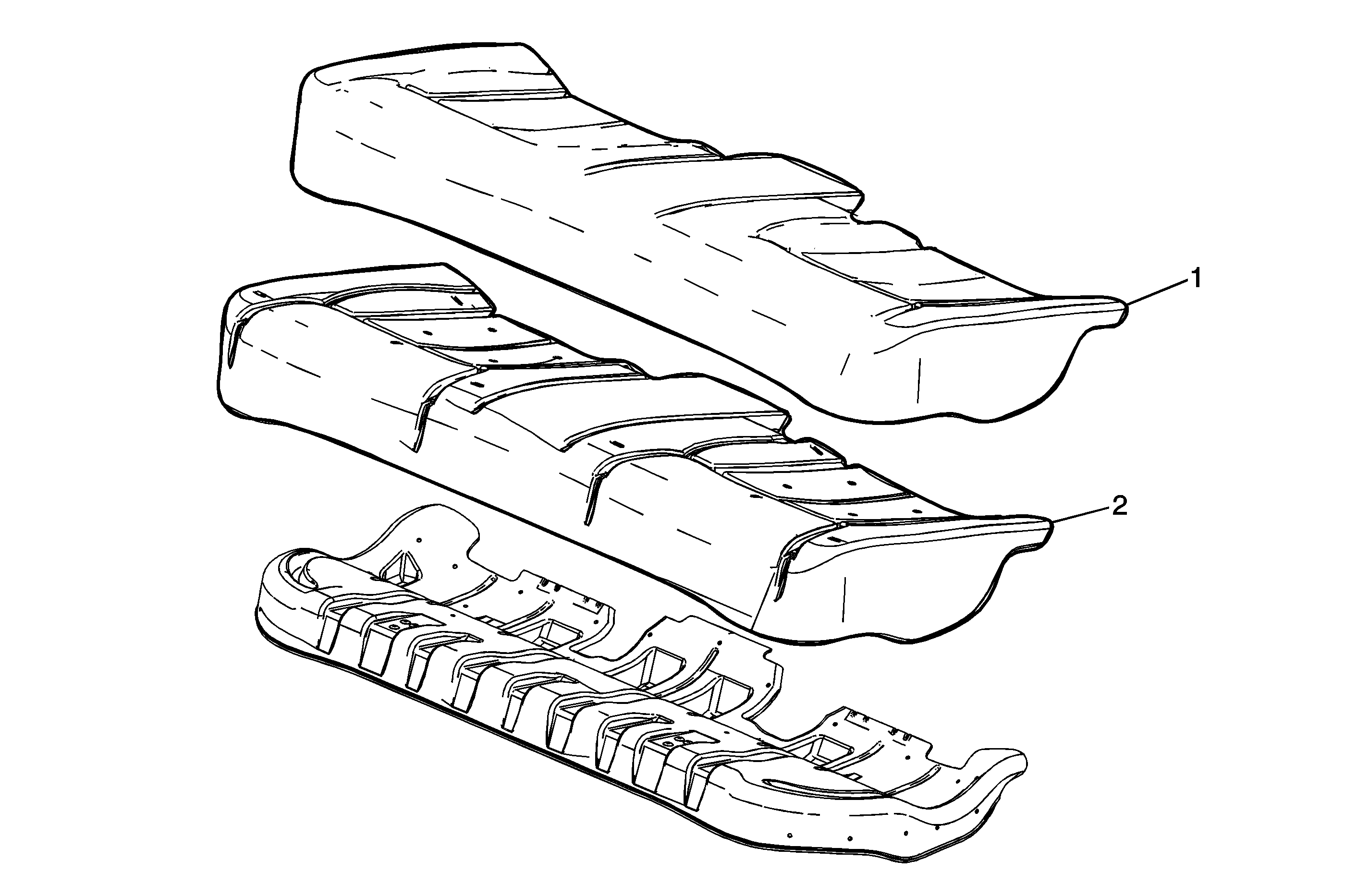

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Cover, Rear Seat Cushion Tip Remove the staples that secure the seat cushion cover and pad to the seat cushion frame. The cover is secured to the pad with hook and loop fasteners.
2	Pad, Rear Seat Cushion

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .

Cover, Rear Seat Cushion

Tip

Remove the staples that secure the seat cushion cover and pad to the seat cushion frame.
The cover is secured to the pad with hook and loop fasteners.

Pad, Rear Seat Cushion
