Front and Rear Object Alarm Module Replacement. Cadillac DTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Safety and Security 🢒 Object Detection 🢒 Front and Rear Object Alarm Module Replacement

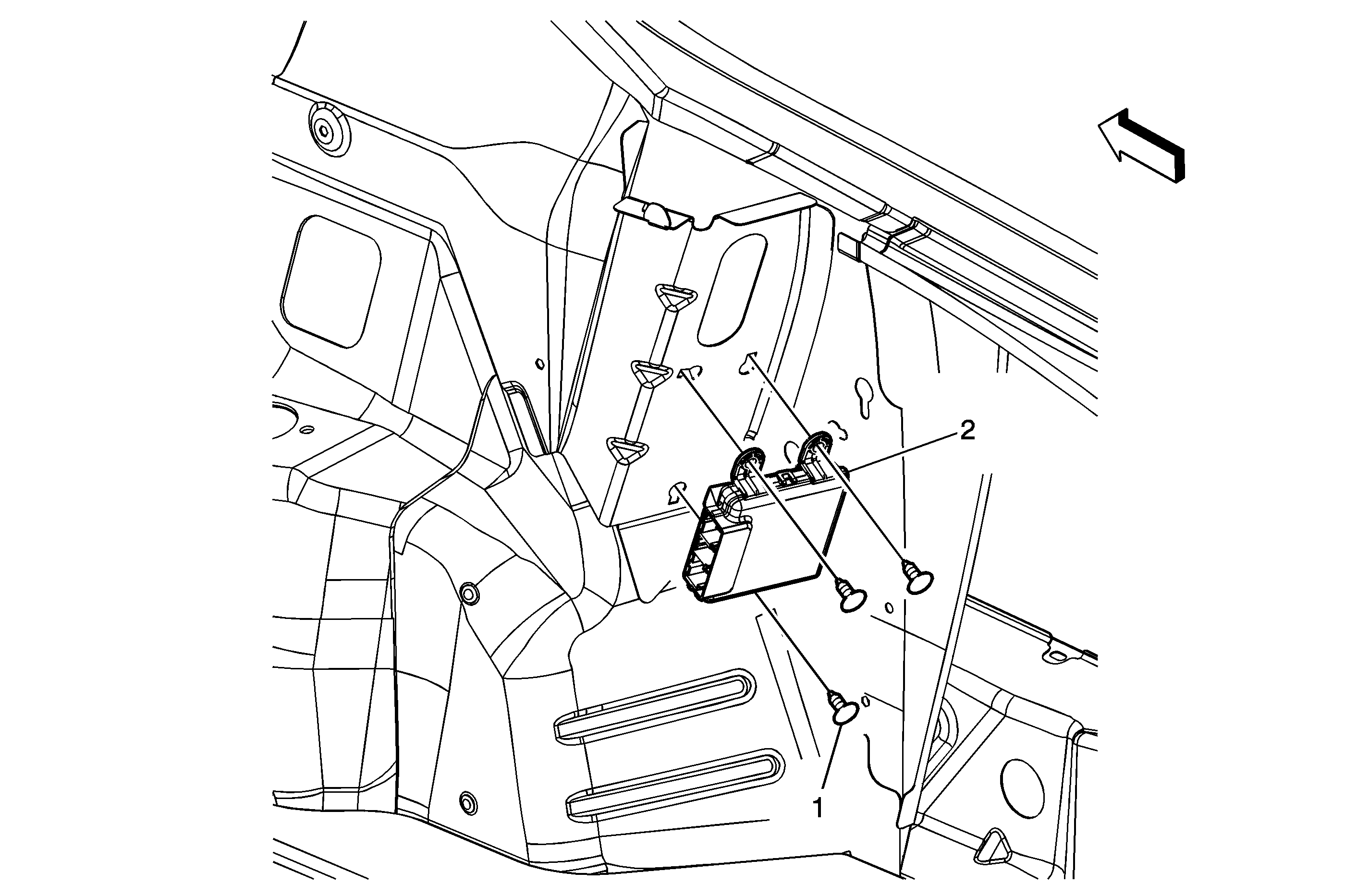

Callout	Component Name
Preliminary Procedures Remove the right side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side . Refer to Control Module References for replacement and setup information.
1	Object Sensor Module Push Pin Retainers
2	Object Sensor Module Tip Disconnect electrical connectors.

Callout

Component Name

Refer to Control Module References for replacement and setup information.

Object Sensor Module Push Pin Retainers

Object Sensor Module

Tip
Disconnect electrical connectors.
