Child Restraint Tether Anchor Replacement. Cadillac DTS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 DTS 🢒 Safety and Security 🢒 Seat Belts 🢒 Child Restraint Tether Anchor Replacement

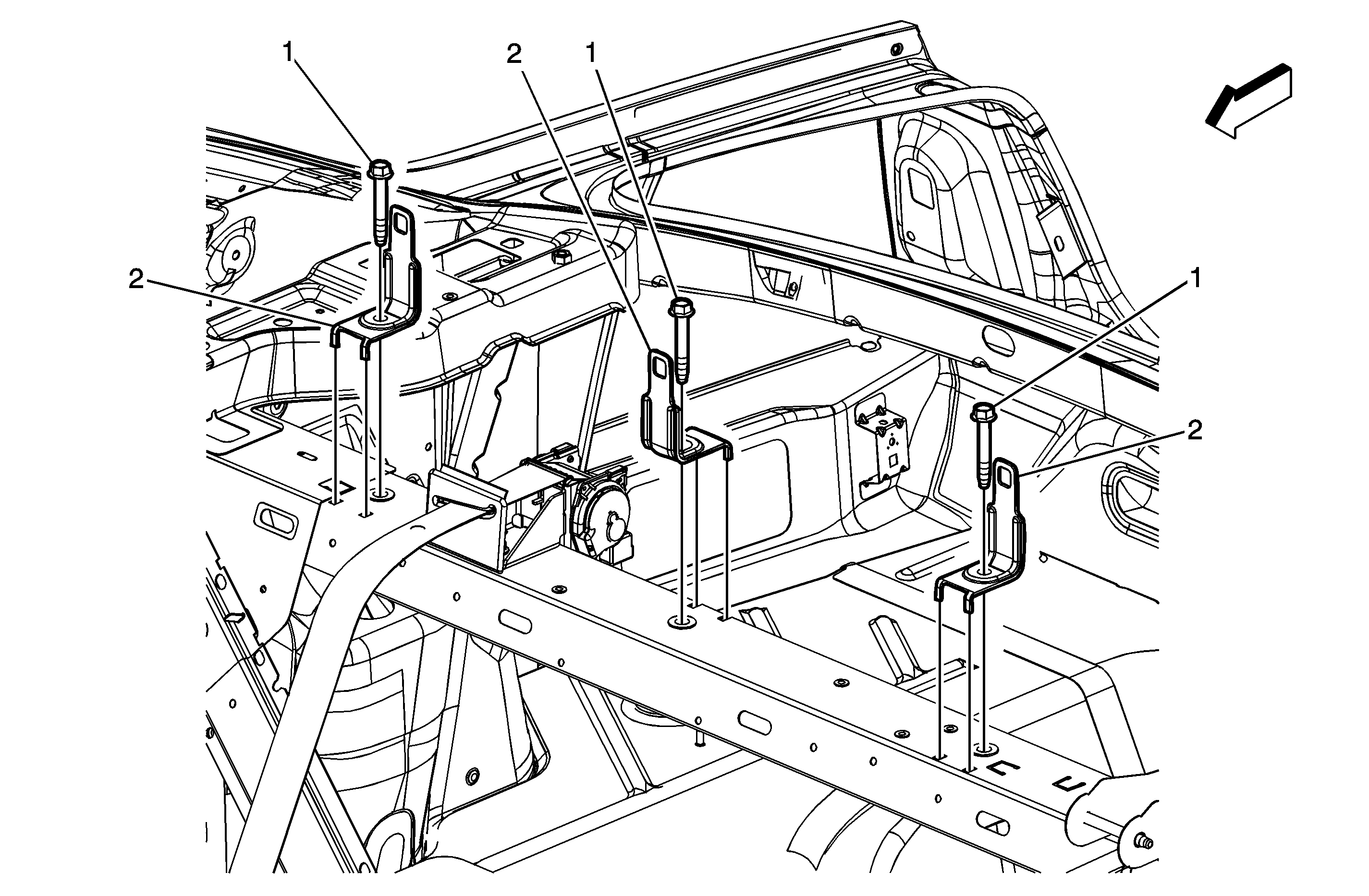

Callout	Component Name
Notice: Refer to Fastener Notice in the Preface section. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .
1	Child Restraint Tether Anchor Bolt Tighten 30 N·m (22 lb ft)
2	Child Restraint Tether Anchor

Callout

Component Name

Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Remove the trim panel, rear window shelf. Refer to Rear Window Shelf Trim Panel Replacement .

Child Restraint Tether Anchor Bolt

Tighten
30 N·m (22 lb ft)

Child Restraint Tether Anchor
