Makes 🢒 Cadillac 🢒 2009 🢒 DTS 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Heated/Cooled Seat Schematics
Figure 1:

Driver Heated and Cooled Seat (KB6)
Object Number: 2082415 Size: FS

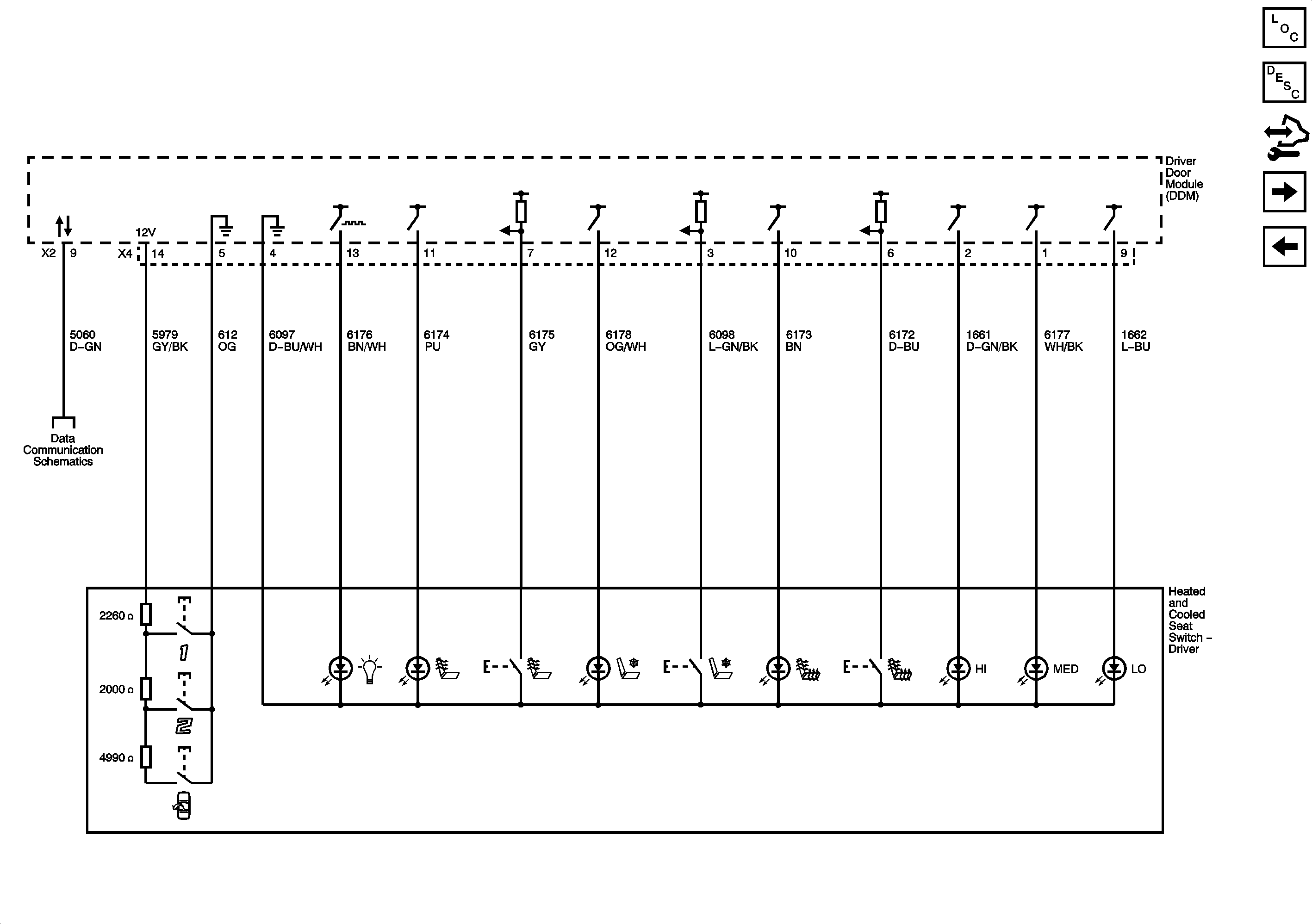

Figure 2:

Driver Heated and Cooled Seat Switch (KA1 KB6)
Object Number: 2082416 Size: FS
Figure 3:

Passenger Heated and Cooled Seat (KB6)
Object Number: 2082417 Size: FS
Figure 4:

Passenger Heated and Cooled Seat Switch (KA1 KB6)
Object Number: 2082418 Size: FS
Figure 5:

Left Rear Heated Seat Switch (KA6)
Object Number: 2082419 Size: FS
Figure 6:

Right Rear Heated Seat Switch (KA6)
Object Number: 2082420 Size: FS

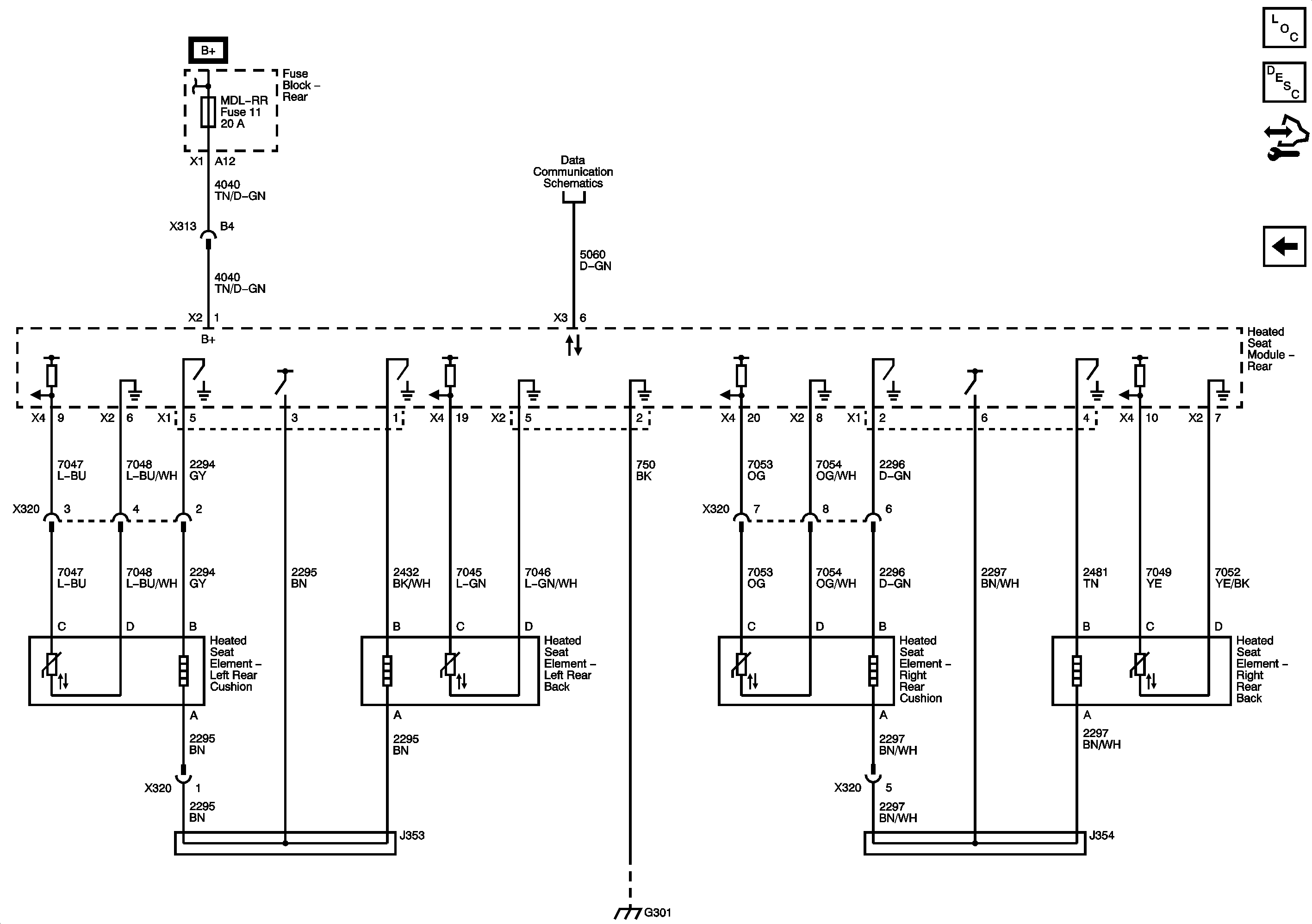

Figure 7:

Rear Heated Seat Elements (KA6)
Object Number: 2082421 Size: FS
