Instrument Cluster Schematics. Cadillac DeVille 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 DeVille 🢒 Body and Accessories 🢒 Instrument Panel, Gauges, and Console 🢒 Instrument Cluster Schematics

Figure 1:	Power, Ground, Class 2, and 54V VF Display Supply Instrument Cluster Components Instrument Cluster Operation Gauges Handling ESD Sensitive Parts Notice SIR, VENT SOL, and IGN 1 Fuses SIR, VENT SOL, and IGN 1 Fuses Serial Data Class 2 (1 of 3) Class 2 Dimming Communication G200 G200

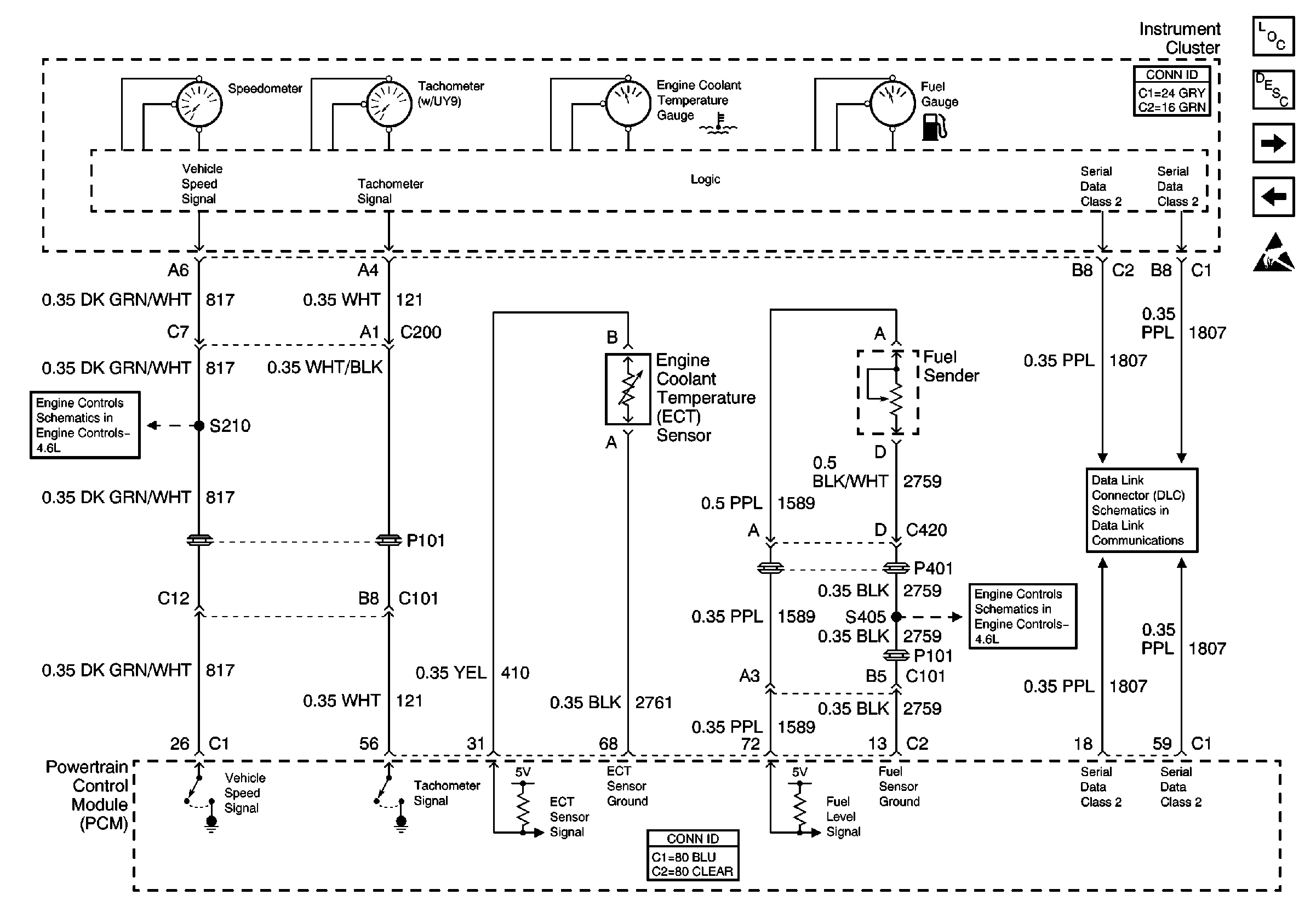

Figure 2:	Gauges Instrument Cluster Components Instrument Cluster Gauge Operation Brakes and Engine Indicators Power, Ground, Class 2, and 54V VF Display Supply Handling ESD Sensitive Parts Notice Cruise Control and Vehicle Speed Signal Sensors Serial Data Class 2 (1 of 3)

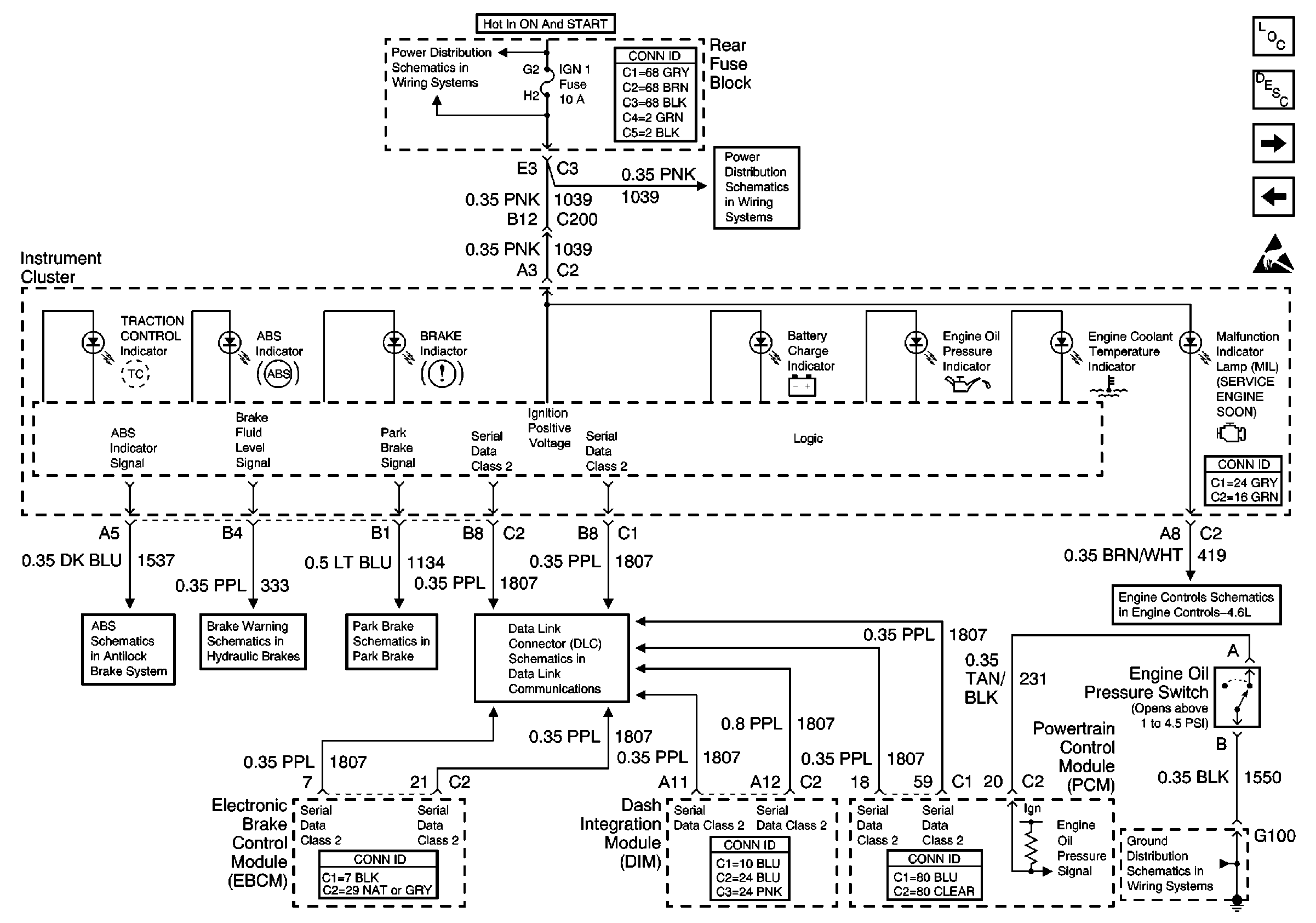

Figure 3:	Brakes and Engine Indicators Instrument Cluster Components Instrument Cluster Indicator Operation Lighting, Restraints, SECURITY, and CRUISE Indicators Gauges Handling ESD Sensitive Parts Notice SIR, VENT SOL, and IGN 1 Fuses SIR, VENT SOL, and IGN 1 Fuses Indicators and Traction Control Switch Brake Warning 00Ksp Park Brake Schematic 00Ksp Serial Data Class 2 (1 of 3) DLC and MIL G100

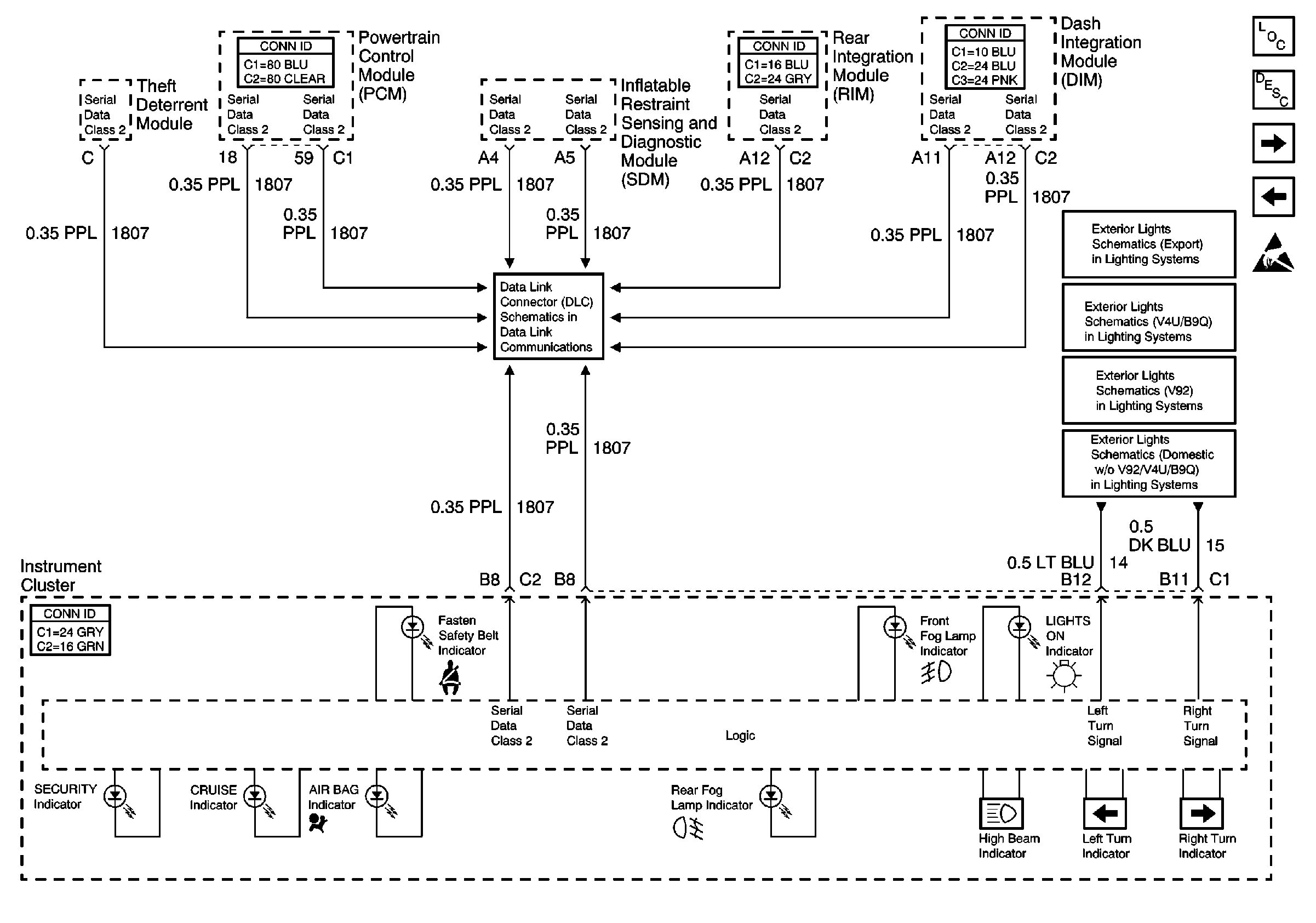

Figure 4:	Lighting, Restraints, SECURITY, and CRUISE Indicators Instrument Cluster Components Instrument Cluster Indicator Operation Driver Information Center Brakes and Engine Indicators Handling ESD Sensitive Parts Notice Serial Data Class 2 (1 of 3) Front Park/Turn and Repeater Lamps Front Park/Turn and Side Marker Lamps Front Park/Turn and Side Marker Lamps Front Park/Turn and Side Marker Lamps

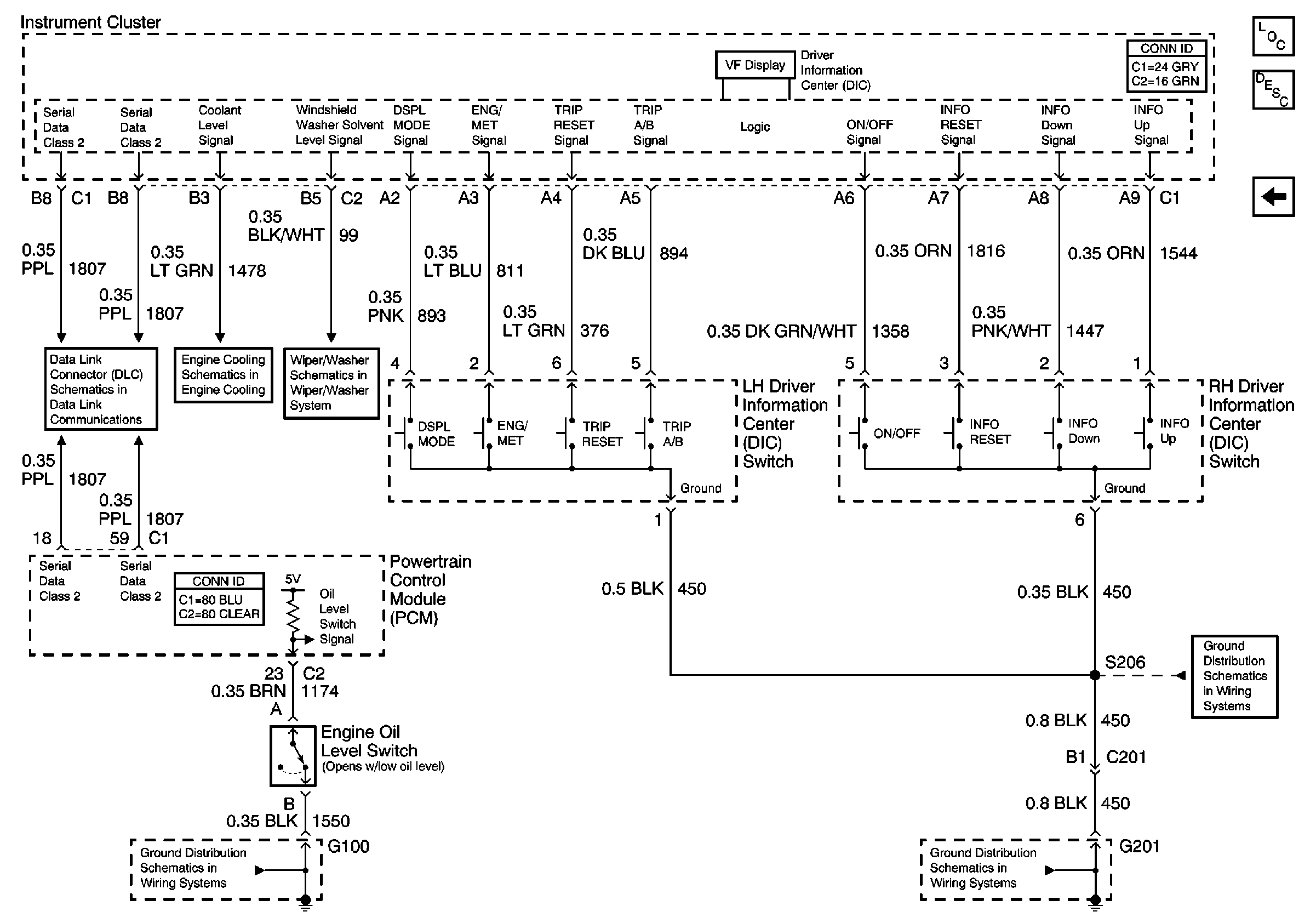

Figure 5:	Driver Information Center Instrument Cluster Components Driver Information Center (DIC) or Message Center Description Lighting, Restraints, SECURITY, and CRUISE Indicators Serial Data Class 2 (1 of 3) Engine Coolant Level Switch Signal Washer Solvent Level Switch G100 G201 - IP Harness
