Makes 🢒 Cadillac 🢒 2001 🢒 DeVille 🢒 Steering 🢒 Steering Wheel and Column - Tilt 🢒 Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle

Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle Power Tilt\\Telescope-Column Shift

Tools Required

J 23653-SIR Lock Plate Compressor

  1. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Disassemble - Off Vehicle .

    2. Object Number: 588360 Size: SH
  2. Remove the wave washer.

    3. Object Number: 588367 Size: SH
  3. Remove and discard the bearing retainer (1) using J 23653-SIR .

    4. Object Number: 588376 Size: SH
  4. Remove the shaft lock (1) from the steering shaft assembly.
  5. Remove the turn signal cancel cam (2) from the steering shaft assembly.

    6. Object Number: 588861 Size: SH
  6. Remove the following parts from the steering shaft assembly:
    7. 6.1. The upper bearing spring (1).
    6.2. The upper bearing inner race seat (2).
    6.3. The inner race (3).

Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle Power Tilt\\Telescope, Floor Shift

Tools Required

J 23653-SIR Lock Plate Compressor

  1. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Disassemble - Off Vehicle .

    2. Object Number: 626476 Size: SH
  2. Remove the wave washer.

    3. Object Number: 588367 Size: SH
  3. Remove and discard the bearing retainer (1) using J 23653-SIR .

    4. Object Number: 588861 Size: SH
  4. Remove the following parts from the steering shaft assembly:
    5. 4.1. The upper bearing spring (1).
    4.2. The upper bearing inner race seat (2).
    4.3. The inner race (3).

    Object Number: 588376 Size: SH
  5. Remove the shaft lock (1) from the steering shaft assembly.
  6. Remove the turn signal cancel cam (2) from the steering shaft assembly.

Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle Manual Tilt, Floor Shift

Tools Required

J 23653-SIR Lock Plate Compressor

  1. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Disassemble - Off Vehicle .

    2. Object Number: 603855 Size: SH
  2. Remove the wave washer.

    3. Object Number: 588367 Size: SH
  3. Remove and discard the bearing retainer (1) using J 23653-SIR .
  4. Remove J 23653-SIR .

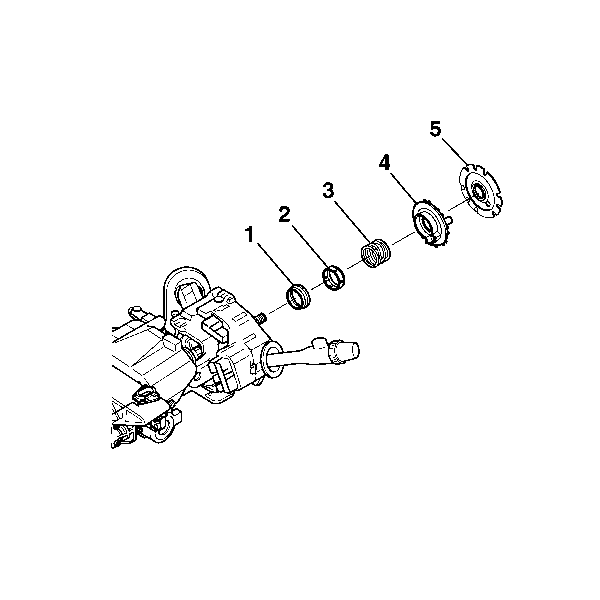

    5. Object Number: 628903 Size: SH
  5. Remove the following parts from the steering shaft assembly:
    6. 5.1. The shaft lock (5).
    5.2. The turn signal cancel cam (4).
    5.3. The upper bearing spring (3).
    5.4. The upper bearing inner race seat (2).
    5.5. The inner race (1).

Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle Manual Tilt, Column Shift

Tools Required

J 23653-SIR Lock Plate Compressor

  1. Remove the inflatable restraint steering wheel module coil. Refer to Inflatable Restraint Steering Wheel Module Coil Disassemble - Off Vehicle .

    2. Object Number: 603855 Size: SH
  2. Remove the wave washer.

    3. Object Number: 588367 Size: SH
  3. Remove and discard the bearing retainer (1) using J 23653-SIR .
  4. Remove J 23653-SIR .

    5. Object Number: 603858 Size: SH
  5. Remove the following parts from the steering shaft assembly:
    6. 5.1. The shaft lock (5).
    5.2. The turn signal cancel cam (4).
    5.3. The upper bearing spring (3).
    5.4. The upper bearing inner race seat (2).
    5.5. The inner race (1).
