For 1990-2009 cars only

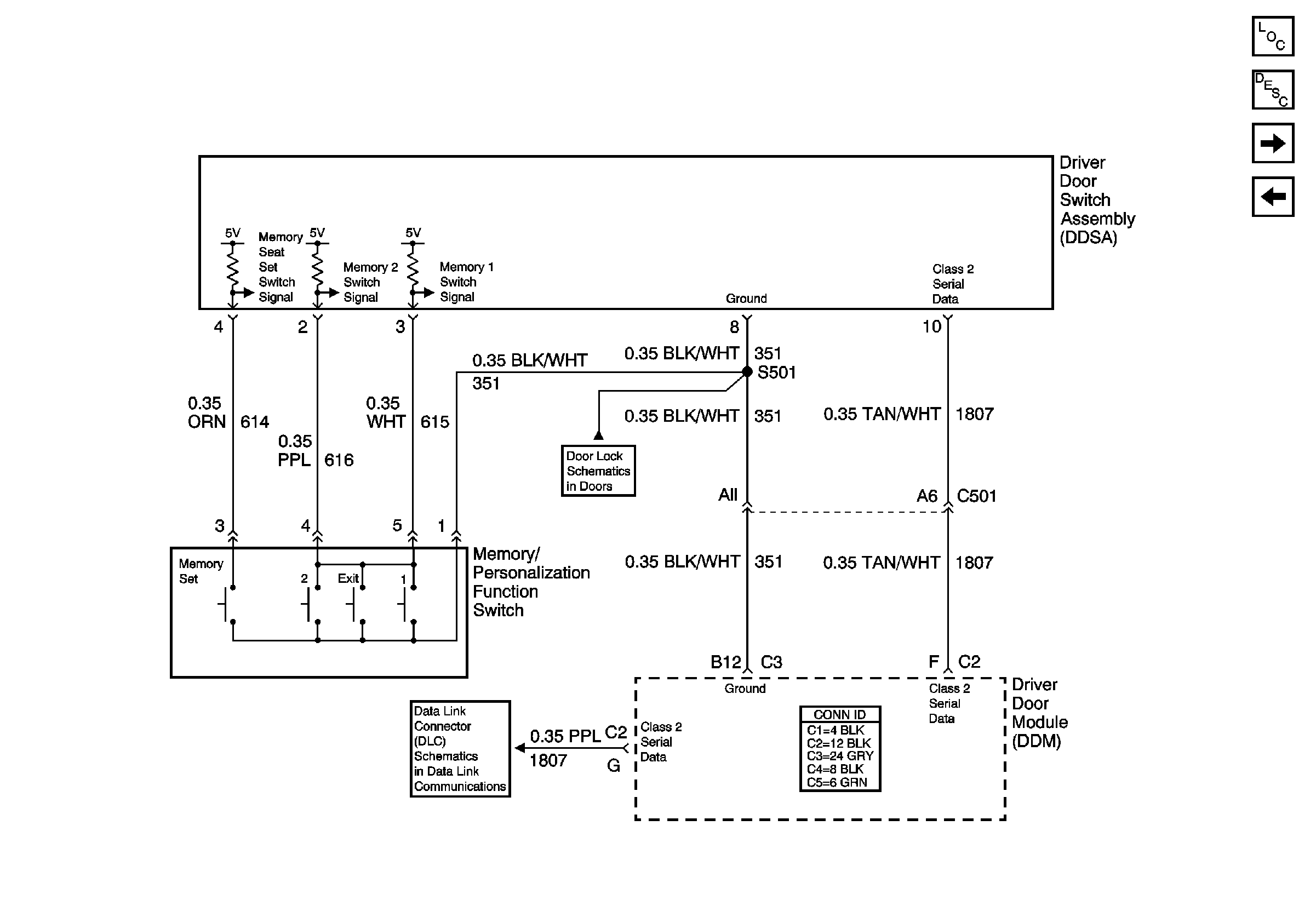

| Figure 1: |
Memory Function Switch
|
| Figure 2: |
Driver Seat Power/Ground (w/A45/AL2)
|

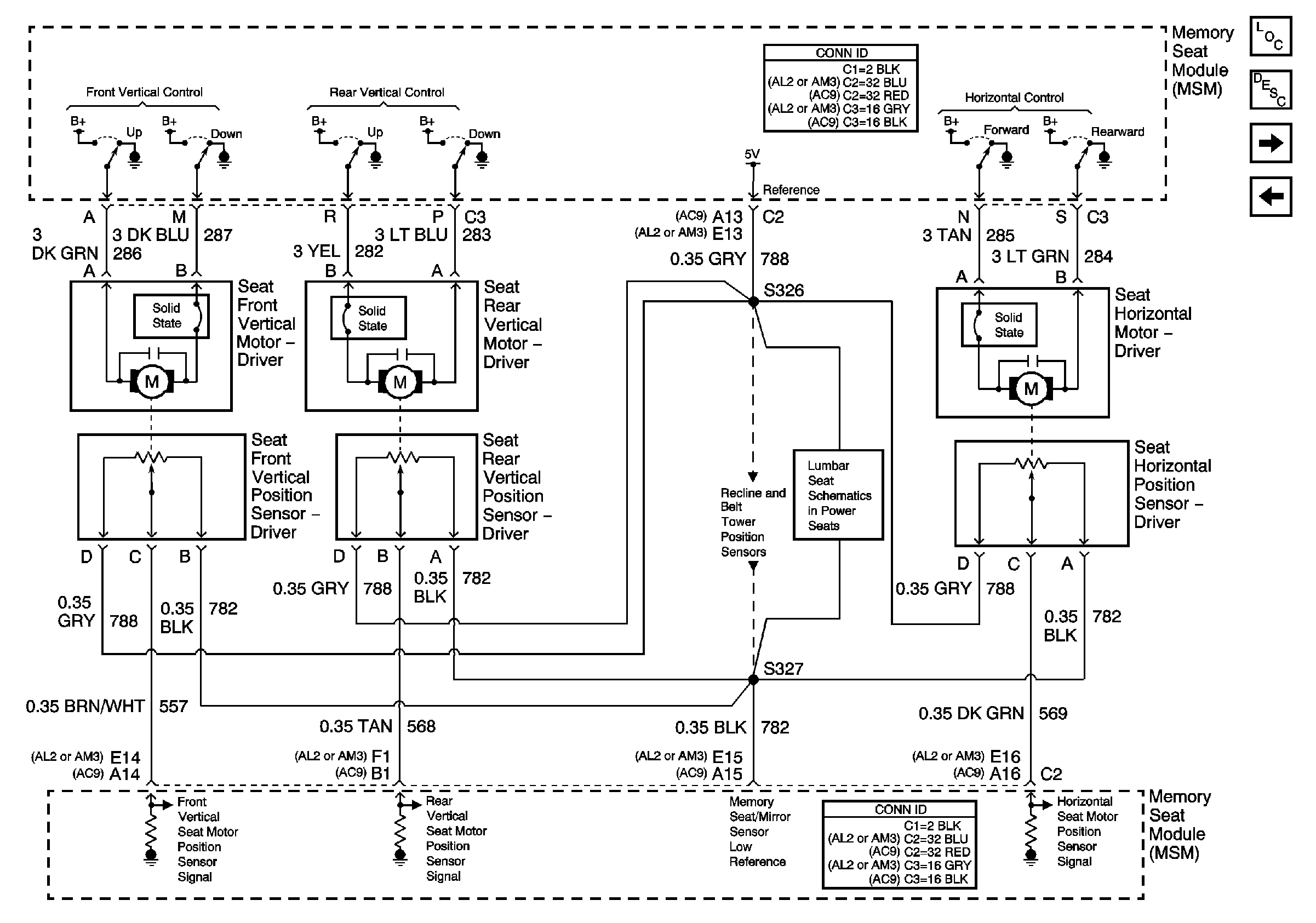

| Figure 3: |
Front/Rear Position Sensors (w/A45/AL2)
|
| Figure 4: |
Position Sensors (Class 2)
|
| Figure 5: |
Memory Function Switch (w/A45/AL9)
|

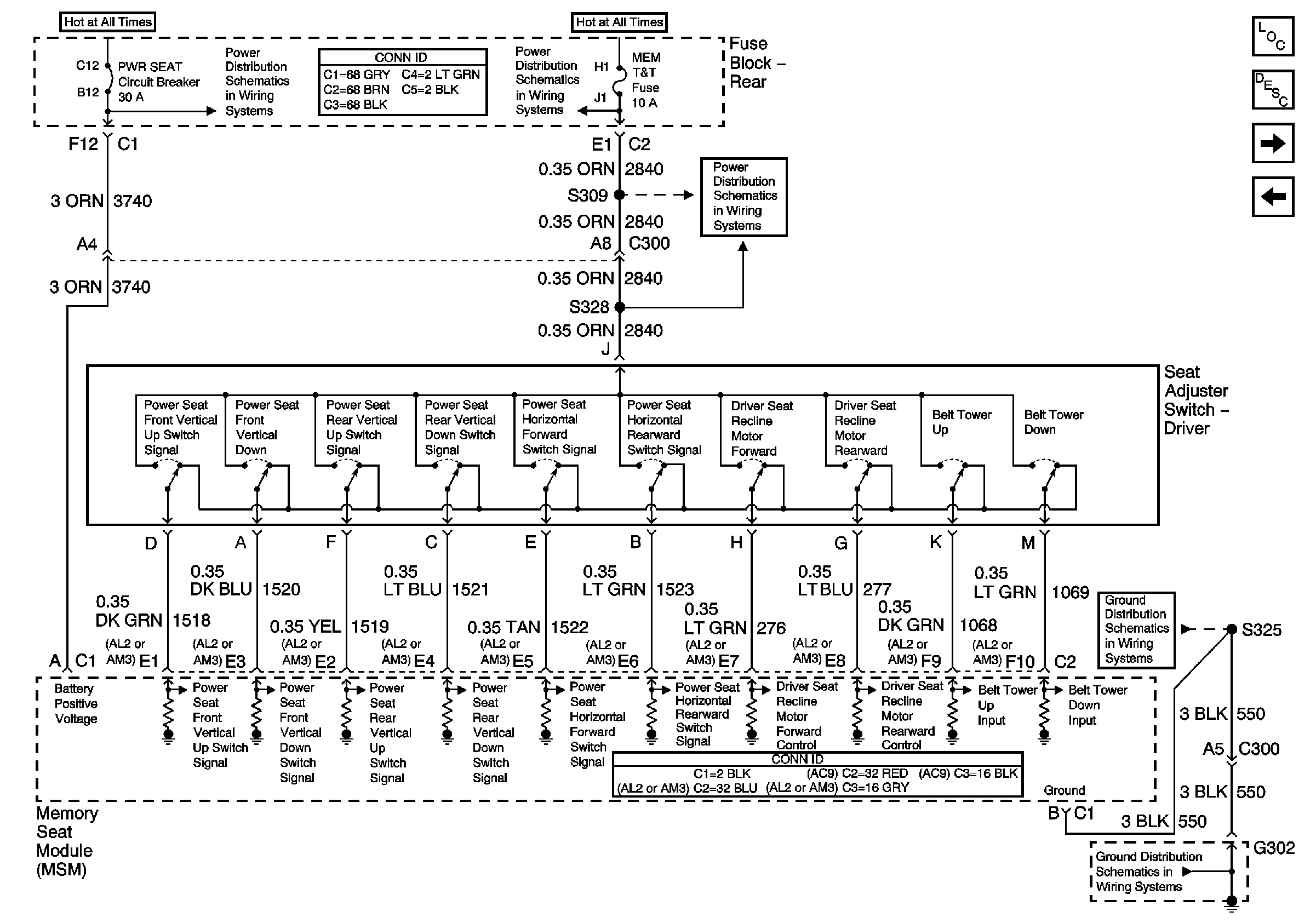

| Figure 6: |
Driver Seat Power/Ground (w/A45/AC9)
|
| Figure 7: |
Front/Rear Position Sensors (w/A45/AC9)
|
| Figure 8: |
Position Sensors, Class 2 (w/A45/AC9)
|
