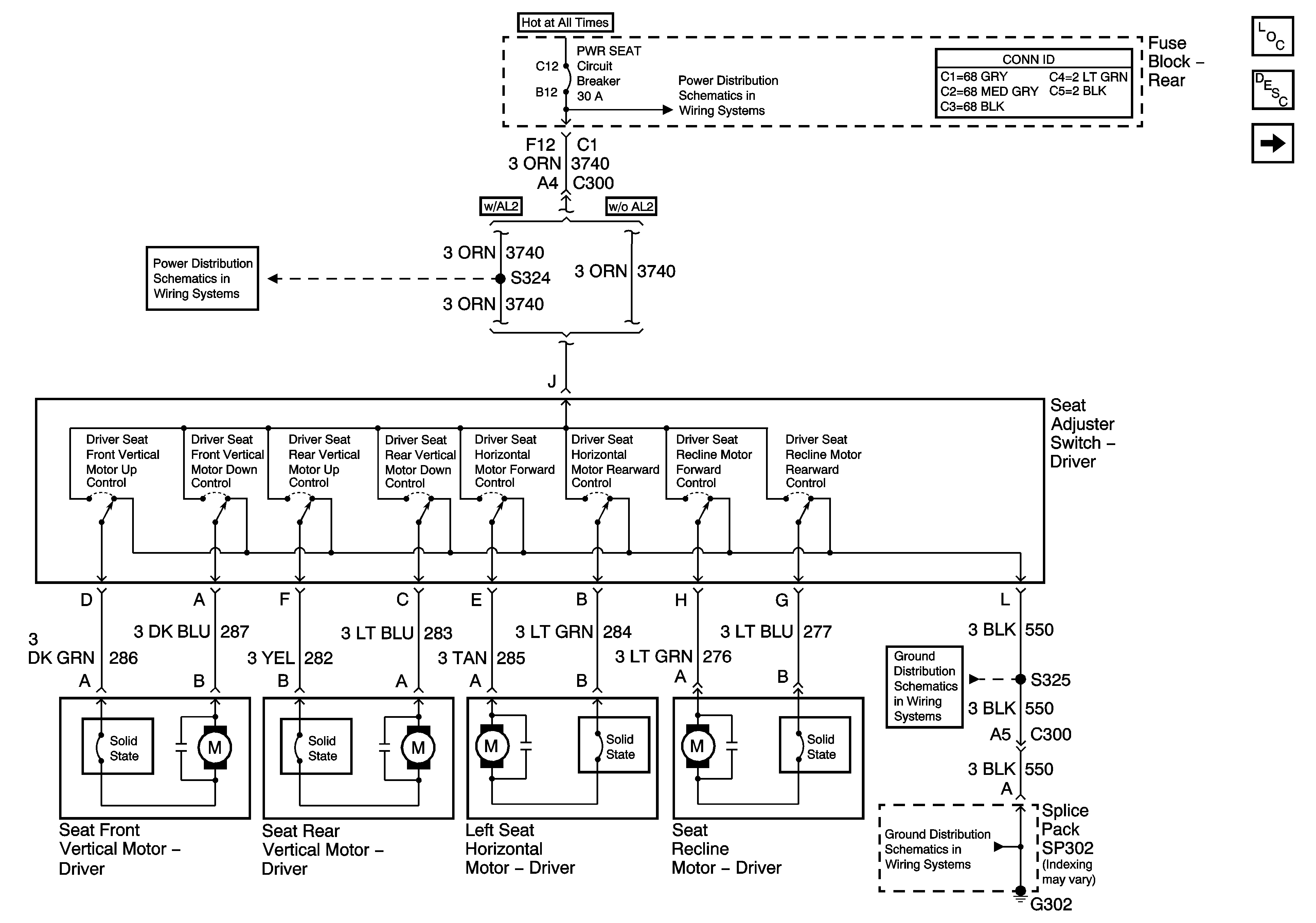

| Figure 1: |
Power Seat
|

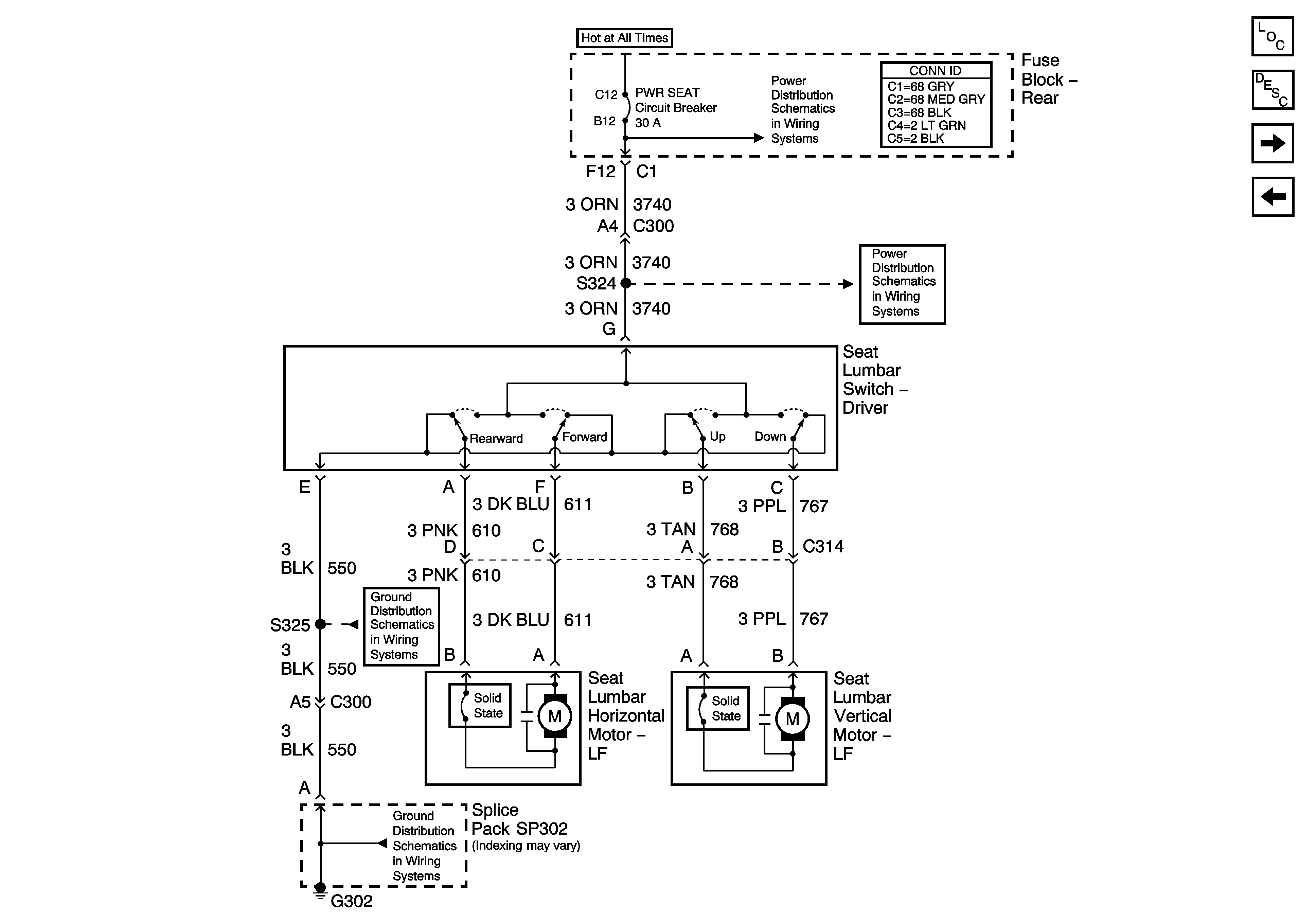

| Figure 2: |
Power Lumbar Seat
|
| Figure 3: |
Massaging Lumbar Seat (w/AC9)
|
| Figure 4: |
Memory Lumbar Seat (w/A45/AL2)
|
| Figure 5: |
Seat Switch w/ Memory Massaging Lumbar (w/A45,AM3)
|
| Figure 6: |
Position Sensors w/ Memory Massaging Lumbar (w/A45,AM3)
|

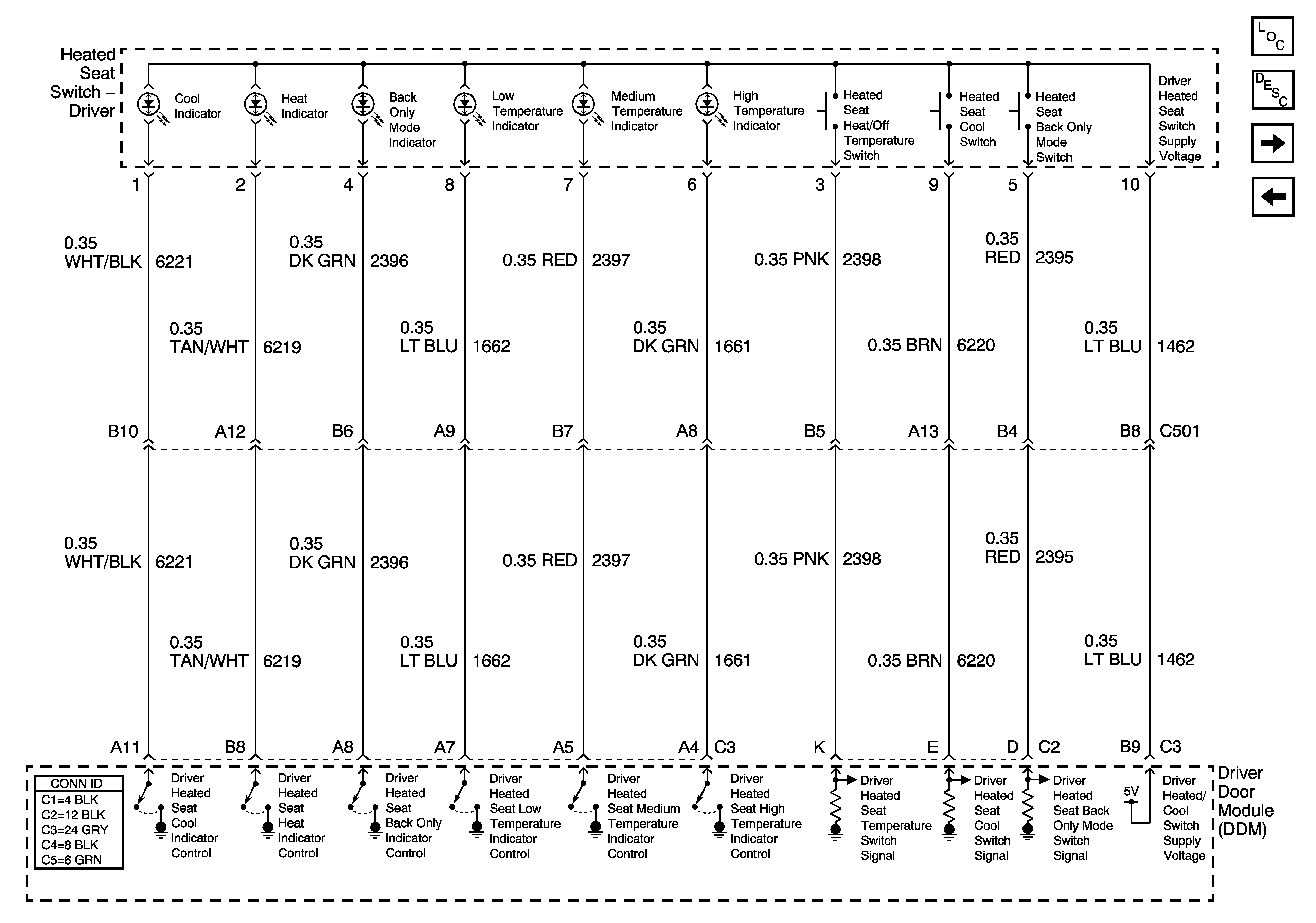

| Figure 7: |
Heated Seat Switch (w/ KA1)
|
| Figure 8: |
Climate Control Seat Module (w/KA1)
|
| Figure 9: |
Power and Ground (w/A45)
|
| Figure 10: |
Memory/Personalization Function Switch (w/A45)
|
| Figure 11: |
Vertical and Horizontal Position Sensors (w/A45)
|
| Figure 12: |
Recline Position Sensors and Class 2 (w/A45)
|
