Radio/Audio System Schematics W/O U3R, U3Q, and U3S
| Figure 1: |

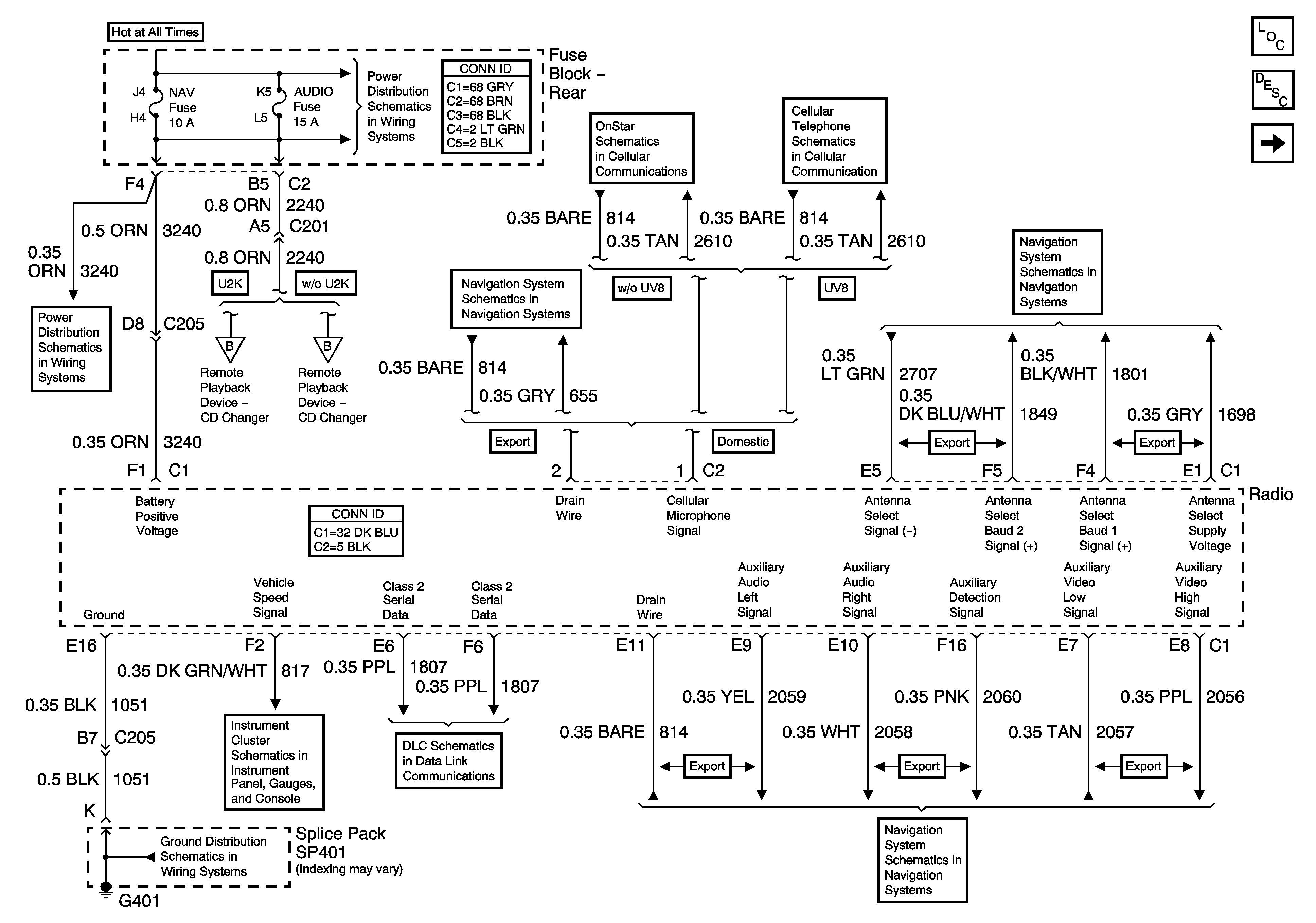

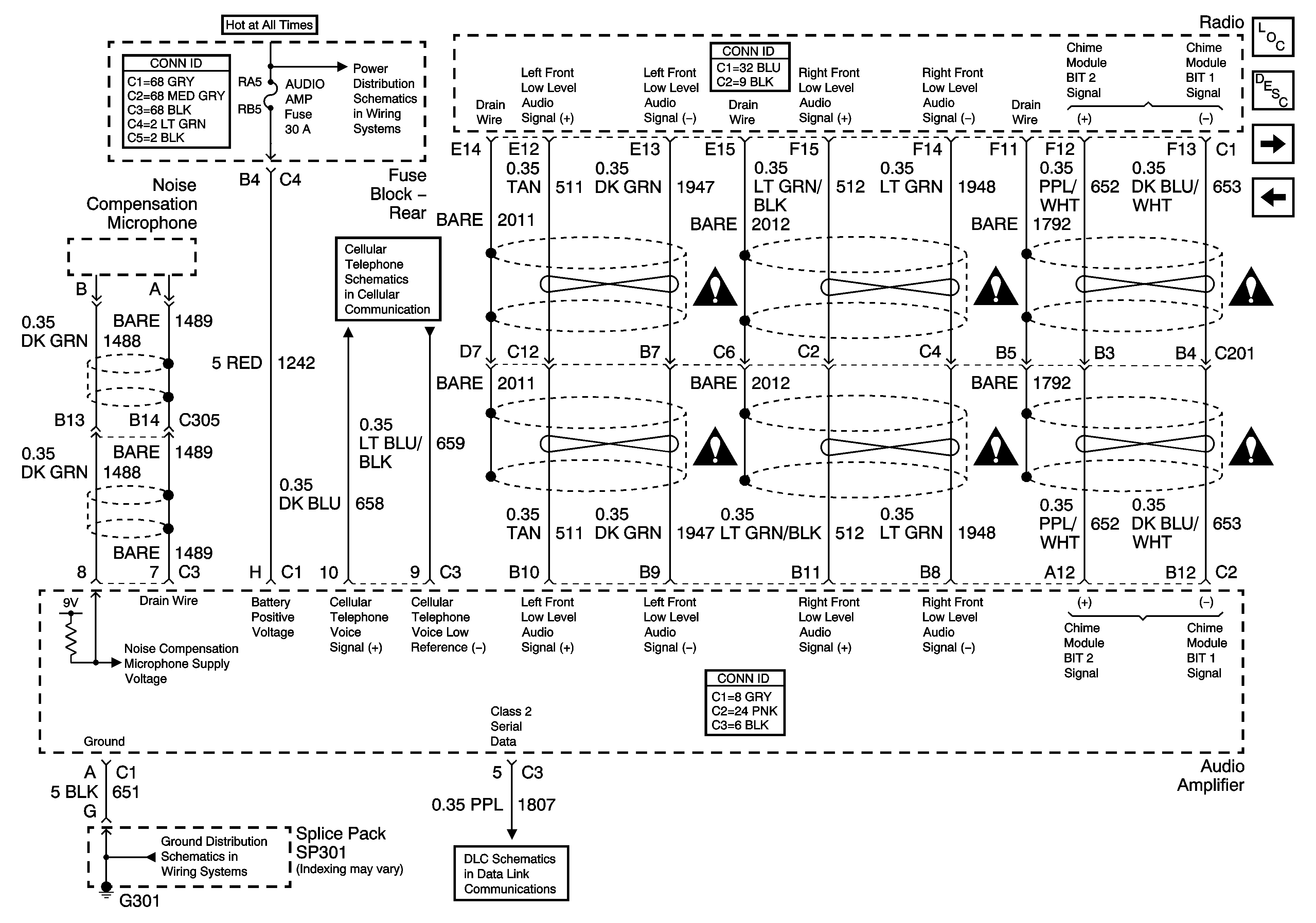

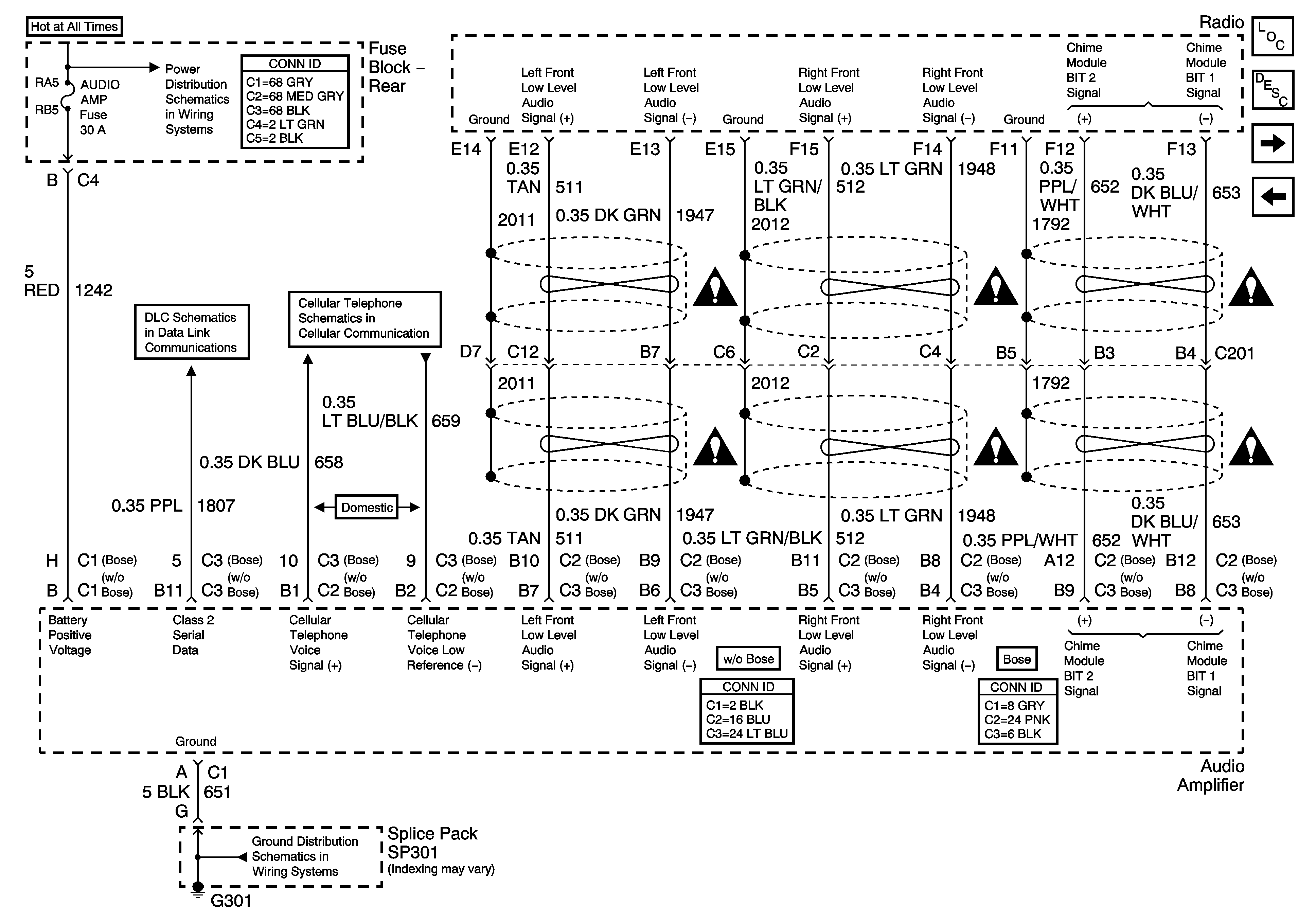

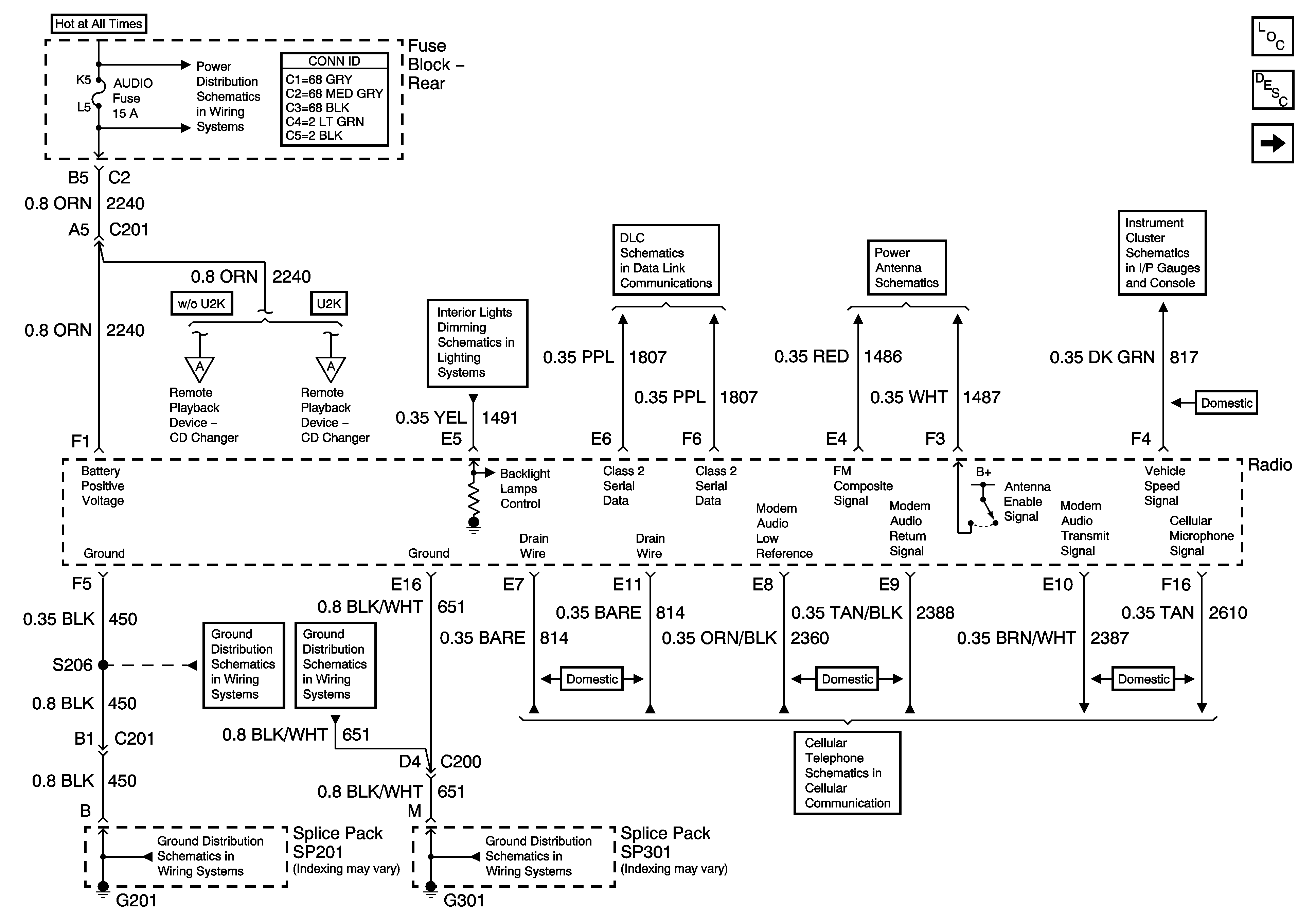

Radio Power, Ground, DLC, and Signals
|
| Figure 2: |

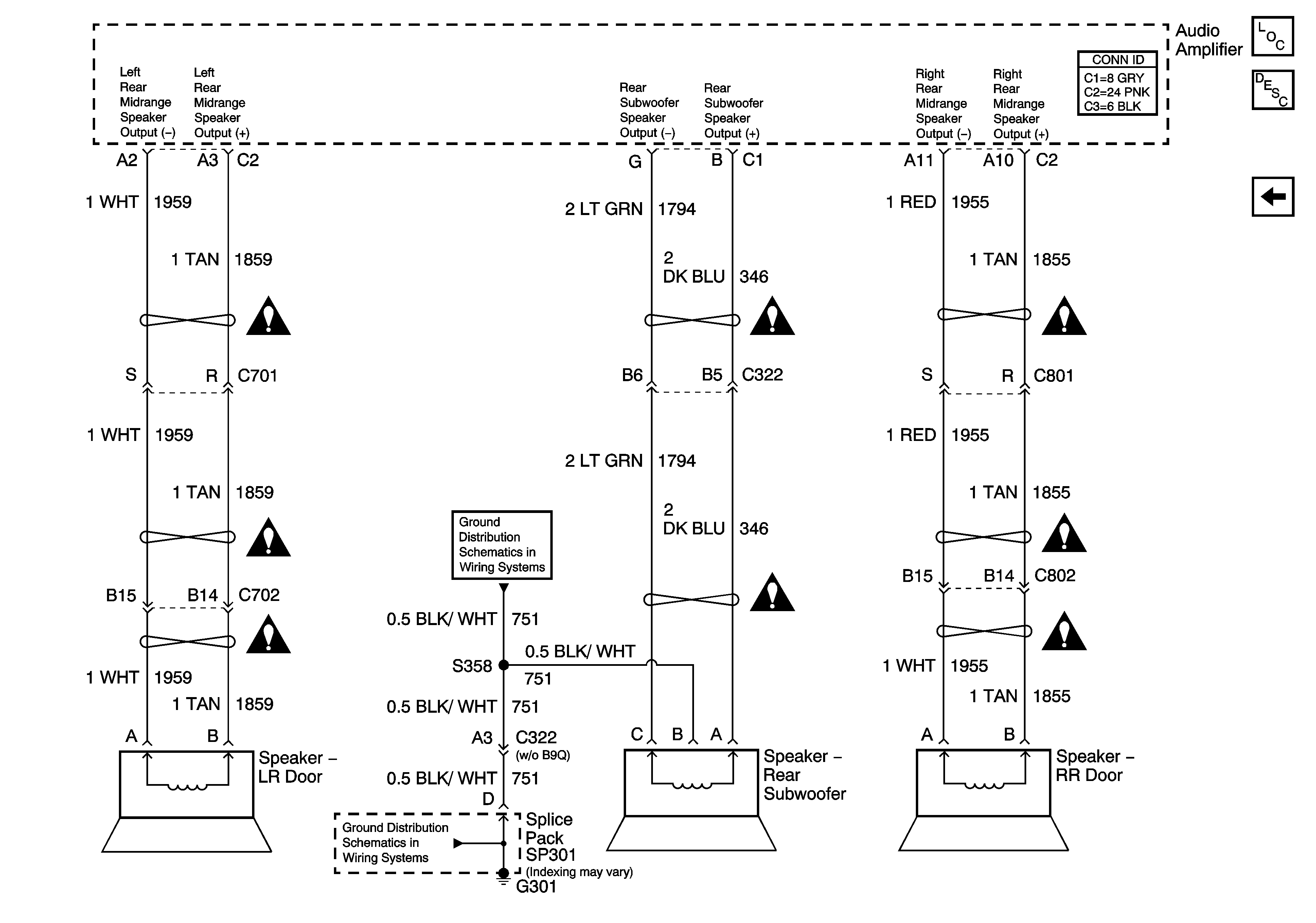

Audio Amplifer Power, Ground, DLC, and Signals
|
| Figure 3: |

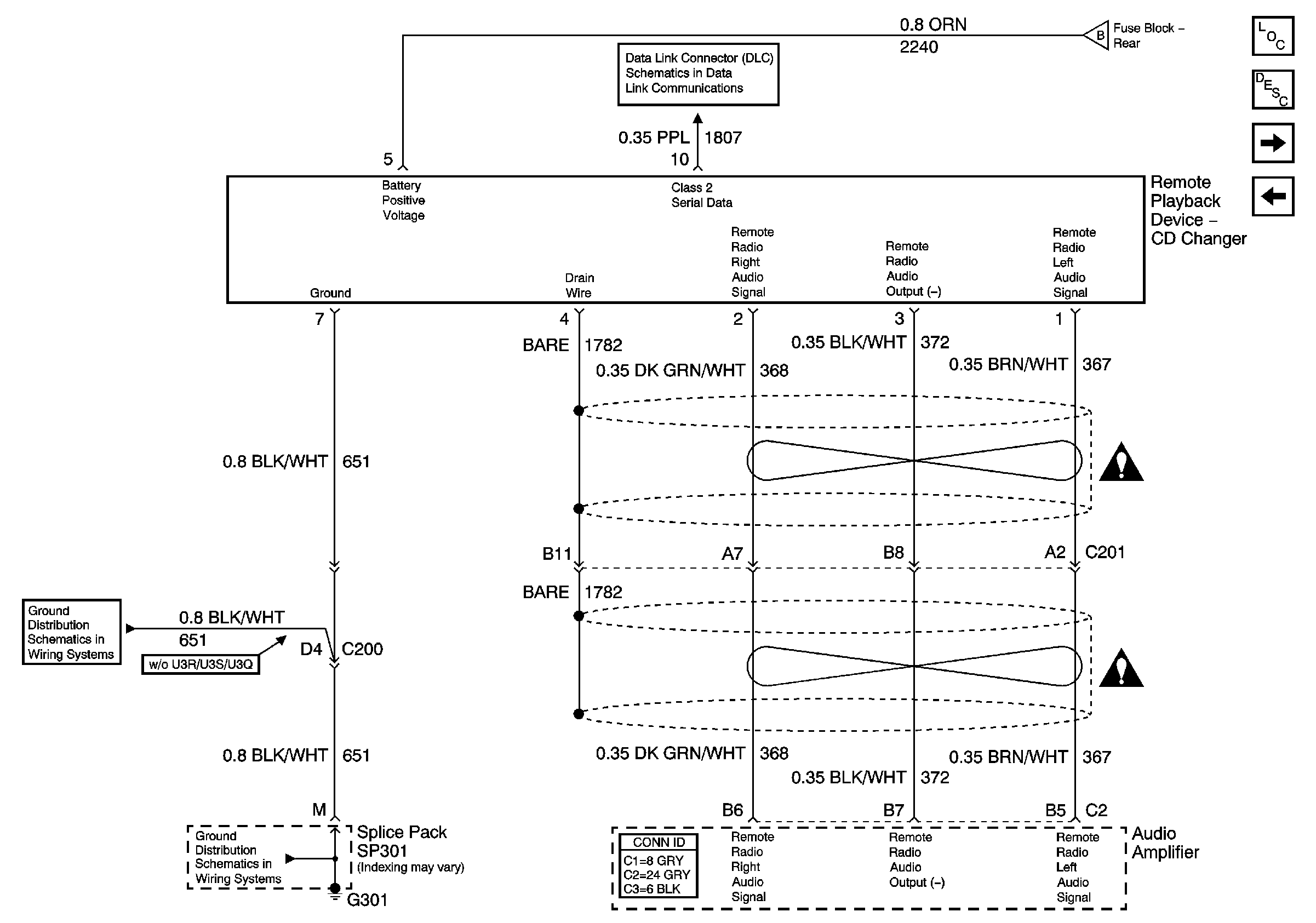

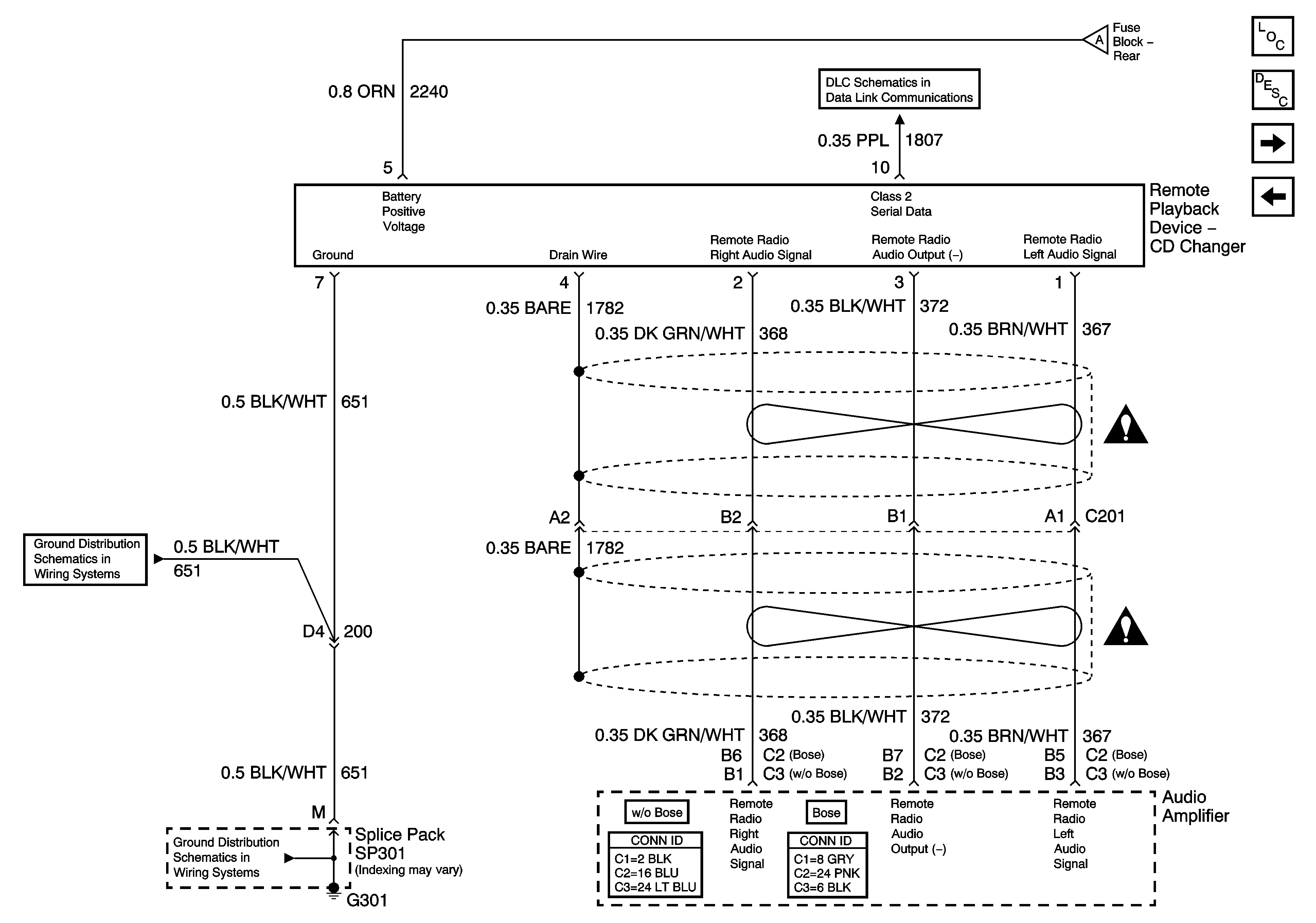

Remote Playback Device CD Changer (w/o U2K)
|
| Figure 4: |

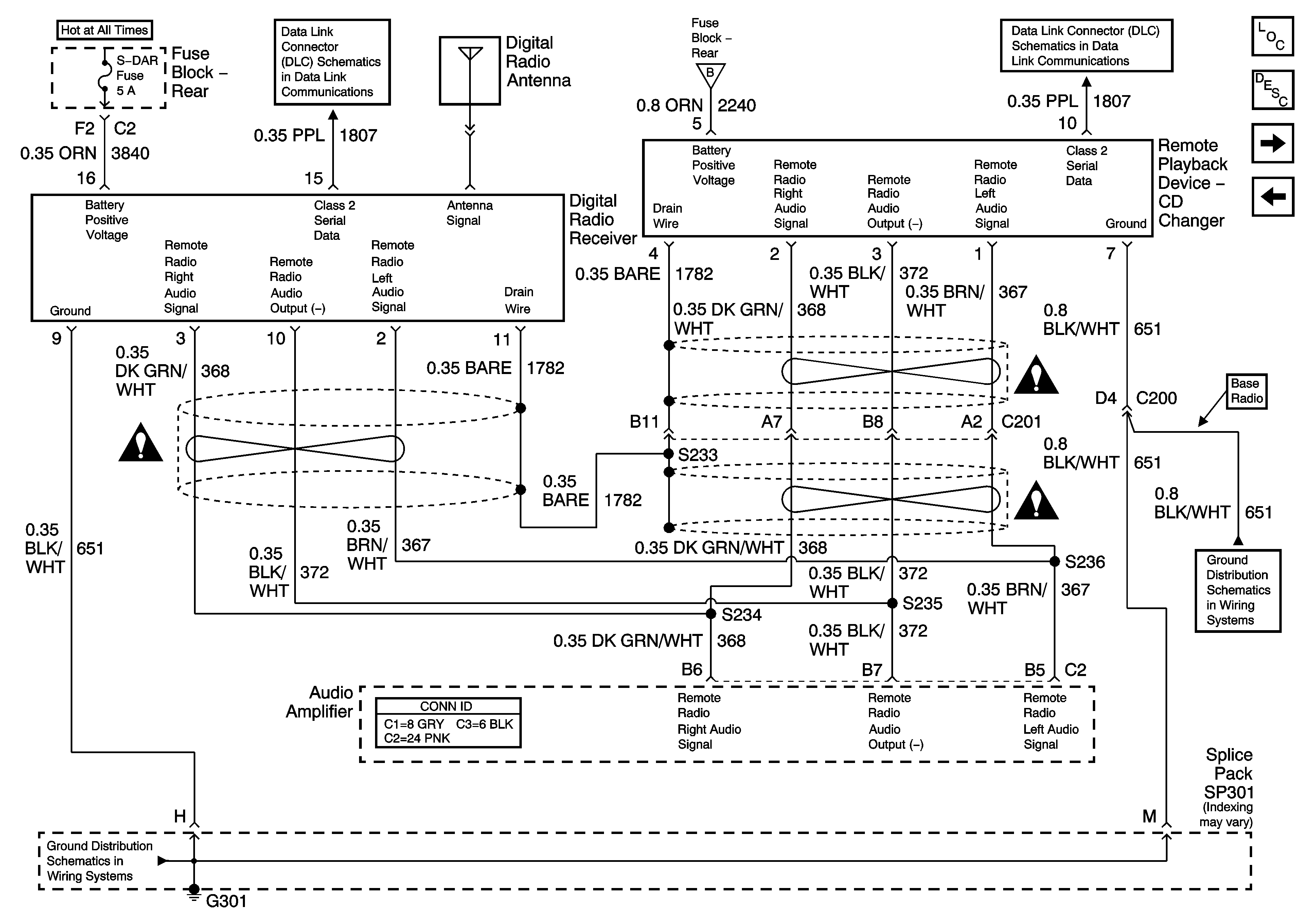

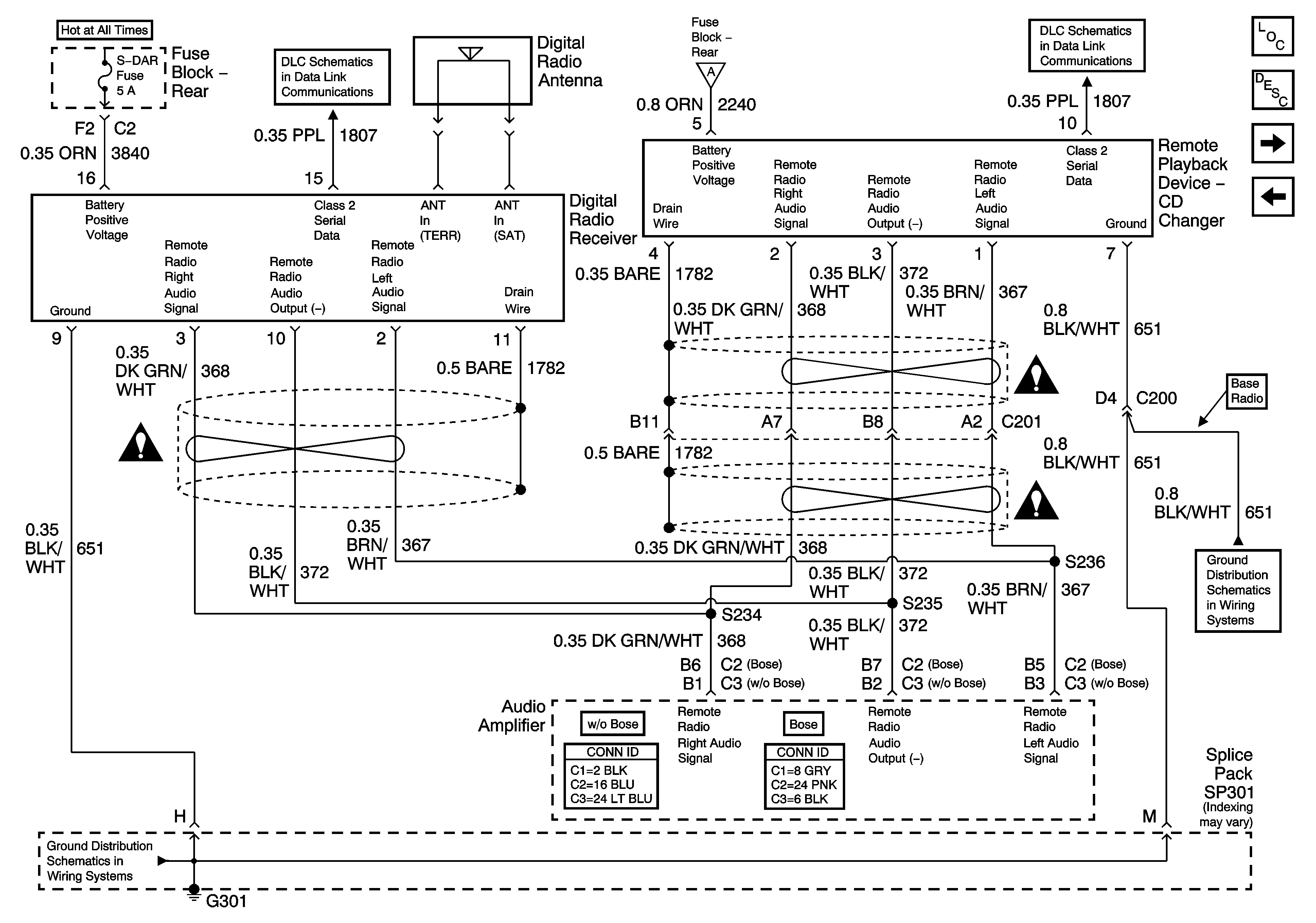

Remote Playback Device CD Changer and Digital Radio Receiver (U2K)
|
| Figure 5: |

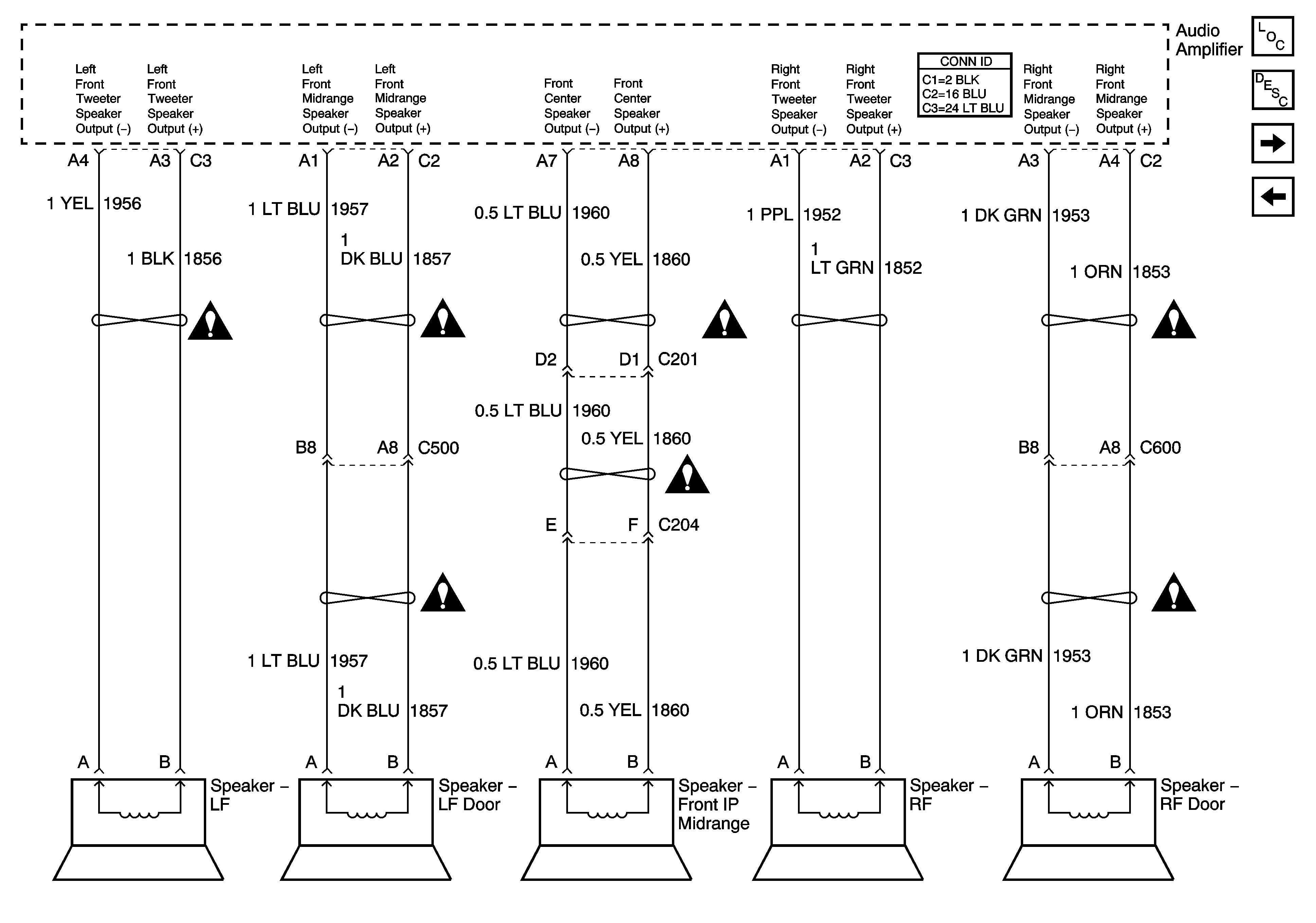

Front Speakers (w/o Bose)
|
| Figure 6: |

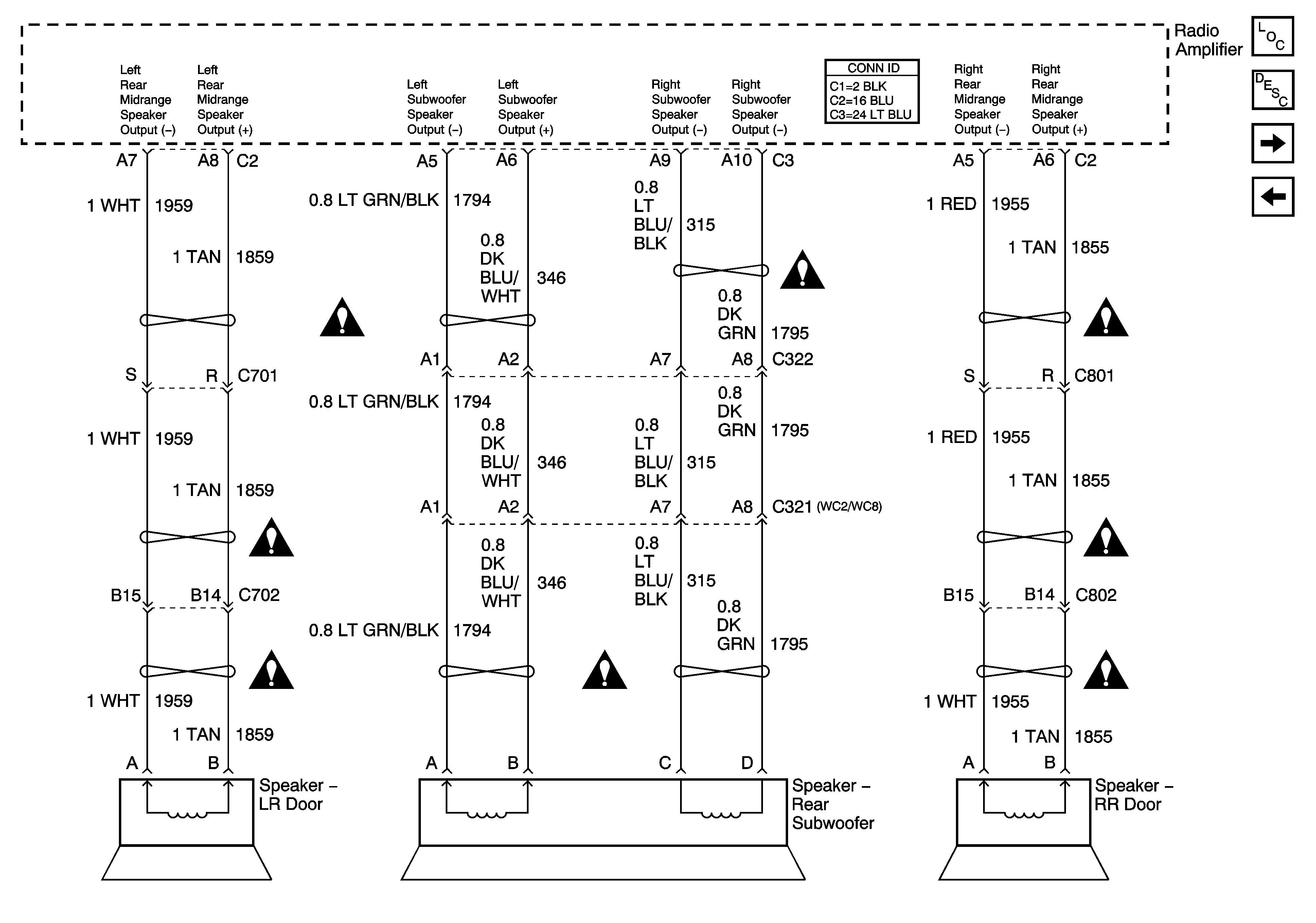

Rear Speakers (w/o Bose)
|
| Figure 7: |

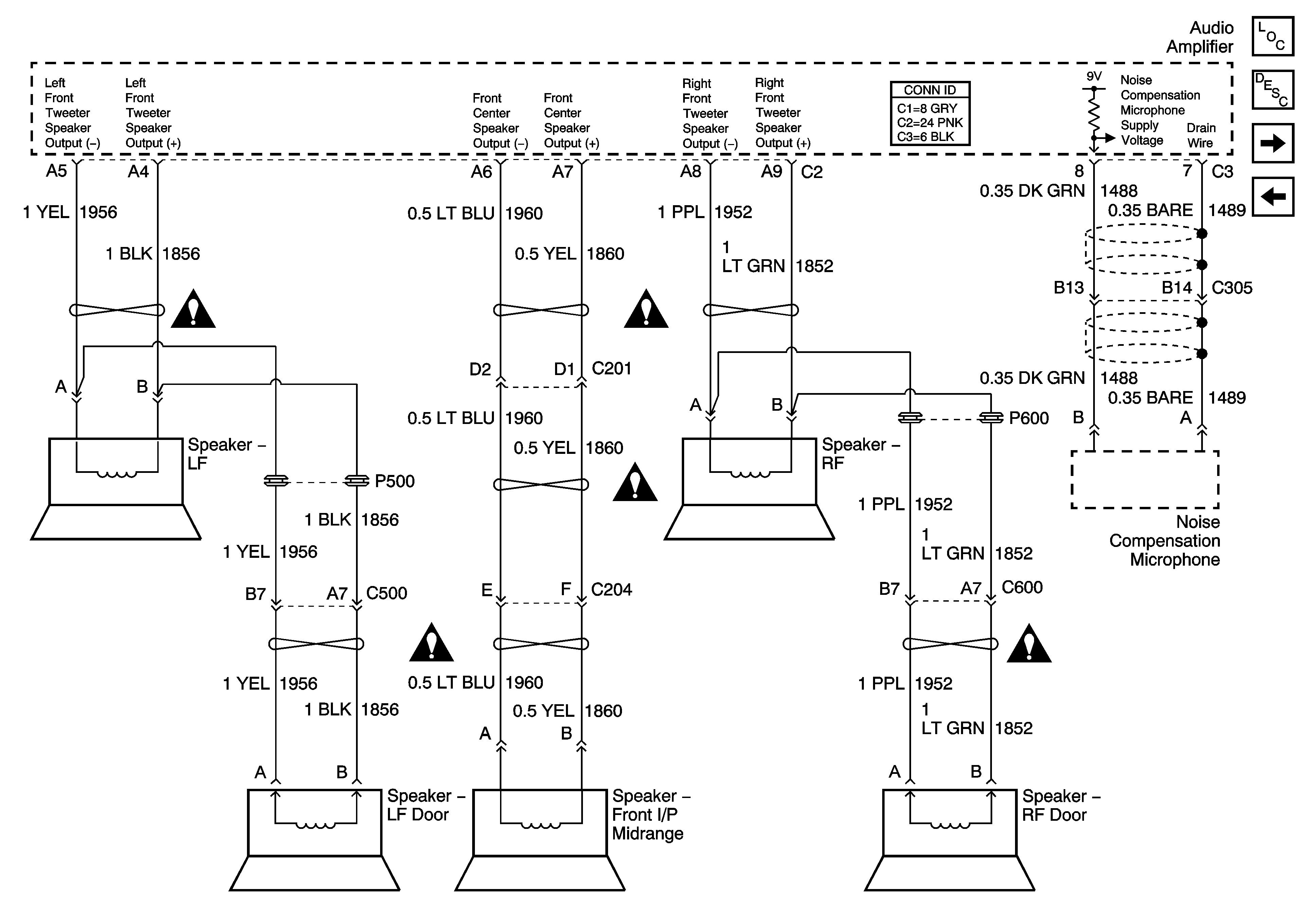

Front Speakers and Noise Compensation Microphone (Bose)
|
| Figure 8: |
Rear Speakers (Bose)
|
Radio/Audio System Schematics U3R, U3Q, and U3S
| Figure 1: |
Radio Power, Ground, DLC, and Signals
|
| Figure 2: |
Audio Amplifier Power, Ground, DLC, and Signals
|
| Figure 3: |
Remote Playback Device CD Changer (w/o U2K)
|
| Figure 4: |
Remote Playback Device CD Changer and Digital Radio Receiver (U2K)
|
| Figure 5: |
Front Speakers and Noise Compensation Microphone
|
| Figure 6: |
Rear Speakers
|
