Power Outlet Component Views. Cadillac DeVille 2004

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 DeVille 🢒 Accessories 🢒 Power Outlets 🢒 Power Outlet Component Views

Figure 1:


(1)	Ashtray Lamp
(2)	Cigar Lighter Front

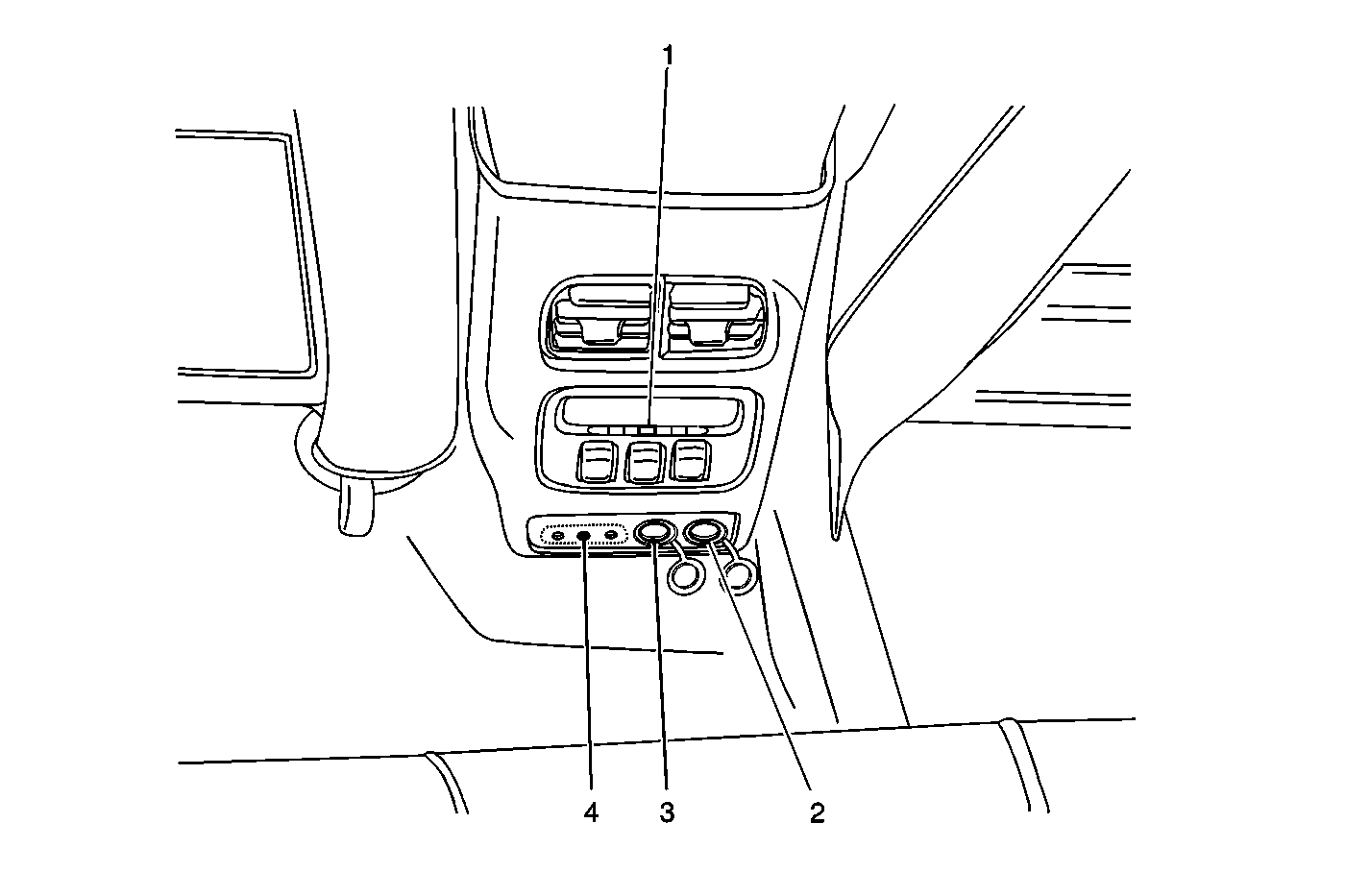

Figure 2:


(1)	HVAC Control Module -- Auxiliary
(2)	Right Rear Auxiliary Outlet
(3)	Left Rear Auxiliary Outlet
(4)	Audio/Video Harness

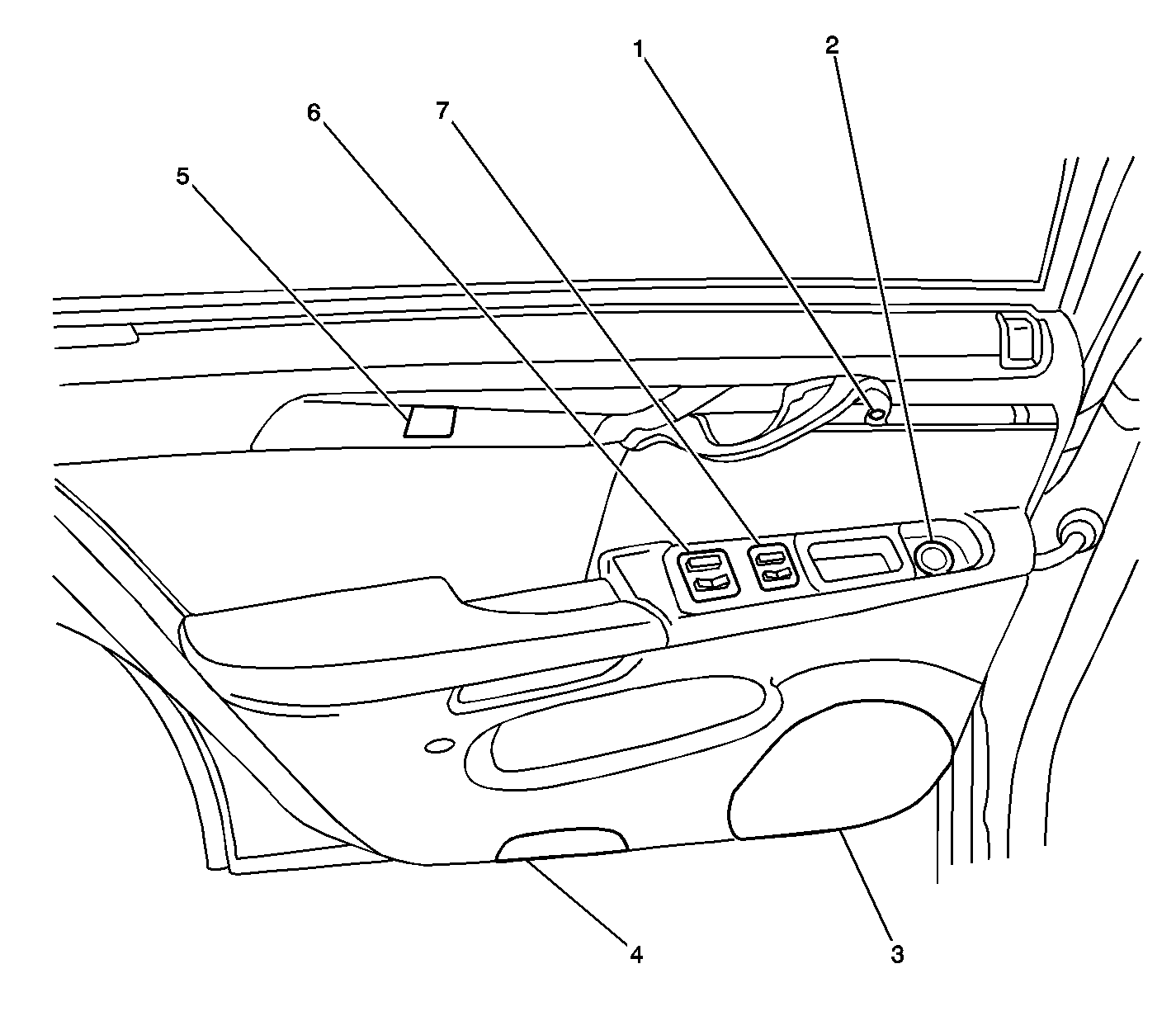

Figure 3:


(1)	Door Lock Switch -- LR, RR Similar
(2)	Cigar Lighter -- LR, RR Similar
(3)	Speaker -- LR Door, RR Similar
(4)	Door Courtesy Lamp -- LR Door, RR Similar
(5)	Seat Lumbar Switch -- LR, RR Similar
(6)	Heated Seat Switch -- LR, RR Similar
(7)	Window Switch -- LR, RR Similar
