HVAC Schematics. Cadillac DeVille 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 DeVille 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 HVAC Schematics

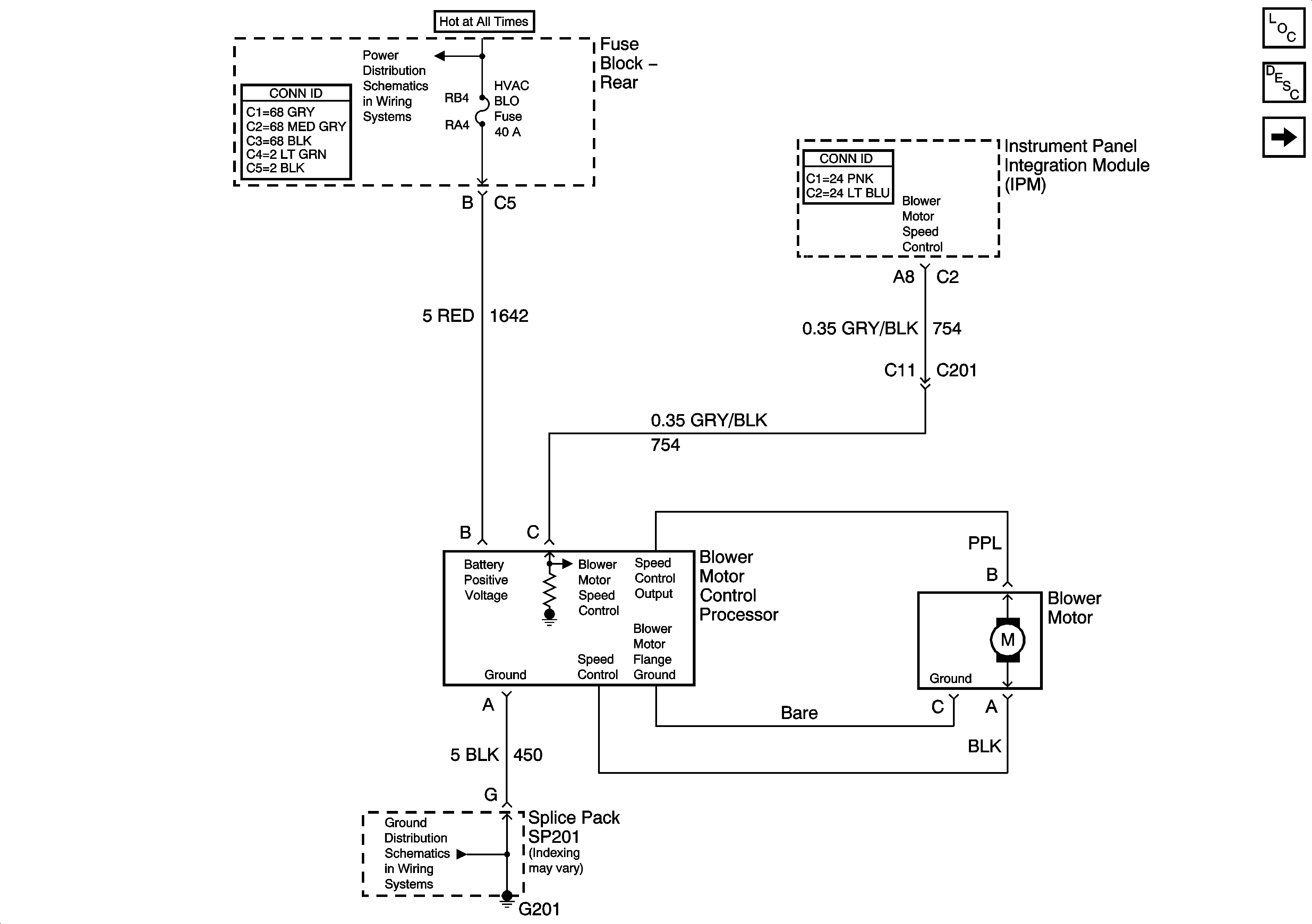

Figure 1:	Front Blower Motor Master Electrical Component List Air Delivery Description and Operation Rear Blower Motor (Deville/DHS) HVAC BLO, DRV MDL, PASS MDL, PWR TT, HTDST LR, HTDST RR, HTDST RF, and DIM Fuses G201 - 1 of 3

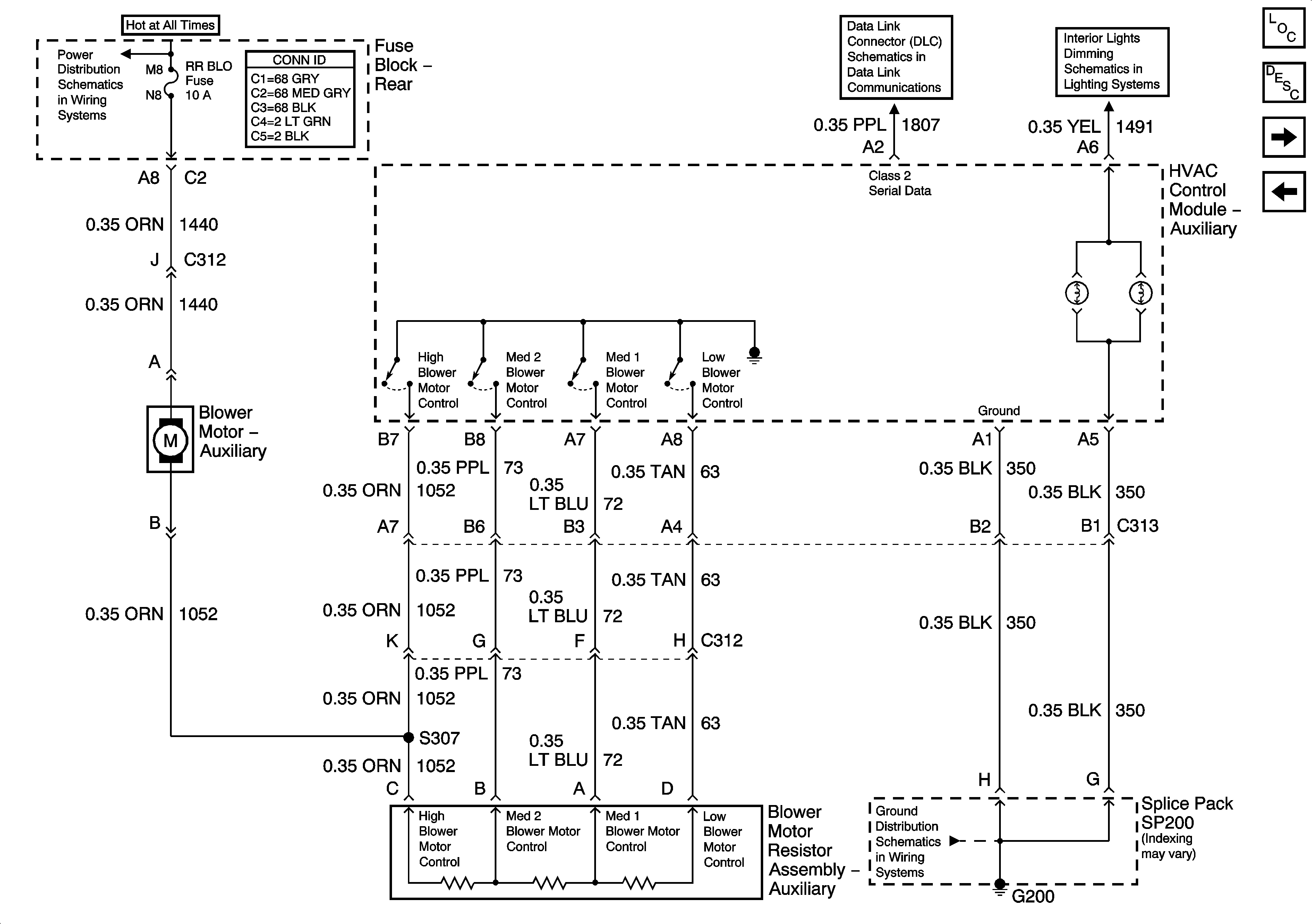

Figure 2:	Rear Blower Motor (Deville/DHS) Master Electrical Component List Air Delivery Description and Operation Rear Blower Motor (DTS) Front Blower Motor Rear Fuse Block Battery Voltage Class 2 Serial Data (3 of 3) Console Dimming G200

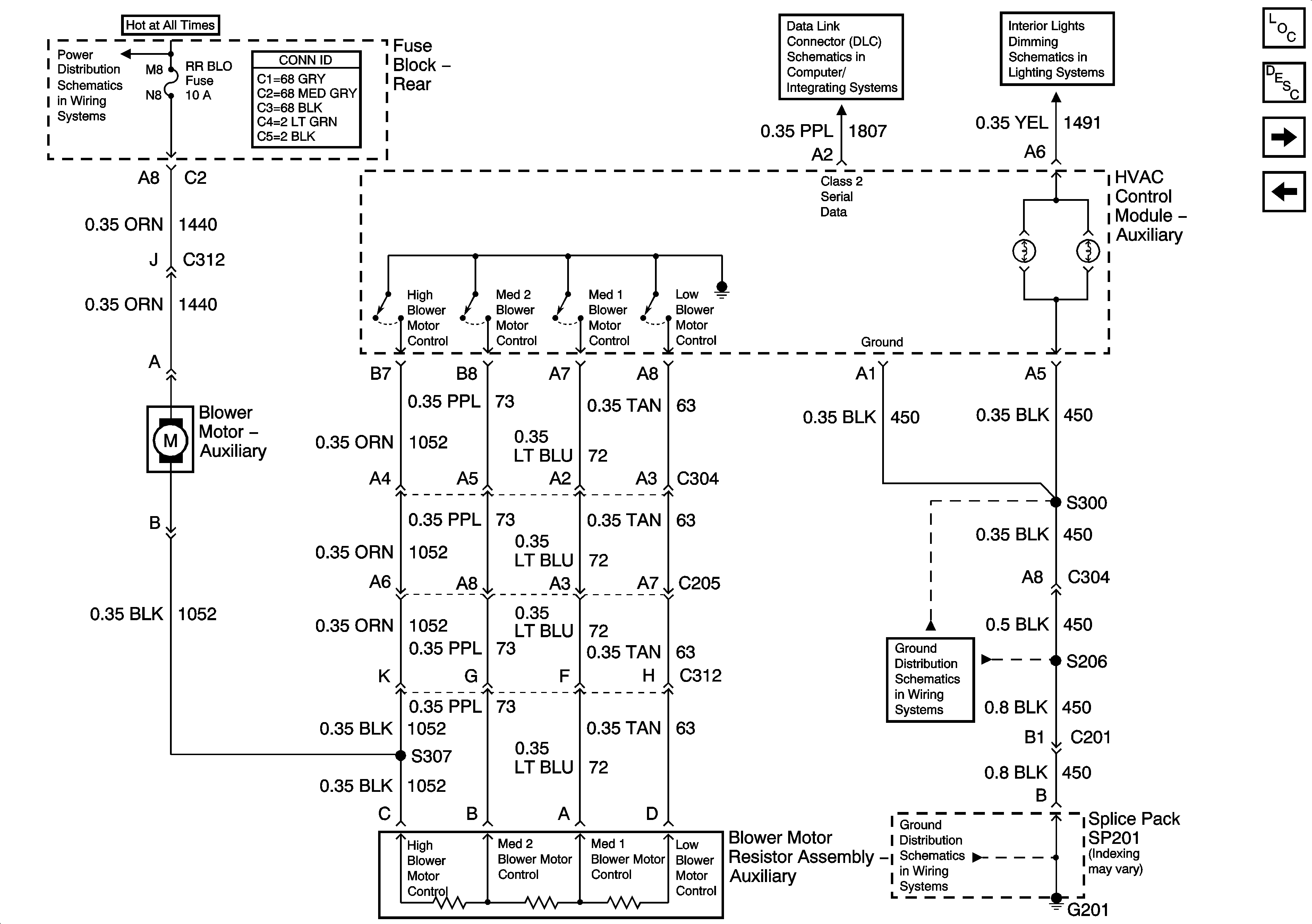

Figure 3:	Rear Blower Motor (DTS) Master Electrical Component List Air Delivery Description and Operation A/C Compressor Control Rear Blower Motor (Deville/DHS) RR BLO, RRDR MDL, HVAC BAT, STOP LP, IGN SW, and TSIG/HAZ Fuses Class 2 Serial Data (3 of 3) Console Dimming G201 - 2 of 3 G201 - 2 of 3

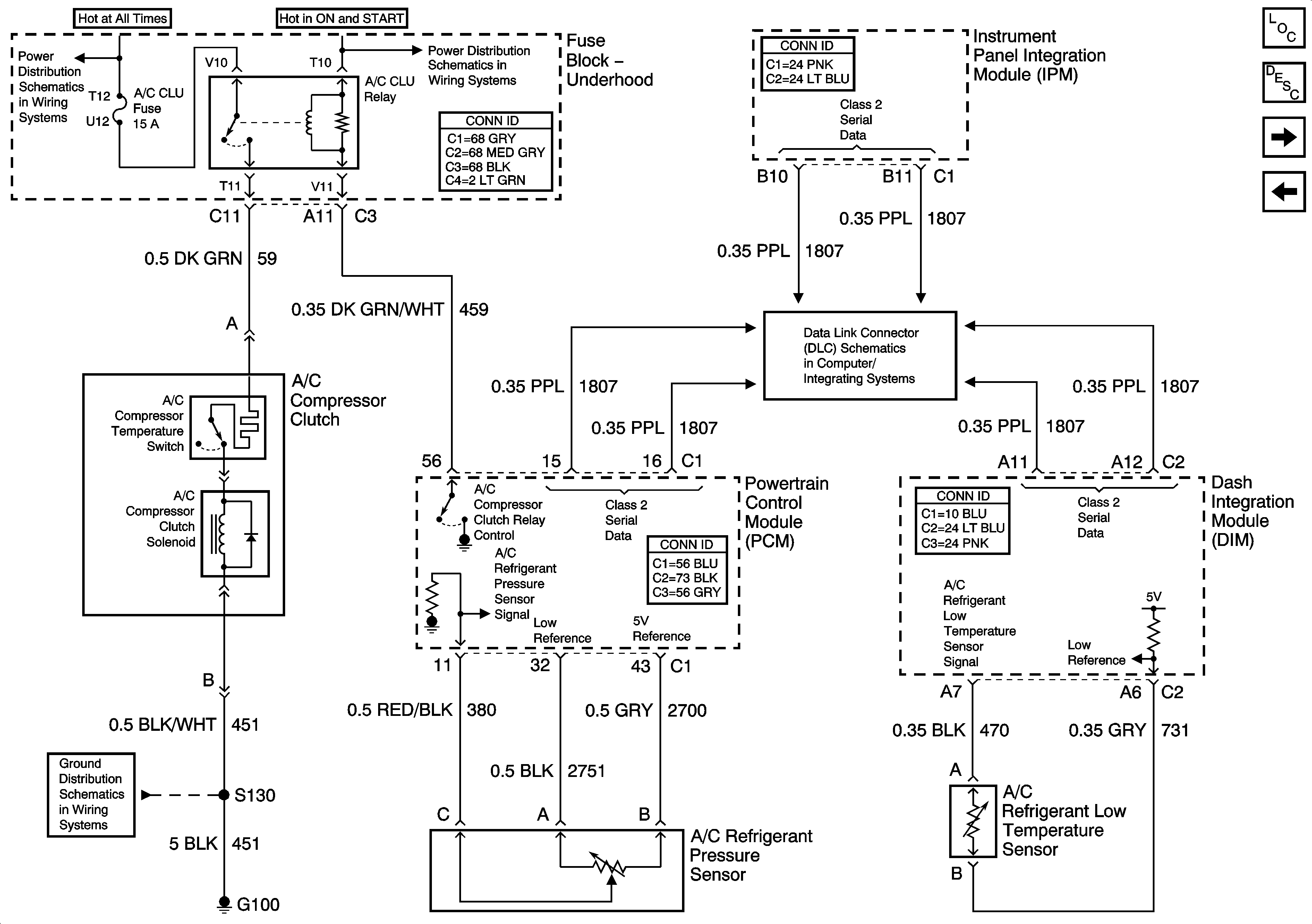

Figure 4:	HVAC Compressor Control Master Electrical Component List Air Delivery Description and Operation Actuators and Inside Air Temperature Sensor Rear Blower Motor (DTS) Underhood Fuse Block Battery Voltage Underhood Fuse Block Battery Voltage Class 2 Serial Data (1 of 3) G100

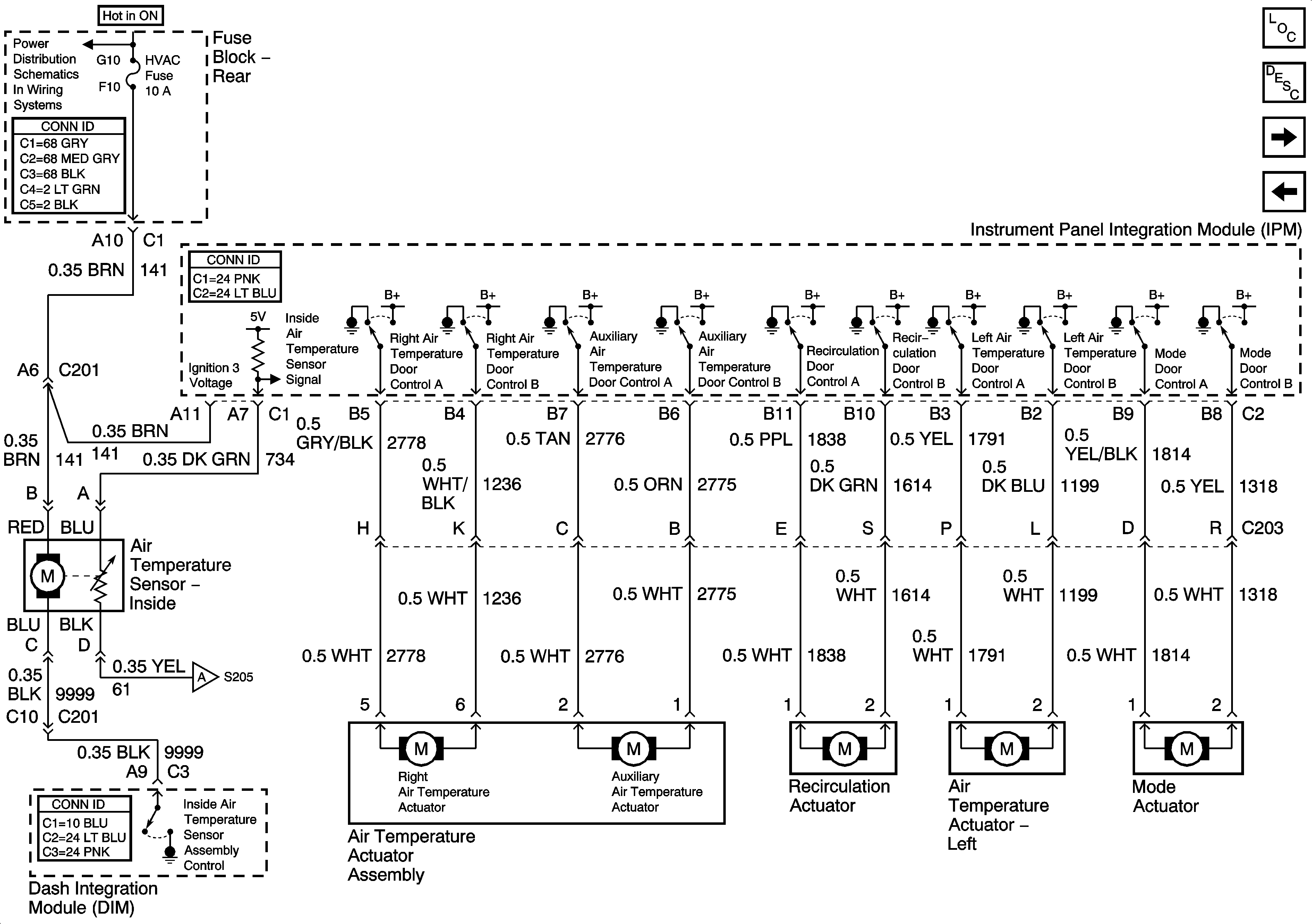

Figure 5:	Actuators and Air Temperature Control Master Electrical Component List Air Temperature Description and Operation Air Temperature and Sunload Sensor A/C Compressor Control ELC, NIGHT VISION, HVAC, and ABS Fuses and ELC Relay Air Temperature and Sunload Sensor

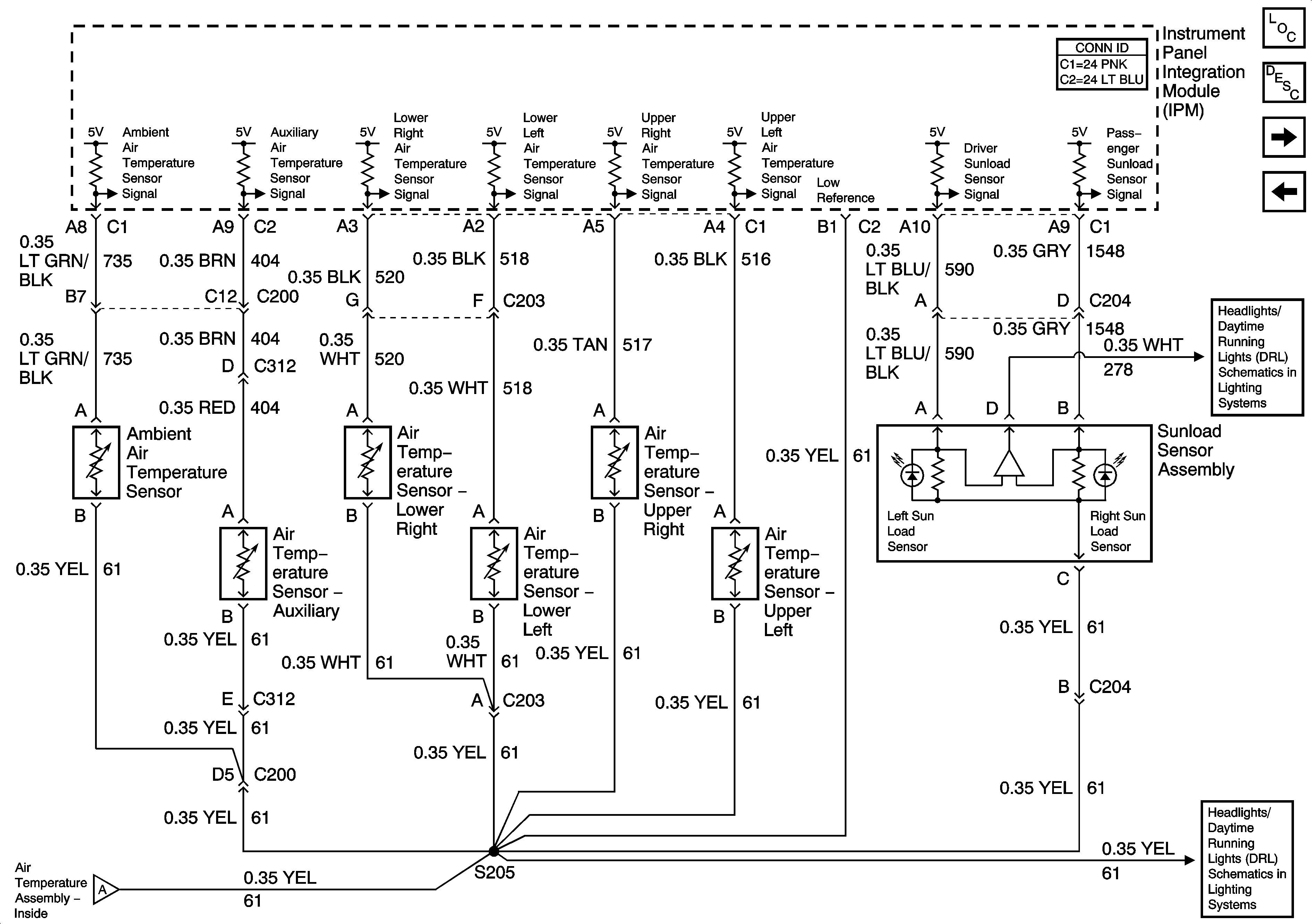

Figure 6:	Temperature Sensors Master Electrical Component List Air Temperature Description and Operation Auxiliary Mode Actuator (Deville/DHS) Actuators and Inside Air Temperature Sensor Headlamp Switch (Domestic) Actuators and Inside Air Temperature Sensor Headlamp Switch (Domestic)

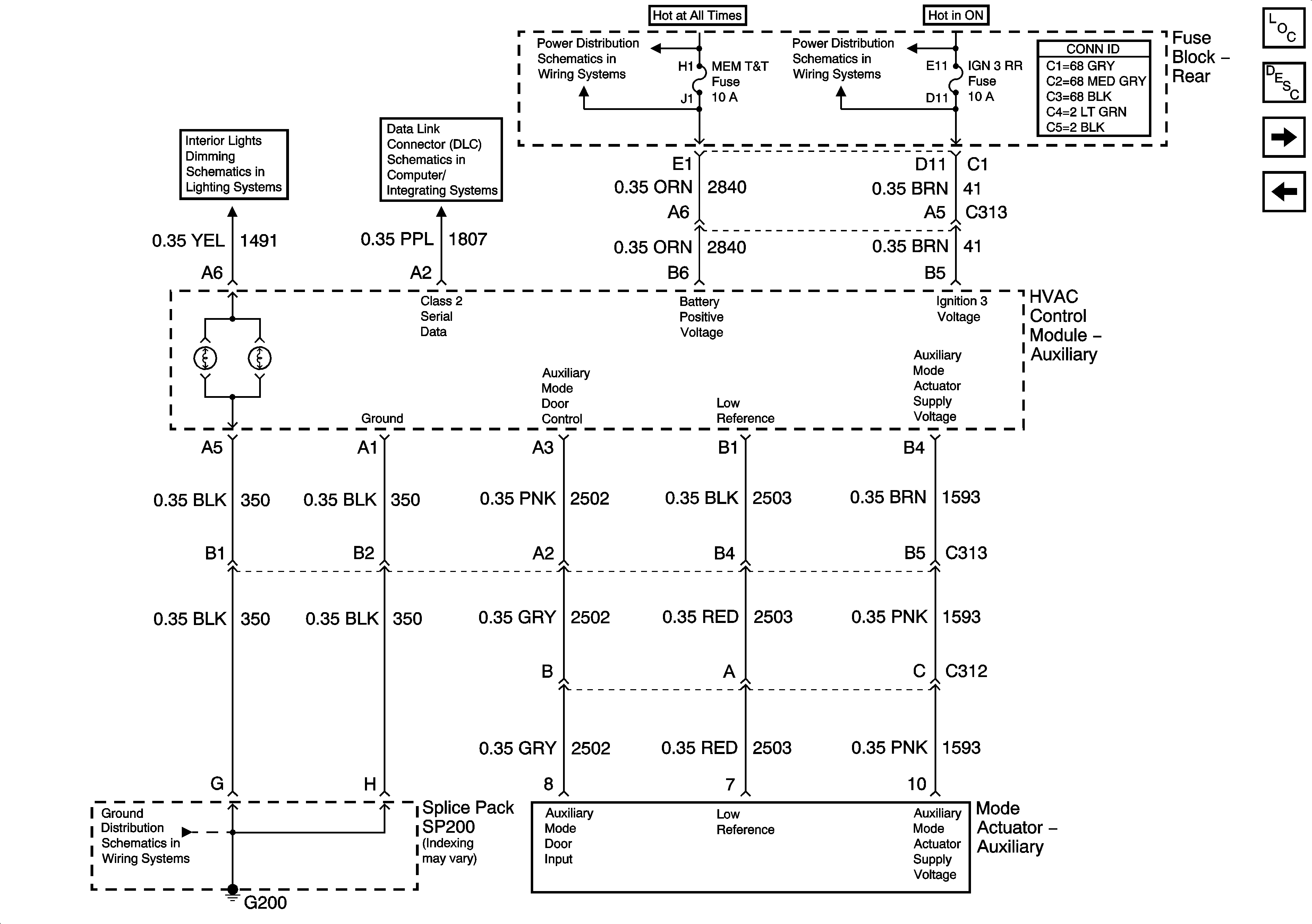

Figure 7:	Rear Actuator (DeVille/DHS) Master Electrical Component List Air Delivery Description and Operation Auxiliary Mode Actuator (DTS) Air Temperature and Sunload Sensor Console Dimming Class 2 Serial Data (3 of 3) MEM TT, RRLUM/PWR ANT, and HTDST LF Fuses IGN 3 Relay and IGN 3 RR Fuse G200

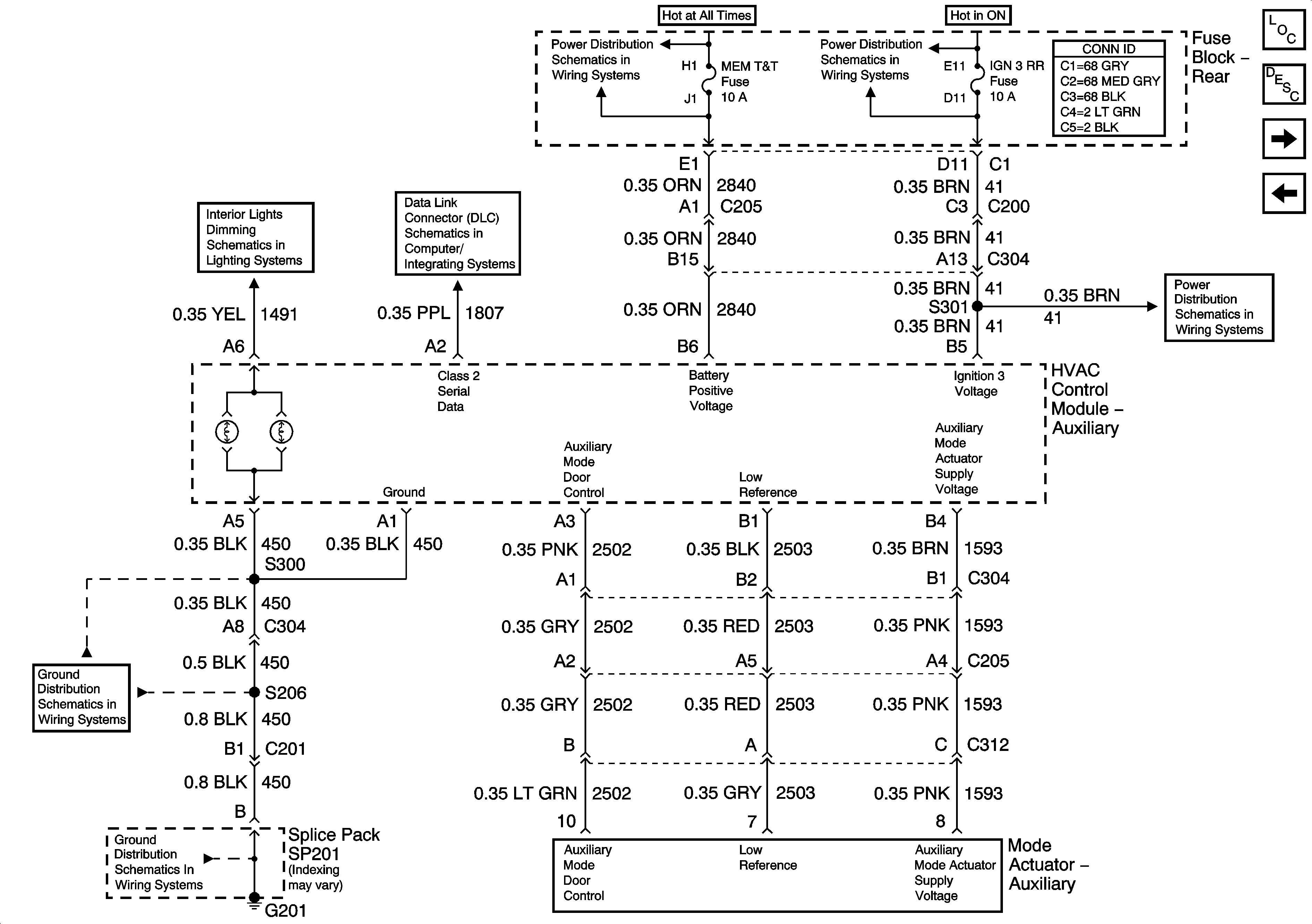

Figure 8:	Rear Actuator (DTS) Master Electrical Component List Air Delivery Description and Operation Steering Wheel Controls Auxiliary Mode Actuator (Deville/DHS) Console Dimming Class 2 Serial Data (3 of 3) MEM TT, RRLUM/PWR ANT, and HTDST LF Fuses IGN 3 Relay and IGN 3 RR Fuse IGN 3 Relay and IGN 3 RR Fuse G201 - 2 of 3 G201 - 2 of 3
Figure 9:	Steering Wheel Controls Master Electrical Component List Air Delivery Description and Operation Auxiliary Mode Actuator (DTS) SIR Caution for Zoning
