Instrument Cluster Schematics. Cadillac DeVille 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 DeVille 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Instrument Cluster Schematics

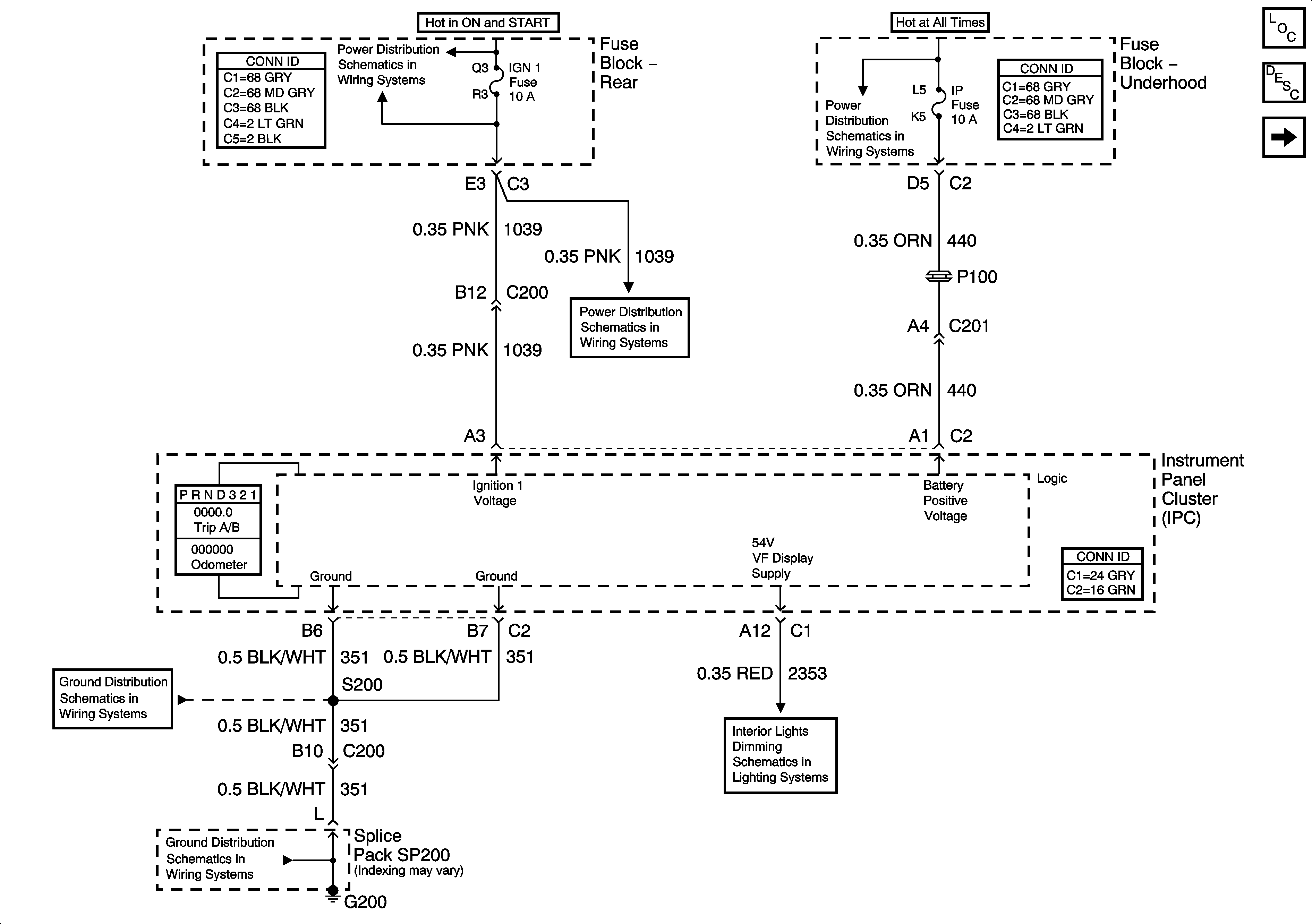

Figure 1:	Power, Ground, and 54V VF Display Supply Master Electrical Component List Instrument Cluster Description and Operation Gages Rear Fuse Block Battery Voltage ALDL, PCM BATT, and I/P Fuses SIR, VENT SOL, and IGN 1 Fuse and IGN 1 Relay G200 G200 Class 2 Dimming Communication
Figure 2:	Gages and Class 2 Master Electrical Component List Instrument Cluster Description and Operation Brakes and Engine Indicators Power, Ground, Class 2 and 54 V, and VF Display Supply Class 2 Serial Data (1 of 3) Engine Data Sensors- 5 Volt and Low Reference

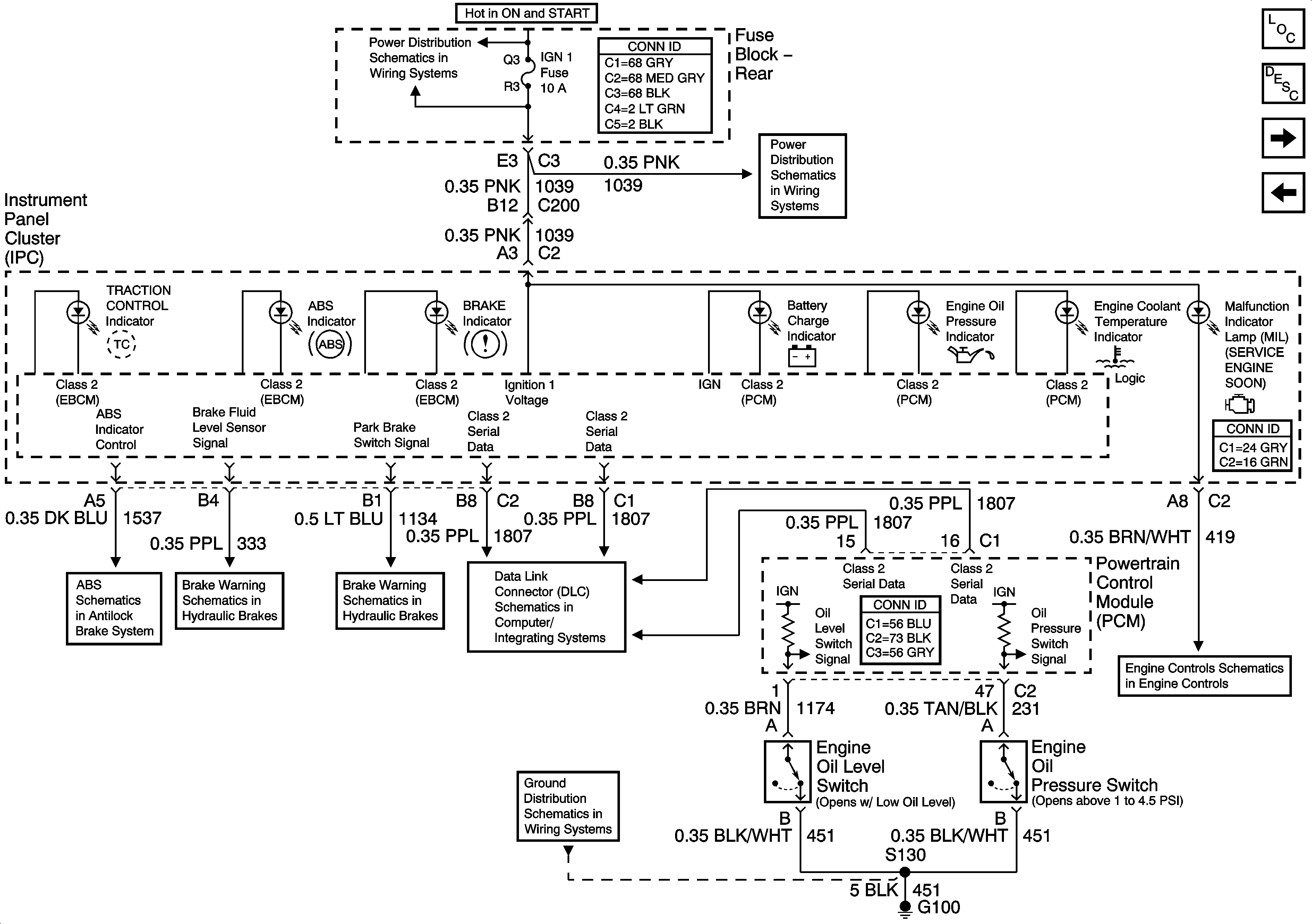

Figure 3:	Brakes and Engine Indicators Master Electrical Component List Instrument Cluster Description and Operation Lighting, Restraints, Security and Cruise Indicators Gages Rear Fuse Block Battery Voltage SIR, VENT SOL, and IGN 1 Fuse and IGN 1 Relay Indicators and Traction Control Switch Brake Warning System Schematics Brake Warning System Schematics Class 2 Serial Data (1 of 3) G100 PCM Power, Ground, Serial Data, and MIL

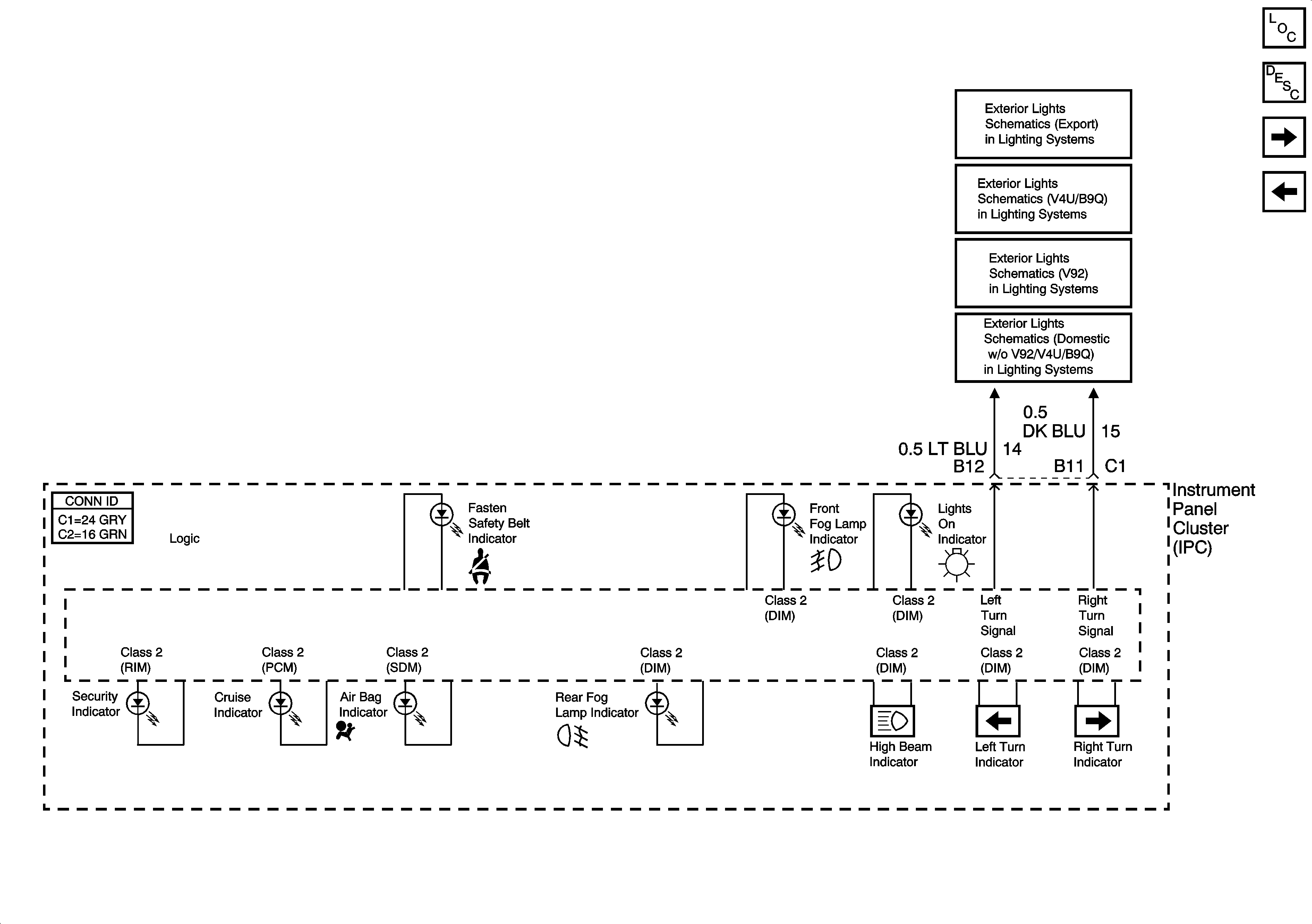

Figure 4:	Lighting, Restraints, Security, and Cruise Indicators Master Electrical Component List Instrument Cluster Description and Operation Driver Information Center Brakes and Engine Indicators Front Park/Turn and Repeater Lamps Front Park/Turn and Side Marker Lamps Front Park/Turn and Side Marker Lamps Front Park/Turn and Side Marker Lamps

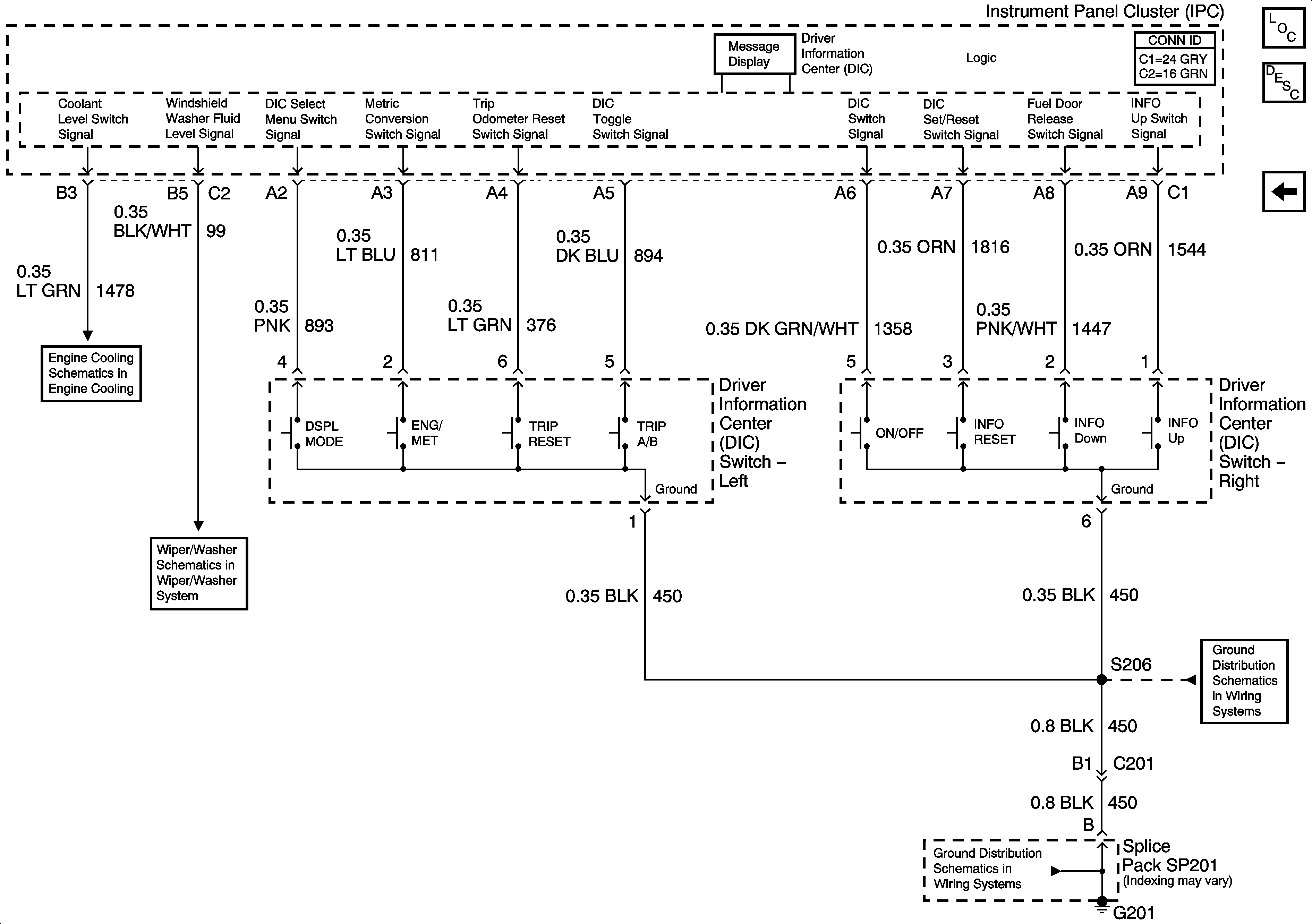

Figure 5:	Driver Information Center Master Electrical Component List Driver Information Center (DIC) Description and Operation Lighting, Restraints, Security and Cruise Indicators Coolant Level Switch Windshield Washer Fluid Level Switch G201 - 2 of 3 G201 - 2 of 3
