Power Distribution Schematics. Cadillac Eldorado 1998

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1998 🢒 Eldorado 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power Distribution Schematics

Figure 1:	Cell 10: Battery Power and Grounding Components Cell 10: BATT 3 and BATT 2 Fuses, Ignition Switch Ground Distribution Schematics
Figure 2:	Cell 10: BATT 3 and BATT 2 Fuses, Ignition Switch Power and Grounding Components Cell 10: IGN 1 Fuse Cell 10: Battery
Figure 3:	Cell 10: IGN 1 Fuse Power and Grounding Components Cell 10: BATT 1 and BRAKES Fuses Cell 10: BATT 3 and BATT 2 Fuses, Ignition Switch
Figure 4:	Cell 10: BATT 1 and BRAKES Fuses Power and Grounding Components Cell 10: COOL FANS Fuse Cell 10: IGN 1 Fuse Handling ESD Sensitive Parts Notice Starting and Charging Schematics
Figure 5:	Cell 10: COOL FANS Fuse Power and Grounding Components Cell 10: BODY 1 Fuse Cell 10: BATT 1 and BRAKES Fuses Cooling Fan Schematics
Figure 6:	Cell 10: BODY 1 Fuse Power and Grounding Components Cell 10: BODY 2 Fuse Cell 10: COOL FANS Fuse
Figure 7:	Cell 10: BODY 2 Fuse Power and Grounding Components Cell 10: BODY 3 Fuse Cell 10: BODY 1 Fuse
Figure 8:	Cell 10: BODY 3 Fuse Power and Grounding Components Cell 10: INDVERT Fuse Cell 10: BODY 2 Fuse
Figure 9:	Cell 10: INDVERT Fuse Power and Grounding Components Cell 10: LAMPS Fuse Cell 10: BODY 3 Fuse
Figure 10:	Cell 10: LAMPS Fuse Power and Grounding Components Cell 10: IGN 1 Fuse Cell 10: INDVERT Fuse
Figure 11:	Cell 10: IGN 1 Fuse Power and Grounding Components Cell 10: WINDOWS Circuit Breaker Cell 10: LAMPS Fuse
Figure 12:	Cell 10: WINDOWS Circuit Breaker Power and Grounding Components Cell 10: SEATS Circuit Breaker Cell 10: IGN 1 Fuse Handling ESD Sensitive Parts Notice
Figure 13:	Cell 10: SEATS Circuit Breaker Power and Grounding Components Cell 10: INT LPS Fuse (1 of 2) Cell 10: WINDOWS Circuit Breaker Handling ESD Sensitive Parts Notice Horn Schematics
Figure 14:	Cell 10: INT LPS Fuse (1 of 2) Power and Grounding Components Cell 10: INT LPS Fuse (1 of 2) Cell 10: SEATS Circuit Breaker Cell 10: INT LPS Fuse (1 of 2) Interior Lights Schematics
Figure 15:	Cell 10: INT LPS Fuse (1 of 2) Cell 10: INT LPS Fuse (1 of 2) Power and Grounding Components Cell 10: CIG LTR 1 and CIG LTR 2 Fuses Cell 10: INT LPS Fuse (1 of 2)
Figure 16:	Cell 10: CIG LTR 1 and CIG LTR 2 Fuses Power and Grounding Components Cell 10: MIRROR, FOG, and DRL Fuses Cell 10: INT LPS Fuse (1 of 2)
Figure 17:	Cell 10: MIRROR, FOG, and DRL Fuses Power and Grounding Components Cell 10: CIG LTR 1 and CIG LTR 2 Fuses Handling ESD Sensitive Parts Notice Fog Lights Schematics Headlights Schematics Body Control System Schematics
Figure 18:	Cell 10: INJ Fuses Power and Grounding Components Cell 10: STOP, HAZARD, CNR LP, and IGN 0 (ENG) Fuses Cell 10: MIRROR, FOG, and DRL Fuses
Figure 19:	Cell 10: STOP, HAZARD, CNR LP, and IGN 0 (ENG) Fuses Power and Grounding Components Cell 10: FUEL PUMP, OXY SEN 1, and OXY SEN 2 Fuses Cell 10: INJ Fuses Handling ESD Sensitive Parts Notice
Figure 20:	Cell 10: FUEL PUMP, OXY SEN 1, and OXY SEN 2 Fuses Power and Grounding Components Cell 10: ABS and IGN 1 Fuses Cell 10: STOP, HAZARD, CNR LP, and IGN 0 (ENG) Fuses Engine Controls Schematics
Figure 21:	Cell 10: ABS and IGN 1 Fuses Power and Grounding Components Cell 10: ECS Fuse Cell 10: FUEL PUMP, OXY SEN 1, and OXY SEN 2 Fuses Handling ESD Sensitive Parts Notice
Figure 22:	Cell 10: ECS Fuse Power and Grounding Components Cell 10: PARK/REV Fuse Cell 10: ABS and IGN 1 Fuses Handling ESD Sensitive Parts Notice

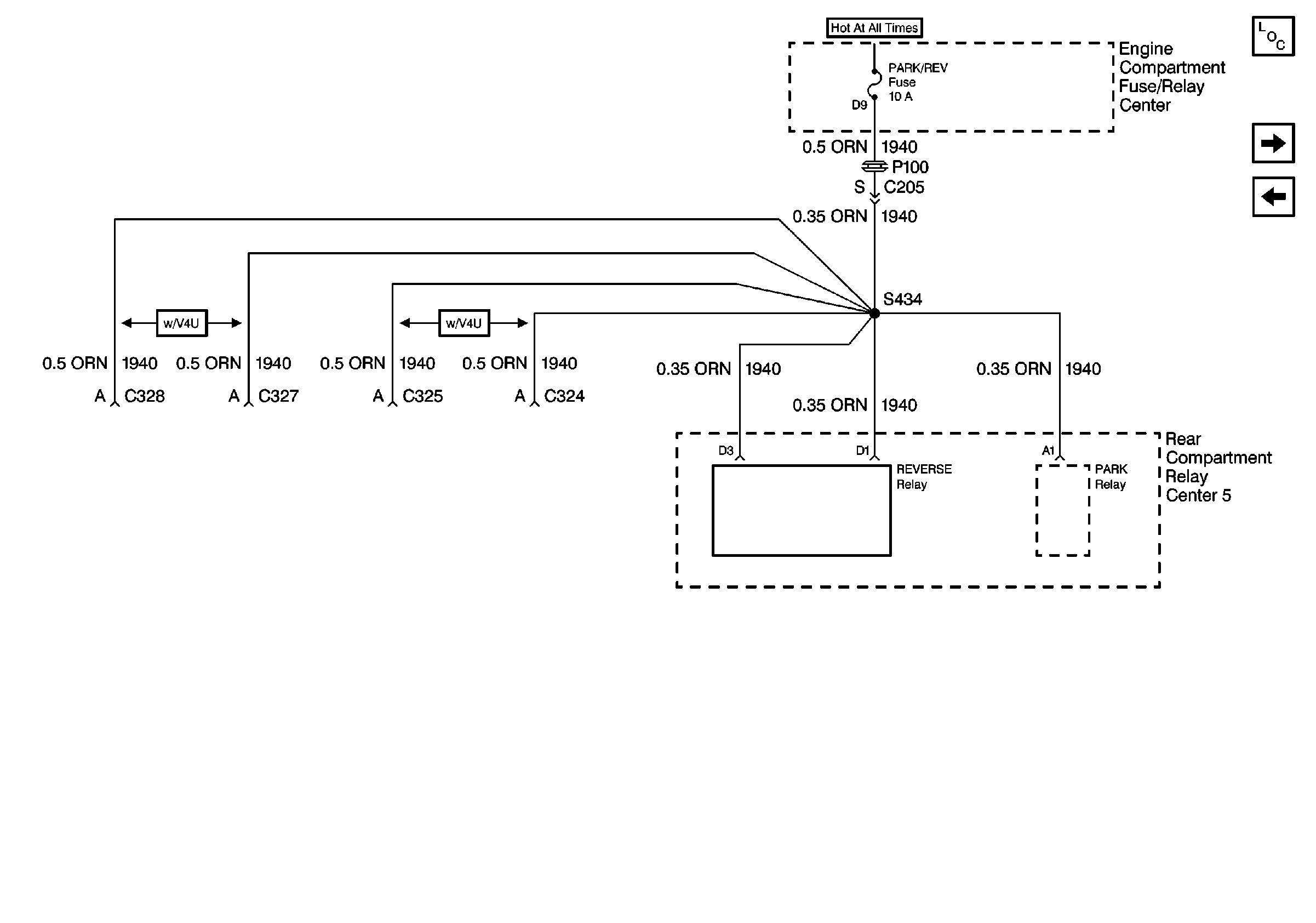

Figure 23:	Cell 10: PARK/REV Fuse Power and Grounding Components Cell 10: CRUISE, DIS, and PCM (IGN) Fuses Cell 10: ECS Fuse
Figure 24:	Cell 10: CRUISE, DIS, and PCM (IGN) Fuses Power and Grounding Components Cell 10: PCM (BAT) and A/C COMP Fuses Cell 10: PARK/REV Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 25:	Cell 10: PCM (BAT) and A/C COMP Fuses Power and Grounding Components Cell 10: CONVENIENCE Fuse Cell 10: CRUISE, DIS, and PCM (IGN) Fuses Handling ESD Sensitive Parts Notice Cooling Fan Schematics

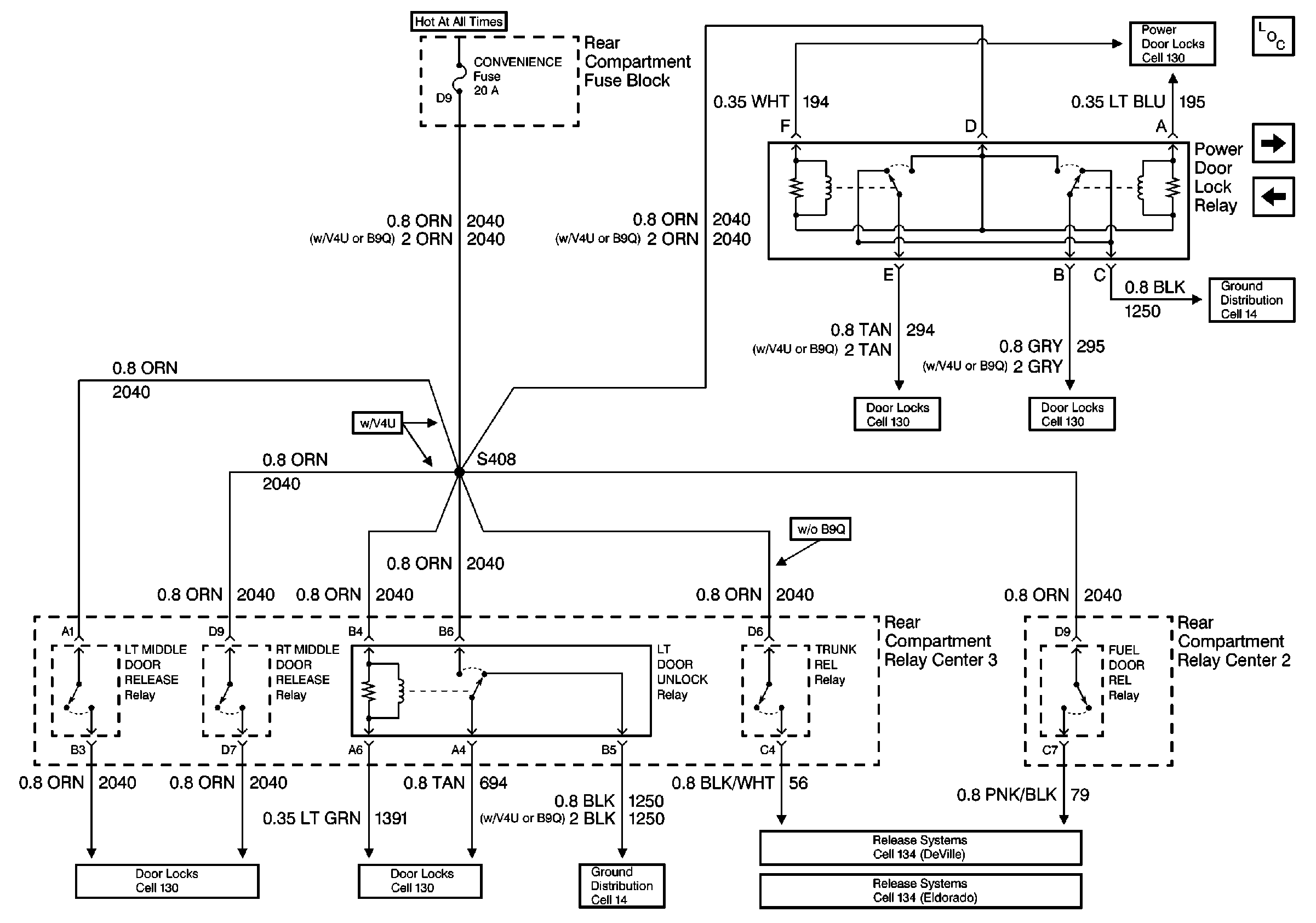

Figure 26:	Cell 10: CONVENIENCE Fuse Power and Grounding Components Cell 10: WIPERS, ACC, and CLUSTER Fuses Cell 10: PCM (BAT) and A/C COMP Fuses Ground Distribution Schematics Door Lock/Indicator Schematics Door Lock/Indicator Schematics Door Lock/Indicator Schematics Door Lock/Indicator Schematics Ground Distribution Schematics Release Systems Schematics Door Lock/Indicator Schematics

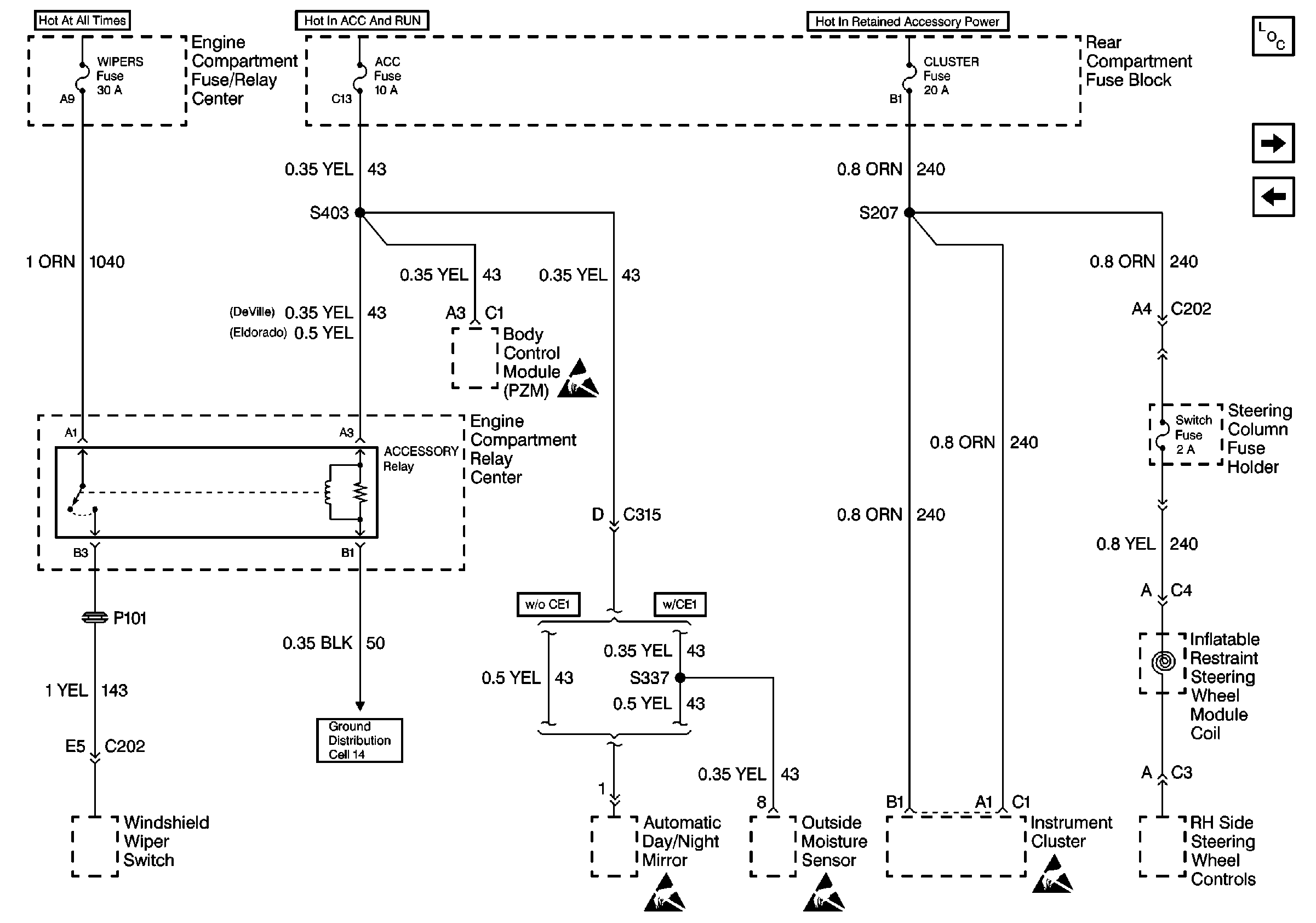

Figure 27:	Cell 10: WIPERS, ACC, and CLUSTER Fuses Power and Grounding Components Cell 10: ELC Circuit Breaker and ELC Fuse Cell 10: CONVENIENCE Fuse Ground Distribution Schematics Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

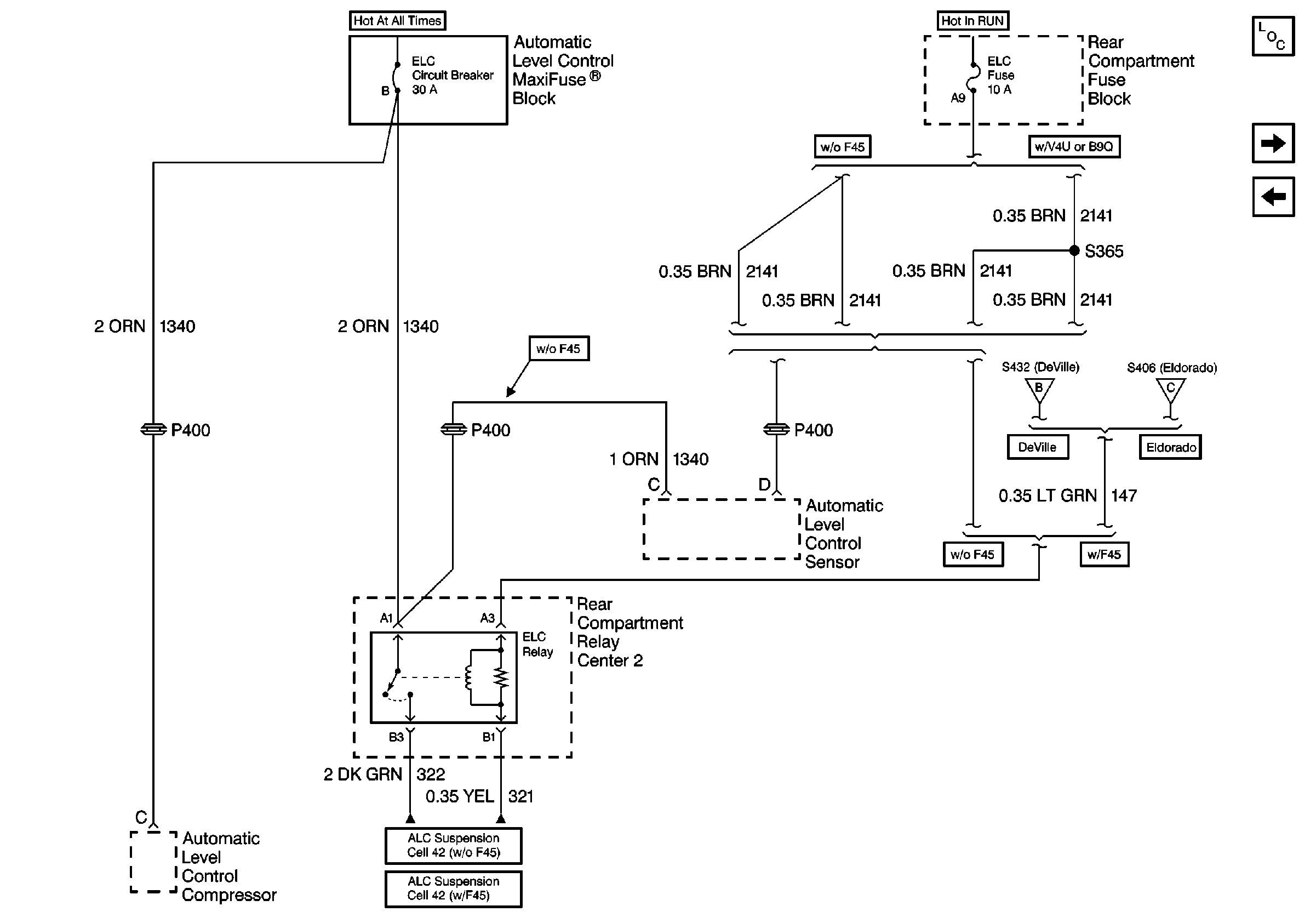

Figure 28:	Cell 10: ELC Circuit Breaker and ELC Fuse Power and Grounding Components Cell 10: IGN 0 - BODY Fuse (Eldorado) Cell 10: WIPERS, ACC, and CLUSTER Fuses Cell 10: IGN 0 - BODY Fuse (Eldorado) Cell 10: IGN 0 - BODY Fuse (DeVille) Automatic Level Control Schematics Automatic Level Control Schematics

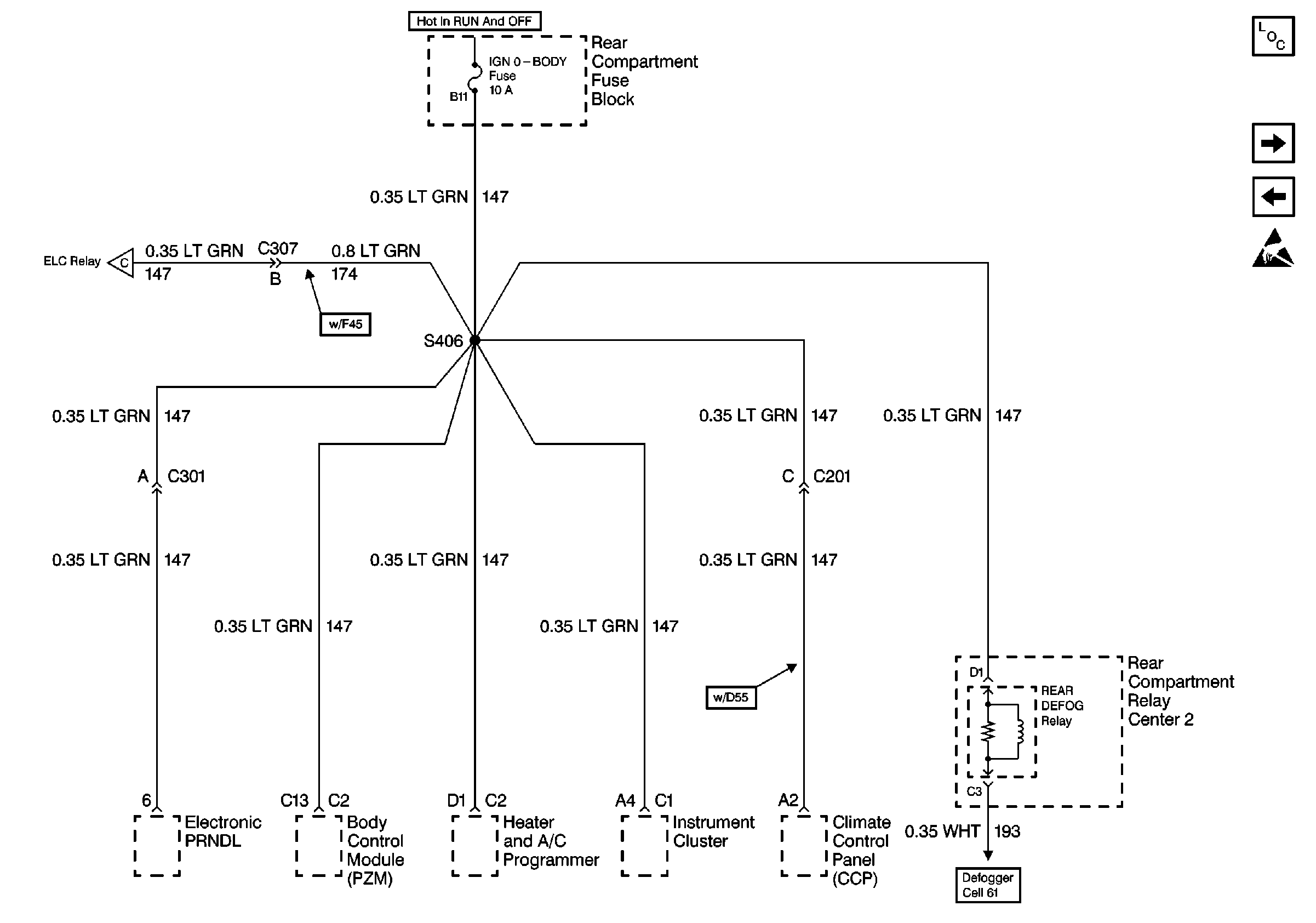

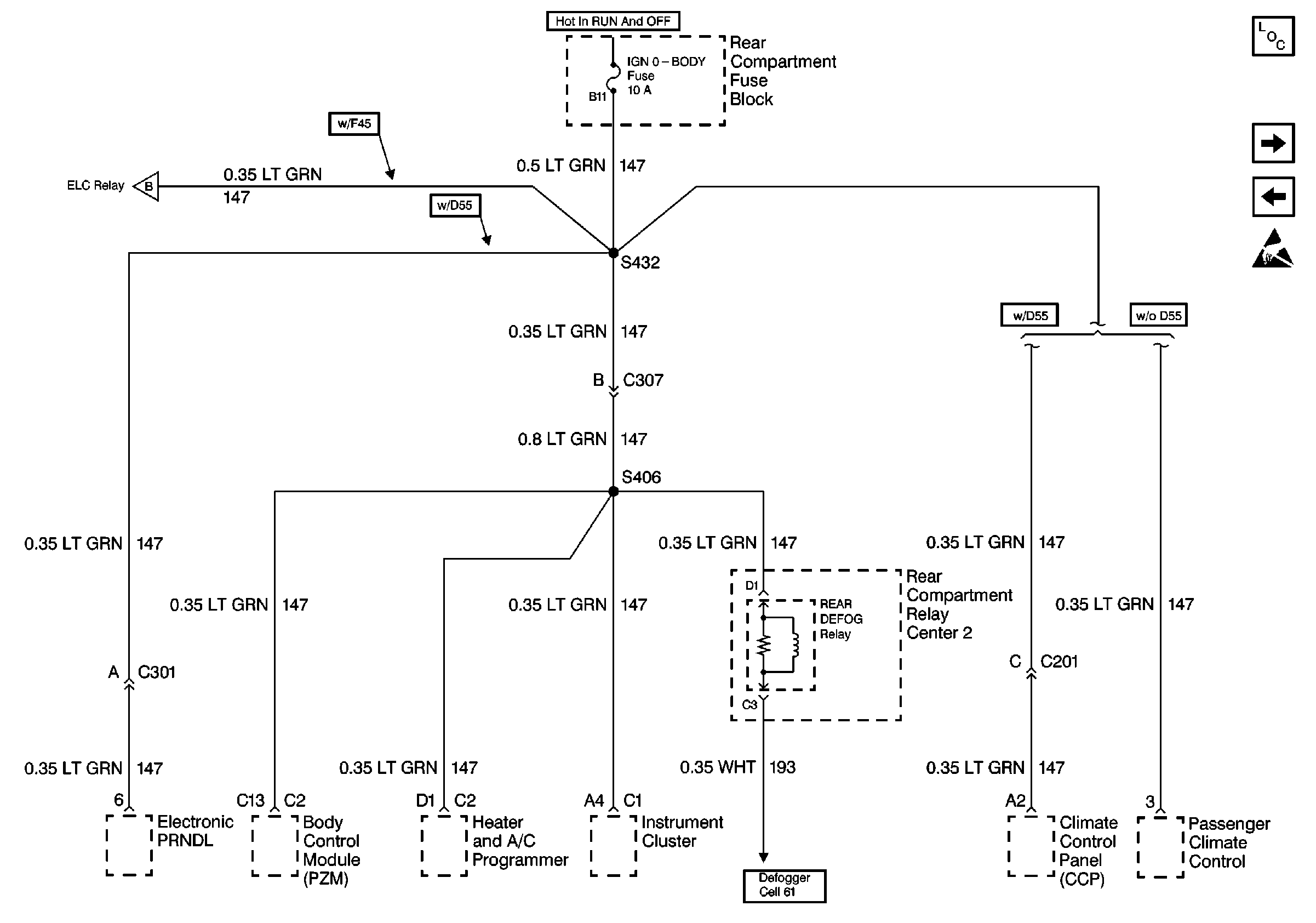

Figure 29:	Cell 10: IGN 0 - BODY Fuse (Eldorado) Power and Grounding Components Cell 10: IGN 0 - BODY Fuse (DeVille) Cell 10: ELC Circuit Breaker and ELC Fuse Handling ESD Sensitive Parts Notice Cell 10: ELC Circuit Breaker and ELC Fuse Defogger Schematics
Figure 30:	Cell 10: IGN 0 - BODY Fuse (DeVille) Power and Grounding Components Cell 10: PULLDOWN, HTD SEAT R, and HTD SEAT L Fuses Cell 10: IGN 0 - BODY Fuse (Eldorado) Handling ESD Sensitive Parts Notice Cell 10: ELC Circuit Breaker and ELC Fuse Defogger Schematics

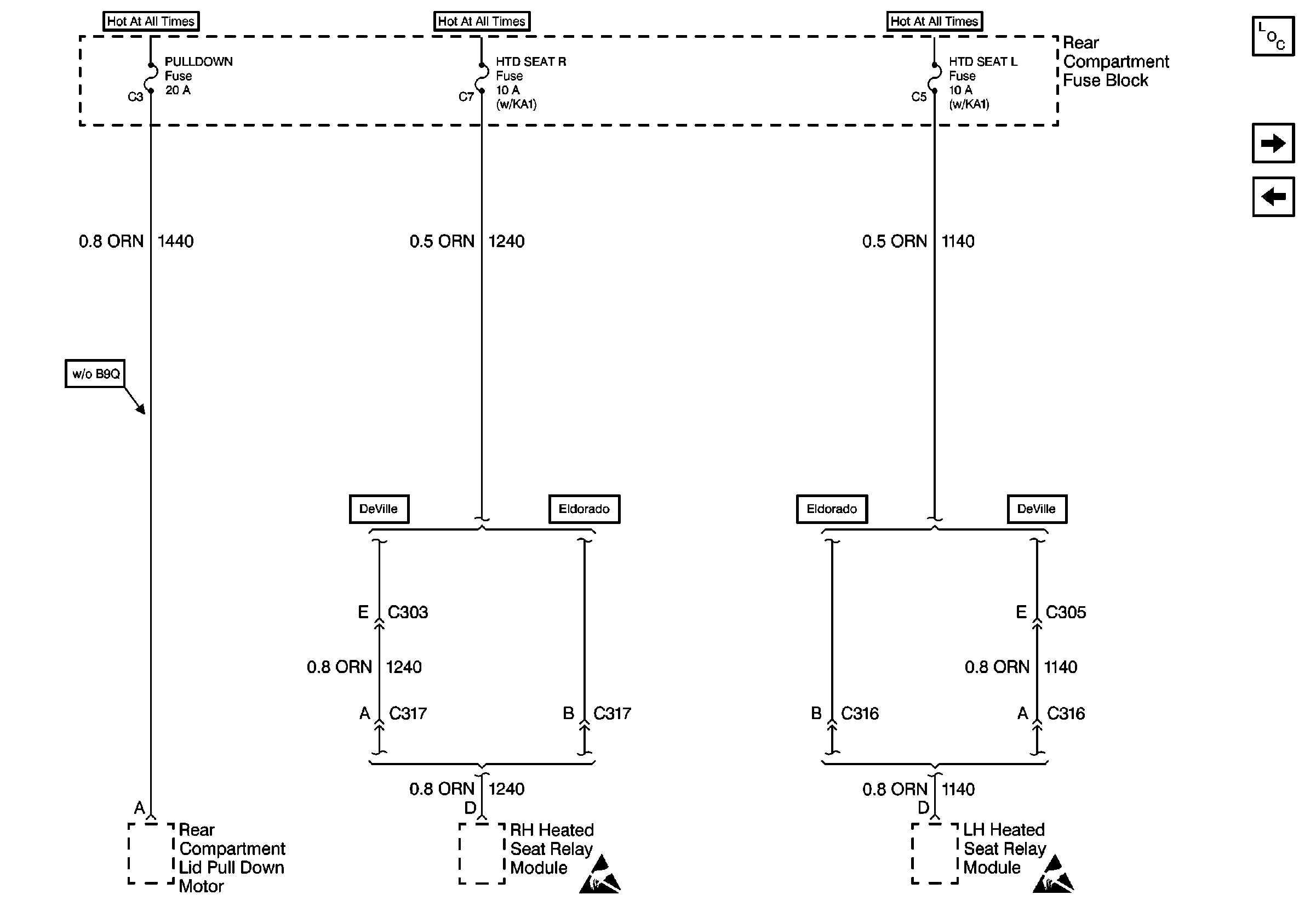

Figure 31:	Cell 10: PULLDOWN, HTD SEAT R, and HTD SEAT L Fuses Power and Grounding Components Cell 10: BATT Fuse Cell 10: IGN 0 - BODY Fuse (DeVille) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

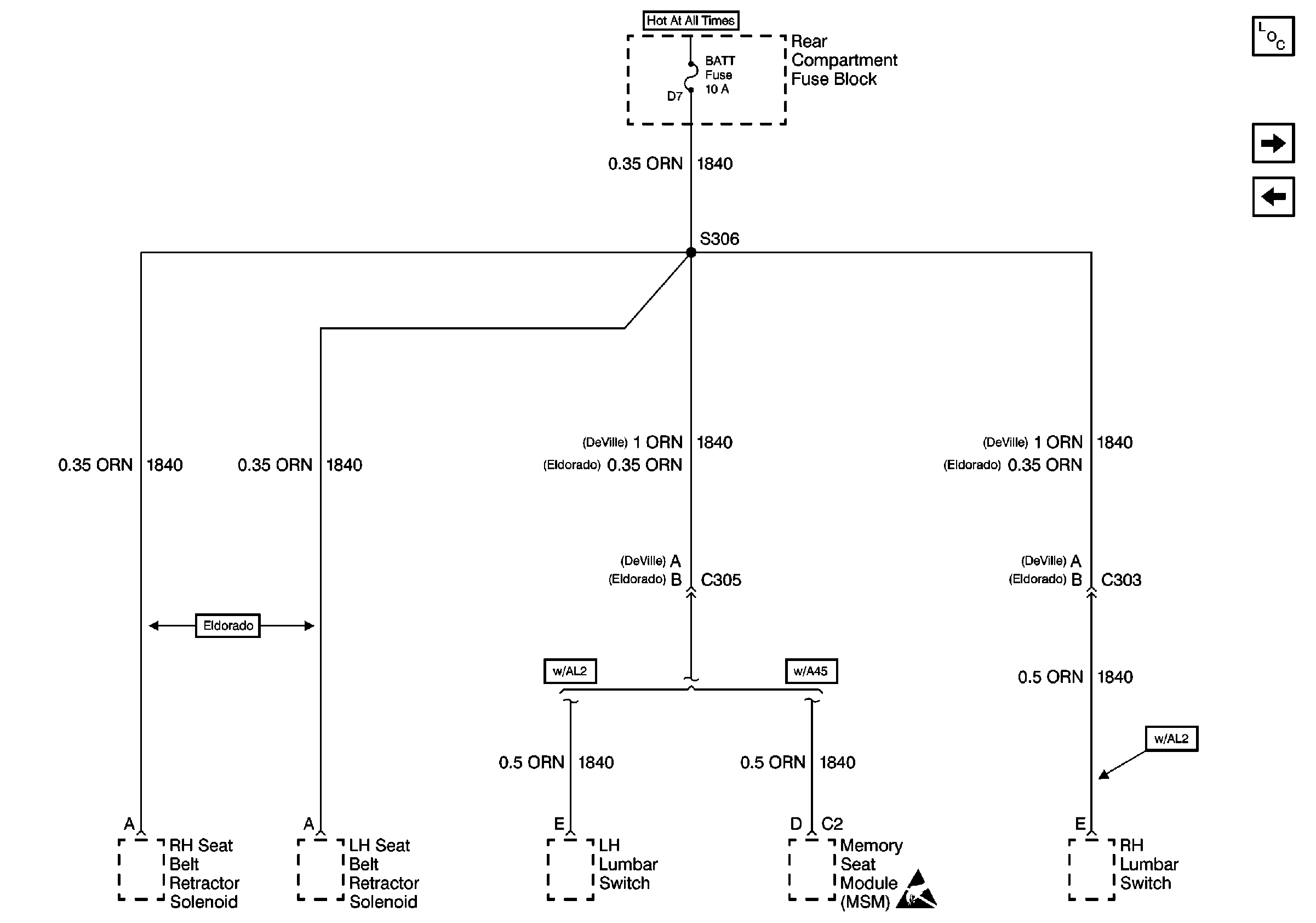

Figure 32:	Cell 10: BATT Fuse Power and Grounding Components Cell 10: SIR, RSS, and TURN Fuses Cell 10: PULLDOWN, HTD SEAT R, and HTD SEAT L Fuses Handling ESD Sensitive Parts Notice

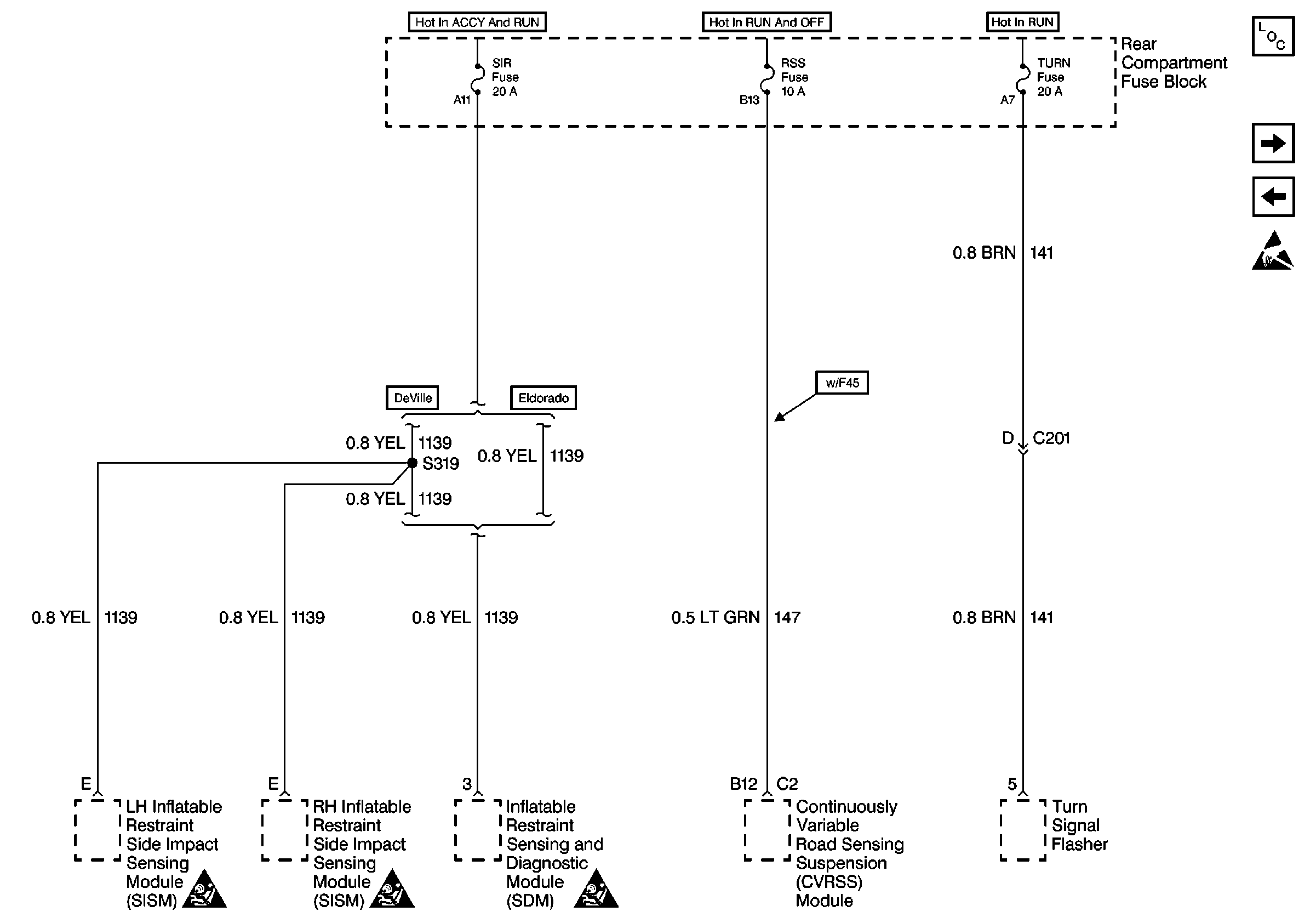

Figure 33:	Cell 10: SIR, RSS, and TURN Fuses Power and Grounding Components Cell 10: RLY IGN 1 Fuse Cell 10: BATT Fuse Handling ESD Sensitive Parts Notice SIR Caution SIR Caution SIR Caution

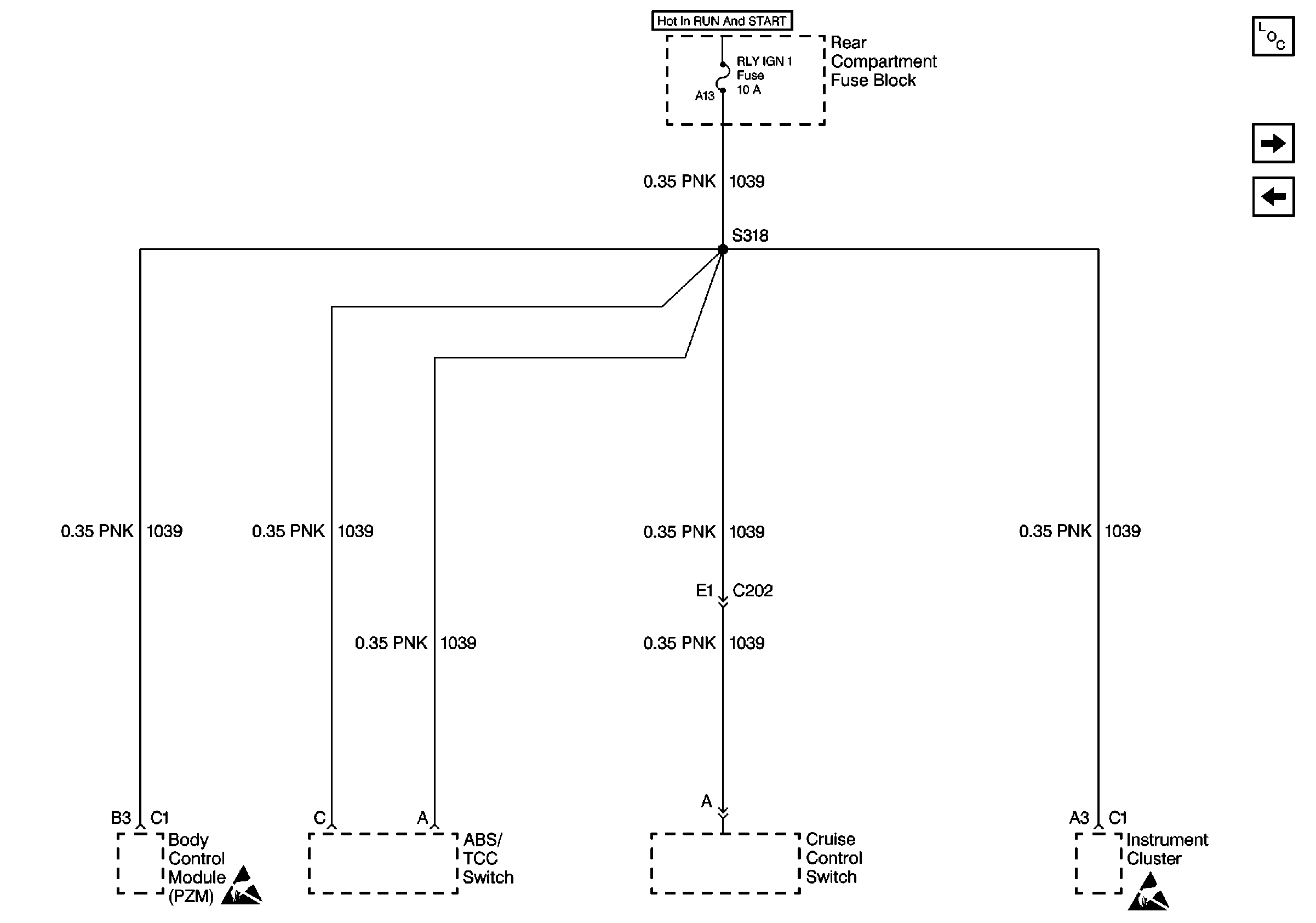

Figure 34:	Cell 10: RLY IGN 1 Fuse Power and Grounding Components Cell 10: CONSOLE Fuse Cell 10: SIR, RSS, and TURN Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

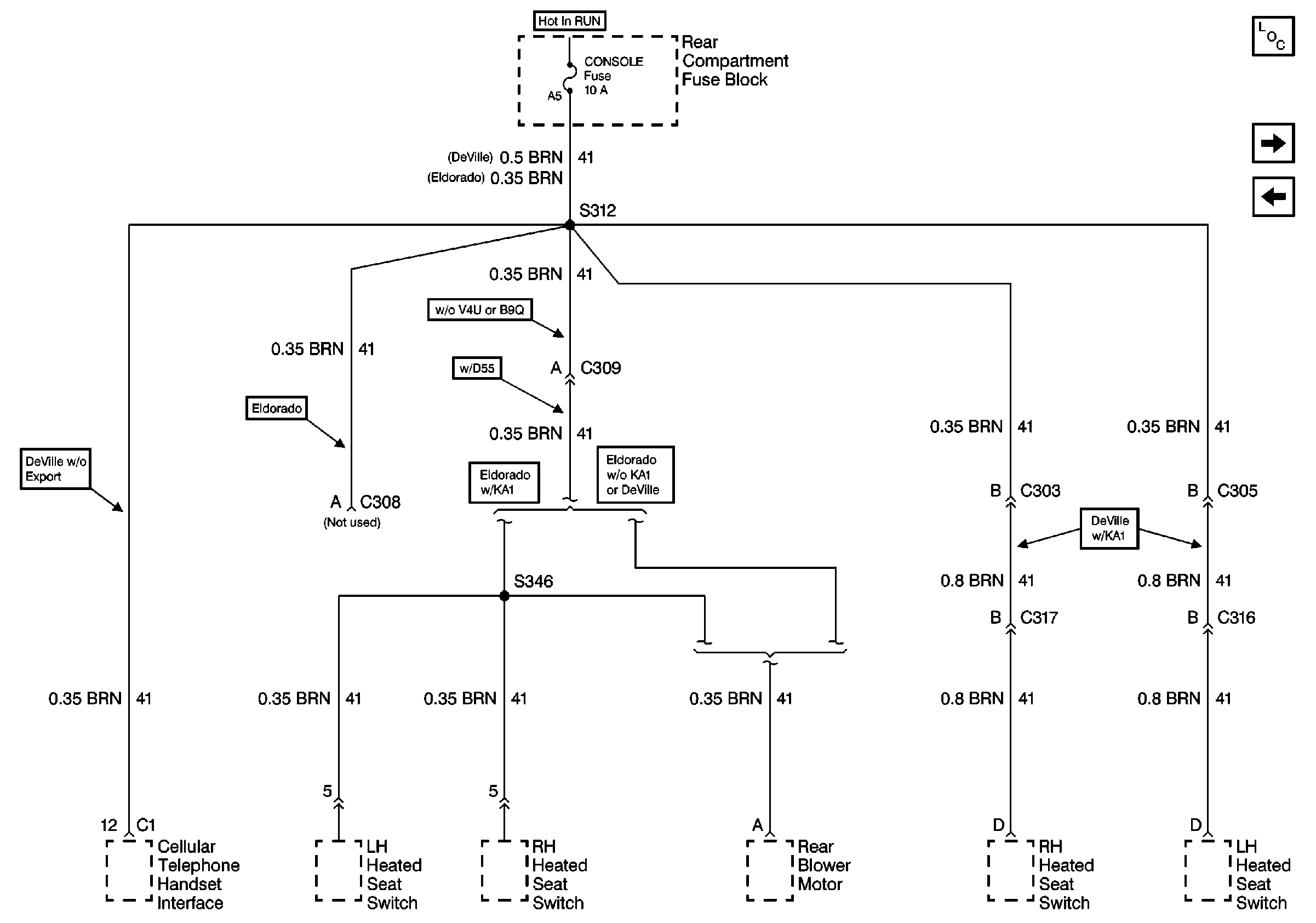

Figure 35:	Cell 10: CONSOLE Fuse Power and Grounding Components Cell 10: COMFORT Fuse Cell 10: RLY IGN 1 Fuse
Figure 36:	Cell 10: COMFORT Fuse Power and Grounding Components Cell 10: ANTENNA, HTD MIR, RSS, and HTD BACKLT Fuses Cell 10: CONSOLE Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

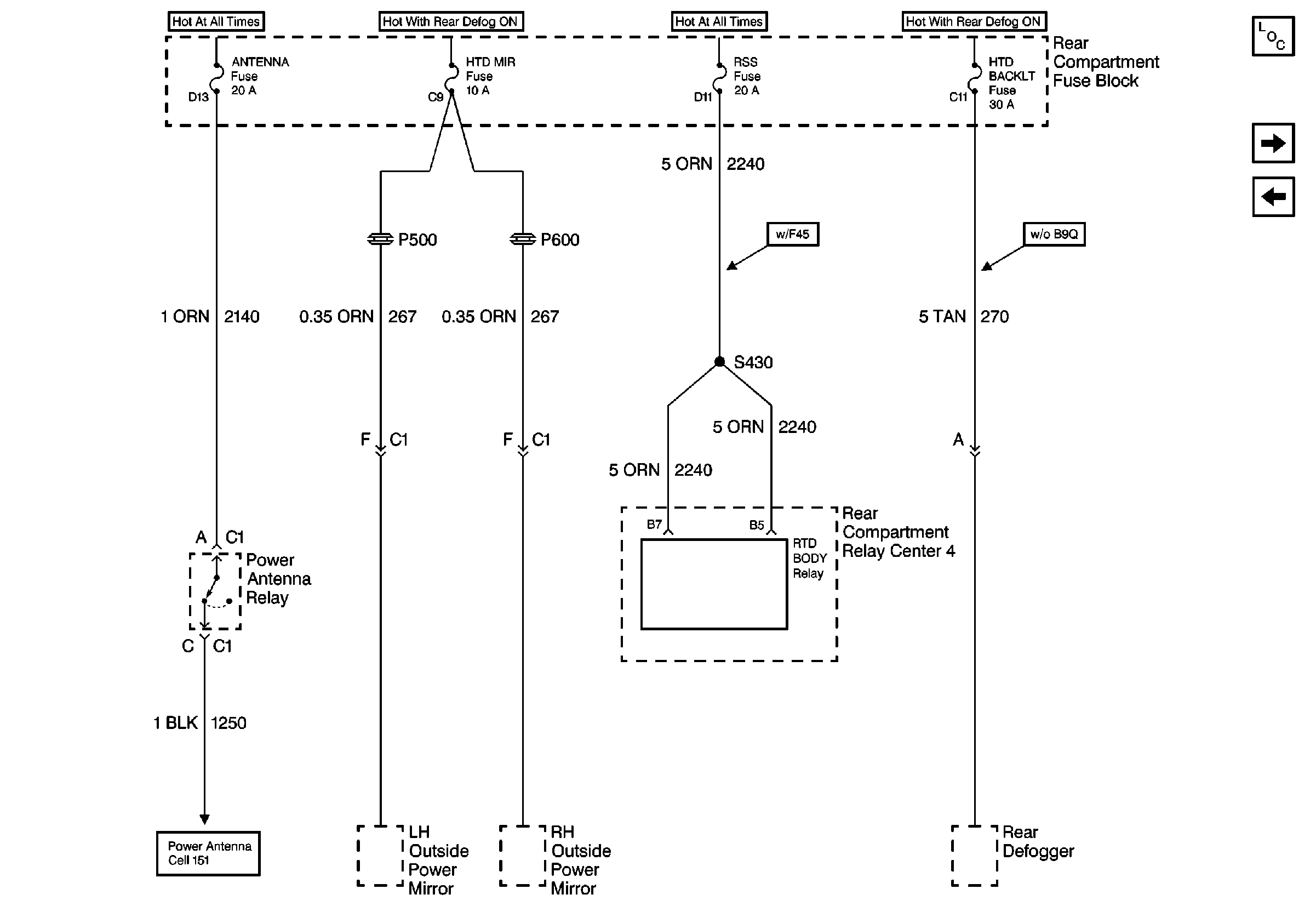

Figure 37:	Cell 10: ANTENNA, HTD MIR, RSS, and HTD BACKLT Fuses Power and Grounding Components Cell 10: RSS, PZM, and AMP Fuses Cell 10: COMFORT Fuse Power Antenna Schematics

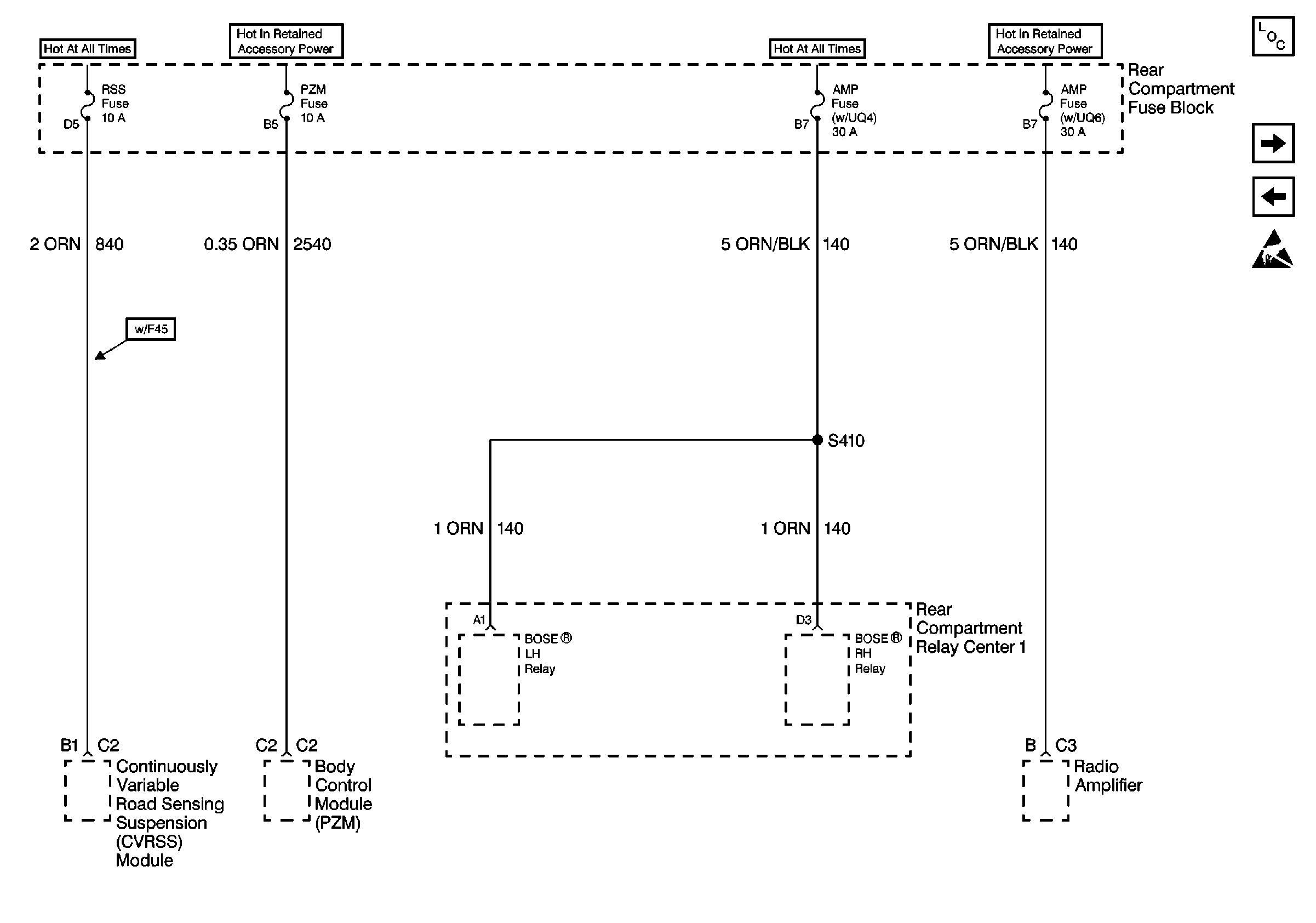

Figure 38:	Cell 10: RSS, PZM, and AMP Fuses Power and Grounding Components Cell 10: RT PARK Fuse (DeVille) Cell 10: ANTENNA, HTD MIR, RSS, and HTD BACKLT Fuses Handling ESD Sensitive Parts Notice

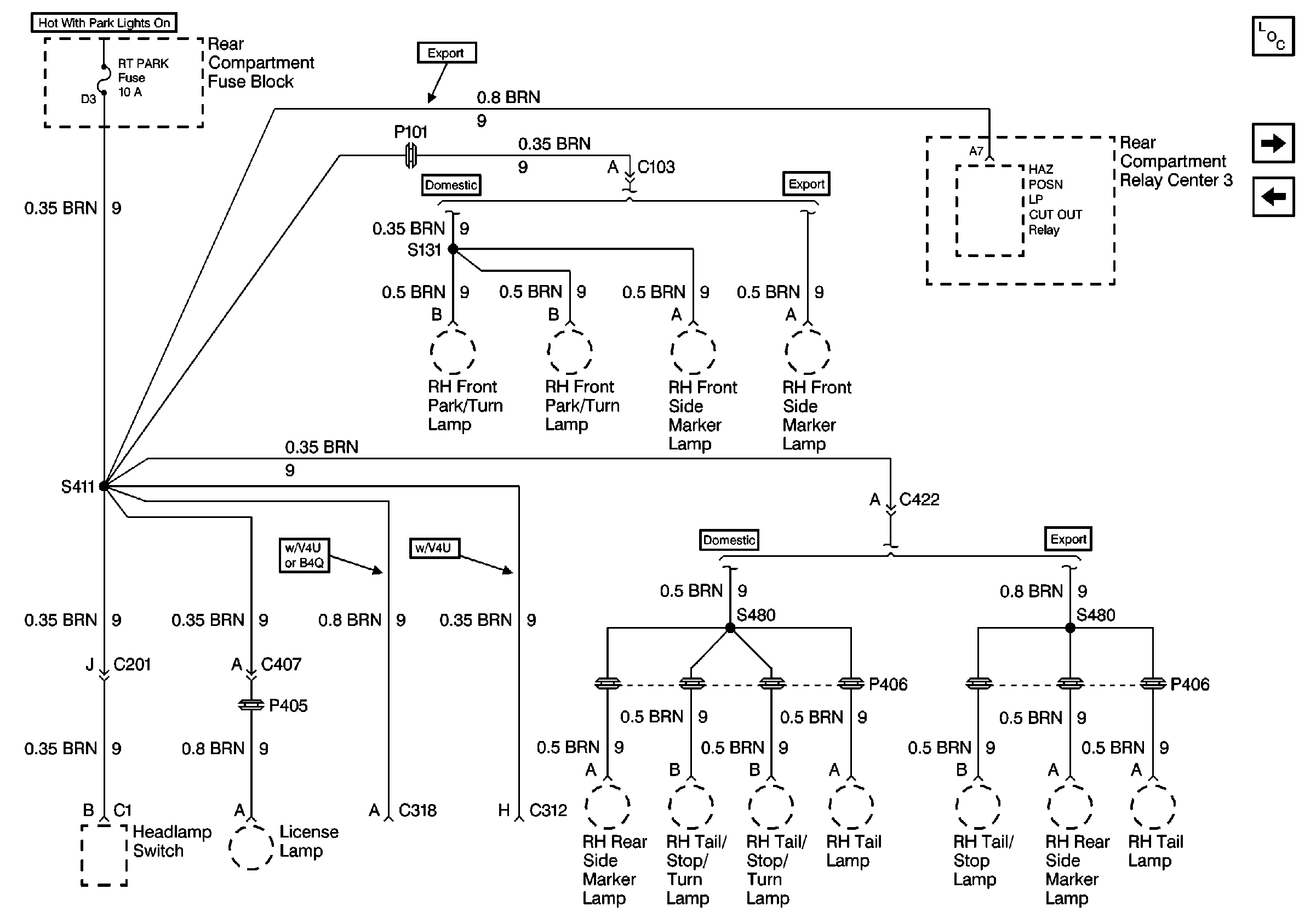

Figure 39:	Cell 10: RT PARK Fuse (DeVille) Power and Grounding Components Cell 10: RT PARK Fuse (Eldorado) Cell 10: RSS, PZM, and AMP Fuses

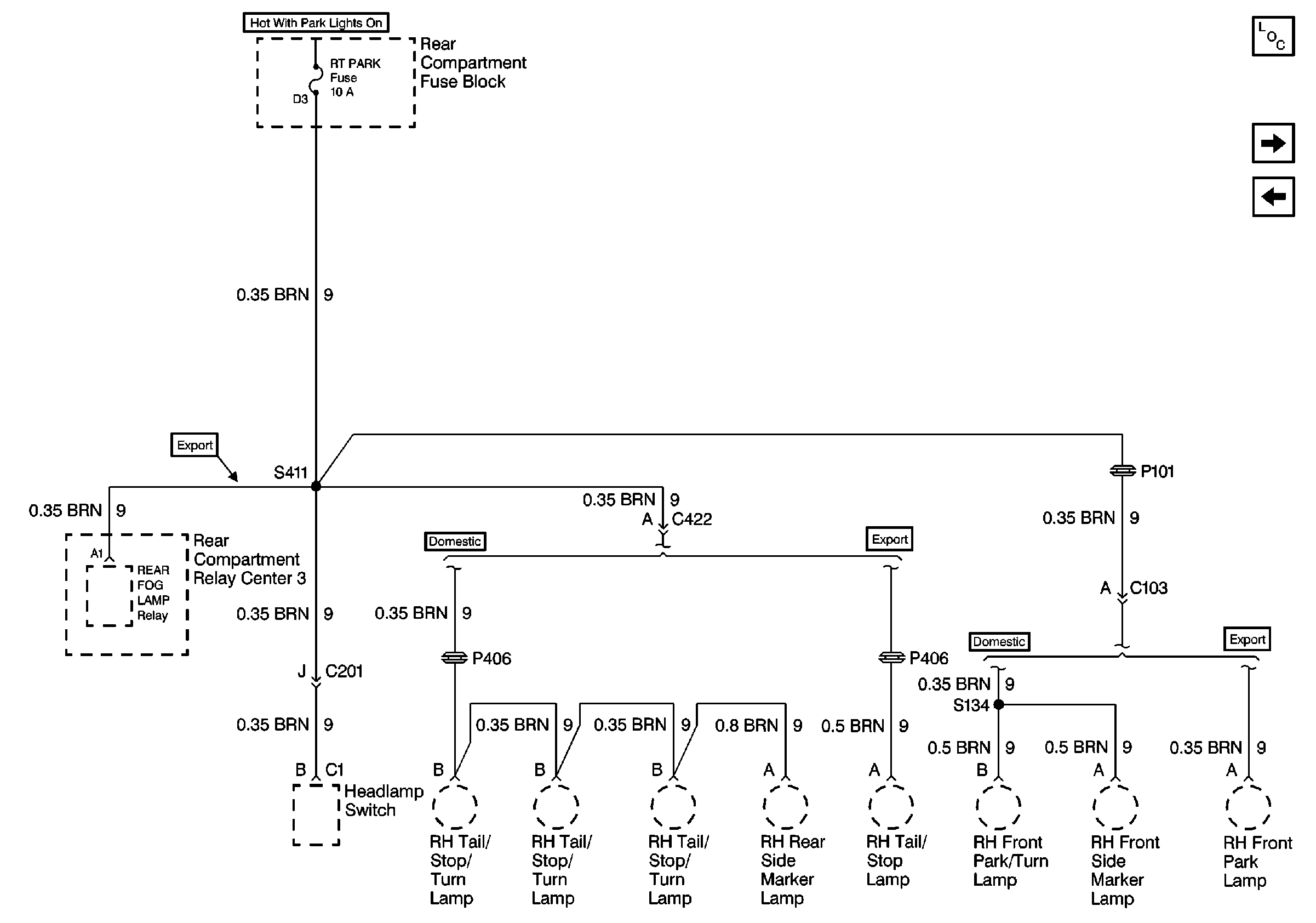

Figure 40:	Cell 10: RT PARK Fuse (Eldorado) Power and Grounding Components Cell 10: LT PARK Fuse (DeVille) Cell 10: RT PARK Fuse (DeVille)

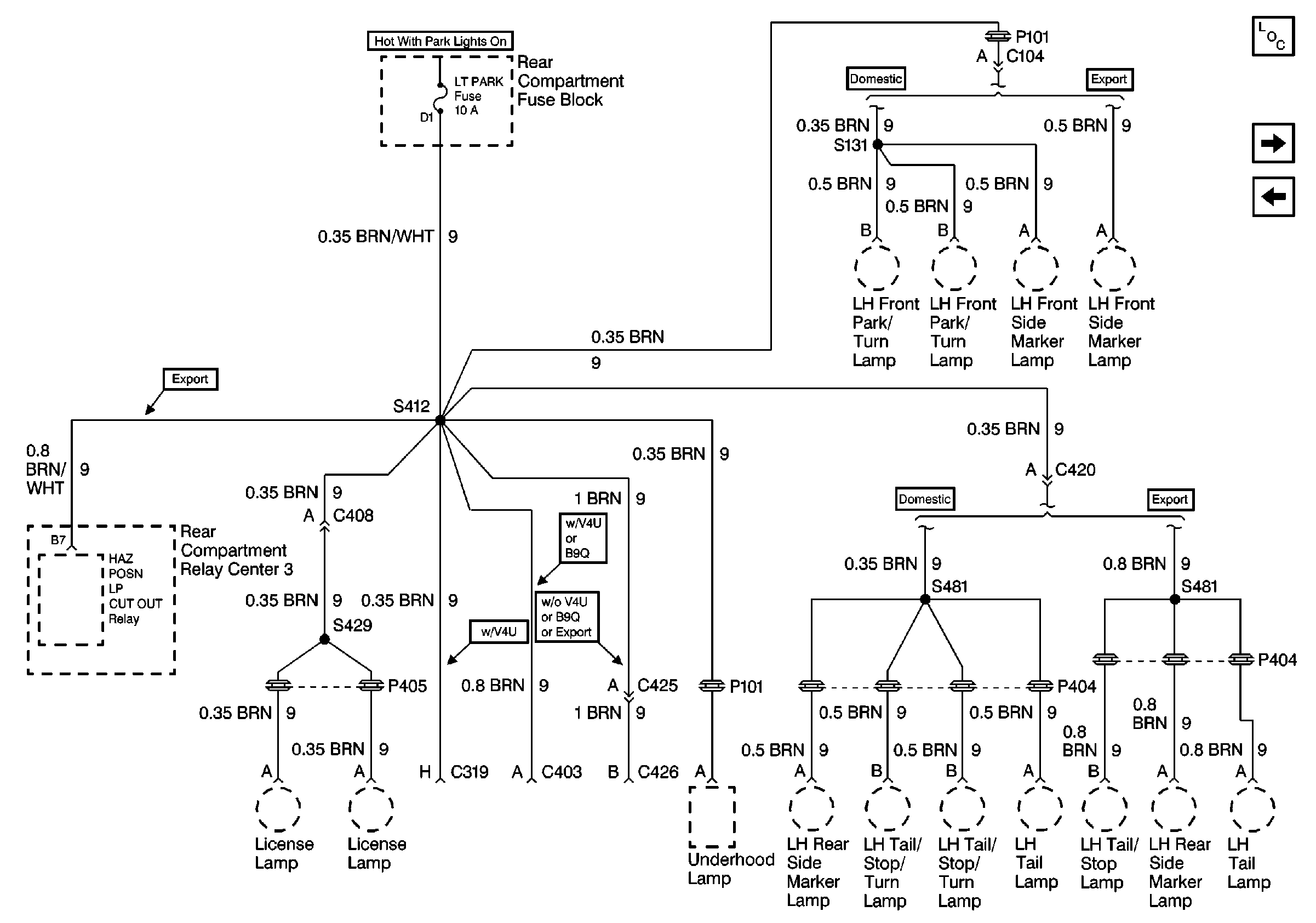

Figure 41:	Cell 10: LT PARK Fuse (DeVille) Power and Grounding Components Cell 10: LT PARK Fuse (Eldorado) Cell 10: RT PARK Fuse (Eldorado)
Figure 42:	Cell 10: LT PARK Fuse (Eldorado) Power and Grounding Components Cell 10: RADIO/PHONE Fuse Cell 10: LT PARK Fuse (DeVille)

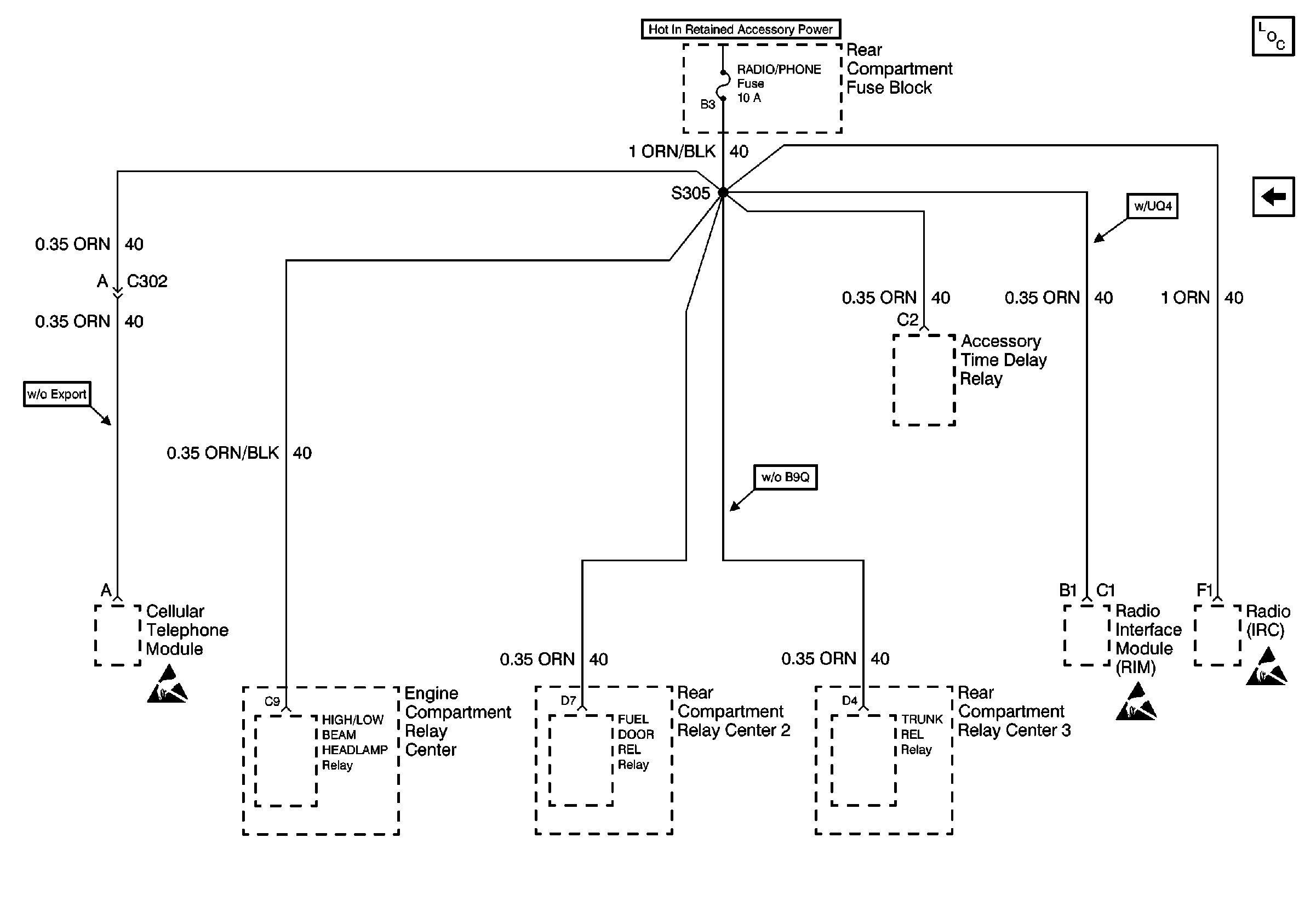

Figure 43:	Cell 10: RADIO/PHONE Fuse Power and Grounding Components Cell 10: LT PARK Fuse (Eldorado) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
