Exterior Lights Schematics DeVille USA

Cell 110: Headlamp Switch and Park Lamp Control

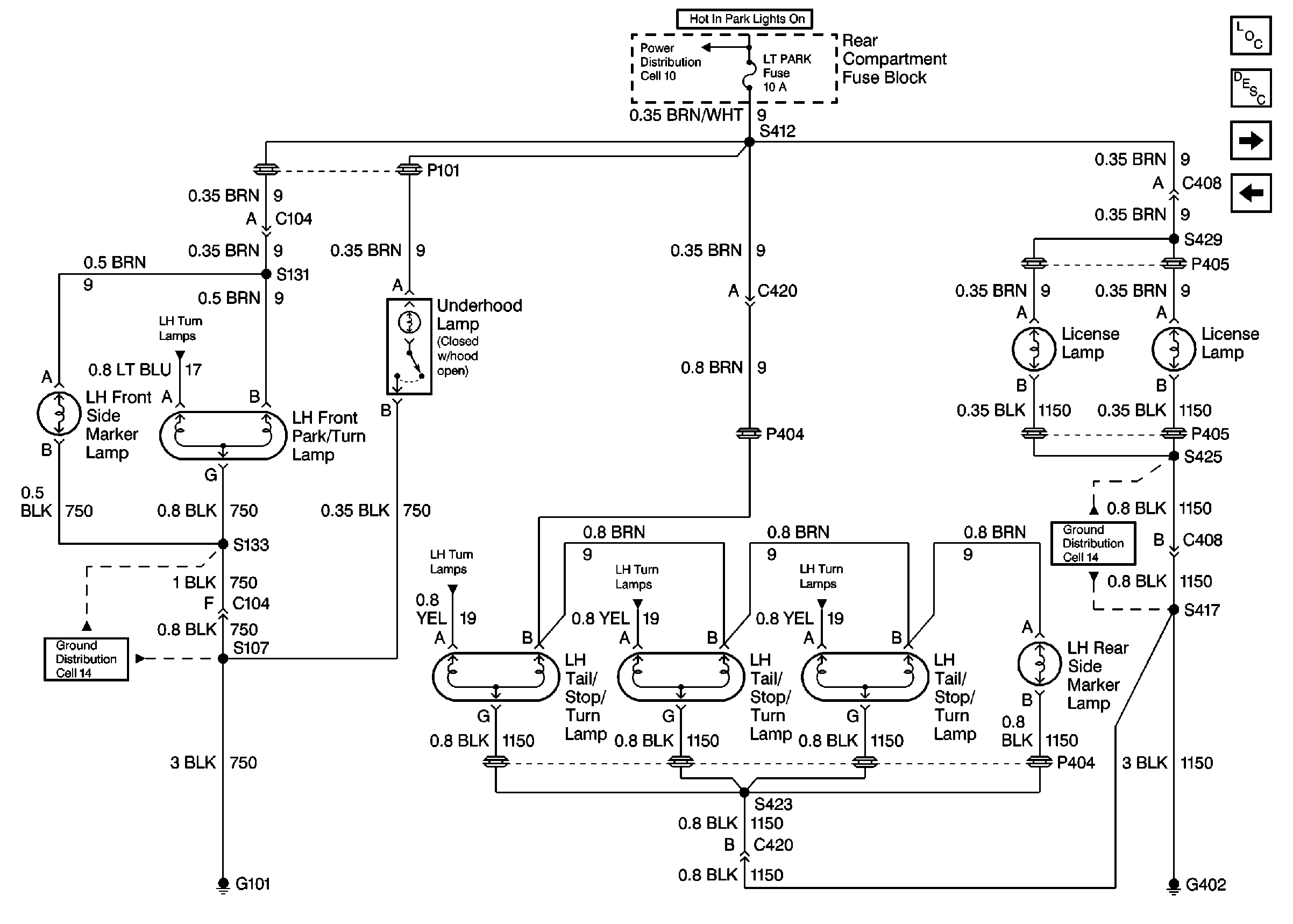

Cell 110: LH Park Lamps

Cell 110: RH Park Lamps

Cell 110: Turn Signal Flasher, Hazard Flasher, and Stoplamp/BTSI Switch

Cell 110: Front Turn Lamps

Cell 110: Rear Turn Lamps

Cell 110: Cornering Lamps

Exterior Lights Schematics DeVille Export

Figure 1:	Cell 110: Headlamp Switch and Park Lamp Control

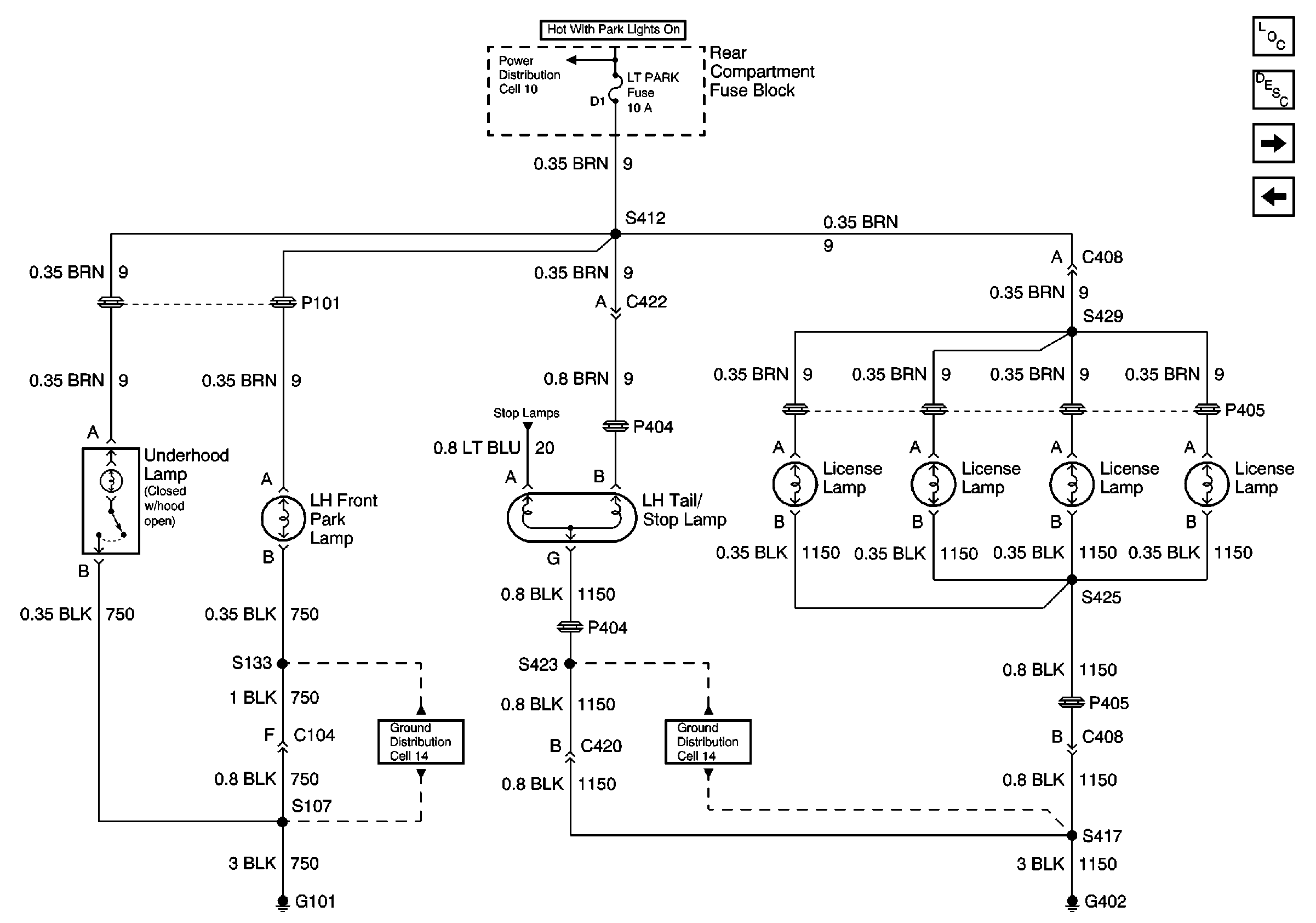

Figure 2:	Cell 110: LH Park Lamps

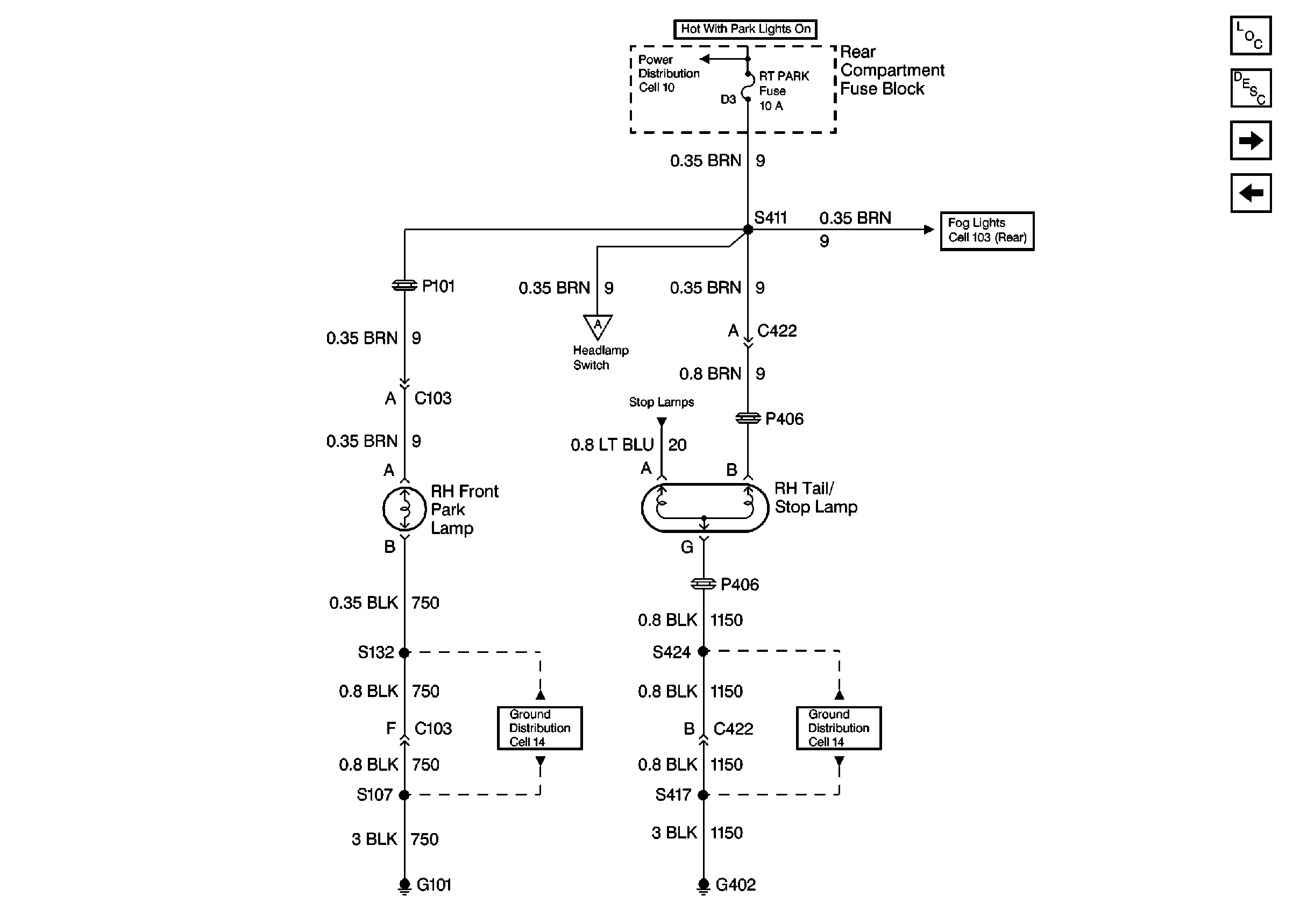

Figure 3:	Cell 110: RH Park Lamps
Figure 4:	Cell 110: Turn Signal Flasher, Hazard Flasher, and Stoplamp/BTSI Switch

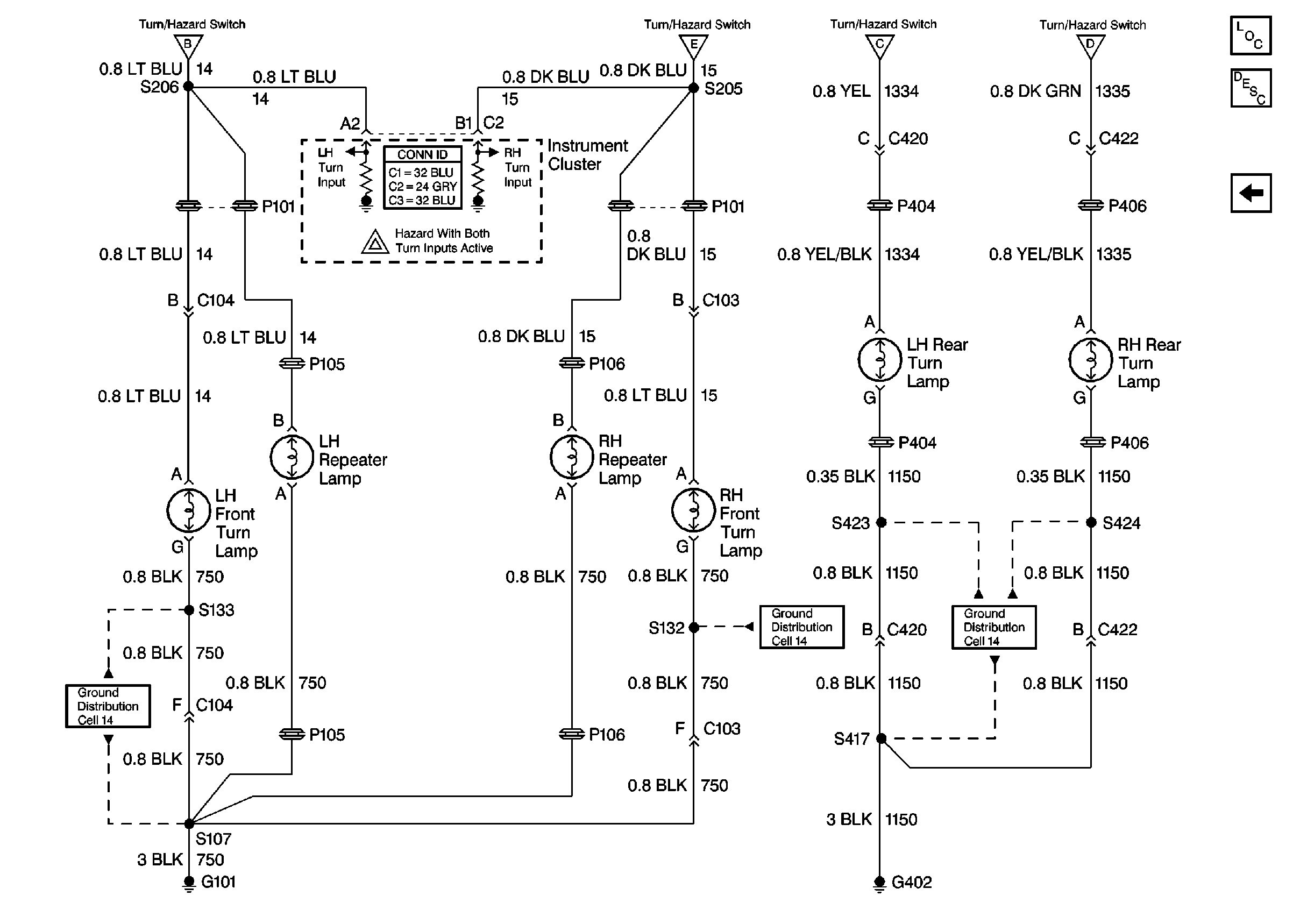

Figure 5:	Cell 110: Turn Lamps

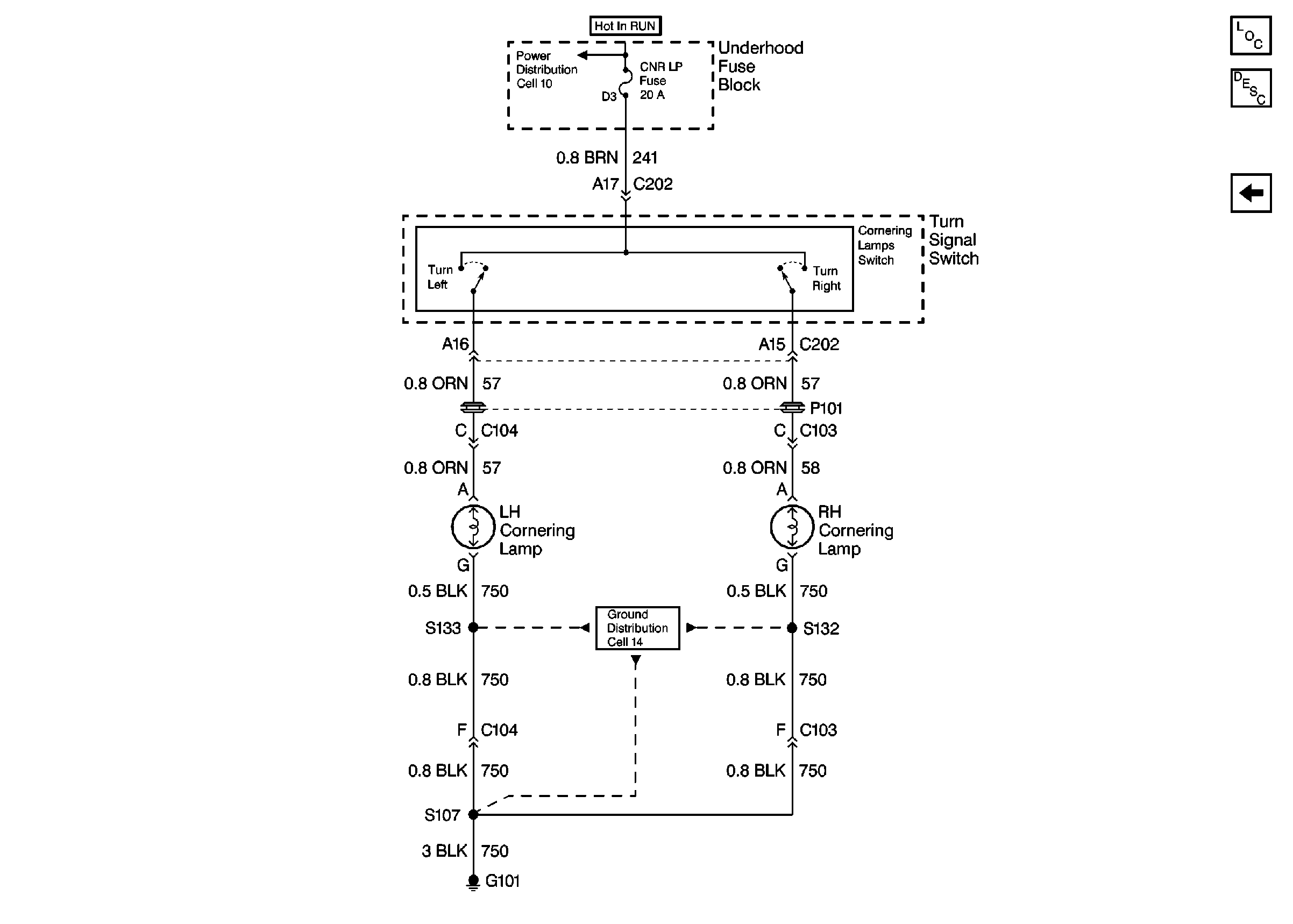

Figure 6:	Cell 110: Cornering Lamps

Exterior Lights Schematics Eldorado USA

Figure 1:	Cell 110: Headlamp Switch and Park Lamp Control
Figure 2:	Cell 110: LH Park Lamps
Figure 3:	Cell 110: RH Park Lamps
Figure 4:	Cell 110: Turn Signal Flasher, Hazard Flasher, and Stoplamp/BTSI Switch
Figure 5:	Cell 110: Turn Lamps
Figure 6:	Cell 110: Cornering Lamps

Exterior Lights Schematics Eldorado Export

Figure 1:	Cell 110: Headlamp Switch and Park Lamp Control
Figure 2:	Cell 110: LH Park Lamps
Figure 3:	Cell 110: RH Park Lamps
Figure 4:	Cell 110: Turn Signal Flasher, Hazard Flasher, and Stoplamp/BTSI Switch
Figure 5:	Cell 110: Turn Lamps
