Exterior Lights Schematics. Cadillac Eldorado 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Eldorado 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

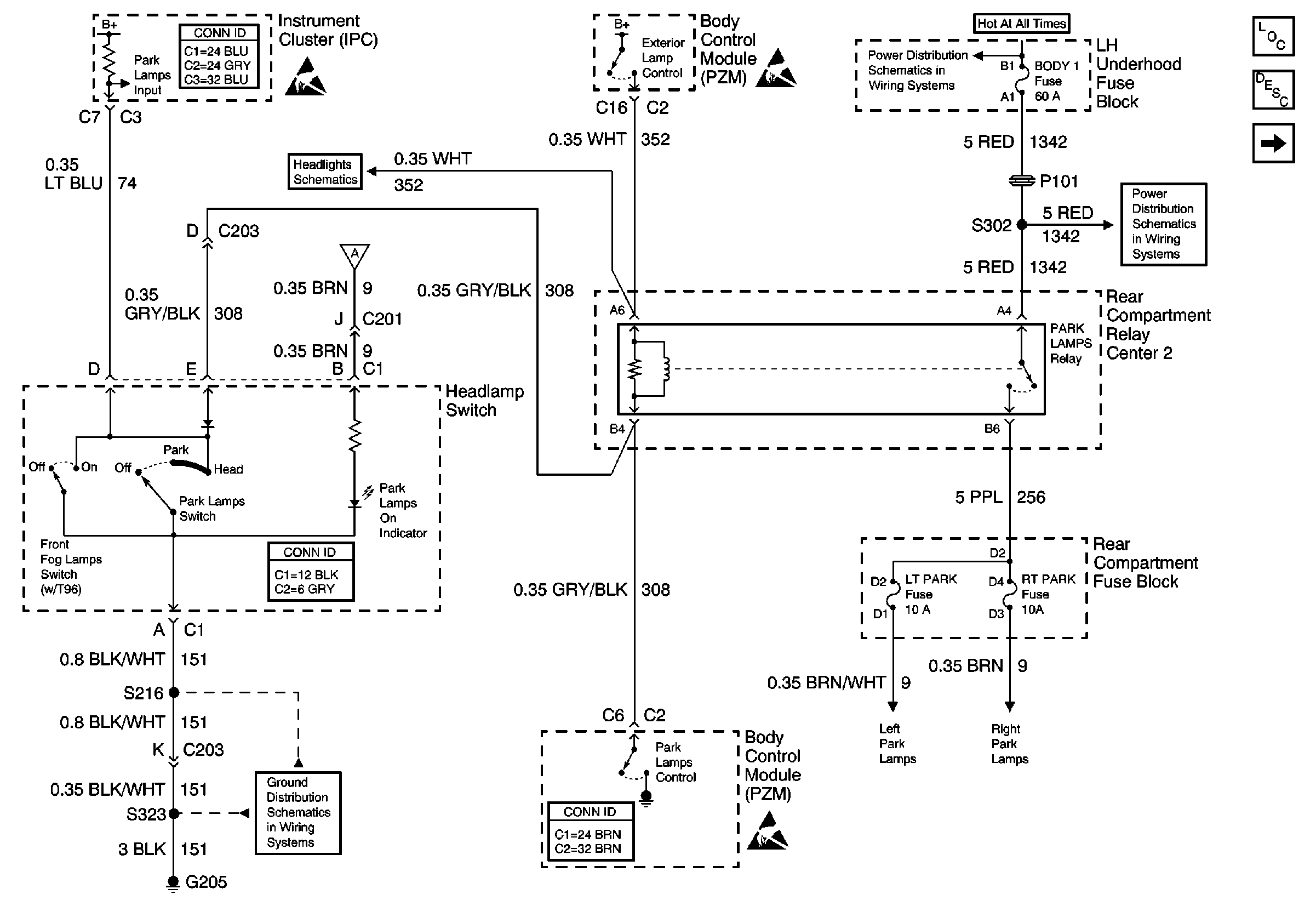

Figure 1:	Headlamp Switch and Park Lamp Control Lighting Systems Components Exterior Lights Circuit Description LH Park Lamps Headlamp Switch and Headlamp Control RH Park Lamps G205 Battery Feeds BODY 1 Fuse LH Park Lamps RH Park Lamps Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	LH Park Lamps Lighting Systems Components Exterior Lights Circuit Description RH Park Lamps Headlamp Switch and Park Lamp Control BODY 1 Fuse Turn Lamps G101 Turn Lamps Turn Lamps Turn Lamps G402

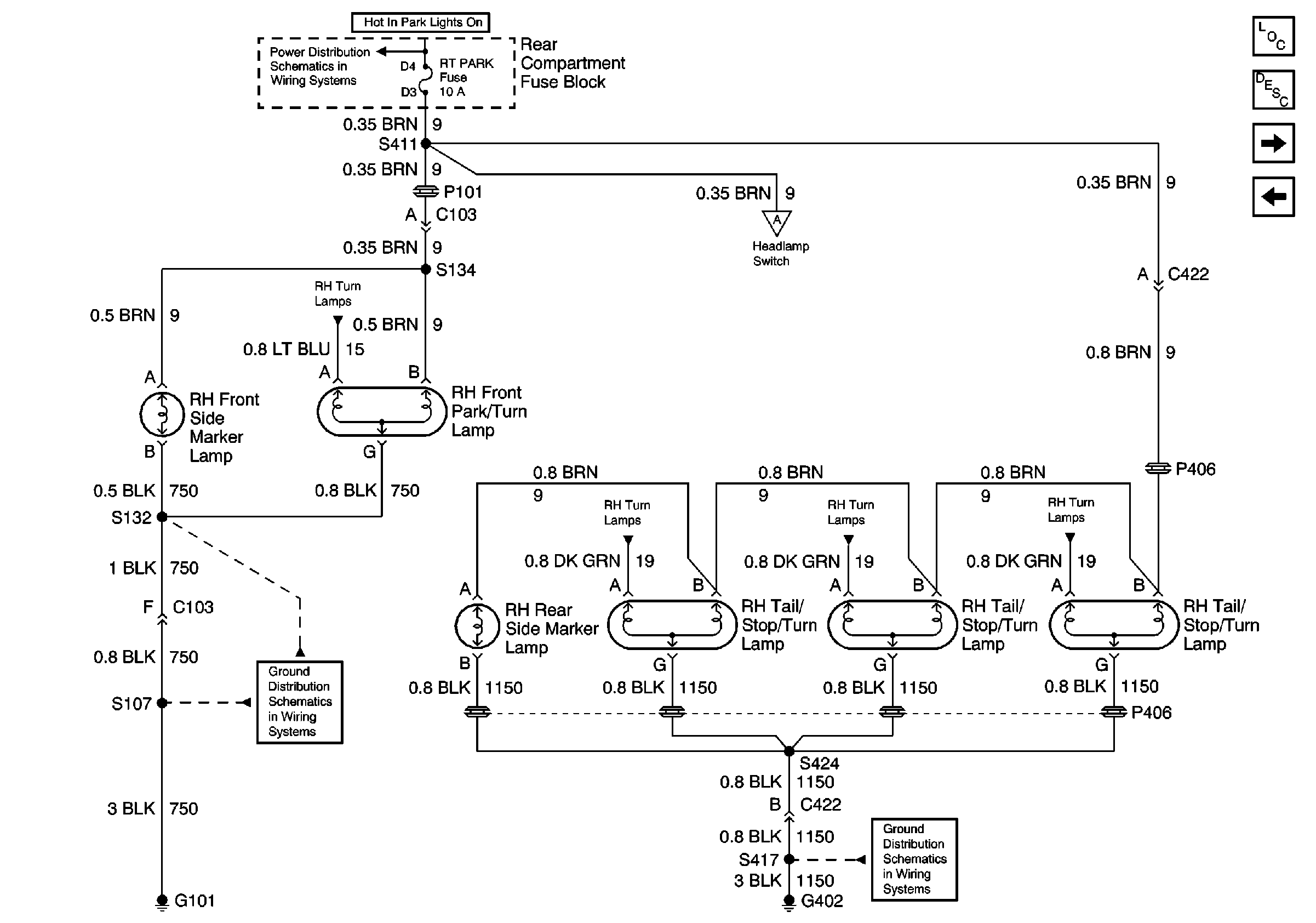

Figure 3:	RH Park Lamps Lighting Systems Components Exterior Lights Circuit Description Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock CONTrOL Switch LH Park Lamps BODY 1 Fuse Turn Lamps G101 Turn Lamps Turn Lamps Headlamp Switch and Park Lamp Control Turn Lamps G402

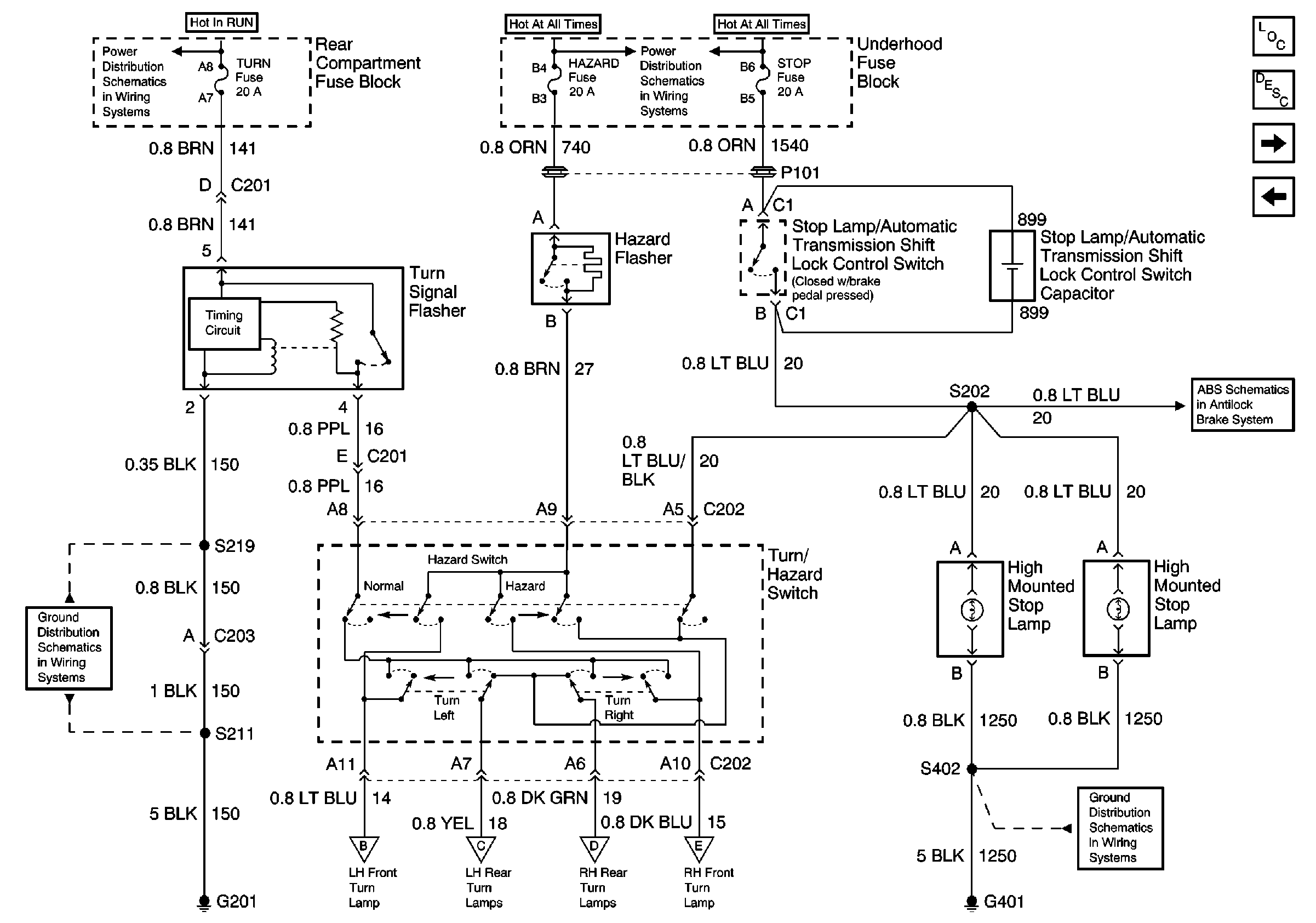

Figure 4:	Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock Control Switch Lighting Systems Components Exterior Lights Circuit Description Turn Lamps RH Park Lamps BATT 3 Fuse and Ignition Switch (1 of 2) G201 Turn Lamps Turn Lamps Turn Lamps Turn Lamps LAMPS and IGN 1 Fuses G401 (1 of 2) PWR, GND, Stoplamp Switch, Solenoid Valves, and Pump Motor

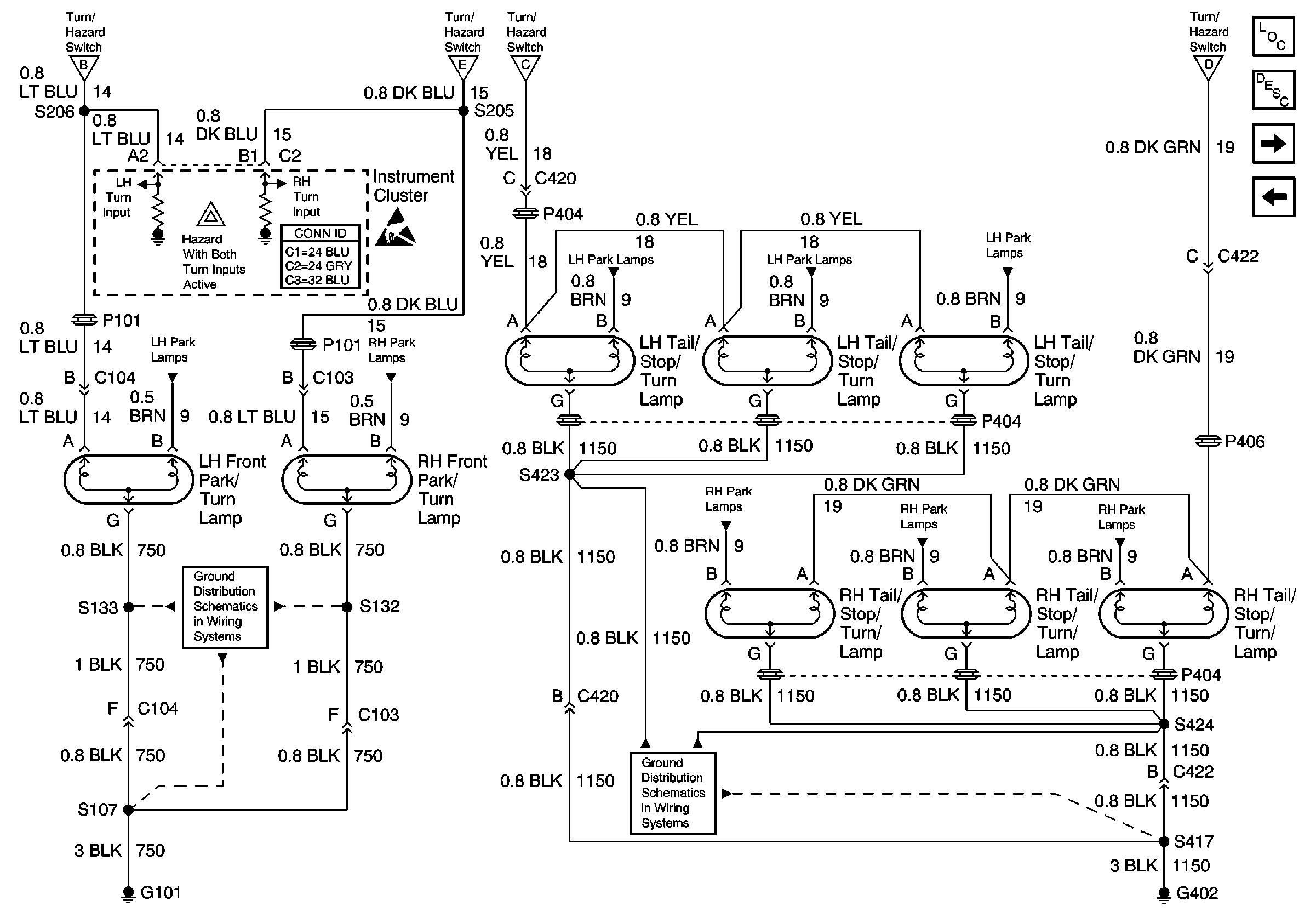

Figure 5:	Turn Lamps Lighting Systems Components Exterior Lights Circuit Description Cornering Lamps Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock CONTrOL Switch Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock CONTrOL Switch Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock CONTrOL Switch Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock CONTrOL Switch LH Park Lamps RH Park Lamps G101 LH Park Lamps LH Park Lamps LH Park Lamps Turn Signal Flasher, Hazard Flasher, and Stoplamp/AT Shift Lock CONTrOL Switch RH Park Lamps RH Park Lamps RH Park Lamps G402 Handling ESD Sensitive Parts Notice

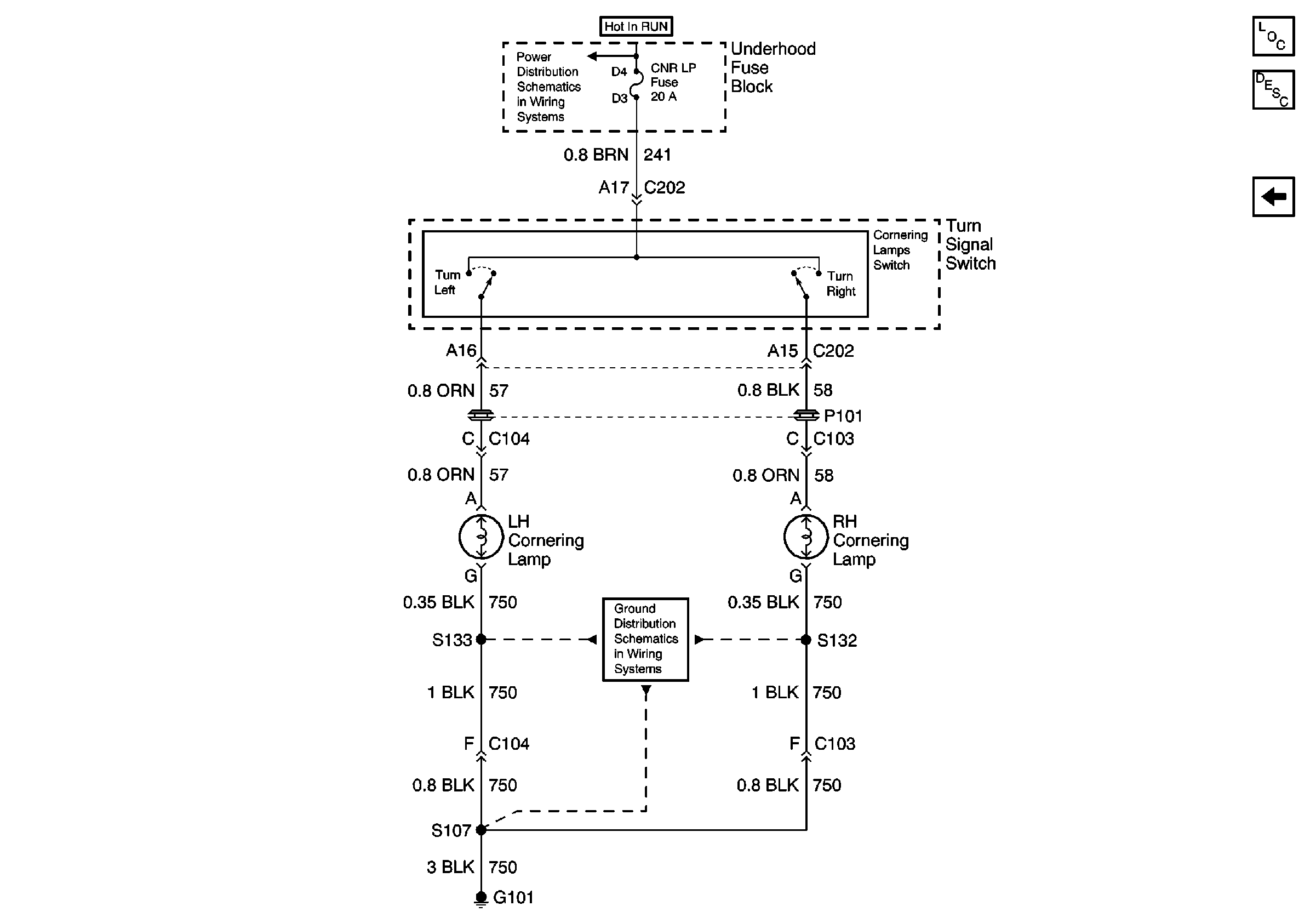

Figure 6:	Cornering Lamps Lighting Systems Components Exterior Lights Circuit Description Turn Lamps BATT 3 Fuse and Ignition Switch (1 of 2) G101
