Side Marker Lamp Bulb Replacement Front

1. Remove the lower air deflector in order to access the bulb. Refer to Front Air Deflector Replacement .

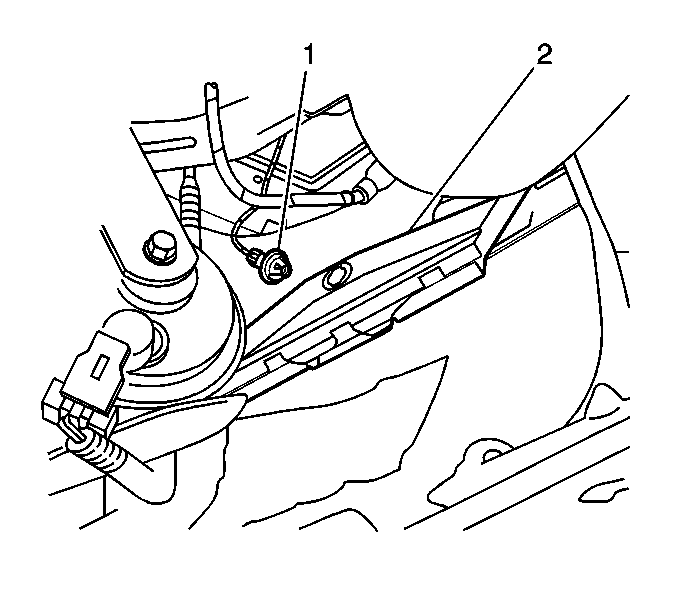

2. Rotate the lamp socket (1) 45 degrees counter-clockwise in order to remove.



3. Pull the bulb from the lamp socket (1).
4. Remove the inoperative bulb.

1. Install the bulb into the lamp socket (1).
2. Push the bulb inward in order to secure.

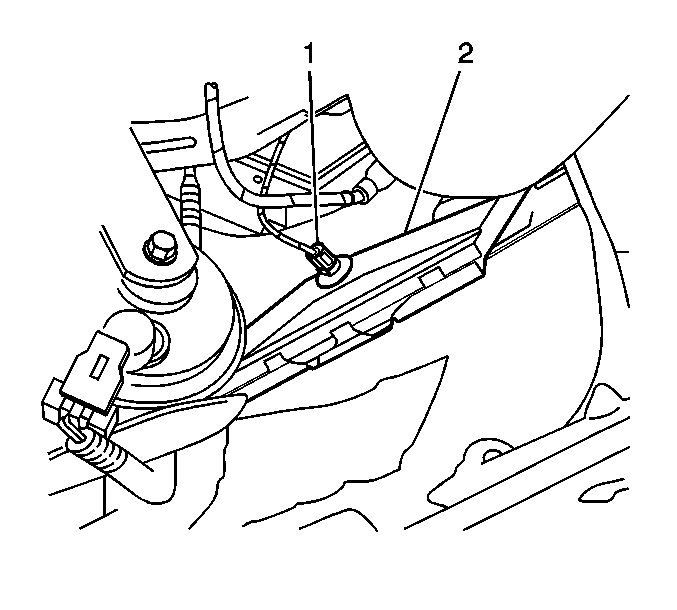

3. Install the socket to lamp assembly (2).
4. Rotate the lamp socket (1) 45 degrees clockwise in order to secure.
5. Install the lower air deflector. Refer to Front Air Deflector Replacement .
