Power Distribution Schematics. Cadillac Eldorado 2000

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Eldorado 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power Distribution Schematics

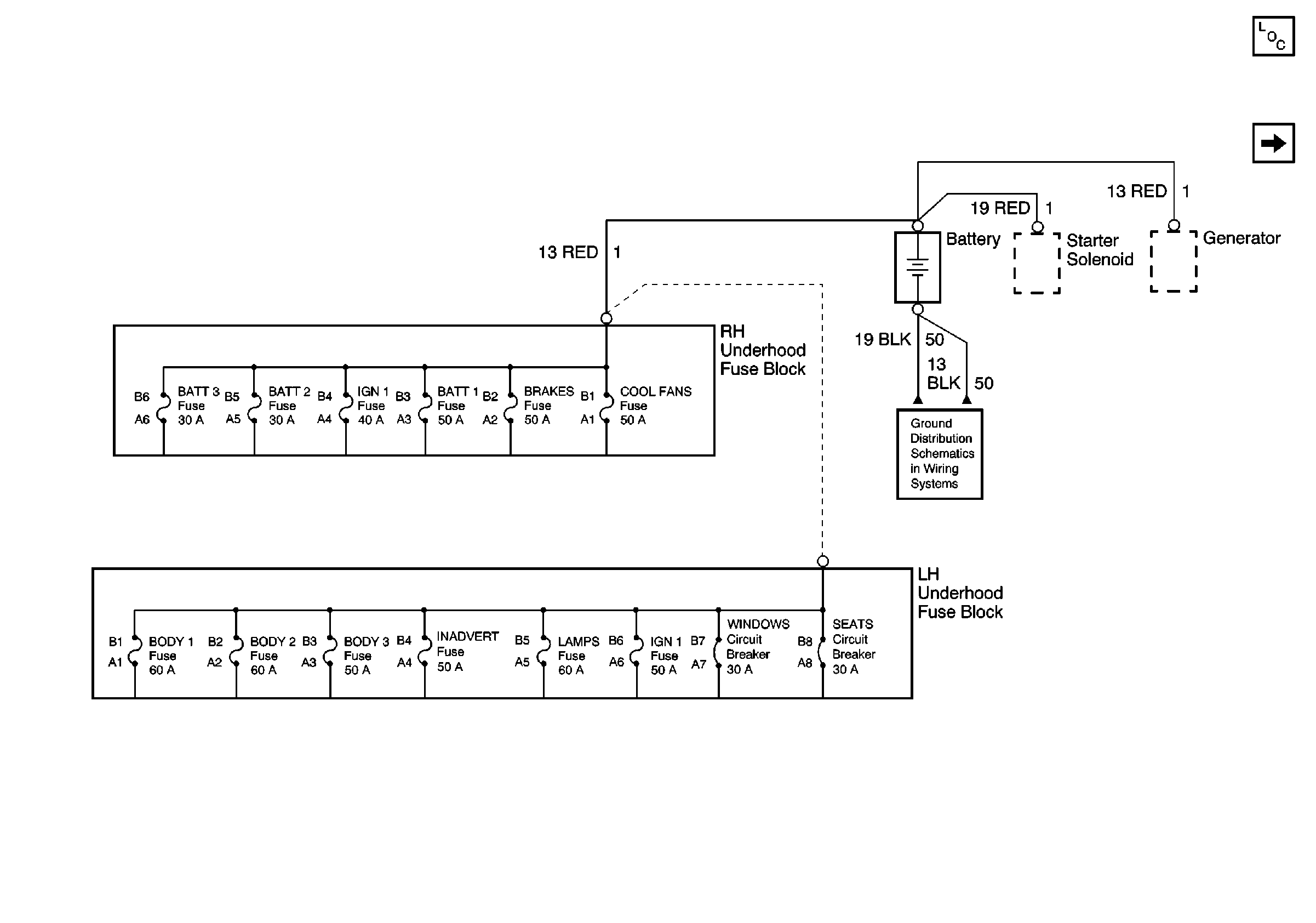

Figure 1:	Battery Feeds Power and Grounding Components BATT 3 Fuse and Ignition Switch (1 of 2) G100 and G105
Figure 2:	BATT 3 Fuse and Ignition Switch (1 of 2) Power and Grounding Components BATT 2 Fuse and Ignition Switch (2 of 2) Battery Feeds

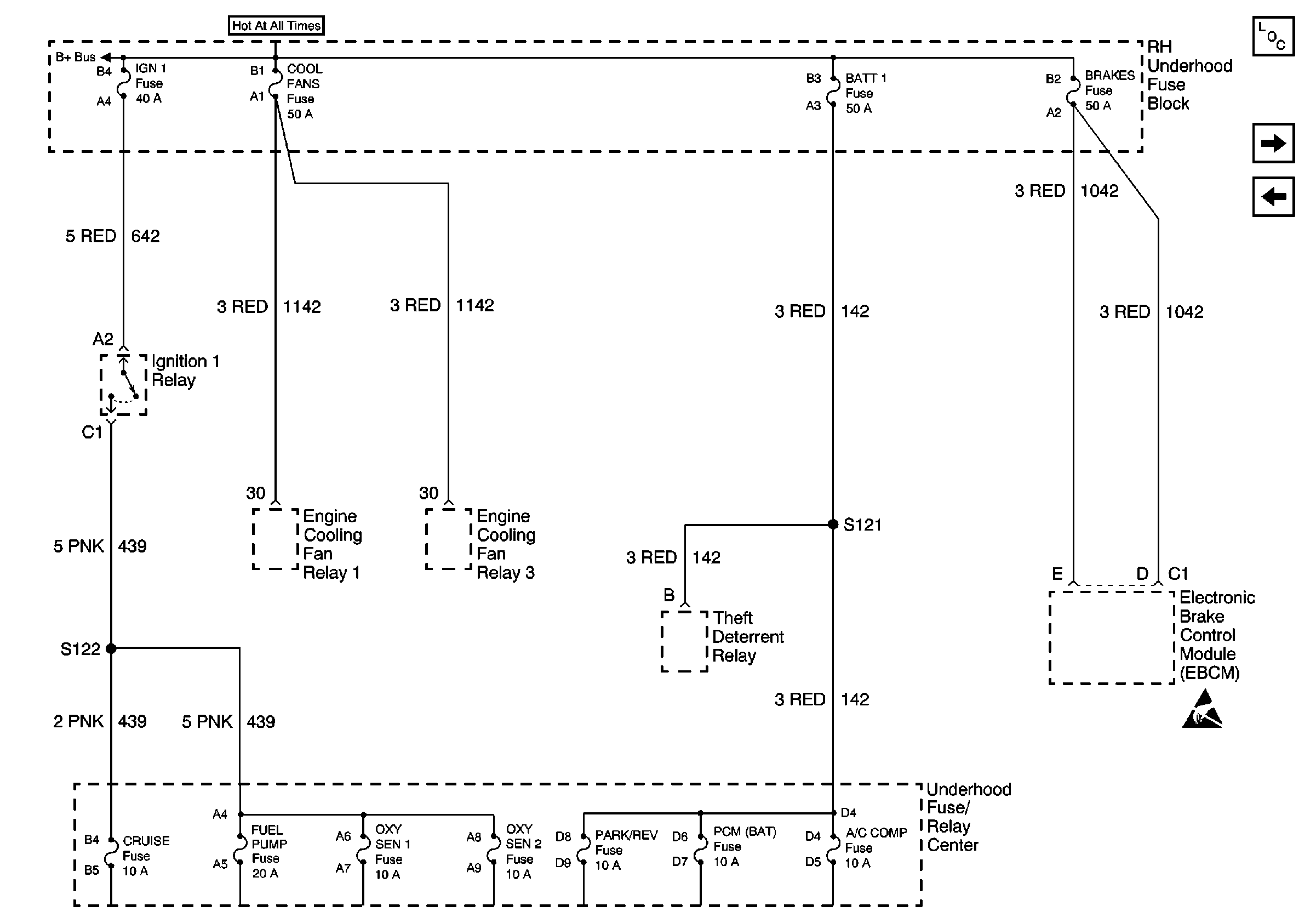

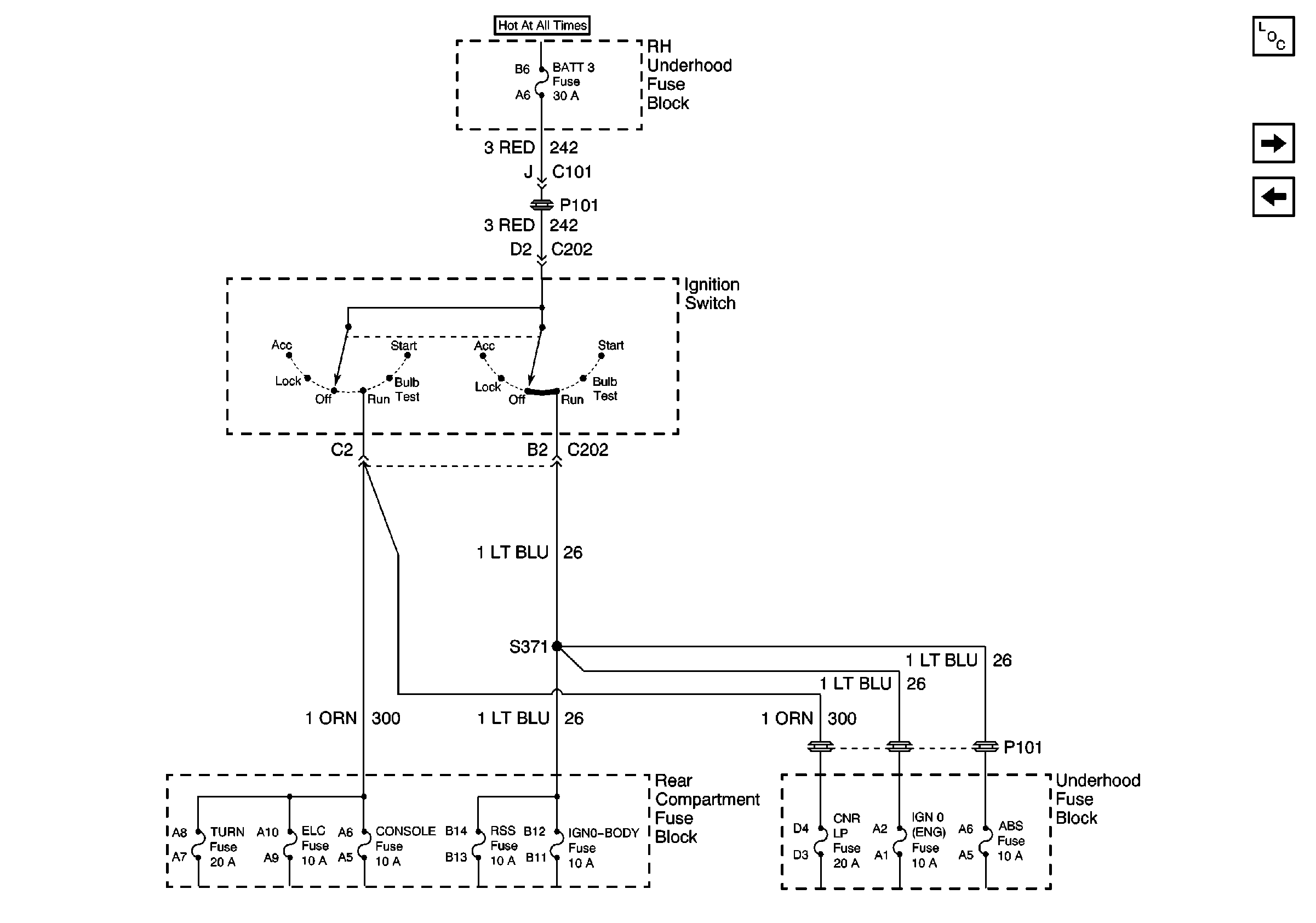

Figure 3:	BATT 2 Fuse and Ignition Switch (2 of 2) Power and Grounding Components IGN 1, COOL FANS, BATT 1, and BRAKES Fuses BATT 3 Fuse and Ignition Switch (1 of 2)
Figure 4:	IGN 1, COOL FANS, BATT 1, and BRAKES Fuses Power and Grounding Components BODY 1 Fuse BATT 2 Fuse and Ignition Switch (2 of 2) Handling ESD Sensitive Parts Notice Battery Feeds
Figure 5:	BODY 1 Fuse Power and Grounding Components BODY 2 Fuse IGN 1, COOL FANS, BATT 1, and BRAKES Fuses Battery Feeds
Figure 6:	BODY 2 Fuse Power and Grounding Components BODY 3 and INADVERT Fuses BODY 1 Fuse Battery Feeds

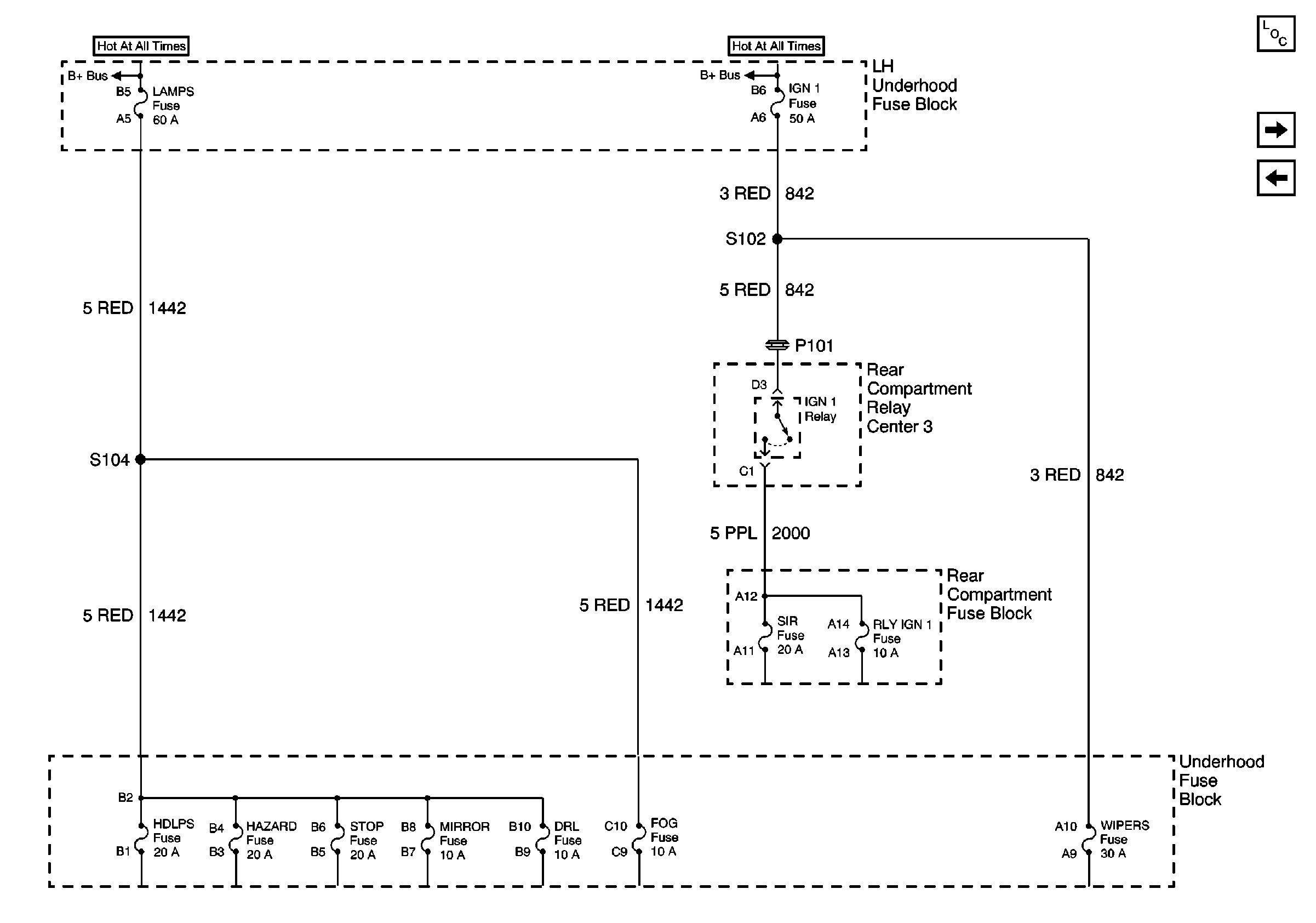

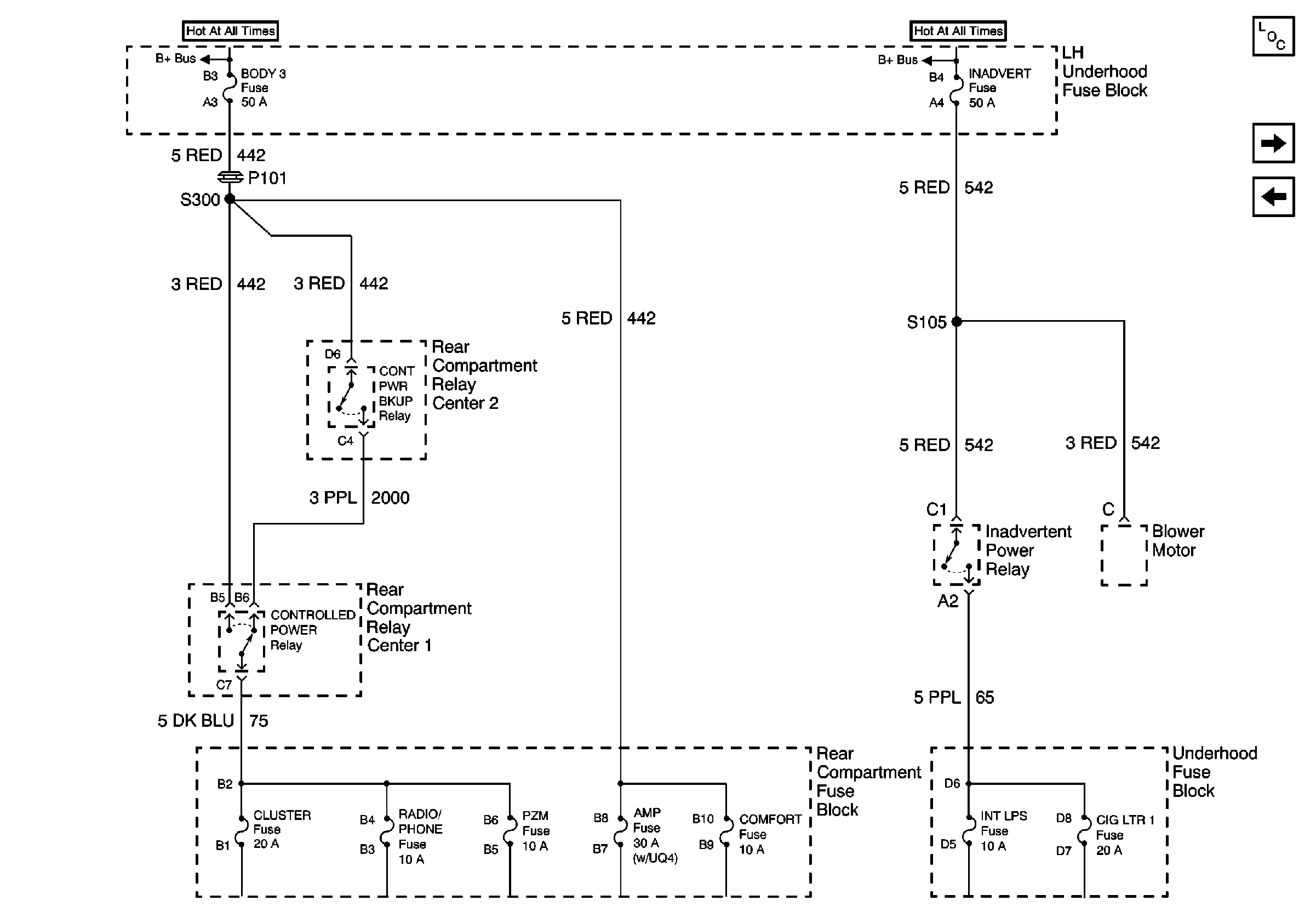

Figure 7:	BODY 3 and INADVERT Fuses Power and Grounding Components LAMPS and IGN 1 Fuses BODY 2 Fuse Battery Feeds Battery Feeds
Figure 8:	LAMPS and IGN 1 Fuses Power and Grounding Components WINDOWS Circuit Breaker BODY 3 and INADVERT Fuses Battery Feeds Battery Feeds

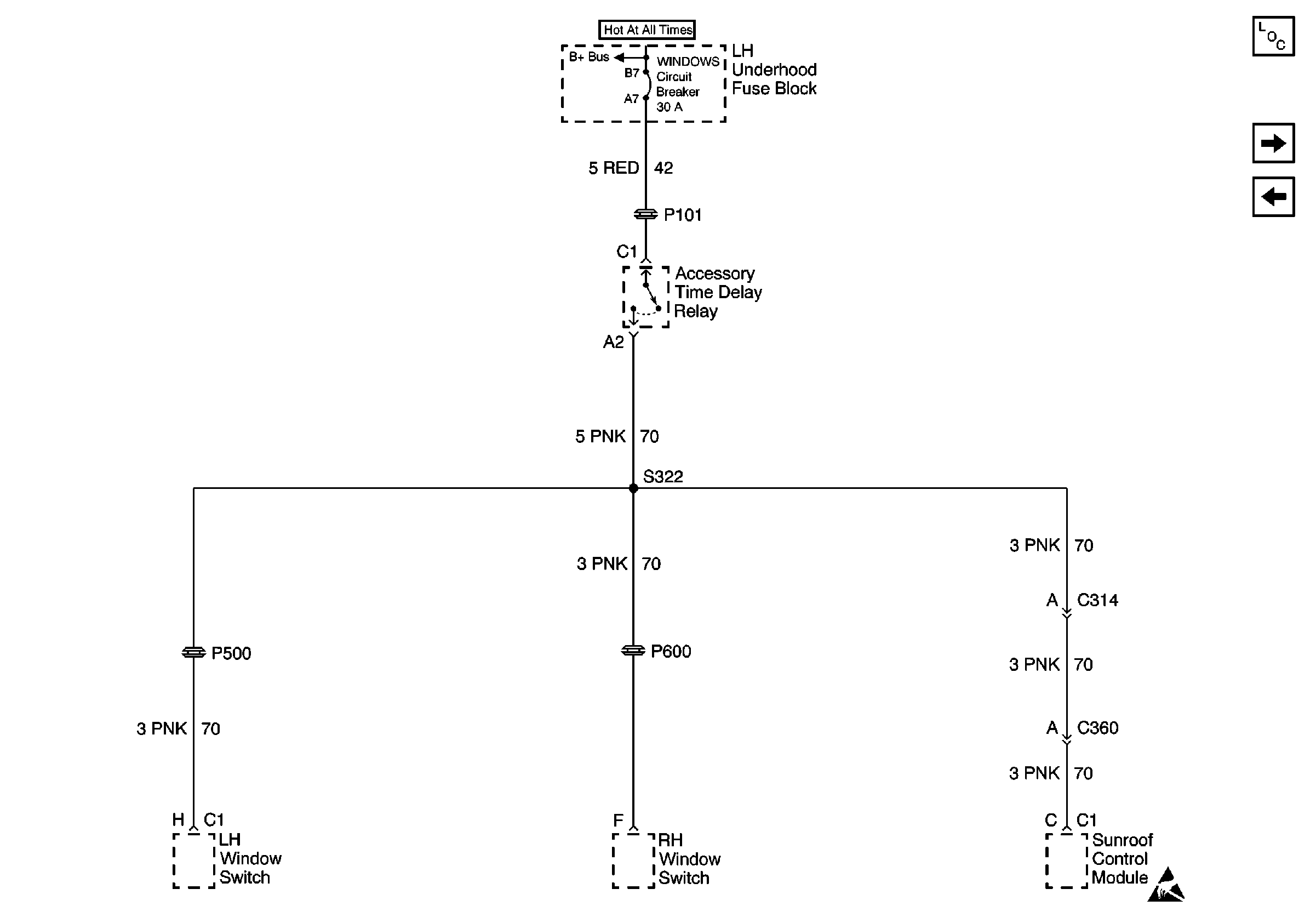

Figure 9:	WINDOWS Circuit Breaker Power and Grounding Components SEATS Circuit Breaker LAMPS and IGN 1 Fuses Battery Feeds Handling ESD Sensitive Parts Notice

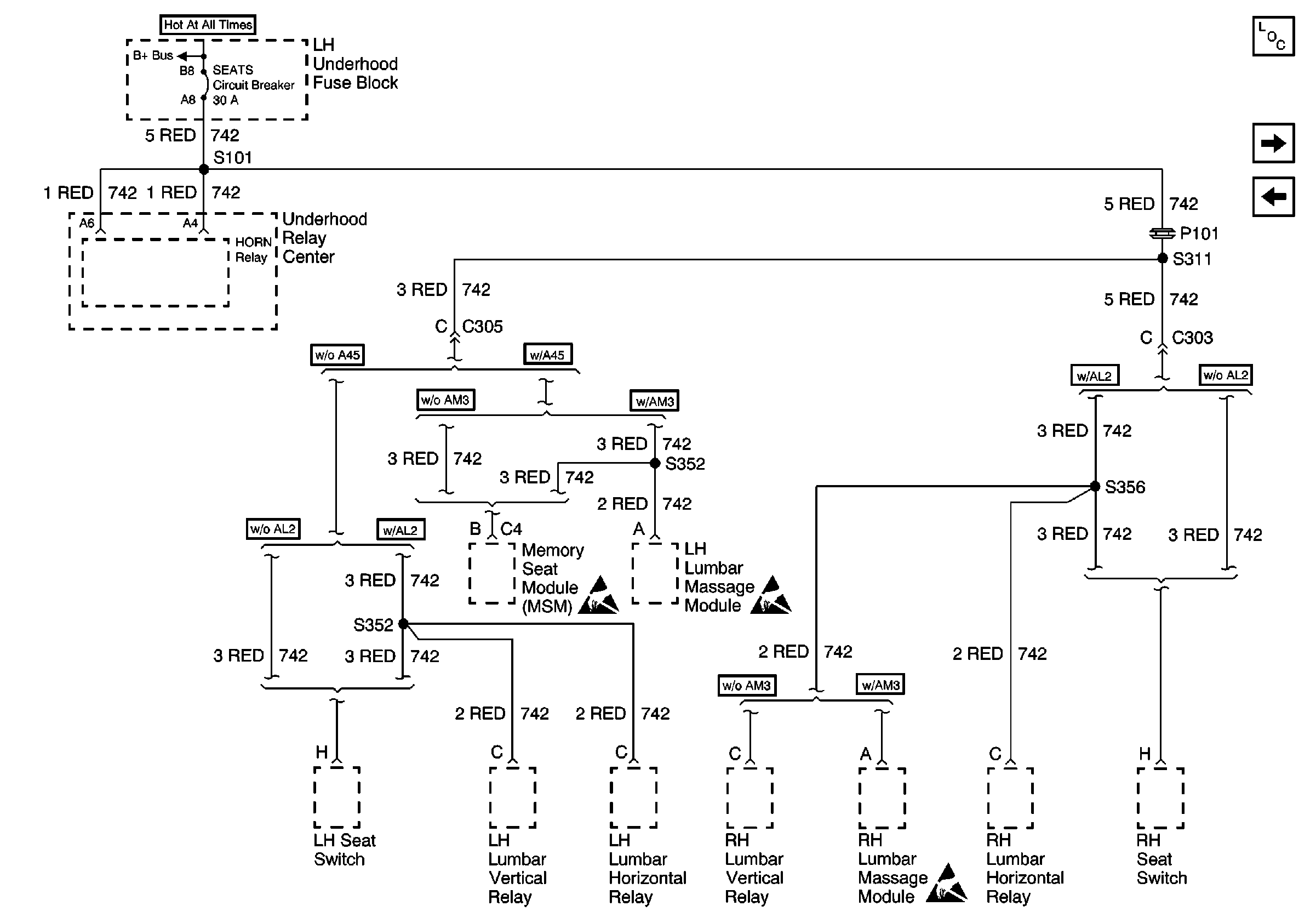

Figure 10:	SEATS Circuit Breaker Power and Grounding Components INT LPS Fuse WINDOWS Circuit Breaker Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Battery Feeds

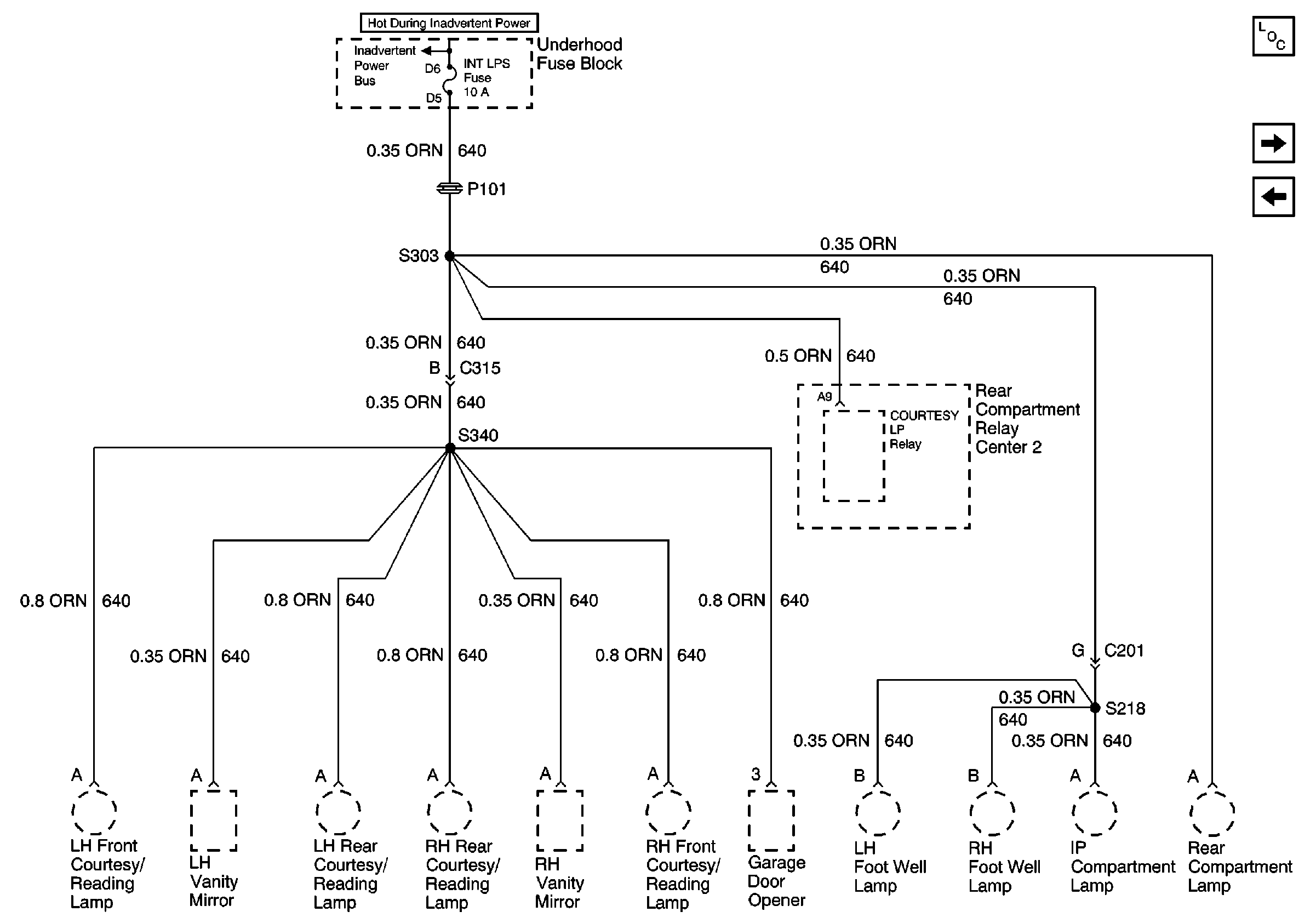

Figure 11:	INT LPS Fuse Power and Grounding Components HDLPS and CIG LTR 1 Fuses SEATS Circuit Breaker BODY 3 and INADVERT Fuses

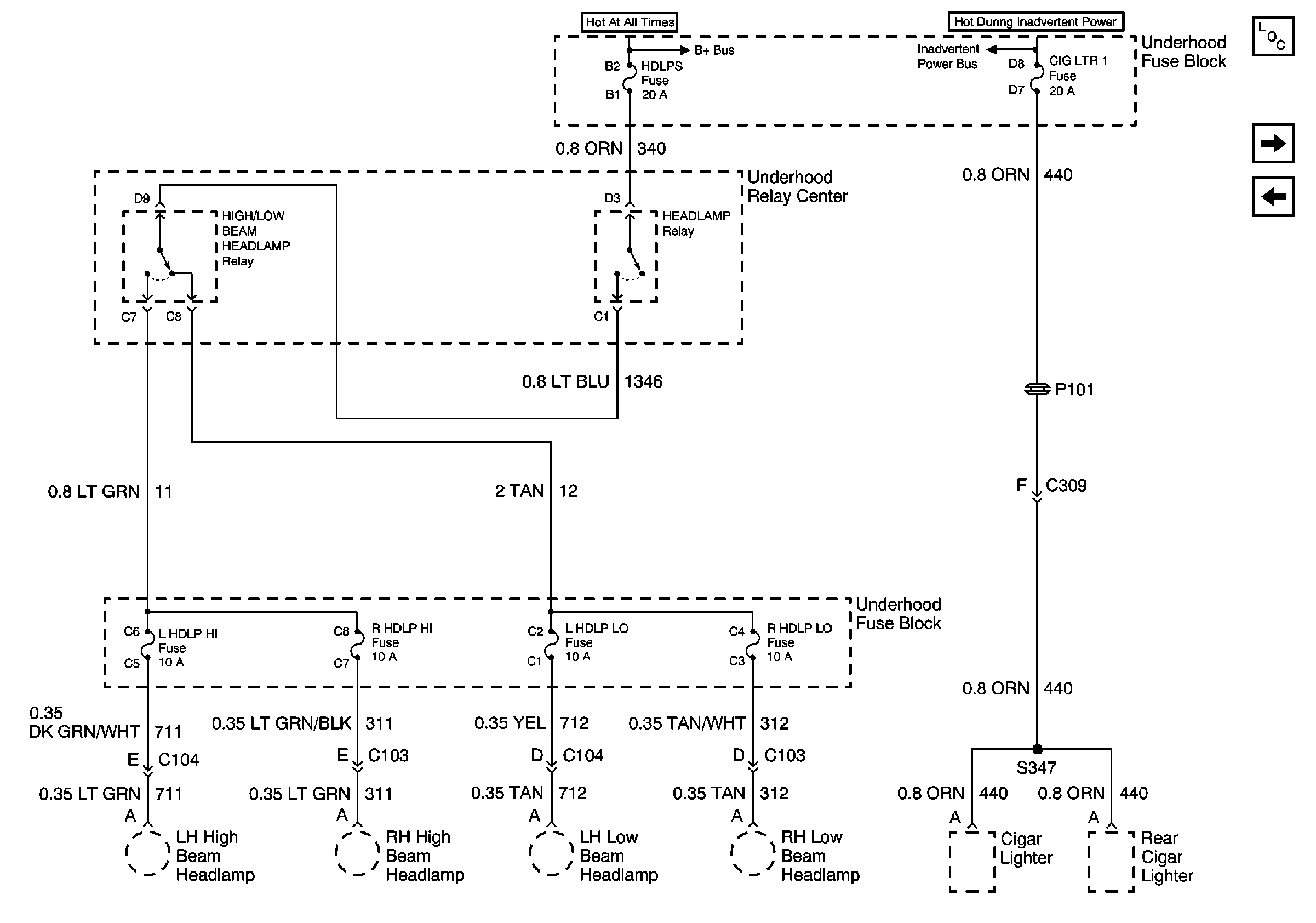

Figure 12:	HDLPS and CIG LTR 1 Fuses Power and Grounding Components MIRROR, DRL, and FOG Fuses INT LPS Fuse BODY 3 and INADVERT Fuses

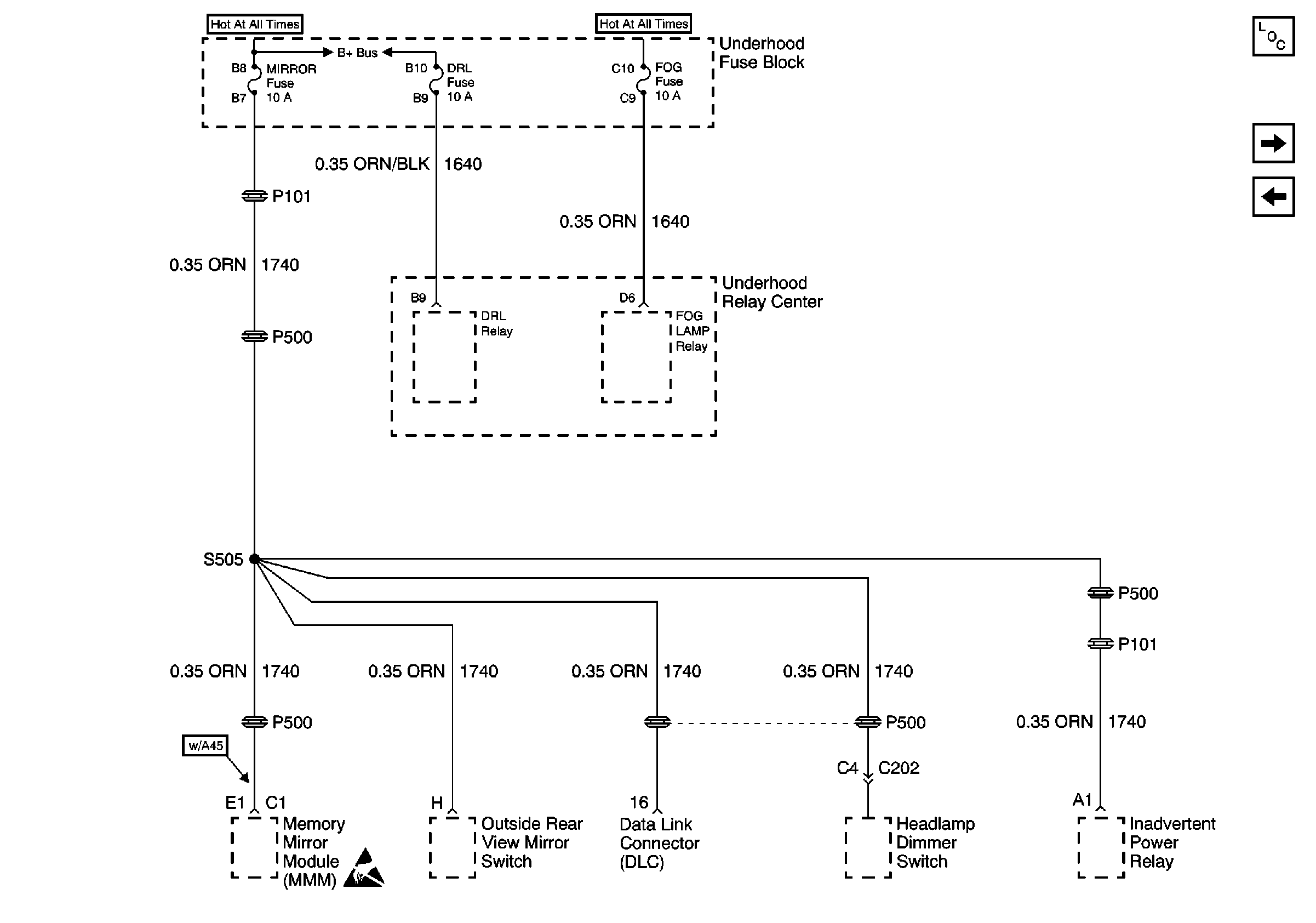

Figure 13:	MIRROR, DRL, and FOG Fuses Power and Grounding Components INJ Fuses HDLPS and CIG LTR 1 Fuses LAMPS and IGN 1 Fuses Handling ESD Sensitive Parts Notice

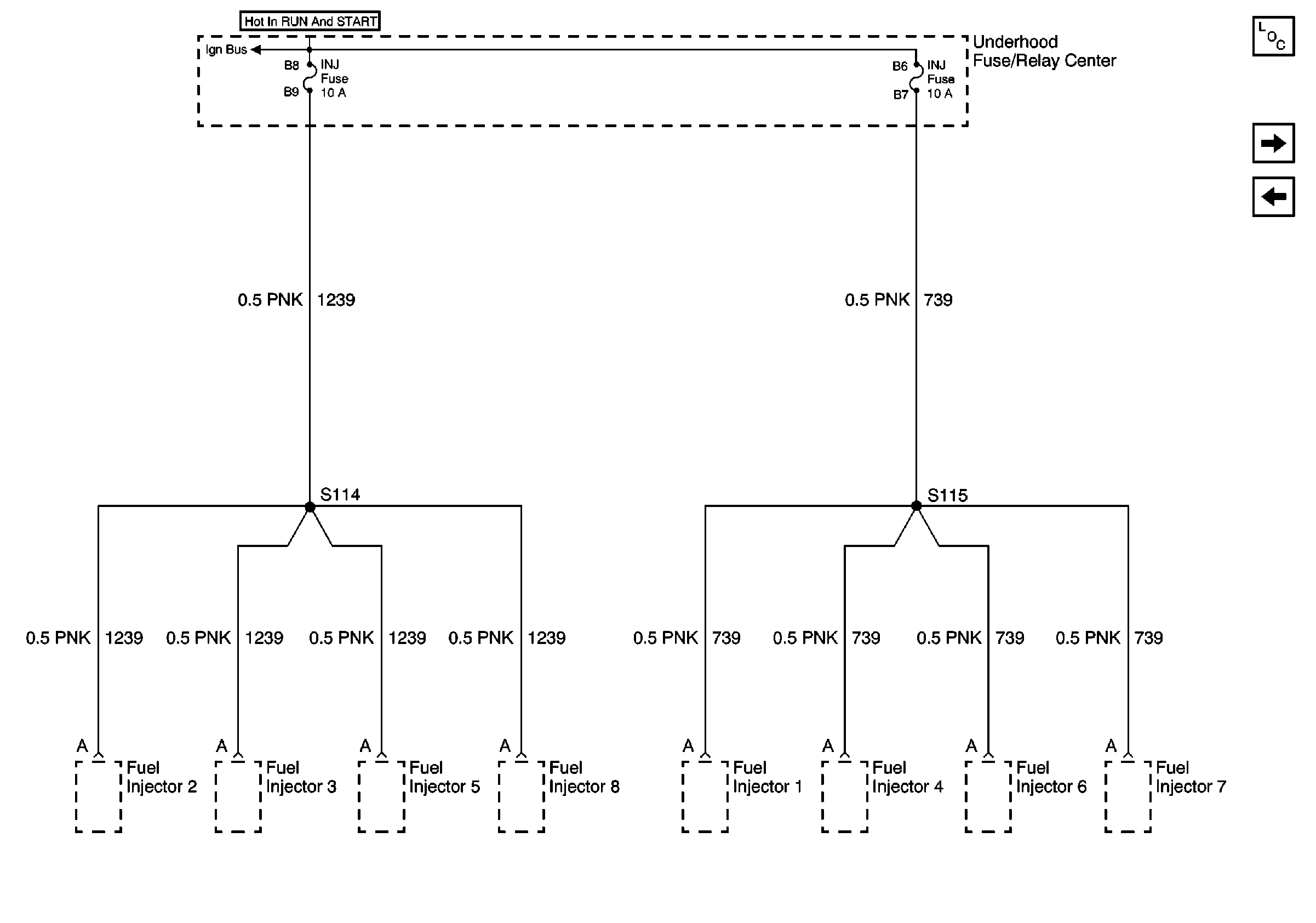

Figure 14:	INJ Fuses Power and Grounding Components STOP, HAZARD, CNR LP, CRANK, and IGN 0 (ENG) Fuses MIRROR, DRL, and FOG Fuses BATT 2 Fuse and Ignition Switch (2 of 2)

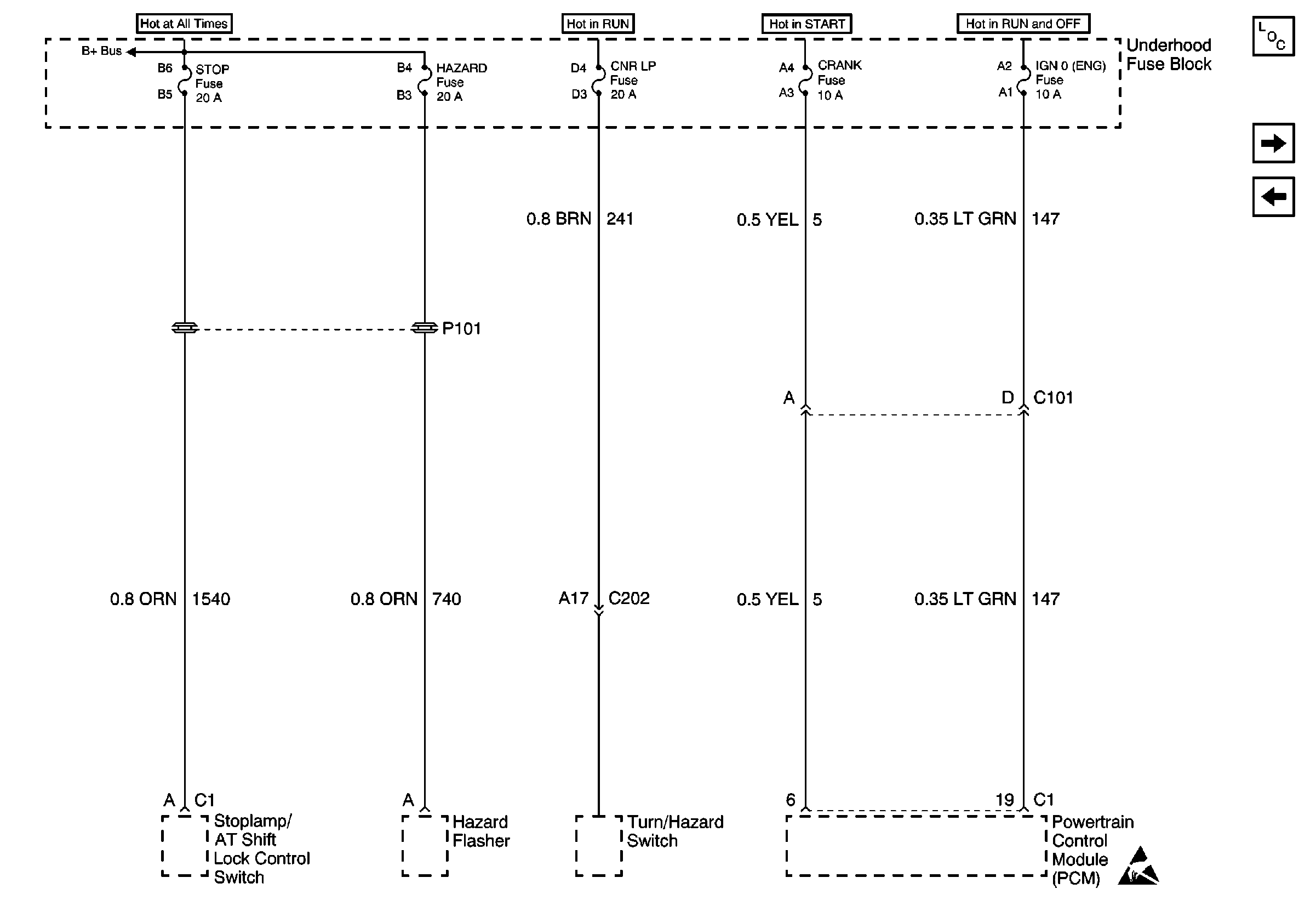

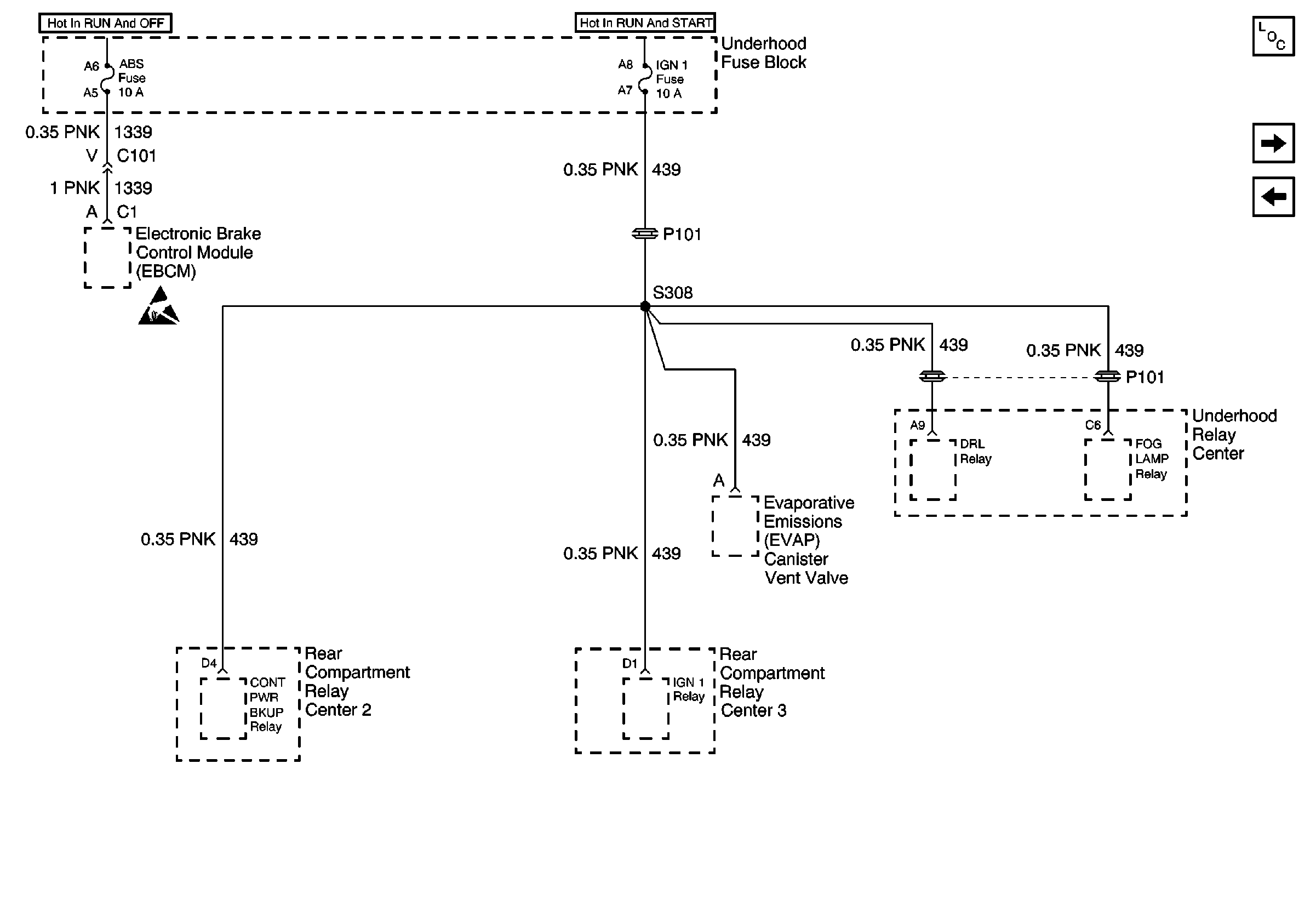

Figure 15:	STOP, HAZARD, CNR LP, CRANK, and IGN 0 (ENG) Fuses Power and Grounding Components ABS and IGN 1 Fuses INJ Fuses LAMPS and IGN 1 Fuses Handling ESD Sensitive Parts Notice

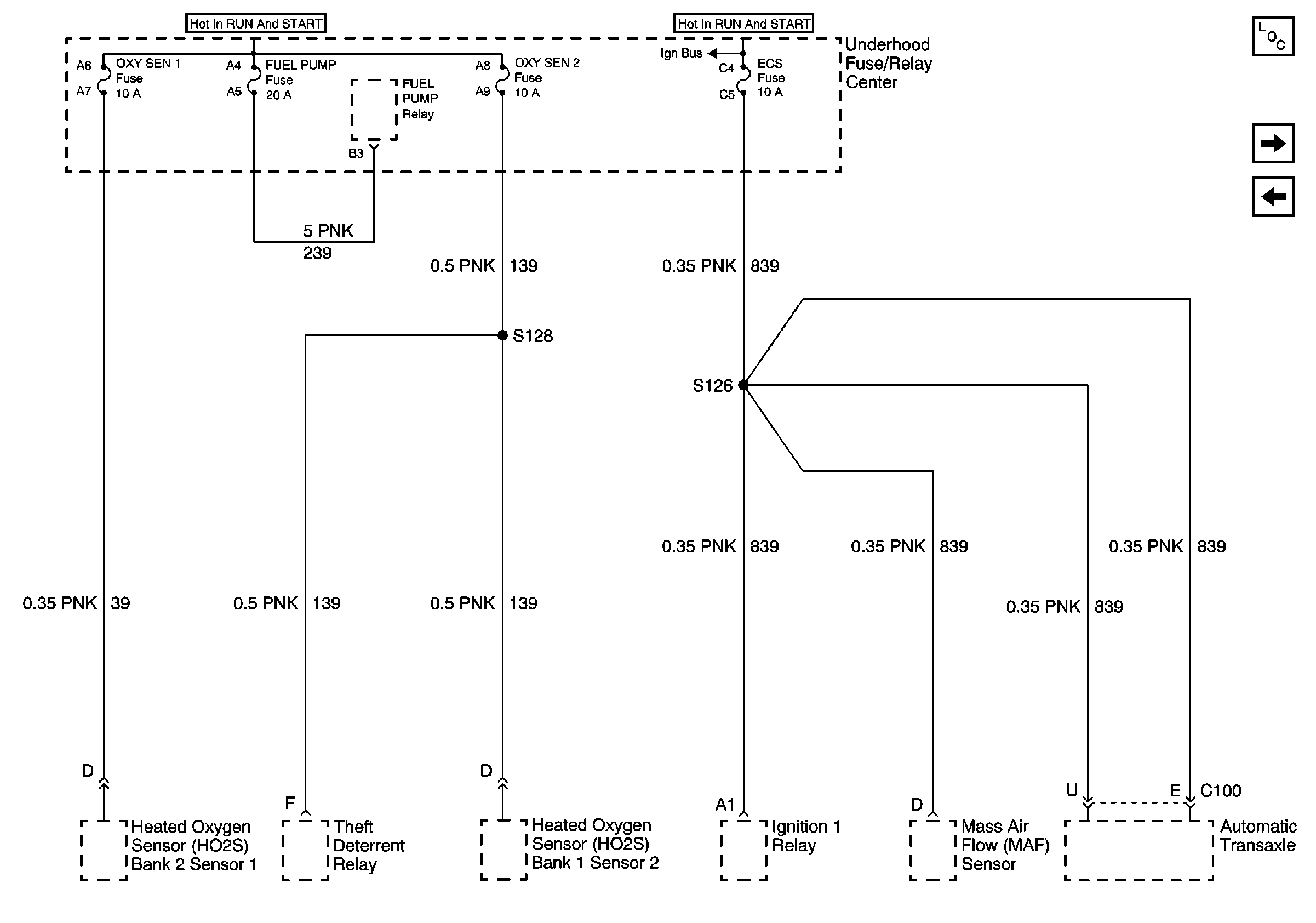

Figure 16:	ABS and IGN 1 Fuses Power and Grounding Components OXY SEN 1, OXY SEN 2, FUEL PUMP, ECS Fuses and FUEL PUMP Relay STOP, HAZARD, CNR LP, CRANK, and IGN 0 (ENG) Fuses Handling ESD Sensitive Parts Notice
Figure 17:	OXY SEN 1, OXY SEN 2, FUEL PUMP, ECS Fuses and FUEL PUMP Relay Power and Grounding Components PCM (BAT), A/C COMP, PARK/REV Fuses and A/C COMPRESSOR Relay ABS and IGN 1 Fuses BATT 2 Fuse and Ignition Switch (2 of 2)
Figure 18:	PCM (BAT), A/C COMP, PARK/REV Fuses and A/C COMPRESSOR Relay Power and Grounding Components CRUISE, DIS, and PCM (IGN) Fuses OXY SEN 1, OXY SEN 2, FUEL PUMP, ECS Fuses and FUEL PUMP Relay IGN 1, COOL FANS, BATT 1, and BRAKES Fuses Handling ESD Sensitive Parts Notice

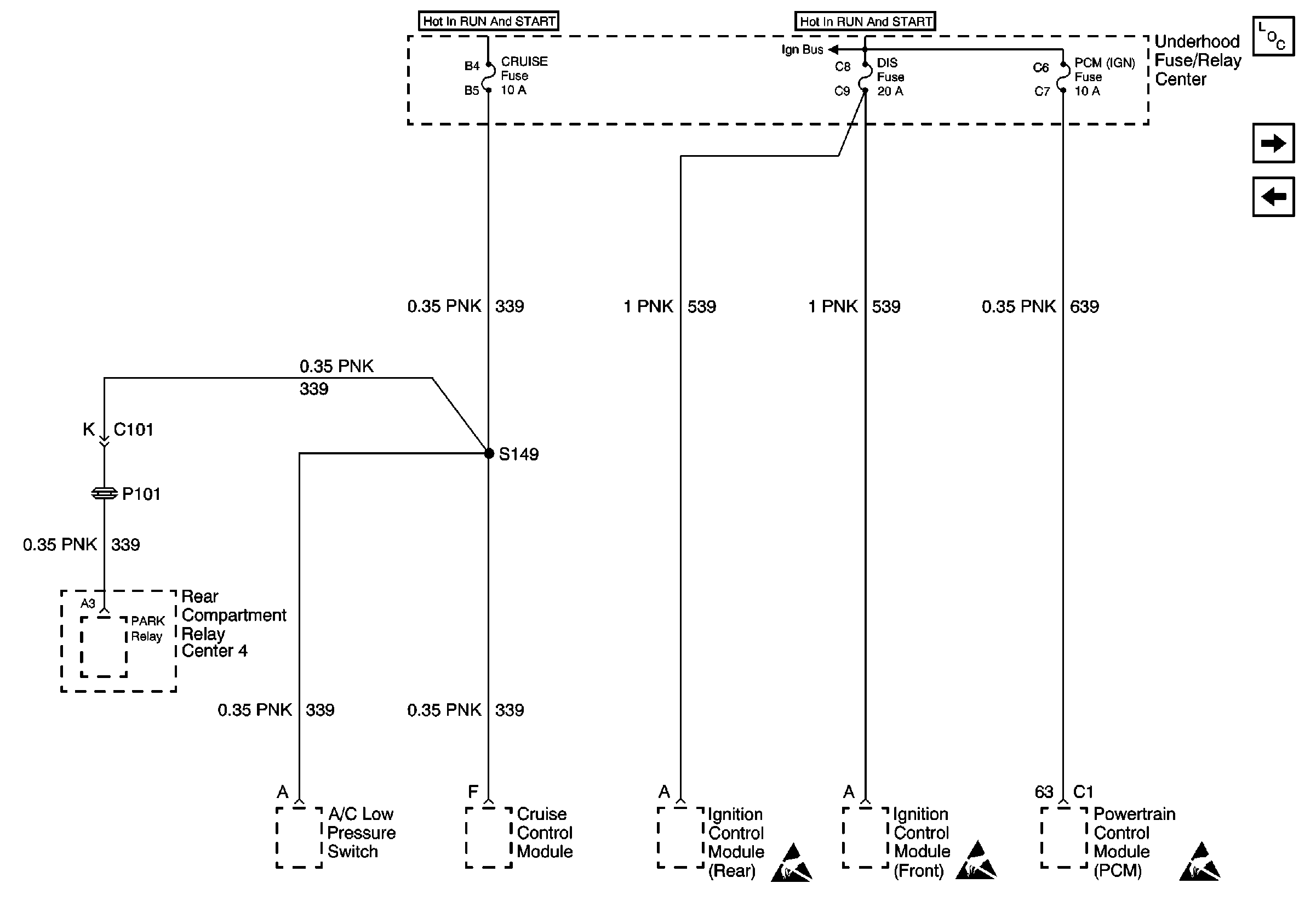

Figure 19:	CRUISE, DIS, and PCM (IGN) Fuses Power and Grounding Components CONVENIENCE Fuse PCM (BAT), A/C COMP, PARK/REV Fuses and A/C COMPRESSOR Relay BATT 2 Fuse and Ignition Switch (2 of 2)

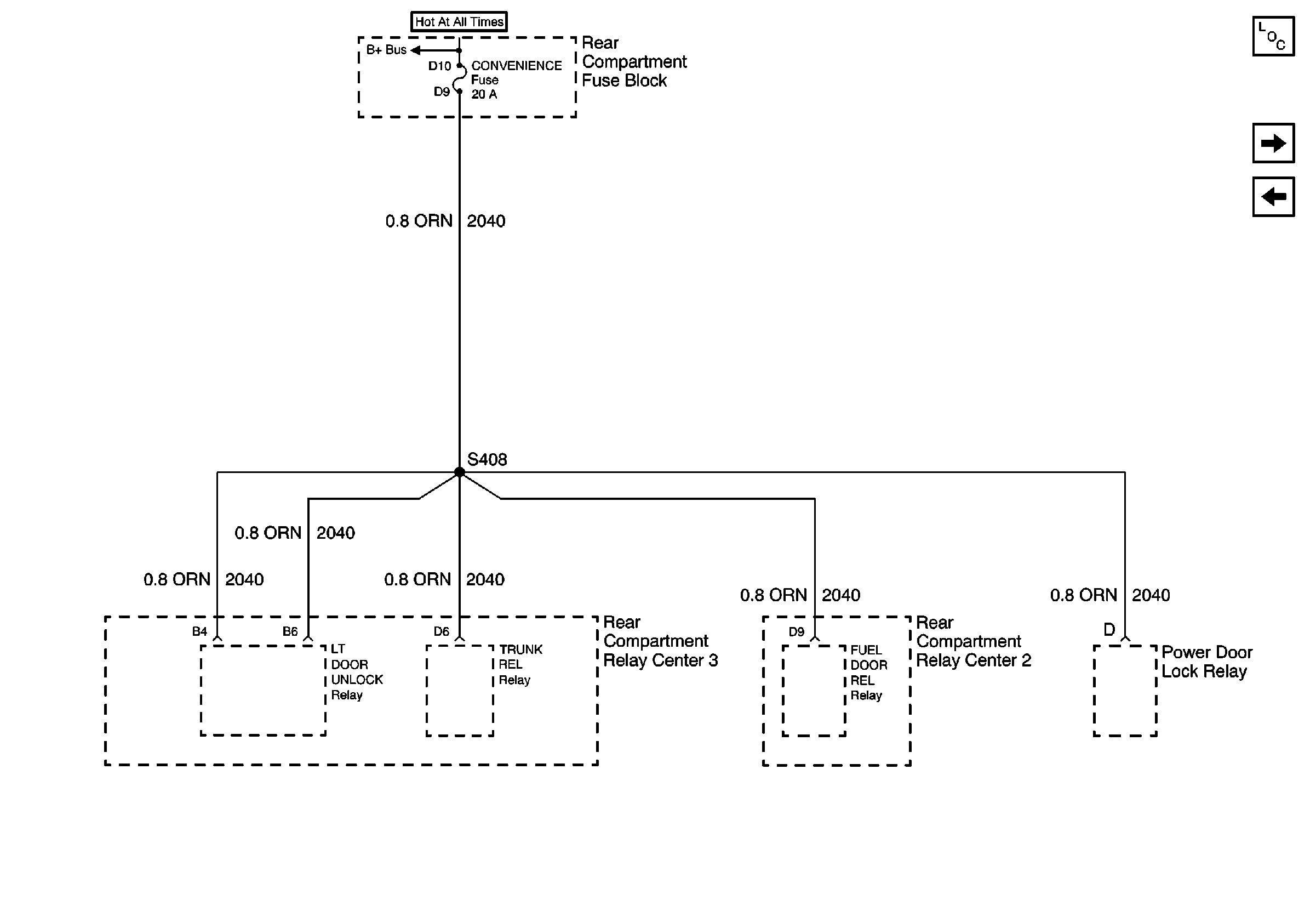

Figure 20:	CONVENIENCE Fuse Power and Grounding Components WIPERS, ACC, and CLUSTER Fuses CRUISE, DIS, and PCM (IGN) Fuses BODY 1 Fuse

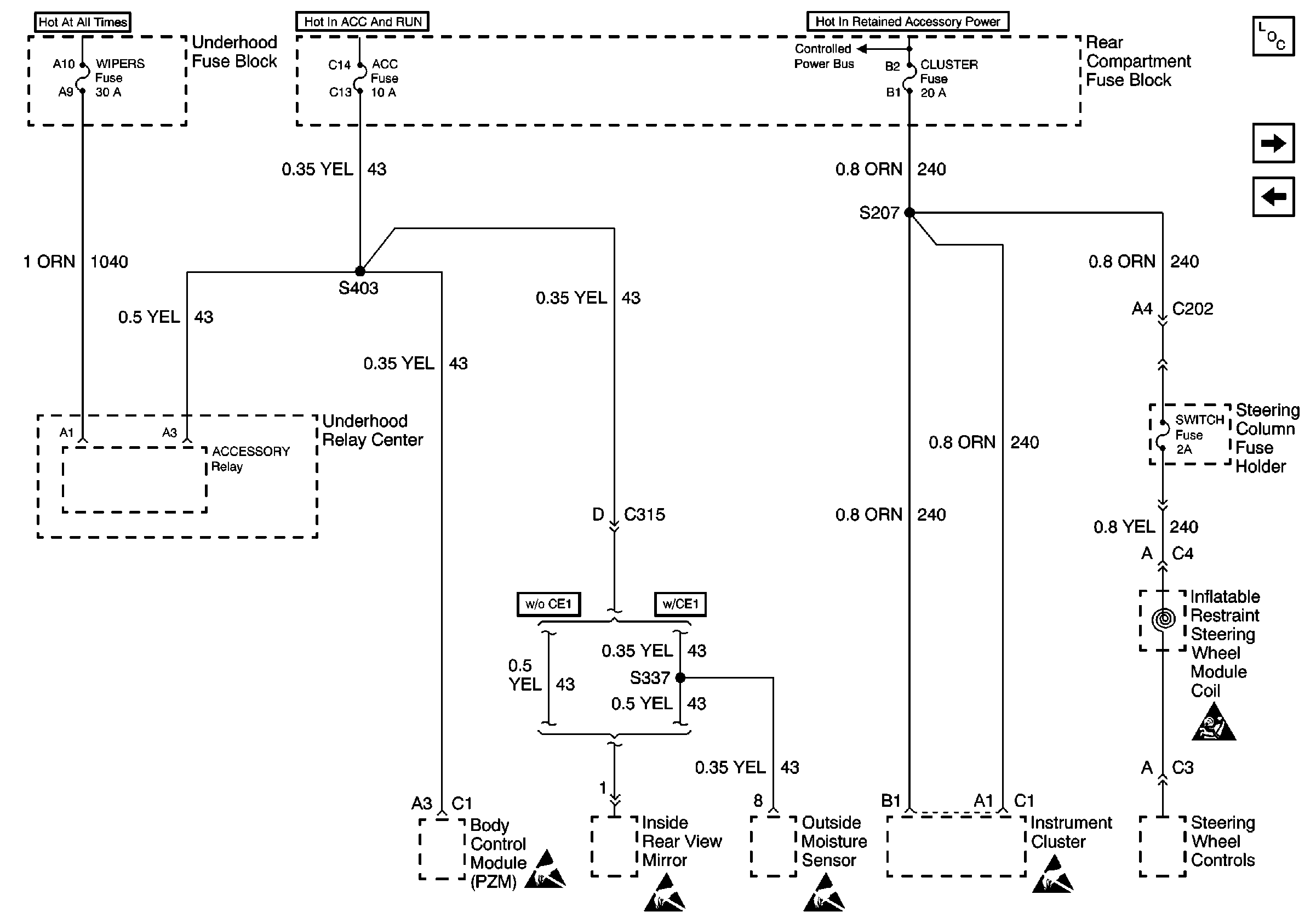

Figure 21:	WIPERS, ACC, and CLUSTER Fuses Power and Grounding Components ELC Fuse and Circuit Breaker CONVENIENCE Fuse BODY 3 and INADVERT Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

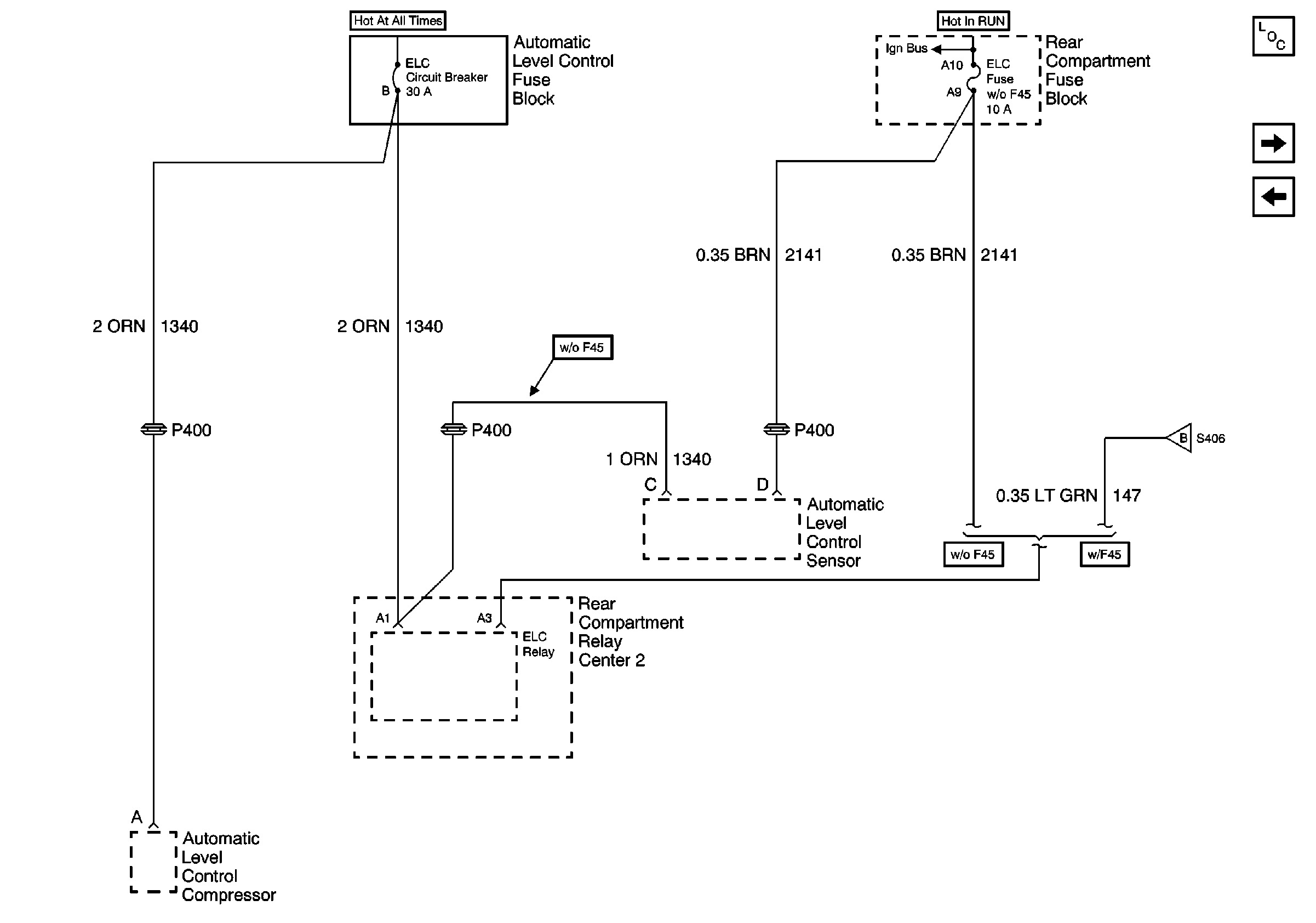

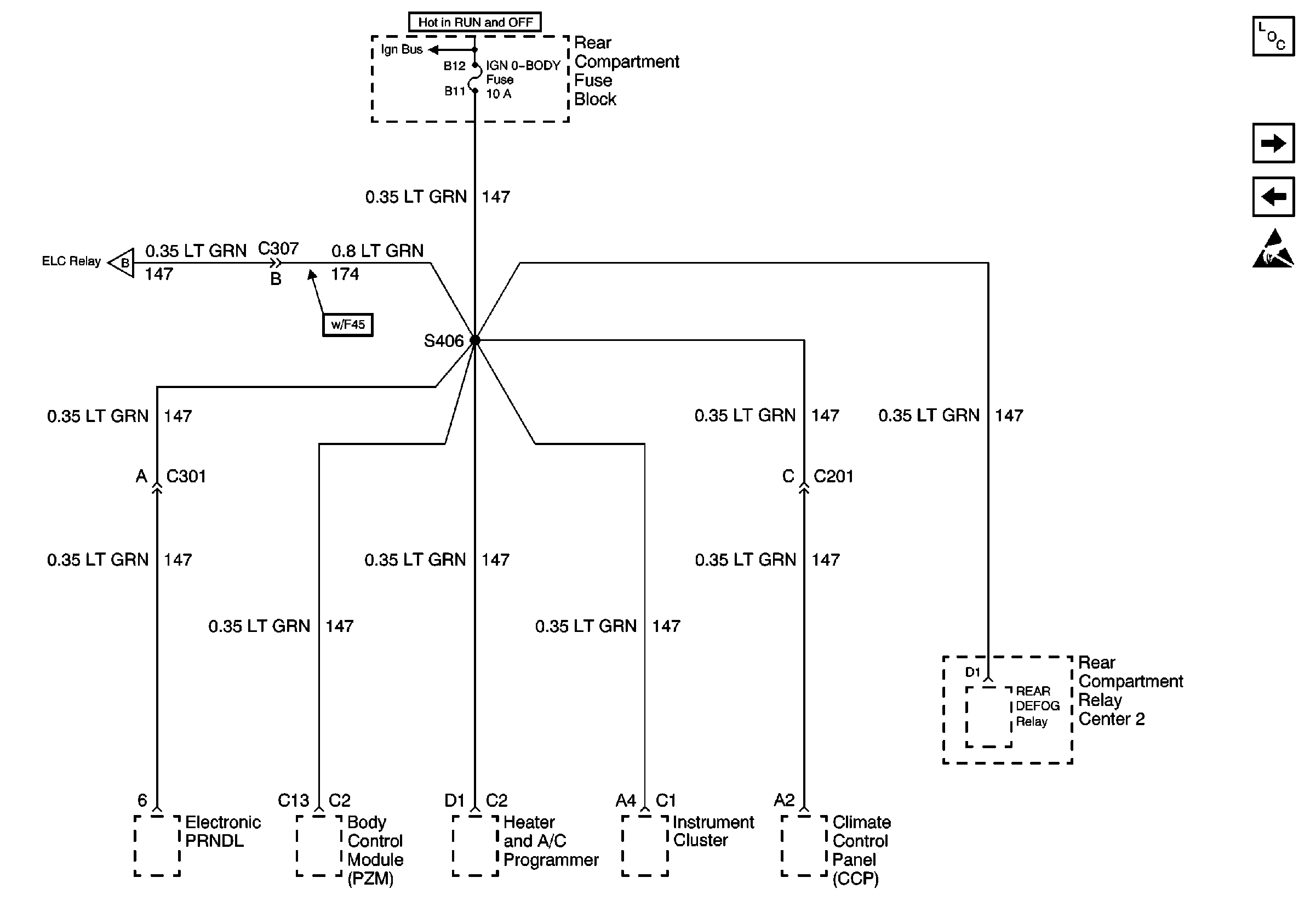

Figure 22:	ELC Fuse and Circuit Breaker Power and Grounding Components IGN 0 BODY Fuse WIPERS, ACC, and CLUSTER Fuses BATT 3 Fuse and Ignition Switch (1 of 2)

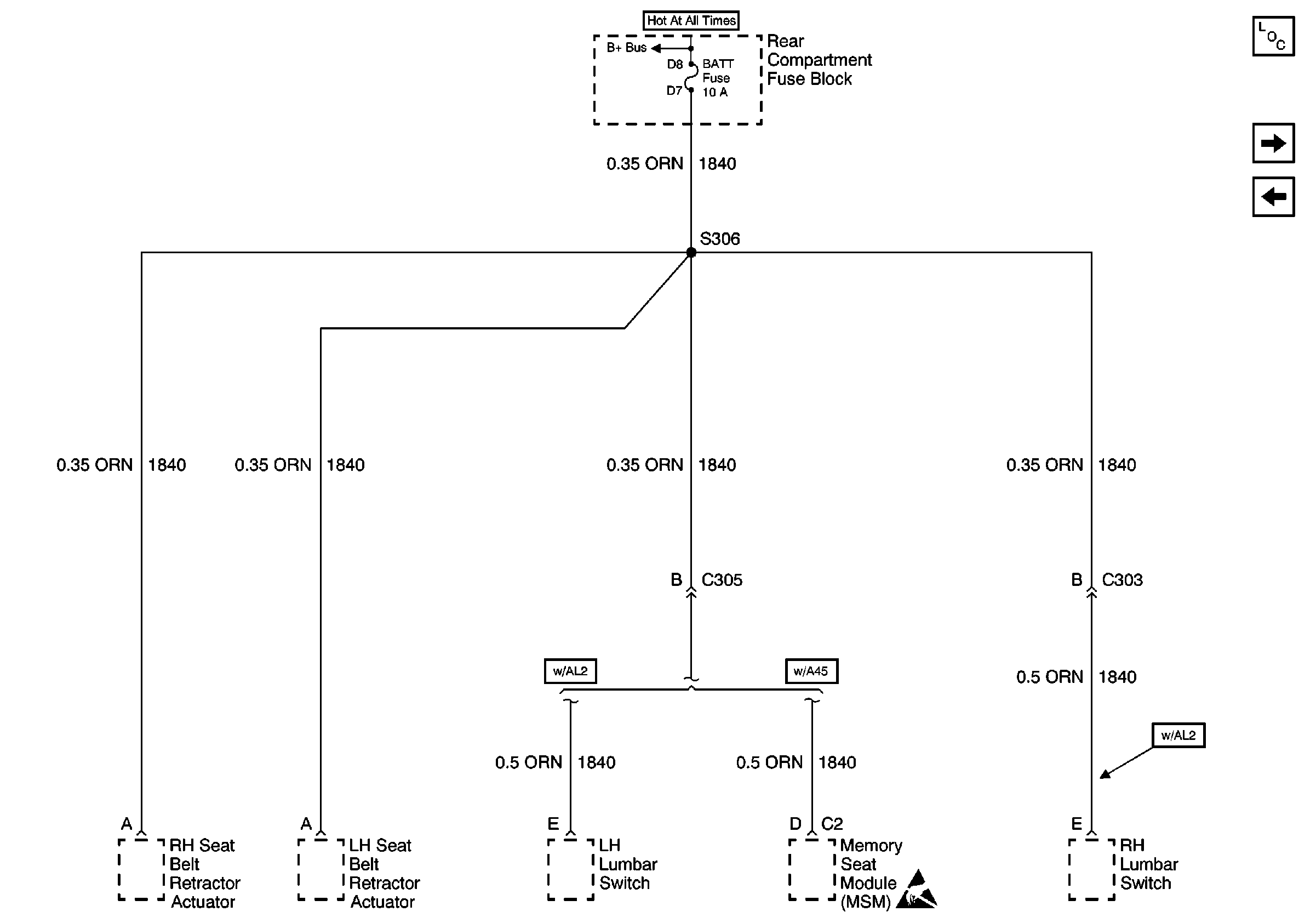

Figure 23:	IGN 0 BODY Fuse Power and Grounding Components BATT Fuse ELC Fuse and Circuit Breaker Handling ESD Sensitive Parts Notice BATT 3 Fuse and Ignition Switch (1 of 2)

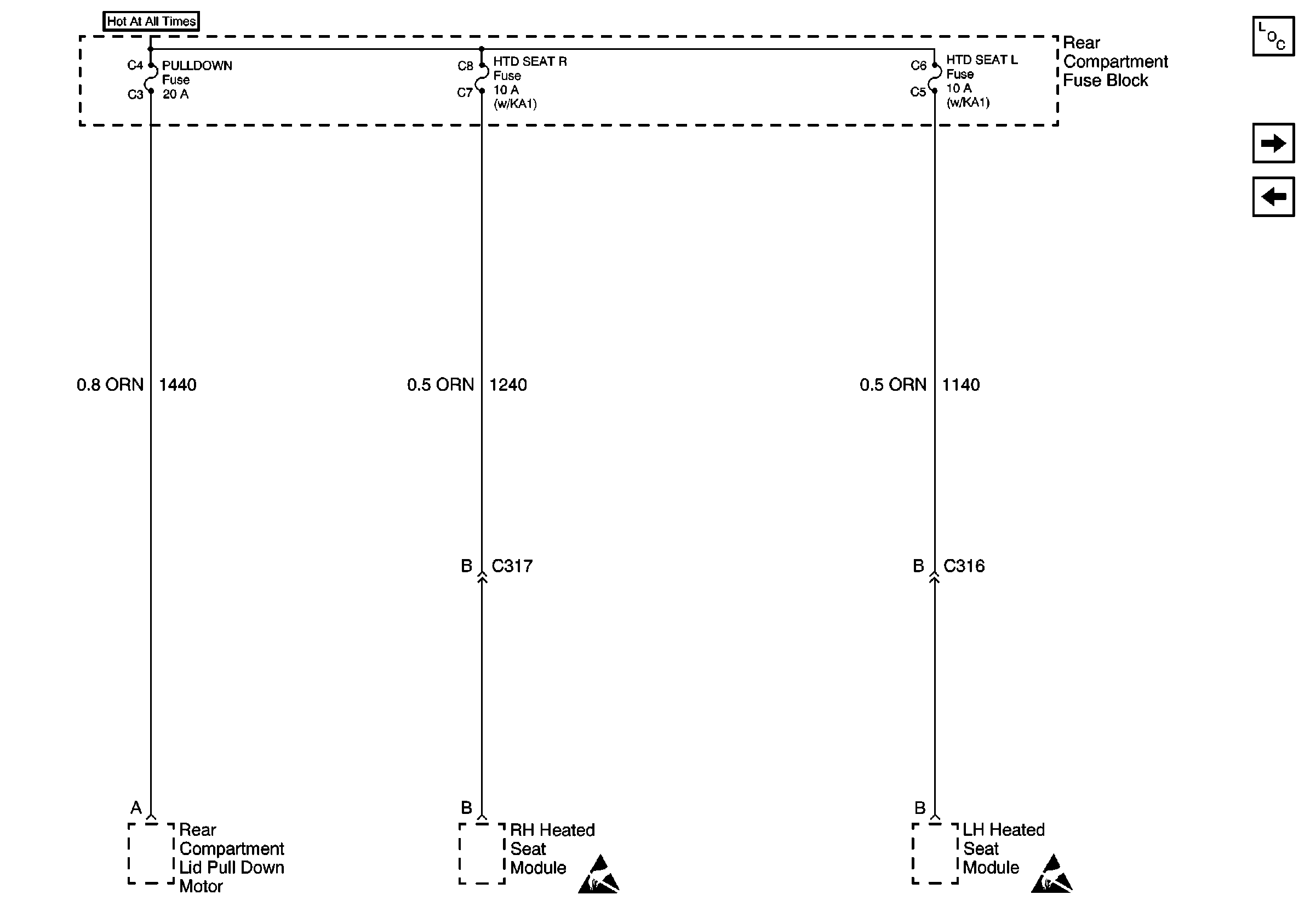

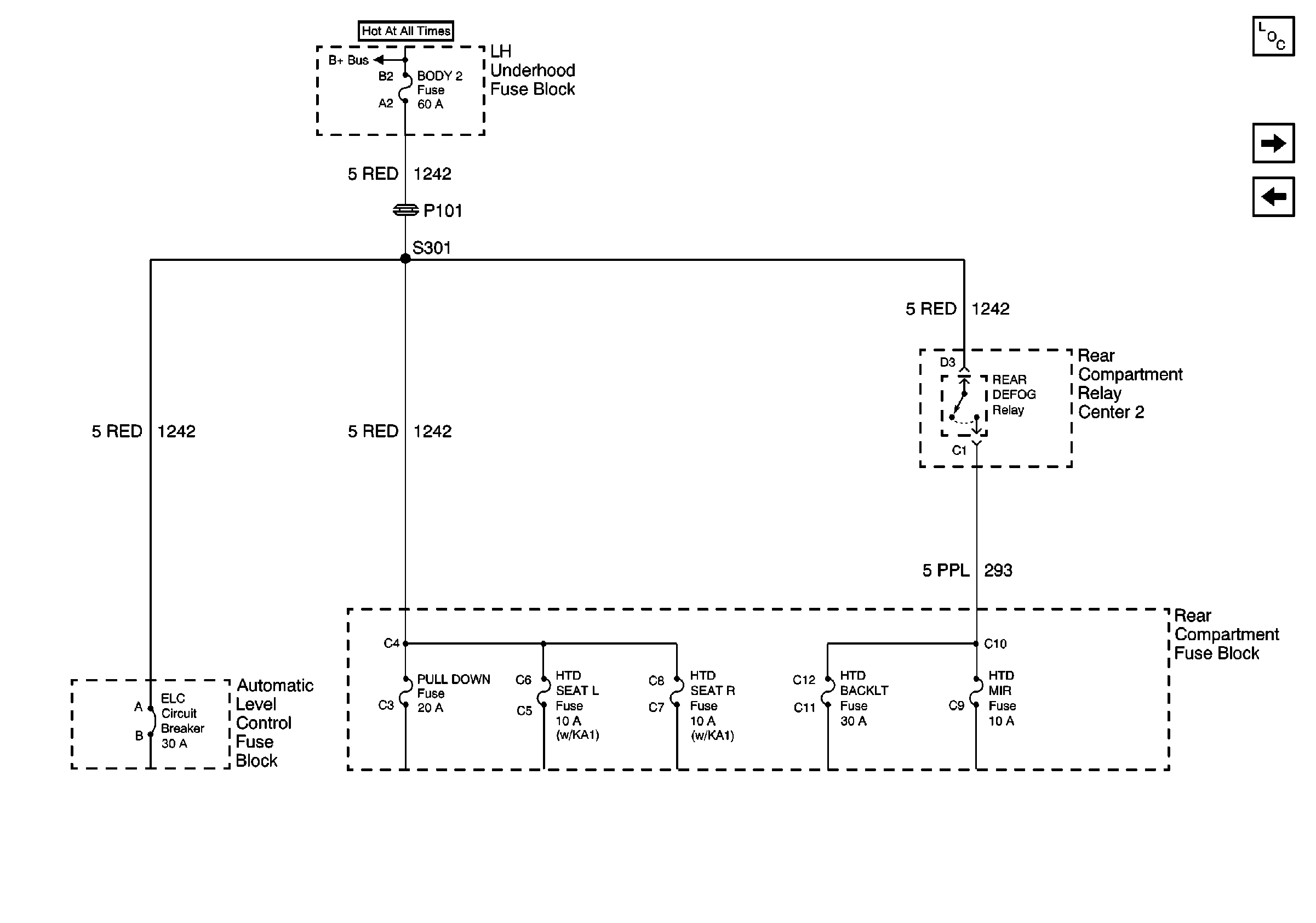

Figure 24:	BATT Fuse Power and Grounding Components PULLDOWN, HTD SEAT R, and HTD SEAT L Fuses IGN 0 BODY Fuse BODY 1 Fuse Handling ESD Sensitive Parts Notice
Figure 25:	PULLDOWN, HTD SEAT R, and HTD SEAT L Fuses Power and Grounding Components SIR, RSS, and TURN Fuses BATT Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

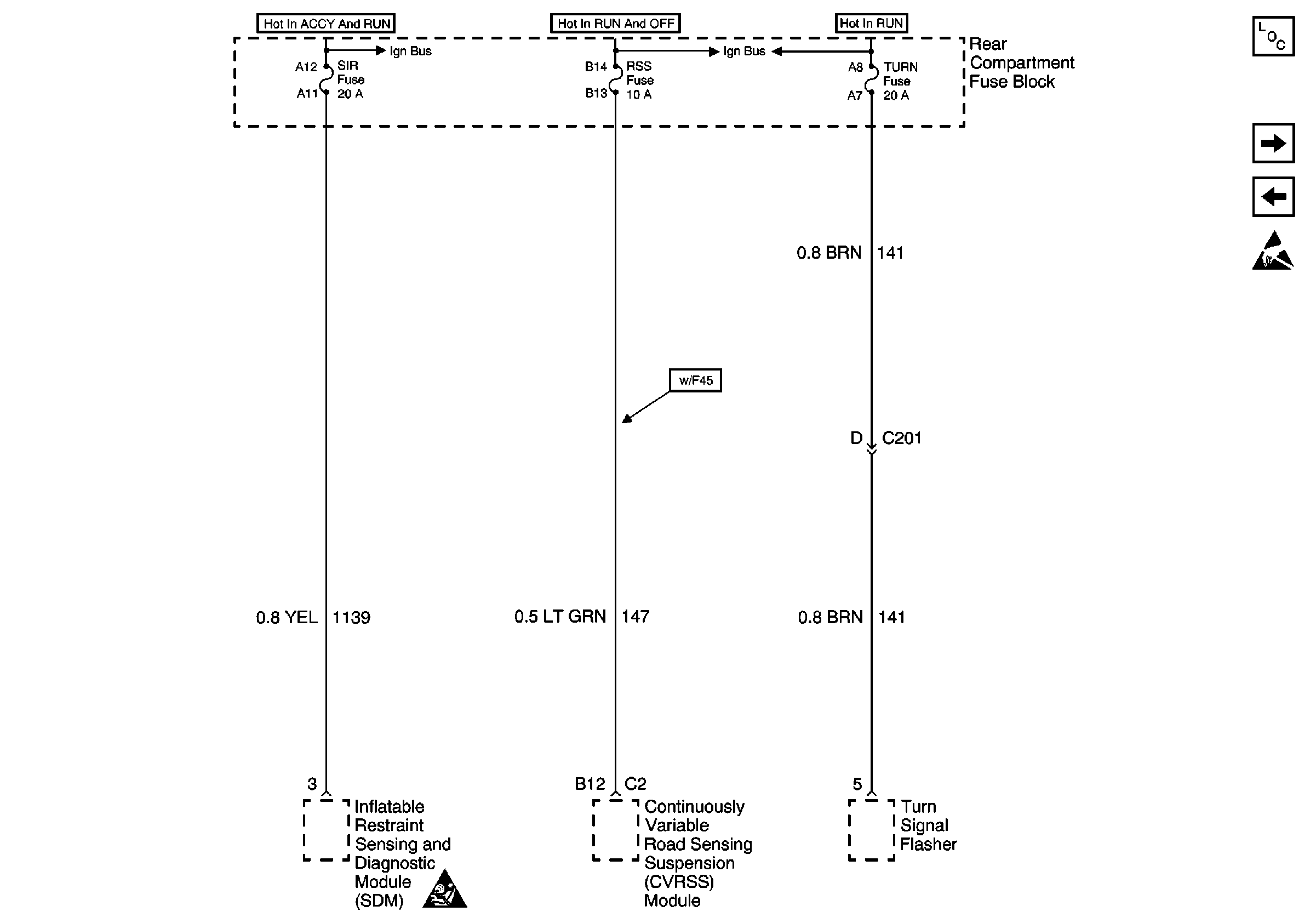

Figure 26:	SIR, RSS, and TURN Fuses Power and Grounding Components RLY IGN 1 Fuse PULLDOWN, HTD SEAT R, and HTD SEAT L Fuses Handling ESD Sensitive Parts Notice LAMPS and IGN 1 Fuses BATT 3 Fuse and Ignition Switch (1 of 2) Handling ESD Sensitive Parts Notice
Figure 27:	RLY IGN 1 Fuse Power and Grounding Components CONSOLE Fuse SIR, RSS, and TURN Fuses LAMPS and IGN 1 Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

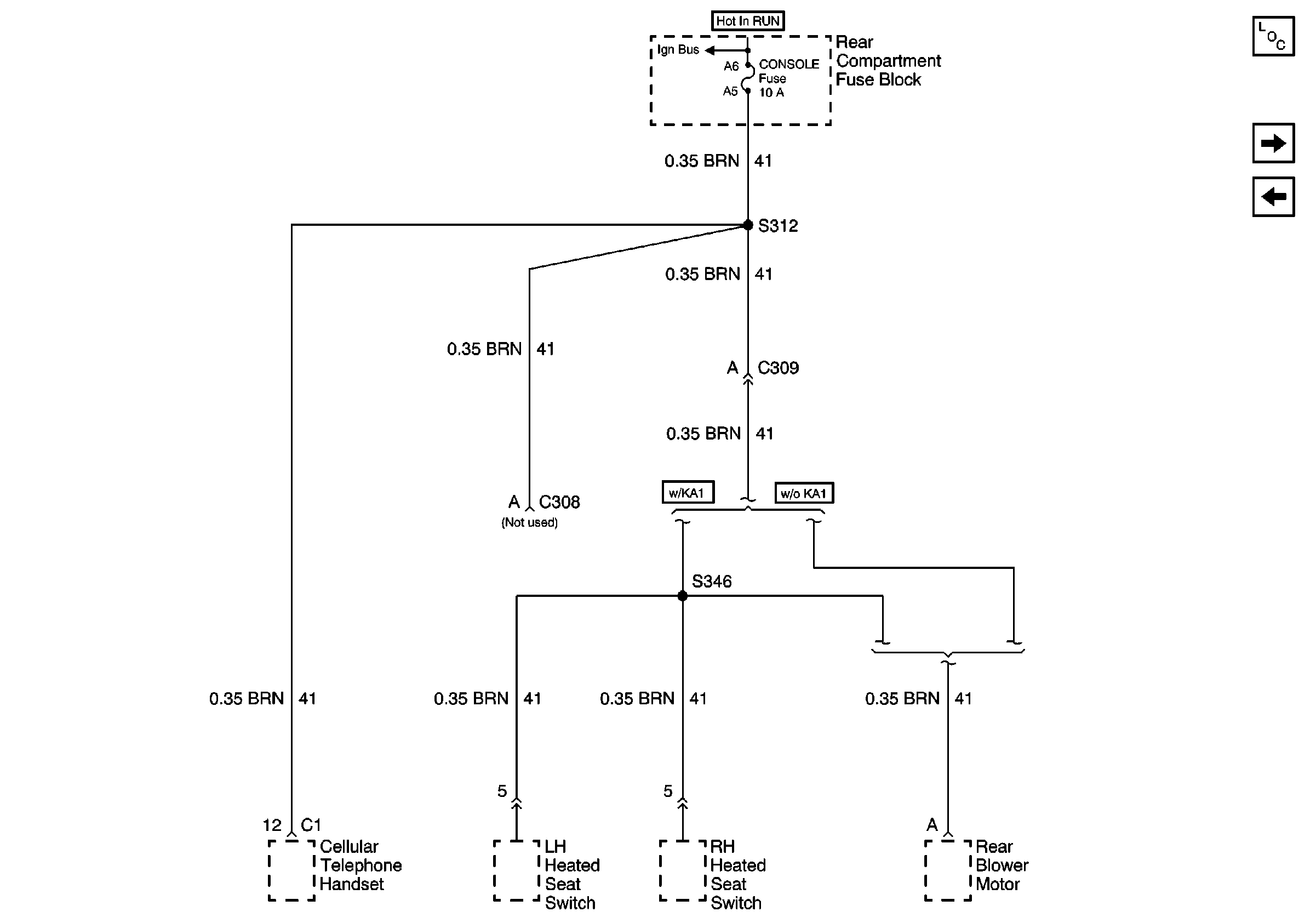

Figure 28:	CONSOLE Fuse Power and Grounding Components COMFORT Fuse RLY IGN 1 Fuse BATT 3 Fuse and Ignition Switch (1 of 2)

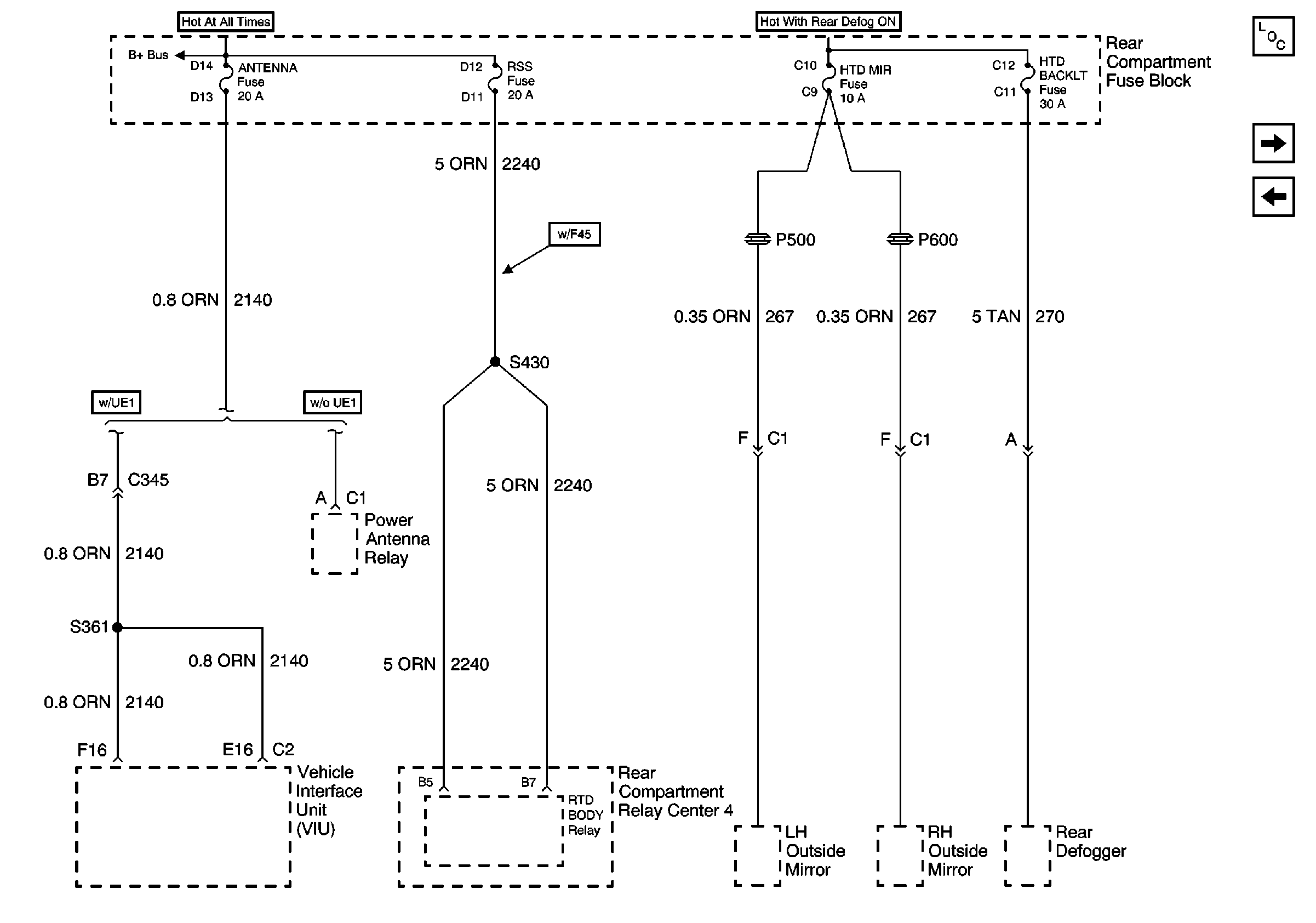

Figure 29:	COMFORT Fuse Power and Grounding Components ANTENNA, RSS, HTD MIR, and HTD BACKLT Fuses CONSOLE Fuse Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

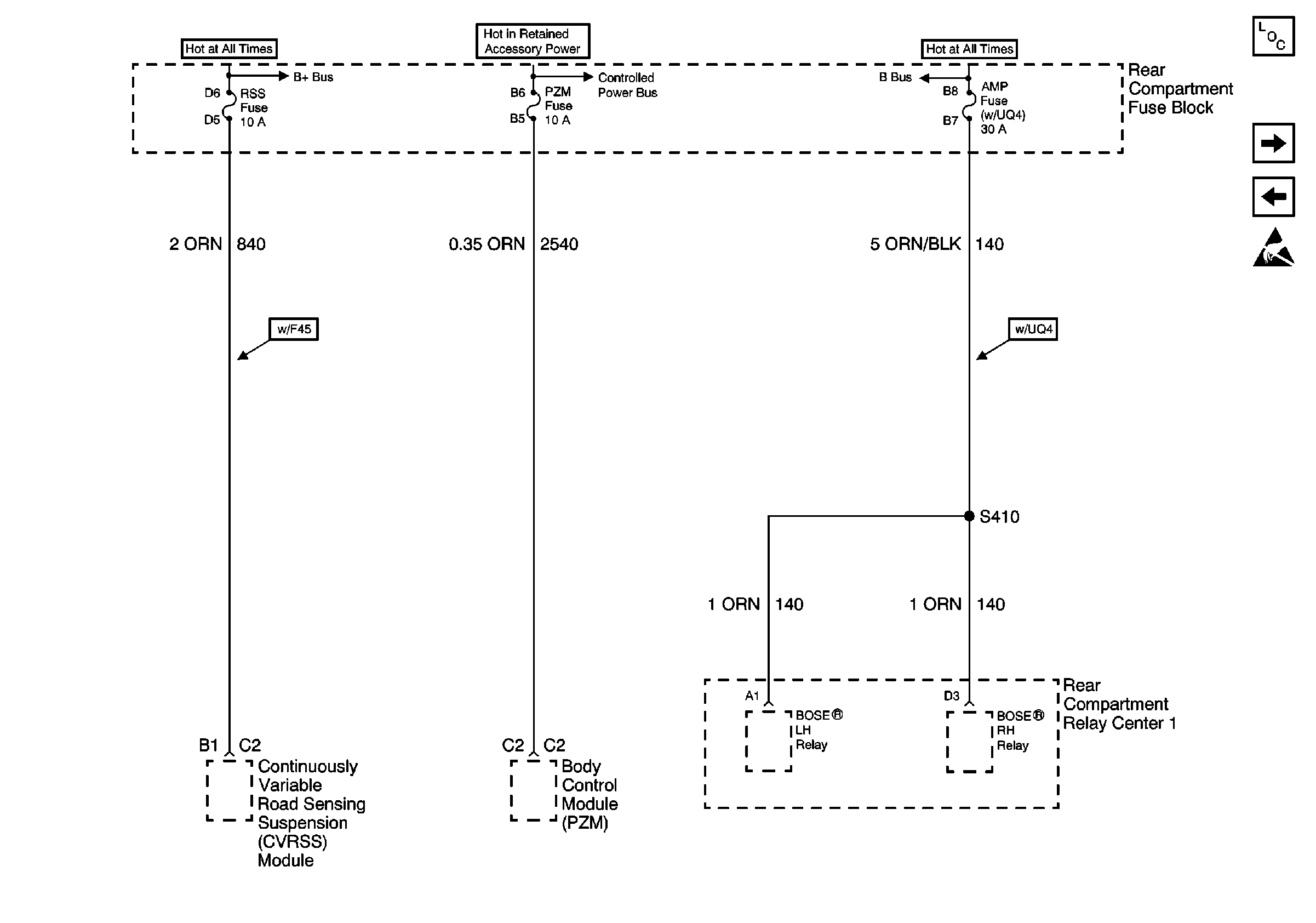

Figure 30:	ANTENNA, RSS, HTD MIR, and HTD BACKLT Fuses Power and Grounding Components RSS, PZM, and AMP Fuses COMFORT Fuse BODY 1 Fuse
Figure 31:	RSS, PZM, and AMP Fuses Power and Grounding Components RT PARK Fuse ANTENNA, RSS, HTD MIR, and HTD BACKLT Fuses Handling ESD Sensitive Parts Notice BODY 1 Fuse BODY 3 and INADVERT Fuses BODY 3 and INADVERT Fuses

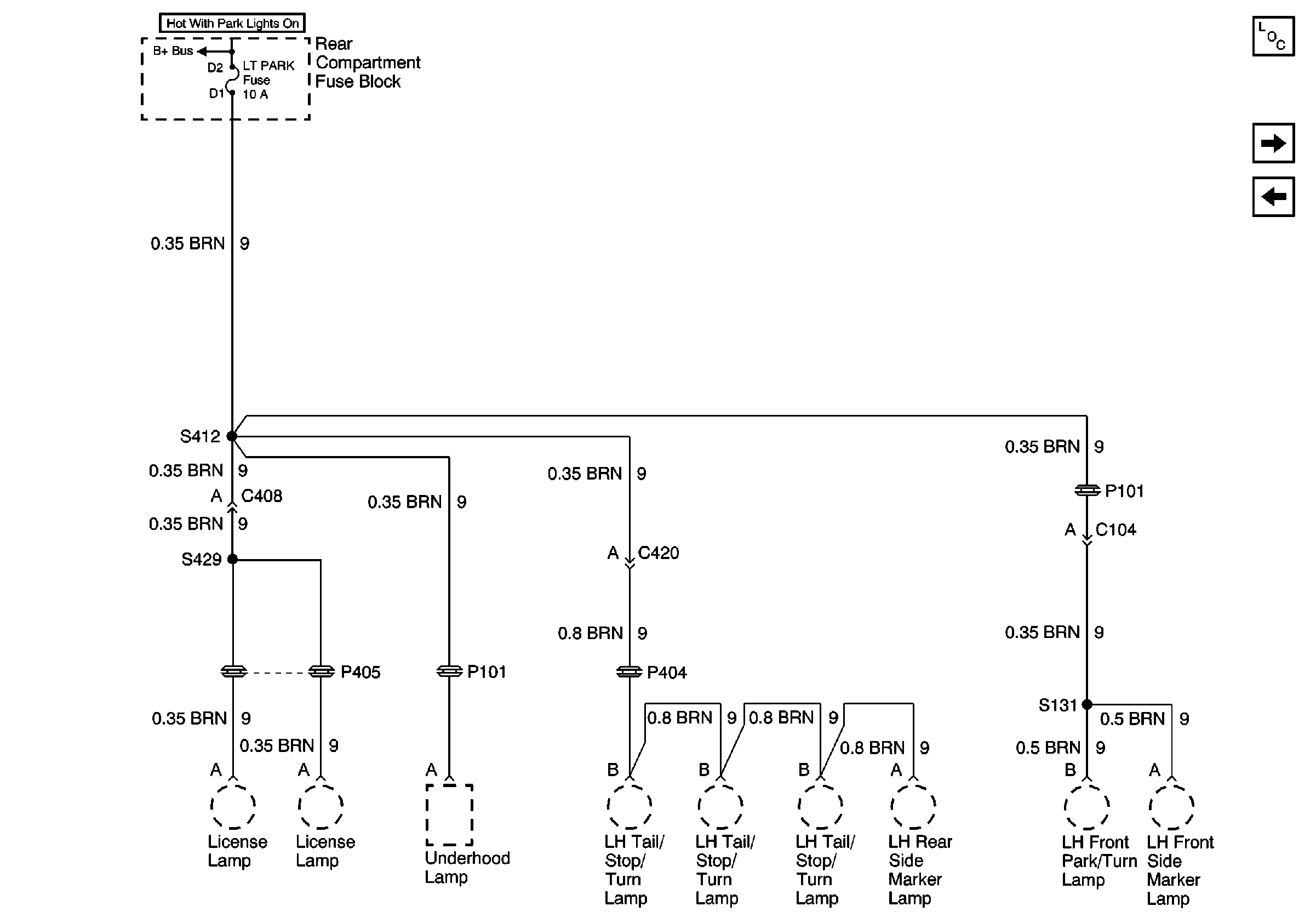

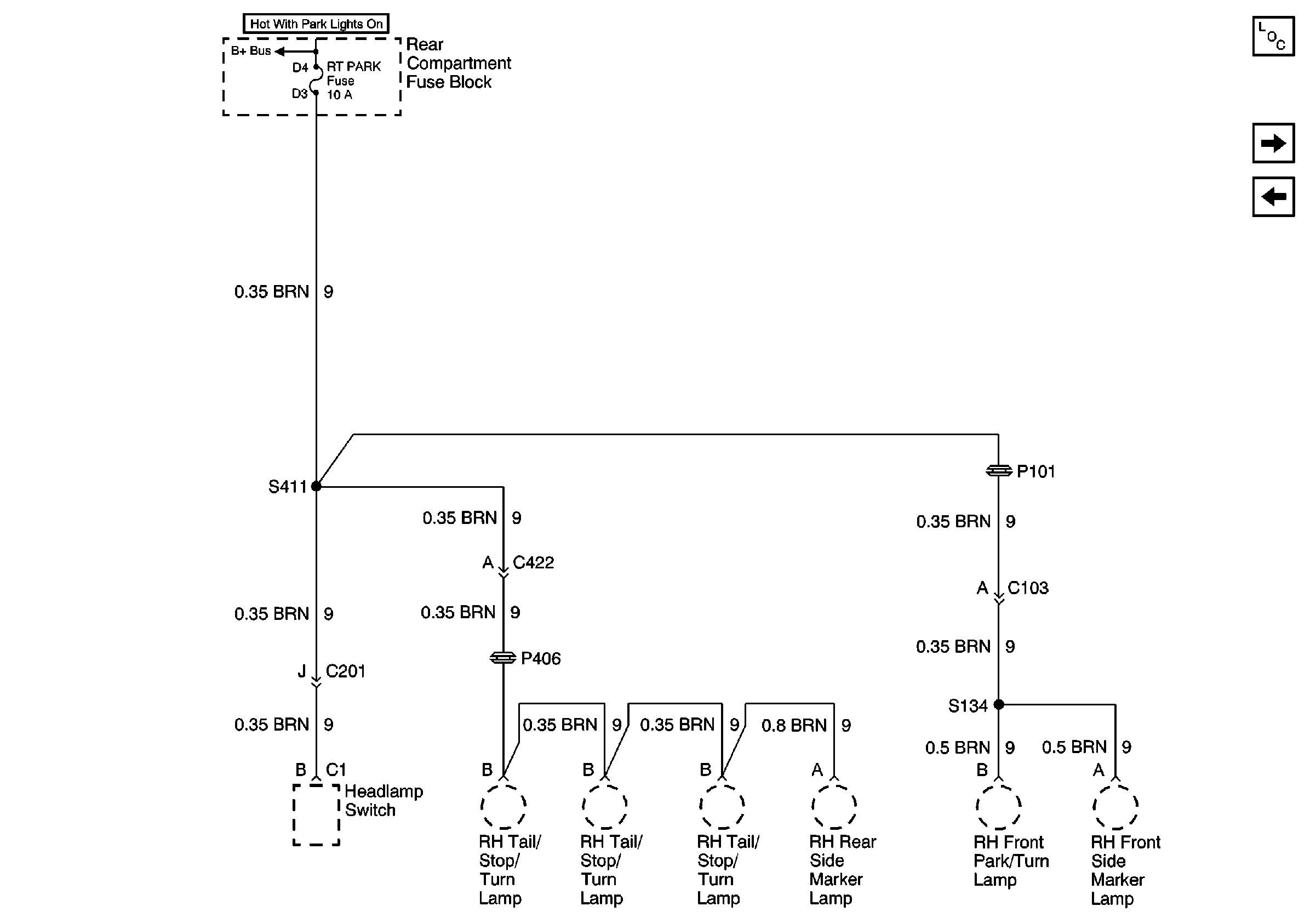

Figure 32:	RT PARK Fuse Power and Grounding Components LT PARK Fuse RSS, PZM, and AMP Fuses BODY 1 Fuse
Figure 33:	LT PARK Fuse Power and Grounding Components RADIO/PHONE Fuse RT PARK Fuse BODY 1 Fuse

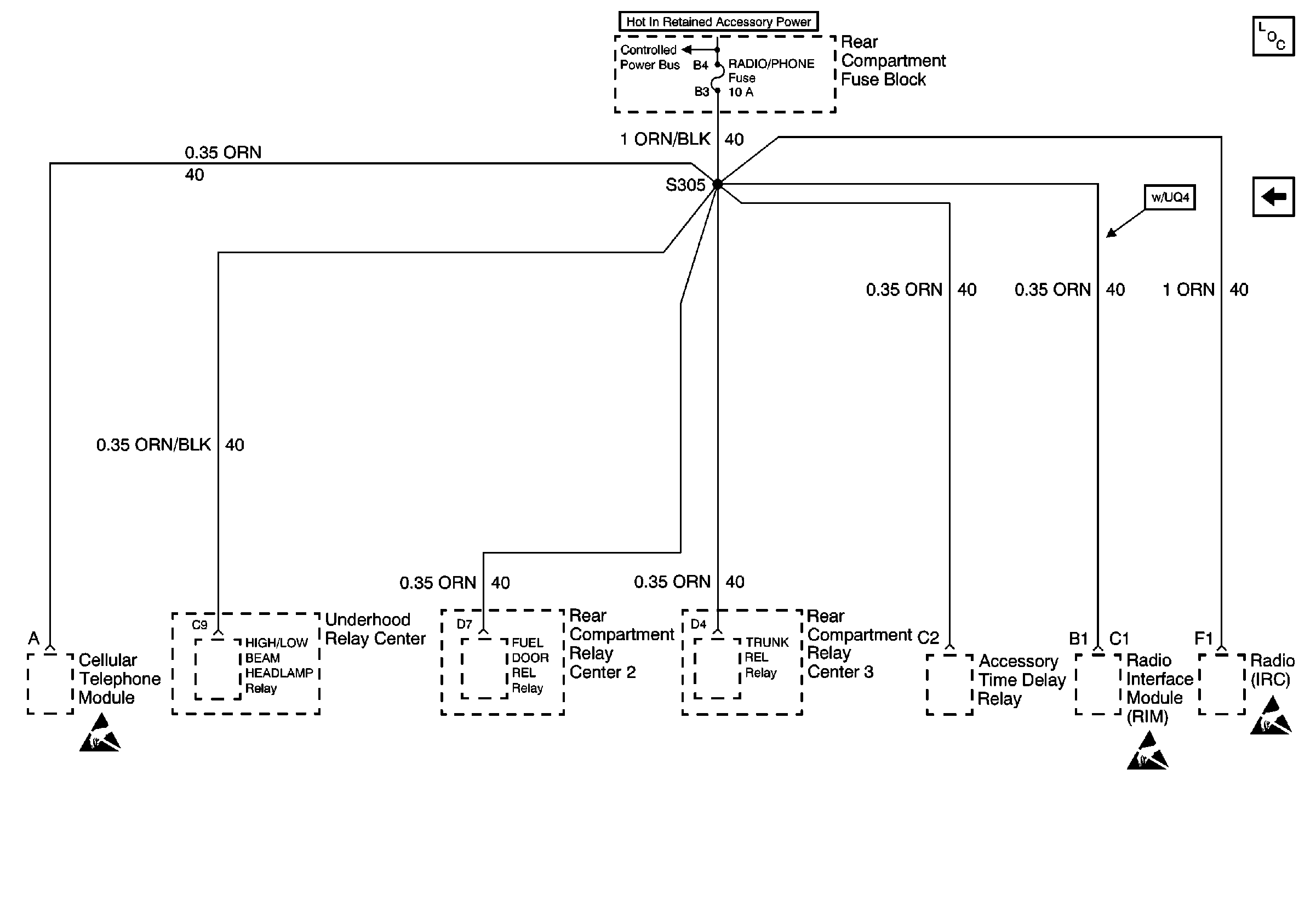

Figure 34:	RADIO/PHONE Fuse Power and Grounding Components LT PARK Fuse BODY 3 and INADVERT Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
