Ground Distribution Schematics. Cadillac Eldorado 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2000 🢒 Eldorado 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

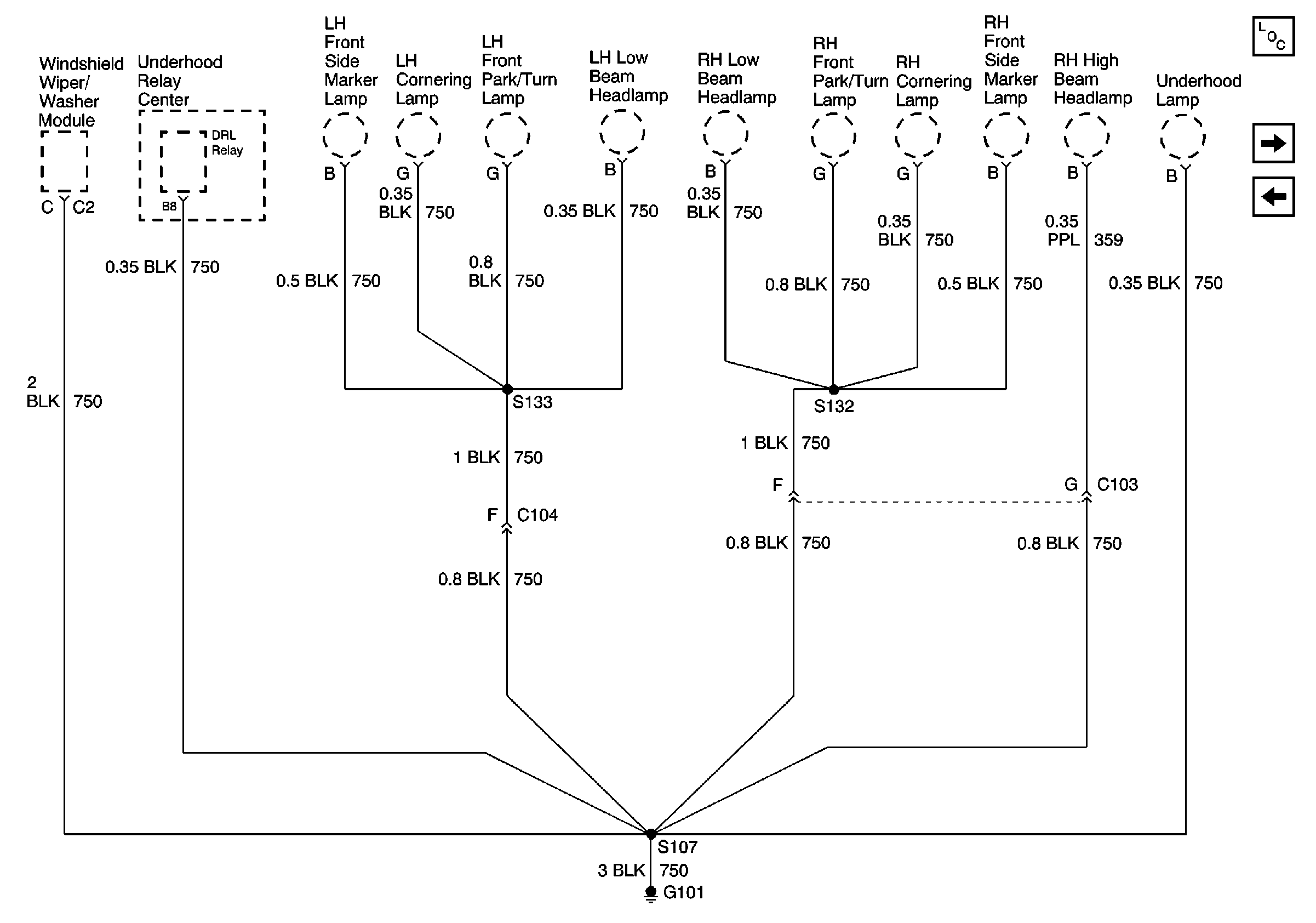

Figure 1:	G100 and G105 G101 Power and Grounding Components Battery Feeds

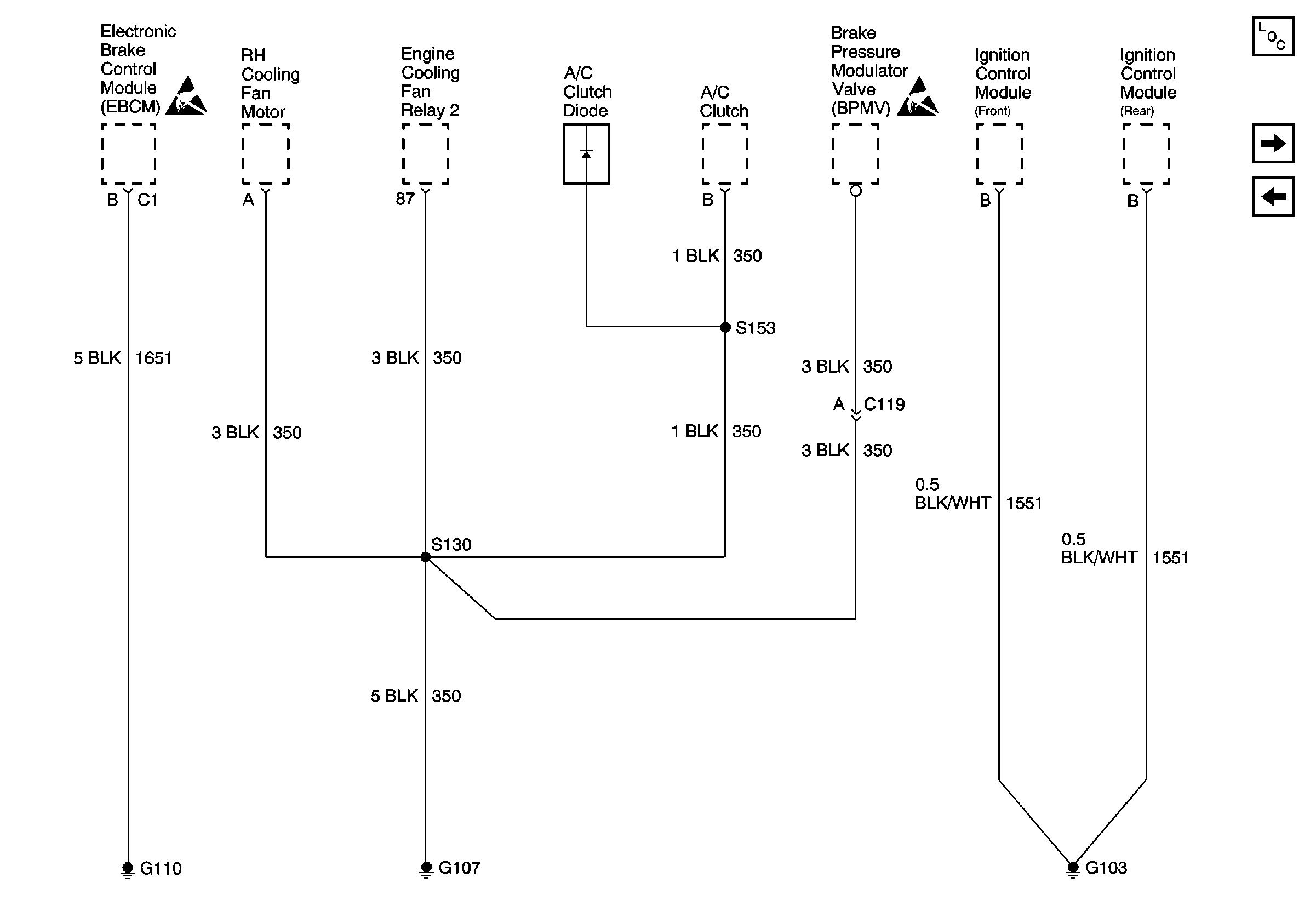

Figure 2:	G101 Power and Grounding Components G102 G100 and G105
Figure 3:	G102 Power and Grounding Components G103, G107, and G110 G101 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

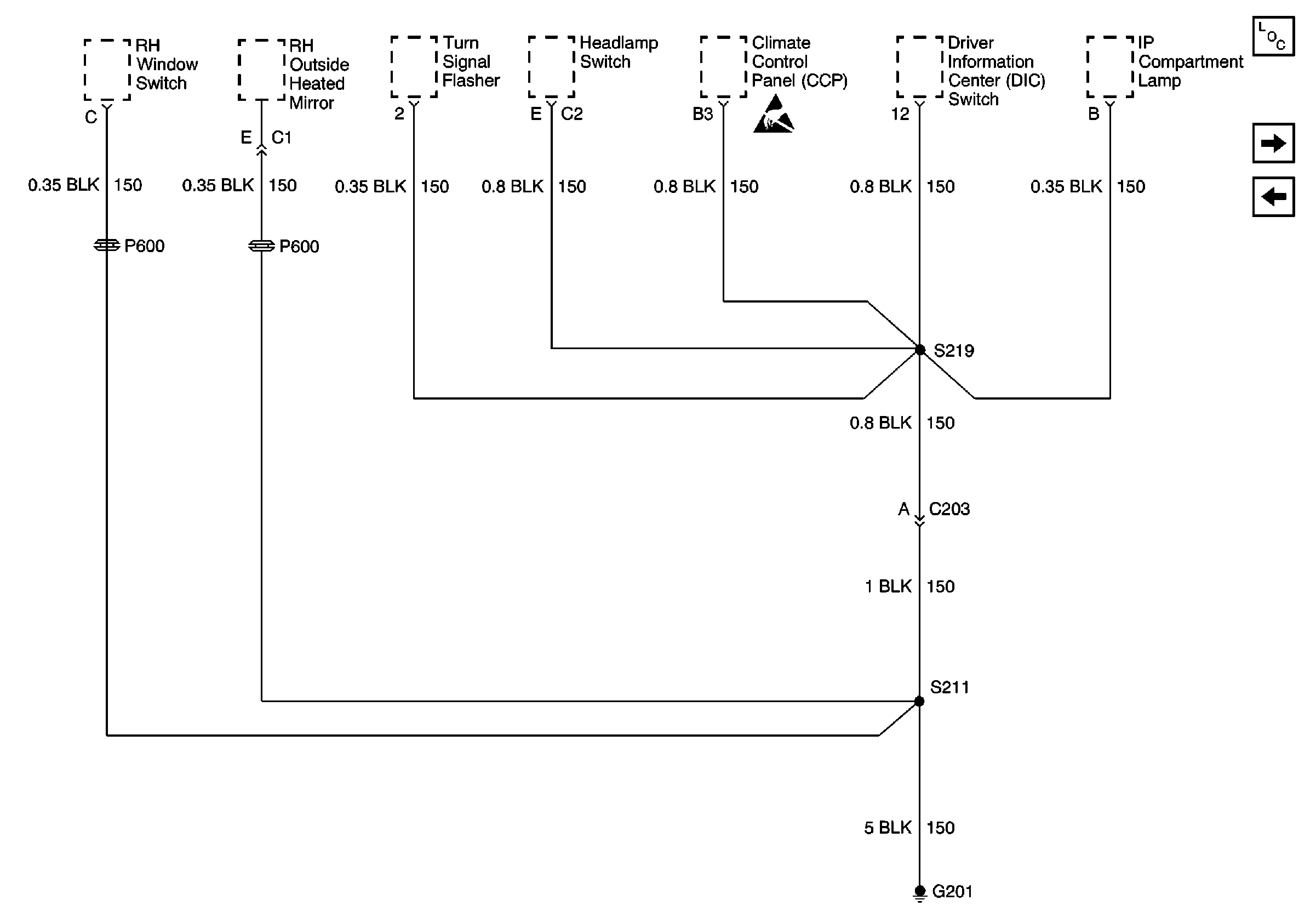

Figure 4:	G103, G107, and G110 Power and Grounding Components G201 G102 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 5:	G201 Power and Grounding Components Handling ESD Sensitive Parts Notice G203 G103, G107, and G110

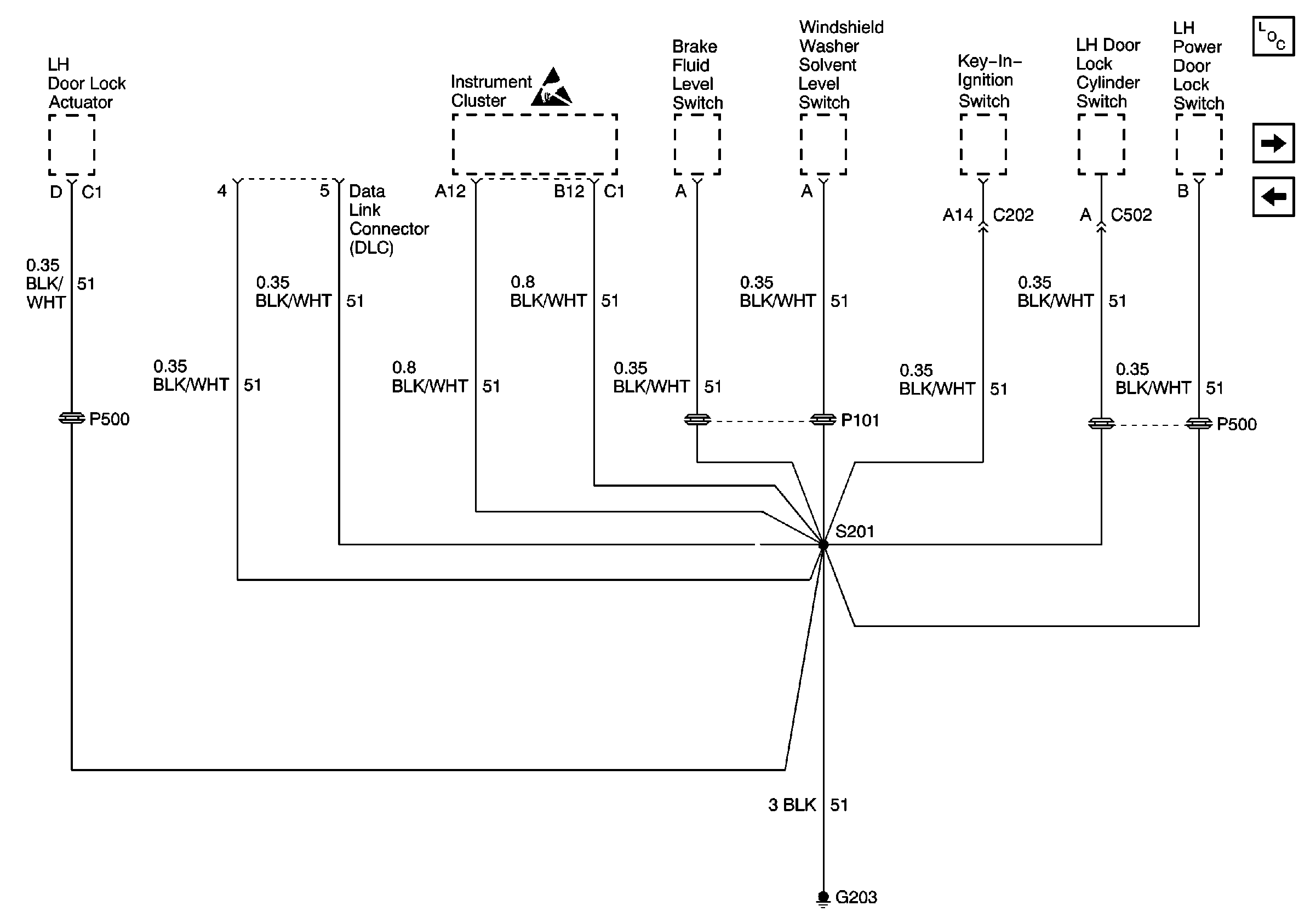

Figure 6:	G203 Handling ESD Sensitive Parts Notice Power and Grounding Components G204 G201
Figure 7:	G204 Power and Grounding Components G205 G203
Figure 8:	G205 Power and Grounding Components G302 (1 of 2) G204 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

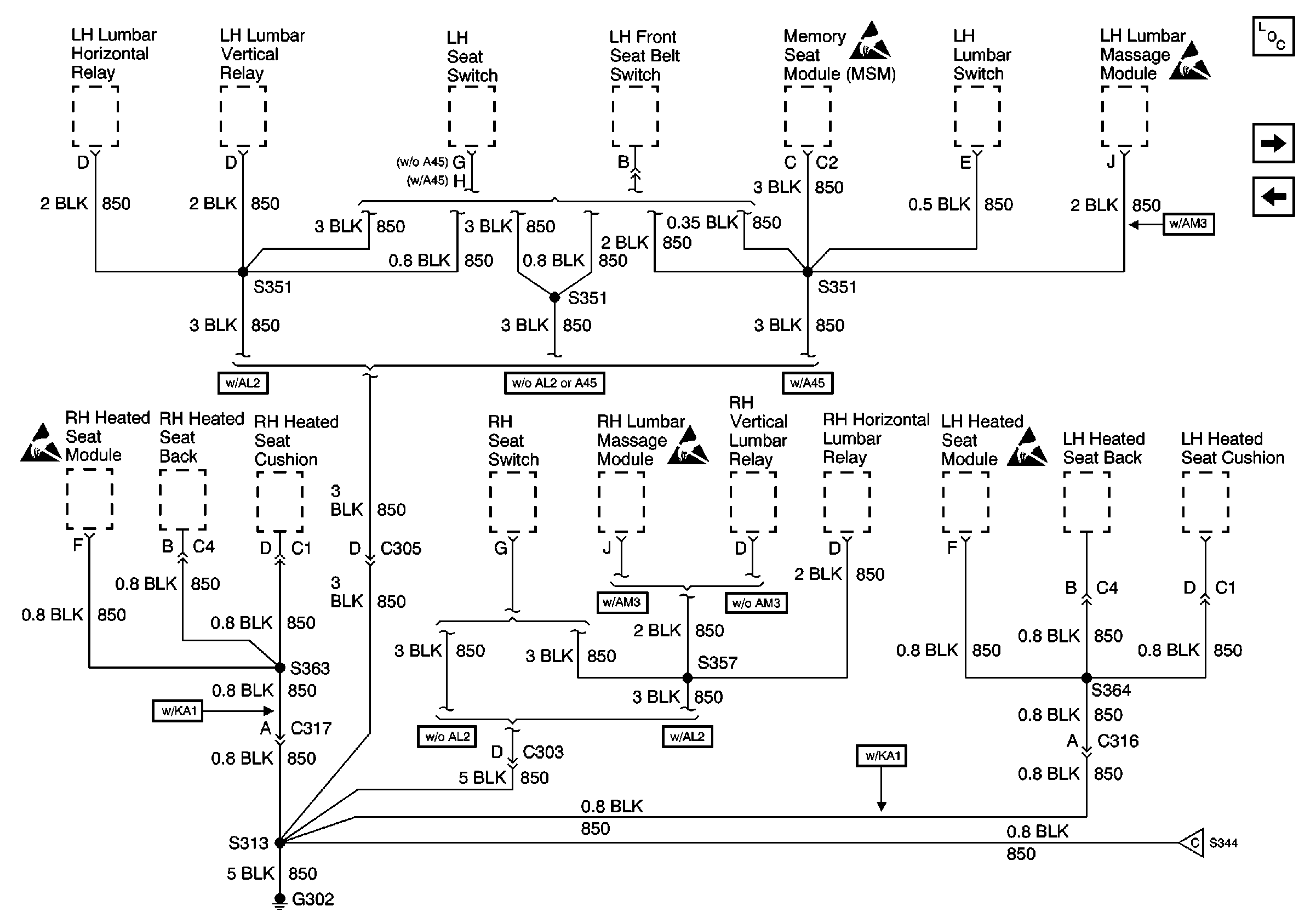

Figure 9:	G302 (1 of 2) Power and Grounding Components G302 (2 of 2) G205 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice G302 (2 of 2)

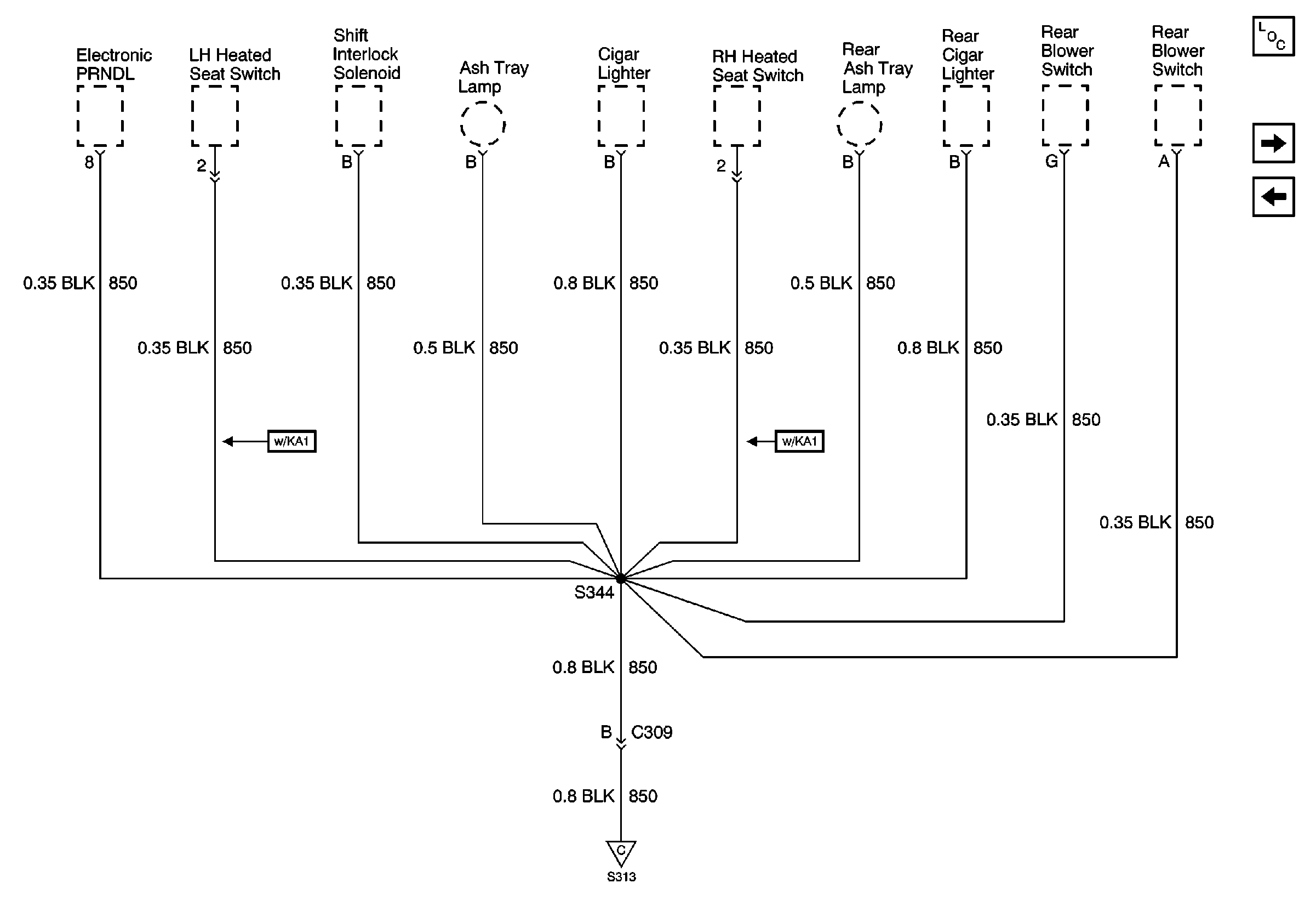

Figure 10:	G302 (2 of 2) Power and Grounding Components G400 G302 (1 of 2) G302 (1 of 2)
Figure 11:	G400 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Power and Grounding Components G401 (1 of 2) G302 (2 of 2)

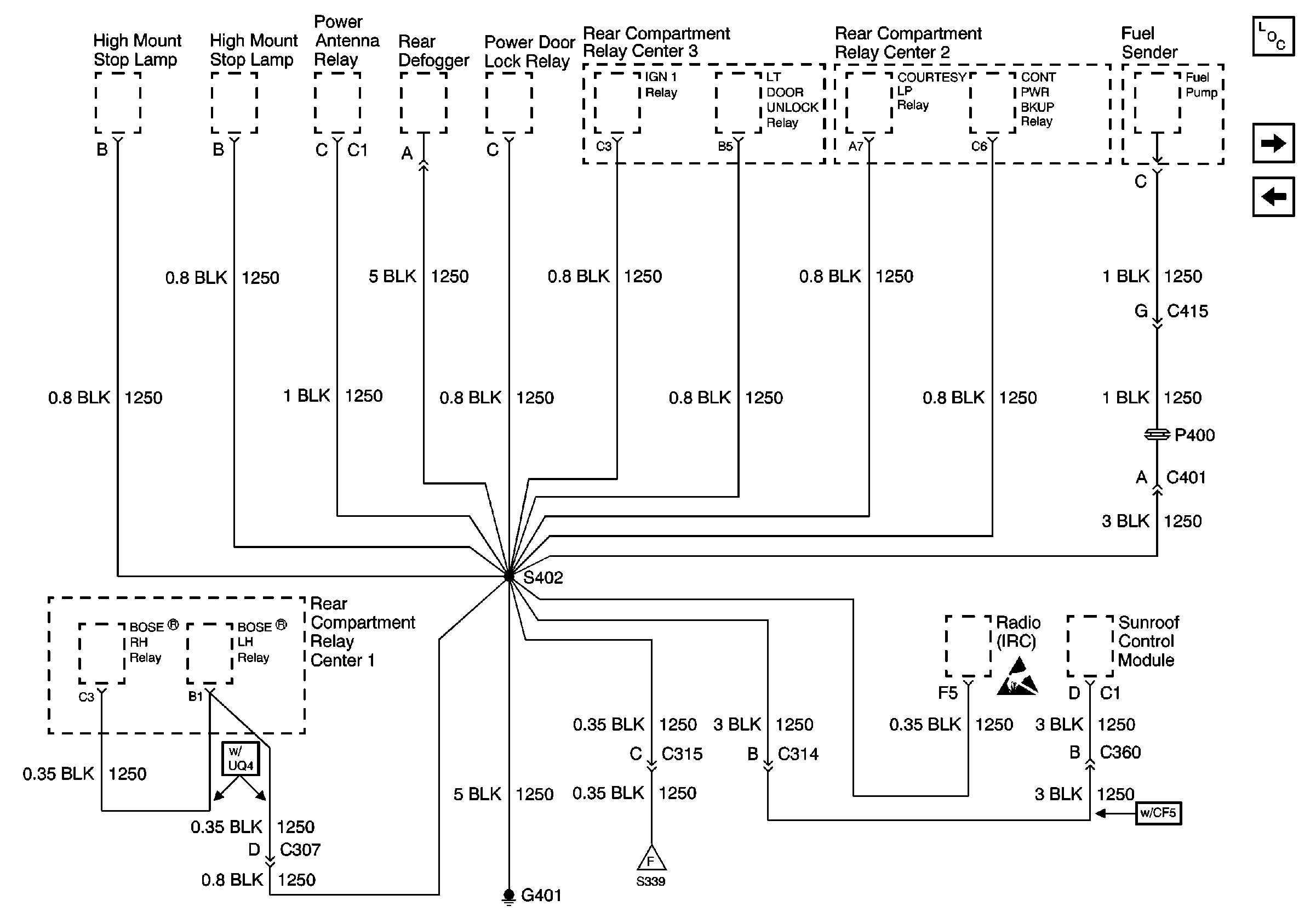

Figure 12:	G401 (1 of 2) Power and Grounding Components G401 (2 of 2) G400 Handling ESD Sensitive Parts Notice G401 (2 of 2)
Figure 13:	G401 (2 of 2) G401 (1 of 2) Power and Grounding Components G402 G401 (1 of 2)
Figure 14:	G402 Power and Grounding Components G306, G403, and G405 G401 (2 of 2)

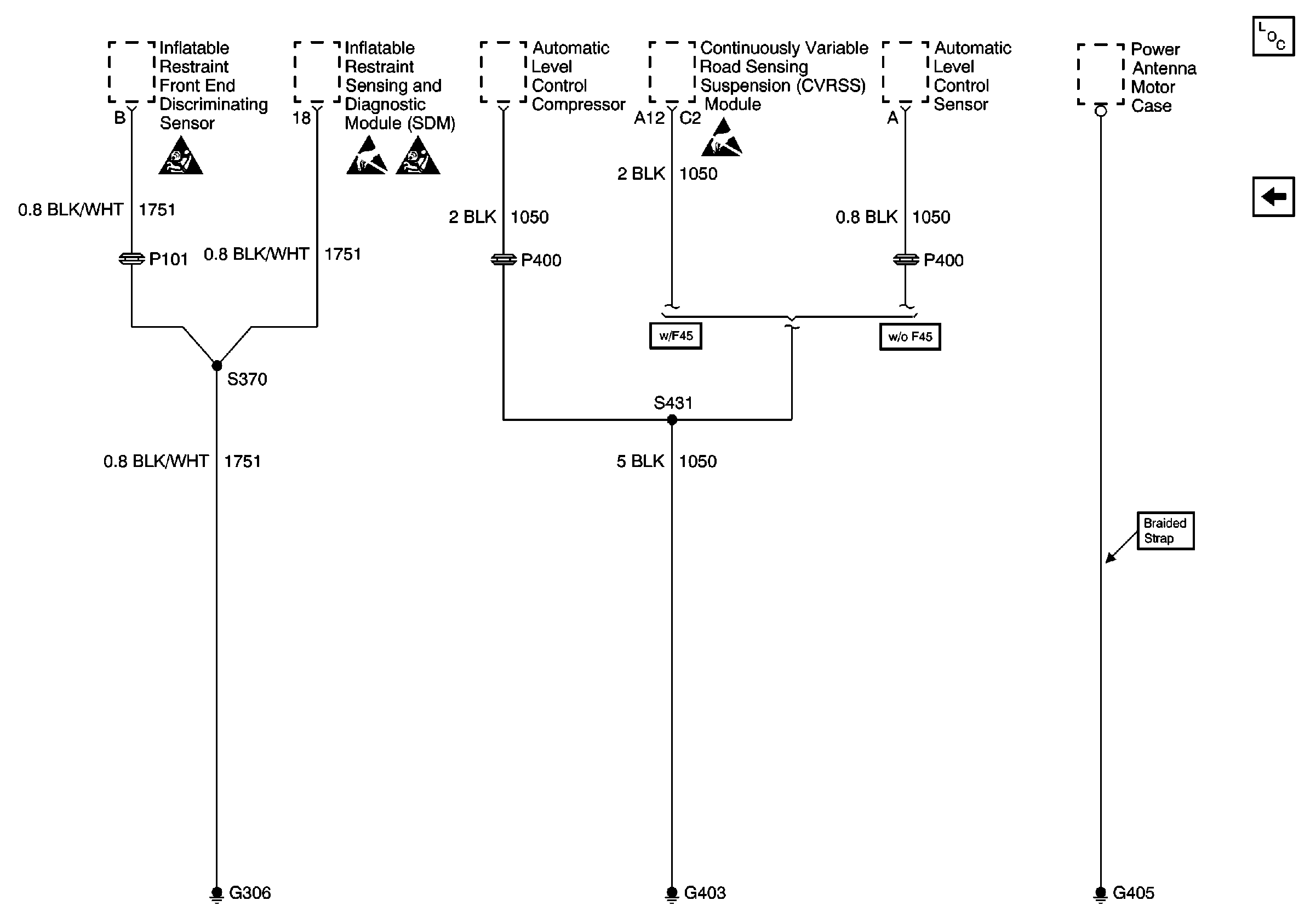

Figure 15:	G306, G403, and G405 Power and Grounding Components G402 Handling ESD Sensitive Parts Notice SIR Handling Caution SIR Handling Caution Handling ESD Sensitive Parts Notice
