Radio/Audio System Schematics. Cadillac Eldorado 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2001 🢒 Eldorado 🢒 Body and Accessories 🢒 Entertainment 🢒 Radio/Audio System Schematics

Figure 1:	Radio w/UW6 Master Electrical Component List Compact Disc (CD) Player w/UW6 and U1S Power Antenna Relay G401 (1 of 2) RADIO/PHONE Fuse BODY 3 and INADVERT Fuses Instrument Panel Backlighting Power, Ground, and Class 2 (2 of 2) Keypad and Mic Signals G400
Figure 2:	Compact Disc (CD) Player w/UW6 and U1S Master Electrical Component List Speakers w/UW6 Radio w/UW6 COMFORT Fuses G400 BODY 3 and INADVERT Fuses Entertainment Schematic Icons

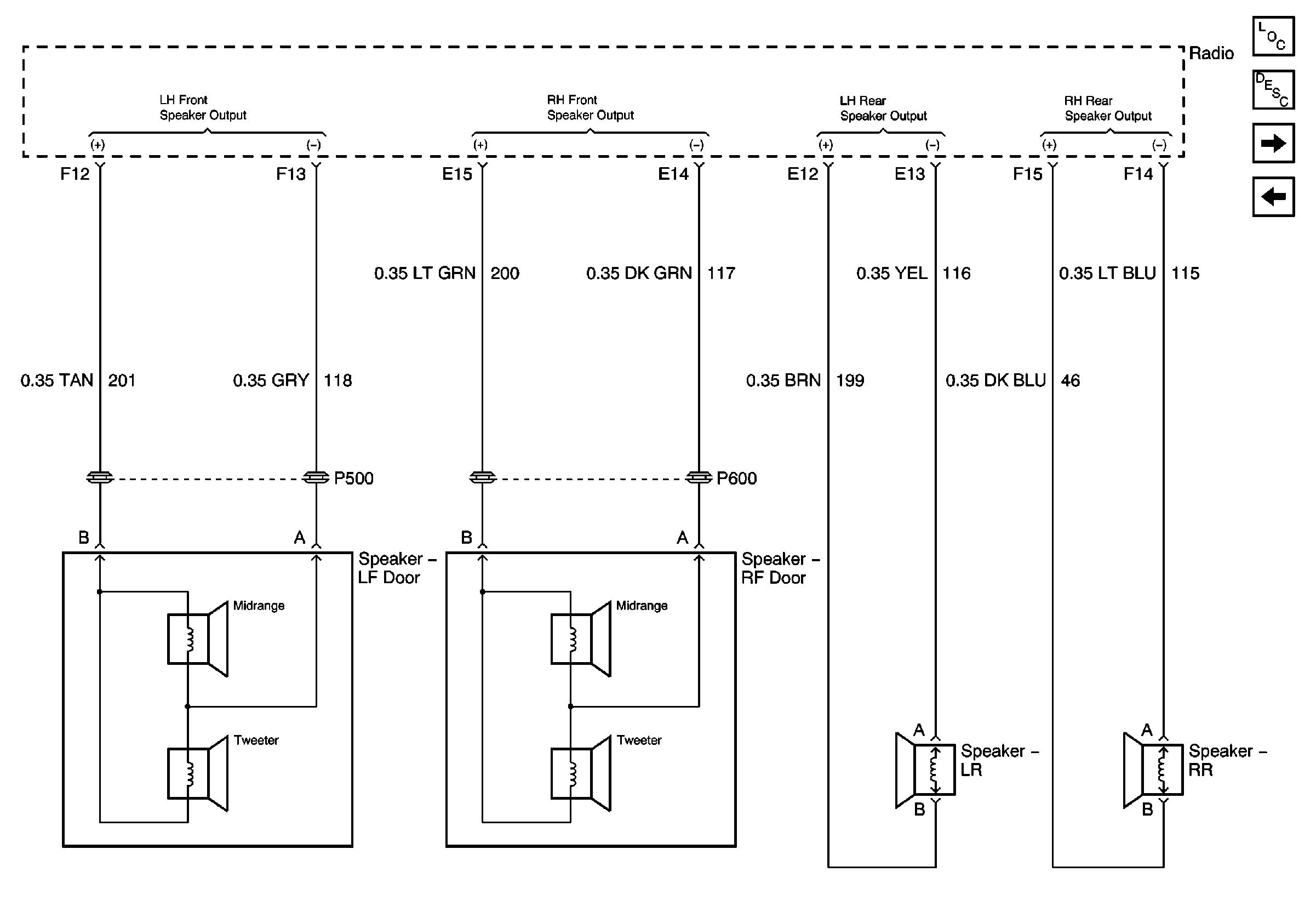

Figure 3:	Speakers w/UW6 Master Electrical Component List Radio and Radio Interface Module (RIM) w/UQ4 Compact Disc (CD) Player w/UW6 and U1S
Figure 4:	Radio and Radio Interface Module (RIM) w/UQ4 Master Electrical Component List Compact Disc (CD) Player w/UQ4 and U1S Speakers w/UW6 G401 (1 of 2) G400 RADIO/PHONE Fuse BODY 3 and INADVERT Fuses Instrument Panel Backlighting Power, Ground, and Class 2 (2 of 2) Power Antenna Relay Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons
Figure 5:	Compact Disc (CD) Player w/UQ4 and U1S Master Electrical Component List Radio Interface Module and Speakers w/UQ4 Radio and Radio Interface Module (RIM) w/UQ4 COMFORT Fuses G400 Keypad and Mic Signals Power, Ground and Class 2 (1 of 2) BODY 3 and INADVERT Fuses Entertainment Schematic Icons
Figure 6:	Radio Interface Module and Speakers w/UQ4 Master Electrical Component List Compact Disc (CD) Player w/UQ4 and U1S G401 (1 of 2) G400 BODY 3 and INADVERT Fuses Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons
