Entertainment/Communication Component Views. Cadillac SLS 2008

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2008 🢒 SLS 🢒 Driver Information and Entertainment 🢒 Cellular, Entertainment, and Navigation 🢒 Entertainment/Communication Component Views

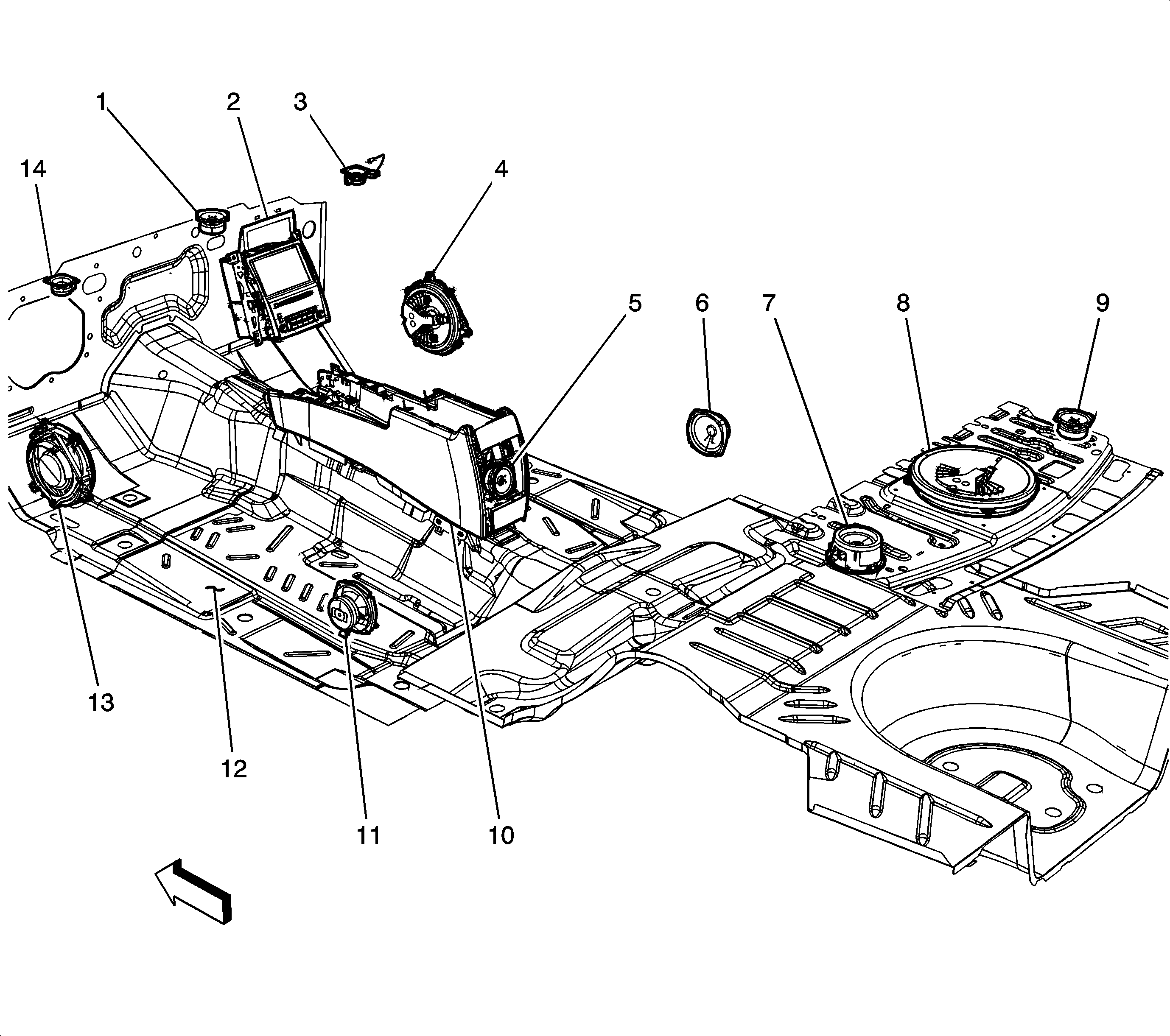

Figure 1:

Radio and Speaker


(1)	Speaker - Central Panel
(2)	Radio
(3)	Speaker - RF Panel
(4)	Speaker - RF Door
(5)	Speaker - Rear Panel
(6)	Speaker - RR Door
(7)	Speaker - LR
(8)	Speaker - Rear Subwoofer
(9)	Speaker - RR

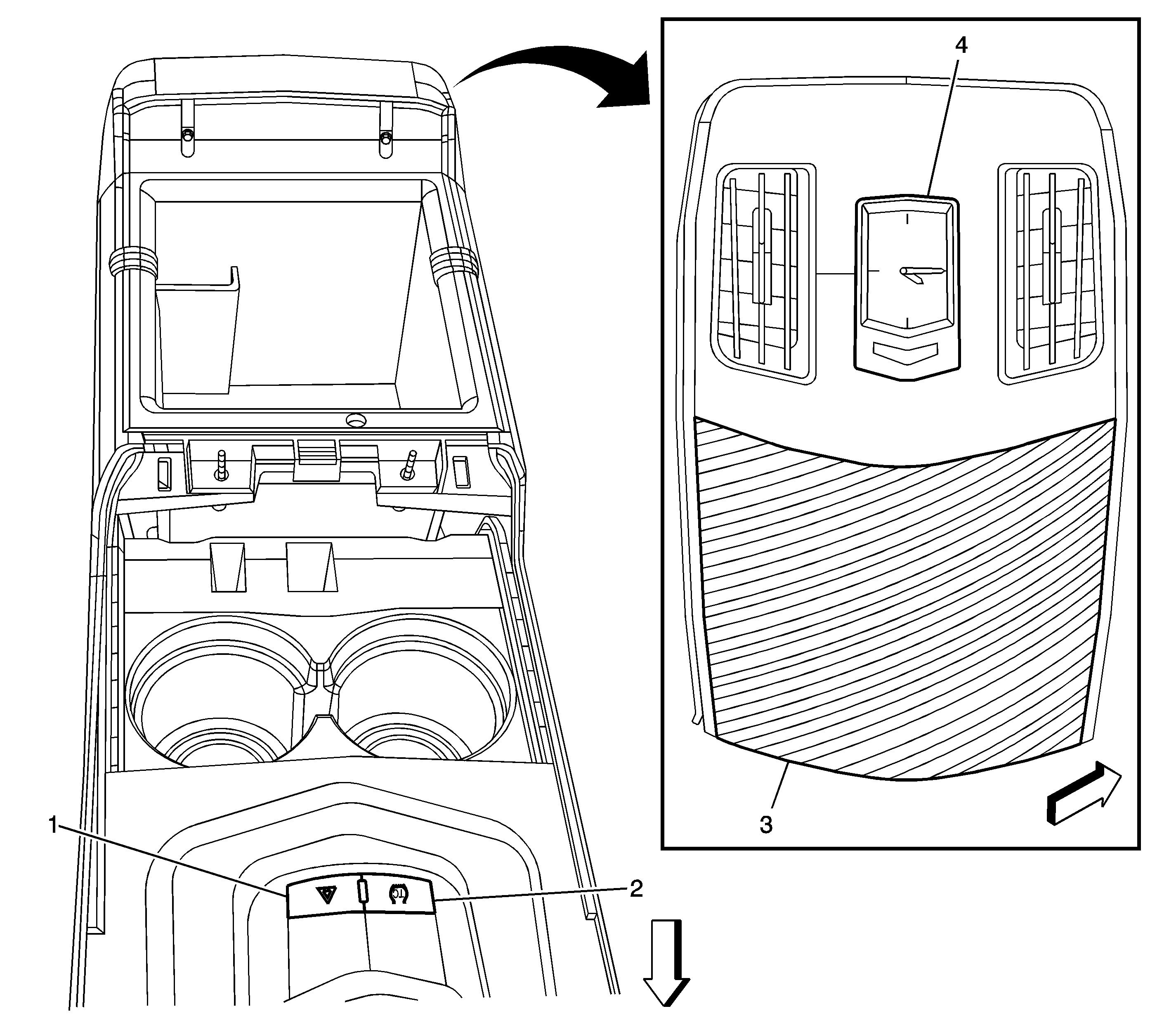

(10)	Floor Console
(11)	Speaker - LR Door
(12)	Floor Panel
(13)	Speaker - LF Door
(14)	Speaker - LF Panel

Figure 2:

Console Components


(1)	Hazard Warning Lamp Switch
(2)	Traction Control Switch
(3)	Speaker - Center
(4)	Clock Assembly

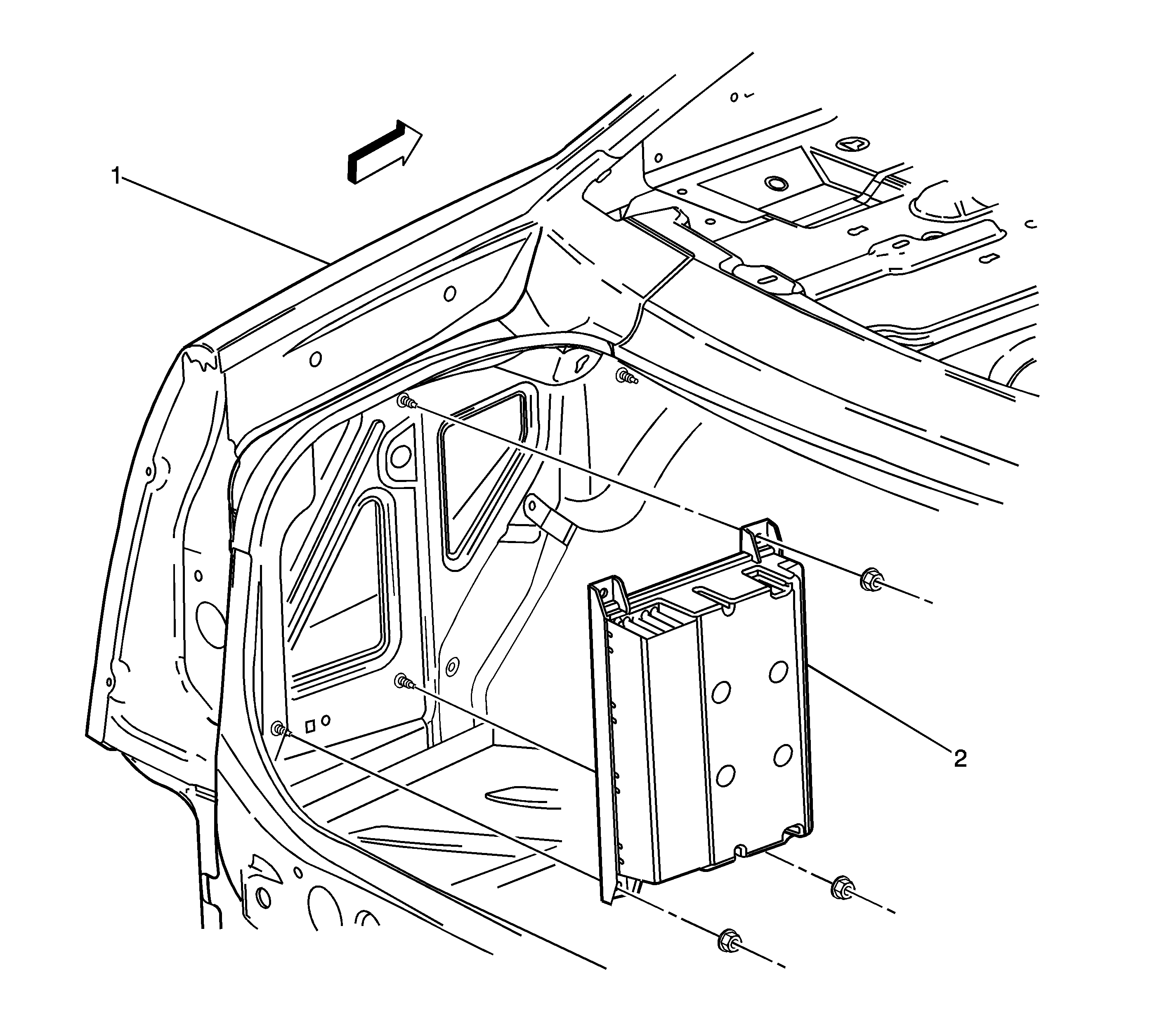

Figure 3:

Audio Amplifier (UY5)


(1)	LR Quarter
(2)	Audio Amplifier

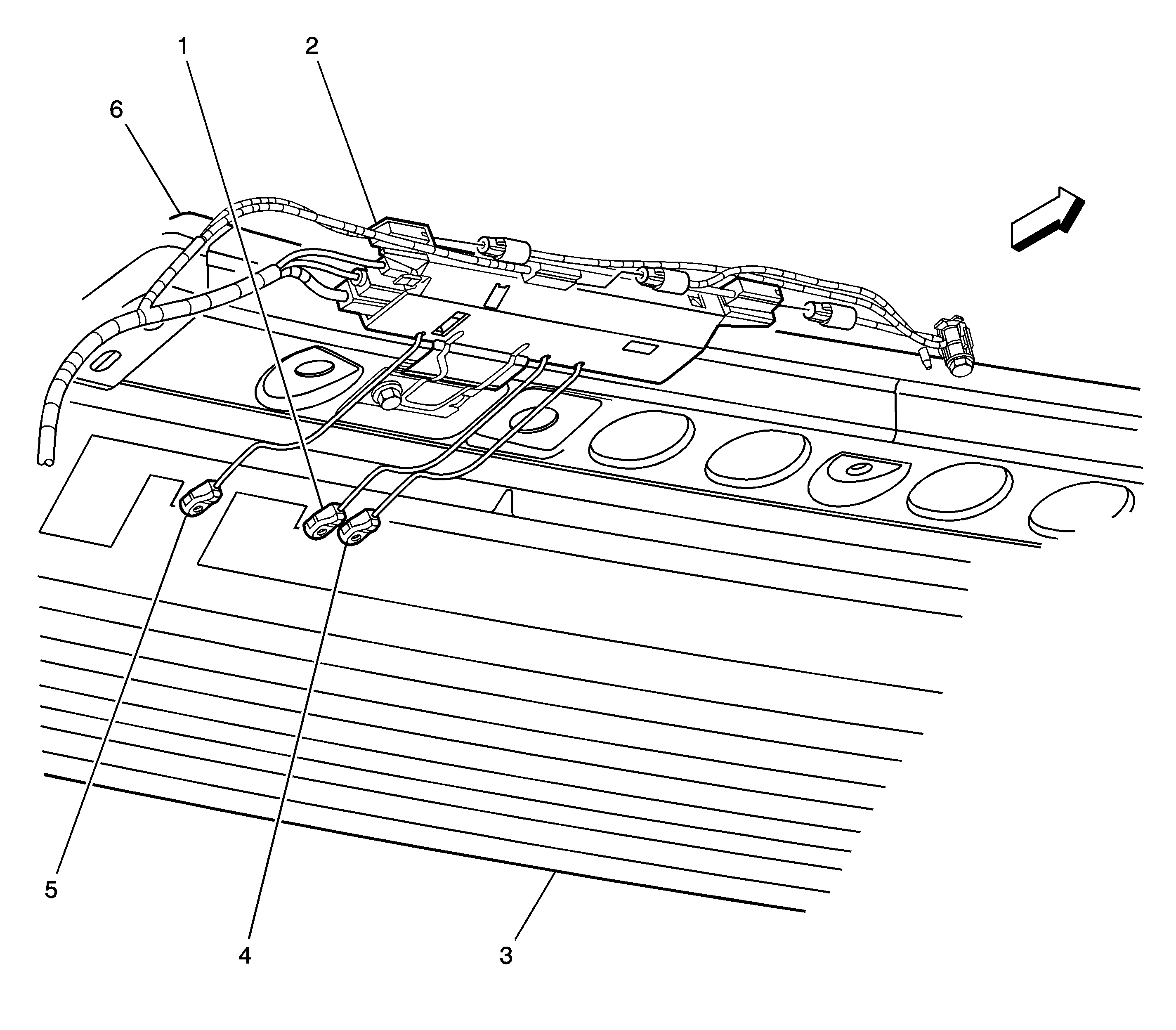

Figure 4:

Top of Rear Window (UE1/U2K)


(1)	VICS-FM3 Antenna
(2)	Radio Antenna Module
(3)	Rear Window Defogger Grid
(4)	AM/FM 1 Antenna
(5)	FM 2 Antenna
(6)	Roof Rail

Figure 5:

Headliner Components


(1)	Front Roof Courtesy / Reading Lamp
(2)	Keyless Entry System Antenna - Headliner
(3)	Sunroof Control Module (CF5)
(4)	Rear Roof Courtesy / Reading Lamp
(5)	Rear Parking Assist (RPA) Display (UD7)
(6)	Sunroof Assembly (CF5)
(7)	Top of Headliner
(8)	Noise Compensation Microphone (UY5)
(9)	Sunroof Switch

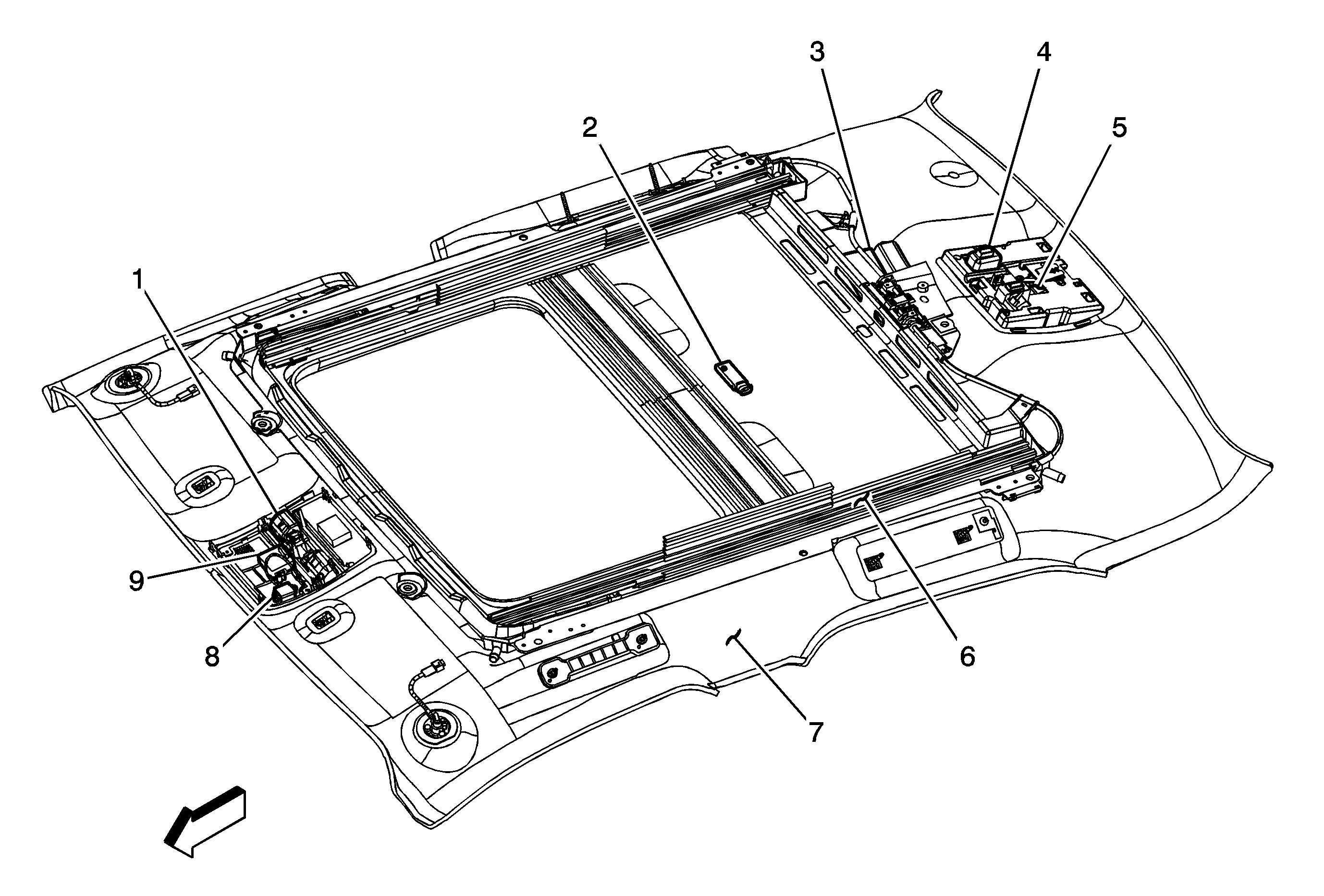

Figure 6:

Steering Wheel and Column


(1)	Telescopic Drive Wheel
(2)	Wheel Angle Sensor
(3)	Turn Signal/Multifunction Switch
(4)	Windshield Wiper/Washer Switch Assembly
(5)	Navigation
(6)	Volume Control
(7)	Answer/Off, Mute
(8)	Select the next source to Play/Preset Station or select next Source/Steering Wheel Heating
(9)	Search for Broadcasting Station
(10)	Cruise Cancel
(11)	Steering Wheel
(12)	Tilt/Telescope Switch
(13)	Tilt Actuator
(14)	C202

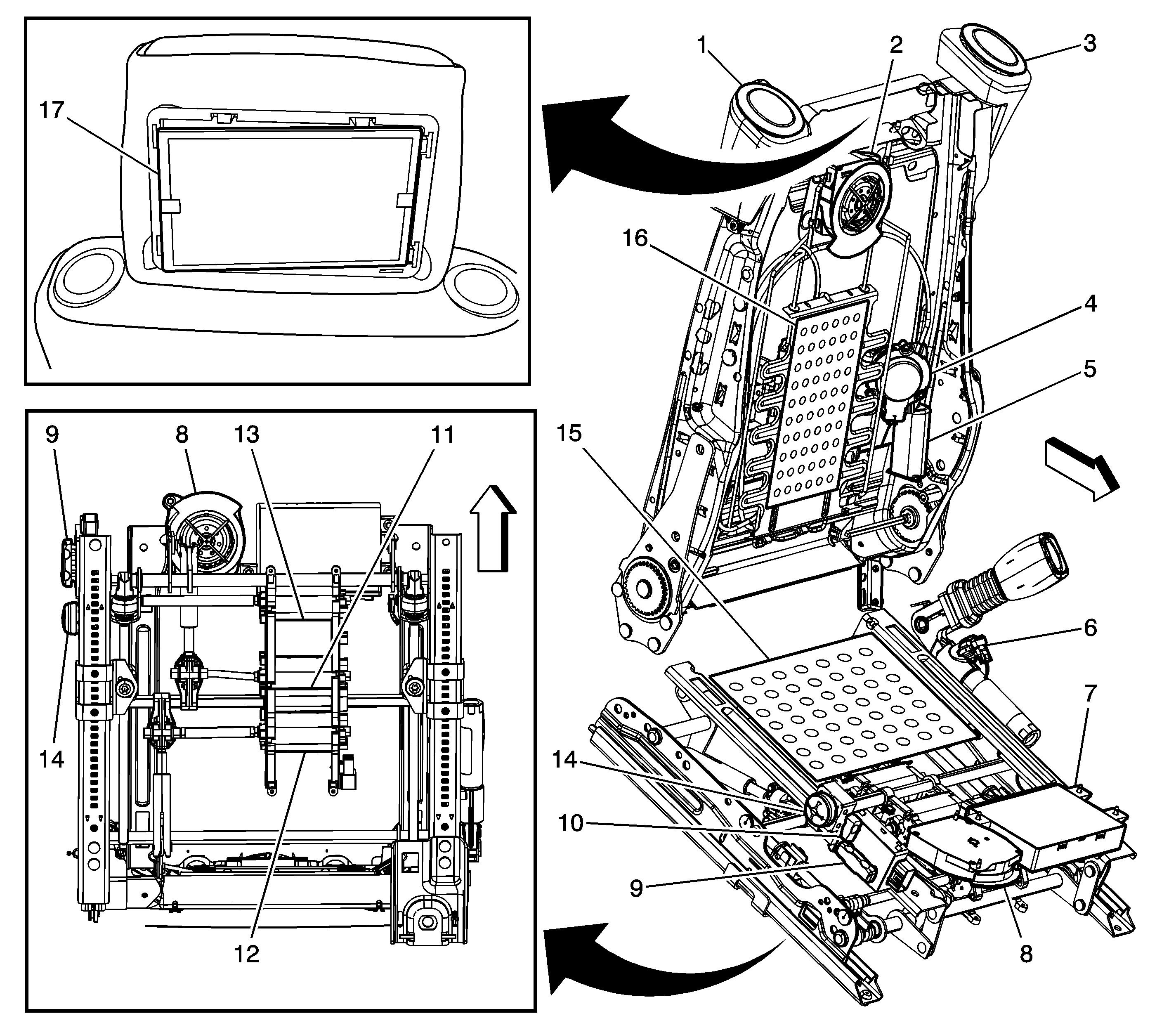

Figure 7:

Driver Seat Components


(1)	Lumbar Support Motor Assembly, Horizontal Motor and Position Sensor - Driver (AL2)
(2)	Right Speaker - Drive Seat (UY5)
(3)	Seatback Cooled Seat Blower Motor - Driver (KB6)
(4)	Right Speaker - Driver Seat (UY5)
(5)	Lumbar Support Motor Assembly, Vertical Motor and Position Sensor - Driver (AL2)
(6)	Heated Seat Element - Driver Back (KA1)
(7)	Heated Seat Element - Driver Cushion (KA1)
(8)	Lumbar Adjuster Switch - Driver (AL2)
(9)	Seat Tilt Adjuster Switch
(10)	Seat Adjuster Switch - Driver
(11)	Cushion Cooled Seat Blower Motor - Driver (KB6)
(12)	Seat Rear Vertical Motor - Driver Seat
(13)	Seat Rear Vertical Position Sensor - Driver (A45)
(14)	Seat Front Vertical Position Sensor - Driver (A45)
(15)	Seat Horizontal Motor - Driver Seat
(16)	Seat Horizontal Position Sensor - Driver (A45)
(17)	Seat Front Vertical Motor - Driver Seat
(18)	Memory Seat Module (A45)
(19)	Safety Belt Pretension
(20)	Seat Tilt Adjuster Motor Driver (w/o A45) or Seat Tilt Motor Assembly (A45)
(21)	Driver Seat Headrest Display

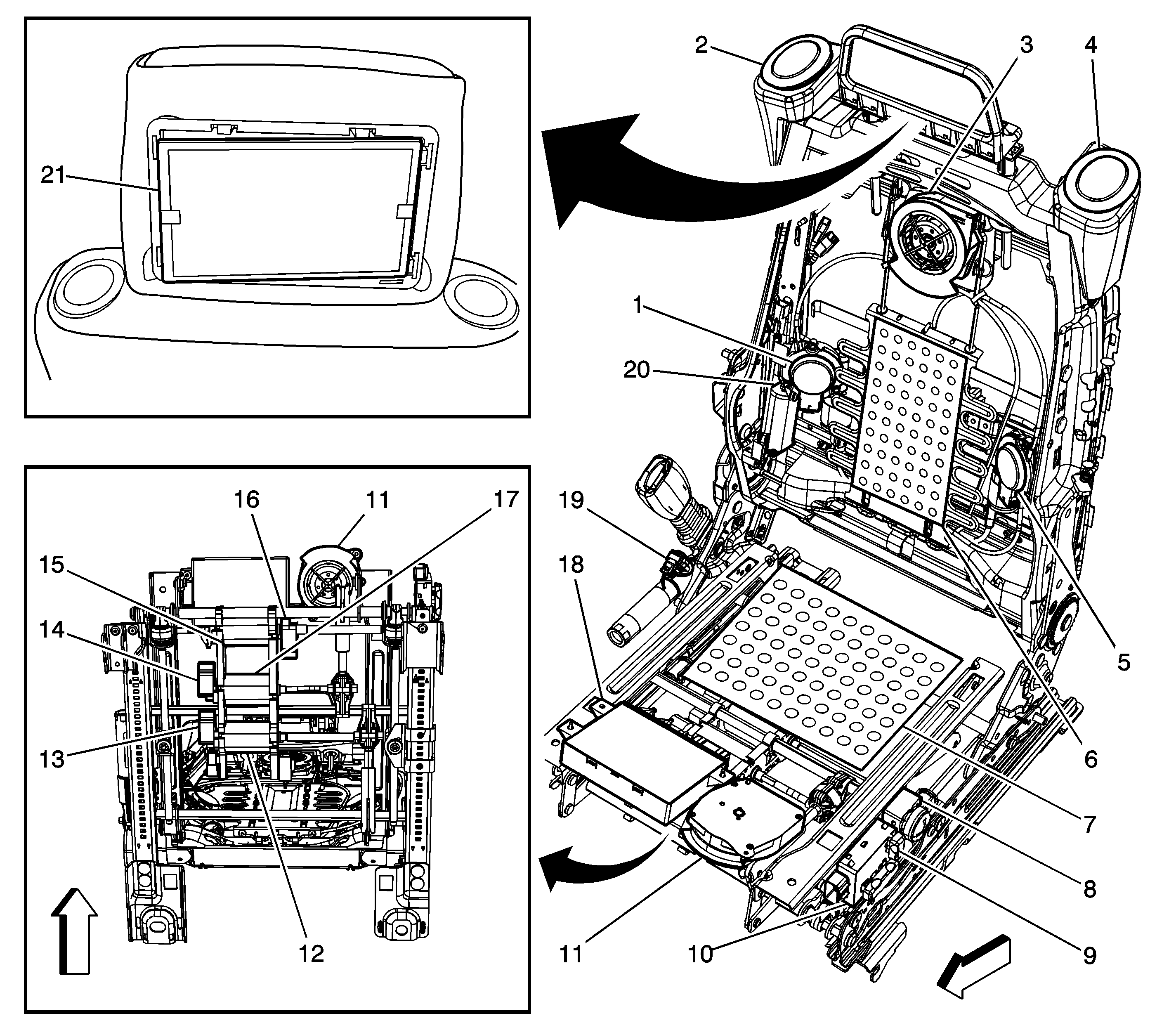

Figure 8:

Front Passenger Seat Components


(1)	Right Speaker - Front Passenger Seat (UY5)
(2)	Seatback Cooled Seat Blower Motor - Front Passenger (KB6)
(3)	Left Speaker - Passenger Seat (UY5)
(4)	Lumbar Horizontal Motor - Passenger Seat
(5)	Seat Tilt Adjuster Motor - Passenger Seat
(6)	Seat Belt Pretensioner
(7)	Climate Control Seat Module (KA1/KB6)
(8)	Seatback Cooled Seat Blower Motor - Front Passenger (KB6)
(9)	Seat Adjuster Switch (Passenger)
(10)	Seat Tilt Adjuster Switch
(11)	Seat Front Vertical Motor - Passenger Seat
(12)	Seat Rear Vertical Motor - Passenger Seat
(13)	Seat Horizontal Adjuster Motor - Passenger Seat
(14)	Lumbar Adjuster Switch - Passenger (AL2)
(15)	Heated Seat Element - Passenger Cushion (KA1)
(16)	Heated Seat Element - Passenger Seatback (KA1)
(17)	Front Passenger Seat Headrest Display

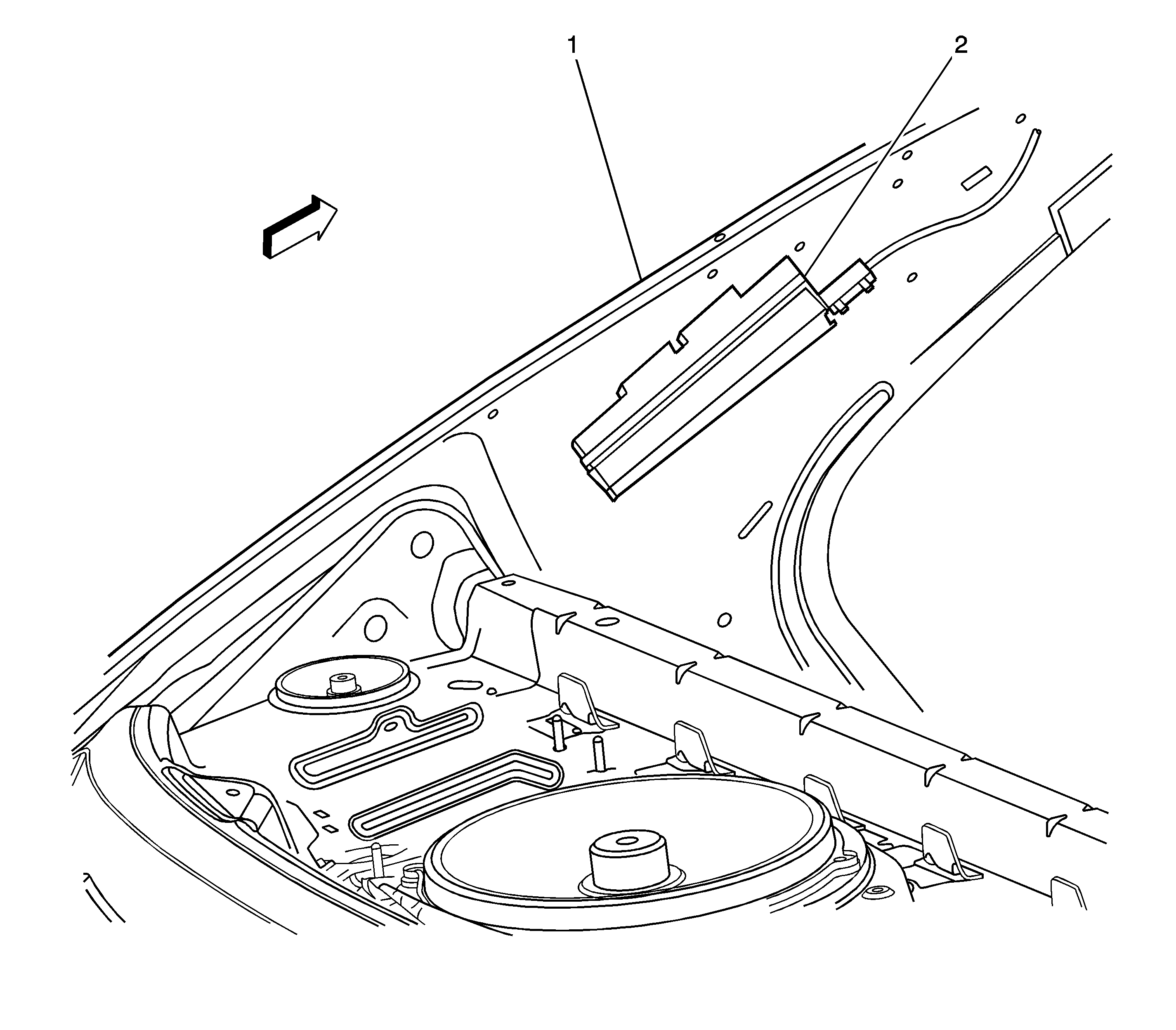

Figure 9:

Television Module


(1)	Television Module
(2)	Rear Compartment

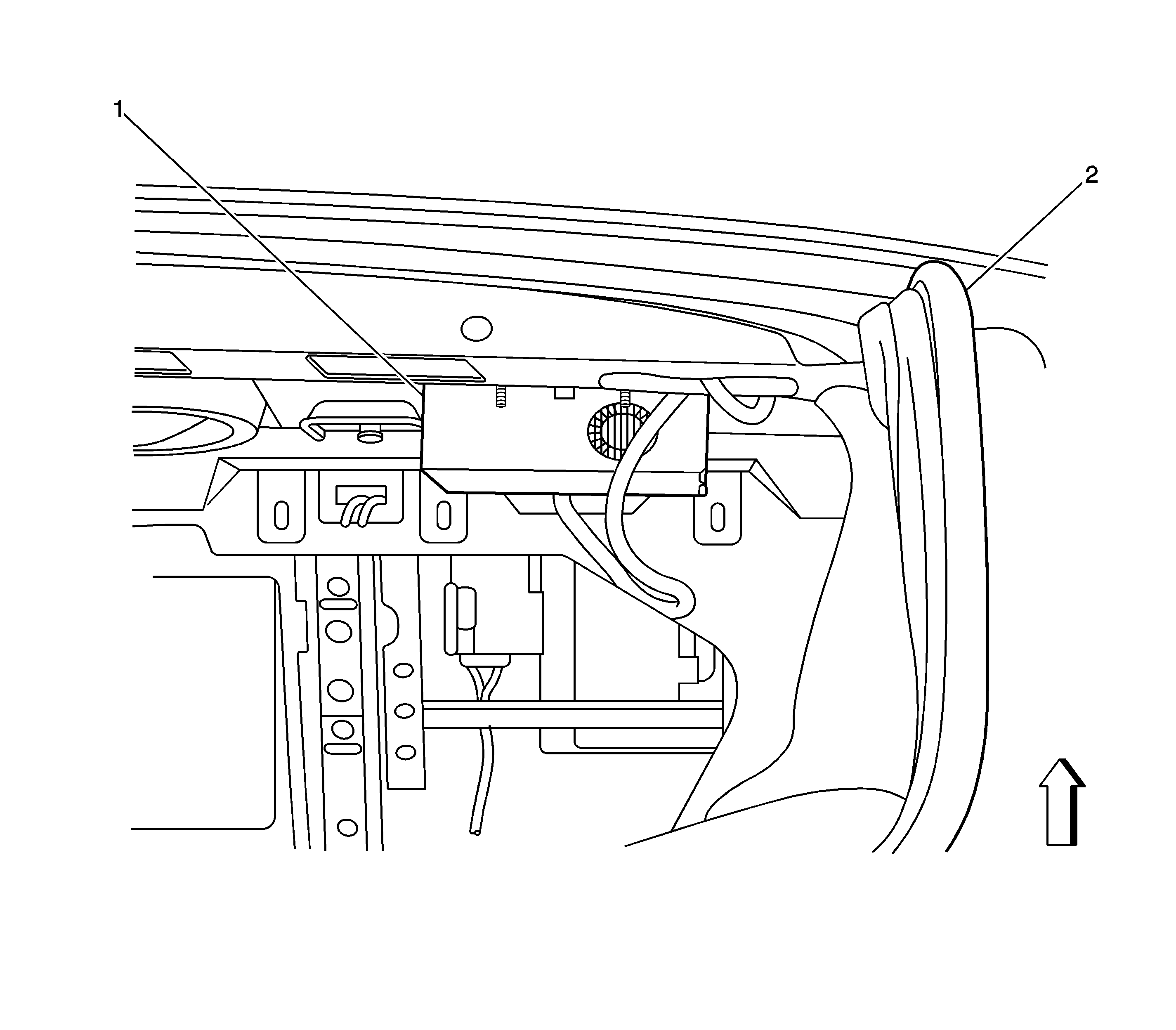

Figure 10:

TV Antenna Module


(1)	C-Pillar
(2)	TV Antenna Module

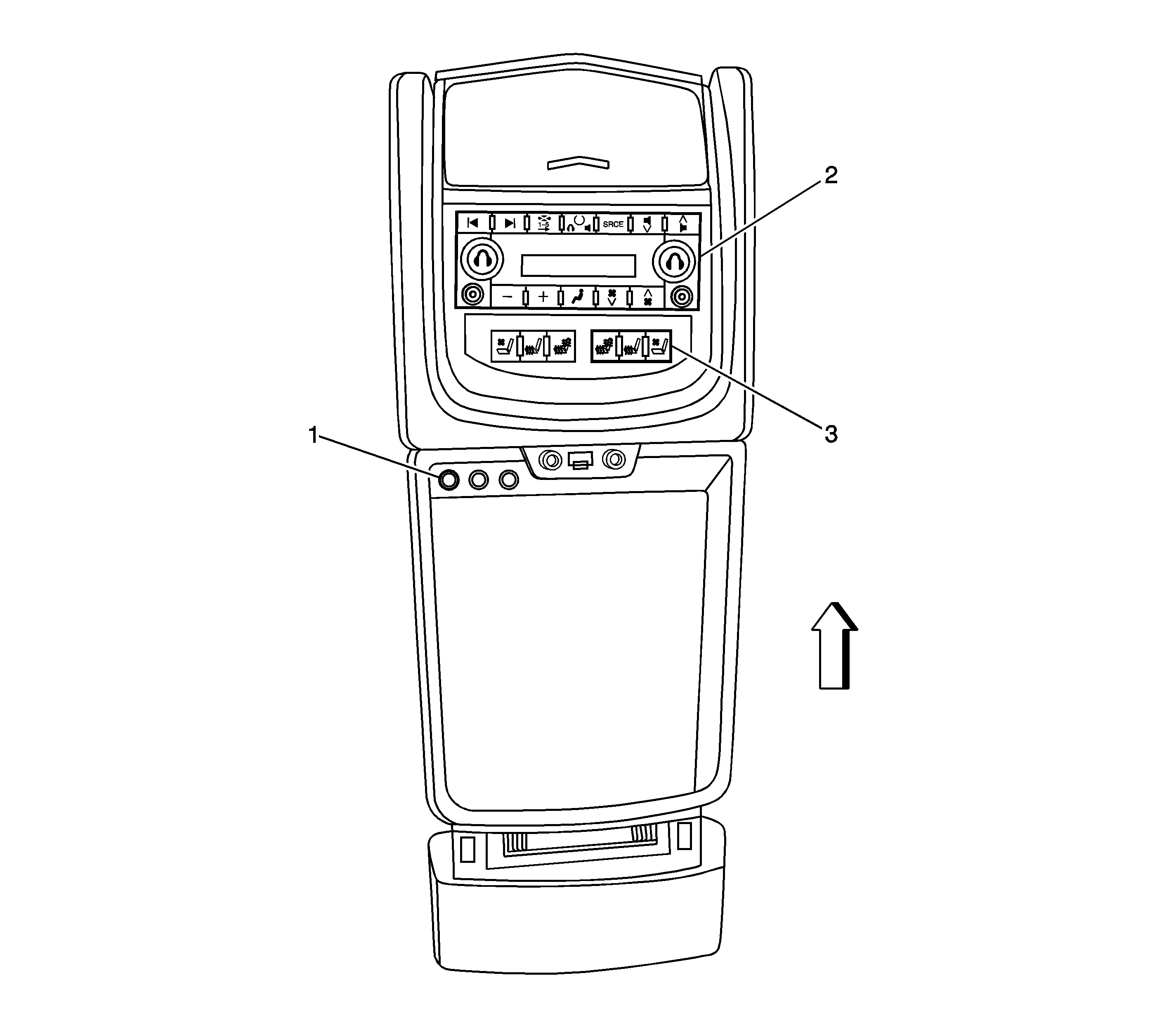

Figure 11:

Rear Instrument Console


(1)	Audio/Video Input Jacks
(2)	Control Panel - Rear Seat Entertainment
(3)	Seat A/C Switch - Rear Console

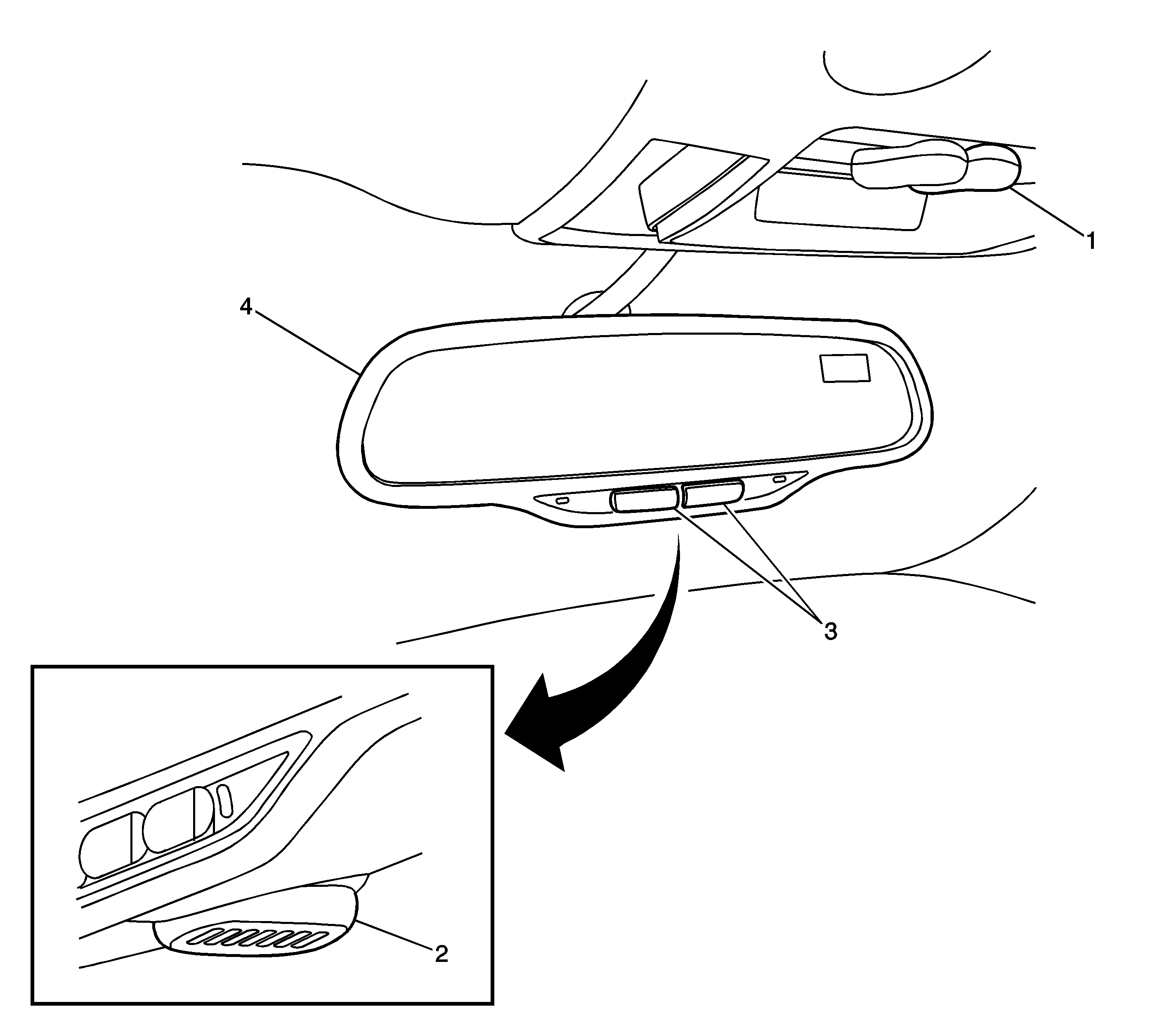

Figure 12:

Top of the Windshield


(1)	Sunroof Switch (CF5)
(2)	Cellular Microphone
(3)	Button Assembly
(4)	Inside Rearview Mirror
