Ground Distribution Schematics. Cadillac SRX 2004

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Engine 🢒 Engine Controls - 4.6L (LH2) 🢒 Ground Distribution Schematics

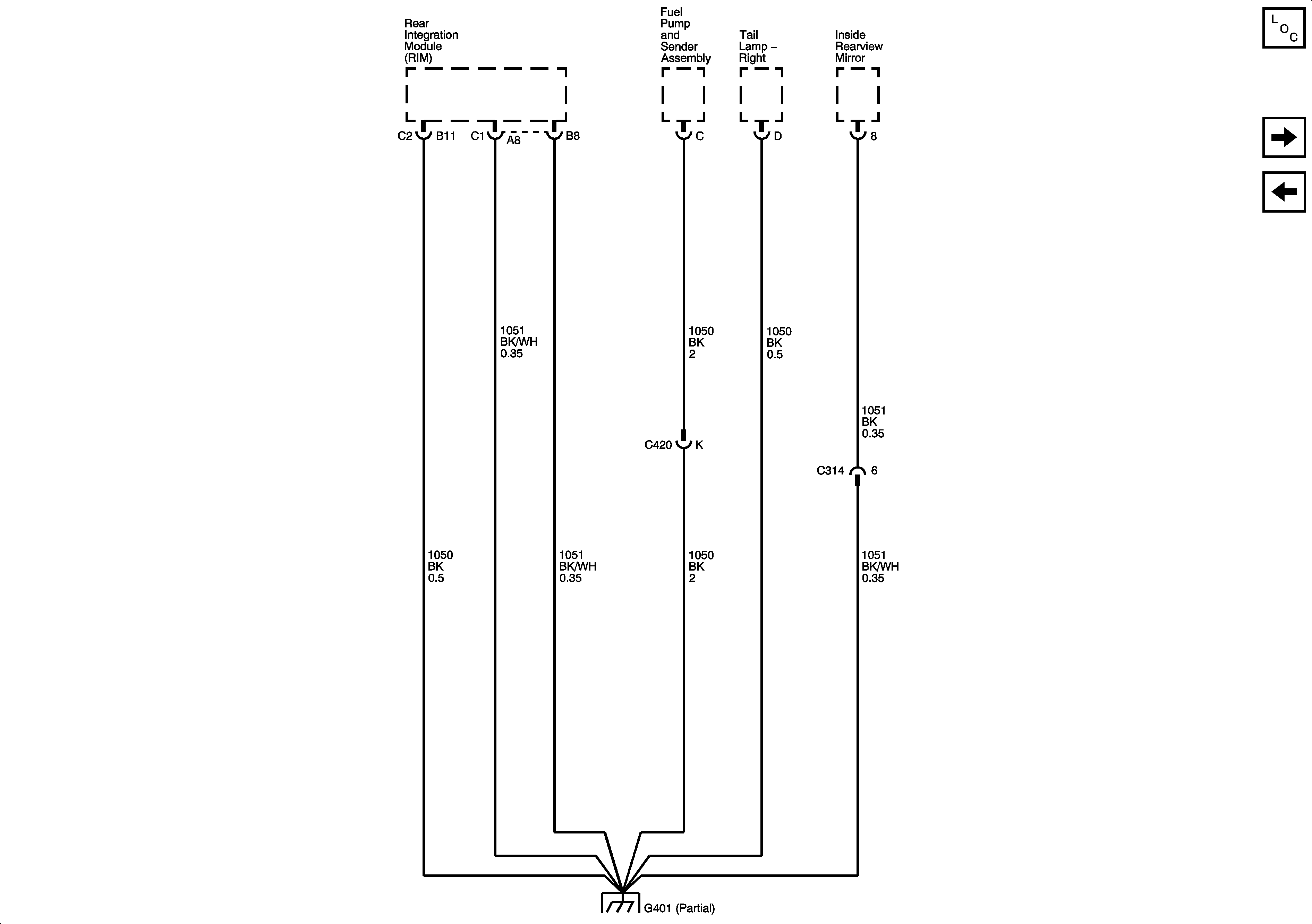

Figure 1:	G102, G105, G107, G108, G109 and G110 Master Electrical Component List G111, G112, G113, G114 and G306

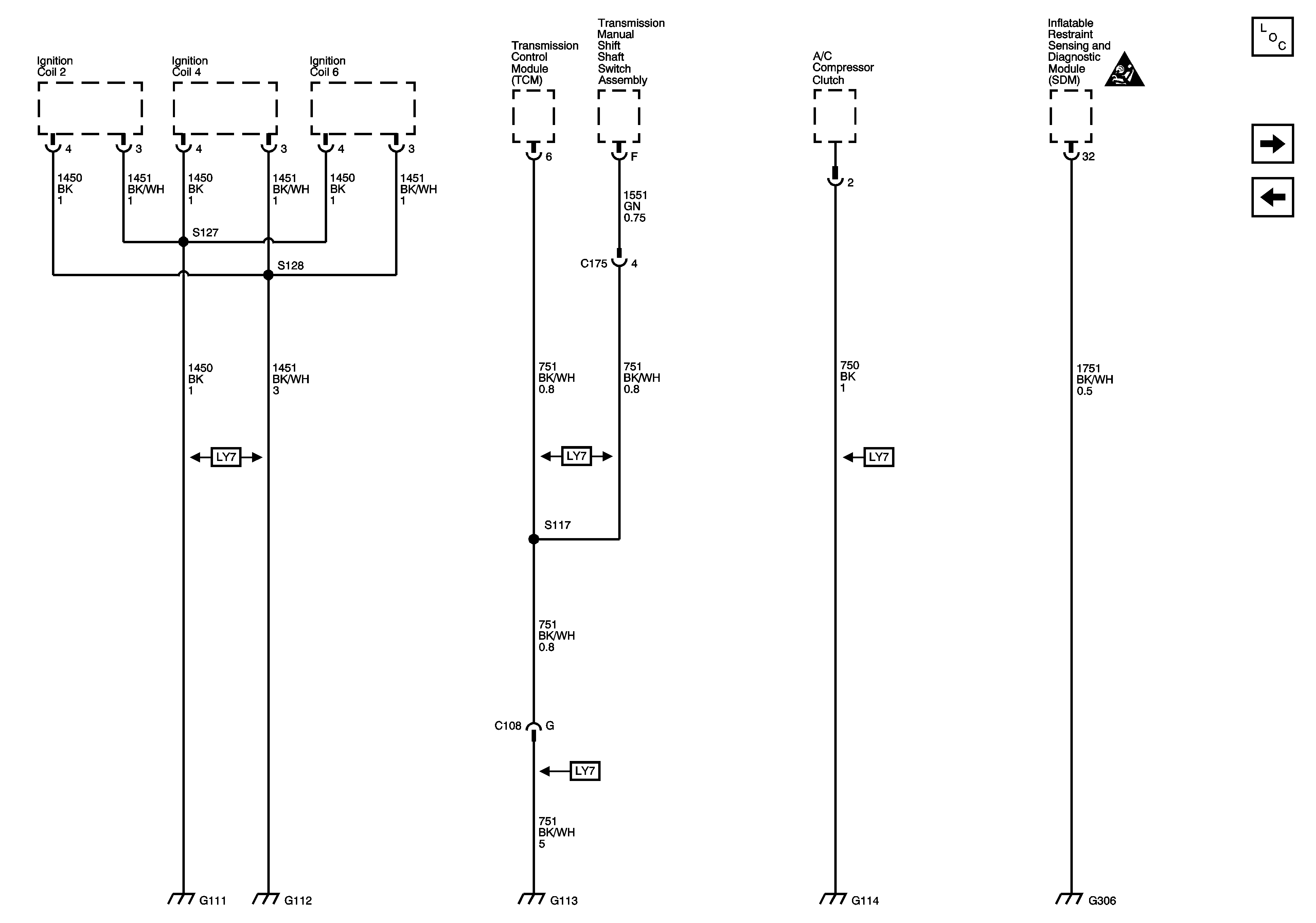

Figure 2:	G111, G112, G113, G114 and G306 Master Electrical Component List G100 - LH2 G102, G105, G107, G108, G109 and G110 SIR Caution for Zoning

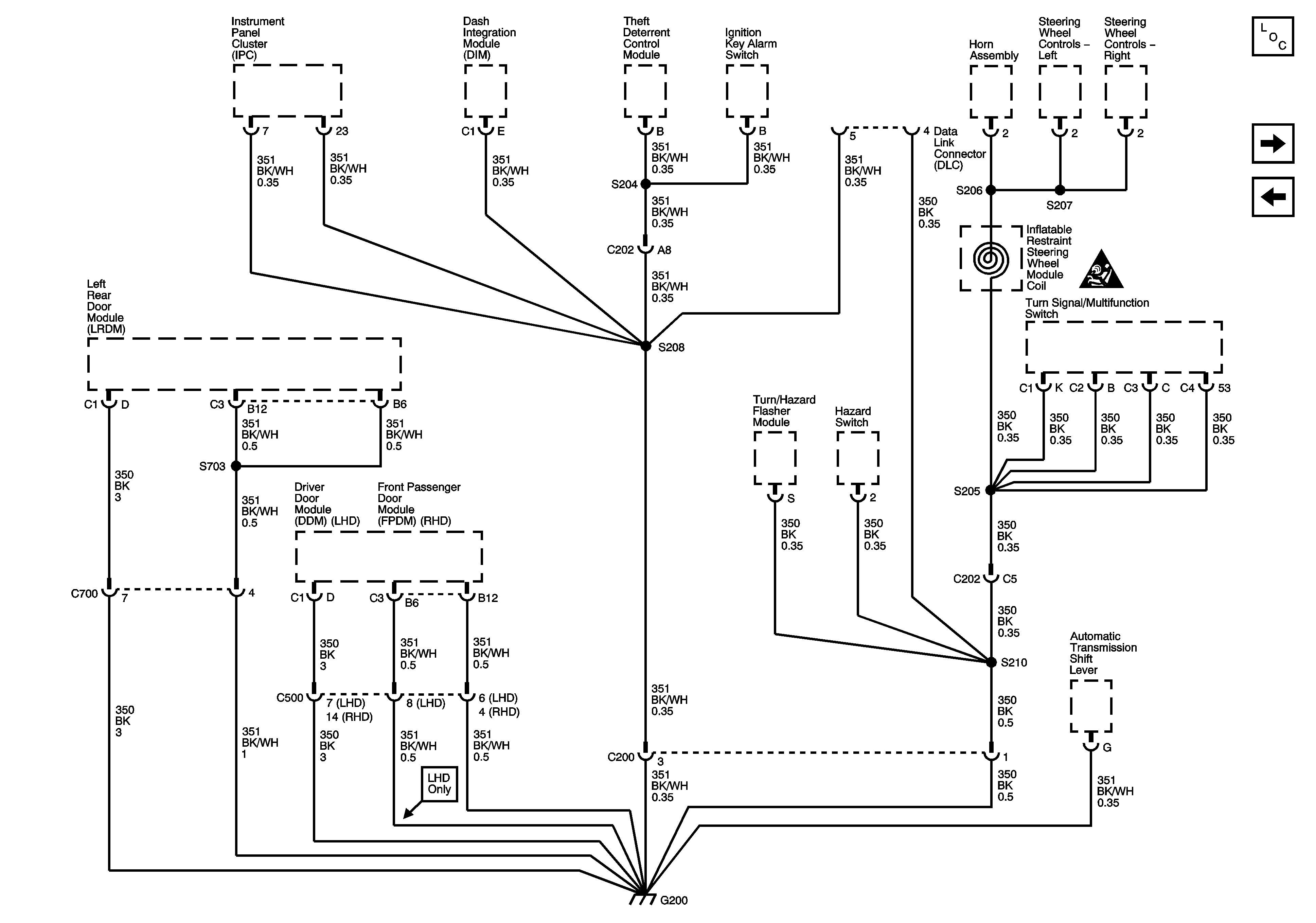

Figure 3:	G100 - LH2 Master Electrical Component List G101 G111, G112, G113, G114 and G306

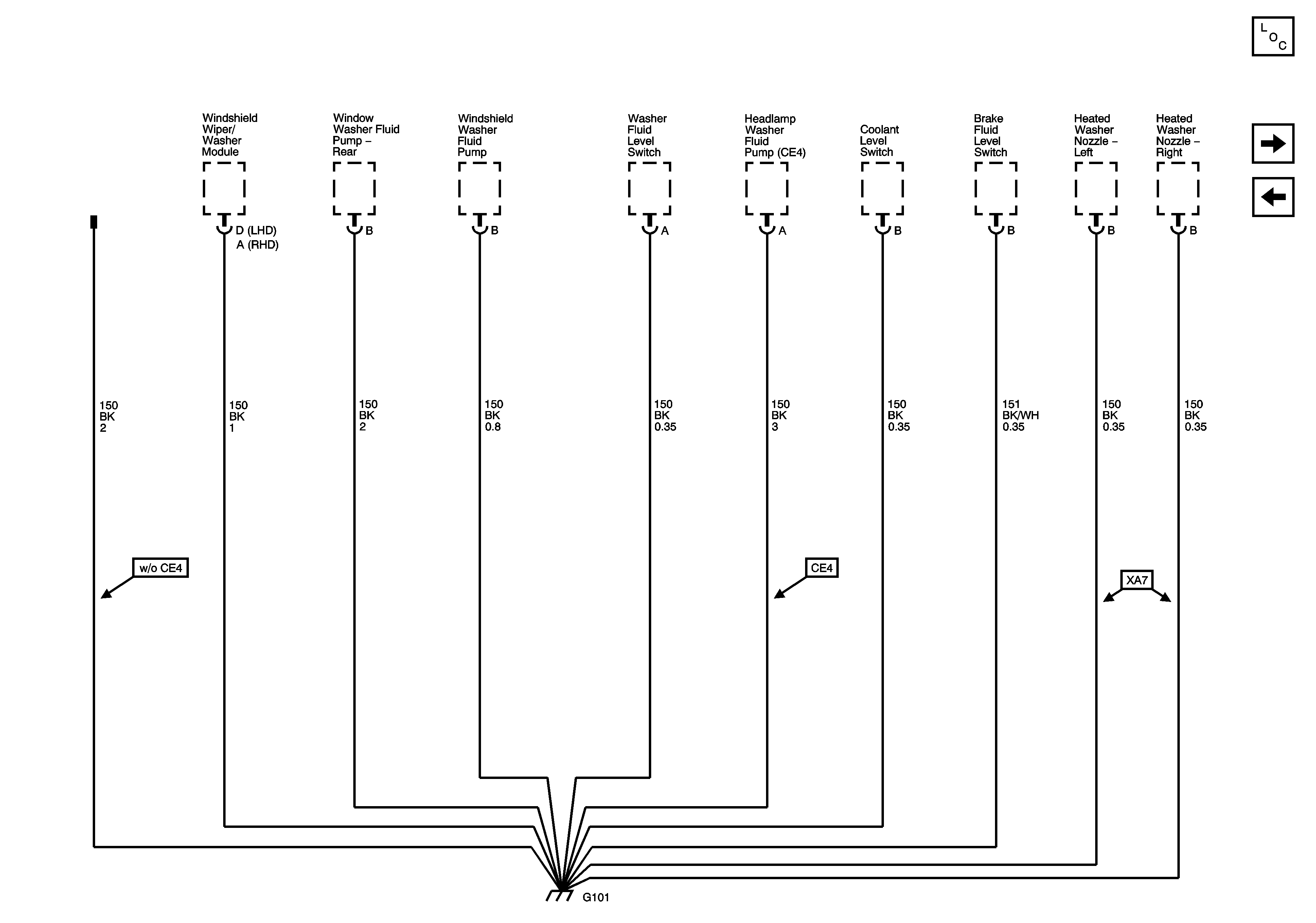

Figure 4:	G101 Master Electrical Component List G104 G100 - LH2
Figure 5:	G104 Master Electrical Component List G200 G101

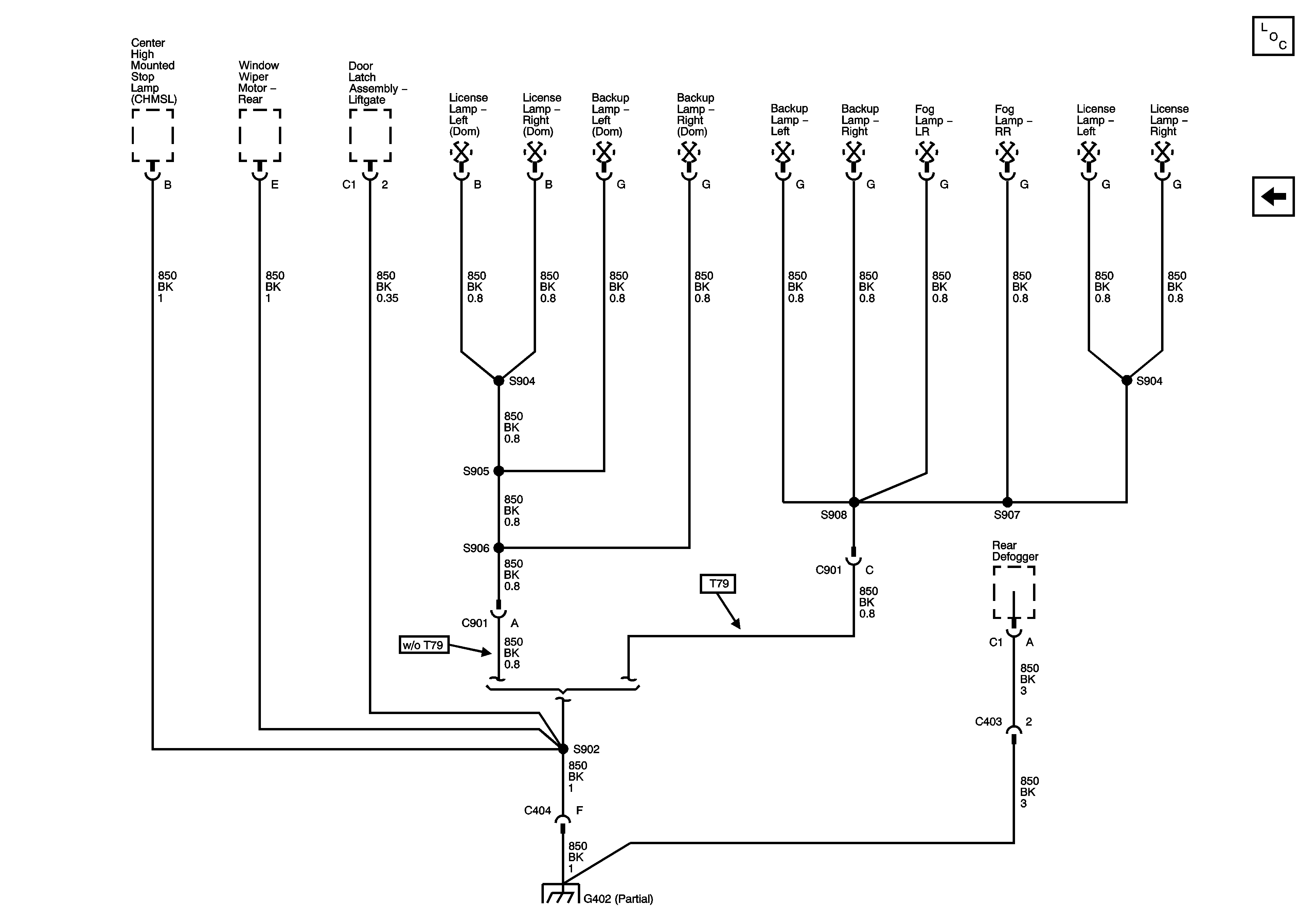

Figure 6:	G200 Master Electrical Component List G201 G104 SIR Caution for Zoning
Figure 7:	G201 Master Electrical Component List G307 G200
Figure 8:	G307 Master Electrical Component List G401 - 1 of 2 G201

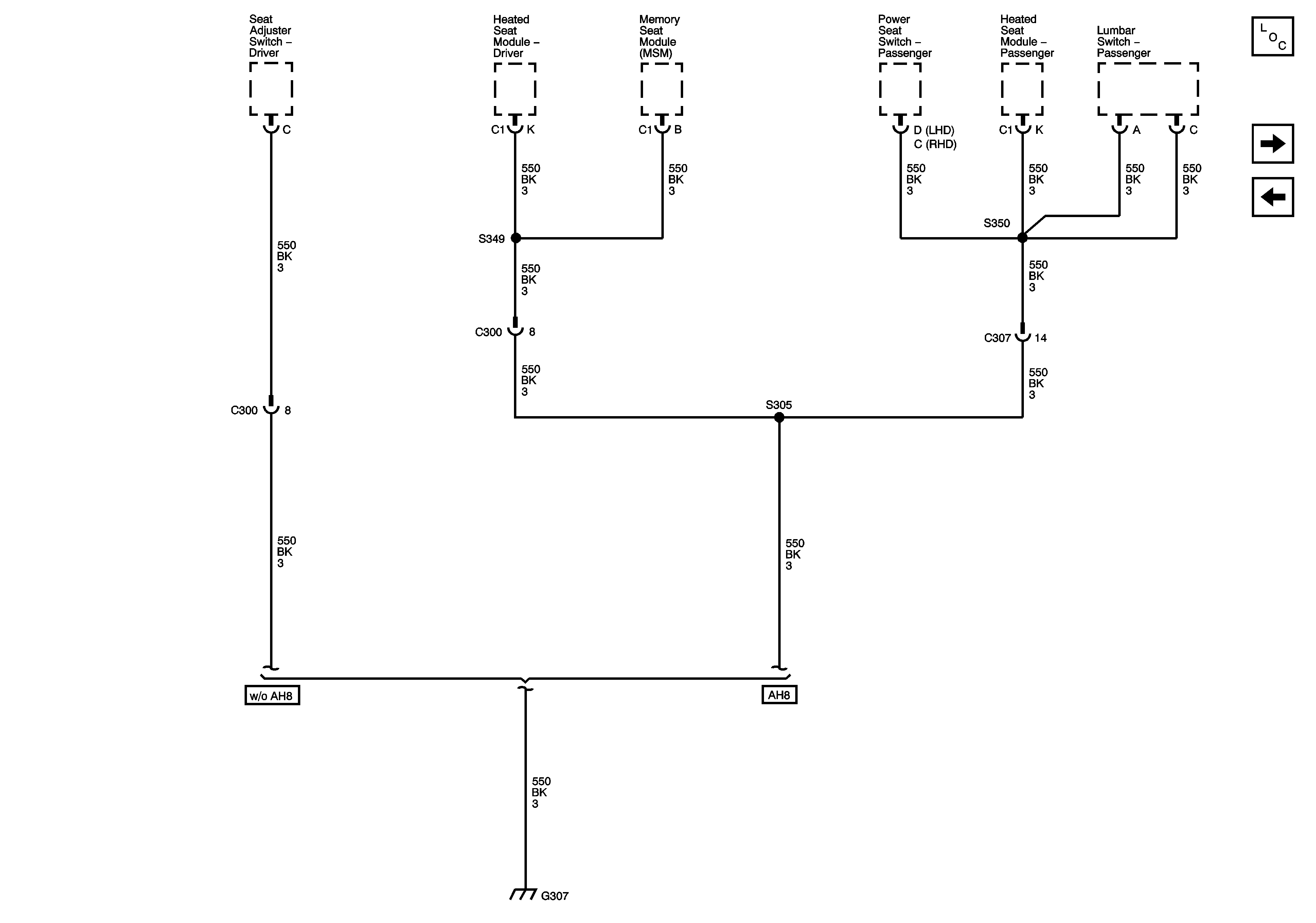

Figure 9:	G401 - 1 of 2 Master Electrical Component List G401 - 2 of 2 G307 G401 - 2 of 2
Figure 10:	G401 - 2 of 2 Master Electrical Component List G402 - 1 of 2 G401 - 1 of 2 G401 - 1 of 2
Figure 11:	G402 - 1 of 2 Master Electrical Component List G401 - 2 of 2 G402 - 2 of 2
Figure 12:	G402 - 2 of 2 Master Electrical Component List G402 - 1 of 2
