Door Lock/Indicator Schematics. Cadillac SRX 2004

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Body 🢒 Doors 🢒 Door Lock/Indicator Schematics

Figure 1:	Driver Door Lock Master Electrical Component List Power Door Locks Description and Operation Front Passenger Door Lock Dimming Lamps - 2 of 2 Memory Seat Controls (A45)

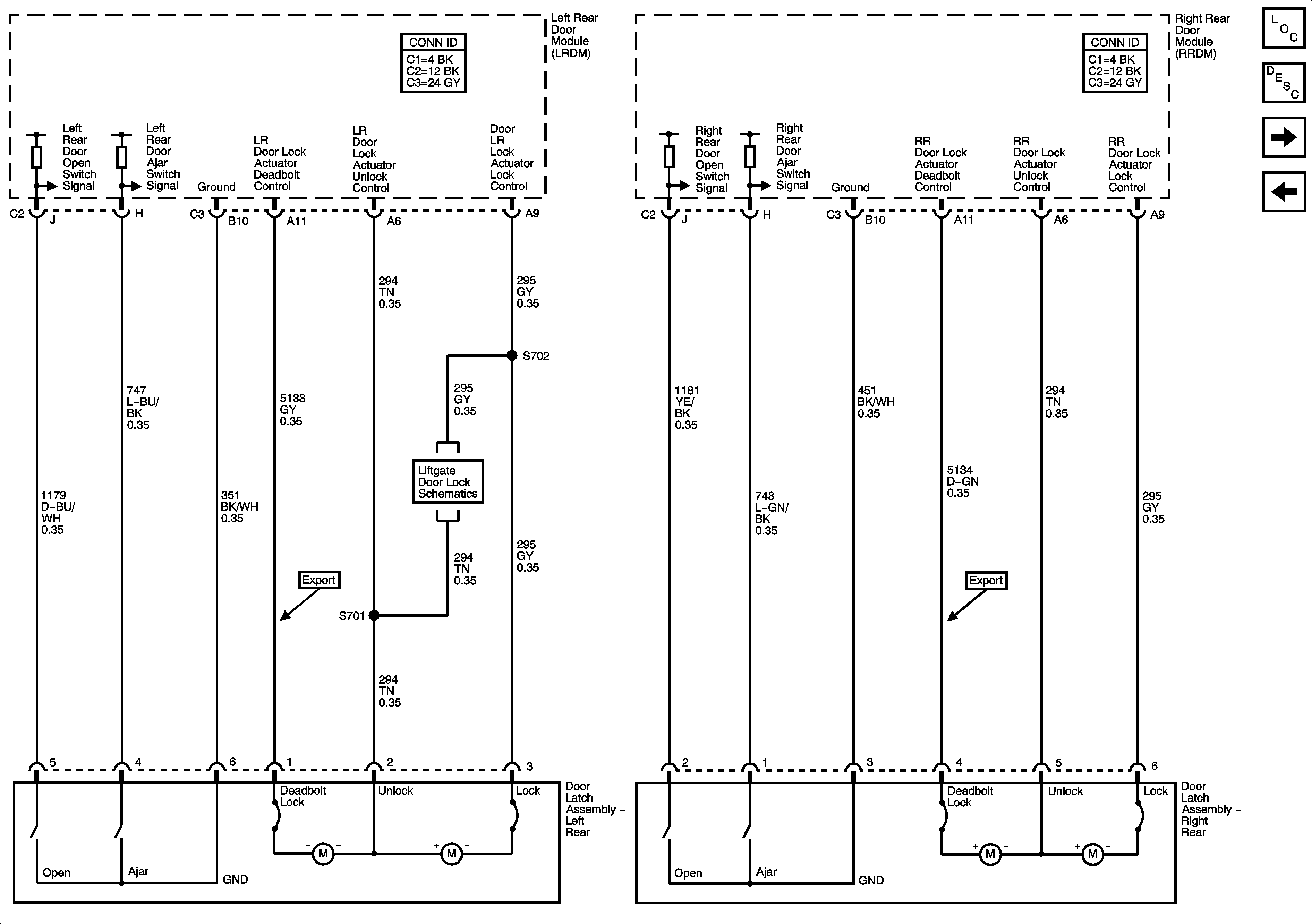

Figure 2:	Front Passenger Door Lock Master Electrical Component List Power Door Locks Description and Operation Left Rear and Right Rear Door Lock Driver Door Lock Front Power Windows Dimming Lamps - 2 of 2

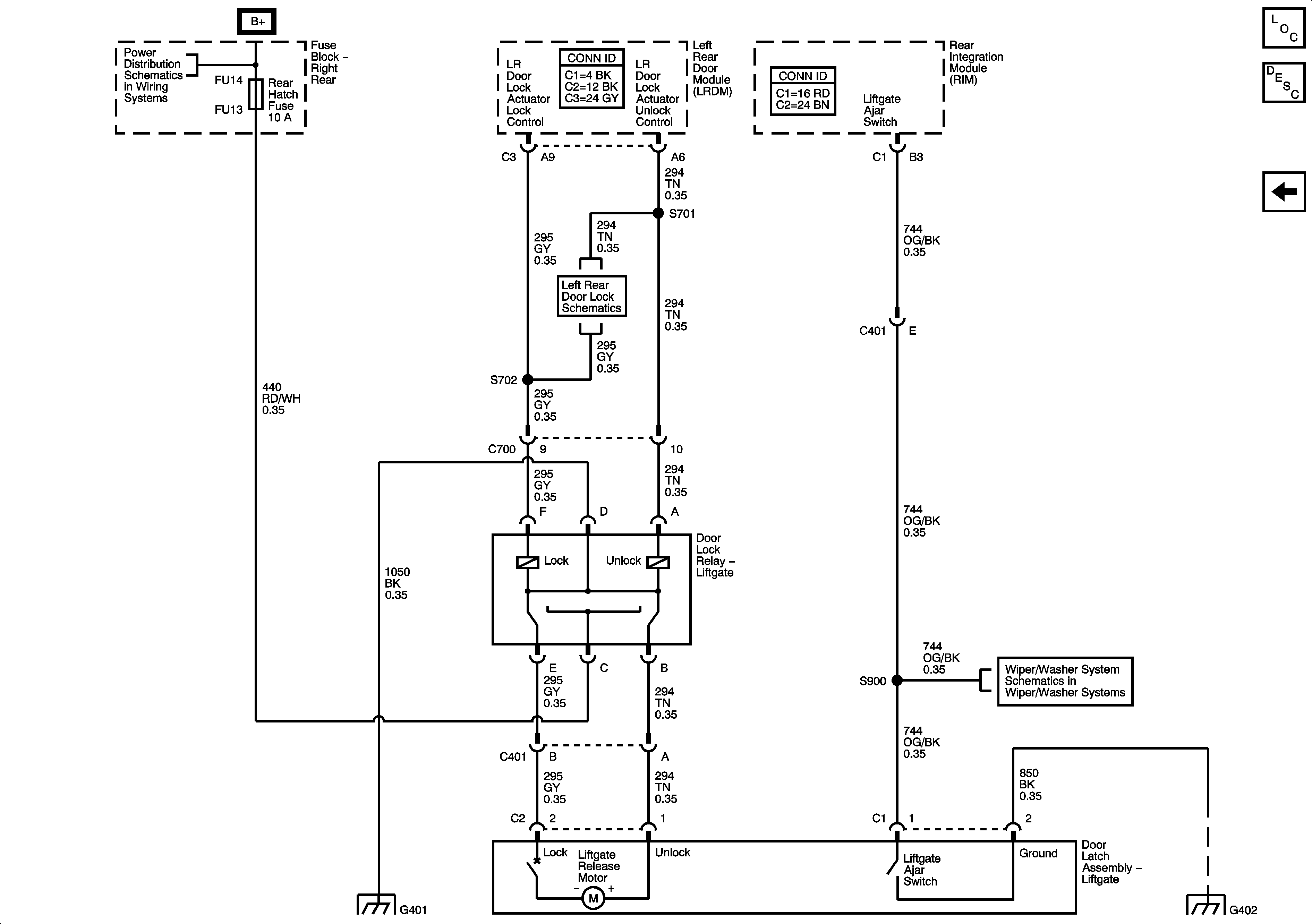

Figure 3:	Left Rear and Right Rear Door Lock Master Electrical Component List Power Door Locks Description and Operation Liftgate Door Lock Front Passenger Door Lock Liftgate Door Lock
