Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 5L50-E 🢒 Horn Component Views

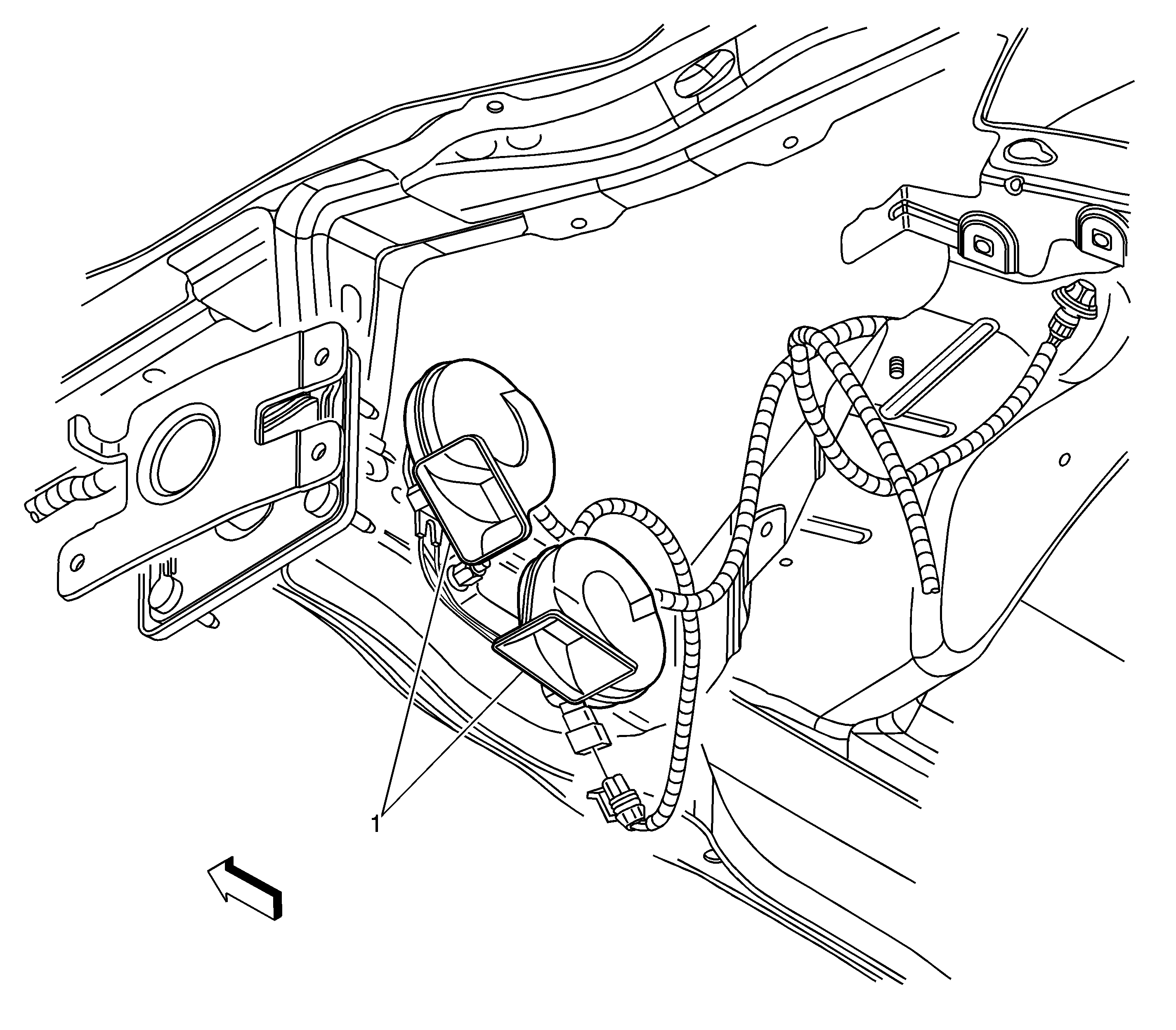

Figure 1:

Left Front of the Engine Compartment
Object Number: 1276945 Size: LF
(1)Horns
Figure 2:

Steering Wheel Components
Object Number: 1374799 Size: LF
(1)Inflatable Restraint Steering Wheel Module/Horn Switch
(2)Steering Wheel Controls - Left
(3)Steering Wheel Controls - Right
(4)Steering Wheel Controls - Left Connector
(5)C208
(6)Steering Wheel
(7)Steering Column
(8)Inflatable Restraint Steering Wheel Module Coil
(9)Inflatable Restraint Steering Wheel Module Connector C1
(10)Inflatable Restraint Steering Wheel Module Connector C2
(11)C208
(12)Steering Wheel Controls - Right Connector
