Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 5L50-E 🢒 Power Seat Component Views
Figure 1:

Driver Seat Switches and Inlines
Object Number: 1372946 Size: LF
(1)Driver Seat Cushion
(2)Seat Lumbar Switch - Driver, Passenger Similar (AL2)
(3)Seat Adjuster Switch - Driver, Passenger Similar
(4)C300, C307 Similar
(5)C301, C306 Similar
Figure 2:

Driver Door Switches
Object Number: 1276972 Size: LF
(1)Door Lock Switch - Driver, Passenger Similar
(2)Memory Seat Switch (A45)
(3)Driver Door Switch Assembly (DDSA)
Figure 3:

Seat Motors and MSM
Object Number: 801195 Size: LF
(1)Seat Front Vertical Motor - Driver Connector (Passenger Similar)
(2)Seat Front Vertical Motor - Driver (Passenger Similar)
(3)Seat Horizontal Motor - Driver, Passenger Similar
(4)Seat Rear Vertical Motor - Driver, Passenger Similar
(5)Seat Rear Vertical Motor - Driver Connector, Passenger Similar
(6)Horizontal Motor Connector - Driver Seat , Passenger Similar
(7)C301
(8)C300
(9)Memory Seat Module (MSM)
(10)Seat Recline Motor
(11)Seat Recline Motor Connector
Figure 4:

Power Seat Position Sensors
Object Number: 1348831 Size: LF
(1)Seat Front Vertical Position Sensor - Driver
(2)Seat Horizontal Position Sensor - Driver
(3)Seat Rear Vertical Position Sensor - Driver
Figure 5:

Seat Recline Motor and Sensor
Object Number: 1348830 Size: LF
(1)Seat Recline Position Sensor - Driver (w/A45) (Passenger Similar)
(2)Seat Recline Position Sensor - Driver Connector (Passenger Similar)
(3)Seat Recline Motor - Driver (Passenger Similar)
Figure 6:

Seat Lumbar Components (AL2)
Object Number: 1409558 Size: LF
(1)Seat Lumbar Position Sensor - Driver, Passenger Similar
(2)Seat Lumbar Motor - Driver Connector, Passenger Similar
(3)Seat Lumbar Motor - Driver, Passenger Similar
(4)Seat Track Trim Panel - Driver, Passenger Similar
(5)Seat Lumbar Switch - Driver, Passenger Similar
(6)Seat Adjuster Switch - Driver, Passenger Similar
Figure 7:

Heated Seat Module and Seat Switch
Object Number: 801190 Size: LF
(1)Heated Seat Module - Driver (KA1) (Front Passenger Similar)
(2)Heated Seat Module Connectors
(3)Driver Seat
(4)Seat Adjuster Switch - Driver (Front Passenger Similar)
Figure 8:

Heated Seat Components
Object Number: 1347699 Size: LF
(1)Heated Seat Element - Front Passenger Seat Back (Driver Similar)
(2)Heated Seat Element - Front Passenger Seat Cushion Front and Rear and Heated Seat Thermistor - Front Passenger (Under Seat Cover) (Driver Similar)
(3)Seat Cover, Partially Removed
Figure 9:

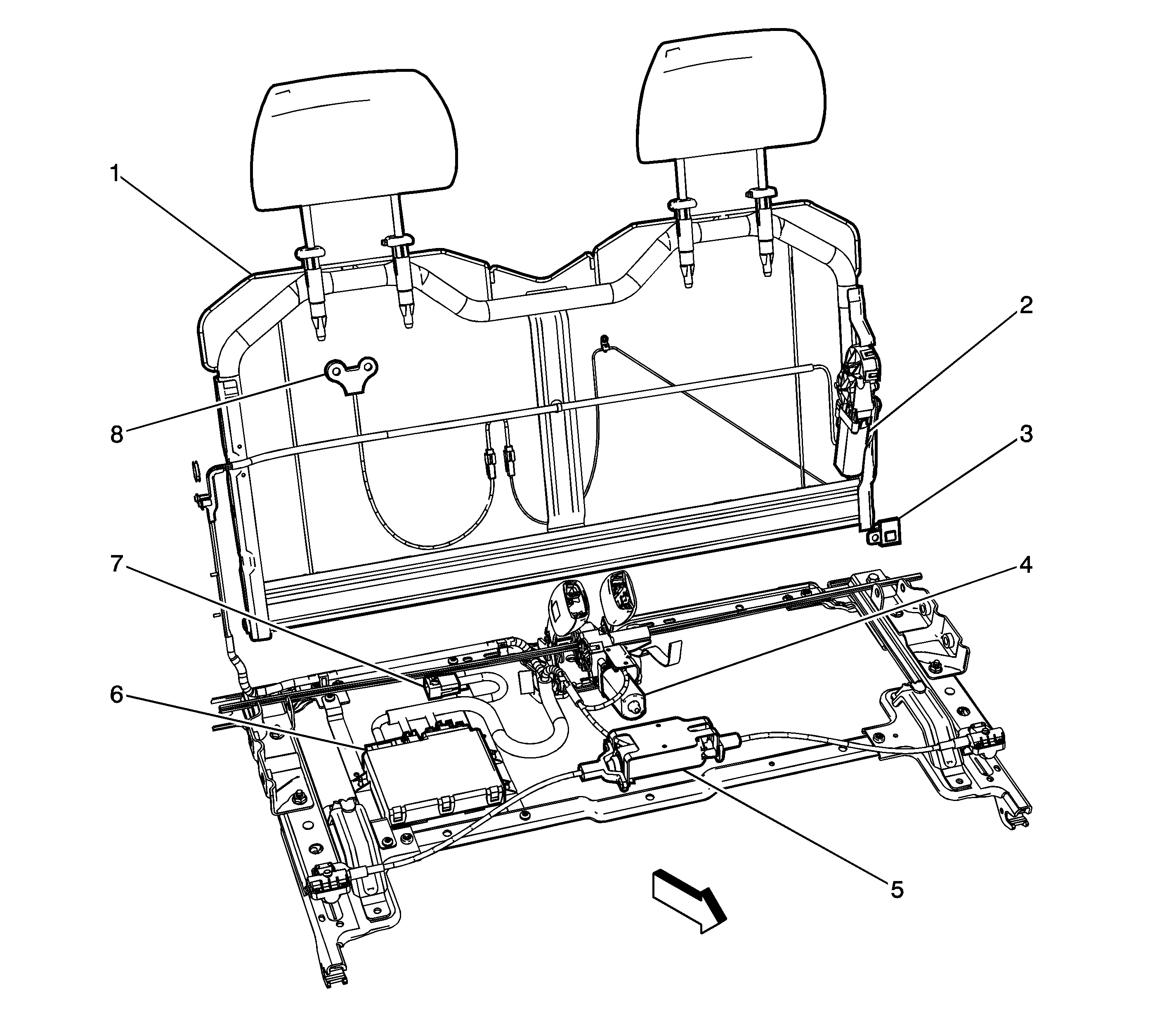

Third Row Folding Seats (AM0)
Object Number: 1380958 Size: LF
(1)Third Row Seats
(2)Folding Seat Rotation Motor Assembly
(3)Seat Back Load Floor Position Switch
(4)Folding Seat Recline Motor Assembly
(5)Folding Seat Horizontal Motor Assembly
(6)Rear Seat Module
(7)C311
(8)Seat Back Panel Position Switch
Figure 10:

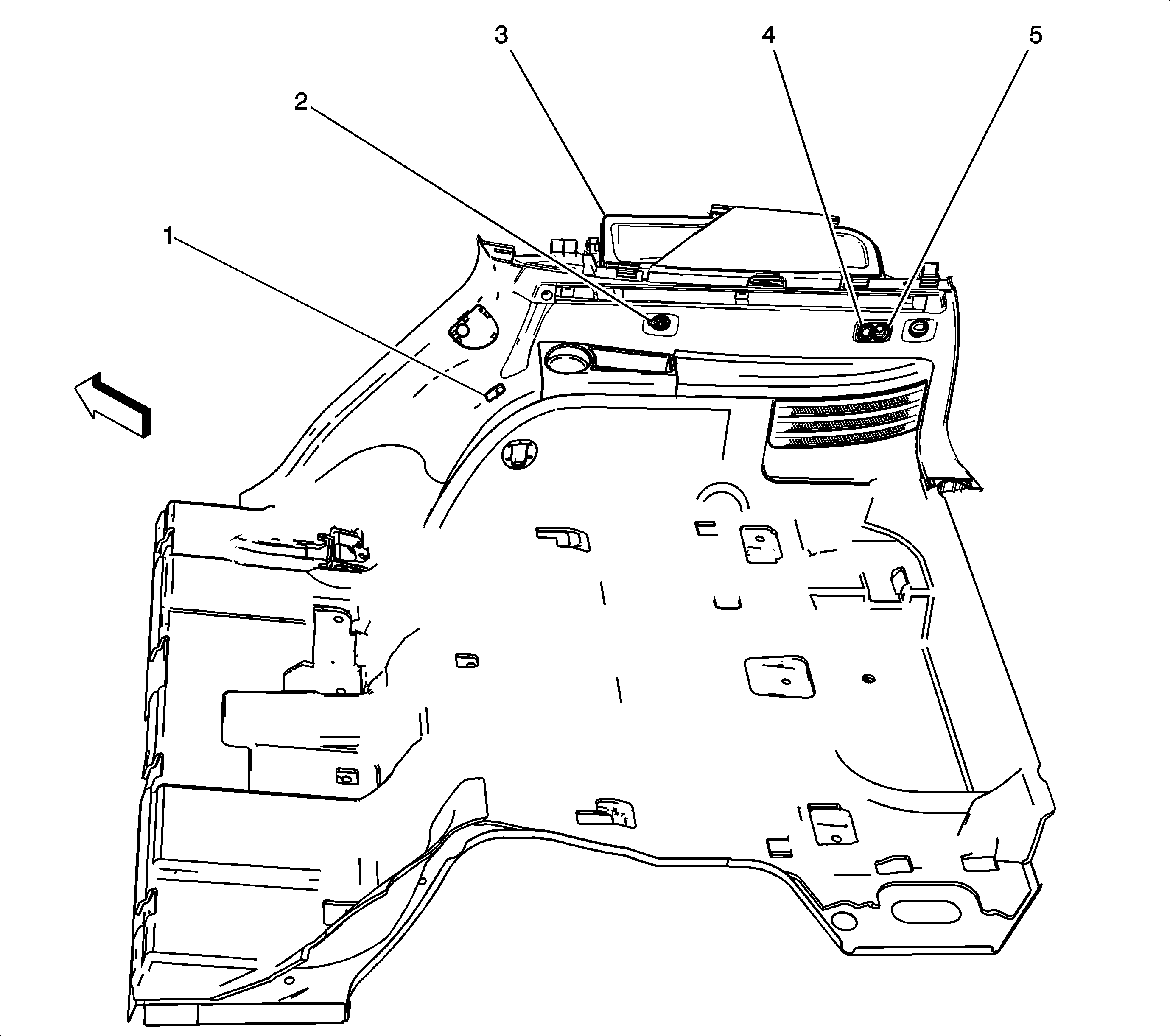

Right Rear of Cargo Area
Object Number: 1373717 Size: LF
(1)Folding Seat Stow Switch - Front (AM0)
(2)Auxiliary Power Outlet - Rear
(3)Storage Compartment
(4)Folding Seat Recline Switch (AM0)
(5)Folding Seat Stow Switch - Rear (AM0)
