Harness Routing Views. Cadillac SRX 2004

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2004 🢒 SRX 🢒 Steering 🢒 Steering Wheel and Column 🢒 Harness Routing Views

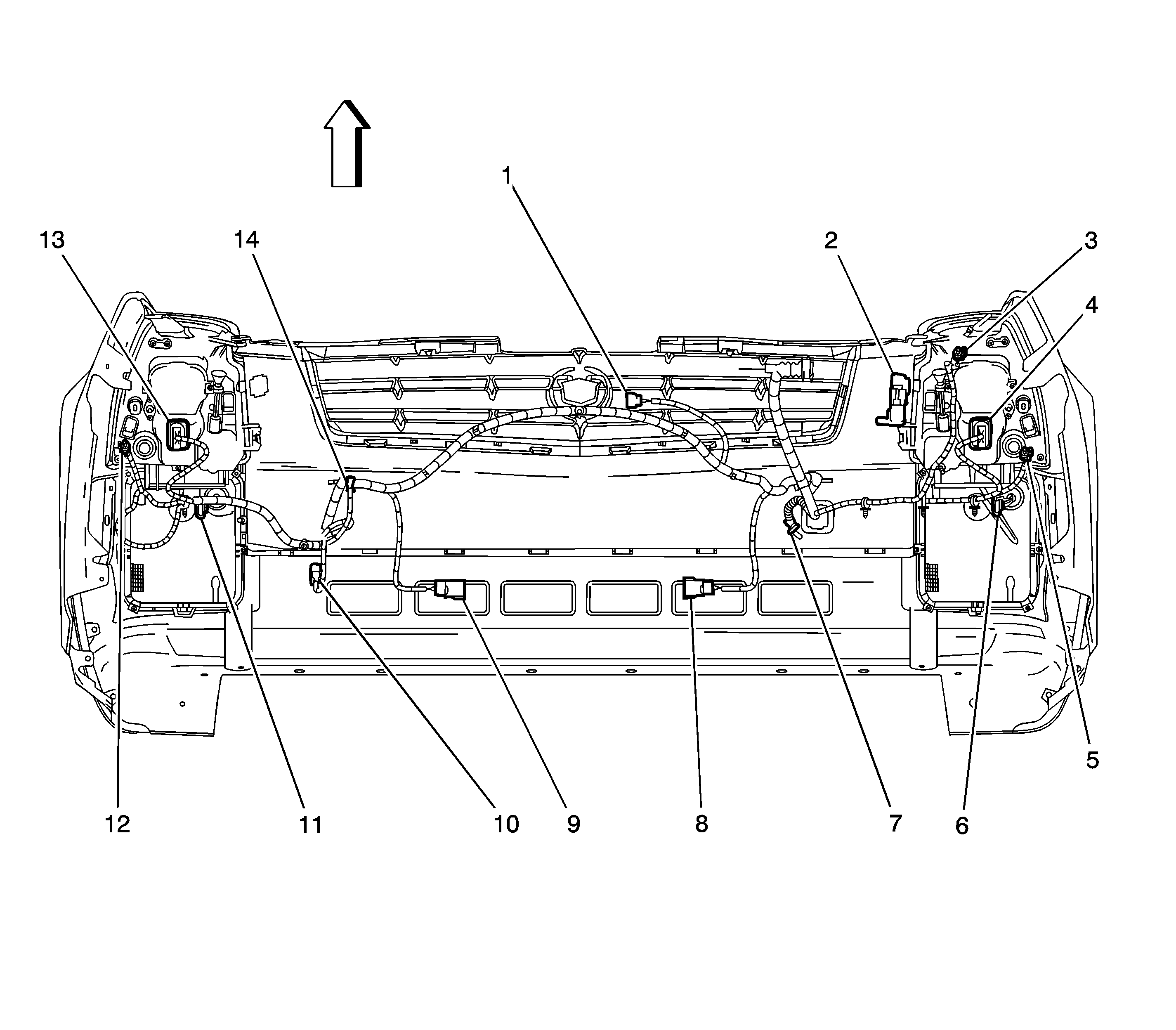

Figure 1:

Forward Lamp Harness


(1)	Ambient Air Temperature Sensor
(2)	Fuse Block Underhood - C1
(3)	Hood Ajar Switch
(4)	C112
(5)	Repeater Lamp - RF (T90)
(6)	C109
(7)	G104
(8)	Cooling Fan - Right
(9)	Cooling Fan - Left
(10)	Horn Assembly
(11)	C110
(12)	Repeater Lamp - Left (T90)
(13)	C111
(14)	Headlamp Leveling Sensor - Front

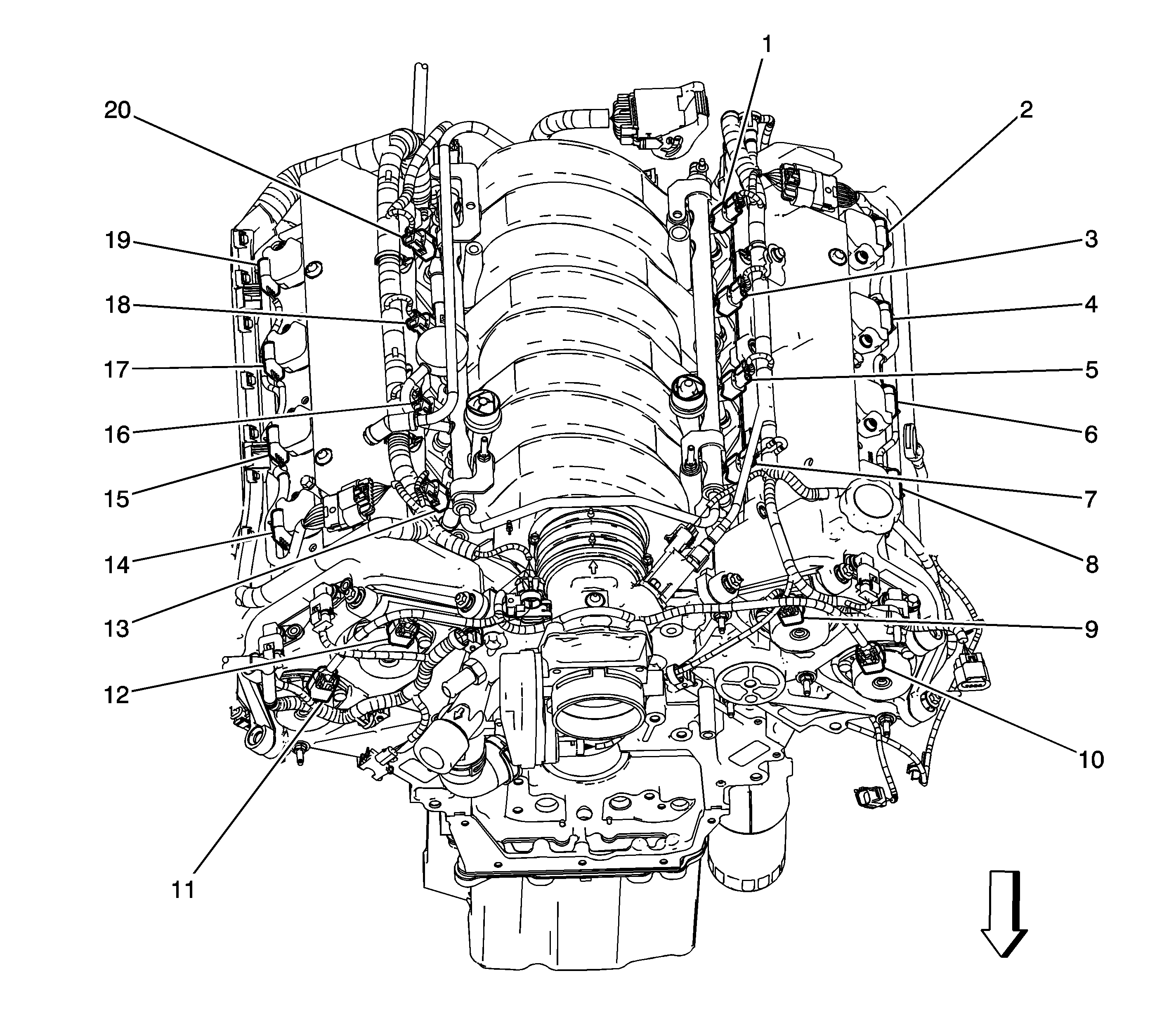

Figure 2:

Engine Harness Routing 1 of 5 (LH2)


(1)	Fuel Injector 8
(2)	Ignition Coil 8
(3)	Fuel Injector 6
(4)	Ignition Coil 6
(5)	Fuel Injector 4
(6)	Ignition Coil 4
(7)	Fuel Injector 2
(8)	Ignition Coil 2
(9)	Camshaft Position (CMP) Intake Actuator Solenoid - Bank 2
(10)	Camshaft Position (CMP) Exhaust Actuator Solenoid - Bank 2
(11)	Camshaft Position (CMP) Intake Actuator Solenoid - Bank 1
(12)	Camshaft Position (CMP) Exhaust Actuator Solenoid - Bank 1
(13)	Ignition Coil 1
(14)	Fuel Injector 1
(15)	Ignition Coil 3
(16)	Fuel Injector 3
(17)	Ignition Coil 5
(18)	Fuel injector 5
(19)	Ignition Coil 7
(20)	Fuel Injector 7

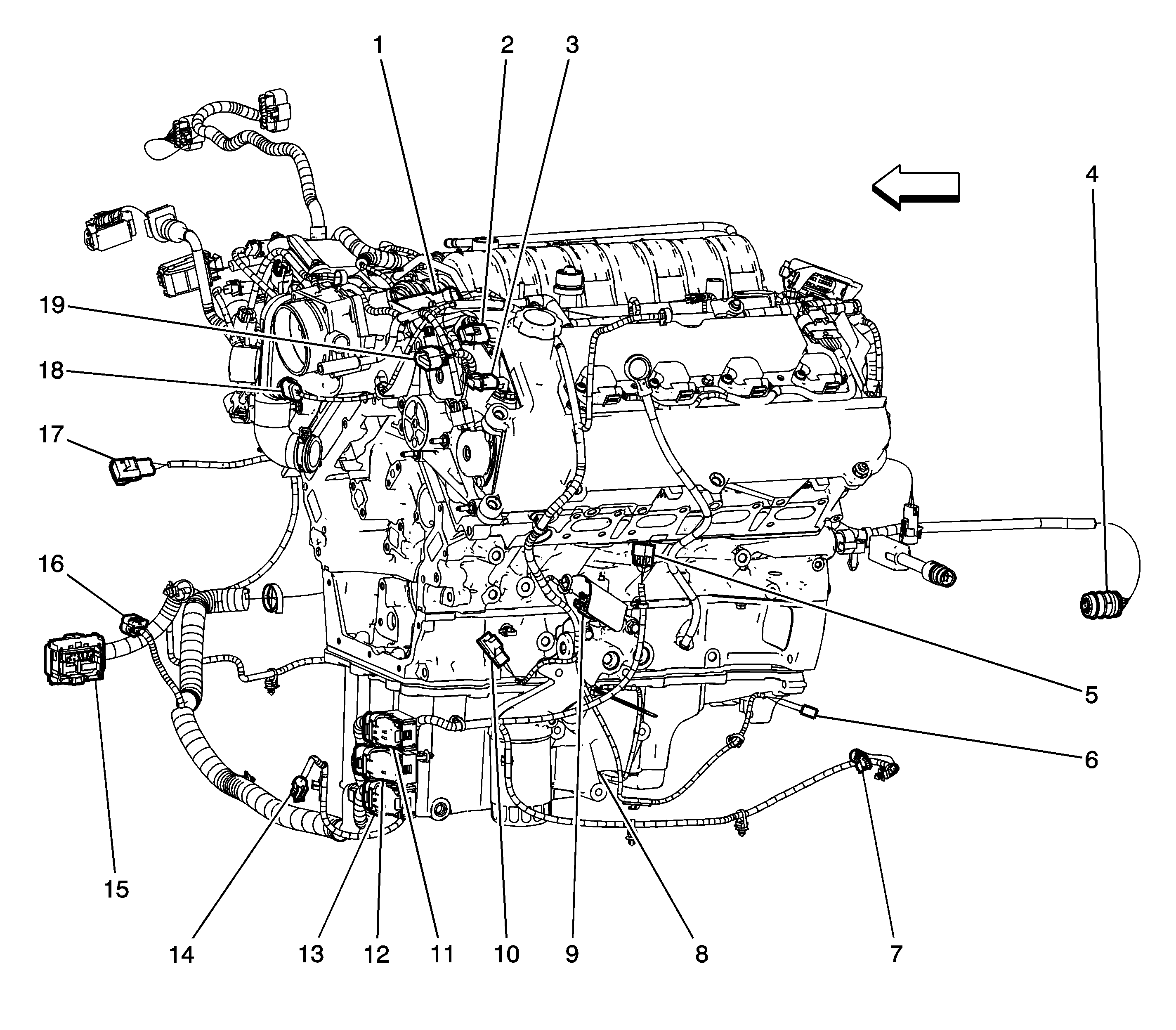

Figure 3:

Engine Harness Routing 2 of 5 (LH2)


(1)	Evaporative Emission (EVAP) Canister Purge Valve
(2)	Camshaft Position (CMP) Position Sensor Intake - Bank 1
(3)	Camshaft Position (CMP) Position Sensor Exhaust - Bank 1
(4)	C175
(5)	Suspension Position Sensor - LF
(6)	Variable Effort Steering Actuator
(7)	Wheel Speed Sensor (WSS) - LF
(8)	Engine Oil Level Switch
(9)	Engine Oil Pressure (EOP) Sensor
(10)	A/C Compressor Clutch
(11)	Engine Control Module (ECM) - C1
(12)	Engine Control Module (ECM) - C2
(13)	Engine Control Module (ECM) - C3
(14)	A/C Refrigerant Pressure Sensor
(15)	Inflatable Restraint Sensing and Diagnostics Module (SDM)
(16)	Brake Fluid Level Switch
(17)	C113
(18)	Throttle Position (TP) Sensor
(19)	Mass Air Flow (MAF) Sensor

Figure 4:

Engine Harness Routing 3 of 5 (LH2)


(1)	C102
(2)	C107
(3)	C140
(4)	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
(5)	C104
(6)	Suspension Position Sensor - RF
(7)	G100
(8)	G107
(9)	Wheel Speed Sensor (WSS) - RF
(10)	Engine Coolant Temperature (ECT) Sensor
(11)	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
(12)	C175
(13)	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
(14)	Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
(15)	C139

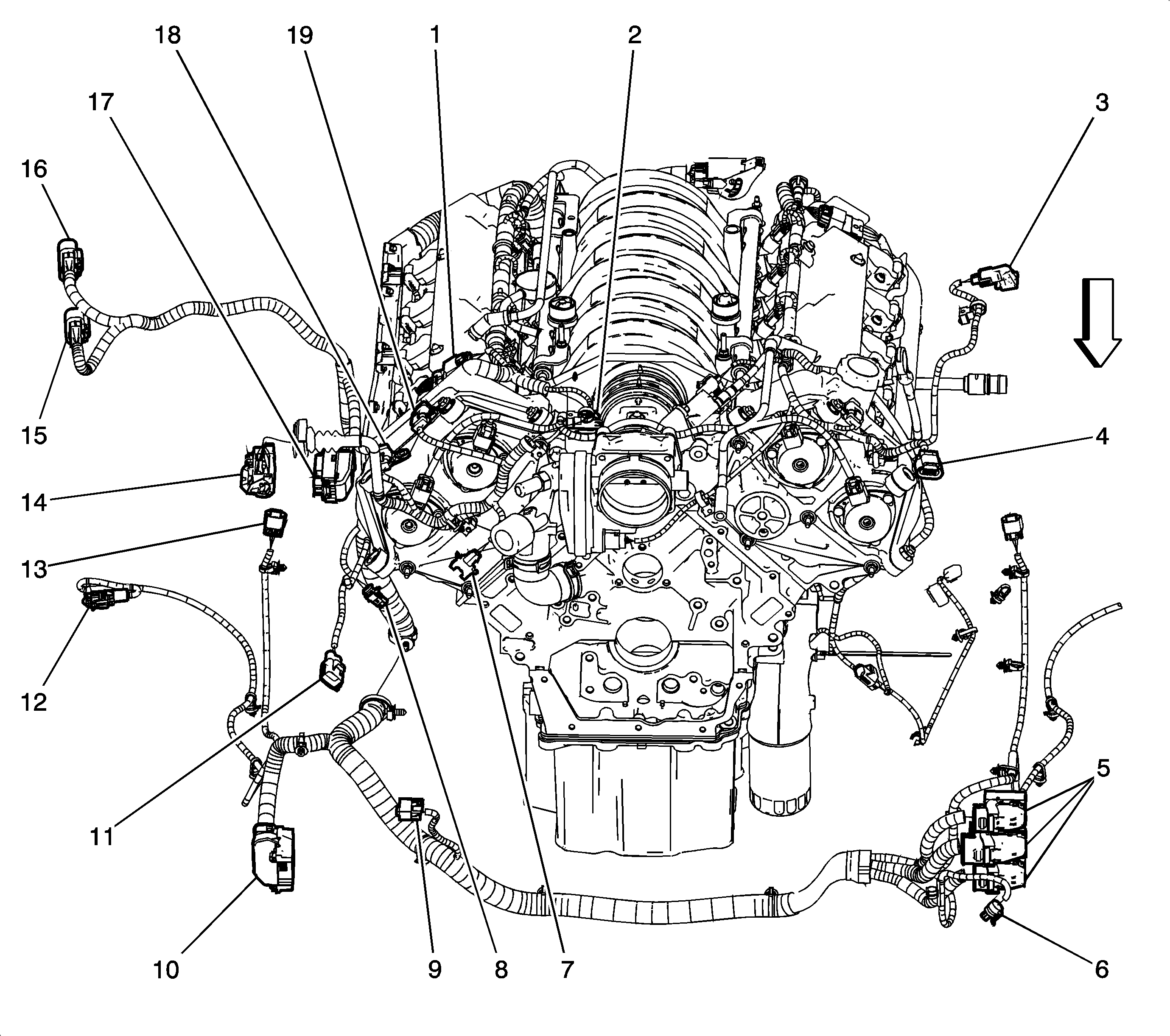

Figure 5:

Engine Harness Routing 4 of 5 (LH2)


(1)	C139
(2)	Manifold Absolute Pressure (MAP) Sensor
(3)	Suspension Damper - LF
(4)	Mass Air Flow (MAF) Sensor
(5)	Engine Control Module (ECM) Connectors
(6)	A/C High Pressure Switch
(7)	After Boil Coolant Pump (V92)
(8)	Generator
(9)	Brake Pressure Modulator Valve (BPMV)
(10)	Sensing and Diagnostic Module (SDM)
(11)	C113
(12)	Wheel Speed Sensor (WSS) - RF
(13)	Suspension Position Sensor - RF
(14)	Underhood Fuse Block - C5
(15)	C105
(16)	C101
(17)	Transmission Control Module (TCM)
(18)	Cam Sensor ODD - Exhaust
(19)	Cam Sensor ODD - Intake

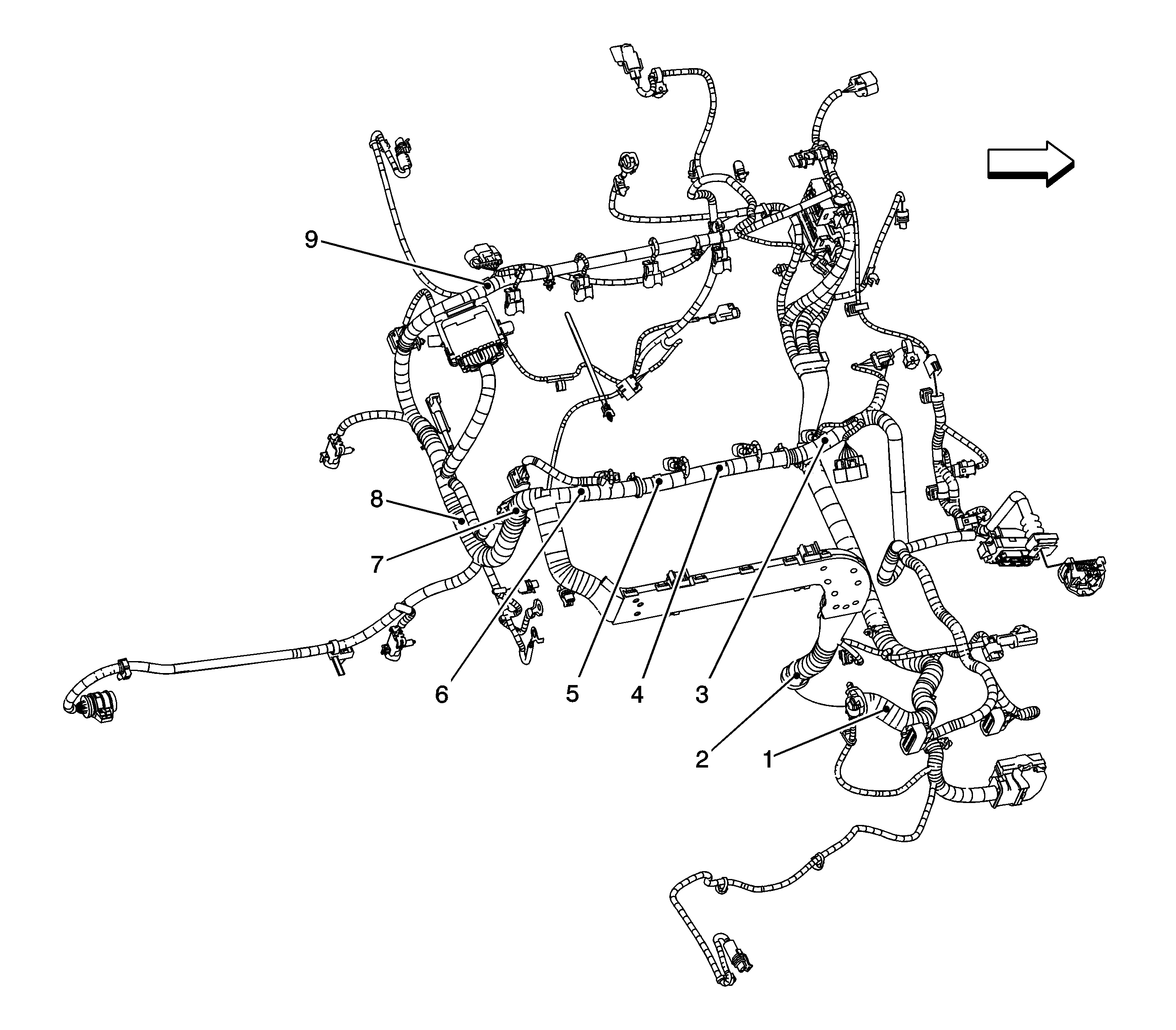

Figure 6:

Engine Harness Routing 5 of 5 (LH2)


(1)	S101
(2)	S100
(3)	S118
(4)	S115
(5)	S114
(6)	S142
(7)	S111
(8)	S113
(9)	S131

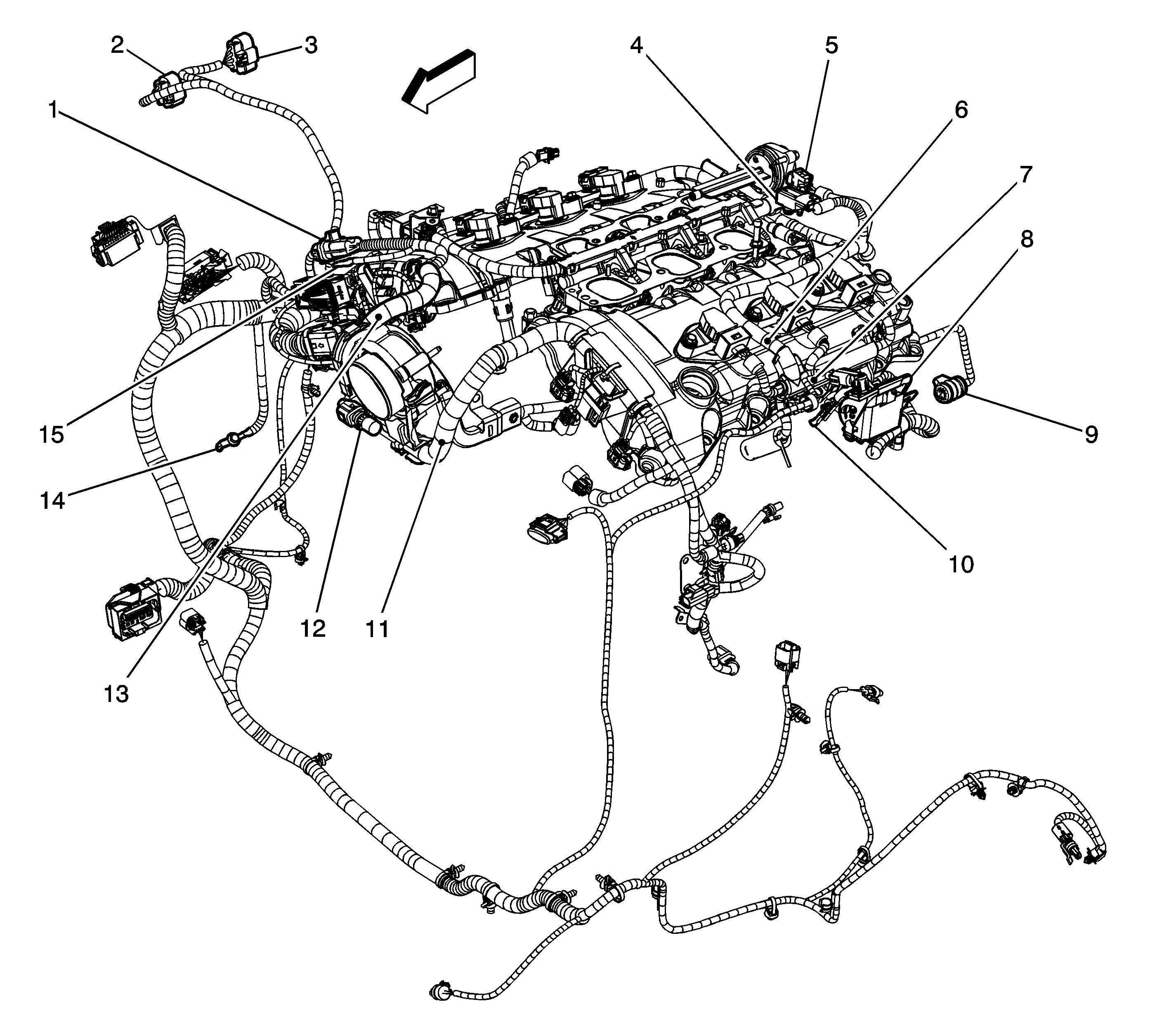

Figure 7:

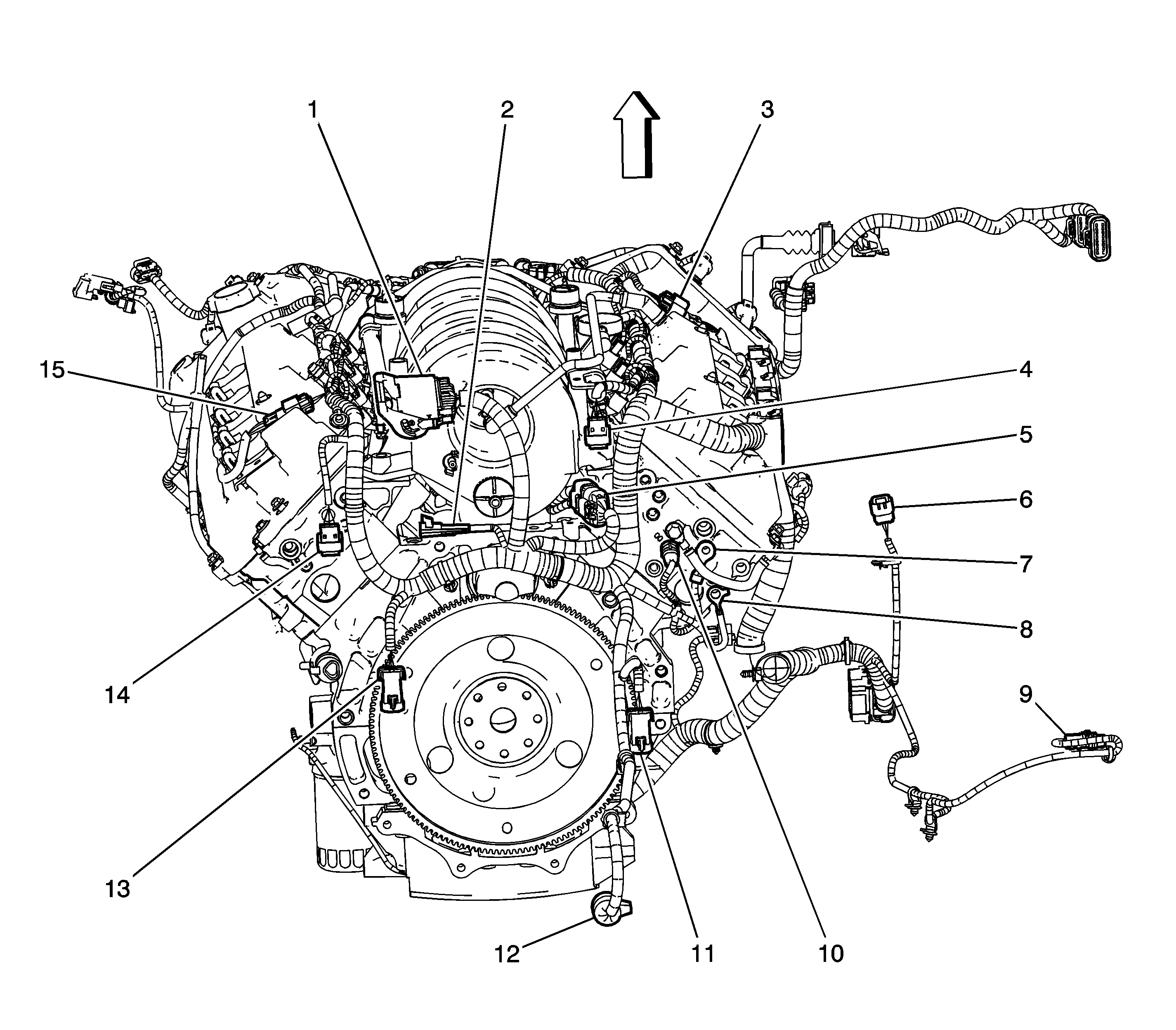

Engine Harness Components 1 of 2 (LY7)


(1)	C108
(2)	C105
(3)	C101
(4)	Barometric Pressure (BARO) Sensor
(5)	Intake Runner Solenoid
(6)	S123
(7)	S127/S128
(8)	C102
(9)	C175
(10)	G111/G112
(11)	S120
(12)	Throttle Body Connector
(13)	S124
(14)	G110
(15)	G114/G113

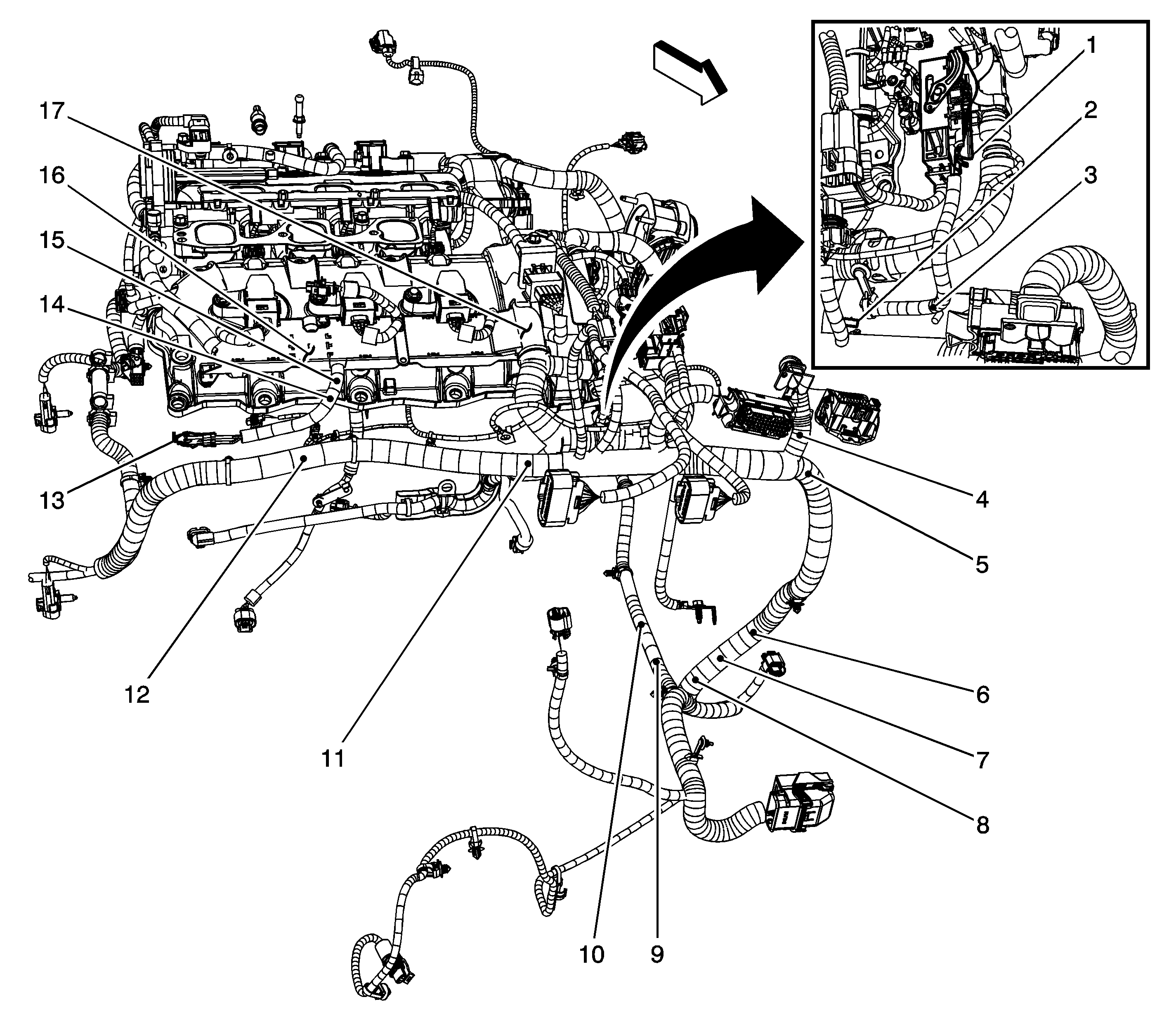

Figure 8:

Engine Harness Components 2 of 2 (LY7)


(1)	Engine Control Module (ECM) Connector
(2)	S115
(3)	S103
(4)	S102
(5)	S109
(6)	S108
(7)	S111
(8)	S118
(9)	S100
(10)	S101
(11)	S117
(12)	S113
(13)	G108/G109
(14)	S125
(15)	S126
(16)	S114
(17)	S122

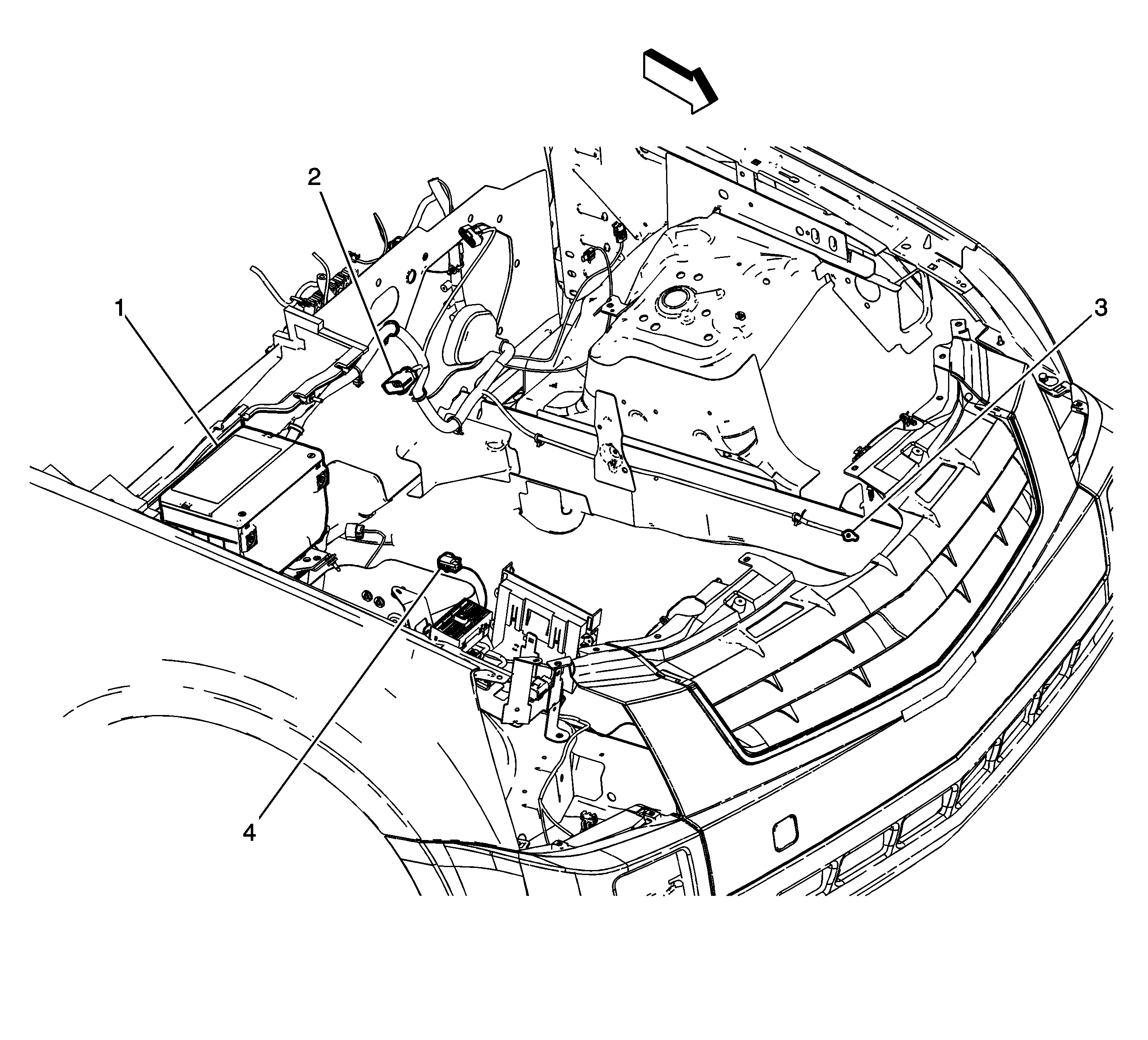

Figure 9:

I/P Harness - Front Engine Compartment


(1)	Battery
(2)	C102
(3)	G101
(4)	C103

Figure 10:

Left Side of the I/P


(1)	C202
(2)	C200
(3)	Data Link Connector (DLC)

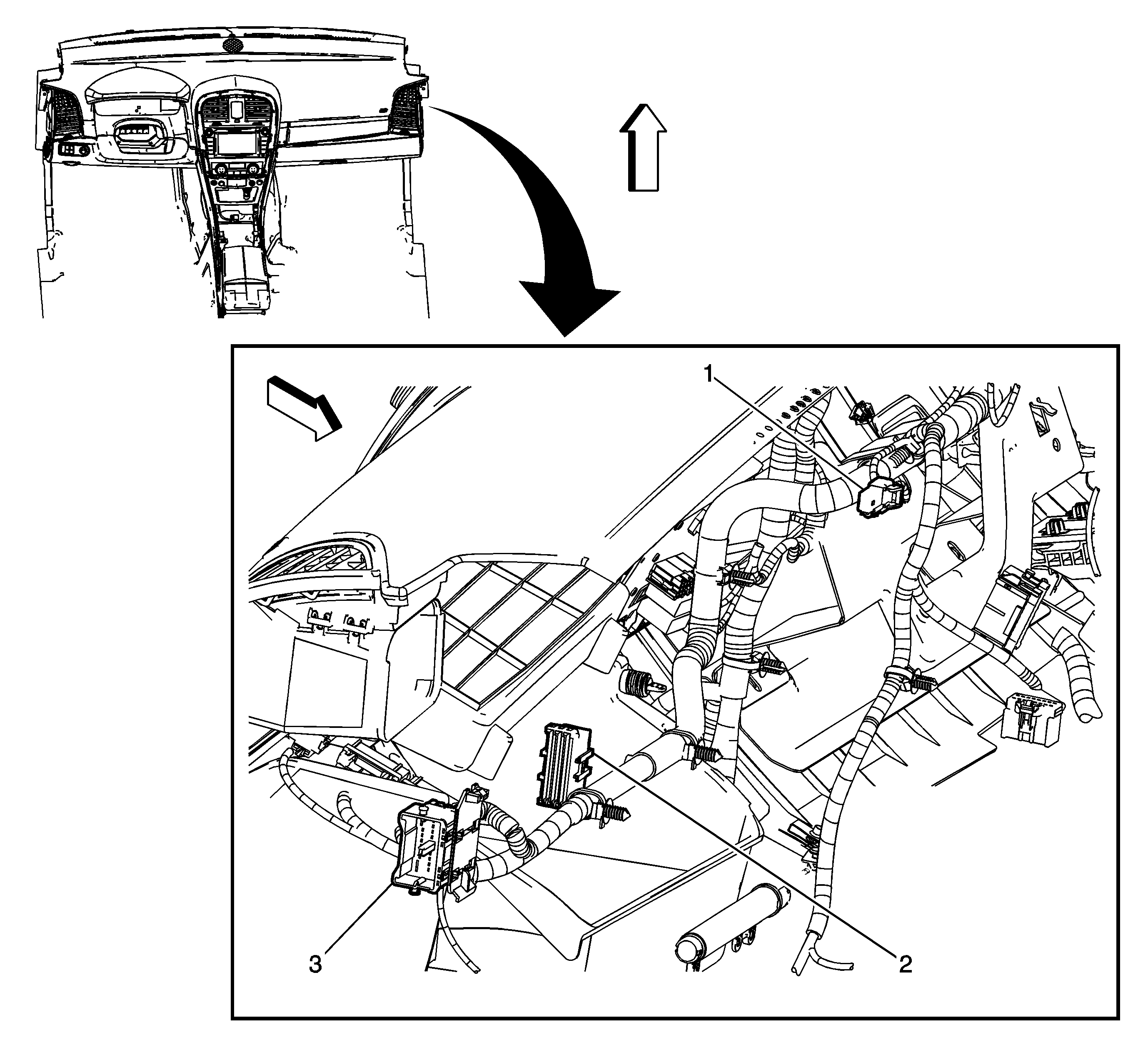

Figure 11:

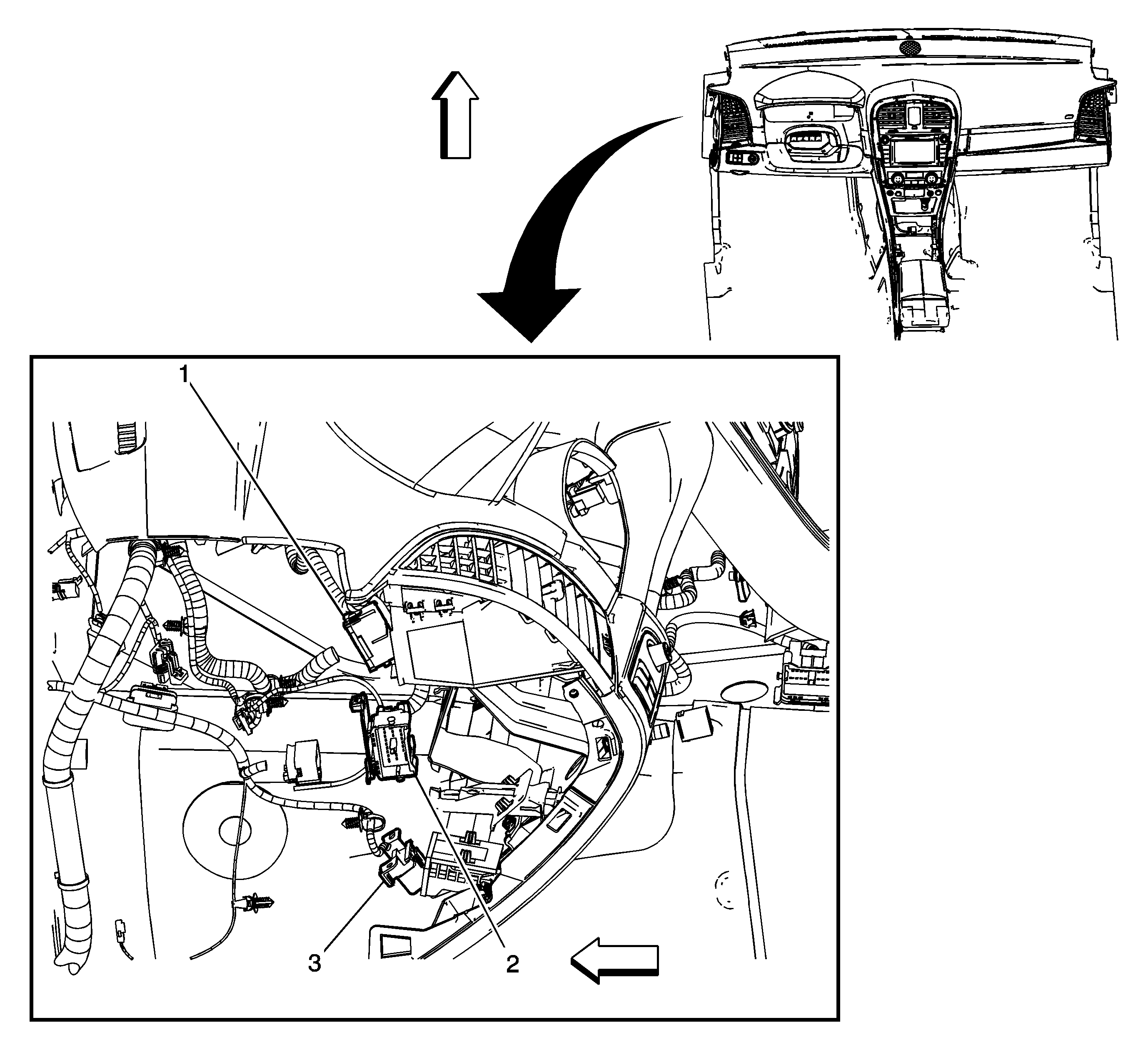

Right Side of the I/P


(1)	C204
(2)	SP200
(3)	C201

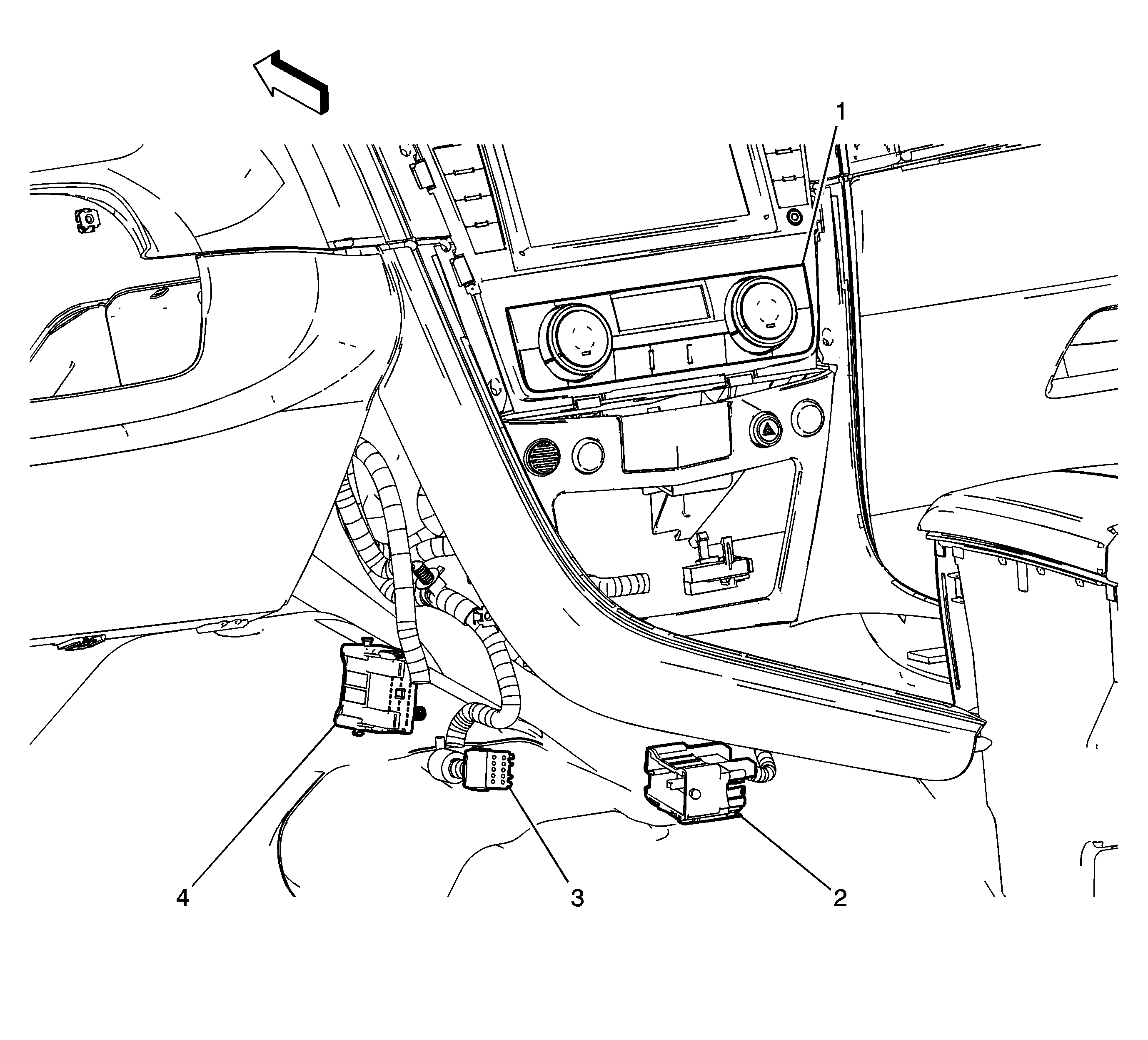

Figure 12:

Under Floor Console


(1)	HVAC Control Module
(2)	C205
(3)	C304
(4)	C303

Figure 13:

HVAC Actuators


(1)	Recirculation Actuator
(2)	C322 (Inline to I/P Harness)
(3)	Blower Motor
(4)	Blower Motor Control Module
(5)	Air Temperature Actuator - Right
(6)	Mode Actuator
(7)	Air Temperature Actuator - Left
(8)	Inside Air Temperature Sensor
(9)	C321 (Inline to I/P Harness)

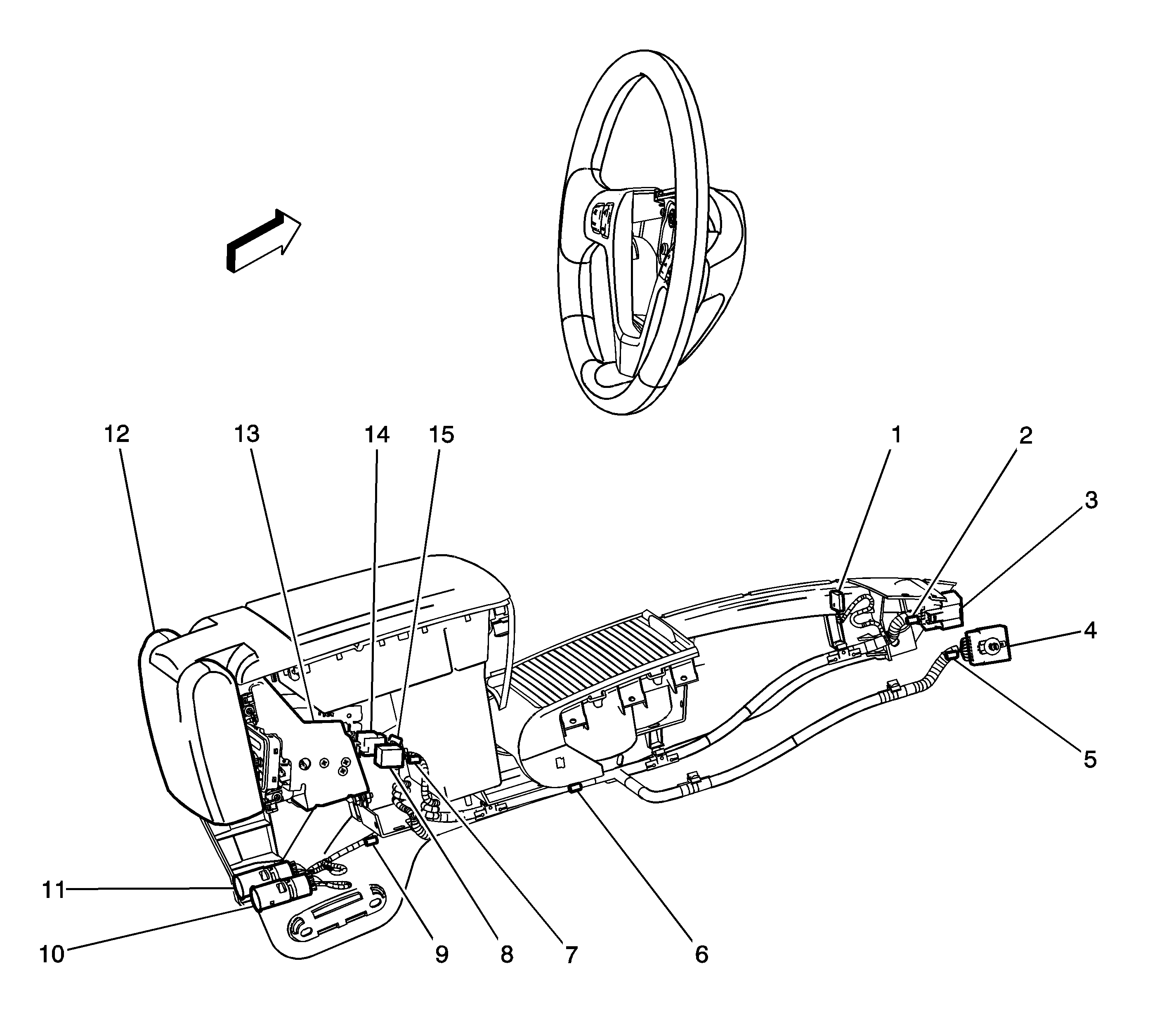

Figure 14:

Steering Column Components - 1 of 2


(1)	Inflatable Restraint Steering Wheel Module Coil Connector
(2)	Inflatable Restraint Steering Wheel Module Coil Connector
(3)	C208
(4)	Ignition Lock Cylinder Solenoid
(5)	Windshield Wiper Washer Switch
(6)	Ignition Lock Cylinder Case
(7)	Theft Deterrent Module (TDM)
(8)	Ignition Switch Connector
(9)	C202
(10)	C203
(11)	Fuse Block - Steering Column
(12)	Adjustable Pedal Switch (JF4)
(13)	Steering Tilt Lever
(14)	Turn Signal/Multifunction Switch

Figure 15:

Steering Wheel Components


(1)	Inflatable Restraint Steering Wheel Module/Horn Switch
(2)	Steering Wheel Controls - Left
(3)	Steering Wheel Controls - Right
(4)	Steering Wheel Controls - Left Connector
(5)	C208
(6)	Steering Wheel
(7)	Steering Column
(8)	Inflatable Restraint Steering Wheel Module Coil
(9)	Inflatable Restraint Steering Wheel Module Connector C1
(10)	Inflatable Restraint Steering Wheel Module Connector C2
(11)	C208
(12)	Steering Wheel Controls - Right Connector

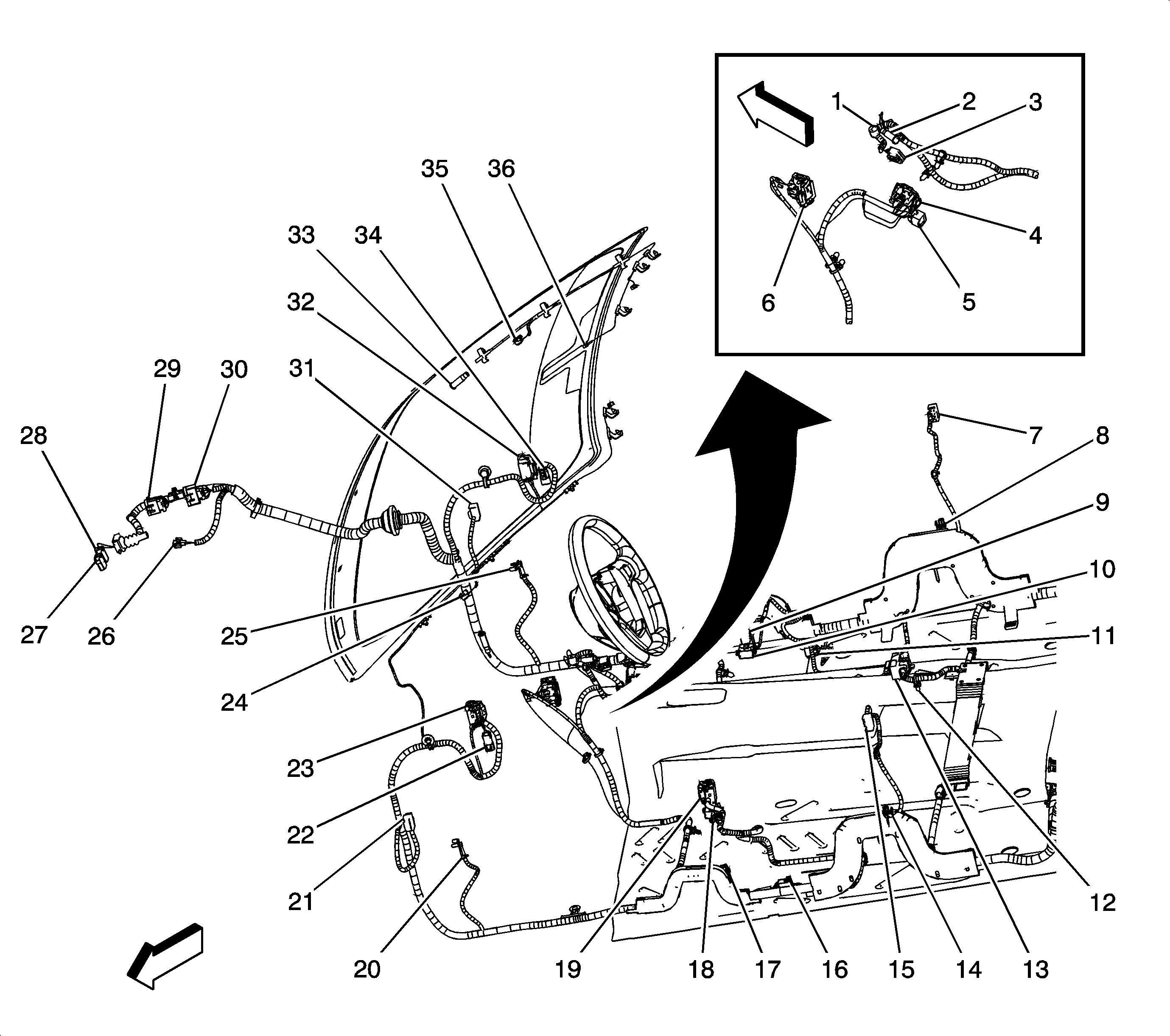

Figure 16:

Body Harness Routing 1 of 5


(1)	Coax Splice and Video Shielding
(2)	Coax
(3)	C312
(4)	C205
(5)	Automatic Transmission Shifter Lever Connector
(6)	C303
(7)	C800
(8)	Inflatable Restraint Side Impact Sensor (SIS) - Right
(9)	C307
(10)	C306
(11)	Yaw/Longitudinal Acceleration Sensor
(12)	G306
(13)	Inflatable Restraint Sensing and Diagnostic Module (SDM)
(14)	Inflatable Restraint Side Impact Sensor (SIS) - Left
(15)	C700
(16)	Splice Pack SP300
(17)	G307
(18)	C301
(19)	C300
(20)	G200
(21)	C500
(22)	Inflatable Restraint Steering Wheel Module
(23)	C200
(24)	Upper Speaker- LF Tweeter
(25)	G201
(26)	Suspension Damper - RF
(27)	Fuse Block Underhood - C3
(28)	Fuse Block Underhood - C2
(29)	C105
(30)	C101
(31)	C600
(32)	C201
(33)	Radio Antenna Coax
(34)	Inflatable Restraint I/P Module
(35)	Upper Speaker- RF Tweeter
(36)	Antenna Pre-Amplifier

Figure 17:

Body Harness Routing 2 of 5


(1)	Rear Integration Module (RIM) C1
(2)	Rear Integration Module (RIM) C2
(3)	Traffic Information Receiver Coax
(4)	Door Lock Relay-Liftgate
(5)	Suspension Control Module (SCM) - C1
(6)	Suspension Control Module (SCM) - C3
(7)	Suspension Control Module (SCM) - C2
(8)	Rear Subwoofer
(9)	C311
(10)	TV Tuner Connectors (U2Y\U2X)
(11)	Fuse Block - Left Rear
(12)	Fuse Block-Left Rear Power Feed
(13)	Fuse Block-Right Rear
(14)	Suspension Damper - RR
(15)	Inflatable Restraint Roof Rail Module-Right
(16)	Coax Connector
(17)	G308
(18)	C314
(19)	Coax Connector
(20)	Coax Connector
(21)	C316
(22)	C305
(23)	Splice Pack SP304
(24)	C310
(25)	Antenna Pre-Amplifier

Figure 18:

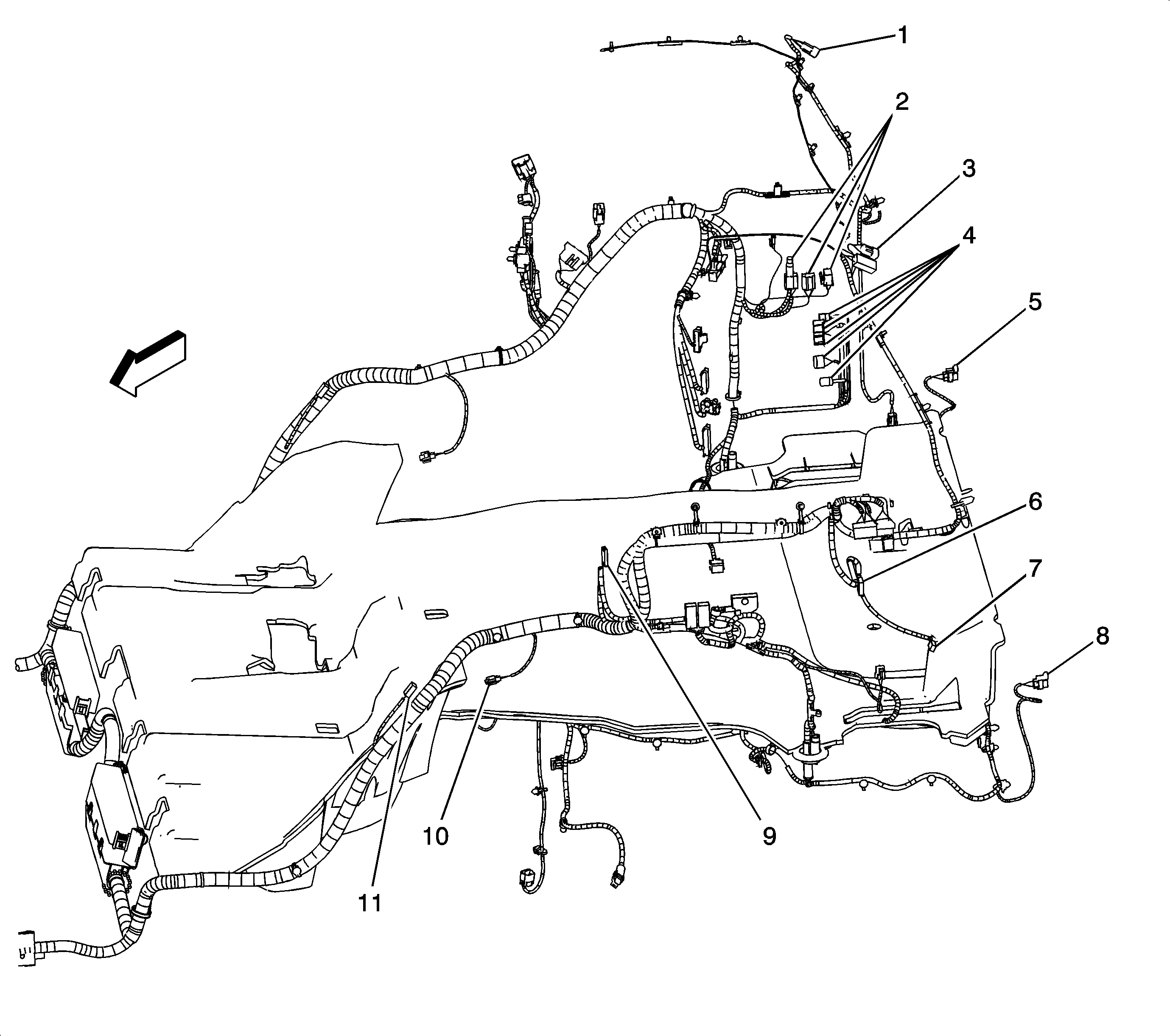

Body Harness Routing 3 of 5


(1)	C401
(2)	Vehicle Communication Interface Module (VCIM) Connectors
(3)	Liftgate Latch Assembly - LH
(4)	Vehicle Communication Interface Module (VCIM) Connectors
(5)	Tail Lamp Assembly - RH
(6)	Blower Motor Assembly - Auxiliary C2
(7)	Blower Motor Assembly - Auxiliary C1
(8)	Tail Lamp Assembly - LH
(9)	Rear Parking Assist (RPA) Module
(10)	Suspension Damper - RR
(11)	Inflatable Restraint Roof Rail Module - Left

Figure 19:

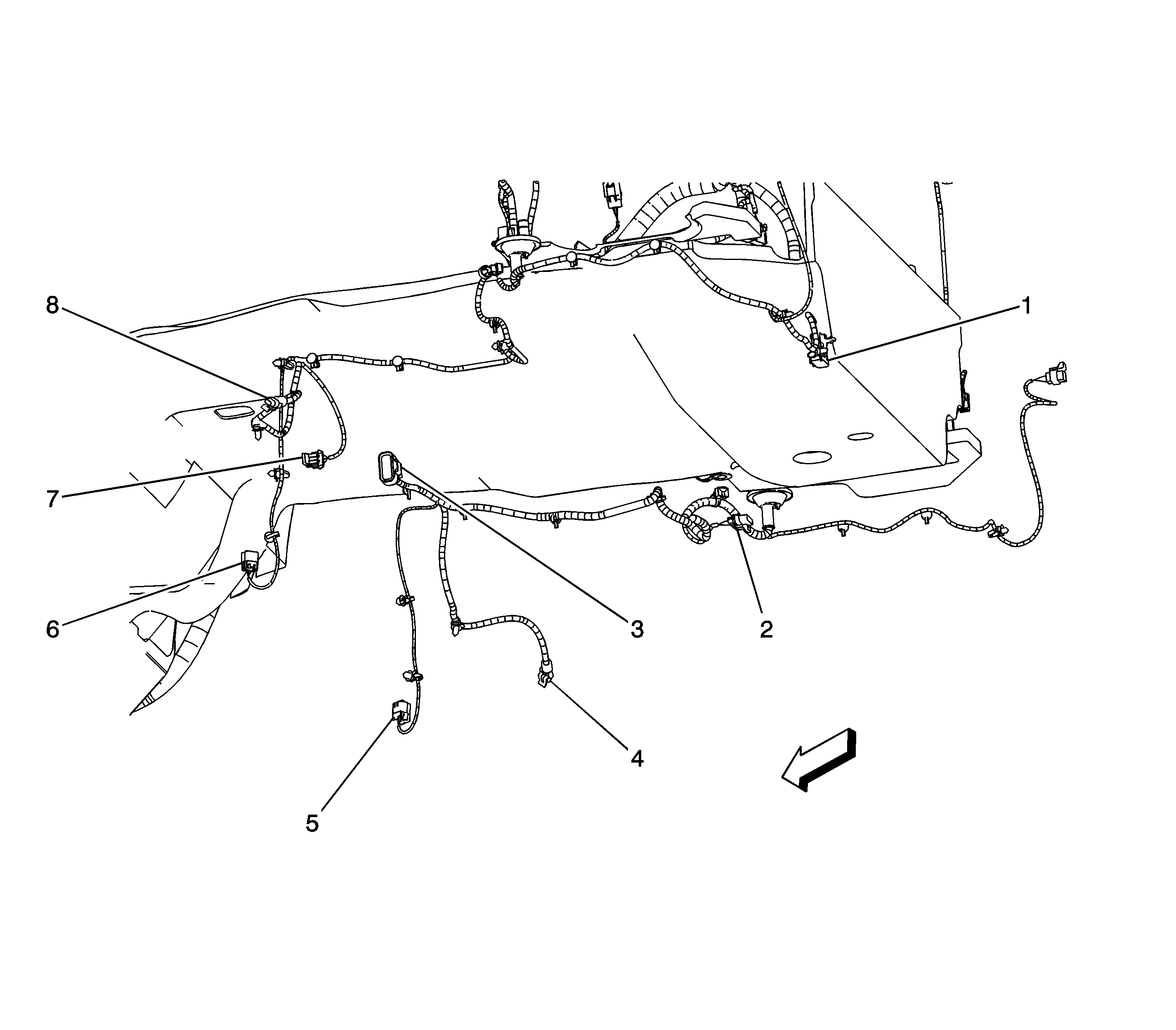

Body Harness Routing 4 of 5


(1)	C402
(2)	Automatic Level Control (ALC) Compressor
(3)	C420
(4)	Wheel Speed Sensor (WSS) - RR
(5)	Suspension Position Sensor - RR
(6)	LH Tail Lamp Harness Connector
(7)	Suspension Position Sensor - LR
(8)	Wheel Speed Sensor (WSS) - LR

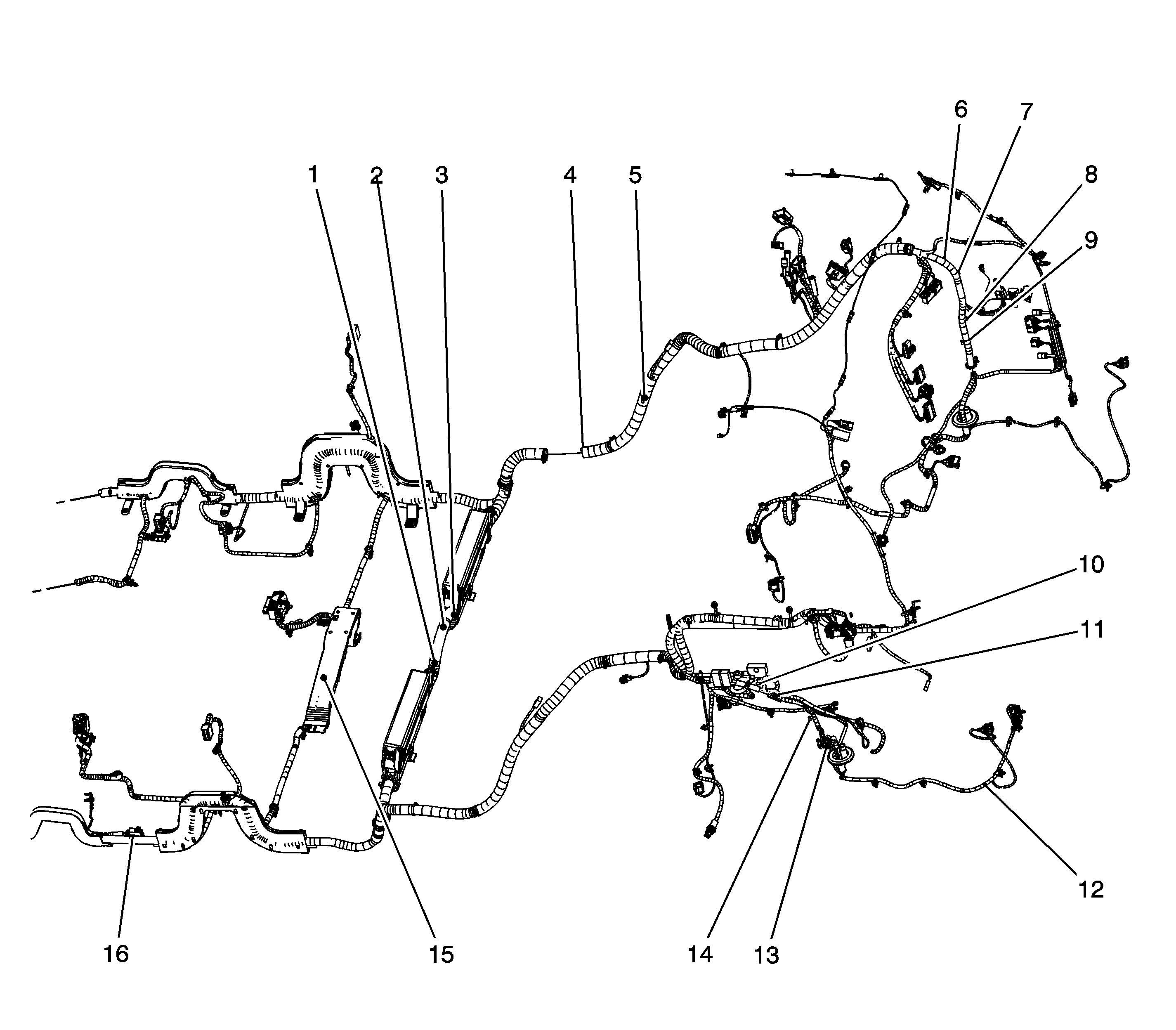

Figure 20:

Body Harness Routing 5 of 5 (Splices)


(1)	S304 (AH8)
(2)	S303
(3)	S302 (C57/C3B/CF5)
(4)	S309 (w/o T79)
(5)	S406 (C57)
(6)	S322 (T79)
(7)	S309 (w/o T79)
(8)	S401
(9)	S402
(10)	S323 (w/o T79)
(11)	S317 (w/o T79)
(12)	S321 (T79)
(13)	S403
(14)	S404
(15)	S305 (AH8/KA1)
(16)	Splice Pack SP300

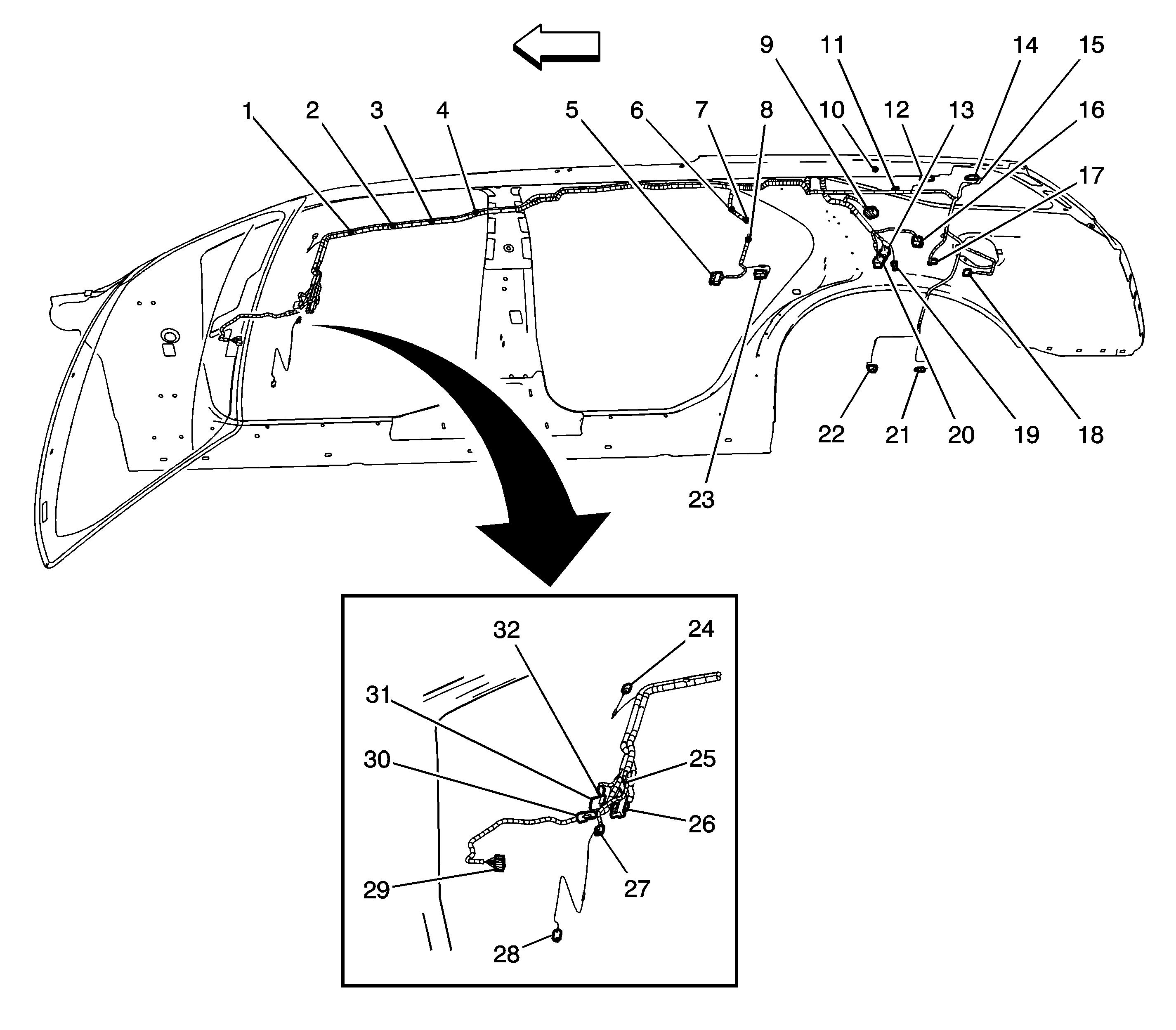

Figure 21:

Headliner (w/Sunroof)


(1)	S312
(2)	S319
(3)	S311
(4)	S314
(5)	Blower Motor Switch - Rear Auxiliary
(6)	S408
(7)	S308
(8)	S307
(9)	C305 (Cellular Antenna)
(10)	Phone Antenna (UE1)
(11)	S313
(12)	Radio Antenna Module - Passenger
(13)	C314
(14)	Passenger Side RFM/RFA
(15)	Passenger Side ARS
(16)	C310
(17)	Reading/Courtesy Lamp - Rear
(18)	Rear Parking Assist (RPA) Display
(19)	Headliner to Body Coax
(20)	C308
(21)	FM2 Antenna Signal - Driver
(22)	Radio Antenna Module - Driver
(23)	Reading/Courtesy Lamp - Center
(24)	Vanity Mirror Lamp - Right
(25)	Sunroof Switch-Rear (Mega)
(26)	Blower Motor Switch - Auxiliary
(27)	Rear Wiper/Washer Switch
(28)	Vanity Mirror Lamp - Left
(29)	Inside Rearview Mirror
(30)	Noise Compensation Microphone
(31)	Courtesy/Reading Lamp-Front
(32)	Sunroof Switch

Figure 22:

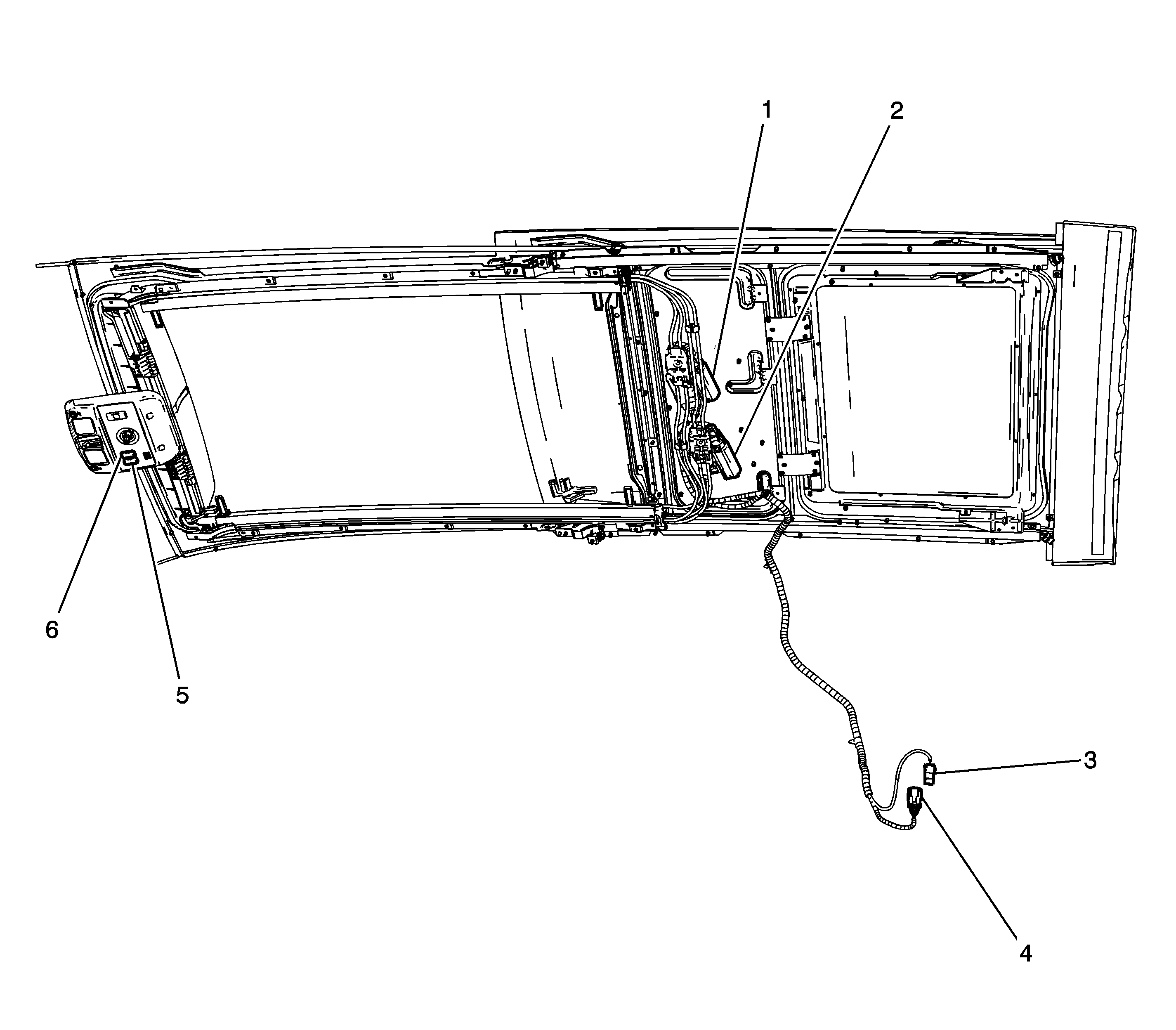

Sunroof (CF5)


(1)	Sunroof Control Module
(2)	Front Sunshade Control Module
(3)	C311
(4)	C315
(5)	Front Sunshade Switch
(6)	Sunroof Switch

Figure 23:

Console Harness Routing


(1)	Traction Control Switch
(2)	Coax Splice and Shield
(3)	C304
(4)	C312
(5)	Coax Splice and Shield
(6)	S315
(7)	Coax Splice and Shield
(8)	Rear Seat Infotainment - C1
(9)	S316
(10)	Auxiliary Power Outlet - RR
(11)	Auxiliary Power Outlet - LR
(12)	Display Module
(13)	Rear Seat Infotainment
(14)	Rear Seat Infotainment - C2
(15)	Coax Splice and Shield

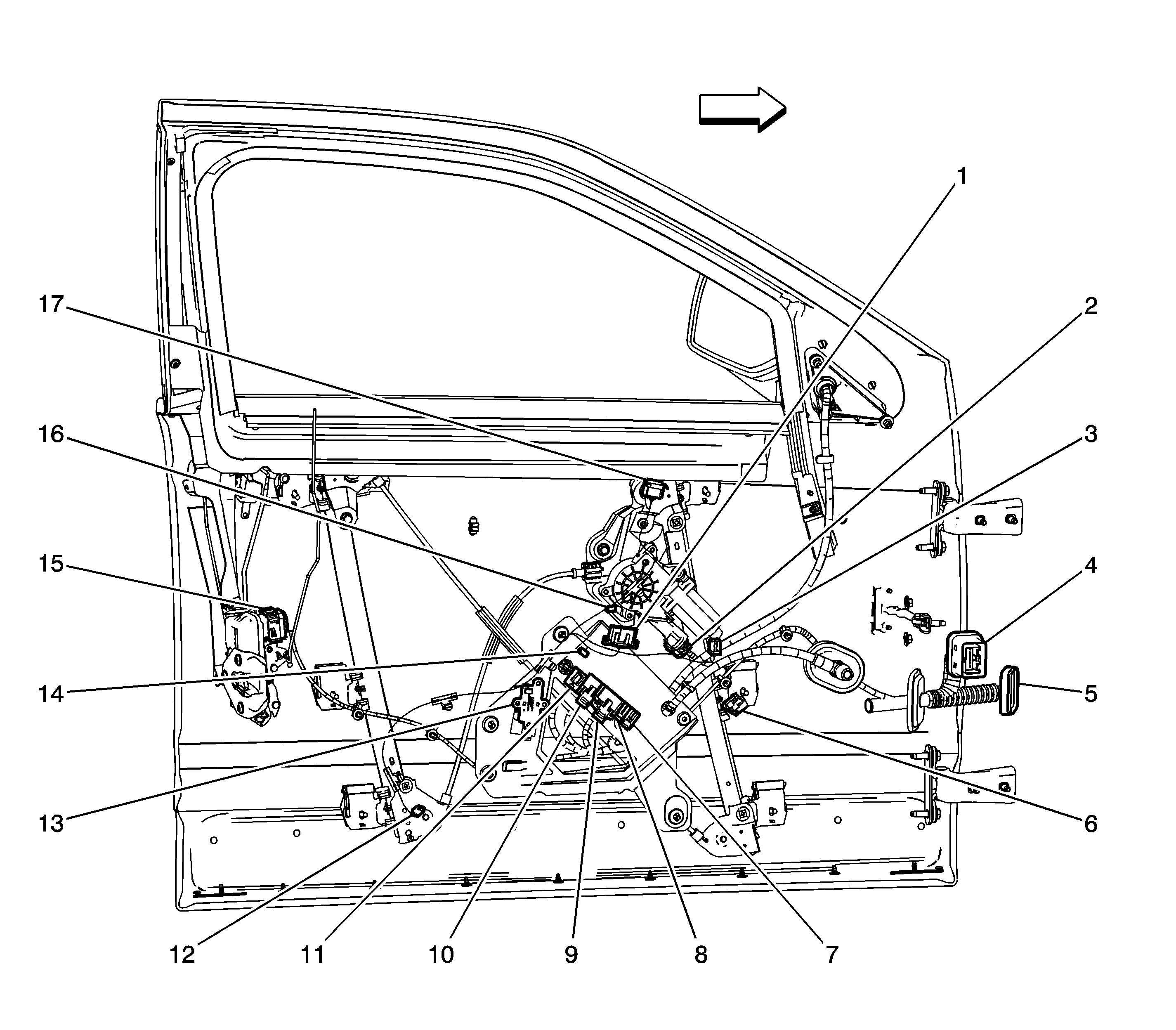

Figure 24:

Driver Door Harness Routing


(1)	Driver Door Switch Assembly (DDSA)
(2)	Window Motor - Driver
(3)	Personalization
(4)	C500, C600 Similar in Front Passenger Door
(5)	P500
(6)	Speaker - LF Door
(7)	Driver Door Module (DDM) - C5
(8)	DDM - C4
(9)	DDM - C3
(10)	DDM - C2
(11)	DDM - C1
(12)	Courtesy Lamp - Left Front Door
(13)	C501, C601 Similar in Front Passenger Door
(14)	S501
(15)	Door Latch Assembly - Driver
(16)	S502
(17)	Door Lock Switch - Driver

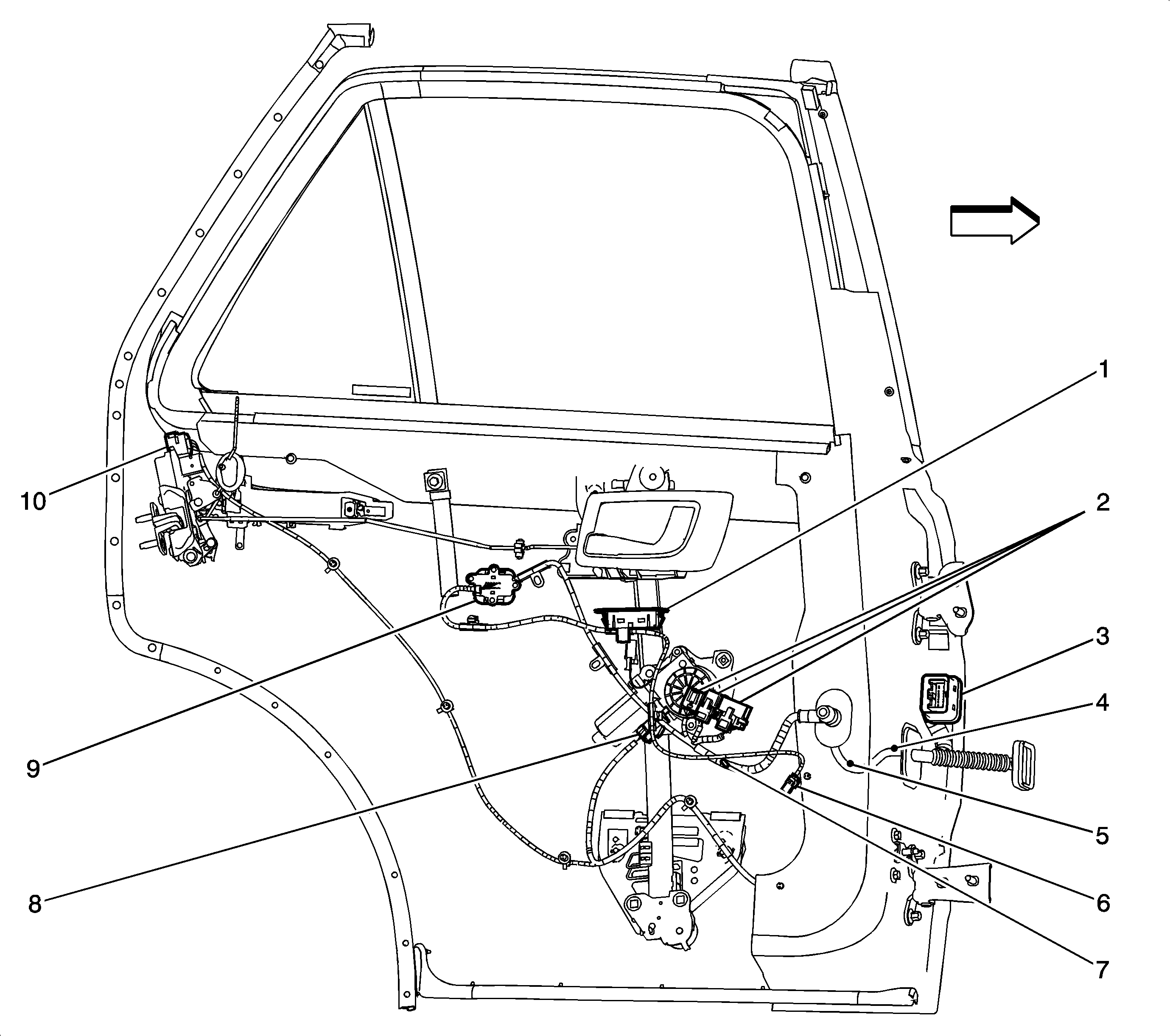

Figure 25:

Left Rear Door Harness Routing


(1)	Window Switch - LR
(2)	Left Rear Door Module (LRDM) Connectors
(3)	C700, C800 Similar in RR Door
(4)	S701
(5)	S702
(6)	Door Speaker - LR
(7)	S703
(8)	Window Motor - LR
(9)	C701, C801 Similar in RR Door
(10)	Door Latch Assembly - LR

Figure 26:

Liftgate Harness


(1)	Center High Mounted Stop Lamp (CHMSL)
(2)	C403
(3)	C404
(4)	Rear Defogger
(5)	C901
(6)	Backup Lamp - Left
(7)	License Lamp - Left
(8)	Door Latch Assembly - Liftgate C2
(9)	Door Latch Assembly - Liftgate C1
(10)	License Lamp - Right
(11)	Backup Lamp - Right
(12)	Courtesy Lamp - Liftgate
(13)	S902
(14)	Rear Defogger
(15)	S900
(16)	C401
(17)	Rear Window Wiper Motor

Figure 27:

Rear Exterior Lights


(1)	Center High Mounted Stop Lamp (CHMSL)
(2)	Courtesy Lamp - Liftgate
(3)	Tail Lamp Assembly - Right
(4)	Tail Lamp Drive Module - Right
(5)	Object Sensor - RR Corner
(6)	Backup Lamp - Right
(7)	License Lamp - Right
(8)	Object Sensor - RR Middle
(9)	Object Sensor - LR Middle
(10)	License Lamp - Left
(11)	Backup Lamp - Left
(12)	Object Sensor - LR Corner
(13)	Tail Lamp Drive Module - Left
(14)	Tail Lamp Assembly - Left
(15)	C901
(16)	Fog Lamp - LR/RR (T79)

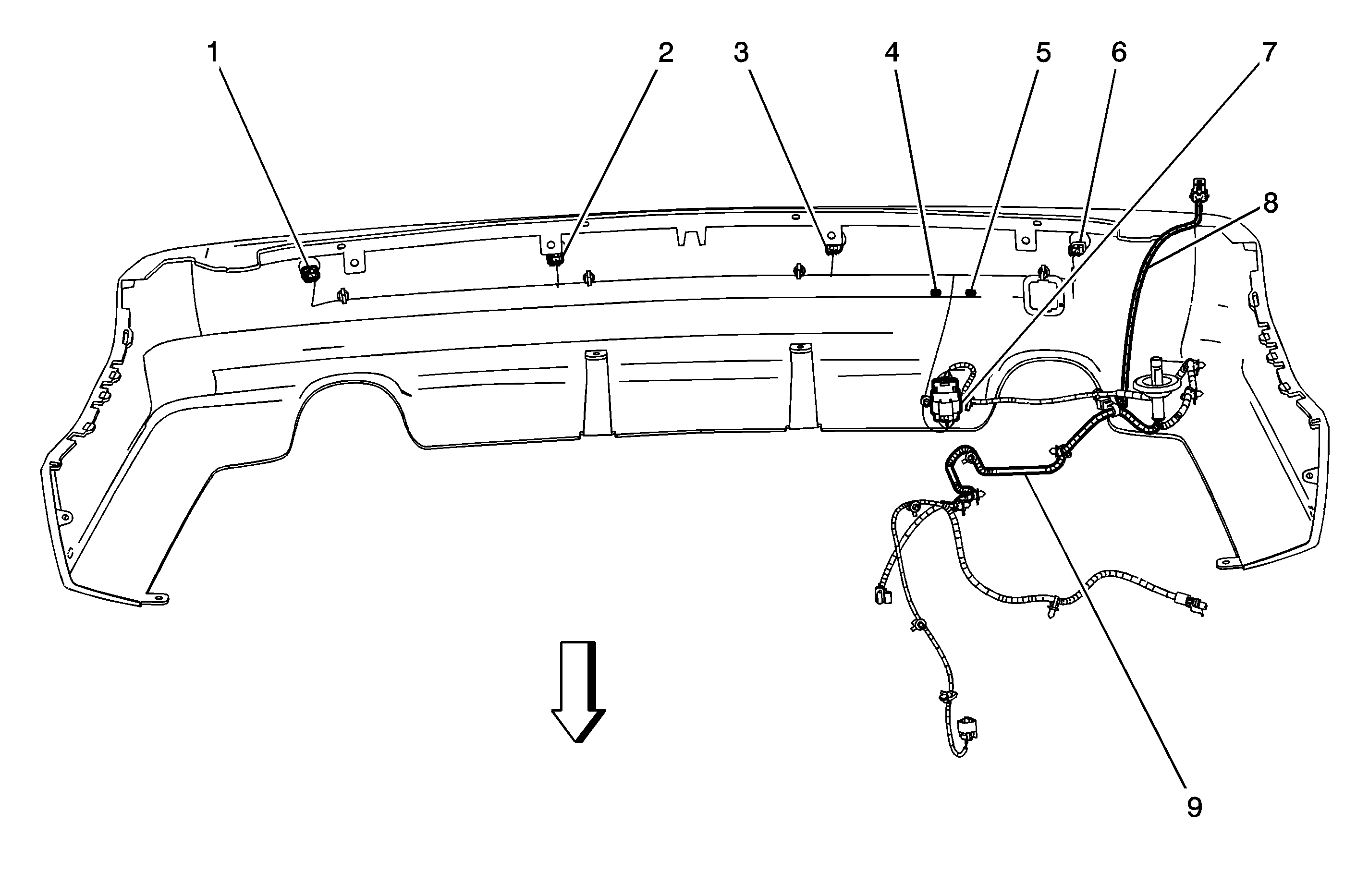

Figure 28:

Rear Fascia Harness Routing


(1)	Rear Object Sensor - RR Corner
(2)	Rear Object Sensor - RR Middle
(3)	Rear Object Sensor - LR Middle
(4)	S402
(5)	S401
(6)	Rear Object Sensor - LR Corner
(7)	C402
(8)	Rear Parking Assist (RPA) Harness
(9)	Body Harness
