Power Distribution Schematics. Cadillac SRX 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Engine 🢒 Engine Controls - 4.6L (LH2) 🢒 Power Distribution Schematics

Figure 1:	Fuse Block - Underhood B+ Bus Master Electrical Component List Control Module References Fuse Block - Right Rear B+ Bus
Figure 2:	Fuse Block - Right Rear B+ Bus Master Electrical Component List Control Module References Fuse Block - Left Rear B+ Bus Fuse Block - Underhood B+ Bus Schematic Fuse Block - Underhood B+ Bus Schematic
Figure 3:	Fuse Block - Left Rear B+ Bus Master Electrical Component List Control Module References CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, Flasher, and VOLT CHECK Fuses Fuse Block - Right Rear B+ Bus Fuse Block - Underhood B+ Bus Schematic
Figure 4:	CCP (B+) DIM/ALDL, EBCM (B+) ECM/TCM, FLASHER, and VOLT CHECK Fuses Master Electrical Component List Control Module References CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses Fuse Block - Left Rear B+ Bus Fuse Block - Underhood B+ Bus Schematic
Figure 5:	CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses Master Electrical Component List Control Module References POWER SOUNDER, RIM, RT FRT DR MOD, SUSPNTN, and VICS/RAP Fuses CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, Flasher, and VOLT CHECK Fuses Fuse Block - Underhood B+ Bus Schematic
Figure 6:	POWER SOUNDER, RIM, RT FRT DR MOD, SUSPNTN, and VICS/RAP Fuses Master Electrical Component List Control Module References AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses CANISTER VENT, DR MOD PWR, REAR HATCH, R FRT HTD SEAT MOD, and SUNROOF MOD Fuses Fuse Block - Underhood B+ Bus Schematic Fuse Block - Underhood B+ Bus Schematic
Figure 7:	AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses Master Electrical Component List Control Module References FFSM, FFS SW, and THEFT Fuses and SEAT Circuit Breaker POWER SOUNDER, RIM, RT FRT DR MOD, SUSPNTN, and VICS/RAP Fuses Fuse Block - Underhood B+ Bus Schematic Fuse Block - Underhood B+ Bus Schematic
Figure 8:	FFSM, FFS SW, and THEFT Fuses and SEAT Circuit Breaker Master Electrical Component List Control Module References IGN SW Fuse and Ignition Switch - 1 of 2 AMP, AUDIO, DRIVER DR MOD, ELC COMP, L FRT HTD SEAT MOD, MEM/ADAPT SEAT, and REAR DR MOD Fuses Fuse Block - Left Rear B+ Bus Fuse Block - Left Rear B+ Bus
Figure 9:	IGN SW Fuse and Ignition Switch - 1 of 2 Master Electrical Component List Control Module References RIM and THEFT Fuses and Ignition Switch - 2 of 2 FFSM, FFS SW, and THEFT Fuses and SEAT Circuit Breaker Fuse Block - Underhood B+ Bus Schematic RIM and THEFT Fuses and Ignition Switch - 2 of 2

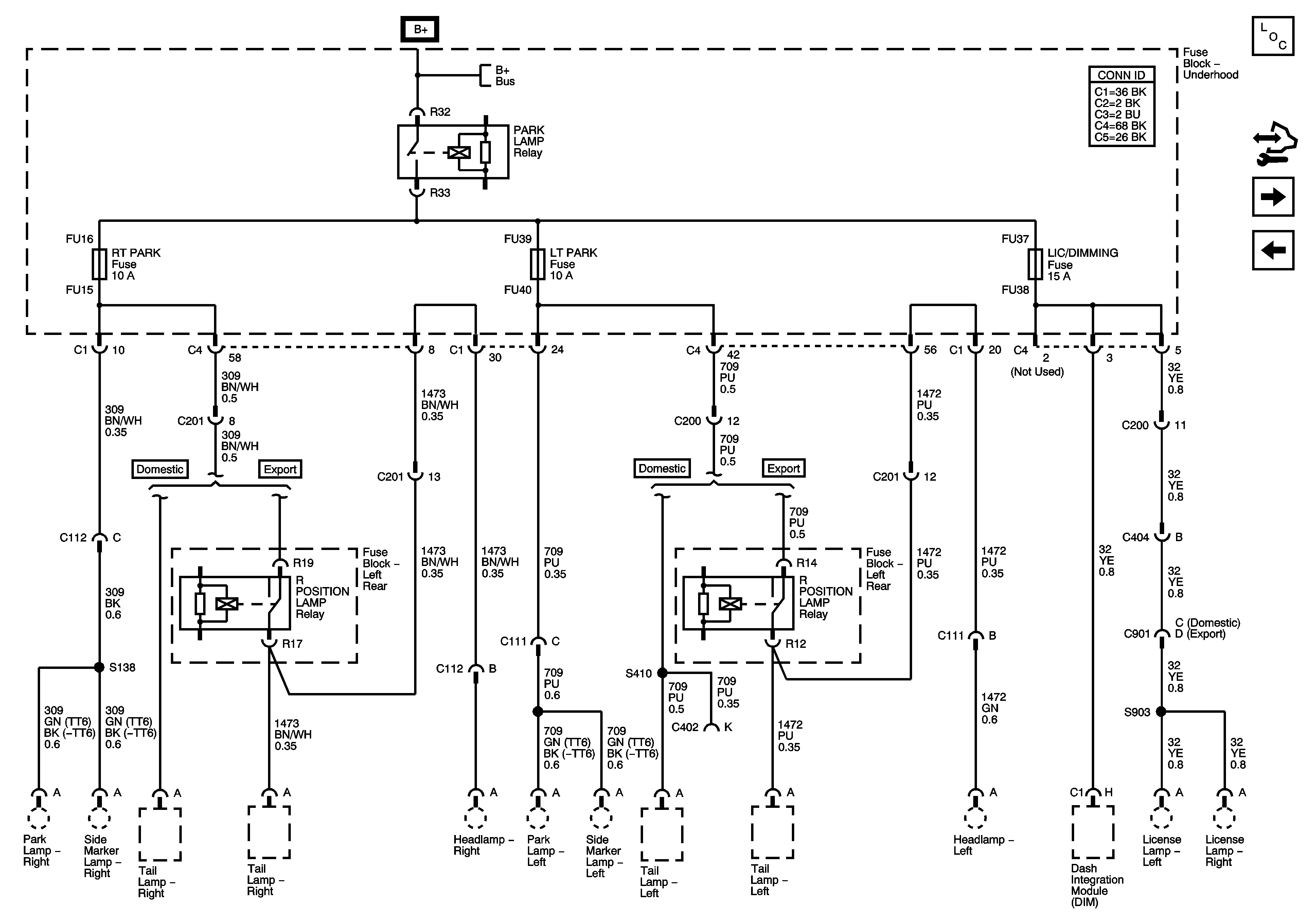

Figure 10:	RIM and THEFT Fuses and Ignition Switch - 2 of 2 Master Electrical Component List Control Module References LIC/DIMMING, LT PARK, and RT PARK Fuses IGN SW Fuse and Ignition Switch - 1 of 2 Fuse Block - Right Rear B+ Bus IGN SW Fuse and Ignition Switch - 1 of 2
Figure 11:	LIC/DIMMING, LT PARK, and RT PARK Fuses Master Electrical Component List Control Module References HFVG, PRE 02/CAM, and V8 ECM Fuses RIM and THEFT Fuses and Ignition Switch - 2 of 2 Fuse Block - Underhood B+ Bus Schematic

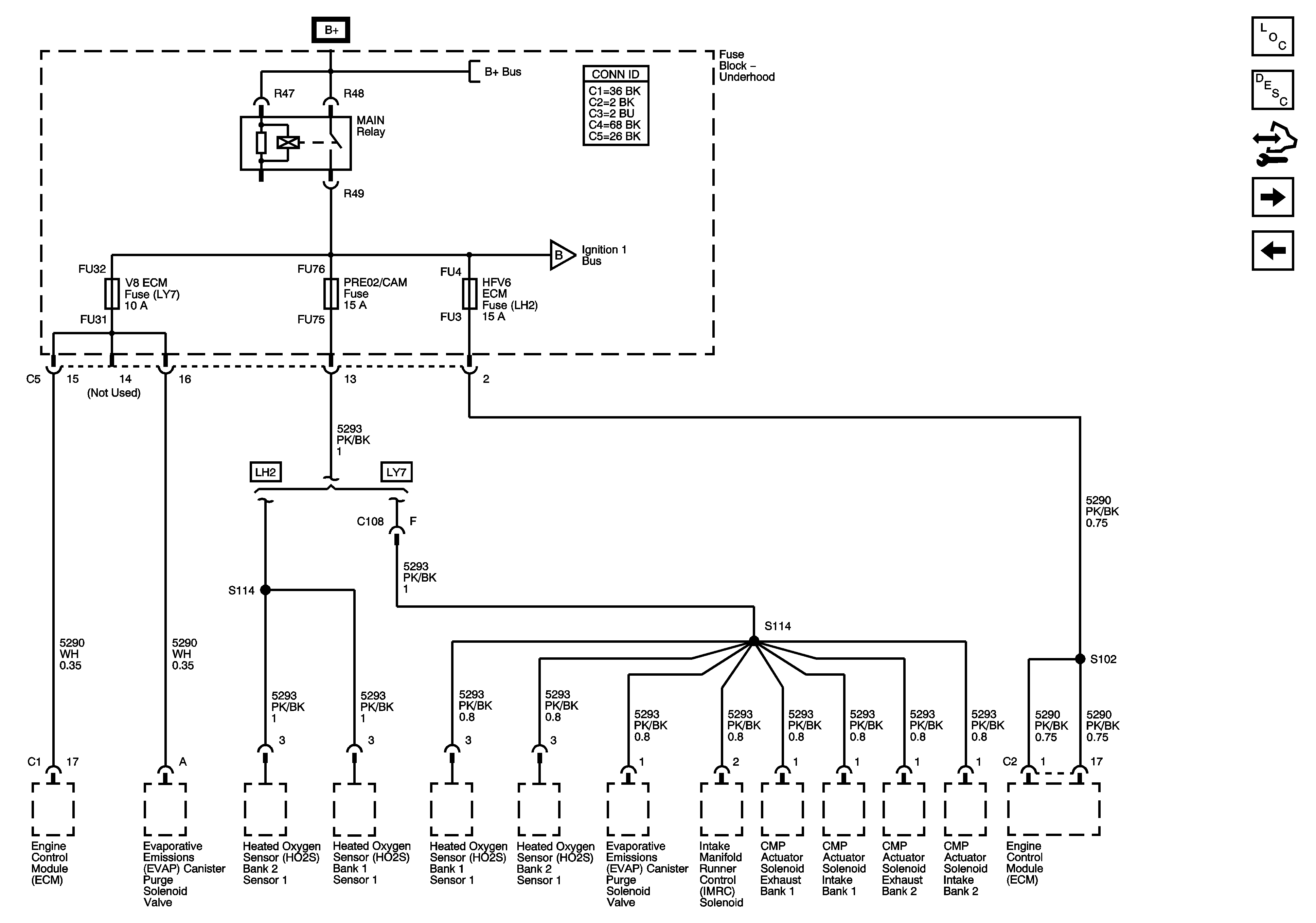

Figure 12:	HFVG, PRE 02/CAM, and V8 ECM Fuses Master Electrical Component List Control Module References EVEN COILS, ODD COILS, and POST 02 FUSES LIC/DIMMING, LT PARK, and RT PARK Fuses Fuse Block - Underhood B+ Bus Schematic EVEN COILS, ODD COILS, and POST 02 FUSES
Figure 13:	EVEN COILS, ODD COILS, and POST 02 Fuses Master Electrical Component List Control Module References AIR BAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, and IGN 3 Fuses HFVG, PRE 02/CAM, and V8 ECM Fuses HFVG, PRE 02/CAM, and V8 ECM Fuses
Figure 14:	AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, ING 1, and IGN 3 Fuses Master Electrical Component List Control Module References ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses EVEN COILS, ODD COILS, and POST 02 FUSES Fuse Block - Right Rear B+ Bus Fuse Block - Left Rear B+ Bus
Figure 15:	ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses Master Electrical Component List Control Module References I/P OUTLET, LT HI BEAM, LT LOW BEAM, OUTLET, RT HI BEAM, and RT LOW BEAM Fuses AIR BAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, and IGN 3 Fuses Fuse Block - Underhood B+ Bus Schematic
Figure 16:	I/P OUTLET, LT HI BEAM, LT LOW BEAM, OUTLET, RT HI BEAM, and RT LOW BEAM Fuses Master Electrical Component List Control Module References ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses Fuse Block - Underhood B+ Bus Schematic
