Engine Controls Schematics. Cadillac SRX 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Engine Controls Schematics

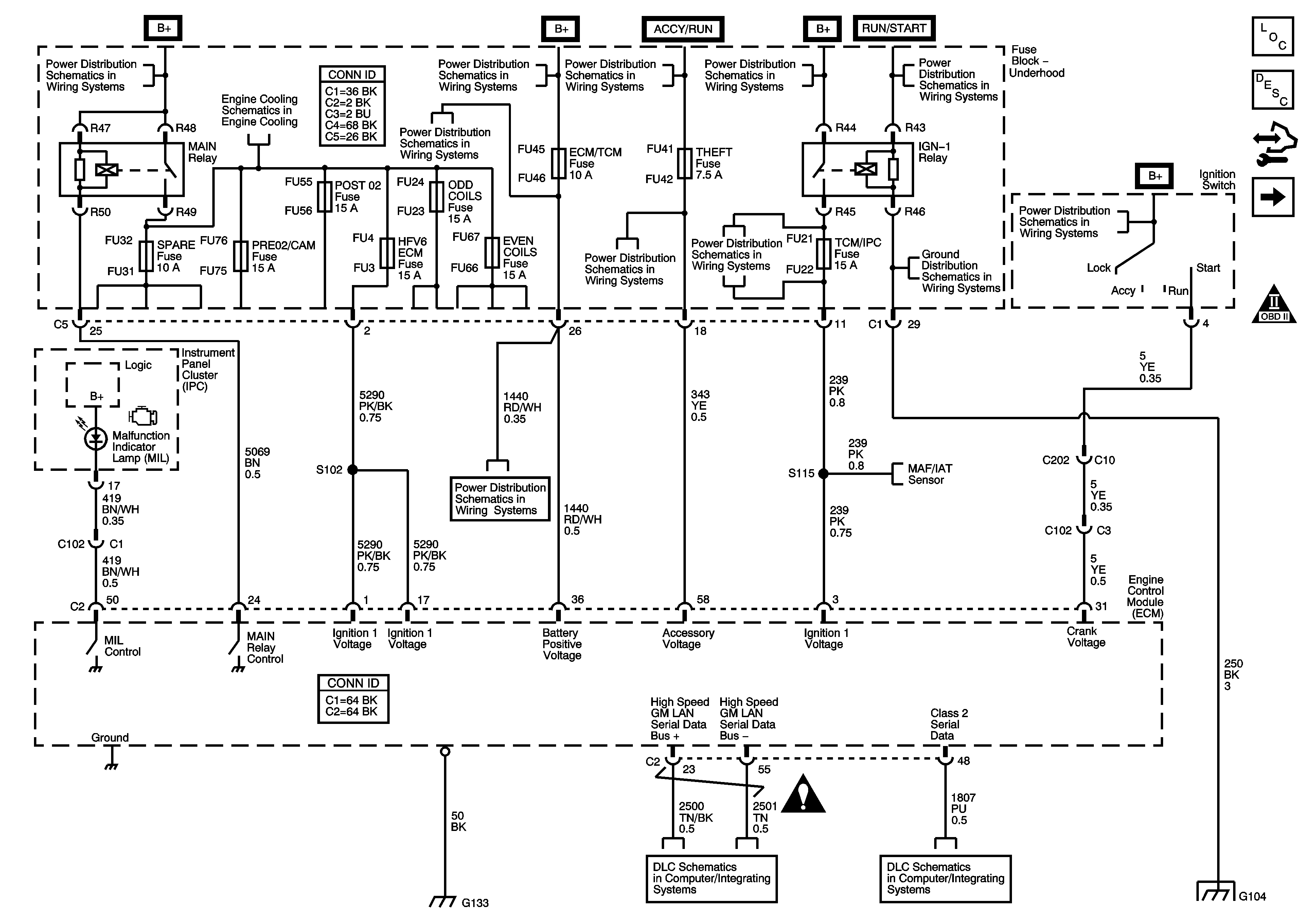

Figure 1:	Module Power, Ground, Serial Data and MIL Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - 5-Volt Reference Engine Controls Schematic Icons Fuse Block - Underhood B+ Bus Schematic Fuse Block - Underhood B+ Bus Schematic RIM and THEFT Fuses and Ignition Switch - 2 of 2 Fuse Block - Underhood B+ Bus Schematic RIM and THEFT Fuses and Ignition Switch - 2 of 2 Cooling Fans CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, Flasher, and VOLT CHECK Fuses RIM and THEFT Fuses and Ignition Switch - 2 of 2 ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses G104 IGN SW Fuse and Ignition Switch - 1 of 2 CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, Flasher, and VOLT CHECK Fuses Engine Data Sensors - Pressure, Temperature, MAF, VSS and Extended Travel Brake Switch Engine Controls Schematic Icons Power, Ground, GMLAN and Key Word 2000 Serial Data Class 2 Serial Data - 1 of 2 G104

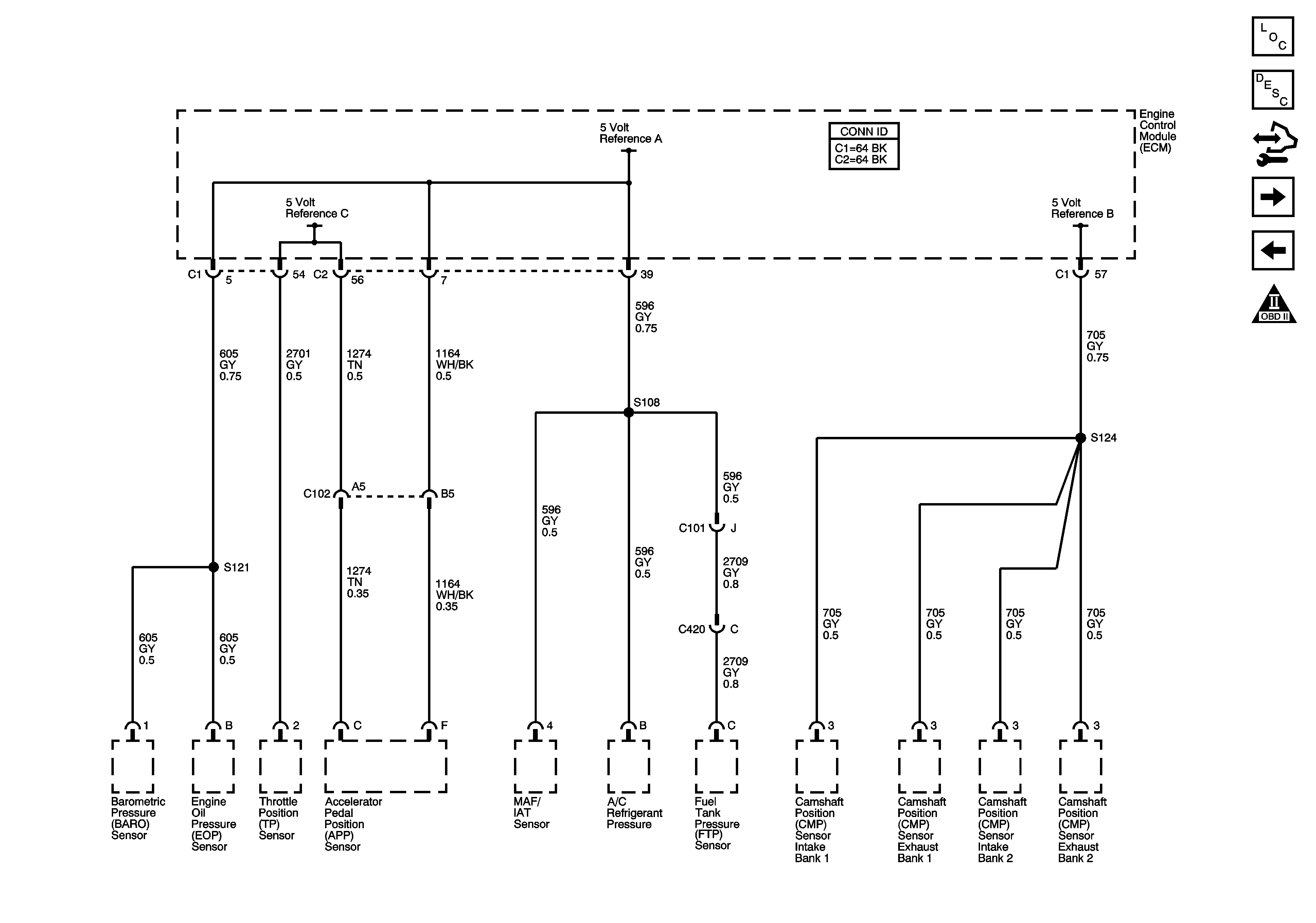

Figure 2:	Engine Data Sensors - 5-Volt Reference Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Low Reference Module Power, Ground, Serial Data and MIL Engine Controls Schematic Icons

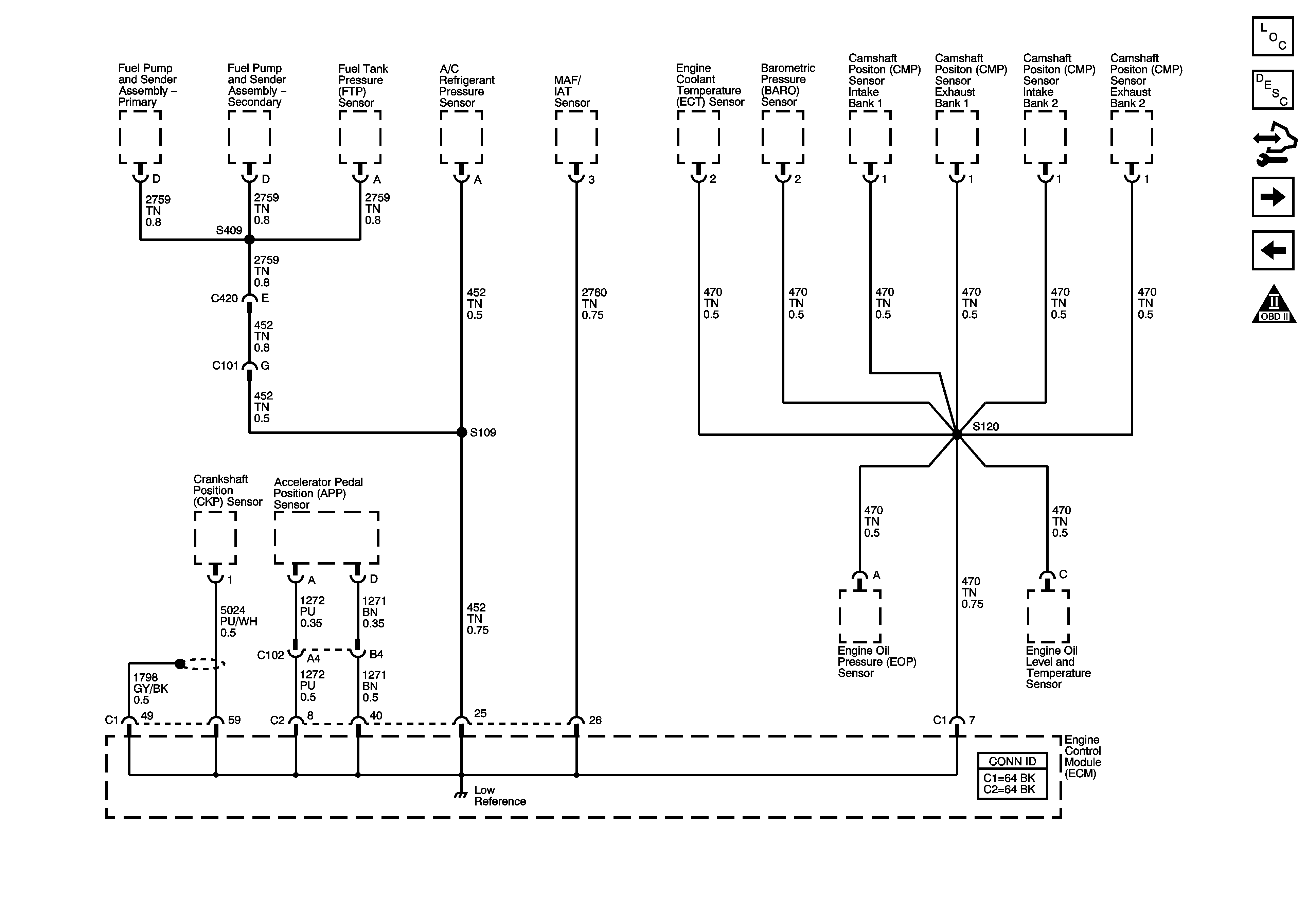

Figure 3:	Engine Data Sensors - Low Reference Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Pressure, Temperature, MAF, VSS and Extended Travel Brake Switch Engine Data Sensors - 5-Volt Reference Engine Controls Schematic Icons

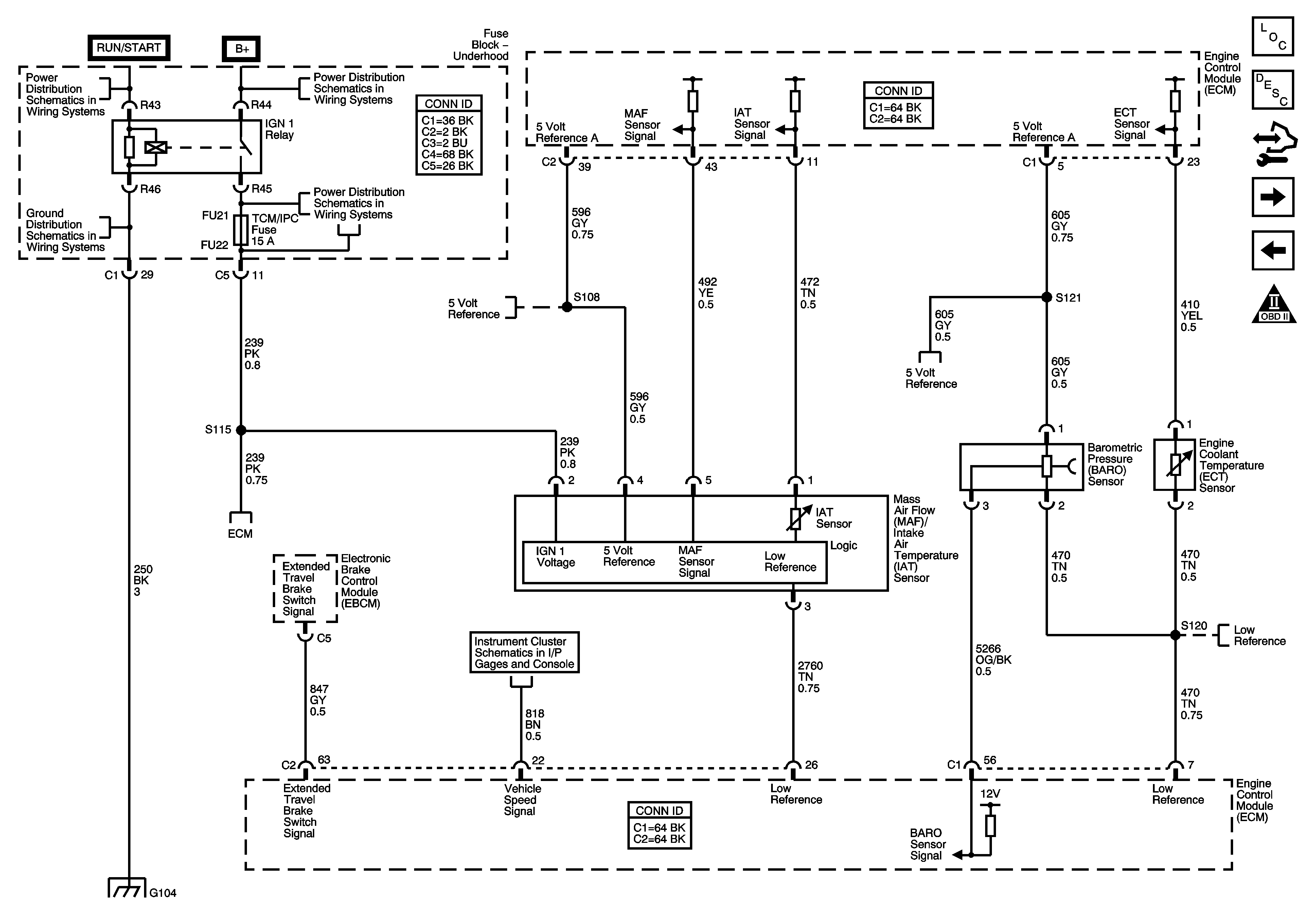

Figure 4:	Engine Data Sensors - Pressure, Temperature, MAF, VSS, and Extended Travel Brake Switch Master Electrical Component List Air Intake System Description Control Module References Engine Data Sensors - Oxygen Sensors Engine Data Sensors - Low Reference Engine Controls Schematic Icons RIM and THEFT Fuses and Ignition Switch - 2 of 2 G104 Fuse Block - Underhood B+ Bus Schematic ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses Engine Data Sensors - 5-Volt Reference Engine Data Sensors - 5-Volt Reference Module Power, Ground, Serial Data and MIL G104 Gages Engine Data Sensors - Low Reference

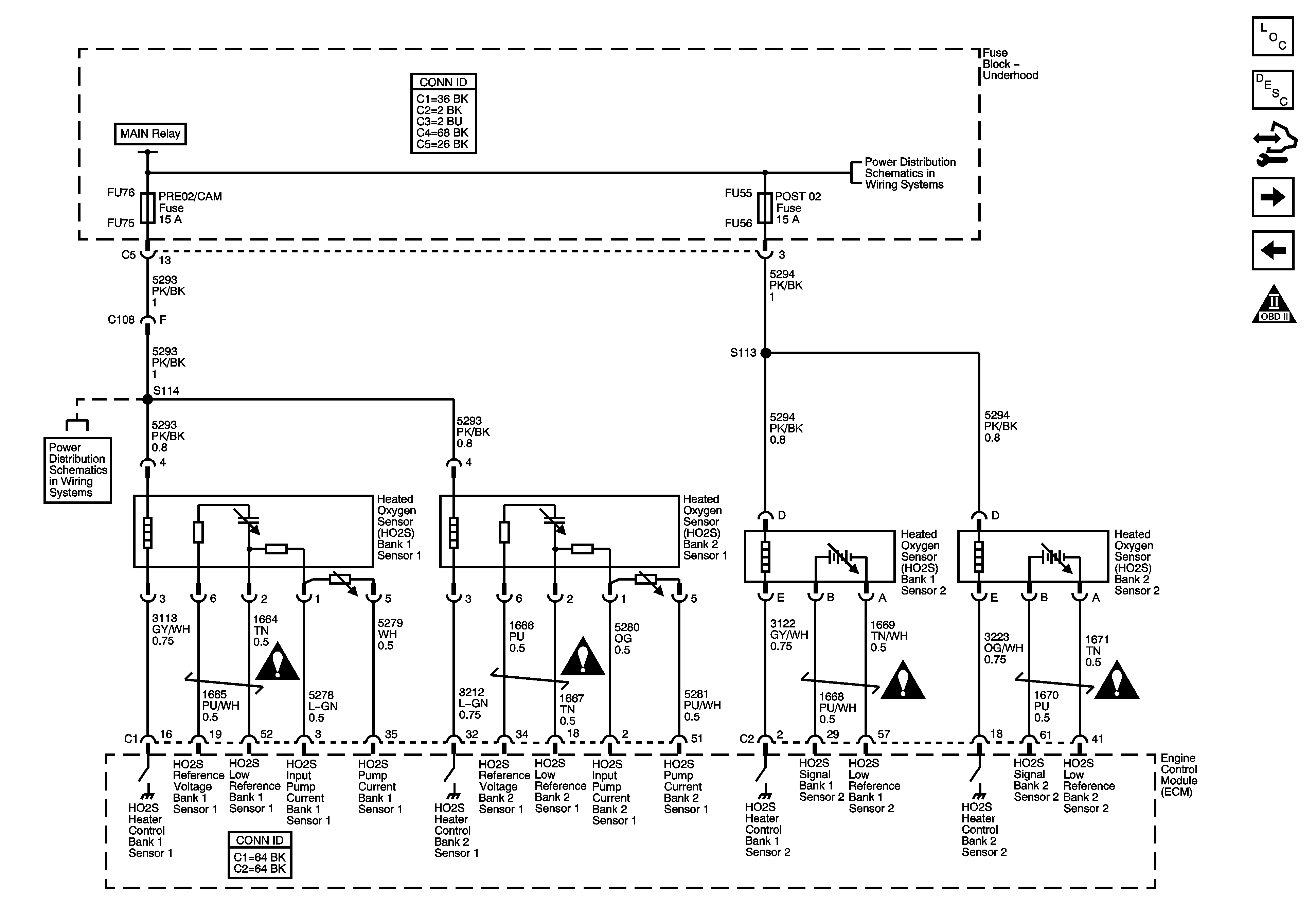

Figure 5:	Engine Data Sensors - Oxygen Sensors Master Electrical Component List Engine Control Module Description Control Module References Engine Data Sensors - Throttle Actuator Controls Engine Data Sensors - Pressure, Temperature, MAF, VSS and Extended Travel Brake Switch Engine Controls Schematic Icons Cooling Fans Fuse Block - Underhood B+ Bus Schematic HFVG, PRE 02/CAM, and V8 ECM Fuses Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons

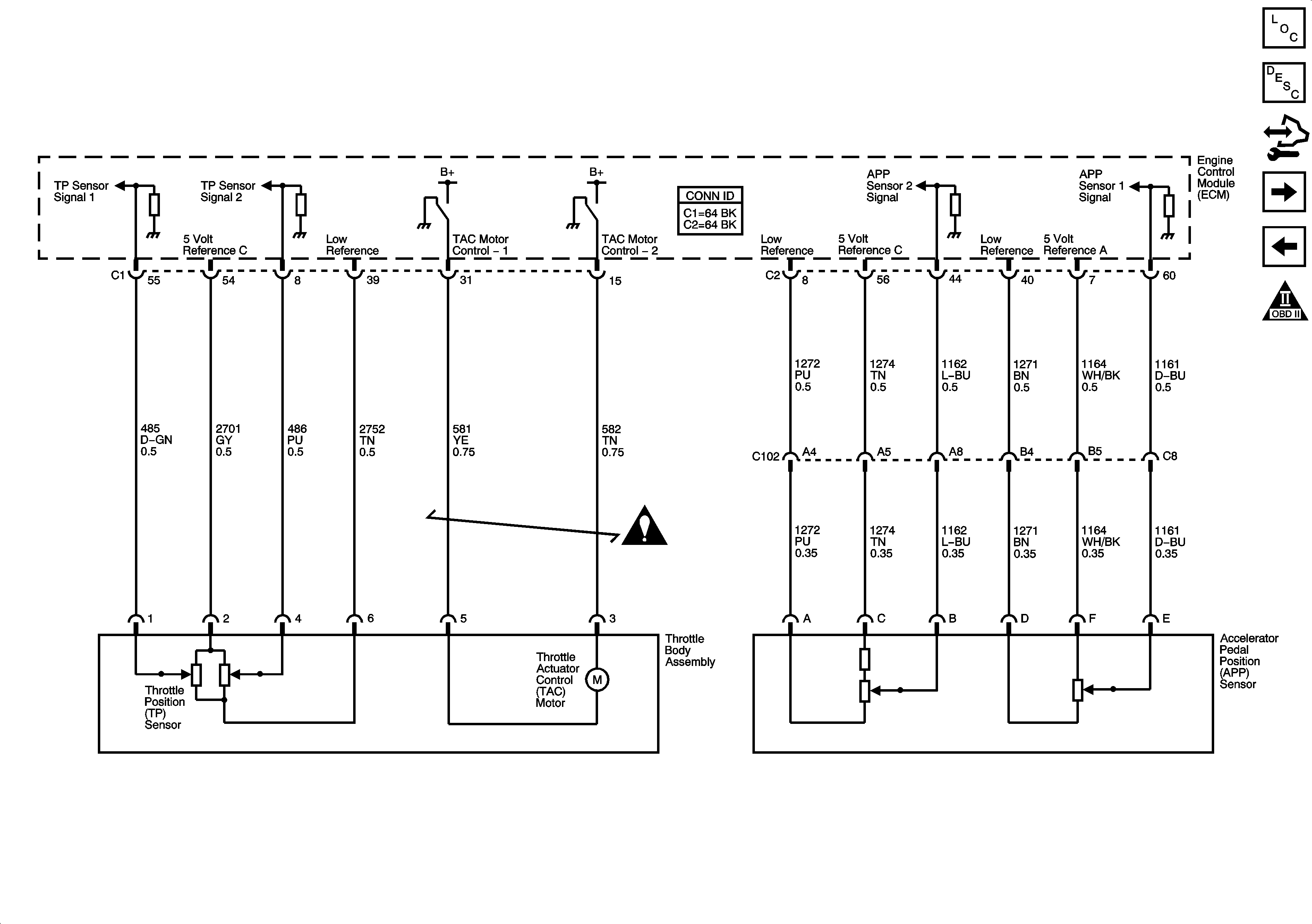

Figure 6:	Engine Data Sensors - Throttle Actuator Controls Master Electrical Component List Throttle Actuator Control (TAC) System Description Control Module References Ignition Controls - Bank 1 Ignition Coils Engine Data Sensors - Oxygen Sensors Engine Controls Schematic Icons Engine Controls Schematic Icons

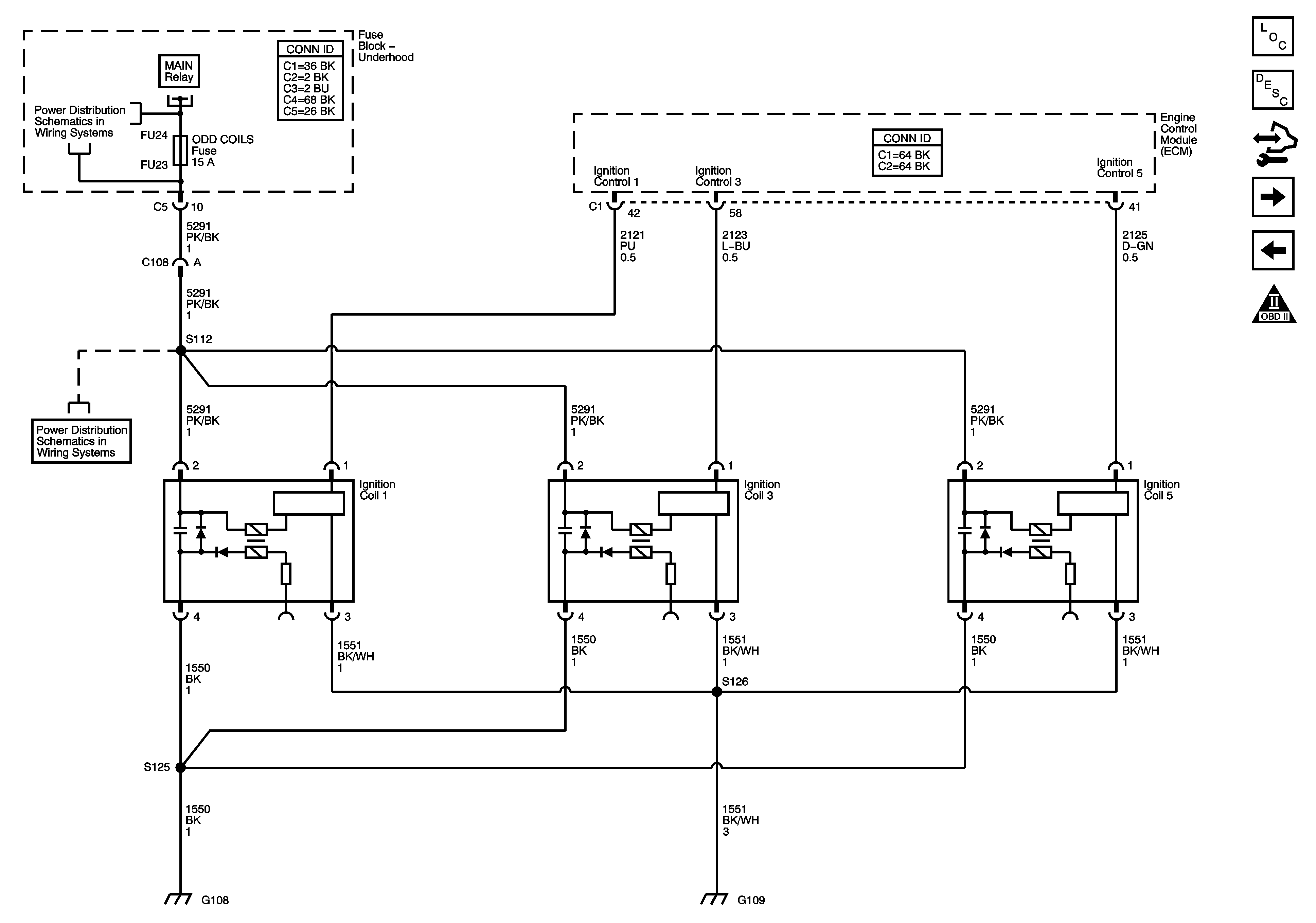

Figure 7:	Ignition Controls - Bank 1 Ignition Controls Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Ignition Controls - Bank 2 Ignition Coils Engine Data Sensors - Throttle Actuator Controls Engine Controls Schematic Icons EVEN COILS, ODD COILS, and POST 02 FUSES Cooling Fans EVEN COILS, ODD COILS, and POST 02 FUSES

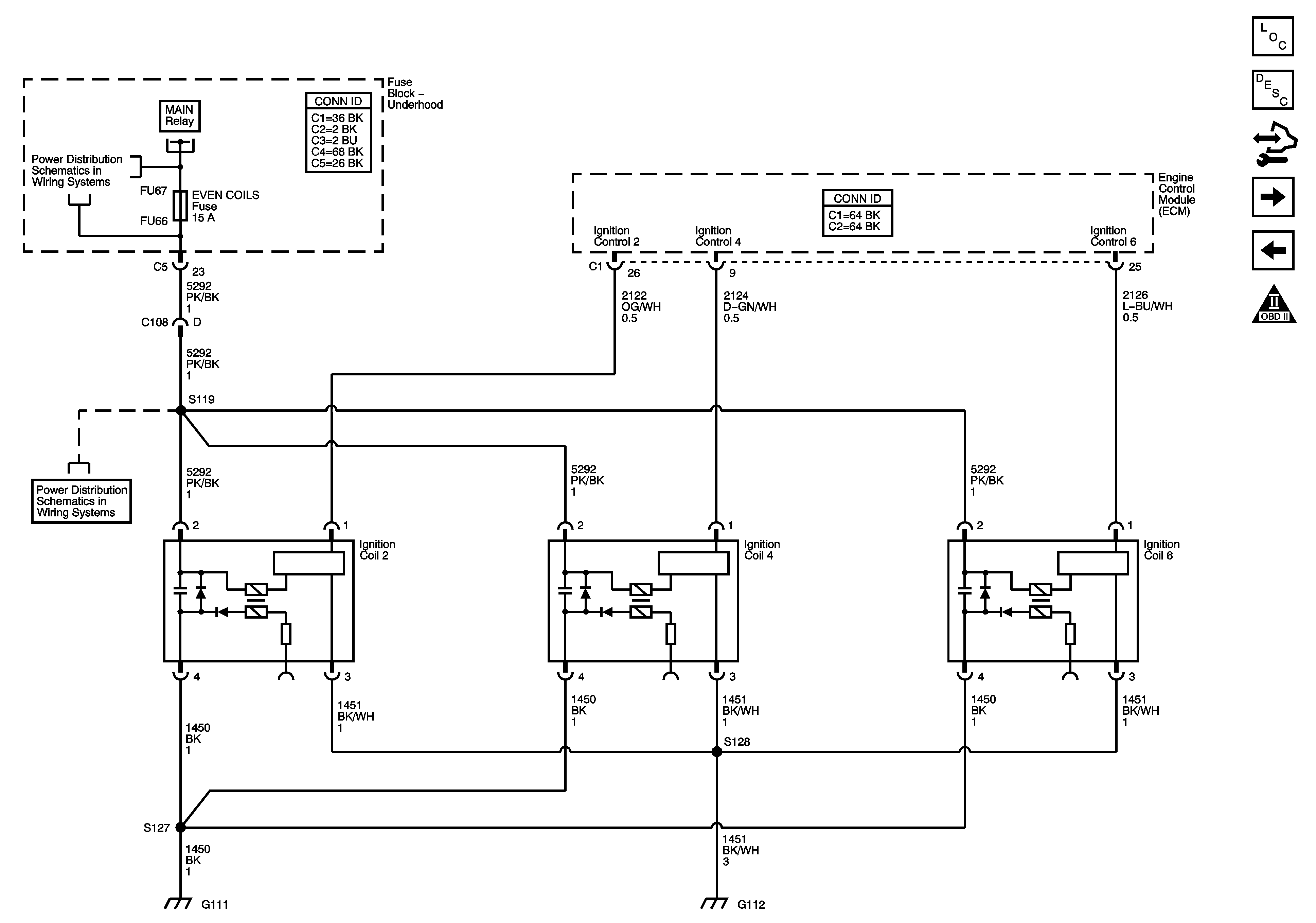

Figure 8:	Ignition Controls - Bank 2 Ignition Coils Master Electrical Component List Electronic Ignition (EI) System Description Control Module References Ignition Controls - CMP Sensors and Solenoids Ignition Controls - Bank 1 Ignition Coils Engine Controls Schematic Icons EVEN COILS, ODD COILS, and POST 02 FUSES Cooling Fans EVEN COILS, ODD COILS, and POST 02 FUSES

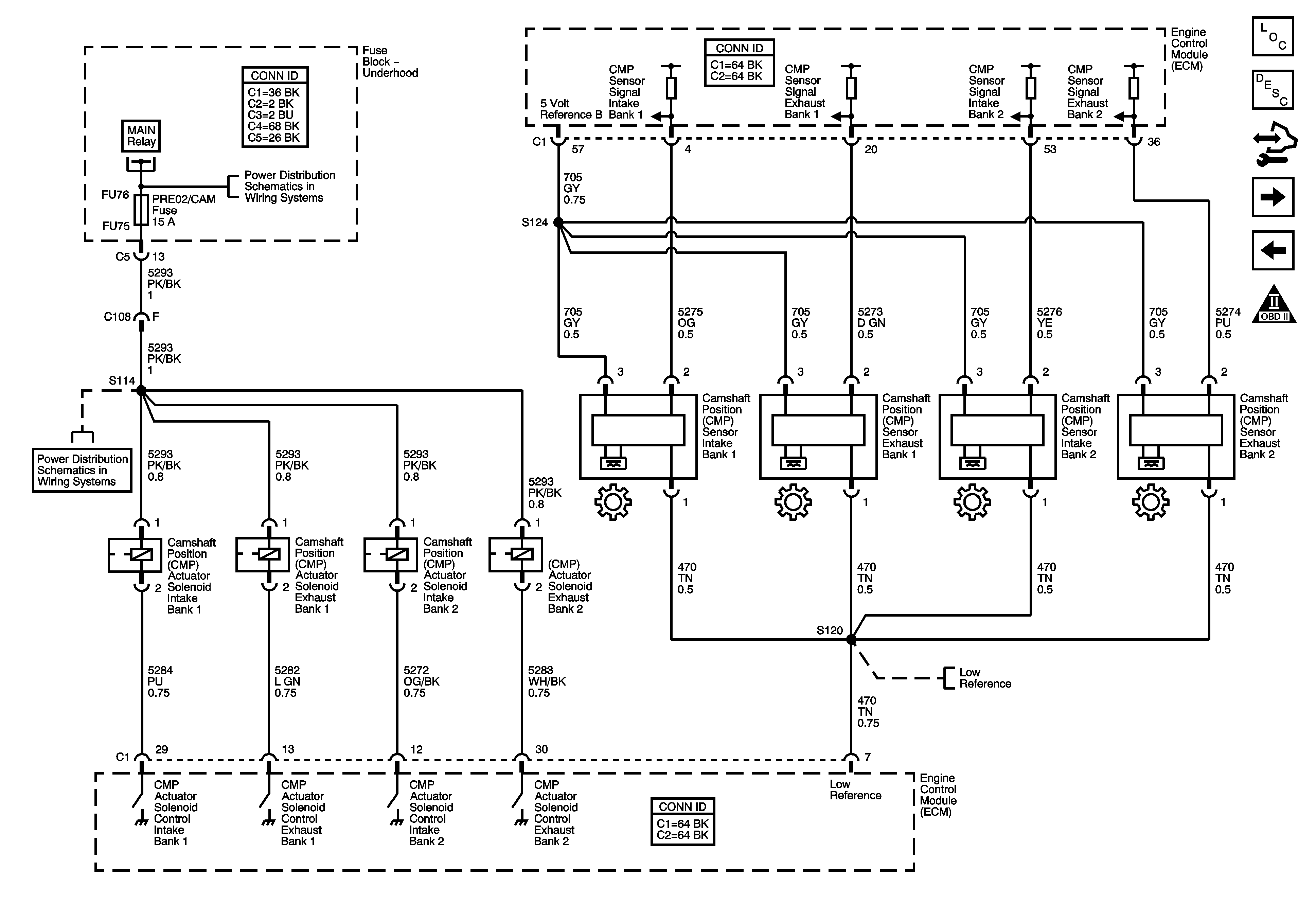

Figure 9:	Ignition Controls - CMP Sensors and Solenoids Master Electrical Component List Camshaft Actuator System Description Control Module References Ignition Controls - Engine Speed, CKP and Knock Sensors Ignition Controls - Bank 2 Ignition Coils Engine Controls Schematic Icons Cooling Fans HFVG, PRE 02/CAM, and V8 ECM Fuses HFVG, PRE 02/CAM, and V8 ECM Fuses Engine Data Sensors - Low Reference

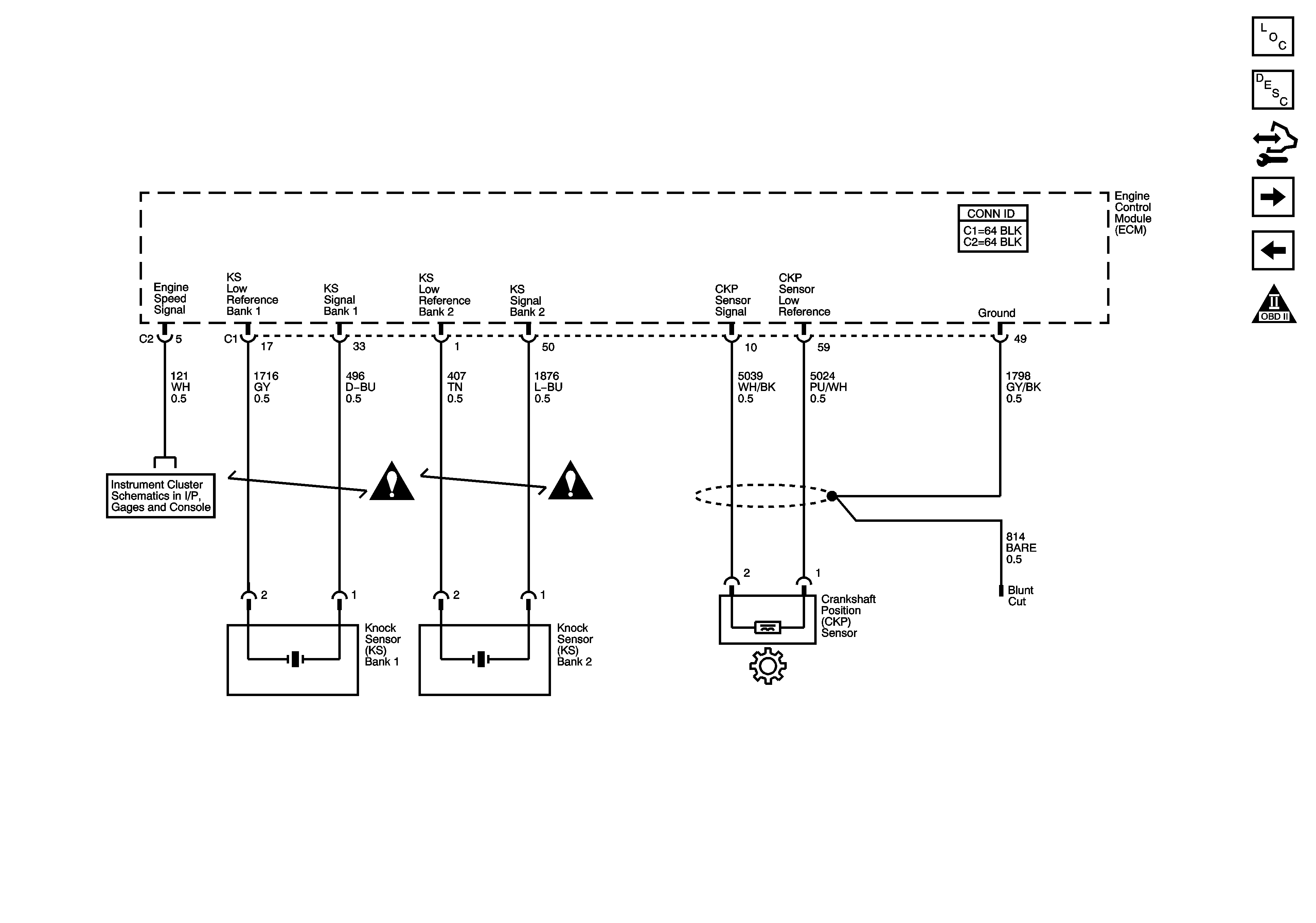

Figure 10:	Ignition Controls - Engine Speed, CKP and Knock Sensors Master Electrical Component List Knock Sensor (KS) System Description Control Module References Fuel Controls - Fuel Pump and Injectors Ignition Controls - CMP Sensors and Solenoids Engine Controls Schematic Icons Gages Engine Controls Schematic Icons Engine Controls Schematic Icons

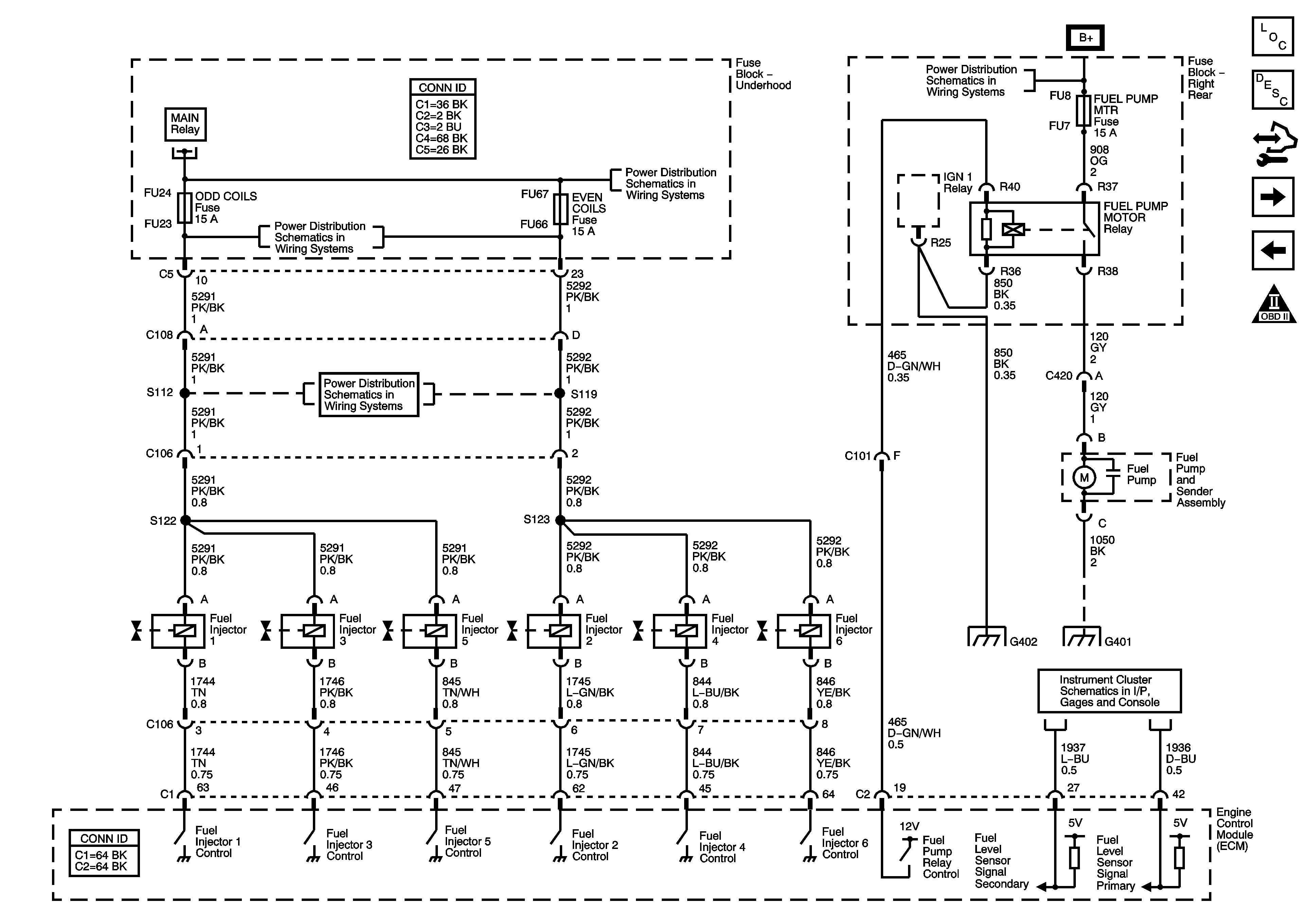

Figure 11:	Fuel Controls - Fuel Pump and Injectors Master Electrical Component List Fuel System Description Control Module References Fuel Controls - EVAP Controls Ignition Controls - Engine Speed, CKP and Knock Sensors Engine Controls Schematic Icons Cooling Fans Fuse Block - Right Rear B+ Bus EVEN COILS, ODD COILS, and POST 02 FUSES EVEN COILS, ODD COILS, and POST 02 FUSES EVEN COILS, ODD COILS, and POST 02 FUSES G402 - 1 of 2 G401 - 1 of 2 Gages

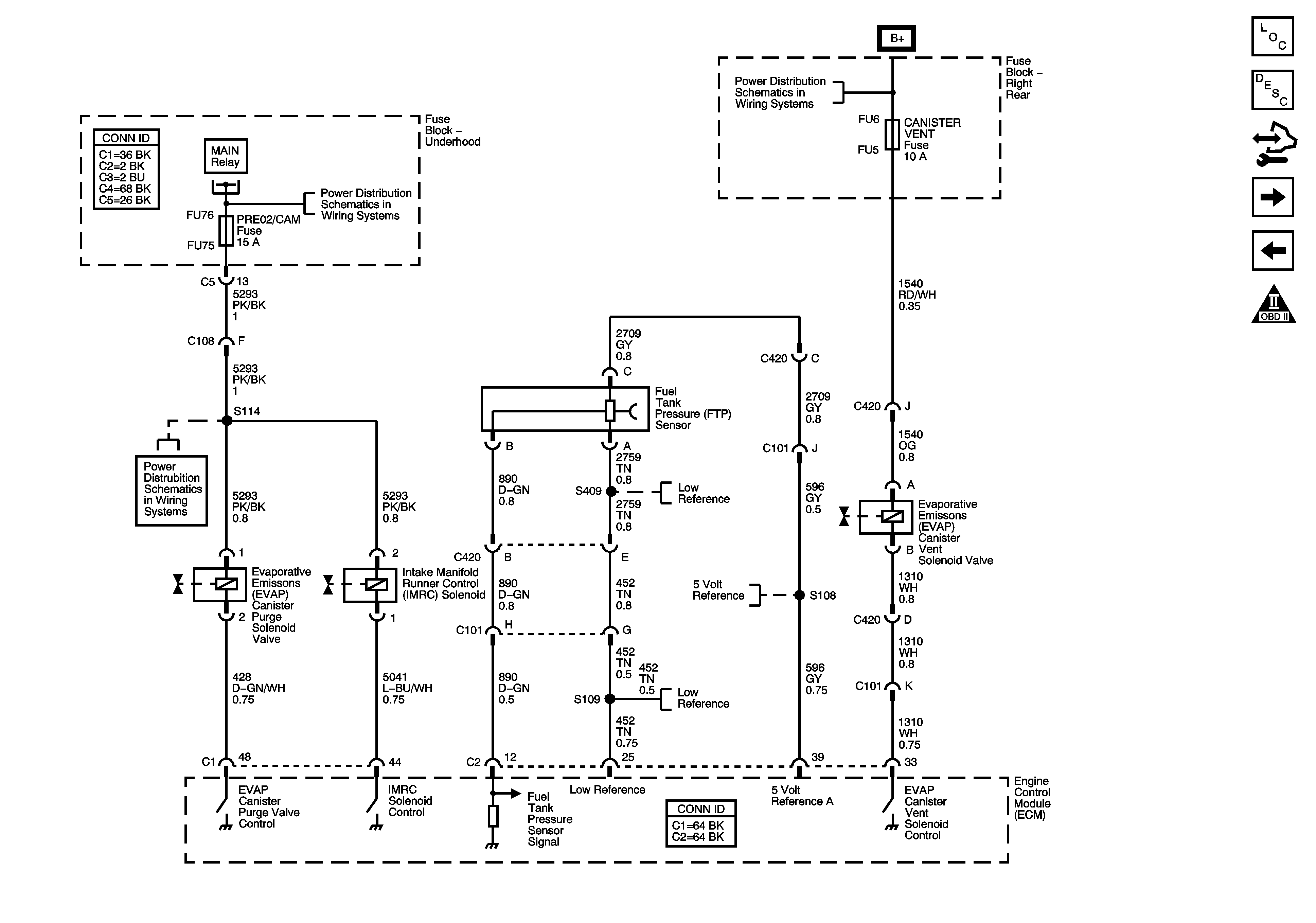

Figure 12:	Fuel Controls - EVAP Controls Master Electrical Component List Evaporative Emission Control System Description Control Module References Controlled/Monitored Subsystem References Fuel Controls - Fuel Pump and Injectors Engine Controls Schematic Icons Cooling Fans HFVG, PRE 02/CAM, and V8 ECM Fuses Fuse Block - Right Rear B+ Bus HFVG, PRE 02/CAM, and V8 ECM Fuses Engine Data Sensors - Low Reference Engine Data Sensors - 5-Volt Reference Engine Data Sensors - Low Reference

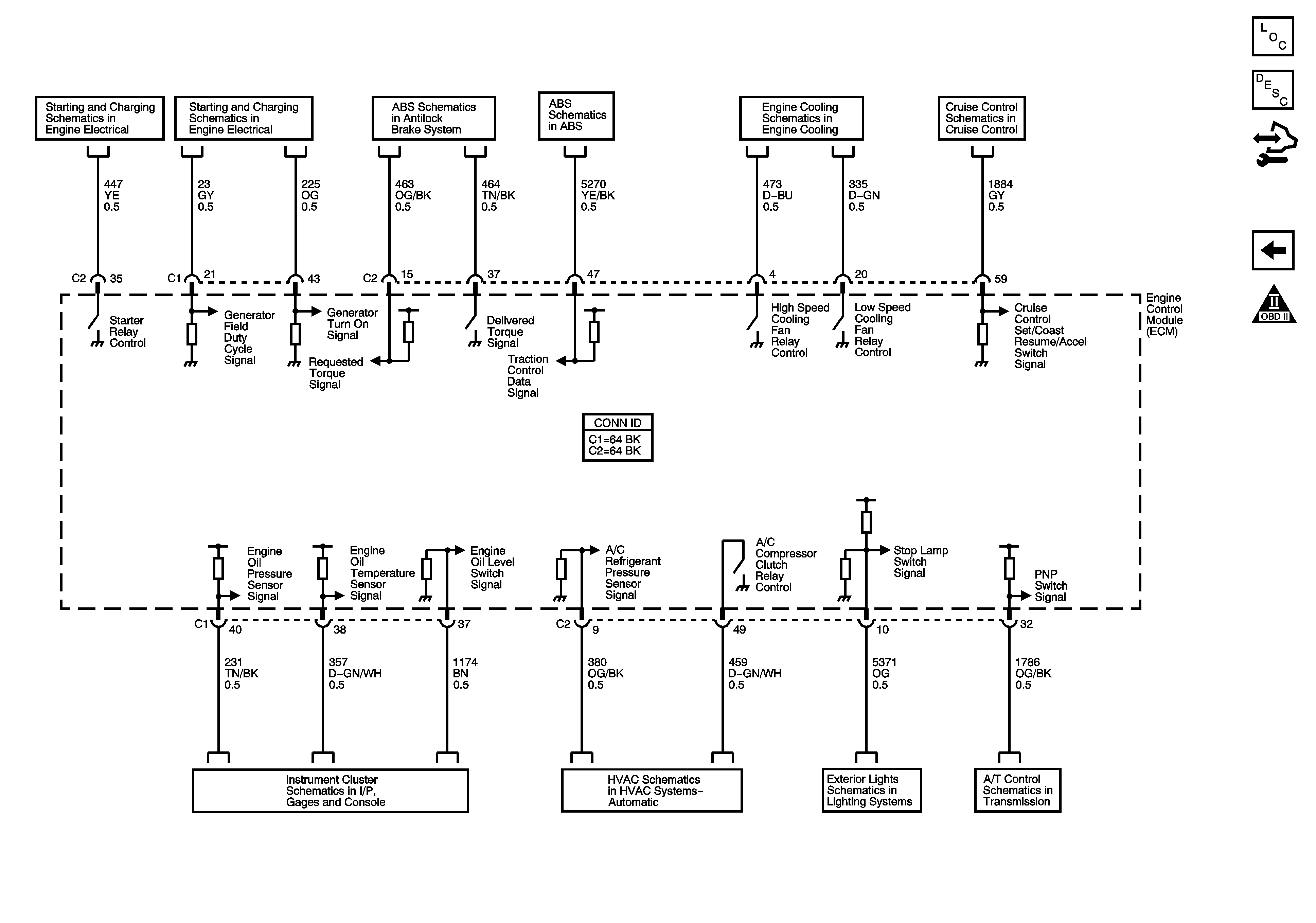

Figure 13:	Controlled/Monitored Subsystem References Master Electrical Component List Engine Control Module Description Control Module References Fuel Controls - EVAP Controls Engine Controls Schematic Icons Starting System Charging System Indicator,Traction Control, and Brake Pedal Position Indicator,Traction Control, and Brake Pedal Position Cooling Fans Cruise Control Schematic Indicators Serial Data and A/C Compressor Controls Tail Lamps and Stop Lamps - Domestic Power, Ground, Serial Data and Switches
