Body Control System Schematics. Cadillac SRX 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Body Control System Schematics

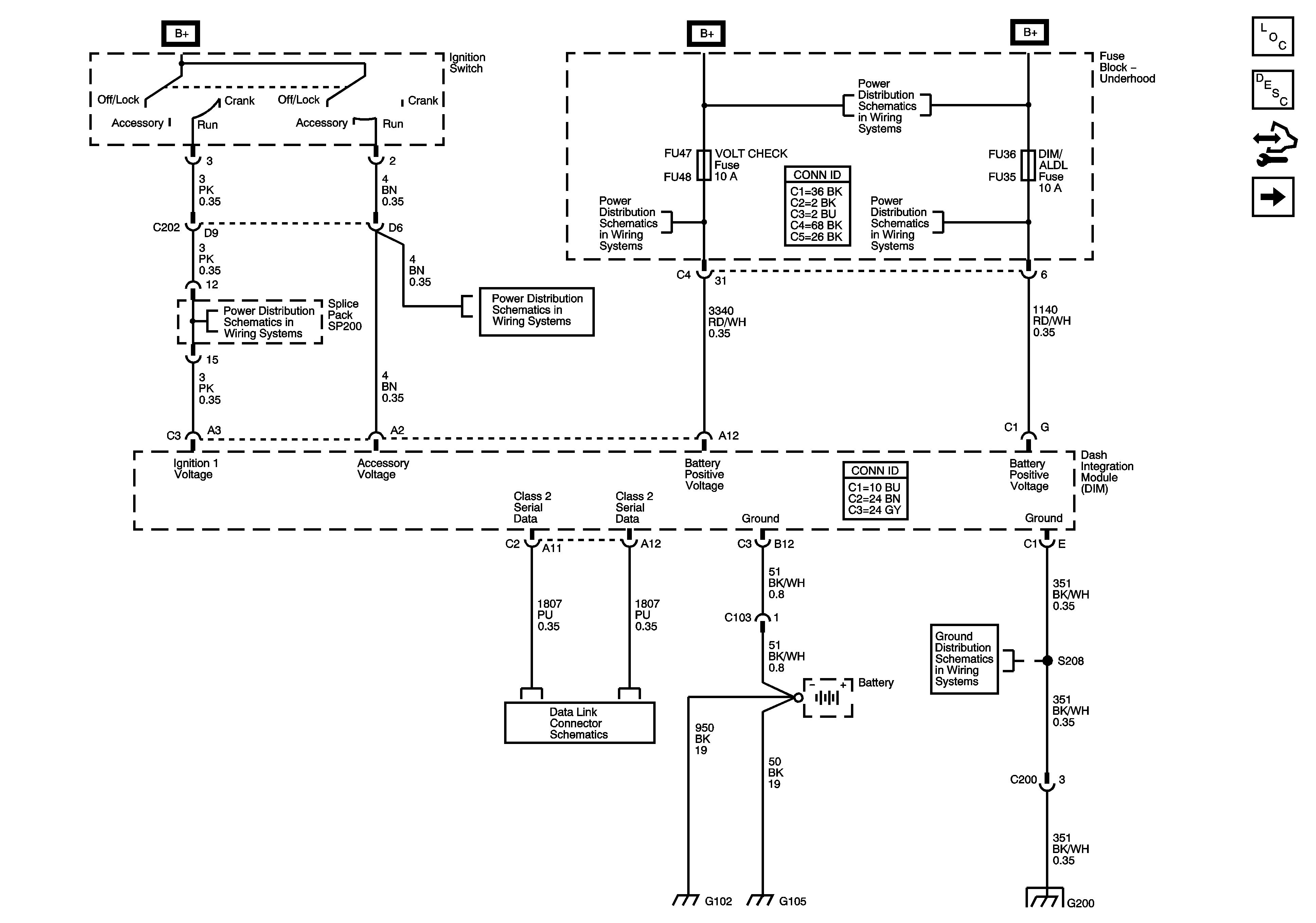

Figure 1:	DIM Power, Ground, and Serial Data Master Electrical Component List Body Control System Description and Operation Control Module References DIM Inputs and Outputs - 1 of 2 Fuse Block - Underhood B+ Bus Schematic CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, Flasher, and VOLT CHECK Fuses CCP (B+), DIM/ALDL, EBCM (B+), ECM/TCM, Flasher, and VOLT CHECK Fuses RIM and THEFT Fuses and Ignition Switch - 2 of 2 RIM and THEFT Fuses and Ignition Switch - 2 of 2 Class 2 Serial Data - 1 of 2 G200 G200

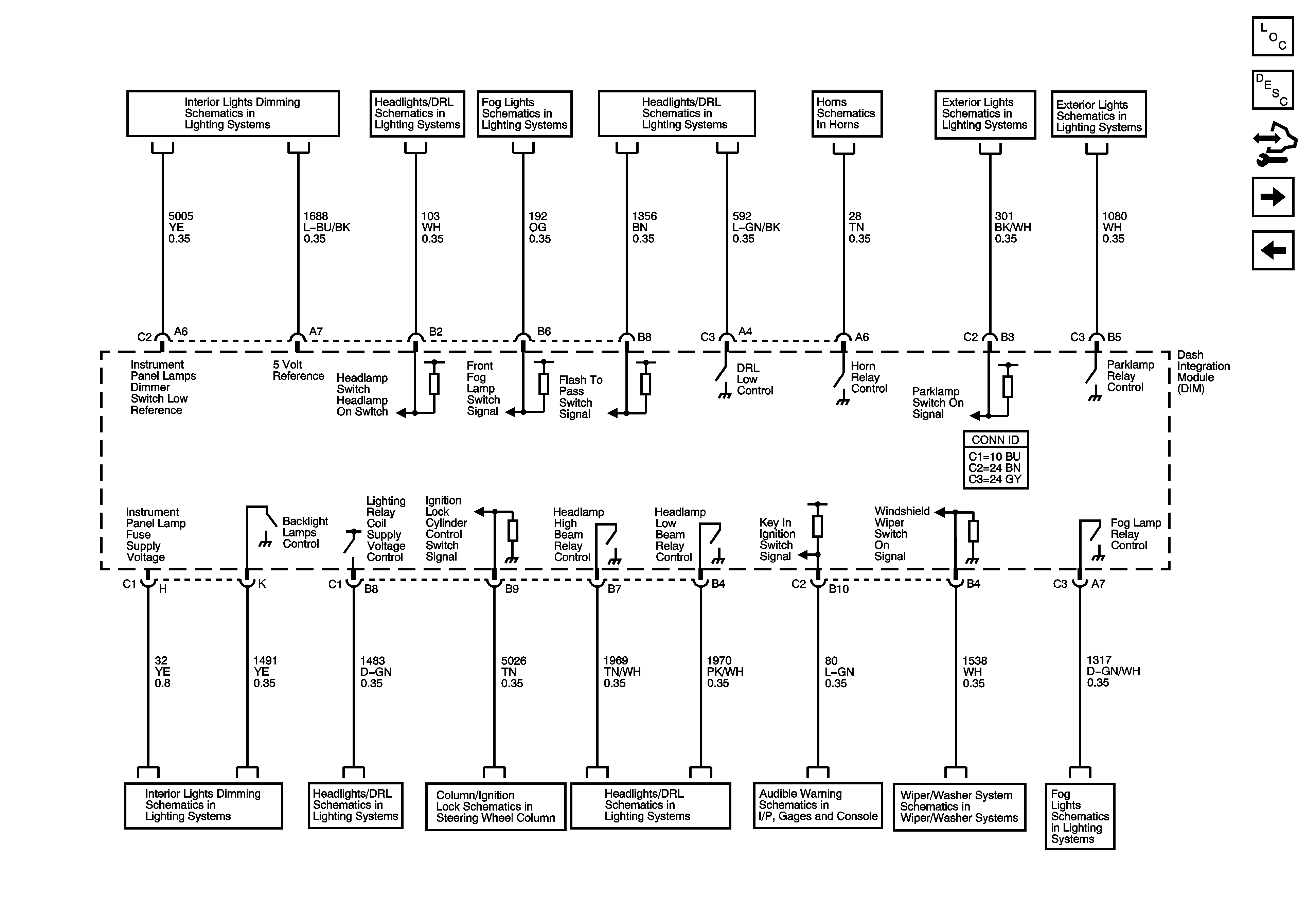

Figure 2:	DIM Inputs and Outputs - 1 of 2 Master Electrical Component List Body Control System Description and Operation Control Module References DIM Inputs and Outputs - 2 of 2 DIM Power, Ground, and Serial Data Interior Lamps Dimming Controls Headlamp Controls Front Fog Lamps Headlamp Controls Horns Schematic Headlamp Controls Park Lamp Controls and Indicators Interior Lamps Dimming Controls Headlamp Controls Ignition Lock Schematic Headlamp Controls Audible Warnings Front Wiper/Washer Controls Front Fog Lamps

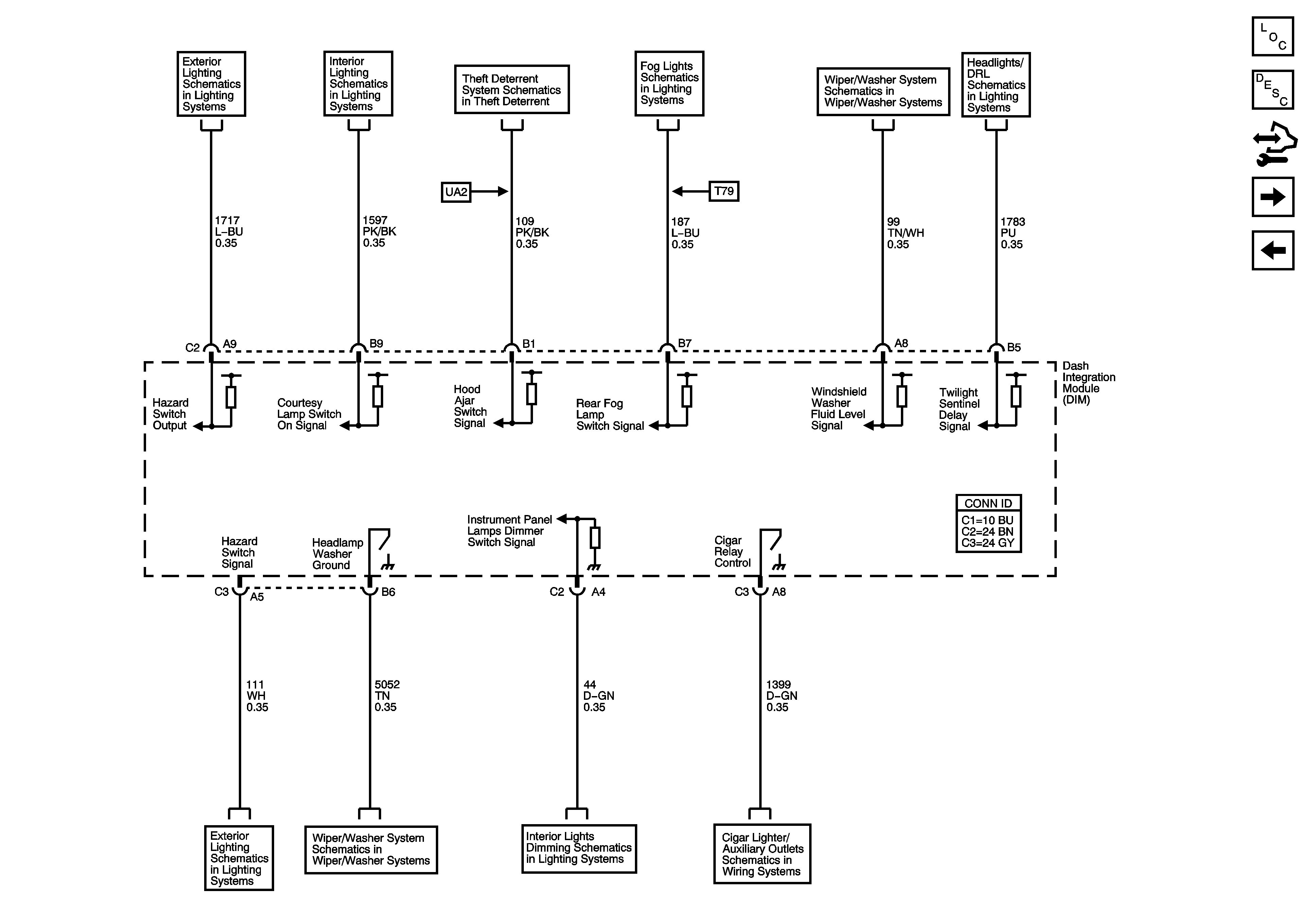

Figure 3:	DIM Inputs and Outputs - 2 of 2 Master Electrical Component List Body Control System Description and Operation Control Module References RIM Power, Ground, and Serial Data DIM Inputs and Outputs - 1 of 2 Turn Signal/Hazard Flasher Module Courtesy/Reading Lamps Content Theft Deterrent (CTD) Rear Fog Lamps Front Washer (CE4) Headlamp Controls Turn Signal/Hazard Flasher Module Front Washer (CE4) Courtesy/Reading Lamps Cigar Lighter and Auxiliary Outlet Schematic

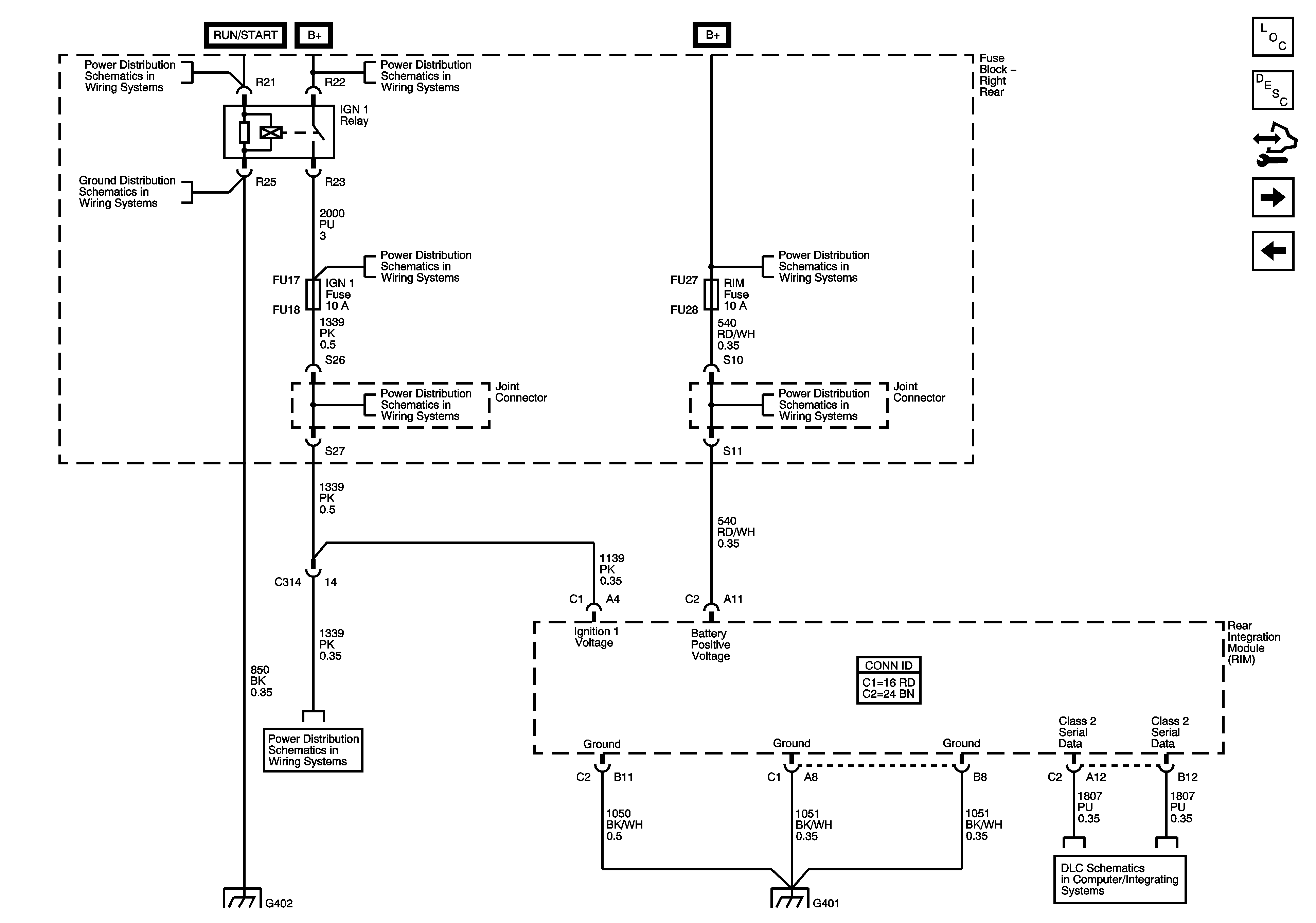

Figure 4:	RIM Power, Ground, and Serial Data Master Electrical Component List Body Control System Description and Operation Control Module References RIM Inputs and Outputs DIM Inputs and Outputs - 2 of 2 RIM and THEFT Fuses and Ignition Switch - 2 of 2 Fuse Block - Right Rear B+ Bus G402 - 1 of 2 AIR BAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, and IGN 3 Fuses Fuse Block - Right Rear B+ Bus AIR BAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, and IGN 3 Fuses RIM and THEFT Fuses and Ignition Switch - 2 of 2 AIR BAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, and IGN 3 Fuses G402 - 1 of 2 G401 - 1 of 2 Class 2 Serial Data - 2 of 2

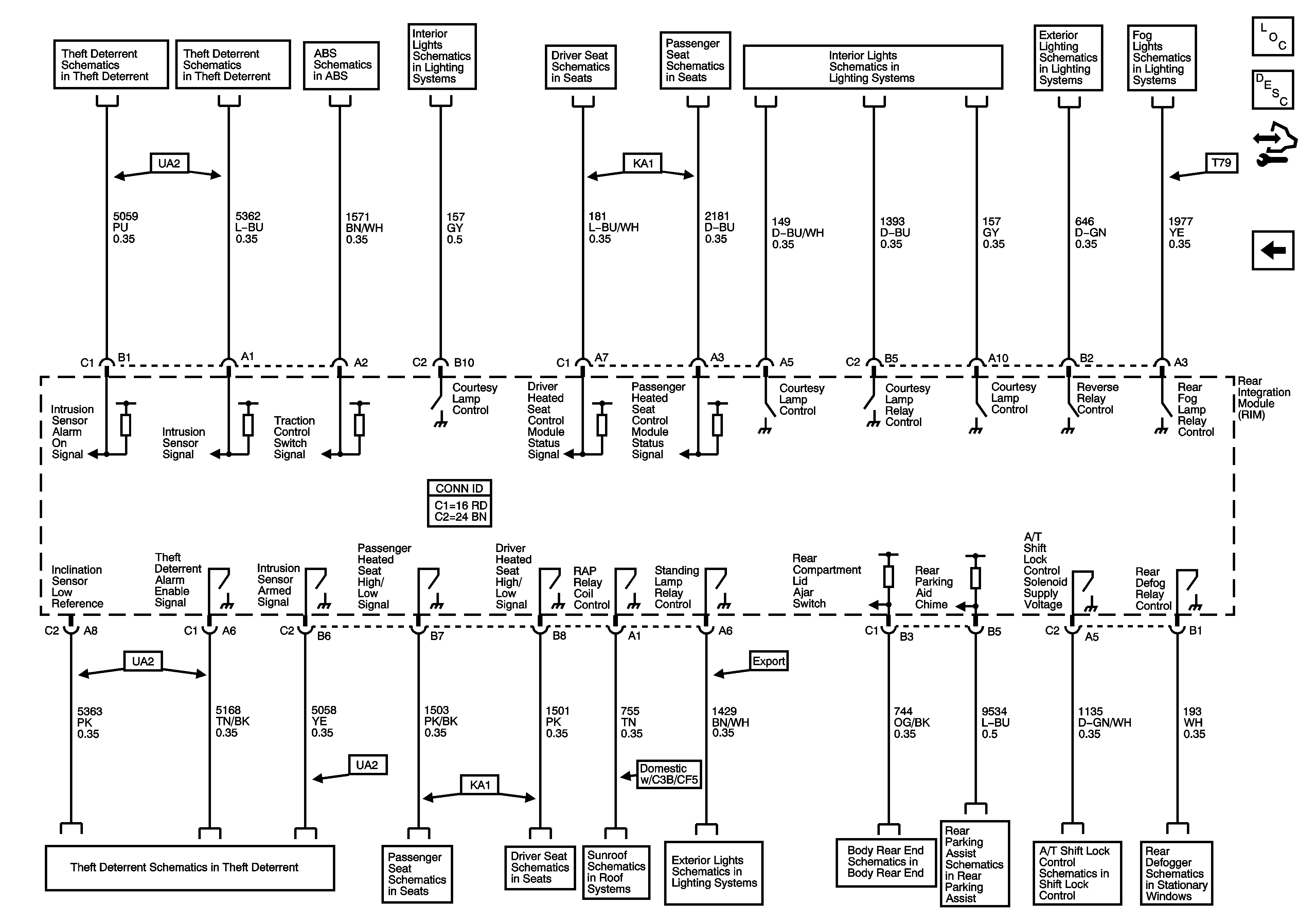

Figure 5:	RIM Inputs and Outputs Master Electrical Component List Body Control System Description and Operation Control Module References RIM Power, Ground, and Serial Data Content Theft Deterrent (CTD) Sensors and Sirens (UA2) Content Theft Deterrent (CTD) Sensors and Sirens (UA2) Indicator,Traction Control, and Brake Pedal Position Courtesy/Reading Lamps Heated Seat (KA1) Heated Seat Courtesy Lamps Backup Lamps Rear Fog Lamps Content Theft Deterrent (CTD) Sensors and Sirens (UA2) Heated Seat Heated Seat (KA1) Rear Sunshade Position Lamp Controls - Export Liftgate Adjar Schematic Rear Parking Assist Schematic Shift Lock Schematic Defogger Schematic
