Exterior Lights Schematics. Cadillac SRX 2005

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 2005 🢒 SRX 🢒 Body 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Figure 1:	Turn Signal/Hazard Flasher Module Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Turn Lamps - Domestic Fuse Block - Underhood B+ Bus Schematic RIM and THEFT Fuses and Ignition Switch - 2 of 2 Fuse Block - Underhood B+ Bus Schematic G104 ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses G104 ABS, STARTER RLY, STRG CTLS, TCM/IPC, and WASH NOZ Fuses Turn Lamps - Export Interior Lamps Dimming Controls G402 - 1 of 2 G401 - 1 of 2 Indicators G200
Figure 2:	Turn Lamps - Domestic Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Turn Lamps - Export Turn Signal/Hazard Flasher Module Turn Signal/Hazard Flasher Module Turn Signal/Hazard Flasher Module G104 G402 - 1 of 2 G401 - 1 of 2
Figure 3:	Turn Lamps - Export Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Park Lamp Controls and Indicators Turn Lamps - Domestic Turn Signal/Hazard Flasher Module Turn Signal/Hazard Flasher Module Turn Signal/Hazard Flasher Module G104 G402 - 1 of 2 G401 - 1 of 2
Figure 4:	Park Lamp Controls and Indicator Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Parking Lamps - Domestic Turn Lamps - Export Headlamp Controls Class 2 Serial Data - 1 of 2 Headlamp Controls G200

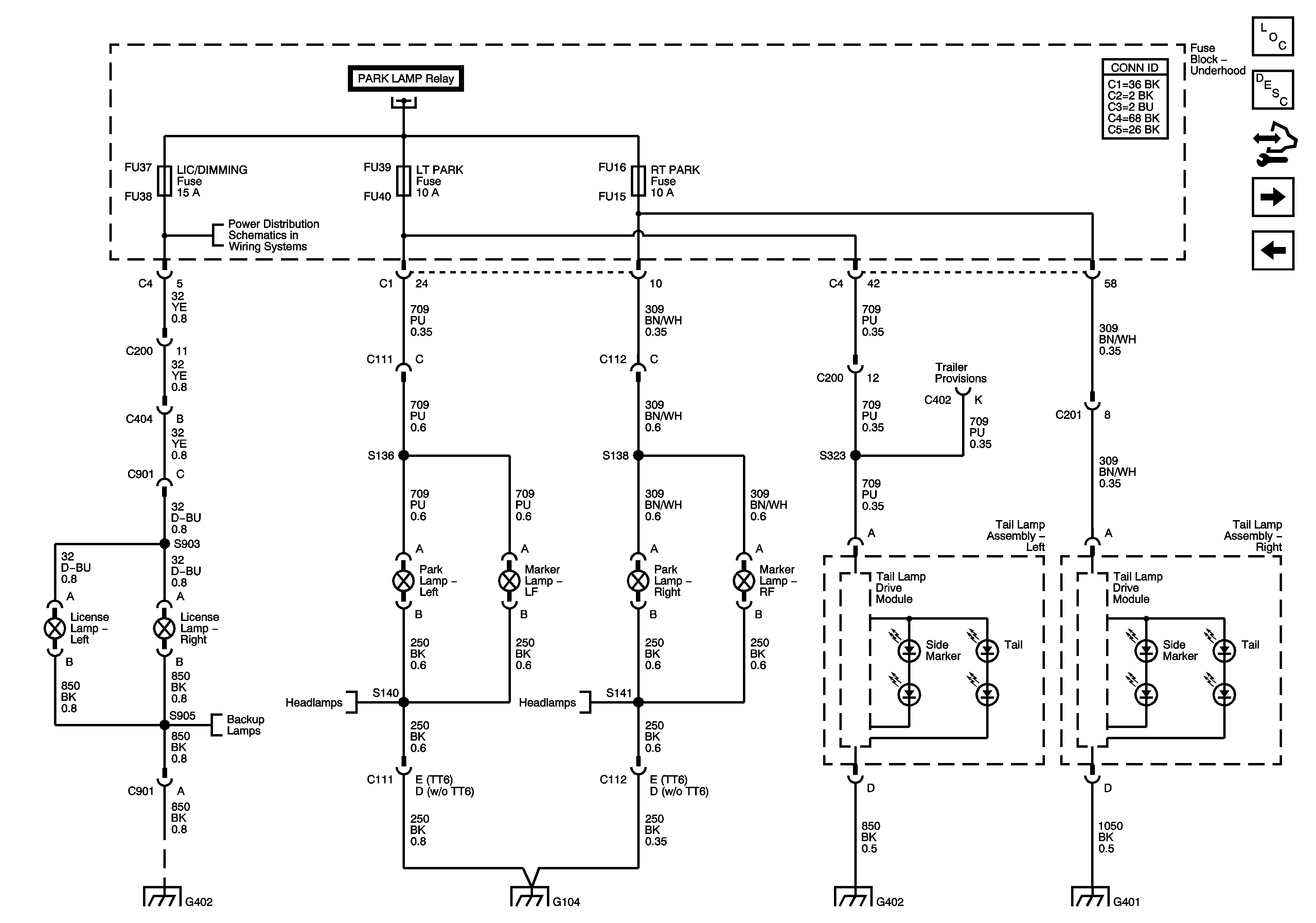

Figure 5:	Parking Lamps - Domestic Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Position Lamp Controls - Export Park Lamp Controls and Indicators Park Lamp Controls and Indicators LIC/DIMMING, LT PARK, and RT PARK Fuses Backup Lamps Headlamps - Domestic Headlamps - Domestic G402 - 2 of 2 G104 G402 - 1 of 2 G401 - 1 of 2
Figure 6:	Position Lamp Controls - Export Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Parking Lamps - Export Parking Lamps - Domestic Park Lamp Controls and Indicators LIC/DIMMING, LT PARK, and RT PARK Fuses Parking Lamps - Export Parking Lamps - Export Parking Lamps - Export Parking Lamps - Export G200

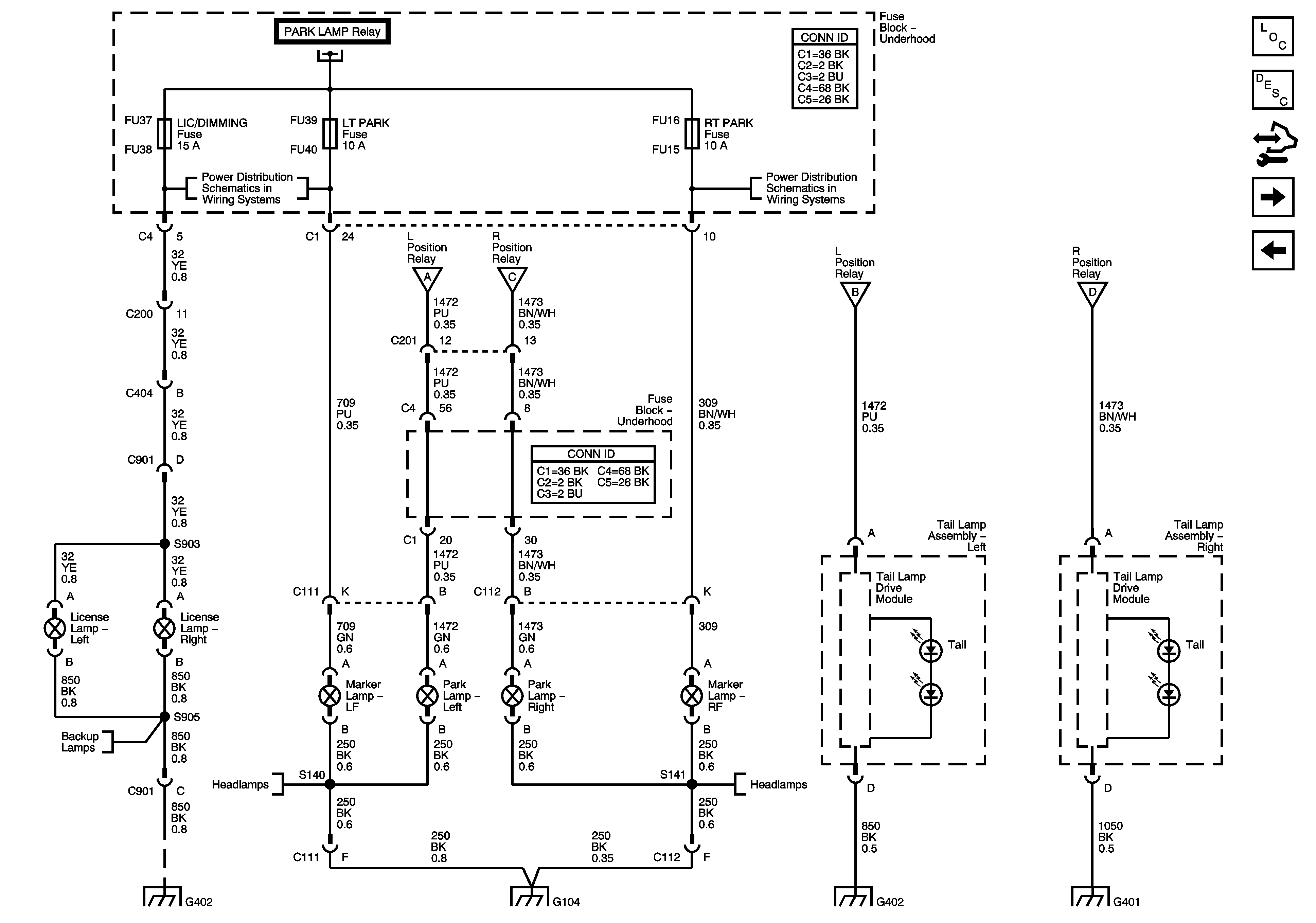

Figure 7:	Parking Lamps - Export Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Tail Lamps and Stop Lamps - Domestic Position Lamp Controls - Export Park Lamp Controls and Indicators LIC/DIMMING, LT PARK, and RT PARK Fuses LIC/DIMMING, LT PARK, and RT PARK Fuses Position Lamp Controls - Export Position Lamp Controls - Export Park Lamp Controls and Indicators Park Lamp Controls and Indicators Backup Lamps Headlamps - Export Headlamps - Export G402 - 2 of 2 G104 G402 - 1 of 2 G401 - 1 of 2

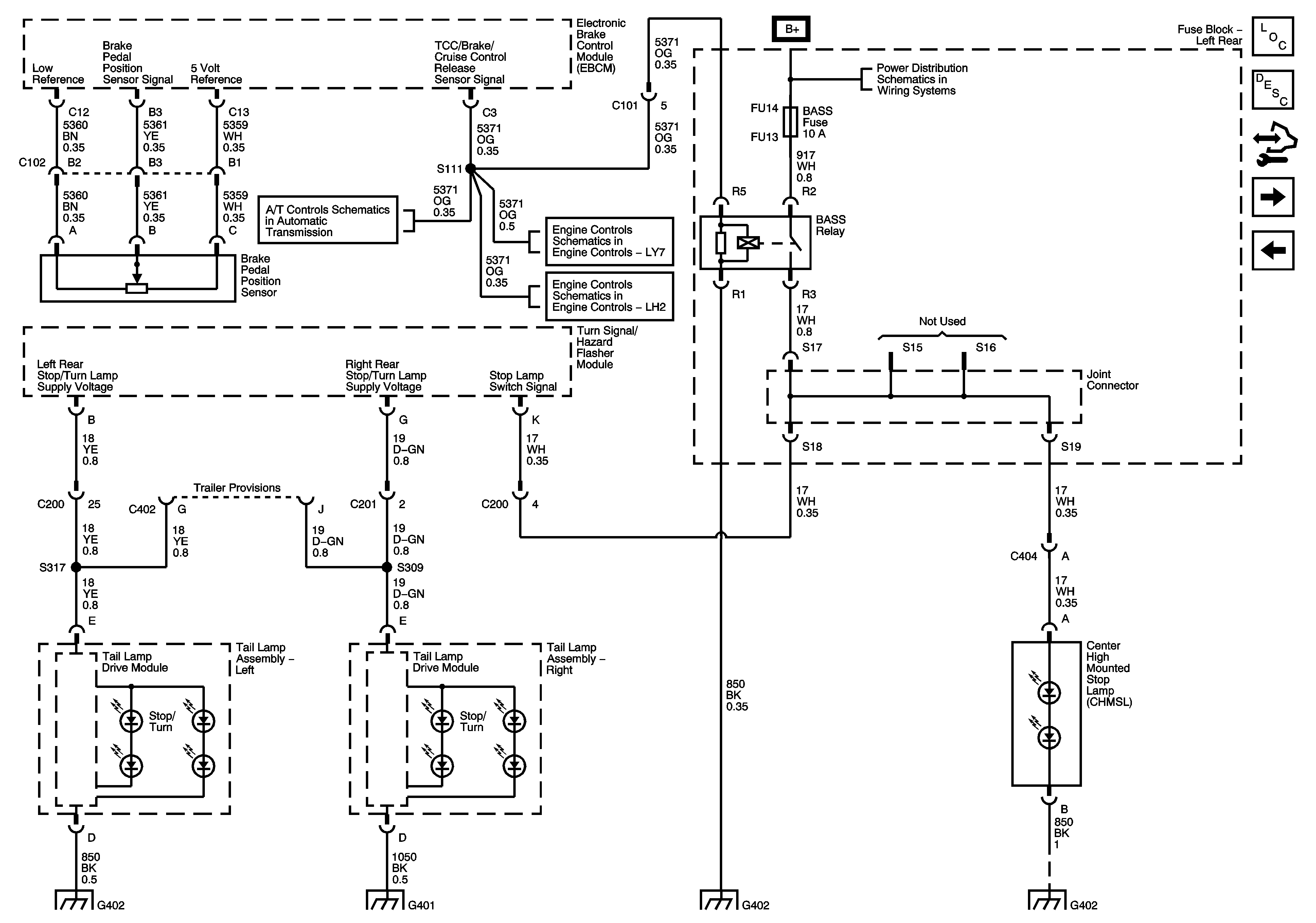

Figure 8:	Stop Lamps - Domestic Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Tail Lamps and Stop Lamps - Export Parking Lamps - Export Power, Ground, Serial Data and Switches Controlled/Monitored Subsystem References Controlled/Monitored Subsystem References Fuse Block - Left Rear B+ Bus G402 - 1 of 2 G401 - 1 of 2 G402 - 1 of 2 G402 - 2 of 2
Figure 9:	Stop Lamps - Export Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Backup Lamps Tail Lamps and Stop Lamps - Domestic Power, Ground, Serial Data and Switches Controlled/Monitored Subsystem References Controlled/Monitored Subsystem References Fuse Block - Left Rear B+ Bus G402 - 1 of 2 G401 - 1 of 2 G402 - 1 of 2 G402 - 2 of 2
Figure 10:	Backup Lamps Master Electrical Component List Exterior Lighting Systems Description and Operation Control Module References Tail Lamps and Stop Lamps - Export FFS Sw, FFSM, Bass Fuses, and BASS Relay Schematic Class 2 Serial Data - 2 of 2 Fuse Block - Left Rear B+ Bus Inside Rearview Mirror Schematic Rear Parking Assist Schematic G402 - 2 of 2
